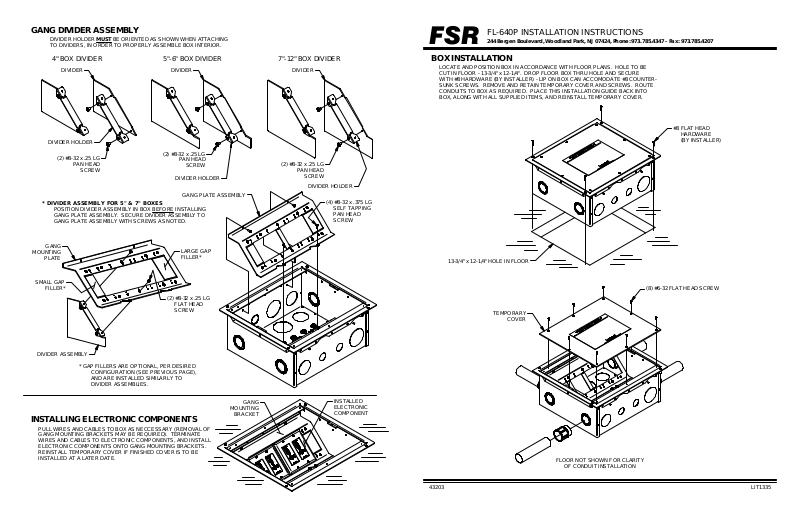

FSR FL-640P User Manual

GANG DIVIDER ASSEMBLY

DIVIDER HOLDER MUST
TO DIVIDERS, IN ORDER TO PROPERLY ASSEMBLE BOX INTERIOR.

BE ORIENTED AS SHOWN WHEN ATTACHING

FSR

FL-640P INSTALLATION INSTRUC TIONS

244 Bergen Boulevard, Woodland Park, NJ 07424, Phone: [phone] - Fax: [phone]

4" BOX DIVIDER 5"-6" BOX DIVIDER 7"-12" BOX DIVIDER

DIVIDER

DIVIDER HOLDER

(2) #8-32 x .25 LG

PAN HEAD

SCREW

* DIVIDER ASSEMBLY FOR 5" & 7" BOXES

POSITION DIVIDER ASSEMBLY IN BOX BEFORE INSTALLING
GANG PLATE ASSEMBLY. SECURE DIVIDER ASSEMBLY TO
GANG PLATE ASSEMBLY WITH SCREWS AS NOTED.

GANG

MOUNTING

PLATE

DIVIDER

(2) #8-32 x .25 LG

PAN HEAD

DIVIDER HOLDER

LARGE GAP
FILLER*

SCREW

GANG PLATE ASSEMBLY

DIVIDER

(2) #8-32 x .25 LG

PAN HEAD

SCREW

DIVIDER HOLDER

(4) #8-32 x .375 LG
SELF TAPPING
PAN HEAD
SCREW

BOX INSTALLATION

LOCATE AND POSITION BOX IN ACCORDANCE WITH FLOOR PLANS. HOLE TO BE
CUT IN FLOOR - 13-3/4" x 12-1/4". DROP FLOOR BOX THRU HOLE AND SECURE
WITH #8 HARDWARE (BY INST ALLE R) - LIP ON BOX CAN ACCOMODATE #8 COUNTER­SUNK SCREWS. REMOVE AND RETAIN TEMPORARY COVER AND SCREWS. ROUTE
CONDUITS TO BOX AS REQUIRED. PLACE THIS INSTALLATION GUIDE BACK INTO
BOX, ALONG WITH ALL SUPPLIED ITEMS, AND REINSTALL TEMPORARY COVER.

13-3/4" x 12-1/4" HOLE IN FLOOR

#8 FLAT HEAD
HARDWARE
(BY INSTALLER)

SMALL GAP

FILLER*

(2) #8-32 x .25 LG
FLAT HEAD
SCREW

DIVIDER ASSEMBLY

* GAP FILLERS ARE OPTIONAL, PER DESIRED
CONFIGURATION (SEE PREVIOUS PAGE),
AND ARE INSTALLED SIMILARLY TO
DIVIDER ASSEMBLIES.

INSTALLING ELECTRONIC COMPONENTS

PULL WIRES AND CABLES TO BOX AS NECCESSARY (REMOVAL OF
GANG MOUNTING BRACKETS MAY BE REQUIRED). TERMINATE
WIRES AND CABLES TO ELECTRONIC COMPONENTS, AND INSTALL
ELECTRONIC COMPONENTS ONTO GANG MOUNTING BRACKETS.
REINSTALL TEMPORARY COVER IF FINISHED COVER IS TO BE
INSTALLED AT A LATER DATE.

GANG

MOUNTING

BRACKET

(8) #6-32 FLAT HEAD SCREW

TEMPORARY

COVER

INSTALLED
ELECTRONIC
COMPONENT

FLOOR NOT SHOWN FOR CLARITY

OF CONDUIT INSTALLATION

43203 LIT1335

TYPICAL INSTALLATION

CARPET OVER CONCRETE (COVER WITH EDGING)

TEMPORARY COVER

CARPET

EDGING

GANG MOUNTING BRACKET CONFIGURATION

PER CUSTOMER SPECIFICATIONS, CONFIGURE GANG MOUNTING BRACKETS AS
SHOWN BELOW AND REASSEMBLE INTO BOX.

5 OR 6 GANG MOUNTING PLATE

DIVIDER HOLDER

LARGE GAP FILLER

6 GANG SIDE

FLOORING

FLOOR BOX

MATERIAL

FLOORING

MATERIAL

VINYL FLOORING OVER CONCRETE (COVER WITHOUT EDGING)

TEMPORARY COVER

FLOORING

MATERIAL

VINYL FLOORING

FLOOR BOX

FLOORING

MATERIAL

FINISH COVER

FLOOR BOX

FINISH COVER

FLOOR BOX

SMALL GAP FILLER

OPTIONAL DIVIDER

5 GANG SIDE

"5 GANG SIDE" MOUNTING BRACKET CONFIGURATIONS

1G 1G 2G 1G 1G 3G 1G 3G 1G 1G 4G

2G 2G 2G 3G 4G 1G 5G

"6 GANG SIDE" MOUNTING BRACKET CONFIGURATIONS

CENTER DIVIDER CONFIGURATION (NOT APPLICABLE ON 4" BOX)

SET ASIDE TEMPORARY COVER AND SCREWS FOR POSSIBLE RE-INSTALLATION.
REMOVE AND RETAIN GANG MOUNTING BRACKETS AND SCREWS TO CONFIGURE
CENTER DIVIDERS.

REMOVABLE SMALL CENTER DIVIDER

REMOVABLE LARGE CENTER DIVIDER

POSSIBLE GANG DIVIDER LOCATION

REMOVABLE SMALL CENTER DIVIDER

REMOVABLE LARGE CENTER DIVIDER

"6 GANG SIDE"

"5 GANG SIDE"

1G 3G 1G 3G

2G 2G 2G 2G

3G 2G 4G 1G 6G

1G 4G

2G 2G

2G 3G 3G 1G
