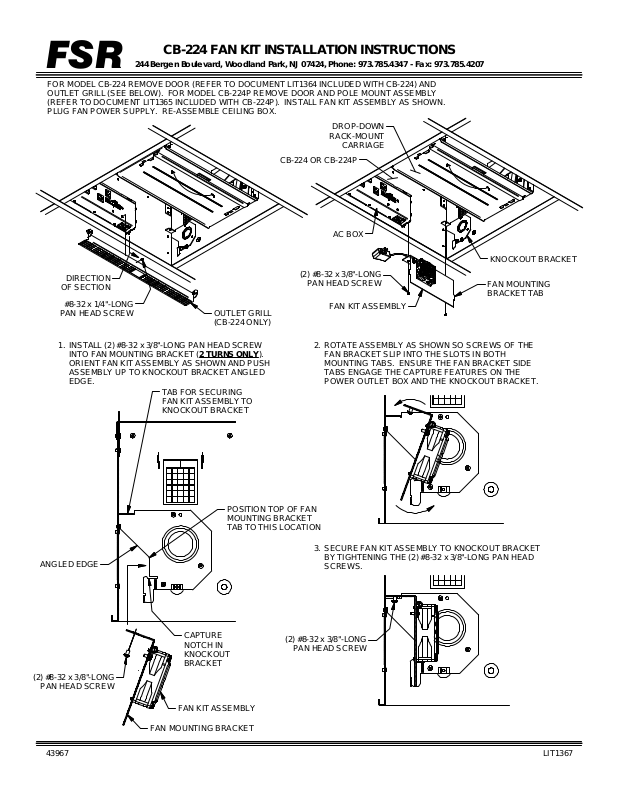

CB-224 FAN KIT INSTALLATION INSTRUCTIONS

FSR

FOR MODEL CB-224 REMOVE DOOR (REFER TO DOCUMENT LIT1364 INCLUDED WITH CB-224) AND
OUTLET GRILL (SEE BELOW). FOR MODEL CB-224P REMOVE DOOR AND POLE MOUNT ASSEMBLY
(REFER TO DOCUMENT LIT1365 INCLUDED WITH CB-224P). INSTALL FAN KIT ASSEMBLY AS SHOWN.
PLUG FAN POWER SUPPLY. RE-ASSEMBLE CEILING BOX.

DIRECTION

OF SECTION

#8-32 x 1/4"-LONG

PAN HEAD SCREW

244 Bergen Boulevard, Woodland Park, NJ 07424, Phone: [phone] - Fax: [phone]

DROP-DOWN

RACK-MOUNT

CARRIAGE

CB-224 OR CB-224P

AC BOX

(2) #8-32 x 3/8"-LONG

PAN HEAD SCREW

OUTLET GRILL
(CB-224 ONLY)

FAN KIT ASSEMBLY

KNOCKOUT BRACKET

FAN MOUNTING
BRACKET TAB

INSTALL (2) #8-32 x 3/8"-LONG PAN HEAD SCREW
INTO FAN MOUNTING BRACKET (2 TURNS ONLY
ORIENT FAN KIT ASSEMBLY AS SHOWN AND PUSH
ASSEMBLY UP TO KNOCKOUT BRACKET ANGLED
EDGE.

ANGLED EDGE

(2) #8-32 x 3/8"-LONG

PAN HEAD SCREW

TAB FOR SECURING
FAN KIT ASSEMBLY TO
KNOCKOUT BRACKET

POSITION TOP OF FAN
MOUNTING BRACKET
TAB TO THIS LOCATION

CAPTURE
NOTCH IN
KNOCKOUT
BRACKET

).

(2) #8-32 x 3/8"-LONG

PAN HEAD SCREW

2.1.

ROTATE ASSEMBLY AS SHOWN SO SCREWS OF THE
FAN BRACKET SLIP INTO THE SLOTS IN BOTH
MOUNTING TABS. ENSURE THE FAN BRACKET SIDE
TABS ENGAGE THE CAPTURE FEATURES ON THE
POWER OUTLET BOX AND THE KNOCKOUT BRACKET.

3.

SECURE FAN KIT ASSEMBLY TO KNOCKOUT BRACKET
BY TIGHTENING THE (2) #8-32 x 3/8"-LONG PAN HEAD
SCREWS.

FAN KIT ASSEMBLY

FAN MOUNTING BRACKET

43967 LIT1367
