Frymaster FPRE217, FPRE222 PARTS LIST

Re Series Marine E4 Electric Fryers

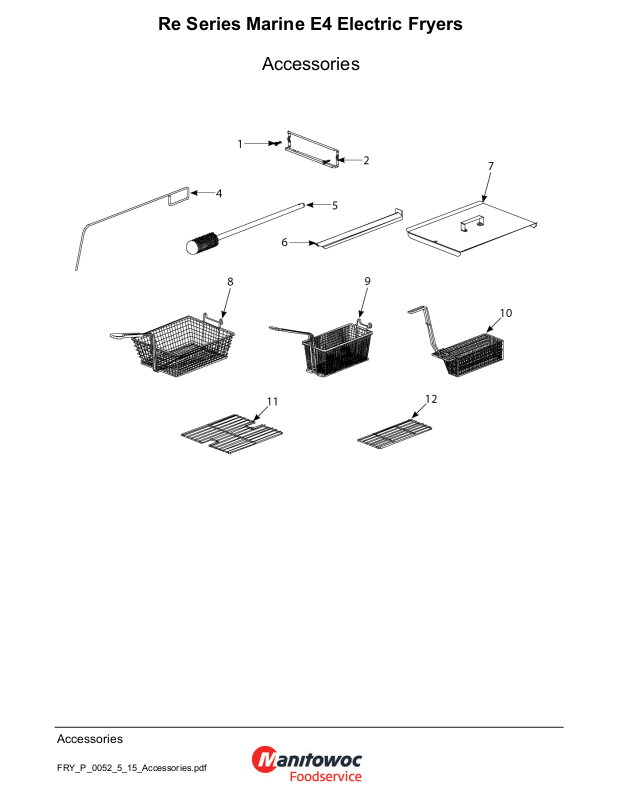

Accessories

Accessories

FRY_P_0052_5_15_Accessories.pdf

Re Series Marine E4 Electric Fryers

Accessories

# PART # DESCRIPTION QTY Note

1 8090171 Thumbscrew, 0.25-20 x 1.375-inch 1
2 8102793 Hanger - Wireform Basket 1
2a 8102794 Basket Hanger 1
3 8090921-FRY Spacer, Basket Hanger 1
4 8030197 Fryer’s Friend 1
5 8030209 Brush, Frypot 1
6 8235772 Connecting Strip, Frypot 1
6a 8236000 Connecting Strip, Frypot (for LH) 1
6b 8235966 Connecting Strip, Frypot (for RH Fryer 0.5) 1
6c 8235807 Connecting Strip, Frypot Deep Cabinet 1
7 8063068 Cover, Full-Vat Frypot 1
7a 8063071 Cover, Dual Vat Frypot 1
7b 1066349 Cover, Full-Vat Frypot Deep Cabinet 1
8 8030099 Basket, Full Size 1
9 8030271 Basket, Twin Size 1
10 8030122 Sediment Tray, Dual-vat, Left 1
10a 8030123 Sediment Tray, Dual-vat, Right 1
10b 8030113 Sediment Tray, Full-vat 1
10c 8030365 Sediment Tray, Full-Vat (for FV Deep Cabinet) 1
11 8030132 Rack, Full-Vat Basket Support 1
11a 8030364 Rack, Full-Vat Basket Support (for FV Deep Cabinet) 1
12 8030106 Rack, Electric Dual-Vat Basket Support 1
13 8241664 Spreader Pan 1
14 8241720 Cover, Spreader Pan 1
15 8071575 Heatlamp, Merco 120V 2 Bulb 1
15a 8065278SP Heatlamp, Merco 120V 1
15b 8071576 Heatlamp, Merco 240V 2 Bulb 1
15c 8065285SP Heatlamp, Merco 240V 1
16 8030002 Powder, Filter 1
17 8030170 Filter Paper, 16.5” x 25.75” 1

Accessories

FRY_P_0052_5_15_Accessories.pdf

Re Series Marine E4 Electric Fryers

Basket Lift Assembly and Associated Parts

Basket Lift Assembly and Associated Parts

FRY_P_0052_5_15_Basket Lift Assembly and Associated Parts.pdf

Re Series Marine E4 Electric Fryers

Basket Lift Assembly and Associated Parts

# PART # DESCRIPTION QTY Note

1 1061805SP Basket Lift Assy, 200-220VAC w/Relay 1 [1]
2 8101012 Rod, Basket Lift 1
3 8130035 Bushing , Oiltite .640 I.D. 1
4 8072513 Capacitor - 12.5 MFD/330VAC 1
5 9018499 Chassis, Left Basket Lift 1
6 9028499 Chassis, Right Basket Lift 1
7 8070159 12-Pin Female 1
8 9005529 Gusset, Basket Lift Motor 1
9 8120442 Insulation, Microswitch 1
10 8072572 Microswitch 1
11 8065964SP Motor Assembly - 208-240V 1
12 2002942 Mount, Modular Basket Lift 1
13 8261366 Nut - #4-40 Keps Hex 25
14 8090247 Nut - #8-32 Keps Hex 1
15 8071683 Relay, 12VDC Secondary Blower Fan to cool frypot 1
16 1062770SP Resistor Assy, 208-220VAC Modular Basket Lift 1
17 8090082 Ring, Bushing Retainer 1
18 8261374 Screw - #10 x 0.5" Hex Head 25
19 8261359 Screw - #4-40 x 0.75" Slotted Round Head 25
20 8261361 Screw - #2-32 x 1" Slotted Truss Head 25
21 8261371 Screw - #8 x 0.5" Hex Head ZP 25
22 8090503 Screw - #8-32 x 0.5" Slotted Truss Head 1
23 8090186 Lock Washer w/External Teeth, #8 1
24 WIR0166SP Wire Bundle, 200-250VAC Basket Lift w/Relay 1
25 9104776 Cover, Modular Basket Lift Rear S/S 1
25a 9004776 Cover, Modular Basket Lift Rear S/S 1
26 8090127 Screw, 0.25-20 X 0.5-inch Slotted Round Head 1
27 8237052 Weldment, Vent 2-battery, 5 battery and 6-battery 1
28 8237053 Weldment, Vent 3-battery and 5-battery 1
29 8100179 Button, Plug 1
30 8069110SP Roller Assembly, Basket Lift 1
31 9108112 Bracket, Basket Lift Roller 1
32 8100194 Roller, Basket Lift 1
33 8100374 Spacer, Basket Lift Roller 1
34 8090508 Bolt - 0.25-20 x 1.25" 1
35 8090190 Washer, .625 X .275 X 40 Flat SS 1
36 8090047 Nut, Cap- 0.25-20 High Profile S/S 1
37 1065957SP Basket Lift Harness 1

PART NOTES:

[1] - includes rod and wire bundle

Basket Lift Assembly and Associated Parts

FRY_P_0052_5_15_Basket Lift Assembly and Associated Parts.pdf

Re Series Marine E4 Electric Fryers

Cabinetry - Back Panels Control Panel Frames, Doors, Sides, Tilt Housings, and Top Caps

FRY_P_0052_5_15_Cabinetry - Back Panels Control Panel Frames, Doors, Sides, Tilt Housings, and Top Caps.pdf

Re Series Marine E4 Electric Fryers

Cabinetry - Back Panels Control Panel Frames, Doors, Sides, Tilt Housings, and Top

# PART # DESCRIPTION QTY Note

1 2200421 Back Panel, Upper, Single Station Fryer CRS 1
1a 2300422 Back Panel, Upper, Single Station Fryer CRS(for Stainless

Steel)
1b 2201973 Back Panel, Upper, Fryer 0.5 Station Fryer CRS 1
1c 2200419 Back Panel, Upper, Two Station Fryer CRS 1
1d 2300420 Back Panel, Upper, Two Station Fryer CRS (for Stainless

Steel)
1e 2200423 Back Panel, Upper, Three Station Fryer CRS 1
1f 2300424 Back Panel, Upper, Three Station Fryer CRS (for Stainless

Steel)
1g 2200425 Back Panel, Upper, Four Station Fryer CRS 1
1h 2300546 Back Panel, Upper - Four Station Fryer 1
1i 2200611 Back Panel, Upper, Five Station Fryer CRS 1
1j 2300612 Back Panel, Upper, Five Station Fryer CRS (for Stainless

Steel)
2 2200501 Back Panel, Center Single Station Fryer CRS 1
2a 2300502 Back Panel, Center Single Station Fryer CRS (for Stainless

Steel)
2b 2201977 Back Panel, Center Fryer 0.5 Station Fryer CRS 1
2c 2200487 Back Panel, Center Two Station Fryer CRS 1
2d 2300490 Back Panel, Center Two Station Fryer CRS (for Stainless

Steel)
2e 2200491 Back Panel, Center Three Station Fryer CRS 1
2f 2300492 Back Panel, Center Three Station Fryer CRS (for Stainless

Steel)
2g 2200499 Back Panel, Center Four Station Fryer CRS 1
2h 2300500 Back Panel, Center - Four Station Fryer 1
2i 2200616 Back Panel, Center Five Station Fryer CRS 1
2j 2300617 Back Panel, Center Five Station Fryer CRS (for Stainless

Steel)
3 1065016 Frame, Control Panel - Single 1
3a 1066846 Frame, Control Panel, Fryer 0.5 Station Fryer 1
3b 1065221 Frame, Control Panel - Two Station Fryer 1
3c 1065018 Frame, Control Panel - Three Station Fryer 1
3d 1065019 Frame, Control Panel, Four Station Fryer 1
3e 1065020 Frame, Control Panel, Five Station Fryer 1
4 8235494 Tilt Housing, Single Station 1
4a 8235999 Tilt Housing, Fryer 0.5 Station LH 0.5 fryer 1
4b 8235965 Tilt Housing, Fryer 0.5 Station RH 0.5 fryer 1
4c 8235497 Tilt Housing, Two Station 1
4d 8235489 Tilt Housing, Three Station 1
4e 8235575 Tilt Housing, Four Station 1
4f 1067516 Tilt Housing, Four Station (for Cracker Barrel) 1
4g 8235581 Tilt Housing, Five Station 1
5 2601230SP Top Cap - Single 1
5a 8090079 Nutsert, 0.25” - 20 1
5b 1067060 Top Cap, Fryer 0.5 Station LH 0.5 fryer 1
5c 1066838 Top Cap, Fryer 0.5 Station RH 0.5 fryer 1
5d 8090079 Nutsert, 0.25” - 20 1

1

1

1

1

1

1

1

1

Cabinetry - Back Panels Control Panel Frames, Doors, Sides, Tilt Housings, and Top Caps

FRY_P_0052_5_15_Cabinetry - Back Panels Control Panel Frames, Doors, Sides, Tilt Housings, and Top Caps.pdf

Re Series Marine E4 Electric Fryers

Cabinetry - Back Panels Control Panel Frames, Doors, Sides, Tilt Housings, and Top

# PART # DESCRIPTION QTY Note

5e 1066838 Top Cap, Fryer 0.5 Station RH 0.5 fryer 1
5f 8090079 Nutsert, 0.25” - 20 1
5g 1065196 Top Cap - Two Station Fryer 1
5h 8090079 Nutsert, 0.25” - 20 1
5i 1065197 Top Cap - Three Station Fryer 1
5j 8090079 Nutsert, 0.25” - 20 1
5k 1065198 Top Cap, Four Station 1
5l 8090079 Nutsert, 0.25” - 20 1
5m 1065199 Top Cap, Five Station 1
5n 8090079 Nutsert, 0.25” - 20 1
6 2009614 Heat Shield - Single 1
6a 2009610 Heat Shield - Two/Four Station Fryer 1 [1]
6b 2009611 Heat Shield - Three Station Fryer 1 [2]
6c 2310323SP Side, Standard Cabinet Left SS 1
6d 2210323SP Side, Standard Cabinet Left SS - Enameled Steel 1
6e 2311345 Side, Cabinet LH S/S (for Deep Cabinet) 1
6f 2320323SP Side, Standard Cabinet Right SS 1
6g 2220323SP Side, Standard Cabinet Right SS (for Enameled Steel) 1
6h 2321345 Side, Cabinet RH S/S (for Deep Cabinet) 1
7 8101105 Door Magnet - Vertical 1
8 2310352 Side, Filter Ready Cabinet Left SS 1
8a 2210352 Side, Filter Ready Cabinet Left SS (for Cold Rolled Steel) 1
9 2320352 Side, Filter Ready Cabinet Right SS 1
9a 2220352 Side, Filter Ready Cabinet Right SS (for Cold Rolled Steel) 1
10 9100889 Cover, 4” x 4” S/S 1
11 9100890 Cover, 4” x 6” S/S 1
12 8090359 Screw, 8 x 0.25-inch Hex Washer Head 1
13 1064397 Door - Left/Right 1
13a 1066899 Door, Left or Right – Fryer 0.5 1
14 8090266 Screw, 10 x 0.5-inch Phillips Head ZP 1
15 2109739 Handle, Eurolook Door 1
15a 2302088 Handle, Eurolook Door (for Fryer 0.5 handle) 1
16 1064067SP Door Pin Assembly 1
17 8261343 Spring - Door Pin Hinge 1
18 8090970 Retaining Ring 1
19 8235440 Cove, Element Tilt Housing 1
19a 8235726 Cove, Element Tilt Housing (for Fryer 0.5) 1
20 2105046 Bezel - One-Controller 1
20a 2301953 Bezel, One-Controller (for Fryer 0.5) 1
21 2105623 Bezel, Insert for Remote Single-Controller 1
22 2105819 Bezel - Two-Controller 1
23 2106698 Bezel, Three-Controller 1

PART NOTES:

[1] - Two are used on Four StationOne used on Five Station
[2] - One used on Five Station

Cabinetry - Back Panels Control Panel Frames, Doors, Sides, Tilt Housings, and Top Caps

FRY_P_0052_5_15_Cabinetry - Back Panels Control Panel Frames, Doors, Sides, Tilt Housings, and Top Caps.pdf

Re Series Marine E4 Electric Fryers

Cabinetry - Cabinets, Bases, Braces, and Associated Parts

Cabinetry - Cabinets, Bases, Braces, and Associated Parts

FRY_P_0052_5_15_Cabinetry - Cabinets, Bases, Braces, and Associated Parts.pdf

Re Series Marine E4 Electric Fryers

Cabinetry - Cabinets, Bases, Braces, and Associated Parts

# PART # DESCRIPTION QTY Note

1 1063828 Upright Assembly, Left 1
2 1063829 Upright Assembly, Right 1
3 2001651 Support, Cross Cabinet 1
3a 2201742 Support, Cross Cabinet (for Fryer 0.5) 1
4 2001659 Divider, Cabinet 1
4a 2201348 Divider, Cabinet (for Deep Cabinet Divider) 1
5 2002293-FRY Brace, Lower Front 1
6 2003774 Brace, Double Station Lower 1
7 2007036 Brace, Front Horizontal, Single-Station Fryer 1
7a 2200624 Brace, Front Horizontal, Single-Station Lower Brace 1
7b 2201740 Brace, Front Horizontal, Fryer 0.5 Station Fryer 1
7c 2007037 Brace, Front Horizontal, Two-Station Fryer 1
7d 2007038 Brace, Front Horizontal, Three-Station Fryer 1
7e 2007039 Brace, Front Horizontal, Four-Station Fryer 1
7f 2007040 Brace, Front Horizontal, Five-Station Fryer 1
8 2005356 Brace, Rear Horizontal, Single-Station Fryer 1
8a 2201711 Brace, Rear Horizontal, Fryer 0.5 Station Fryer 1
8b 2002284 Brace, Rear Horizontal, Two-Station Fryer 1
8c 2002295 Brace, Rear Horizontal, Three-Station Fryer 1
8d 2002725 Brace, Rear Horizontal, Four-Station Fryer 1
8e 2003592 Brace, Rear Horizontal, Five-Station Fryer 1
9 2310323SP Side, Standard Cabinet Left SS 1
9a 2210323SP Side, Standard Cabinet Left SS - Enameled Steel 1
9b 2311345 Side, Cabinet LH S/S (for Deep Cabinet) 1
10 2320323SP Side, Standard Cabinet Right SS 1
10a 2220323SP Side, Standard Cabinet Right SS (for Enameled Steel) 1
10b 2321345 Side, Cabinet RH S/S (for Deep Cabinet) 1
11 2201100 Corner Column Left - M,MS,MST 1
12 2201095 Support, Rear Contactor Box 1
13 2201093 Support, Front Contactor Box 1
14 2201294 Brace, Contactor Box Single-Station Fryer Front 1
15 2220610 Bracket, Right Hand Mounting 1
15a 2221845 Bracket, RH Contactor Box Mount (for Fryer 0.5) 1
16 2210610 Bracket, Left Hand Mounting 1
16a 2211845 Bracket, LH Contactor Box Mount (for Fryer 0.5) 1
16b 2201446 Bracket, Contactor Box Mount SCF Deep Cabinet 1
17 2006498 Support, Contactor Box (Singles) 1
18 2004424 Post, Door 1
19 8102346 Door Magnet - Horizontal 1
20 2004786 Support, Oil Return Manifold 1
21 2106862 Hinge, Door 1
22 8241393 Bracket, Rear Support 1
22a 2412939 Fan Motor 208-230V/50-60 Hz 1
23 8244557 Channel, Base Side 1
23a 8235782 Channel, Base Side SCF Deep Cabinet 1
23b 2210621 Channel, Base Left Side Single-Station Fryer 1

Cabinetry - Cabinets, Bases, Braces, and Associated Parts

FRY_P_0052_5_15_Cabinetry - Cabinets, Bases, Braces, and Associated Parts.pdf

Re Series Marine E4 Electric Fryers

Cabinetry - Cabinets, Bases, Braces, and Associated Parts

# PART # DESCRIPTION QTY Note

23c 2220621 Channel, Base Right Side Single-Station Fryer 1
24 8261389 Screw - 0.25"-20 x 0.75" Hex Head ZP 1
25 8102970 Caster with Brake 1
26 8101494 Caster, 8.5-inch Swivel w/o Brake 1
27 8261376 Nut - #10-32 Keps Hex 10
28 8261374 Screw - #10 x 0.5" Hex Head 25 [1]
29 8261368 Nut - 0.25-20 Serrated Flange 1
30 8090429 Bolt - 0.25"– 20 x 2.00" Hex Head ZP Tap 1
31 2005417 Brace, Rear Channel Corner 1
32 8235589 Channel, Base Rear, Single-Station Fryer 1
32a 2201737 Channel, Base Rear, Single-Station Fryer Base (for Fryer

0.5)
32b 8234558 Channel, Base Rear, Two-Station Fryer 1
32c 8234560 Channel, Base Rear, Three-Station Fryer 1
32d 8234561 Channel, Base Rear, Four-Station Fryer 1
32e 8234562 Channel, Base Rear, Five-Station Fryer 1
33 8101234 Leg, Stainless Steel 8.5-inch Adjustable 1
34 8103010 Leg, Single Fryer Single-Station Fryer 1

PART NOTES:

[1] - primary cabinet screw

1

Cabinetry - Cabinets, Bases, Braces, and Associated Parts

FRY_P_0052_5_15_Cabinetry - Cabinets, Bases, Braces, and Associated Parts.pdf

Re Series Marine E4 Electric Fryers

Component Box, Filter Pump and Basket Lift Wiring Harnesses

Component Box, Filter Pump and Basket Lift Wiring Harnesses

FRY_P_0052_5_15_Component Box, Filter Pump and Basket Lift Wiring Harnesses.pdf

Re Series Marine E4 Electric Fryers

Component Box, Filter Pump and Basket Lift Wiring Harnesses

# PART # DESCRIPTION QTY Note

1 1065750SP Full Vat Control Harness J4 to J2 1
2 1066639SP Harness Assembly, FV Control 1
3 1065751SP Dual Vat Control Harness J4 to J1 and J2 1
4 1066644SP Dual Vat Control Harness J4 to J1 and J2 (EPRI) 1
5 1065935SP Component Box to Filter Pump Harness 1
6 1065957SP Basket Lift Harness 1
7 1066640 Harness Assembly, Basket Lift 1
8 1065935SP Component Box to Filter Pump Harness 1
9 1065957SP Basket Lift Harness 1
10 8062071 Cable, Computer/Controller to Interface Board 1
11 8074199 Cable, 20-pin Controller to 15-pin Interface Board – SMT for

fryer’s with CM 3.5 controller.

1

Component Box, Filter Pump and Basket Lift Wiring Harnesses

FRY_P_0052_5_15_Component Box, Filter Pump and Basket Lift Wiring Harnesses.pdf

Re Series Marine E4 Electric Fryers

Drain Tube Sections and Associated Parts

Drain Tube Sections and Associated Parts

FRY_P_0052_5_15_Drain Tube Sections and Associated Parts.pdf

Re Series Marine E4 Electric Fryers

Drain Tube Sections and Associated Parts

# PART # DESCRIPTION QTY Note

1 8234625 Drain Tube, Short Full-Vat Left Open/Right End Closed 1
1a 8234624 Drain Tube, Left/Right End Short, Dual-Vat 3” 1
1b 8235943 Drain Tube, Left/Right End Short, Fryer 0.5, RH 0.5 Fryer 1
1c 8236003 Drain Tube, Left/Right End Short, Fryer 0.5, LH 0.5 Fryer 1
2 8234643 Drain Tube, Full-Vat, Short, Open Both Ends 1
2a 8234642 Drain Tube, Left/Right Open Short, Dual-Vat 3” 1
3 8234639 Drain Tube, Long Full-Vat Left Open/Right End Closed 1
3a 8234638 Drain Tube, Right End Long, Dual-Vat 3” 1
4 8234641 Drain Tube, Long Full-Vat Open Both Ends 1
4a 8234640 Drain Tube, Left/Right Open Long, Dual-Vat 3” 1
5 8235944 Drain Outlet Center Dump, Fryer 0.5, RH 0.5 Fryer 1
5a 8236004 Drain Outlet Center Dump, Fryer 0.5, LH 0.5 Fryer 1
6 8160729 Sleeve, Drain Connector 1
7 8090969 Clamp 3” 1
8 8160630 Cap, Vinyl Black 1
9 8102492 Fitting, Quick-Connect Straight 1 [1]
10 KIT6033 Kit, Round Drain Clamp 1 [2]
11 8111071 Tube, 0.25-inch OD Teflon Manifold Vent 1 [3]

PART NOTES:

[1] - receives Teflon vent tube
[2] - includes sleeve, clamp and cap
[3] - sold by the foot

Drain Tube Sections and Associated Parts

FRY_P_0052_5_15_Drain Tube Sections and Associated Parts.pdf

Re Series Marine E4 Electric Fryers

Drain Valves and Associated Parts (Units with Built-In Filtration)_1

Drain Valves and Associated Parts (Units with Built-In Filtration)_1

FRY_P_0052_5_15_Drain Valves and Associated Parts (Units with Built-In Filtration)_1.pdf

Re Series Marine E4 Electric Fryers

Drain Valves and Associated Parts (Units with Built-In Filtration)_1

# PART # DESCRIPTION QTY Note

1 1066300SP Single Footprint Full-Vat Drain Valve Assembly 1
2 8090540 Nut, Lock 0.5-inch-13 Hex 2-Way ZP 1
3 9002936 Retainer Nut (FV) 1
4 8241602 Handle, Valve, Full-vat 1
5 8160639 Cap, Vinyl Red 1
6 8261366 Nut - #4-40 Keps Hex 1
7 9012348 Cover, Dual-Vat Left Drain Safety Switch 1
8 8072103 Microswitch 1
9 8160220 Insulation, Microswitch 1
10 1065391 Bracket Assembly, Full-Vat Drain Safety Switch Single

Footprint Only
11 8101018 Drain Valve, 1.25”, Left 1
12 8101165 Washer, Teflon Drain Valve 1
13 8160135 O-ring 1

1

Drain Valves and Associated Parts (Units with Built-In Filtration)_1

FRY_P_0052_5_15_Drain Valves and Associated Parts (Units with Built-In Filtration)_1.pdf

Re Series Marine E4 Electric Fryers

Drain Valves and Associated Parts (Units with Built-In Filtration)_2

Drain Valves and Associated Parts (Units with Built-In Filtration)_2

FRY_P_0052_5_15_Drain Valves and Associated Parts (Units with Built-In Filtration)_2.pdf

Re Series Marine E4 Electric Fryers

Drain Valves and Associated Parts (Units with Built-In Filtration)_2

# PART # DESCRIPTION QTY Note

1 1063760SP Full-Vat Drain Valve Assembly 1
2 1067004 Full-Vat Drain Valve Assembly, Fryer 0.5 1
3 8090540 Nut, Lock 0.5-inch-13 Hex 2-Way ZP 1
4 9002936 Retainer Nut (FV) 1
5 8241602 Handle, Valve, Full-vat 1
6 8241740 Handle, Fryer 0.5 Half Vat 1
7 8160639 Cap, Vinyl Red 1
8 8261376 Nut - #10-32 Keps Hex 1
9 9012348 Cover, Dual-Vat Left Drain Safety Switch 1
10 8072103 Microswitch 1
11 8160220 Insulation, Microswitch 1
12 8101165 Washer, Teflon Drain Valve 1
13 2006496 Support, Drain Tube 1
14 8068137 Bracket Assembly, Full-Vat Drain Safety Switch 1
15 1067005 Bracket Assembly, Fryer 0.5 1
16 8101018 Drain Valve, 1.25”, Left 1
17 8160135 O-ring 1

Drain Valves and Associated Parts (Units with Built-In Filtration)_2

FRY_P_0052_5_15_Drain Valves and Associated Parts (Units with Built-In Filtration)_2.pdf

Re Series Marine E4 Electric Fryers

Drain Valves and Associated Parts (Units with Built-In Filtration)_3

Drain Valves and Associated Parts (Units with Built-In Filtration)_3

FRY_P_0052_5_15_Drain Valves and Associated Parts (Units with Built-In Filtration)_3.pdf

Re Series Marine E4 Electric Fryers

Drain Valves and Associated Parts (Units with Built-In Filtration)_3

# PART # DESCRIPTION QTY Note

1 1065606SP Valve Assembly, 1-inch Right Dual-Vat w/Filter Drain 1
1a 1066302 Dual-Vat Drain Valve Right Assembly, Single FP 1
1b 1065607SP Valve Assembly, 1-inch Left Dual-Vat w/Filter Drain 1
1c 1066301 Dual-Vat Drain Valve Left Assembly, Single FP 1
2 8160639 Cap, Vinyl Red 1
3 8090539 Nut, 0.375-16 2-Way Lock 1
4 9002934 Retainer, Dual-Vat Drain Valve Nut 1
5 8241636 Handle, Valve, Dual-vat, Right 1
5a 8241637 Handle, Valve, Dual-vat, Left 1
6 8261366 Nut - #4-40 Keps Hex 1
7 9012348 Cover, Dual-Vat Left Drain Safety Switch 1
8 8072103 Microswitch 1
9 8160220 Insulation, Microswitch 1
10 8101165 Washer, Teflon Drain Valve 1
11 8090196 Washer, 0.375-inch SAE Flat 1
12 1062671 Bracket Assembly, Dual-Vat Left Drain Safety Switch 1
12a 1066304 Bracket Assembly, Dual-Vat Drain Safety Switch Single

Footprint Only
13 8101114 Drain Valves, Dual-vat, 1-inch Drain Valve 1
14 8160135 O-ring 1
15 8235592 Tube, Drain Single-Station Only with Filter 1

1

Drain Valves and Associated Parts (Units with Built-In Filtration)_3

FRY_P_0052_5_15_Drain Valves and Associated Parts (Units with Built-In Filtration)_3.pdf

Re Series Marine E4 Electric Fryers

Drain Valves and Associated Parts (Units without Built-In Filtration)

Drain Valves and Associated Parts (Units without Built-In Filtration)

FRY_P_0052_5_15_Drain Valves and Associated Parts (Units without Built-In Filtration).pdf

Re Series Marine E4 Electric Fryers

Drain Valves and Associated Parts (Units without Built-In Filtration)

# PART # DESCRIPTION QTY Note

1 8101569 Valve, 1.25-inch, Non-filter, Full-vat Drain 1
2 8067915SP Valve, 1-inch, Non-filter, Dual-vat, Left Drain 1
3 8067916SP Valve, 1-inch, Non-filter, Dual-vat, Right Drain 1
4 8130188 Drain Nipple, Extended 1
5 8130276 Drain Extension, 1-inch, Dual-vat 1

Drain Valves and Associated Parts (Units without Built-In Filtration)

FRY_P_0052_5_15_Drain Valves and Associated Parts (Units without Built-In Filtration).pdf

Re Series Marine E4 Electric Fryers

Electronics and Wiring Components - Component Boxes

Electronics and Wiring Components - Component Boxes

FRY_P_0052_5_15_Electronics and Wiring Components - Component Boxes.pdf

Re Series Marine E4 Electric Fryers

Electronics and Wiring Components - Component Boxes

# PART # DESCRIPTION QTY Note

1 1065592 Box Assembly, Component 1
1a 1066747 Box Assembly, Component Fryer 0.5 1
2 2003300 Bracket, Component Box Strain Relief 1
3 8069495SP Terminal Block and Wire Assembly 1
4 8070012 Filter Relay - 18A 24VAC 1 [1]
5 8070670 Relay, 24V DPDT 1 [1]
6 8261337 Tab, 0.25-inch Terminal 1
7 8070121 Bushing, Heyco SB-625-500 1
8 8070922 Holder, Bus Fuse 1
9 8072278 Fuse, 20 Amp 1
10 8102446 Plug - 0.5" Heyco Double “D” 1
11 8074036 Switch 1 [1]
12 8073575 Plug, Carling Switch Hole 1 [2]
13 8071947 Plug, .875 1
14 8071321 Holder, Fuse 1
15 8071597 Fuse - 3amp Slo-Blow 1
15a 8071174 Fuse, 3 AMP, 250V, Slow-Blow 1
16 8102445 Plug, Button .625 Heyco Double “D” 1
17 1065750SP Full Vat Control Harness J4 to J2 1
17a 1065751SP Dual Vat Control Harness J4 to J1 and J2 1
18 8070855 Transformer - 120V/50-60 Hz - 12V 20VA 1 [1]
18a 8070800 Transformer, 100-120V/24V 50VA Filter and MIB 1 [1]
18b 8072181 Transformer, 100-120V/24V 62VA 1 [1]
19 8070680 Transformer, 208V, 50/60Hz –24V 20VA 1 [1]
20 8072191 Transformer - 208-240V -12V 30VA 1 [1]
21 8070979 Transformer, 208V/240V/12V 1 [1]
22 8072180 Transformer - 208-240V/24V 50A 1 [1]
22a 8074968 Transformer, 208-250V 75VA 1 [3]
22b 8074967 Transformer, 100-120V 75VA 1 [3]
22c 8073892 Transformer, 440/480 12/24V 1 [4]
23 8262260 Standard Interface Board 1 [1]
23a 8262261 EPRI, Interface Board 1 [1]
23b 8262262 Interface Board, Fast Computer, Full- or Dual-Vat 1
23c 8073932 Relay, Heat/Latch 12VDC SPDT 12 Amp Sealed 1 [5]
23d 1066501 Interface Borad, Fallback Controller Assembly 1
24 2200565 Guard, Finger Domestic and Non-CE 1
24a 2201061 Guard, Finger Non-Domestic and CE 1
25 2006654 Brace, Component Box 1
26 2300834 Guard, RE Box Switch 1
27 8160217 Insulation, Terminal Block Paper 1
28 8100045 Bushing, .875 Dia. Hole 0.6875” 1
29 8067179 Sound Device 1 [1]
29a 8103141 Sound Device, Universal SMT 1
29b 8074330 Speaker Adapter Harness SMT 1
30 8090349 Spacer, 4mm X 6mm Aluminum 1
31 8262249 RE Hood/Ansul Interlock Kit 1 [6]

Electronics and Wiring Components - Component Boxes

FRY_P_0052_5_15_Electronics and Wiring Components - Component Boxes.pdf

Re Series Marine E4 Electric Fryers

Electronics and Wiring Components - Component Boxes

# PART # DESCRIPTION QTY Note

PART NOTES:

[1] - Recommended Stock Part
[2] - used on some models without a switch
[3] - Used in DV component boxes
[4] - used in non-filter fryers
[5] - SMT relays aren’t replaceable
[6] - includes terminal block, wires, connectors

Electronics and Wiring Components - Component Boxes

FRY_P_0052_5_15_Electronics and Wiring Components - Component Boxes.pdf

Re Series Marine E4 Electric Fryers

Electronics and Wiring Components - Contactor Boxes - Large Center

Contactor Box Configurations (Non-Filter,

Electronics and Wiring Components - Contactor Boxes - Large Center Contactor Box Configurations (Non-Filter, Not over the Filter and Single Units)

FRY_P_0052_5_15_Electronics and Wiring Components - Contactor Boxes - Large Center Contactor Box Configurations (Non-Filter, Not over the Filter and Single Units).pdf

Re Series Marine E4 Electric Fryers

Electronics and Wiring Components - Contactor Boxes - Large Center Contactor Box Configurations (Non-

Filter,

# PART # DESCRIPTION QTY Note

1 1066081 Box Assembly, Contactor (Non-Filter or Not Over the Filter

Pan)
1a 1066255 Box, Large Contactor 1
2 1066173 Box Assembly, Contactor EPRI 1 [1]
2a 1066244 Box Assembly, Contactor Single-Station Fryer Only 1
3 8102554 Plug, Cord Cutout 1.125 Button 1
4 8071947 Plug, .875 1
5 2210482 Cover, Left Contactor Box 1
6 2220482 Cover, Right Contactor Box 1
7 8070070 Terminal, Ground Lug 1
8 8071071 Contactor, Mercury 24 VAC 30 Amp 1 [2]
9 8070884 Contactor, Mercury- 240VAC 50-Amp 1 [2]
10 8072284 Contactor, 24V 50 Amp Mechanical 1 [2]
11 8072283 Contactor, 24V 63 Amp Mechanical 1 [2]
12 8101202 Contactor, 24V 40 Amp Mechanical 1 [2]
13 8068674 Heat Sink Assembly, Dual-vat Solid State Relay 1
14 8068673 Heat Sink Assembly, Full-vat Solid State Relay 1
15 8261562 Relay with Heat Sink - 280V/40A 1 [2]
16 8072749 Heat Sink - Solid State 1
17 8070037 Terminal, 0.25-inch Push-on 1
18 8072278 Fuse, 20 Amp 1
19 8235729 Plate, Contactor Back Cordset 1
20 2201087 Bracket, Box Connecting 1
21 2201088 Cover, Contactor Box Front 1
22 2201089 Cover, Large Top 1
22a 2201175 Cover, Contactor Box Top Full Vat Single-Station Fryer Only 1
22b 2201373 Cover, Contactor Box Top Dual Vat Single-Station Fryer Only 1
23 2201152 Cover, Contactor Box Top EPRI (Non-Filter or Not Over the

Filter Pan)
24 1066204SP Filter Assembly, EPRI 1
25 8070064 Transformer, 480V/120V 150 VA 1 [2]
26 8070922 Holder, Bus Fuse 1
27 8070012 Filter Relay - 18A 24VAC 1

PART NOTES:

[1] - Non-Filter or Not Over the Filter Pan
[2] - Recommended Stock Part

1

1

Electronics and Wiring Components - Contactor Boxes - Large Center Contactor Box Configurations (Non-Filter, Not over the Filter and Single Units)

FRY_P_0052_5_15_Electronics and Wiring Components - Contactor Boxes - Large Center Contactor Box Configurations (Non-Filter, Not over the Filter and Single Units).pdf

Re Series Marine E4 Electric Fryers

Contactor

Electronics and Wiring Components - Contactor Boxes - Left and Right Over the Filter Pan Contactor Box Configurations

FRY_P_0052_5_15_Electronics and Wiring Components - Contactor Boxes - Left and Right Over the Filter Pan Contactor Box Configurations.pdf

Re Series Marine E4 Electric Fryers

Electronics and Wiring Components - Contactor Boxes - Left and Right Over the Filter Pan

Contactor

# PART # DESCRIPTION QTY Note

1 1065488 Box Assembly, Left Contactor Standard 1 [1]
1a 1067066 Box Assembly, Left Contactor Fryer 0.5 Half Fryer on Left 1
2 8235736 Box Assembly, Left Contactor EPRI 1 [1]
3 1065489 Box Assembly, Right Contactor Standard 1 [1]
3a 1066819 Box Assembly, Right Contactor Fryer 0.5 Half Fryer on Right 1
4 8235748 Box Assembly, Right Contactor EPRI 1 [1]
5 8102554 Plug, Cord Cutout 1.125 Button 1
6 8071947 Plug, .875 1
7 8070064 Transformer, 480V/120V 150 VA 1
8 8070922 Holder, Bus Fuse 1
9 2210482 Cover, Left Contactor Box 1
10 2222072 Cover, Left Hand Fryer 0.5 Half fryer on Left 1
11 2220482 Cover, Right Contactor Box 1
12 2201912 Cover, Right Hand Fryer 0.5 Half fryer on Right 1
13 8070070 Terminal, Ground Lug 1
14 8071071 Contactor, Mercury 24 VAC 30 Amp 1 [2]
15 8070884 Contactor, Mercury- 240VAC 50-Amp 1 [2]
16 8072284 Contactor, 24V 50 Amp Mechanical 1 [3]
17 8072283 Contactor, 24V 63 Amp Mechanical 1 [4]
18 8101202 Contactor, 24V 40 Amp Mechanical 1 [2]
19 8068674 Heat Sink Assembly, Dual-vat Solid State Relay 1
20 8068673 Heat Sink Assembly, Full-vat Solid State Relay 1
21 8261562 Relay with Heat Sink - 280V/40A 1 [2]
22 8072749 Heat Sink - Solid State 1
23 8070037 Terminal, 0.25-inch Push-on 1
24 8072278 Fuse, 20 Amp 1
25 1066204SP Filter Assembly, EPRI 1 [5]
26 8070922 Holder, Bus Fuse 1
27 2210610 Bracket, Left Hand Mounting 1
28 2220610 Bracket, Right Hand Mounting 1
29 8070012 Filter Relay - 18A 24VAC 1

PART NOTES:

[1] - Over the Filter Pan
[2] - Recommended Stock Part
[3] - only in 14kW & 17kW unitsRecommended Stock Part
[4] - only in 22kW unitsRecommended Stock Part
[5] - used in CE WYE-configured EPRI units only

Electronics and Wiring Components - Contactor Boxes - Left and Right Over the Filter Pan Contactor Box Configurations

FRY_P_0052_5_15_Electronics and Wiring Components - Contactor Boxes - Left and Right Over the Filter Pan Contactor Box Configurations.pdf

Re Series Marine E4 Electric Fryers

Electronics and Wiring Components - Controllers

Electronics and Wiring Components - Controllers

FRY_P_0052_5_15_Electronics and Wiring Components - Controllers.pdf

Re Series Marine E4 Electric Fryers

Electronics and Wiring Components - Controllers

# PART # DESCRIPTION QTY Note

1 8262395 Computer Magic III.5, Full-Vat (CE) 1 [1]
1a 8262396 Computer Magic III.5, Dual-Vat (CE) 1
1b 8262332 Computer Magic III.5, Full-Vat (Non-CE) 1 [1]
1c 8262405-FRY Computer Magic III.5, Dual-Vat (Non-CE) 1
1d 8262397 Computer Magic III.5, Full-Vat (EPRI/Solid State) 1
1e 8262398 Computer Magic III.5, Dual-Vat (EPRI/Solid State) 1
2 8262399 Digital Controller, Full-Vat (CE) 1
2a 8262400 Digital Controller, Dual-Vat (CE) 1
2b 8262329 Digital Controller, Full-Vat (Non-CE) 1
2c 8262476 Digital Controller, Dual-Vat (Non-CE) 1
3 8262330 Basket Lift Timer, Full-Vat (CE) 1
3a 8262331 Basket Lift Timer, Dual-Vat (CE) 1
3b 8262401 Basket Lift Timer, Full-Vat (Non-CE) 1
3c 8262402 Basket Lift Timer, Dual-Vat (Non-CE) 1
4 1067987SP Solid-State (Analog) Controller, Full-Vat 1
4a 1064334 Solid-State (Analog) Controller, Dual-Vat 1
5 8022021 Graphic Sheet of Symbols 1

PART NOTES:

[1] - Recommended Stock Part

Electronics and Wiring Components - Controllers

FRY_P_0052_5_15_Electronics and Wiring Components - Controllers.pdf

Re Series Marine E4 Electric Fryers

Electronics and Wiring Components - Fuse Boxes, Terminal Blocks

Electronics and Wiring Components - Fuse Boxes, Terminal Blocks

FRY_P_0052_5_15_Electronics and Wiring Components - Fuse Boxes, Terminal Blocks.pdf

Re Series Marine E4 Electric Fryers

Electronics and Wiring Components - Fuse Boxes, Terminal Blocks

# PART # DESCRIPTION QTY Note

1 2002334 Door 1
2 8100519 Hinge 1
3 2210523 Cover, LH Fuse Box 1
4 2220523 Cover, RH Fuse Box 1 [1]
5 8090475 Screw - #10-32 x 0.3125" Hex 1
6 8235585 Box, LH Fuse 1
7 8235557 Box, RH Fuse 1
8 8235797 Box, Single Station Fryer Only 1
9 8073970 Block, Terminal 3 pole 600V 175A 1
10 8070501 Fuseholder block 1
11 8072240 Fuse, 60 AMP 300VAC 1
12 8070070 Terminal, Ground Lug 1
13 8070128 Bushing, Insulating Heyco 1
14 1065817 Left Hand Terminal Block 1
14a 1065822 Right Hand Terminal Block 1
15 8235631 Box, LH Rear Terminal Block 1
16 8235632 Box, RH Rear Terminal Block 1
17 2200801 Cover, Rear Terminal Block Box 1

PART NOTES:

[1] - Used on Single Station Fryers also

Electronics and Wiring Components - Fuse Boxes, Terminal Blocks

FRY_P_0052_5_15_Electronics and Wiring Components - Fuse Boxes, Terminal Blocks.pdf

Re Series Marine E4 Electric Fryers

Filtration System Components

Filtration System Components

FRY_P_0052_5_15_Filtration System Components.pdf

Re Series Marine E4 Electric Fryers

Filtration System Components

# PART # DESCRIPTION QTY Note

1 8261979 Filter Pan Roller Kit 1 [1]
2 8261980 Service Filter Pan 1
3 8261981 Service Filter Pan Assembly 1 [2]
4 8130568 Plug, 0.125” SS NPT, Sq-Head 1
5 1065911SP Heater Strip Assembly, 100-120V 25W 18” 1
6 8071098 Heater Strip Assembly, 240V, 25W 18” 1
7 8234787 Lid 1
7a 1066243 Lid, Single 1
7b 1066310 Lid, Single-Station Fryer Only Dual Vat Filter Pan 1
7c 1066461 Lid, RE SCF Deep Cabinet Filter Pan 1
7d 1066735 Lid, Fryer 0.5 Filter Pan 1
8 8102874 Crumb Tray, Standard Size Filter Pan 3, 4 and 5 Vat 1
8a 8241707 Crumb Tray 1
8b 8235812 Crumb Tray, RE SCF Deep Cabinet 1
8c 8241734 Crumb Tray, Fryer 0.5 1
9 8102910 Hold Down Ring 1
9a 8104439 Hold Down Ring - Paper 1
9b 8235811 Hold-Down Ring for Pad 15.75x 20.02 SCF Deep Cabinet 1
9c 8235934 Hold-Down Ring for Paper 8.98 x 21.04 Fryer 0.5 1
10 8122024 SanaGrid Filter Screen, Standard Size Filter Pan 1
10a 2201316 Sana Grid Filter Screen 1
10b 2201461 SanaGrid Filter Screen, SCF Deep Cabinet 1
10c 2201795 SanaGrid Filter Screen, Fryer 0.5 1
11 1081204SP Pan, One-Piece Filter 1 [3]
11a 8235594 Pan, Filter 1
11b 8235933 Pan, One-Piece Filter Fryer 0.5 1
11c 8235798 Pan, Filter RE SCF Deep Cabinet 1
11d 8102805 Caster - 2" 1
11e 8102807 Caster - 2" Rigid 1
11f 8261392 O-Ring 5 [4]
12 8262603 Rail Set, Filter Pan Rail 1 [5]
13 2301381 Slide, Filter Pan SCF Deep Cabinet 1
14 8261979 Filter Pan Roller Kit 1 [6]
15 8102198 Roller, Filter Pan and Rail 1
16 8261372 Nut Grip 0.25-inch 0.25-20 Hex NP 10
17 8090191 Washer, Lock 0.25 Spring ZP 1
18 8234675 Bracket, Lid Support 1
19 2003556 Guide, Filter Pan Lid 1
19a 2006709 Toggle Switch 1
20 8090503 Screw - #8-32 x 0.5" Slotted Truss Head 1
21 8090247 Nut - #8-32 Keps Hex 1
22 8233879 Suction Tube 1
22a 8235591 Suction Tube Assembly 1
23 2004408 Rail, Left Filter 1
24 1065981 Support, Assy. Left Filter Pan 1
24a 2201378 Support, Left Filter Pan SCF Deep Cabinet 1

Filtration System Components

FRY_P_0052_5_15_Filtration System Components.pdf

Re Series Marine E4 Electric Fryers

Filtration System Components

# PART # DESCRIPTION QTY Note

24b 2202069 Support, Left Filter Pan Fryer 0.5 1
25 2004409 Rail, Right Filter 1
26 1065982 Support, Assy. Right Filter Pan 1
26a 2201379 Support, Right Filter Pan SCF Deep Cabinet 1
26b 2202070 Support, Right Filter Pan Filter 0.5 1
27 8261785 Motor and Gasket Kit - 100V/50-60 Hz 1
27a 8261712 Motor and Gasket Kit - 115V/50-60 Hz 1 [4]
27b 8261756 Motor and Gasket Kit - 208V/50-60 Hz 1 [4]
27c 8261270 Motor and Gasket Kit - 220-240V/50-60 Hz 1
27d 8261755 Motor and Gasket Kit - 250V/50-60 Hz 1
28 8261264 Pump Kit - 4 GPM 1 [4]
29 8160093 Gasket - Pump/Motor 1
30 80711973 Pump Seal Kit - Viking 1
31 8263192 Pump Kit - 8 GPM 1
32 8072484 Solenoid Valve - 0.25" 1 [4]
33 8102493 Elbow, 90° 0.125-inch NPT x 0.25-inch Quick Connect 1
34 8111071 Tube, 0.25-inch OD Teflon Manifold Vent 1 [7]
35 8130342 Elbow, 0.5-inch 45° Street 1
36 8130530 Tee, Reducing 0.5-inch x 0.25-inch x0.5-inch 1
37 8130022 Nipple, 0.5” Close NPT BM 1
38 8130838 Nipple - 0.25" NPT 1
39 8130304 Bushing, 0.5-inch NPT to 0.25-inch NPT Flush Reducing 1
40 8101668 Male Adaptor - 0.625" OD x 0.5" 1
41 8101669 Female Adaptor - 0.875" OD x 0.5" 1
42 8101680 Flexline - 0.625" OD x 6.5" L 1
43 8101057 Flexline - Oil Return - 13" L 1
44 8101043 Flexline - Oil Return - 9.5" L 1
45 1065910 Wiring Harness, Filter Pump, 115/120V Filter Harness 1
45a 1065906SP Wiring Harness - 208/230/240/250V Filter Pump 1
46 8261375 Screw - #10-32 x 0.75" - Hex Trim Head SS 5
47 2007112 Bridge, Filter Motor 1
47a 8241705 Bridge Filter Motor Single Station Fryer Only 1
47b 2201346 Bridge, Filter Motor SCF Deep Cabinet 1
47c 2202080 Bridge, Filter Motor Fryer 0.5, Half Fryer LH side 1
47d 2201837 Bridge, Filter Motor Fryer 0.5, Half Fryer RH side 1
48 8130003-FRY Tee - 0.5" NPT 1
49 8130298 Nipple, 0.5” x 2.00” NPT BM Pipe 1
50 8130537 Nipple - 0.25" x 2" 1
51 8130165 Elbow - 0.5" x 90° NPT Street 1

PART NOTES:

[1] - includes screws and rollers
[2] - includes hold down ring
[3] - includes crumb tray
[4] - Recommended Stock Part
[5] - includes one left and one right
[6] - includes 4 rollers, 4 nuts and 4 lock washersRecommended Stock Part

Filtration System Components

FRY_P_0052_5_15_Filtration System Components.pdf

Re Series Marine E4 Electric Fryers

Filtration System Components

# PART # DESCRIPTION QTY Note

[7] - sold by the foot

Filtration System Components

FRY_P_0052_5_15_Filtration System Components.pdf

Re Series Marine E4 Electric Fryers

Frypot Assemblies and Associated Parts

Frypot Assemblies and Associated Parts

FRY_P_0052_5_15_Frypot Assemblies and Associated Parts.pdf

Re Series Marine E4 Electric Fryers

Frypot Assemblies and Associated Parts

# PART # DESCRIPTION QTY Note

1 8235545SP Frypot, Full-Vat Filter with Insulation (for use on EPRI units) 1
2 8235359SP Frypot 1
2a 8235996 Frypot, Half-Vat Filter w/o Insulation LH (for use on Fryer 0.5

LH units)
2b 8235723 Frypot, Half-Vat Filter w/o Insulation RH (for use on Fryer 0.5

RH units)
2c 8235783 Frypot, Full-Vat Filter w/o Insulation Deep Cabinet (for use on

Standard Deep units)
3 8235551SP Frypot, Dual-Vat Filter with Insulation (for use on EPRI units) 1
4 8235482SP Frypot, Dual-Vat Filter w/o Insulation (for use on Standard

units)
5a 8261177 Thermostat, High-Limit 425°F/218°C 1 [1]
5b 8262456 Thermostat Assembly - High-Limit - 435°F 1
5c 8068035SP High-limit Thermostat 1
5d 8262455 Thermostat Assembly - High-Limit - 415°F 1
5e 8262455 Thermostat Assembly - High-Limit - 415°F 1
5f 8262457 Thermostat Assembly, High-Limit Long Standard, CE Full Vat

405°F
6 8160773 Insulation - 0.5" x 10" x 20.5" 1
7 9004100 Retainer, Insulation—Side 1
8 9004101 Retainer, Insulation—Front 1
9 9001345 Retainer, Rear Insulation 1
10 8261376 Nut - #10-32 Keps Hex 10

NOTE: The frypots for EPRI-equipped units are insulated;

those for non-EPRI (standard) units are not. When replacing

insulation or adding insulation to a bare frypot, the

individual pieces (sides, front, and back) are cut to fit when

installed. Each frypot requires four uncut pieces of insulation.

PART NOTES:

[1] - Recommended Stock Part

1

1

1

1

1

Frypot Assemblies and Associated Parts

FRY_P_0052_5_15_Frypot Assemblies and Associated Parts.pdf

Re Series Marine E4 Electric Fryers

Heating Element Assemblies and Associated Parts - Element Tube Assemblies

Heating Element Assemblies and Associated Parts - Element Tube Assemblies

FRY_P_0052_5_15_Heating Element Assemblies and Associated Parts - Element Tube Assemblies.pdf

Re Series Marine E4 Electric Fryers

Heating Element Assemblies and Associated Parts - Element Tube Assemblies

# PART # DESCRIPTION QTY Note

1 1067653SP Tube Assembly Element, Full-Vat 1
1a 1066736 Tube Assembly RE Element Fryer 0.5 LH Half Fryer 1
1b 1066061 Tube Assembly RE Element Fryer 0.5 RH Half Fryer 1
2 1067654SP Tube Assembly RE Element, Dual-Vat 1
3 8103246 Bushing and Tube Assembly, Dual-Vat 1
4 1080315 Bracket Assembly, LH Element Tube Support 1
5 1065330 Bracket Assembly, RH Element Tube Support 1
6 2200122 Plate, Element Tube Support Inner 1
7 2200123 Plate, Element Tube Support Outer 1
8 1067651SP Bracket Assembly, LH Upper Spring 1
8a 1066569 Bracket Assembly, LH Upper Spring 1
9 1067652SP Bracket Assembly, RH Upper Spring 1
9a 1066570 Bracket Assembly, RH Upper Spring 1
10 8102992 Tube, Full Vat Element Mounting 1
11 8103135 Tube, Fryer 0.5 LH Half Fryer 1
11a 8103036 Tube, Fryer 0.5 RH Half Fryer 1
12 8102993 Bushing, Tube End Teflon 1
13 8090766 Nut, 10-32 Keps Hex SS 1
14 1066587 Magnetic Position Sensor 1
15 1066588 Magnetic Position Sensor Assembly with Bracket 1
16 8103007 Magnet - Ring 1
17 2300794 Bracket, Magnetic Position Sensor Wire 1

Heating Element Assemblies and Associated Parts - Element Tube Assemblies

FRY_P_0052_5_15_Heating Element Assemblies and Associated Parts - Element Tube Assemblies.pdf

Re Series Marine E4 Electric Fryers

Heating Element Assemblies and Associated Parts - Hardware

Heating Element Assemblies and Associated Parts - Hardware

FRY_P_0052_5_15_Heating Element Assemblies and Associated Parts - Hardware.pdf

Re Series Marine E4 Electric Fryers

Heating Element Assemblies and Associated Parts - Hardware

# PART # DESCRIPTION QTY Note

1 8262198 Element Kits - 200V - 17.0 kW 1 [1]
1a 8262201 Element Kits - 200V - 18.5 kW 1 [2]
1b 8262208 Element Kits - 200V - 11.0 kW 1 [2]
1c 8262192 Element Kits - 208V - 17.0 kW 1 [3]
1d 8262197 Element Kits - 208V - 18.5 kW 1 [4]
1e 8262210 Element Kits - 208V - 11.0 kW 1 [2]
1f 8262200 Element Kits - 220V - 17.0 kW 1 [5]
1g 8262205 Element Kits - 220V - 11.0 kW 1 [2]
1h 8262193 Element Kits - 230V - 17.0 kW 1 [2]
1i 8262199 Element Kits - 230V - 18.5 kW 1 [2]
1j 8262206 Element Kits - 230V - 11.0 kW 1 [2]
1k 8262194 Element Kits - 240V - 17.0 kW 1 [2]
1l 8262207 Element Kits - 240V - 11.0 kW 1 [2]
1m 8262204 Element Kits - 400V - 8.5 kW 1 [2]
1n 8262195 Element Kits - 440V - 17.0 kW 1 [2]
1o 8262202 Element Kits - 440V - 18.5 kW 1 [2]
1p 8262211 Element Kits - 440V - 11.0 kW 1 [2]
1q 8262196 Element Kits - 480V - 17.0 kW 1 [2]
1r 8262203 Element Kits - 480V - 18.5 kW 1 [2]
1s 8262209 Element Kits - 480V - 11.0 kW 1 [2]
2 8262212 Temperature Probe Kit 1 [4]
2a 8074324 Probe, Temperature Fast Ready 1
3 8160681 Grommet, Probe 1
4 8160480 Plug, .375-inch Dome 1
5 8160688 Gasket, Element 1
6 8091003 Screw - #10-32 x 0.375" Hex Trim Head SS 1
7 8090766 Nut, 10-32 Keps Hex SS 1
8 2300784 Bracket - Temperature Probe 8.5/11 kW 1
9 8090518 Screw, 8-32 x 0.375-inch Hex Washer Slotted Head SS 1
10 9102042 Clamp, Element 1 [6]
10a 2300781 Key Operated Switch Ice With Keys 1
11 2304902 Support, Full-Vat Element Rear 1
12 2304101 Support, Full-Vat Element Front 1
13 8235621 Support, Full-Vat Element Front 1
14 8090567 Tie-Wrap - Metal 1
15 8101212 Pin, .125 X .5-inch Split 1
16 2304903 Support, Dual-Vat Element Rear Dual Vat 1
17 2304103 Support, Dual-Vat Element Front Dual Vat 14kW 1
18 8235627 Support, Dual-Vat Element Front Dual Vat 17kW 1
19 8103030 Spring, Element Lift Left 1
20 8103031 Spring, Element Lift Right 1
21 2201190 Bracket, Lower Spring Single Foot Print 1
22 2200464 Bracket, Lower Spring 1
23 2201855 Bracket, Lower Spring Fryer 0.5 1
24 2200733 Bracket, Lower Spring Mating 1
25 8101233 Handle, Element Lift 1

Heating Element Assemblies and Associated Parts - Hardware

FRY_P_0052_5_15_Heating Element Assemblies and Associated Parts - Hardware.pdf

Re Series Marine E4 Electric Fryers

Heating Element Assemblies and Associated Parts - Hardware

# PART # DESCRIPTION QTY Note

The wire harnesses must be replaced when replacing 22kW

elements on all fryers, except 440V and 480V, manufactured

before March 2007.

NOTE: Items 1-1s Includes gaskets, grommets, tie wraps,

screws and nuts

PART NOTES:

[1] - includes gaskets, grommets, tie wraps, screws and nuts

[2] - includes gaskets, grommets, tie wraps, screws and nuts
[3] - includes gaskets, grommets, tie wraps, screws and nuts

[4] - Recommended Stock Part
[5] - includes gaskets, grommets, tie wraps, screws and nuts

[6] - Short

also used for 220V 8.5 kW

Recommended Stock Part

also used for 240V 8.5 kW

Heating Element Assemblies and Associated Parts - Hardware

FRY_P_0052_5_15_Heating Element Assemblies and Associated Parts - Hardware.pdf

Re Series Marine E4 Electric Fryers

Oil Disposal Plumbing, Oil Disposal Wand

Oil Disposal Plumbing, Oil Disposal Wand

FRY_P_0052_5_15_Oil Disposal Plumbing, Oil Disposal Wand.pdf

Re Series Marine E4 Electric Fryers

Oil Disposal Plumbing, Oil Disposal Wand

# PART # DESCRIPTION QTY Note

1 1065959 Plumbing, Front Oil Disposal 1
2 1065933 Plumbing, Rear Oil Disposal 1
3 1066033 Valve Assembly, Oil Disposal 1
4 2200922 Rod, Oil Disposal 1
5 2200963 Bracket, Oil Disposal Rod 1
6 8072484 Solenoid Valve - 0.25" 1
7 8090601 Clip, Clevis 1
8 8100487 Coupling, Male, Quick Disconnect 1
9 8101043 Flexline - Oil Return - 9.5" L 1
9a 8101055 Flexline - 0.625" OD x 11.5" L 1
10 8101668 Male Adaptor - 0.625" OD x 0.5" 1
11 8102493 Elbow, 90° 0.125-inch NPT x 0.25-inch Quick Connect 1
12 8111071 Tube, 0.25-inch OD Teflon Manifold Vent 1 [1]
13 8130003-FRY Tee - 0.5" NPT 1
14 8130022 Nipple, 0.5” Close NPT BM 1
15 8130062 Elbow - 0.5" BM x 90° 1
16 8130093-FRY Nipple - 0.5" NPT x 4" 1 [2]
17 8130165 Elbow - 0.5" x 90° NPT Street 1
18 8130173 Union, 0.5-inch NPT 1
19 8130304 Bushing, 0.5-inch NPT to 0.25-inch NPT Flush Reducing 1
20 8130429 Nipple - 0.5" NPT x 13.0" BM 1
21 8130571 Nipple, 0.25-inch x 1.5-inch BM 1
22 8130807 Bushing, 0.25-inch NPT x 0.125-inch 1
23 8160637 Cap, Vinyl Blue 0.3125-inch x 3.0” 1
24 8235685 Bracket, Assembly Quick Disconnect 1
24a 8235809 Bracket, Assembly Quick Disconnect SCF Deep Cabinet 1
25 8130265 Nipple - 0.5" x 2.5" NP 1
26 8101669 Female Adaptor - 0.875" OD x 0.5" 1
27 8130253-FRY Nipple, 0.5-inch NPT x 10-inch 1 [3]
28 8130298 Nipple, 0.5” x 2.00” NPT BM Pipe 1
29 1066407 Switch Assembly RE Wand 1
30 8067459SP Assembly, Oil Disposal Wand 1
31 8100490 Quick Disconnect, 0.25-inch Female 1
32 8101471 Hose, 24 FPH50 Japan 1
33 8100603 Wand, FB Filter 1

PART NOTES:

[1] - sold by the foot
[2] - replaces Item 11 in some models
[3] - Dual-vat Configuration

Oil Disposal Plumbing, Oil Disposal Wand

FRY_P_0052_5_15_Oil Disposal Plumbing, Oil Disposal Wand.pdf

Re Series Marine E4 Electric Fryers

Oil Return System Components

Oil Return System Components

FRY_P_0052_5_15_Oil Return System Components.pdf

Re Series Marine E4 Electric Fryers

Oil Return System Components

# PART # DESCRIPTION QTY Note

1 1065596 Handle Assembly, Full-Vat and Right Dual-Vat Rear Flush

Complete
1a 1066410 Handle Assembly, Full-Vat Deep Cabinet Complete 1
2 1065597 Handle Assembly, Left Dual-Vat Rear Flush Complete 1
3 8072103 Microswitch 1
4 1065595 Bracket Switch Assembly 1
5 2005401 Bracket, Handle Retainer 1
6 8160220 Insulation, Microswitch 1
7 8261366 Nut - #4-40 Keps Hex 25
8 8102534 Rod, Full-Vat and Right Dual Vat Rear Flush 1
8a 8103081 Rod, Full-Vat Right Hand Deep Cabinet 1
8b 8102533 Rod, Left Dual Vat Rear Flush 1
9 8160643 Grip, Oil Return Valve Handle 1
10 8090601 Clip, Clevis 1
11 8102532 Flexline - 7" L 1
11a 8101057 Flexline - Oil Return - 13" L 1
11b 8101055 Flexline - 0.625" OD x 11.5" L 1
12 8101668 Male Adaptor - 0.625" OD x 0.5" 1
13 8130165 Elbow - 0.5" x 90° NPT Street 1
13a 8130062 Elbow - 0.5" BM x 90° 1
13b 8130087 Nipple, 0.5-inch NPT x 1.5-inch (3.8 cm) 1
13c 8130908 Adapter, 0.5” NPT 90° 1 [1]
14 8100278 Valve, 0.5” Ball 1
15 2005438 Handle, Rear Flush Valve 1
16 9002935 Retainer, Nut Oil Return Valve 1
17 8130460 Nipple, 0.5-inch X 3.0-inch NPT 1
18 8130907 Cap, 0.9375-inch Valve Safety 1
19 8103142 Manifold, Fryer 0.5 Station Fryer 1
20 8103015 Manifold, Two-Station Fryer 1
20a 8102543 Manifold, Two-Station Fryer 1
21 8103016 Manifold, Three-Station Fryer 1
21a 8102544 Manifold, Three-Station Fryer 1
22 8103017 Manifold, Four-Station Fryer 1
22a 8102545 Manifold, Four-Station Fryer 1
23 8103018 Manifold, Five-Station Fryer 1
23a 8102546 Manifold, Five-Station Fryer 1

PART NOTES:

[1] - used only on cabinet side

1

Oil Return System Components

FRY_P_0052_5_15_Oil Return System Components.pdf

Re Series Marine E4 Electric Fryers

Wiring - Contactor Box Wiring Assemblies – 12-Pin Dual-Vat C-1, 12-Pin Full-Vat

C-1, 6-Pin (Left Element),

Wiring - Contactor Box Wiring Assemblies – 12-Pin Dual-Vat C-1, 12-Pin Full-Vat C-1, 6-Pin (Left Element), 9-Pin (Right Element)

FRY_P_0052_5_15_Wiring - Contactor Box Wiring Assemblies – 12-Pin Dual-Vat C-1, 12-Pin Full-Vat C-1, 6-Pin (Left Element), 9-Pin (Right Element).pdf

Re Series Marine E4 Electric Fryers

Wiring - Contactor Box Wiring Assemblies – 12-Pin Dual-Vat C-1, 12-Pin Full-Vat C-1, 6-Pin (Left Element),

# PART # DESCRIPTION QTY Note

1 1065980SP Contactor Box Harness Assembly Dual Vat 1
2 1066031SP Contactor Box Wiring Assemblies – 12-Pin Full-Vat C-1,

Contactor Box Harness Assembly Full Vat Standard EPRI
3 1067042 Fryer and 0.5 Contactor Box Harness Assembly 1
4 1066768SP Contactor Box Wiring Assembly – 6-Pin (Left Element), 14/17

kW Standard Mercury Contactor
5 1067849SP Contactor Box Wiring Assembly – 6-Pin (Left Element), 22

kW Triac SSR
6 1066771SP Contactor Box Wiring Assembly – 6-Pin (Left Element),14/17

kW Mechanical Contactor
7 1067851SP Contactor Box Wiring Assembly – 6-Pin (Left Element), 22

kW Mercury and High Amp Mechanical Contactor
8 1066769SP Contactor Box Wiring Assembly – 9-Pin (Right Element),

14/17 kW Standard Mercury Contactor
9 1067850SP Contactor Box Wiring Assembly – 9-Pin (Right Element), 22

kW Triac SSR
10 1066772SP Contactor Box Wiring Assembly – 9-Pin (Right

Element),14/17 kW Mechanical Contactor
11 1067852SP Contactor Box Wiring Assembly – 9-Pin (Right Element), 22

kW Mercury and High Amp Mechanical Contactor
12 8070159 12-Pin Female 1
13 8070804 15-Pin Male 1
14 8070160 12-Pin Male 1
15 8074194 Full Vat Harness 1
16 8074195 Wiring Harness 1
17 8074364 Fryer And 0.5 Harness 1

1

1

1

1

1

1

1

1

1

Wiring - Contactor Box Wiring Assemblies – 12-Pin Dual-Vat C-1, 12-Pin Full-Vat C-1, 6-Pin (Left Element), 9-Pin (Right Element)

FRY_P_0052_5_15_Wiring - Contactor Box Wiring Assemblies – 12-Pin Dual-Vat C-1, 12-Pin Full-Vat C-1, 6-Pin (Left Element), 9-Pin (Right Element).pdf

Re Series Marine E4 Electric Fryers

Wiring Connectors and Pin Connectors, Fasteners

Wiring Connectors and Pin Connectors, Fasteners

FRY_P_0052_5_15_Wiring Connectors and Pin Connectors, Fasteners.pdf

Re Series Marine E4 Electric Fryers

Wiring Connectors and Pin Connectors, Fasteners

# PART # DESCRIPTION QTY Note

1 8071068 2-Pin Female 1
2 8070158 6-Pin Female 1
3 8070156 9-Pin Female 1
4 8070159 12-Pin Female 1
5 8070875 15-Pin Female 1
6 8071067 2-Pin Male 1
7 8070157 6-Pin Male 1
8 8070155 9-Pin Male 1
9 8070160 12-Pin Male 1
10 8070804 15-Pin Male 1
11 8261341 Terminal, Female Split Pin 25
12 8261342 Terminal, Male Split Pin 25
13 8072518 Plug, Mate-N-Lock 1
14 8070928 Extract Tool Pin Pusher 1
15 8064855 Pin Pusher Screwdriver Assy 1
16 2302345 SMT Pin Extractor 1
17 8074660PK SMT Pin Service Repair Kit 1
18 8090429 Bolt - 0.25"– 20 x 2.00" Hex Head ZP Tap 1
19 8090514 Cap Screw - 0.3125" 18 NC Hex 1
20 8090448 Clip, Tinnerman 1
21 8261366 Nut - #4-40 Keps Hex 1
22 8261358 Nut, 6-32 Keps Hex 1
23 8090247 Nut - #8-32 Keps Hex 1
24 8261376 Nut - #10-32 Keps Hex 1
24b 8090766 Nut, 10-32 Keps Hex SS 1
25 8090581 Nut, 0.5 NPT Locking 1
26 8090020 Nut Cap 10-24 NP 1
27 8261372 Nut Grip 0.25-inch 0.25-20 Hex NP 1
28 8261368 Nut - 0.25-20 Serrated Flange 1
29 8090535 Nut, "T" 0.25-inch-20 x 0.4375 SS 1
30 8090540 Nut, Lock 0.5-inch-13 Hex 2-Way ZP 1
31 8261359 Screw - #4-40 x 0.75" Slotted Round Head 1
32 8261365 Screw, 6-32 x 0.375-inch Slot Head 1
33 8090357 Screw, 6 x 0.375-inch Phillips Head NP 1
34 8090359 Screw, 8 x 0.25-inch Hex Washer Head 1
35 8090360 Screw, 8 x 0.375-inch Hex Washer Slot Head 1
36 8261371 Screw - #8 x 0.5" Hex Head ZP 1
37 8090364 Screw - #8 x 0.625" Hex Washer Head ZP 1
38 8090518 Screw, 8-32 x 0.375-inch Hex Washer Slotted Head SS 1
39 8090104 Screw, 8-32 x 0.5-inch Slotted Head ZP 1
40 8261363 Screw - #8-32 x 0.5" NP 1
41 8261360 Screw - #10-24 x 0.3125" Round Slot Head ZP 1
42 8261330 Screw, 10-32 x 0.375-inch Slot Head SS 1
43 8091003 Screw - #10-32 x 0.375" Hex Trim Head SS 1
44 8261375 Screw - #10-32 x 0.75" - Hex Trim Head SS 1
45 8091000 Screw - #10-32 x 1.25" - Hex 1

Wiring Connectors and Pin Connectors, Fasteners

FRY_P_0052_5_15_Wiring Connectors and Pin Connectors, Fasteners.pdf

Re Series Marine E4 Electric Fryers

Wiring Connectors and Pin Connectors, Fasteners

# PART # DESCRIPTION QTY Note

46 8261374 Screw - #10 x 0.5" Hex Head 1
47 8090266 Screw, 10 x 0.5-inch Phillips Head ZP 1
48 8090475 Screw - #10-32 x 0.3125" Hex 1
49 8090123 Screw - #10 x 0.75" - Slot Head 1
50 8261389 Screw - 0.25"-20 x 0.75" Hex Head ZP 1
51 8090582 Washer 0.5 NPT Locking 1
52 8090184 Washer, #10 LK ZP 1
53 8090190 Washer, .625 X .275 X 40 Flat SS 1
54 8090191 Washer, Lock 0.25 Spring ZP 1
55 8090193 Flat Washer - 0.25" Nylon 1
56 8090194 Flat Washer - 0.3125" ZP 1

Wiring Connectors and Pin Connectors, Fasteners

FRY_P_0052_5_15_Wiring Connectors and Pin Connectors, Fasteners.pdf
