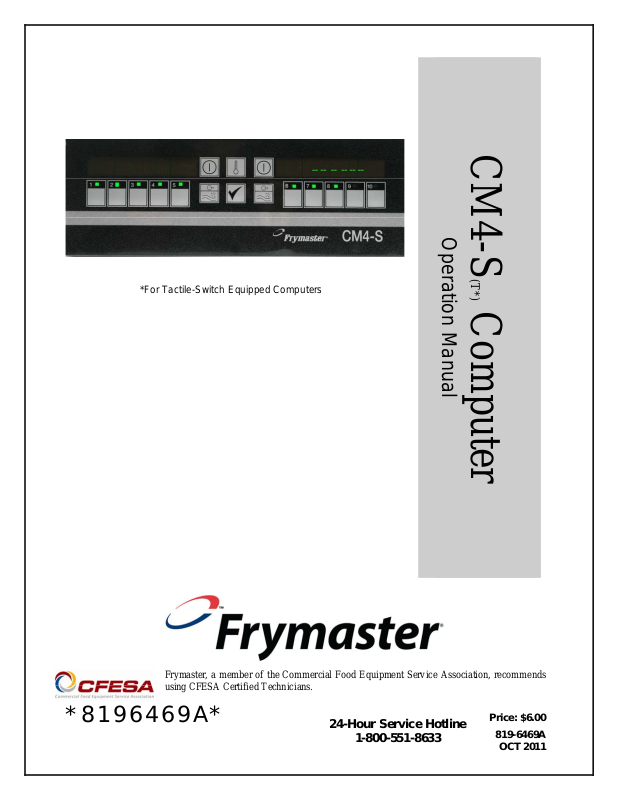

Frymaster CM4-ST Installation Manual

*For Tactile-Switch Equipped Computers

CM4-S(T*) Computer

Operation Manual

Frymaster, a member of the Commercial Food Equipment Service Association, recommends
using CFESA Certified Technicians.

*8196469A*

24-Hour Service Hotline

1-800-551-8633

Price: $6.00

819-6469A

OCT 2011

Table of Contents

Diagnostic
Hints

Look in this gray
box throughout the
manual for
overviews and
hints on the
operation of the
CM4-S cooking
computer.

12345 6 7 8 9 10

12345 678910

Programming

button

CM4-S

Operational Overview 1-1

Computer Setup, Standard Mode 2-1

Programming for Segmented Cooking with Filtration 3-1

Programming for Non-Segmented Cooking with Filtration 3-5

Filtering 3-7

Programming for Segmented Cooking, Non-Filtering 4-1

Programming for Non-Segmented Cooking, Non-Filtering 4-4

Alarm Programming 5-1

Exit-Mode Programming 6-1

Toggle From Fahrenheit to Celsius 7-1

Operational and Diagnostic Codes and Messages 8-1

1-A

CM4-S Cooking Computer — Overview

The S in the CM4­S computer stands
for segment, a
feature which
allows a cooking
cycle to be broken
into a number of
parts, each with its
own cooking
temperature and
time.

The graphic at
right details an
example of this
process. Explicit,
step-by-step
instructions are
provided in
subsequent
chapters.

Programming Overview

An example of a 13-minute cook cycle with four cooking temperatures
is detailed in the graphic below.
The cooktime and points at which the temperature will change are
entered in four steps in this example. Cook times are arrived at by
subtracting the desired segment time from the remaining cook time and
entering that number. (See explanation in the graphic.)

♦ Step 1 sets the total cook time and the initial setpoint.
♦ Step 2 sets the duration of the first cooking segment, 2 minutes,

and the setpoint of the first temperature change.

♦ Step 3 sets the duration of the second cooking segment, 4 minutes,

and the setpoint of the second temperature change.

♦ Step 4 sets the duration of the third cooking segment, 3 minutes,

and the setpoint of the third temperature change.
The four remaining minutes in the cooktime elapse at the final
temperature. No entry is required to use the final minutes.

Enter 13:00, the combined time of all cook cycles, and 340°F,
initial setpoint.

1:

2:

Remaining cook
time

Minus segment
length

Entered on
CM4-S

Enter 320°F,
the first
temperature
change.

2 min.

11

13

-2

3:

Remaining cook
time

Minus segment
length

Entered on
CM4-S

Enter 310°F,
the 2nd
temperature
change.

4 min.

11

-4

4:

7

Remaining cook
time
Minus segment
length

Entered on
CM4-S

Enter 330°F,
the 3rd
temperature
change.

3 min.

7

No entry is required
for the final 4 minutes

-3

of the cook time. The
computer simply

4

counts downs the
remaining minutes at
the final setpoint,
which was
established in step 4.

4 min.

340°F

320°F

310°F

330°F

2:00 4:00 6:00 8:00 10:00 12:00

0 1

2

4

3

5 6 7 8 910111213

1-1

The CM4-S has a
number of features
and it is not
essential to use all
of them in your
cooking operation.
Programming for
segmented
cooking and
staggered alarms,
which are not
essential to use
together, are
extensive
processes.

For that reason,
programming for
filtering prompts
and alarms are
presented in
separate chapters.

CM4-S Cooking Computer — Overview

The CM4-S can cook in segmented and non-segmented cook cycles
with or without automatic filter prompts. It is also programmable to exit
a cook cycle in one of three modes: return to setpoint, assume an idle
temperature below setpoint, or prompt filtering at a prescribed cook
cycle count for a specific product button

The CM4-S is also capable of monitoring cook cycles initiated by all
the product buttons and call for filtering when the cumulative amount
reaches a number set by the operator.

Programming for filtering and exit-mode options are not essential to
basic cooking programming. For that reason, filtering and exit mode
instructions are provided in separate sections of this manual.

The sequence in which programmable features are encountered after

Product

entering the proper access code is listed below with a brief explanation
of their function.

drops

Segment

Alarm

Exit

cooktime

Set-temp

sens

Encountered in all programming; a product
button must be pressed for programming.

Encountered in all programming; allows computer to keep
running total of drops of chicken or equivalent. The
amount is accessible with a programming code.

Encountered in all programming; used to program
segmented and non-segmented cook cycles.

Allows up to three alarms to be set per cook cycle;
encountered by pressing programming key.

Allows programming of the exit mode at the completion
of a cook cycle; encountered by pressing programming
key.

Encountered in all programming; used to enter cooking
times for segmented a nd non-segmented cooking cycles.

Encountered in all programming; used to enter cooking
temperatures for segmented and non-segmented
cooking cycles.

Encountered in all programming; used to enter sensitivity, which is the
degree the computer reacts to the introduction of cold product to the
heated oil. The computer shrinks or stretches the cook time based on
the degree of cooling and the sensitivity setting. A 0 setting results in
no reaction; 9 produces the greatest reaction.

1-2

CMS-4 Cooking Computer

Computer Setup

1. Press .

Display reads
OFF.

2. Press

programming
button.

3. Code

appears in left
display; right
display is
blank.

12345 6 7 8 9 10

12345 678910

Programming button.

CM4-S

4. Use product keys to enter 1656

.

5. Left display shows OK Tone; right shows 1000HZ.

6. Adjust tone by entering a new frequency, 100-2000Hz, with product

buttons.

7. Press either

ON/OFF button to sample sound.

8. Press to save sound.

9. Left display shows Caution; right 500HZ.

10. Follow steps 6-7 to change and sample sound.

11. Press to save sound.

12. Left display shows Warning; right 350HZ.

13. Follow steps 6-7 to change and sample sound.

14. Press to save sound.

15. Left display shows Fry-Type; right shows Full Pot,
Splitpot or pressure.

16. Press to toggle between choices. Leave Full Pot in the display
for a single vat fryer, splitpot in display for dual-vat fryer or
pressure in the display for a pressure fryer.

17. Press

to lock in choice.

18. Left display shows energy; right shows gas or electric.

19. Press to toggle between choices.

20. With the proper energy type displayed, press

to lock in choice.

21. Melt Ext appears in left display; a temperature setting in the right.

2-1

CMS-4 Cooking Computer

22. Use product buttons to set temperature the fryer will exit the melt cycle and

heat continuously to setpoint.

23. Press to lock in choice.

24. Melt On appears in left display; a number appears in

the right.

NOTE: The energy
choice sets an
appropriate melt
cycle time. Don’t
vary from the default
settings.

25. Use product buttons to enter the time, in seconds, the

burners will be on during the melt cycle.

26. Press to lock in choice.

27. Melt Off appears in left display; a number appears in the right.

28. Use product buttons to enter the time, in seconds, the burners will stay off

during the melt cycle.

29. Press to lock in choice.

30. Filttime appears in left display; a time in the right.

31. Use the product buttons to enter the amount of time the filter pump should

run to fill the frypot after the drain valve is closed. An alarm sounds when
the set time elapses.

32. Press to lock in choice.

33. Computer displays OFF. Setup is complete.

2-2

CM4-S Cooking Computer — Programming with Filtration

Programming

Hint

When using the
global filtering
feature of the
CM4-S, the
computer counts
the amount of
product cooked
and calls for
filtering when the
count reaches a
predetermined
number, which is
set by the user.
The computer
must be connected
to the drain valve
safety switch to
provide all the
features described
at right.

• Entry of the
amount of
product to
cook before
calling for
filtering is
detailed in
steps 1-8 at
right.

• The amount of
product
assigned to a
product button
is entered at
step 16.

ON/OFF

1 2 3 4 5 6 7 8 9 10

12345 678910

Product Buttons

Exit Cool

Programming

Key

Temp

Product Buttons

CM4-S

Programming for Segmented Cooking Cycles

(Filter Mode)

1. Establish the total number of cook cycles before the computer

prompts a filter cycle.

2. Press

3. Display shows OFF.

4. Press programming key. (See diagram above)

5. Display shows CODE on left side.

6. Enter 1658 using numbered product keys .

7. GBL FILT (lGBL and rGBL appear if the computer is
configured for a splitpot) appears in the left display, 0 or a
previously programmed number appears in the right.

8. Use the product keys to enter the number of cook cycles before the
computer calls for filtering.

9. Press

10. Establish the total cooktime
and the number and
temperatures of the cook
segments for your product.
You will find drawing a diagram helpful. See graphic on page 1-1
and above. In this example cooking segments of 2 minutes at 340°F,
4 minutes at 320°F, 3 minutes at 310°F and a final cook segment of
4 minutes at 330°F are set.

11. Press programming button. (See diagram above)

12. Display shows CODE on left side.

, the ON/OFF button to turn computer off.

. Computer displays OFF.

2 min

340°F

4 min.
330°F

Total time: 13 min

3 min.

310°F

4 min.

330°F

13. Enter 1650 using numbered product keys.

Use button

10 for 0.

3-1

* If you plan to use
the cooking alarms
or exit modes
features, please
skip to sections 5
and 6 for
instruction on their
programming.
If not,
programming can
continue in the
sequence at right.

** The temperature
display can be
toggled from
Fahrenheit to
Celsius in this
step. See
instructions on
Page 7-1.

CM4-S Cooking Computer — Programming with Filtration

14. Product shows in left display. All product buttons blink. Right
display is blank.

15. Press the product button you want to program. drops
appears in left display; 0 or a previously programmed number in
the right. The LED in the chosen button remains lit. All others go

off.

16. Use the product buttons to enter the number of drops of chicken (or
equivalent) to be cooked in each cycle of the product button being
programmed.

17. Press to lock in choice.

18. Segment appears in left display, PROD and number of the
product button being programmed appears in right. The LED in

button one flashes.

19. Press product button 1 . The product 1 LED continues to flash;
the LED in the button being programmed stays on continuously
(unless button 1, which is flashing, is being programmed).

20. Cooktime appears in left display; a time programmed
previously appears in right display.

21. Use the product buttons to enter 0, which eliminates any earlier
programming.

22. Press .

23. Segment appears in the left disp lay, Prod and the button
number in the right. No button LEDs are illuminated.

24. Press button 1

. The LED flashes.

25. Cooktime appears in left display; 0 appears in right display.

26. Use the product buttons to enter the total cook time.

27. Press .

28. Set-Temp appears in left display; 0 appears in the right display.

29. Use product keys to enter the cooking temperature for the initial
setpoint of the cooking cycle.

30. Press

to lock in temperature.

31. Sens appears in the left display; 0 appears in the right.

32. Use product buttons to set sensitivity, which is the degree the
computer reacts to the introduction of cold product to the heated oil.
The computer can stretch or shrink the cooking time. Zero, or no
sensitivity, is a common choice for bone-in chicken.

3-2

CM4-S Cooking Computer — Programming with Filtration

t

33. Press to lock in choice.

34. Segment appears in left display, Prod and a button number
in right. The LED in the product button 1 continues to flash. All

others are dark.

35. Press product button 2 . The LED in product button 2 flashes.
The LED in the button being programmed is illuminated
continuously.

36. Determine the desired cook time for the first cook cycle. Subtract
that number from the total cook time entered
in the first step. Enter the result with the
product buttons. See calculation at right and
graphic in programming overview on page 1-

1.

37. Press

to lock in choice.

38. Set-Temp appears in left display and 0

Total cooking time

Cooktime for 1
segment

Time entered into
CM4-S.

13:00

s

-2:00

11:00

or a previously programmed temperature
appears in the right.

39. Use product keys to enter the cooking temperature for the first
temperature change. See graphic on page 1-1.

40. Press

. Sens appears in the left display; 0 or a previously

set sensitivity setting appears in the right.

41. Use product keys to enter sensitivity.

42. Press .

43. Segment appears in left display, Prod and a button number
in right. Buttons 1 and 2 flash.

44. Press product button 3 .

45. Cooktime appears in left display; 0 appears in the
right.

46. Subtract desired time for second cook segment from
remaining cooktime. (See example at right.) Enter that
number at the cooktime prompt.

47. Press

to lock in cooktime .

Remaining
cooktime

Cooktime
for 2nd
segment

Time entered into
CM4-S.

48. Set-Temp appears in left display and 0 or a
previously programmed temperature appears in the right.

49. Use product keys to enter the cooking temperature for the second
temperature change.

11:00

-4:00
7:00

50. Press . Sens appears in the left display; 0 or a previously

set sensitivity setting appears in the right.

3-3

CM4-S Cooking Computer — Programming with Filtration

52. Press .

53. Segment appears in left display, Prod and a button number

in right. Buttons 1,2, 3 flash.

51. Use product keys to enter sensitivity.

54. Press product button 4 .

55. Cooktime appears in left display; 0 appears in the

right. Button being programmed is illuminated; button
four flashes.

56. Subtract desired time for second cook segment from

remaining cooktime. (See example at right.) Enter that
number at the cooktime prompt.

Remaining
cooktime

Cooktime
for 3rd
segment

Time entered into
CM4-S.

-3:00

7:00

4:00

57. Press to lock in cook time.

58. Set-Temp appears in left display and 0 or a previously

programmed temperature appears in the right.

59. Use product keys to enter the cooking temperature for the final

temperature change.

60. Press . Sens appears in the left display; 0 or a previously

set sensitivity setting appears in the right.

61. Use product keys to enter sensitivity.

62. Press .

63. Segment appears in left display; Prod 1 in right. Buttons 1-

4 flash.

64. In this example, nine minutes of the 13-minute cooktime have been

programmed. No additional programming is required. The computer
will take the oil to the last setpoint, which was established in step
58 and countdown the remaining 4 minutes.

65. Press to leave programming for this product button.

66. Product appears in the left display. Right display is blank. All

buttons flash.

67. Press next product button to be programmed with segmented

cooking cycles. Follow steps outlined above to program.

68. To lock in programming and exit, press

.

3-4

Programming
Hint

Vats cooking
french fries and
other non-breaded
products do not
need filtering as
frequently as vats
used to prepare
chicken and other
heavily breaded
items.

* If you plan to use
the cooking alarms
or exit modes
features, please
skip to sections 5
and 6 for
instruction on their
programming.
If not,
programming can
continue in the
sequence at right.

CM4-S Cooking Computer — Programming with Filtration

Programming for non-Segmented Cooking

(Filtering Mode)

1. Establish the number of cook cycles before the computer prompts a

filter cycle.

2. Press

3. Display shows OFF.

4. Press . (See diagram).

5. Display show CODE on left side.

6. Enter 1658 using numbered product keys .

7. GBL Filt appears in the left display; 0 or a previously

programmed number appears in the right.

8. Use the product keys to enter the amount of product to be cooked

before the computer calls for filtering.

9. Press . Computer displays OFF.

10. Press , the ON/OFF button to turn computer off.

11. Display shows OFF.

12. Press . (See diagram).

13. CODE appears on left side; right side is blank.

14. Enter 1650 using numbered product keys. Use button 10

for 0.

15. Product shows in left display. All product buttons blink. Right

display is blank.

16. Press the product button

in left display; a number appears in the right. The LED in the chosen
button remains lit. All others go off.

17. Use the product buttons to enter the amount of product to be cooked

with the button being programmed.

18. Press to lock in choice.

19. *Segment appears in left display, PROD and the number of the

button being programmed appears in the right. The LED in product
button 1 begins to flash.*

, the ON/OFF button to turn the computer off.

you want to program. Drops appears

20. Press product button 1

. The LED in product 1 continues to flash;
the LED in the button being programmed stays on continuously
(unless button 1 is being programmed; it will flash).

3-5

** The temperature
display can be
toggled from
Fahrenheit to
Celsius in this
step. See
instructions on
Page 7-1.

CM4-S Cooking Computer — Programming with Filtration

21. Cooktime appears in left display; 0 or a time appears in right

display.

22. Use the product buttons to enter the cook time.

23. Press

24. **Set-Temp appears in left display; 0 or a temperature appears

in the right display.

25. Use product keys to enter the cooking temperature for the product.

to lock in cook time .

26. Press

to lock in temperature.

27. Sens appears in the left display; 0 or a number, up to 9, appears in

the right.

28. Use product buttons to set sensitivity, which is the degree to which

the computer reacts to the introduction of cold product to the heated
oil. The computer can stretch or shrink the cooking time.

29. Press to lock in choice.

30. Segment appears in left display. Product number appears in right.

31. Press .

32. Product appears in left display. Right display is blank. All buttons

flash.

33. Choose another product button to program or press to turn off

computer and lock in changes.

3-6

CM4-S Cooking Computer — Programming with Filtration

Filter Operation

The computer
must be connected
to the drain valve
safety switch in
order to function as
described at right.

To clear a
computer
programmed for
global filtering and
not connected to
the fryer’s filter
system:

• Press

• Press

• Display shows

• Enter 1111

• CLR FLTR

to
turn computer
off.

.

CODE.

with product
keys.)

FUNCTION
flashes in
display and
computer
displays OFF.

Filter Operation

1. When the product count entered during the programming for
global filtering is reached, the computer will display Filter.

2. Allow the cook cycle to complete.

3. Ensure the filter pan is properly prepared.

4. Open drain valve for a minimum of 30 seconds.

5. Display shows Drain Open.

6. After approximately three minutes, the computer display alternates
between Drain, Open and Fill.

7. Close drain valve. Display shows FILL.

8. Use pump on filter system to refill fry vat.

9. Press

. Fryer returns to setpoint.

3-7

CM4-S Cooking Computer —Programming for non-Filtering

* If you plan to use
the cooking alarms
or exit modes
features, please
skip to sections 5
and 6 for
instruction on their
programming.
If not,
programming can
continue in the
sequence at right.

1 2 3 4 5 6 7 8 9 10

12345 678910

Product Buttons

ON/OFF

Exit Cool

Programming

Key

Temp

Product Buttons

CM4-S

Programming for Segmented Cooking Cycles

(Non-Filtering Mode)

1. Establish the total

cook time and the
number and
temperatures of the
cook segments for your product. You will find drawing a diagram
helpful. See graphic on page 1-1. In this example
cooking segments of 2 minutes at 340°F, 4
minutes at 320°F, 3 minutes at 310°F and a final
cook segment of 4 minutes at 330°F are set.

2. Press . Computer displays OFF.

3. Press .

4. Display shows CODE on left side.

5. Enter 1650 using numbered product keys.

10 for 0.

6. Product shows in left display. All product buttons blink. Right

display is blank.

7. Press the product button you want to program. drops
appears in left display; 0 or a number in the right. The LED in the
chosen button remains lit. All others go off.

8. Use the product buttons to enter the number of drops of chicken (or
equivalent) to be cooked in each cycle of the product button being
programmed.

2 min

340°F

4 min.
330°F

Total time: 13 min

310°F

3 min.

4 min.

330°F

Note: Instructions are
based on a four­segment cooking cycle.
Computers can be
programmed with up to
nine cooking segments.

Use button

9. Press to lock in choice.

10. Segment appears in left display, PROD and number of the
product button being programmed appears in right.

4-1

CM4-S Cooking Computer —Programming for non-Filtering

t

11. Press product button 1 . The LED in product 1 continues to
flash; the LED in the button being programmed stays on
continuously (unless button 1, which is flashing, is being
programmed).

12. Cooktime appears in left display; a time programmed
previously appears in right display.

13. Use the product buttons to enter 0, which eliminates any earlier
programming.

14. Press .

15. Segment appears in the left display; Prod and a number in
the right. No button LEDs are illuminated.

16. Press button 1 . The LED flashes.

17. Cooktime appears in left display; 0 appears in right display.

18. Use the product buttons to enter the total cook time.

19. Press .

20. Set-Temp appears in left display; 0 appears in the right display.

21. Use product keys to enter the cooking temperature for the initial
setpoint of the cooking cycle.

22. Press to lock in temperature.

23. Sens appears in the left display; 0 appears in the right.

24. Use product buttons to set sensitivity, which is the degree the
computer reacts to the introduction of cold product to the heated oil.
The computer can stretch or shrink the cooking time. Zero, or no
sensitivity, is a common choice for bone-in chicken.

25. Press

to lock in choice.

26. Segment appears in left display; Prod 1 in right.

27. Press product button 2 . The LED in product button 2 flashes.
The LED in the button being programmed is
illuminated continuously.

28. Determine the desired cook time for the first
cook cycle. Subtract that number from the total
cook time entered in the first step. Enter the
result with the product buttons. See calculation
at right and graphic in programming overview
on page 1-1.

29. Press

to lock in choice.

Total cooking time

Cook time for 1
segment

Time entered into
CM4-S.

13:00

s

-2:00

11:00

4-2

CM4-S Cooking Computer —Programming for non-Filtering

programmed temperature appears in the right.

31. Use product keys to enter the cooking temperature for the first
temperature change. See graphic on page 1-1.

30. Set-Temp appears in left display and 0 or a previously

32. Press

. Sens appears in the left display; 0 or a previously

set sensitivity setting appears in the right.

33. Use product keys to enter sensitivity.

34. Press

.

35. Segment appears in left display; Prod 1 in right.

36. Press product button 3 .

37. Cooktime appears in left display; 0 appears in the
right.

38. Subtract desired time for second cook segment from
remaining cook time. (See example at right.) Enter that
number at the cooktime prompt.

Remaining cook
time

Cook time
for 2nd
segment

Time entered into
CM4-S.

11:00

-4:00
7:00

39. Press to lock in cook time .

40. Set-Temp appears in left display and 0 or a

previously programmed temperature appears in the right.

41. Use product keys to enter the cooking temperature for the second

temperature change.

42. Press . Sens appears in the left display; 0 or a previously

set sensitivity setting appears in the right.

43. Use product keys to enter sensitivity.

44. Press .

45. Segment appears in left display; Prod and a number in right.

46. Press product button 4 .

47. Cooktime appears in left display; 0 appears in the

right.

48. Subtract desired time for the third cook segment from

remaining cook time. (See example at right.) Enter that
number at the cooktime prompt.

49. Press

to lock in cook time .

Remaining cook
time

Cook time
for 3rd
segment

Time entered into
CM4-S.

50. Set-Temp appears in left display and 0 or a

previously programmed temperature appears in the right.

51. Use product keys to enter the cooking temperature for the final

temperature change.

7:00

-3:00
4:00

4-3

CM4-S Cooking Computer —Programming for non-Filtering

set sensitivity setting appears in the right.

53. Use product keys to enter sensitivity.

54. Press .

55. Segment appears in left display; Prod and a number right.

All programmed buttons are illuminated.

56. Nine minutes of the 13-minute cook time have been programmed.

No additional programming is required. The computer will take the
oil to the last setpoint, which was established in step 48 and
countdown the remaining 4 minutes.

57. Press to leave programming for this product button.

58. Product appears in the left display. Right display is blank.

59. Press next product button to be programmed with segmented

cooking cycles. Follow steps outlined above to program.

60. To lock in programming and exit, press .

52. Press . Sens appears in the left display; 0 or a previously

4-4

P

rogramming

Hint

French fries and
other similar
products do not
require segmented
cooking cycles.
Simply exit the
programming
sequence at the
second Segment
display. The time
entered into the
first segment will
establish the
complete cooking
time.

* If you plan to use
the cooking alarms
or exit modes
features, please
skip to sections 5
and 6 for
instruction on their
programming.
If not,
programming can
continue in the
sequence at right.

** The temperature
display can be
toggled from
Fahrenheit to
Celsius in this
step. See
instructions on
Page 7-1.

CM4-S Cooking Computer —Programming for non-Filtering

Programming for non-Segmented Cooking

(Non-Filtering Mode)

1. Press , the ON/OFF button to turn computer off.

2. Display shows OFF.

3. Press (See diagram).

4. CODE appears on left side; right side is blank.

5. Enter 1650 using numbered product keys. Use button 10

for 0.

6. Product shows in left display. All product buttons blink. Right

display is blank.

7. Press the product button you want to program. drops appears

in left display; A number appears in the right. The LED in the chosen
button remains lit. All others go off.

8. Use the product buttons to enter the number of drops of chicken or an

equivalent to be assigned to this product button.

9. Press to lock in choice.

10. *Segment appears in left display, PROD and the number of the

button being programmed appears in the right. The LED in product
button 1 begins to flash.

11. Press product button 1 . The LED in product 1 continues to flash;

the LED in the button being programmed stays on continuously.

12. Cooktime appears in left display; 0 or a time programmed

previously appears in right display.

13. Use the product buttons to enter 0, which eliminates earlier

programming.

14. Press .

15. Segment appears in left display, PROD and the number of the

button being programmed appears in the right. No button LEDs are
illuminated.

16. Press a product button .

17. Cooktime appears in left display; 0 appears in the right display.

18. Use product keys to enter the cook time.

19. Press to lock in cook time.

61. Set-Temp appears in left display and 0 or a previously

programmed temperature appears in the right.

20. Use product keys to enter the cooking temperature for the product.

4-5

CM4-S Cooking Computer —Programming for non-Filtering

21. Press .

22. Sens appears in the left display; 0 or a previously set number up to

9 appears in the right.

23. Use product buttons to set sensitivity, which is the degree to which

the computer reacts to the introduction of cold product to the heated
oil. The computer can stretch or shrink the cooking time.

24. Press to lock in choice.

25. Segment appears in left display. Product number appears in right.

26. Press .

27. Product appears in left display. Right display is blank.

28. Choose another product button to program or press to turn off

computer and lock in changes.

4-6

CM4-S Cooking Computer — Alarm Programming

P

rogramming

Hint

Alarms are set to
remind operators
to shake fry
baskets or tend to
the product in
some other way at
points during the
cook cycle. The
instructions at right
detail setting three
alarms in a 13­minute cook cycle.
To enter a single
alarm, exit the
sequence after
setting the first
alarm.

Three alarms can be programmed for a cook cycle. The CM4-S counts down cook times from

1. B

the total time to zero. Alarms are entered at the point in the countdown they are desired. The

e

example below is for alarms at 11:00, 6:00 and 2:00 on the countdown clock; the alarms will

g

occur two, seven and 11 minutes into the 13-minute cook cycle.

i
n

At the Alarm 1

h

prompt, enter

e

11:00. The alarm

r

will occur with 11
minutes remaining

e

in the cook cycle;
two minutes have

a

passed.

f
t
e
r

1:

11:00

2:

At the Alarm 2 prompt,
enter 6:00, The alarm will
occur with 6:00 remaining
in the cook cycle; seven
minutes have passed.

6:00

3:

At the Alarm 3
prompt, enter 2:00.
The alarm will
occur with 2:00
remaining in the
cook cycle; 11
minutes have
passed.

2:00

r
e
a
c

2:00 7:00 11:00

h
i

Points in the cook cycle the alarms occur

n
g

1. After reaching the first display of Segment on the computer

when programming for any mode of operation, follow these steps to
set audible alarms in the cook cycle.

2. Segment is shown in the left display; Product and its

Cook
cycle
ends

13:00

number in the right. Press left Exit Cool

(see diagram on page

2-2).

3. Alarm 1 appears in left display; A or M and a time appears in

the right.

4. Determine the point in the cook time countdown the first alarm

should occur. For example, to set an alarm two minutes into a 13­minute cook cycle, set the alarm at 11:00, the time the computer
will display when two minutes have elapsed in the cook cycle. (See
graphic above).

5. Use

to toggle between A and M. With A displayed, alarms are

self-canceling; with M displayed, alarms must be canceled
manually. See example on next page of entering three alarm times.

5-1

CM4-S Cooking Computer — Alarm Programming

With desired time and alarm-canceling mode displayed, press

6.

to proceed. Skip to step 9 to program Alarm 2. To exit alarm
programming follow steps 7-8.

To exit alarm programming, press left twice. Ex Cycle , which

7.

is described in section 6, will display on the computer at the first
push. On the second button push the computer will revert to
segment and product number.

8.

Resume programming for segmented, non-segmented, filter or non­filter mode as described in their sections.

9.

Determine the point in the cook time countdown the second alarm
should occur. For example, to set an alarm seven minutes into a 13­minute cook cycle, set the alarm at 6:00, the time the computer will
display when seven minutes have elapsed in the cook cycle. (See
graphic above).

10.

Use to toggle between A and M. With desired time and alarm­canceling mode displayed, press to proceed to set Alarm 3.

11.

Determine the point in the cook time countdown the third alarm
should occur. For example, to set an alarm 11 minutes into a 13­minute cook cycle, set the alarm at 2:00, the time the computer will
display when 11 minutes have elapsed in the cook cycle. (See
graphic above).

12.

Use to toggle between A and M.

13.

To exit alarm programming, press twice. Ex Cycle , which
is described in section 6, will display on the computer at the first

push. On the second button push the computer will revert to
segment and product number.

14.

Resume programming for segmented, non-segmented, filter or non­filter mode as described in their sections.

5-2

P

rogramming

Hint

The CM4-S can be
programmed to
return to setpoint,
cool to an idle
temperature or
prompt for filtering
at the end of a
cooking cycle.

CM4-S Cooking Computer Exit-Mode Programming

1. After reaching the

first display of
Segment on

the computer
when
programming for
any mode of
operation, follow these steps to set the status the fry vat will assume
upon the completion of a cooking cycle.

2. Press left twice. An alarm prompt appears upon the first push.

Programming for alarms is covered in Section 5.

3. Ex Cycle appears in the left display upon the second push;
Filter, Set-Temp, or Set-Back appears in the right.

4. Press to toggle between choices: with Filter chosen, the
fryer will prompt for filtration at the completion of the cook cycle;
with Set-Temp chosen, the fryer will return to setpoint upon the
completion of the cook cycle; with set-back chosen, the fryer
will assume an idle temperature below setpoint.

12345 6 7 8 9 10

12345 678910

Programming
button

CM4-S

5. With the Set-temp or set-back displayed, press to
lock in choice. Skip to step 9.

6. With filter displayed, press .

7. Num Filt shows in the left display; 0 or a previously
programmed number appears in the right.

8. Use product keys to enter number cook cycles between filtering
prompts for the product key being programmed. For example: if 10
is entered at the Num Filt prompt during programming of

product button 1, Filter will display on computer when product

th

button 1 is pressed for the 10

time. Press .

9. Segment appears in the left display; Prod and the button
number being programmed appear in the right.

10. Resume programming for filtering, non-filtering, segmented or non­segmented cooking.

6-1

Toggle from Fahrenheit to Celsius

P

rogramming

Hint

The temperature
display on the
CM4-S can be
changed from
Fahrenheit to
Celsius during the
regular
programming
process. An
abbreviated
programming
sequence is shown
at right to address
Fahrenheit-to­Celsius adjustment
exclusively.

1. Press , the ON/OFF button to turn computer off.

2. Display shows OFF.

3. Press . (See diagram page 2-2).

4. Display shows CODE on left side.

5. Enter 1650 using numbered product keys. Use button 10
for 0.

6. Product shows in left display. All product buttons blink. Right
display is blank.

7. Press a product button . drops appears in left display; 0 in
the right. The LED in the chosen button remains lit. All others go

off.

8. Press to step to next choice.

9. Segment appears in left display, PROD and a button number
in right. The LED in the 1 product button begins to flash.

10. Press product button 1 . The LED in product 1 continues to flash.

11. Cooktime appears in left display; 0 or a time programmed
previously appears in right display.

12. Press to step to next choice .

13. Set-Temp appears in left display; a temperature in Fahrenheit
or Celsius appears in the right display.

14. Press to toggle between choices.

15. With desired choice displayed, press .

16. Sens appears in left display; right is blank.

17. Press .

18. Segment appears in left display; Prod appears in right.

19. Press .

20. Display shows product on left; right is blank. All LEDs flash.

21. Press to turn computer off.

7-1

Operational and Diagnostic Programming Codes

Diagnostic
Hints

The CM4-S
records recovery
time, which is the
time required for
the fryer to raise
the temperature of
the oil from 250°F
to 300°F. This
information is
accessible with a
programming
code. Other useful
measures, such as
total heads cooked
and heads cooked
since last filtering,
are also
accessible.

12345 6 7 8 9 10

12345 678910

Programming

button

All codes are preceded by this sequence:

Press . Computer displays OFF.
Press

Use product keys to enter these access codes:

Boilout

1115: Activates boil out mode, which sets the vat temp to 195°F.

Default settings

1651: Computer reloads default settings.

. Code appears in left display.

Entry Codes

CM4-S

Recovery Time

1652: Computer displays recovery ti me.

Drops Cooked

1653: Computer displays heads cooked.

Drops cooked since last filter

1654: Computer displays drops cooked since last filtering.

Computer Setup

1656: Set up computer.

Clear Drop Counter

1657: Computer clears head count.

Program Global Filter Count

1658: Used to enter total cook cycles before computer calls for filtering.

Programming

1650: Used to enter programming instruct i ons.

Clear Filter Prompt

111: Used to clear a filter prompt on fryers not equipped with filter systems.
Church’s computers use 1119 to delay filtering.

8-1

Operational and Diagnostic Programming Codes

The CM4-S also
displays
messages, some
instructional, such
as DONE, and
others are
diagnostic.
Common ones are
listed at right.

The computer also displays messages. Listed below are the most common and a
brief explanation of each.

Set Back

Fryer is in standby and maintaining a temperature of 250°F. Press
bring fryer to setpoint.

DONE

Cook cycle is complete. The LED above the chosen product button will flash. Press
button under flashing LED to stop alarm.

-------

Oil temperature is near setpoint and fryer is ready to cook.

filter

The fryer has reached a preset number of cook cycles and requires filtering.

OPEN Drain

to exit and

The frypot drain valve is open.

FILL

Filter cycle is complete and frypot drain valve is open. Close drain valve and press

to exit filter cycle and refill frypot.

HI- Temp

Fryer is above 390°F (199°C)

LOW

Fryer temperature is below 255°F (124°C)

Probe Failure

Temperature probe circuit failed.

Hi Temp Probe Failure

Hi-limit temperature has been exceeded and the hi-limit switch failed to open. The
computer will shut down the fryer.

Ignition Failure

Component failure which prevents the heating of the oil.

8-2

Frymaster, L.L.C.

8700 Line Avenue, Shreveport, Louisiana USA 71106

Service Center [phone] or [phone]

Printed in the United States of America 819-6469A
English OCT 2011
