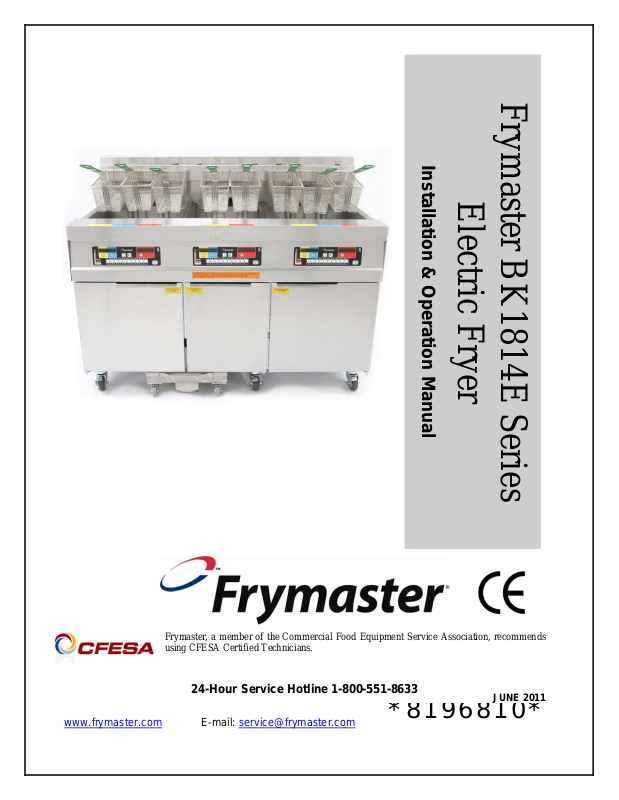

Frymaster BK1814E User Manual
*819
6810
*
Frymaster BK1814E Series
Installation & Operation Manual
Electric Fryer
Frymaster, a member of the Commercial Food Equipment Service Association, recommends
using CFESA Certified Technicians.
24-Hour Service Hotline 1-800-551-8633
JUNE 2011
www.frymaster.com E-mail: service@frymaster.com
NOTICE
IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS MANITOWOC
FOOD SERVICE EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR RECYCLED PART
PURCHASED DIRECTLY FROM FRYMASTER, OR ANY OF ITS AUTHORIZED SERVICE
CENTERS, AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL
CONFIGURATION, THIS WARRANTY WILL BE VOID. FURTHER, FRYMASTER AND ITS
AFFILIATES WILL NOT BE LIABLE FOR ANY CLAIMS, DAMAGES OR EXP ENSES INCUR RED B Y
THE CUSTOMER WHICH ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO
THE INSTALLATION OF ANY MODIFIED PART AND/OR PART RECEIVED FROM AN
UNAUTHORIZED SERVICE CENTER.
NOTICE
This appliance is intended for professional use only and is to be operated by qualified
personnel only. A Frymaster Factory Authorized Servicer (FAS) or other qualified professional
should perform installation, maintenance, and repairs. Installation, maintenance, or repairs by
unqualified personnel may void the manufacturer’s warranty. See Chapter 1 of this manual for
definitions of qualified personnel.
NOTICE
This equipment must be installed in accordance with the appropriate national and local codes of
the country and/or region in which the appliance is installed. See NATIONAL CODE
REQUIREMENTS in Chapter 2 of this manual for specifics.
NOTICE TO U.S. CUSTOMERS
This equipment is to be installed in compliance with the basic plumbing code of the Building
Officials and Code Administrators International, Inc. (BOCA) and the Food Service Sanitation
Manual of the U.S. Food and Drug Administration.
NOTICE
Drawings and photos used in this manual are intended to illustrate operational, cleaning and
technical procedures and may not conform to onsite management operational procedures.
NOTICE TO OWNERS OF UNITS EQUIPPED WITH COMPUTERS
U.S.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: 1) This device may not cause harmful interference, and 2) This device must accept
any interference received, including interference that may cause undesired operation. While
this device is a verified Class A device, it has been shown to meet the Class B limits.
CANADA
This digital apparatus does not exceed the Class A or B limits for radio noise emissions as set
out by the ICES-003 standard of the Canadian Department of Communications.
Cet appareil numerique n’emet pas de bruits radioelectriques depassany les limites de classe A
et B prescrites dans la norme NMB-003 edictee par le Ministre des Communcations du Canada.
DANGER
Improper installation, adjustment, maintenance or service, and unauthorized alterations or
modifications can cause property damage, injury, or death. Read the installation, operating,
and service instructions thoroughly before installing or servicing this equipment.
DANGER
The front ledge of this appliance is not a step! Do not stand on the appliance. Serious injury
can result from slips or contact with the hot oil.
DANGER
Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any
other appliance.
DANGER
The crumb tray in fryers equipped with a filter system must be emptied into a fireproof container
at the end of frying operations each day. Some food particles can spontaneously combust if left
soaking in certain shortening material.
WARNING
Do not bang fry baskets or other utensils on the fryer’s joiner strip. The strip is present to seal
the joint between the fry vessels. Banging fry baskets on the strip to dislodge shortening will
distort the strip, adversely affecting its fit. It is designed for a tight fit and should only be
removed for cleaning.
DANGER
Adequate means must be provided to limit the movement of this appliance without depending
on or transmitting stress to the electrical conduit. A restraint kit is provided with single nonfilter fryers. If the restraint kit is missing contact your local KES.
DANGER
Prior to movement, testing, maintenance and any repair on your Frymaster fryer, disconnect all
electrical power from the fryer.
WARNING
No structural material on the fryer should be altered or removed to accommodate placement of
the fryer under a hood. Questions? Call the Frymaster Service Hotline at 1-800-551-8633.
FINDING YOUR WAY AROUND THE FRYMASTER BK1814E
SERIES ELECTRIC FRYER
Tilt Housing
Basket
Elements
Control Panel
(BK 3-Lane
Controller
Shown)
Fuse
Hanger
Top Cap
Bezel
Power
Switch
(Domestic
Only)
Fryer Identification
Data Labels (Model
and Serial Number)
TYPICAL CONFIGURATION (BK31814E SHOWN)
NOTE: The appearance of your fryer may differ slightly from that
shown depending upon the configuration and date of manufacture.
Drain Handle
Filter Handle
Filter Pan
BK1814E SERIES ELECTRIC FRYER
Installation and Operation Manual
TABLE OF CONTENTS
CHAPTER 1: Introduction
1.1 General Information .......................................................................................................... 1-1
1.2 Safety Information ............................................................................................................. 1-1
1.3 Controller Information ...................................................................................................... 1-1
1.4 European Community (CE) Specific Information ............................................................. 1-2
1.5 Installation, Operating and Service Personnel .................................................................. 1-2
1.6 Definitions ......................................................................................................................... 1-2
1.7 Shipping Damage Claim Procedure ................................................................................. 1-3
1.8 Service Information ........................................................................................................... 1-3
CHAPTER 2: Installation Instructions
2.1 General Installation Requirements .................................................................................... 2-1
2.2 Power Requirements .......................................................................................................... 2-3
2.3 Positioning the Fryer Station ............................................................................................. 2-3
CHAPTER 3: Operating Instructions
3.1 Equipment Setup and Shutdown Procedures ..................................................................... 3-1
3.2 Controllers ......................................................................................................................... 3-2
CHAPTER 4: Filtration Instructions
4.1 Draining and Manual Filtering .......................................................................................... 4-1
4.2 General Filter Information ................................................................................................. 4-2
4.3 Filter Preparation ............................................................................................................... 4-2
4.3.1 Filter Components ................................................................................................... 4-3
4.3.2 Assembling the Filter .............................................................................................. 4-4
4.3.3 Installing the Filter .................................................................................................. 4-6
4.4 Daily Filter Operation ....................................................................................................... 4-6
4.4.1 General Overview ..................................................................................................... 4-6
4.4.2 Filtering Tools .......................................................................................................... 4-7
4.5 Operating the Filter ........................................................................................................... 4-8
4.5.1 Filter Operation ........................................................................................................ 4-8
4.6 Draining and Disposing of Waste Oil ............................................................................. 4-11
CHAPTER 5: Preventive Maintenance
5.1 Cleaning the Fryer ............................................................................................................. 5-1
5.1.1 Daily Cleaning Fryer Cabinet .................................................................................. 5-1
5.1.2 Daily Cleaning Filtration System ............................................................................ 5-1
5.1.3 Weekly Cleaning the Frypot and Elements ............................................................. 5-2
5.1.4 Weekly Cleaning the Detachable Parts and Accessories ........................................ 5-2
5.2 Annual/Periodic System Inspection .................................................................................. 5-2
i
CHAPTER 6: Operator Troubleshooting
6.1 Introduction ...................................................................................................................... 6-1
6.2 Troubleshooting ................................................................................................................. 6-2
6.2.1 Controller and Heating Problems ........................................................................... 6-2
6.2.2 Troubleshooting Error Messages and Display Problems ........................................ 6-4
6.2.3 Filtration Problems .................................................................................................. 6-4
6.3 User Replaceable Parts ...................................................................................................... 6-6
ii
FRYMASTER BK1814E SERIES ELECTRIC FRYER
CHAPTER 1: INTRODUCTION
1.1 General
Read the instructions in this manual thoroughly before attempting to operate this equipment. This
manual covers all configurations of BK1814E series electric fryers. The fryers in this model family
have most parts in common, and when discussed as a group, will be referred to as “BK1814E”
electric fryers.
The BK1814E electric fryers are open frypots that feature a rotating element with an enhanced
design. Fryers in this series come in full pot arrangements, and can be purchased as single units
without filters or grouped in batteries of up to three fryers with filtration.
1.2 Safety Information
Before attempting to operate your unit, read the instructions in this manual thoroughly.
Throughout this manual, you will find notations enclosed in double-bordered boxes similar to the
one below.
DANGER
Hot cooking oil causes severe burns. Never attempt to move a fryer containing hot
oil or to transfer hot oil from one container to another.
CAUTION boxes contain information about actions or conditions that may cause or result in a
malfunction of your system.
WARNING boxes contain information about actions or conditions that may cause or result in
damage to your system, and which may cause your system to malfunction.
DANGER boxes contain information about actions or conditions that may cause or result in
injury to personnel, and which may cause damage to your system and/or cause your system to
malfunction.
Fryers in this series are equipped with the following automatic safety features:
1. Two high-temperature detection features shut off power to the elements should the temperature
controls fail.
2. A safety switch built into the drain valve prevents the elements from heating with the drain valve
even partially open.
1.3 Controller Information
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. While this device is a verified Class A device, it has been
1-1
shown to meet the Class B limits. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of
the equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at their own expense.
The user is cautioned that any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
If necessary, the user should consult the dealer or an experienced radio and television technician for
additional suggestions.
The user may find the following booklet prepared by the Federal Communications Commission
helpful: "How to Identify and Resolve Radio-TV Interference Problems". This booklet is available
from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4.
1.4 European Community (CE) Specific Information
The European Community (CE) has established certain specific standards regarding equipment of
this type. Whenever a difference exists between CE and non-CE standards, the information or
instructions concerned are identified by means of shadowed boxes similar to the one below.
CE Standard
Example of box used to distinguish CE and
Non-CE specific information.
1.5 Installation, Operating, and Service Personnel
Operating information for Frymaster equipment has been prepared for use by qualified and/or
authorized personnel only, as defined in Section 1.6. All installation and service on Frymaster
equipment must be performed by qualified, certified, licensed, and/or authorized installation
or service personnel, as defined in Section 1.6.
1.6 Definitions
QUALIFIED AND/OR AUTHORIZED OPERATING PERSONNEL
Qualified/authorized operating personnel are those who have carefully read the information in this
manual and have familiarized themselves with the equipment functions, or who have had previous
experience with the operation of the equipment covered in this manual.
QUALIFIED INSTALLATION PERSONNEL
Qualified installation personnel are individuals, firms, corporations, and/or companies which, either
in person or through a representative, are engaged in and are responsible for the installation of
1-2
electrical appliances. Qualified personnel must be experienced in such work, be familiar with all
electrical precautions involved, and have complied with all requirements of applicable national and
local codes.
QUALIFIED SERVICE PERSONNEL
Qualified service personnel are those who are familiar with Frymaster equipment and who have been
authorized by Frymaster, L.L.C. to perform service on the equipment. All authorized service
personnel are required to be equipped with a complete set of service and parts manuals, and to stock
a minimum amount of parts for Frymaster equipment. A list of Frymaster Factory Authorized
Servicers (FAS’s) is located on the Frymaster website at www.frymaster.com. Failure to use
qualified service personnel will void the Frymaster warranty on your equipment.
1.7 Shipping Damage Claim Procedure
What to do if your equipment arrives damaged:
Please note that this equipment was carefully inspected and packed by skilled personnel before
leaving the factory. Frymaster does not assume responsibility for damage or loss incurred in transit.
The freight company assumes full responsibility for safe delivery upon acceptance of the equipment.
1. File Claim for Damages Immediately—Regardless of extent of damage.
2. Visible Loss or Damage—Be sure this is noted on the freight bill or express receipt and is signed
by the person making the delivery.
3. Concealed Loss or Damage—If damage is unnoticed until equipment is unpacked, notify the
freight company or carrier immediately and file a concealed damage claim. This should be done
within 15 days of date of delivery. Be sure to retain container for inspection.
1.8 Service Information
For non-routine maintenance or repairs, or for service information, contact your local Frymaster
Authorized Servicer (FAS). Service information may also be obtained by calling the Frymaster
Technical Services Department (1-800-24FRYER) or by e-mail at service@frymaster.com
. The
following information will be needed in order to assist you efficiently:
Model Number _________________________
Serial Number _________________________
Voltage ______________________________
Nature of the Problem ___________________
____________________________________
____________________________________
RETAIN AND STORE THIS MANUAL IN A SAFE PLACE FOR FUTURE USE.
1-3
FRYMASTER BK1814E SERIES ELECTRIC FRYER
CHAPTER 2: INSTALLATION INSTRUCTIONS
2.1 General
Proper installation is essential for the safe, efficient, trouble-free operation of this appliance.
Qualified, licensed, and/or authorized installation or service personnel, as defined in Section
1.6 of this manual, should perform all installation and service on Frymaster equipment.
Failure to use qualified, licensed, and/or authorized installation or service personnel (as
defined in Section 1.6 of this manual) to install or otherwise service this equipment will void
the Frymaster warranty and may result in damage to the equipment or injury to personnel.
Where conflicts exist between instructions and information in this manual and local or
national codes or regulations, installation and operation shall comply with the codes or
regulations in force in the country in which the equipment is installed.
Service may be obtained by contacting your local Factory Authorized Servicer.
NOTICE
All fryers shipped without factory supplied cords and plug assemblies must be
hardwired using flexible conduit to the terminal block located on the rear of the fryer.
These fryers should be wired to NEC specifications. Hardwired units must include
installation of restraint devices.
NOTICE
If this equipment is wired directly into the electrical power supply, a means for
disconnection from the supply having a contact separation of at least 3-mm in all
poles must be incorporated in the fixed wiring.
NOTICE
This equipment must be positioned so that the plug is accessible unless other
means for disconnection from the power supply (e.g., a circuit breaker) is provided.
NOTICE
If the electrical power supply cord is damaged, it must be replaced by a Frymaster
Factory Authorized Servicer or a similarly qualified person in order to avoid a
hazard.
DANGER
All wiring connections for this appliance must be made in accordance with the wiring
diagram(s) furnished with the appliance. Refer to the wiring diagram(s) affixed to the
inside of the appliance door when installing or servicing th is equipmen t.
2-1
DANGER
Do not attach an apron drainboard to a single fryer. The fryer may become unstable,
tip over and cause injury. The appliance area must be kept free and clear of
combustible material at all times.
DANGER
Building codes prohibit a fryer with its open tank of hot oil being installed beside an
open flame of any type, including those of broilers and ranges.
In the event of a power failure, the fryer(s) will automatically shut down. If this occurs, turn the
power switch OFF. Do not attempt to start the fryer(s) until power is restored.
2.1.1 Clearance and Ventilation
This appliance must be kept free and clear of combustible material.
A clearance of 6 inches (15cm) must be provided at both sides and back adjacent to combustible
construction. A minimum of 24 inches (61cm) should be provided at the front of the equipment for
servicing and proper operation.
WARNING
Do not block the area around the base or under the fryers.
2.1.2 Electrical Grounding Requirements
All electrically operated appliances must be grounded in accordance with all applicable national and
local codes, and, where applicable, CE codes. All units (cord connected or permanently connected)
should be connected to a grounded power supply system. A wiring diagram is located on the inside
of the fryer door. Refer to the rating plate on the inside of the fryer door for proper voltages.
2.1.3 Australian Requirements
To be installed in accordance with AS 5601 / AG 601, local authority, gas, electricity, and any other
relevant statutory regulations.
2-2
Loading...
