Frymaster BIMH52 PARTS LIST

MH52 and BIH52 Series Gas Fryers

Cabinetry Components - BIH52 Cabinet Components (Batteries)

MH52 and BIH52 Series Gas Fryers

Cabinetry Components - BIH52 Cabinet Components (Batteries)

# PART # DESCRIPTION QTY Note

1 9117688SP Side, Left Cabinet (After 5 Nov 2000)Side, Left Cabinet 1
2 9127688SP Side, Right Cabinet (After 5 Nov 2000)Side, Right Cabinet 1
3 9007714 Back, Upper Cabinet (MH452, After 5 Nov 2000) (18.72-

inches x 31.24-inches)Back, Upper Cabinet (BIH252, BIH452

& BIH552)
3a 9002881 Back, Upper Cabinet (BIMH452) 1
4 9009424 Back, Upper Cabinet (MH352 and MH552, After 5 Nov 2000)

(18.72-inches x 46.88-inches)Back, Upper Cabinet (BIH352

and BIH552)
5 9007712 Back, Lower Cabinet (After 5 Nov 2000, MH252, MH452, and

MH552) (18-inches x 31-inches)Back, Lower Cabinet

(BIH252, BIH452 and BIH552)
6 9009425 Back, Lower Cabinet (After 5 Nov 2000, MH352 and MH552)

(18-inches x 46.5-inches)Back, Lower Cabinet (BIH352 and

BIH552)
7 9011810 Gusset, Left Cabinet 1
7a 9021810 Gusset, Right Cabinet (BIH252) 1
8 9011948 Channel, Universal Side Support 1
9 9114690 Rail, Left Top Filter 1
9a 9124690 Rail, Right Top Filter 1
10 9105244 Rail, Universal Filter 1
11 9001959 Bracket, Filter Lock Mounting 1
12 9001957 Lock, Filter 1
13 8090422 Screw, 10-32 x 0.4375-inch Slotted Truss HeadScrew, 10-32

x .4-inch Shoulder
14 8090189 Washer - 0.25" Flat SS 1
15 8090053 Nut, 10-32 Hex 1
16 9007687 Channel, Cabinet Base Left and Right Side (After 5 Nov

2000)Channel, Side Base

17 9007686 Channel, Cabinet Base Front and Rear, MH252 (After 5 Nov

2000)Channel, Rear Base, BIH252

17a 9009420 Channel, Cabinet Base Front and Rear, MH352 (After 5 Nov

2000)Channel, Rear Base, BIH352

17b 9002390 Channel, Cabinet Base Front and Rear, MH452 (After 5 Nov

2000)Channel, Rear Base, BIH452

17c 9009555 Channel, Cabinet Base Front and Rear, MH552 (After 5 Nov

2000)Channel, Rear Base, BIH552
18 9004787 Channel, Front Base, BIH352 1
18a 9002389 Channel, Front Base, BIH452 1
18b 9009556 Channel, Front Base, BIH552 1
19 8065209SP Leg Pad 1
20 8090191 Washer, Lock 0.25 Spring ZPWasher, 0.25-inch Lock 1
21 8261389 Screw - 0.25"-20 x 0.75" Hex Head ZPScrew, 0.25-20 x 0.75-

inch Hex Head
22 8100944 Caster 3” with BrakeCaster with Brake, Front 1
23 8100327 Caster 4” without BrakeCaster, Rear 1
24 9002452 Shield, BIH352 1
24a 9002453 Shield, BIH452 1
24b 9009601 Shield, BIH552 1
25 8261374 Screw - #10 x 0.5" Hex HeadScrew, #10 x 0.5-inch Hex

Washer Head (cabinet screw)

1

1

1

1

1

1

1

1

1

1

10

25

MH52 and BIH52 Series Gas Fryers

Cabinetry Components - BIH52 Cabinet Components (Batteries)

# PART # DESCRIPTION QTY Note

26 9004798 Support, Long Cross 1 [1]
27 9002562 Support, Short Cross 1 [1]
28 9007033 Brace, Top Front, MH252Brace, Top Front, BIH252 1
28a 9009248 Brace, Top Front, MH352Brace, Top Front, BIH352 1
28b 9002393 Brace, Top Front, MH452Brace, Top Front, BIH452 1
28c 9009558 Brace, Top Front, MH552Brace, Top Front, BIH552 1
29 9007708 Brace, Top Rear (used only on units built after 05 Nov 2000),

MH252Brace, Top Rear, BIH252
29a 9007709 Brace, Top Rear (used only on units built after 05 Nov 2000),

MH352Brace, Top Rear, BIH352
29b 9002391 Brace, Top Rear (used only on units built after 05 Nov 2000),

MH452Brace, Top Rear, BIH452
29c 9009557 Brace, Top Rear (used only on units built after 05 Nov 2000),

MH552Brace, Top Rear, BIH552
30 9007710 Brace, Back Support (After 5 Nov 2000)Post, Cabinet 1
31 9007358 Divider, Cabinet (After 5 Nov 2000)Divider, Cabinet 1
32 9004797 Post, Short Door (All non-CE models) 1
32a 9002437 Post, Short Door (All CE models) 1
33 9004799 Post, Door (After 5 Nov 2000)Post, Long Door 1 [2]
34 8090413 Spacer, Door Post (0.25-inch ID x 4mm nylon washer) 1 [3]

PART NOTES:

[1] - on CE units
[2] - BIH352, BIH452 and BIH552
[3] - 0.25-inch ID x 4mm nylon washer

1

1

1

1

MH52 and BIH52 Series Gas Fryers

Cabinetry Components - BIH52MH52 Cap-N-Splash Assemblies, Fluecaps, Standoffs and

MH52 and BIH52 Series Gas Fryers

Cabinetry Components - BIH52MH52 Cap-N-Splash Assemblies, Fluecaps, Standoffs and

# PART # DESCRIPTION QTY Note

1 9102414 Fluecap Assemblies, BIH152/MH152 (standard) 1
2 9007921 Fluecap Assemblies, BIH152/MH152 (for units with Cap-N-

Splash)
3 8232544 Fluecap Assemblies, BIH252/MH252 (standard) 1
4 9007926 Fluecap Assemblies, BIH252/MH252 (for units with Cap-N-

Splash)
5 8232545 Fluecap Assemblies, BIH352/MH352 (standard) 1
6 9007927 Fluecap Assemblies, BIH352/MH352 (for units with Cap-N-

Splash)
7 8232546 Fluecap Assemblies, BIH452/MH452 (standard) 1
8 9007928 Fluecap Assemblies, BIH452/MH452 (for units with Cap-N-

Splash)
9 8232887 Fluecap Assemblies, BIH552/MH552 (standard) 1
9a 9002447 Flue Clip Support 1
10 8232276 Cap-N-Splash Assemblies, BIH152/MH152 1
10a 8233066 Cap-N-Splash Assemblies, BIH152/MH152 (New) (August

2001, serial higher than 0108 require top cap also)
10b 8261223 Cap-N-Splash Assemblies, BIH152/MH152 Kit 1
11 8232277 Cap-N-Splash Assemblies, BIH252/MH252 1
11a 8233067 Cap-N-Splash Assemblies, BIH252/MH252 (New) (August

2001, serial higher than 0108 require top cap also)
11b 8261218 Cap-N-Splash Assemblies, BIH252/MH252 Kit 1
12 8232833 Cap-N-Splash Assemblies, JBIH252 (Japanese units) 1
13 8232278 Cap-N-Splash Assemblies, BIH352/MH352 1
13a 8233068 Cap-N-Splash Assemblies, BIH352/MH352 (New) (August

2001, serial higher than 0108 require top cap also)
13b 8261217 Cap-N-Splash Assemblies, BIH352/MH352 Kit 1
14 8232879 Cap-N-Splash Assemblies, JBIH352 (Japanese units) 1
15 8232279 Cap-N-Splash Assemblies, BIH452 1
15a 8233070 Cap-N-Splash Assemblies, BIH452 (New) (August 2001,

serial higher than 0108 require top cap also)
15b 8261216 Cap-N-Splash Assemblies, BIH452 Kit 1
15c 8233069 Cap-N-Splash Assemblies, BIH552 (New) (August 2001,

serial higher than 0108 require top cap also)
16 9002406 Standoffs, BIH152/MH152 1
17 9002407 Standoffs, BIH252/MH252 1
18 9002408 Standoffs, BIH352/MH352 1
19 9002409 Standoffs, BIH452/MH452 1
19a 2006556 Standoffs, BIH552/MH552 1
20 8230782 Basket Hangers and Mounting Hardware, Solid (old design) 1
21 8231618 Basket Hangers and Mounting Hardware, Solid (new design)

for drop in probes
22 8102793 Hanger - Wireform BasketBasket Hangers and Mounting

Hardware, Wire Form (with .330-inch mounting holes)
23 8090171 Thumbscrew, 0.25-20 x 1.375-inch Basket Hangers and

Mounting Hardware, Thumbscrew, 0.25-20 x 1.375-inch
24 8090402 Thumbscrew - 0.25"-20 x 0.5" 1
25 8261351 Nut Retainer, 0.25-20 Std. FluecapBasket Hangers and

Mounting Hardware, Nutsert, 0.25-20 Square (for use on

standard fluecap)

1

1

1

1

1

1

1

1

1

1

1

1

10 [1]

Related Parts

MH52 and BIH52 Series Gas Fryers

Cabinetry Components - BIH52MH52 Cap-N-Splash Assemblies, Fluecaps, Standoffs and

# PART # DESCRIPTION QTY Note

26 8090535 Nut, "T" 0.25-inch-20 x 0.4375 SSBasket Hangers and

Mounting Hardware, T-Nut, 0.25-20 x 0.4375-inch (for use on

Cap-Nsplash assembly)
27 8090079 Nutsert, 0.25” - 20Basket Hangers and Mounting Hardware,

Nutsert, 0.25-20 Round (for use on earlyproduction Cap-N-

Splash)
28 8090921-FRY Spacer, Basket HangerBasket Hangers and Mounting

Hardware, Spacer, Basket Hanger
29 8090989 Basket Hangers and Mounting Hardware, Thumbscrew, 0.25-

20 x 1-inch

PART NOTES:

[1] - for use on standard fluecap

1

1

1

1

Related Parts

MH52 and BIH52 Series Gas Fryers

Cabinetry Components - BIH52-MH52 Control Panel Frames and Topcaps

MH52 and BIH52 Series Gas Fryers

Cabinetry Components - BIH52-MH52 Control Panel Frames and Topcaps

# PART # DESCRIPTION QTY Note

1 8066137SP BIH152/MH152 Control Panel Frame Assembly 1
2 8064819SP BIH252/MH252 Control Panel Frame Assembly 1
3 8064820SP BIH352/MH352 Control Panel Frame Assembly 1
4 8065963SP BIH452/MH452 Control Panel Frame Assembly 1
5 8069750 BIH552/MH552 Control Panel Frame Assembly 1
6 8240641 MH152 TopcapBIH152 Topcap w/out hole in front. 1
6a 8230873 BIH152 Topcap (New) w/out hole in front. 1
7 8232657 JBIH152 Topcap (Japanese units) 1
8 8240544 MH252 TopcapBIH252 Topcap w/out hole in front. 1
8a 8232822 Rail, Dual Vat Left Burner Side W/A 1
9 8232652 JBIH252 Topcap (Japanese units) 1
10 8240543 MH352 TopcapBIH352 Topcap w/out hole in front. 1
10a 8232823 Rail, Dual Vat Right Burner Side W/A 1
11 8232651 JBIH352 Topcap (Japanese units) 1
12 8240545 MH452 Topcap 1
12a 8230876 BIH452 Topcap (New) w/out hole in front. 1
13 8240775 BIH552 Topcap w/out hole in front. 1
13a 8230877 BIH552 Topcap (New) w/out hole in front. 1
14 8240641 MH152 Topcap 1
15 8240544 MH252 Topcap 1
16 8240543 MH352 Topcap 1
17 8240545 MH452 Topcap 1

NOTE: August 2001, serial higher than 0108 require top cap

also.

MH52 and BIH52 Series Gas Fryers

Cabinetry Components - BIH52-MH52 Door Components

MH52 and BIH52 Series Gas Fryers

Cabinetry Components - BIH52-MH52 Door Components

# PART # DESCRIPTION QTY Note

1 8063057SP Door Assembly with Magnet, BIH52/MH52 Complete 1 [1]
1a 8100066 Magnet 1 [2]
2 1064397 Door - Left/Right 1 [1]
2a 8101105 Door Magnet - VerticalMagnet 1 [3]
3 8101422 Handle, Wireform Door 1
4 8261379 Screw, #10 X 0.5-inch Phillips Truss Head 10
5 8101508 Hinge, Universal Door 1
5a 8261371 Screw - #8 x 0.5" Hex Head ZP 25 [4]
6 1064067SP Door Pin Assembly 1
7 8090193 Flat Washer - 0.25" Nylon 1
8 8261343 Spring - Door Pin Hinge 10
9 9002485 Liner, Door, BIH52/MH52 Universal Door 1 [5]
9a 9303667 Liner, Door, BIH52/MH52 Door 1 [6]
10 8240137 Panel, BIH52/MH52 Door 1

PART NOTES:

[1] - handle, hinges & washers not included
[2] - door-mounted, used with Item 1
[3] - door post-mounted, used with Item 2
[4] - for attaching Item 5 to cabinet
[5] - no cutout for magnet
[6] - with cutout for magnet

MH52 and BIH52 Series Gas Fryers

Cabinetry Components - BIH152 and MH152 Cabinet Components

MH52 and BIH52 Series Gas Fryers

Cabinetry Components - BIH152 and MH152 Cabinet Components

# PART # DESCRIPTION QTY Note

1 9117688SP Side, Left Cabinet (After 5 Nov 2000) 1
2 9127688SP Side, Right Cabinet (After 5 Nov 2000) 1
3 9005521 Back, MH152 Upper (After 5 Nov 2000) 1
4 9005670 Back, MH152 Lower (After 5 Nov 2000) 1
5 9117036SP Side, Left Cabinet (Before 6 Nov 2000) 1
5a 9117688SP Side, Left Cabinet (After 5 Nov 2000) 1
6 9127036SP Side, Right Cabinet (Before 6 Nov 2000) 1
6a 9127688SP Side, Right Cabinet (After 5 Nov 2000) 1
7 9002654 Back, MH152 Lower (Before 6 Nov 2000) 1
7a 9005670 Back, MH152 Lower (After 5 Nov 2000) 1
8 9002410 Back, MH152 Upper (Before 6 Nov 2000) 1
8a 9005521 Back, MH152 Upper (After 5 Nov 2000) 1
9 9004180 Brace, BIH152/MH152 Top 1
10 9005519 Brace, BIH152 Rear 1 [1]
11 9007035 Channel, Cabinet Base Left and Right Side (Before 6 Nov

2000)

11a 9007687 Channel, Cabinet Base Left and Right Side (After 5 Nov

2000)
12 9015526 Channel, BIH152 Base Left Side 1
13 9025526 Channel, BIH152 Base Right Side 1
14 9004389 Channel, BIH152 Base Rear 1
15 9004179 Channel, MH152 Cabinet Base Front and Rear 1
16 8068421 Rail Assembly, BIH152 1
17 9105656 Leg, BIH152 Front 1
18 8232579 Bracket, BIH152 Filter Motor Mount 1
19 9002541 Shield, MH152 Base (Before 6 Nov 2000) 1
19a 2000075 Shield, MH152 Base (After 5 Nov 2000) 1 [2]
20 9002649 Cover, MH52 Rear Access (notch on right corner when

viewed from rear)
21 8065209 Leg Pad Assembly 1
22 8122227 Rear Caster, without brake 1
23 8232844 Caster, BIH152 Front 1
23a 8232582 Caster, BIH152 Front (on units built prior to Nov 2000) 1
24 8101414 Insert, BIH152 Square Leg 1
25 8100327 Caster 4” without Brake 1 [3]
26 8100326 Caster, Adjustable Front (Before 6 Nov 2000) 1 [4]
26a 8100944 Caster 3” with Brake 1 [4]
27 8090191 Washer, Lock 0.25 Spring ZP 1
28 8261389 Screw - 0.25"-20 x 0.75" Hex Head ZP 10
29 8261374 Screw - #10 x 0.5" Hex Head 25 [5]

PART NOTES:

[1] - and MH152 after 5 Nov 2000
[2] - After 5 Nov 2000
[3] - without brake
[4] - with brake
[5] - cabinet screw

1

1

1

MH52 and BIH52 Series Gas Fryers

Cabinetry Components - MH52 Cabinet Components (Batteries)

MH52 and BIH52 Series Gas Fryers

Cabinetry Components - MH52 Cabinet Components (Batteries)

# PART # DESCRIPTION QTY Note

1 9117036SP Side, Left Cabinet (Before 6 Nov 2000) 1
1a 9117688SP Side, Left Cabinet (After 5 Nov 2000) 1
2 9127036SP Side, Right Cabinet (Before 6 Nov 2000) 1
2a 9127688SP Side, Right Cabinet (After 5 Nov 2000) 1
3 9002652 Back, Lower Cabinet (Before 6 Nov 2000, MH252) 1
3a 9002651 Back, Lower Cabinet (Before 6 Nov 2000, MH352) 1
3b 9004915 Back, Lower Cabinet (Before 6 Nov 2000, MH452) 1
3c 9009600 Back, Lower Cabinet (Before 6 Nov 2000, MH552) 1
3d 9007712 Back, Lower Cabinet (After 5 Nov 2000, MH252, MH452, and

MH552) (18-inches x 31-inches)
3e 9009425 Back, Lower Cabinet (After 5 Nov 2000, MH352 and MH552)

(18-inches x 46.5-inches)
4 9002411 Back, Upper Cabinet (MH252 and MH552, Before 6 Nov

2000) (10.2-inches x 31.1-inches)

4a 9007714 Back, Upper Cabinet (MH452, After 5 Nov 2000) (18.72-

inches x 31.24-inches)
5 9002412 Back, Upper Cabinet (MH352 and MH552, Before 6 Nov

2000) (10.2-inches x 46.6-inches)

5a 9009424 Back, Upper Cabinet (MH352 and MH552, After 5 Nov 2000)

(18.72-inches x 46.88-inches)
5b 9002413 Back, Upper Cabinet (MH452, Before 6 Nov 2000) (9.66-

inches x 62.36-inches)
5c 9007714 Back, Upper Cabinet (MH452, After 5 Nov 2000) (18.72-

inches x 31.24-inches)
6 9007033 Brace, Top Front, MH252 1
6a 9009248 Brace, Top Front, MH352 1
6b 9002393 Brace, Top Front, MH452 1
6c 9009558 Brace, Top Front, MH552 1
6d 9007708 Brace, Top Rear (used only on units built after 05 Nov 2000),

MH252
6e 9007709 Brace, Top Rear (used only on units built after 05 Nov 2000),

MH352
6f 9002391 Brace, Top Rear (used only on units built after 05 Nov 2000),

MH452
6g 9009557 Brace, Top Rear (used only on units built after 05 Nov 2000),

MH552
7 9007032 Post, Door (Before 6 Nov 2000) 1
7a 9004799 Post, Door (After 5 Nov 2000) 1
7b 8090413 Spacer, Door Post (0.25-inch ID x 4mm nylon washer) 1 [1]
8 9007356 Divider, Cabinet (Before 6 Nov 2000) 1
8a 9007358 Divider, Cabinet (After 5 Nov 2000) 1
9 9007053 Brace, Back Support (Before 6 Nov 2000) 1
9a 9007710 Brace, Back Support (After 5 Nov 2000) 1
10 9007035 Channel, Cabinet Base Left and Right Side (Before 6 Nov

2000)

10a 9007687 Channel, Cabinet Base Left and Right Side (After 5 Nov

2000)

11 9007034 Channel, Cabinet Base Front and Rear, MH252 (Before 6

Nov 2000)
11a 9007686 Channel, Cabinet Base Front and Rear, MH252 (After 5 Nov

2000)

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

MH52 and BIH52 Series Gas Fryers

Cabinetry Components - MH52 Cabinet Components (Batteries)

# PART # DESCRIPTION QTY Note

11b 9009249 Channel, Cabinet Base Front and Rear, MH352 (Before 6

Nov 2000)
11c 9009420 Channel, Cabinet Base Front and Rear, MH352 (After 5 Nov

2000)

11d 9004906 Channel, Cabinet Base Front and Rear, MH452 (Before 6

Nov 2000)
11e 9002390 Channel, Cabinet Base Front and Rear, MH452 (After 5 Nov

2000)

11f 9009611 Channel, Cabinet Base Front and Rear, MH552 (Before 6

Nov 2000)
11g 9009555 Channel, Cabinet Base Front and Rear, MH552 (After 5 Nov

2000)
12 9004907 Support, Center Base (MH452, MH552) (Before 6 Nov 2000) 1
12a 2000769 Support, Center Base (MH452, MH552) (After 5 Nov 2000) 1
13 9002527 Shield, Cabinet Base, MH252, MH452 (Before 6 Nov 2000)

(18-inches x 25.2-inches) (MH452 uses 2)

13a 2000772 Shield, Cabinet Base, MH252, MH452 (After 5 Nov 2000)

(17.75-inches x 25.06-inches) (MH452 uses 2)

13b 9002528 Shield, Cabinet Base, MH352 (Before 6 Nov 2000) (18-

inches x 17.5-inches) plus 9002527

13c 2000771 Shield, Cabinet Base, MH352 (After 5 Nov 2000) (17.75-

inches x 40.7-inches)

13d 9009623 Shield, Cabinet Base, MH552 (Before 6 Nov 2000) (18-

inches x 33-inches)
14 8065209 Leg Pad Assembly 1
15 8100944 Caster 3” with Brake 1
16 8100327 Caster 4” without Brake 1
17 8090191 Washer, Lock 0.25 Spring ZP 1
18 8261389 Screw - 0.25"-20 x 0.75" Hex Head ZP 10
19 9002648 Cover, MH52 Rear Access (no notch) 1
20 9002649 Cover, MH52 Rear Access (notch on right corner when

viewed from rear)
21 9002650 Cover, MH52 Rear Access (notch on left corner when viewed

from rear)
22 9005482 Cover, MH52 Rear Access (notch in center) 1
23 8261374 Screw - #10 x 0.5" Hex Head 25

PART NOTES:

[1] - 0.25-inch ID x 4mm nylon washer

1

1

1

1

1

1

1

1

1

1

1

1

1

MH52 and BIH52 Series Gas Fryers

Combustion System, Frypot and Gas System Components - Blowers and Associated

MH52 and BIH52 Series Gas Fryers

Combustion System, Frypot and Gas System Components - Blowers and Associated

# PART # DESCRIPTION QTY Note

1 1062996SP Blower, Left (with 1.54-inch (3.91 cm) narrow housing), 100V,

50/60 Hz
1a 1062994SP Blower, Left (with 1.54-inch (3.91 cm) narrow housing), 115V,

50/60 Hz
1b 8065841SP Blower, Left (with 1.54-inch (3.91 cm) narrow housing), 230V,

50 Hz
1c 1062995SP Blower, Left (with 1.54-inch (3.91 cm) narrow housing), 240V,

50/60 Hz
2 1062999SP Blower Assembly, Combustion Air 100V 50/60 Hz 1
2a 1062997SP Blower Assembly, Combustion Air , 115V 50/60 Hz 1
2b 1062998SP Blower Assembly, Combustion Air 208-240V 50/60 Hz Non-

CE International
3 1063000SP Blower Assembly, Left 230V, 50/60 Hz (with 2.8-inch (7.11

cm) wide housing) CE and Non-CE
4 1063001SP Blower Assembly, Combustion Air 230V 50/60 Hz CEBlower

Assembly, Right 230V, 50/60 Hz
5 8069689 Finger Guard/Air Flow Inhibitor Adapter 1 [2]
6 9008699 Air Flow Inhibitor 1 [2]
7 8261382 WingnutWingnut, 8-32 10
8 8261426 Shield - Blower Motor 1
9 KIT0155SP High Altitude Blower Kit 1 [3]

PART NOTES:

[1] - CE; with 2.8-inch (7.11 cm) wide housing
[2] - CE
[3] - required above 5000 Ft, 1525 M

1

1

1

1

1

1

1 [1]

MH52 and BIH52 Series Gas Fryers

Combustion System, Frypot and Gas System Components - Ignition Sub-System Components

MH52 and BIH52 Series Gas Fryers

Combustion System, Frypot and Gas System Components - Ignition Sub-System
Components

# PART # DESCRIPTION QTY Note

1 8263271 Ignition ModuleIgnition Module, Full and Dual Vat (original

design, with fuse)
1a 8075009 Ignition Cable - 19" L 1
1b 8071200 Ignition Cable - 27" L 1
2 8073366 Ignition Module, Dual-Spark Full-Vat Ignition Module, Full Vat 1 [1]
2a 8261346 Spacer, Ignition ModuleSpacer 10
3 8073365 Ignition Module, Single-Spark Dual-VatIgnition Module, Dual

Vat
4 8261721 Ignition Cable w/ Rajah 1
4a 8075008 Ignition Cable - 21" 1
4b 8073484 Connector, RajahIgnition Cable w/ Rajah (with 90º

connector), Connector, Rajah (non fused ignition modules)
5 8066085SP Wire Assembly, IgnitorWiring Assembly, Ignitor 1
6 8066084SP Wiring Assembly, Ignition Module 1
7 8072263 Switch, Air Pressure 1
7a 8072262 Switch, Air Pressure (in units with 100VAC power supply) 1
8 KIT1428SP Air Switch Kit - CE Export H52 1
9 8260981 Ignitor and Gasket Kit - Natural Gas 1
9a 8260982 Ignitor and Gasket Kit - LP 1
9b 8261002 Ignitor and Gasket Kit - Manufactured Gas 1
9c 8160059 Gasket, IgnitorGasket 1
10 8101221 Orifice, 2.00 mm Propane/Butane (0-4999 Ft, 0-1524 M)

(Japan)
10a 8101325 Orifice, 2.05 mm Propane/Butane (G30, G31) (0-4999 Ft, 0-

1524 M)
10b 8100386 Orifice, 2.10 mm Propane/Butane (0-4999 Ft, 0-1524 M)

Standard LP
10c 8100413 Orifice, 2.16 mm Propane/Butane (G30, G31) (5000-6999 Ft,

1525-2133 M)
10d 8121028 Orifice, 2.20 mm Propane/Butane (G30, G31) (7000-10,999

Ft, 2134-3352 M)
10e 8121134 Orifice, 3.10 mm Natural Gas (G20, G25) (0-4999 Ft, 0-1524

M) (Japan)
10f 8100403 Orifice, 3.40 mm Natural Gas (G20, G25) (0-4999 Ft, 0-1524

M)Standard Natural Gas
10g 8100437 Orifice, 3.60 mm Natural Gas (G20, G25) (5000-6999 Ft,

1525-2133 M)
10h 8121144 Orifice, 3.65 mm Natural Gas (G20, G25) (7000-8999 Ft,

2134-2743 M)
10i 8121145 Orifice, 3.70 mm Natural Gas (G20, G25) (9000-10,999 Ft,

2744-3352 M)
10j 8100642 Orifice, 5.95 mm Manufactured Gas (0-4999 Ft, 0-1524 M) 1
11 8261196 Conversion Kit, Natural Gas (G20, G25) to Propane/Butane

(G30, G31) CE
11a 8261197 Conversion Kit, Propane/Butane (G30, G31) to Natural Gas

(G20, G25) CE

PART NOTES:

[1] - new design, without fuse
[2] - non fused ignition modules

1

1 [1]

1 [2]

1

1

1

1

1

1

1

1

1

1

1

1

MH52 and BIH52 Series Gas Fryers

Electronics - Component Boxes

MH52 and BIH52 Series Gas Fryers

Electronics - Component Boxes

# PART # DESCRIPTION QTY Note

1 2005996 Box Assembly, One-Piece Component 1
2 8263271 Ignition Module 1
3 8073366 Ignition Module, Dual-Spark Full-Vat Ignition Module, Full Vat 1 [1]
4 8073365 Ignition Module, Single-Spark Dual-VatIgnition Module, Dual

Vat
5 1060531SP Fuse Assembly, InlineInline fuse 1
6 8070833 Relay, DPDT 5A 12VDC LatchRelay, 12V 5Amp Latch 1
7 8073843 Fuse 3A 250V DomesticFuse, 3A 250V Subminature 1
8 8262264 Interface Board Kit SMT 1
8a 8064973 Interface Board, AustraliaInterface Board (used with 240V

manufactured gas units only)
9 8071926 Bushing, .875-inch SplitBushing, .875 Diameter Split 1
10 8160217 Insulation, Terminal Block PaperPaper, Insulating 1 [2]
11 8101164 Block, One-Piece Screwless TerminalBlock, Terminal 1 [3]
12 8261359 Screw - #4-40 x 0.75" Slotted Round HeadScrew, 4-40 x

0.75-inch Slotted Round Head
13 8261366 Nut - #4-40 Keps HexNut, 4-40 Keps Hex 25 [3]
14 8071241 Spacer, Interface Board 1 [4]
15 8090250 Nut, 6-32 Keps Hex 1
16 8261337 Tab, 0.25-inch TerminalTab, Push-On Terminal 5
17 8261346 Spacer, Ignition ModuleSpacer, Ignition Module 10 [5]
18 8090441 Screw, 8 x 1.5-inch Hex Washer HeadScrew, #7 x 1.5-inch

Slotted Washer Hex Head
19 8102243 Spring, Relay RetainingSpring, Relay Clip Hold Down 1
20 8063660 Sound Device, High Output for M100BSound Device, High

Output
20a 8262458 Speaker - 4 Watts 1 [6]
21 8071359 Mount, Ty-WrapMount, Tie-Wrap 1 [7]

PART NOTES:

[1] - unfused – use inline fuse
[2] - Items 10, 11, 12, 13 not used on BIH152 or Hong Kong units
[3] - See Item 10
[4] - .151-inch ID x 0.625-inch
[5] - .260-inch ID x 0.5-inch
[6] - Use with M2000 Computers
[7] - used on CE units only

1 [1]

1

25 [3]

1

1

MH52 and BIH52 Series Gas Fryers

Electronics - Computers, Controllers and Associated Components

MH52 and BIH52 Series Gas Fryers

Electronics - Computers, Controllers and Associated Components

# PART # DESCRIPTION QTY Note

1 8261739 Retrofit Kit, Solid-State Controller to M100B

ComputerComputer M2000 Upgrade kit 6 second melt cycle
1a 8068041E Computer M2000 Upgrade kit 8 second melt cycle 1 [1]
1b 8068040 Computer M2000 Upgrade kit French 1 [1]
1c 8262347 Computer - CE Export - Replacement Upgrade Kit 1
2 1060529B Computer, McDonald’s M2000 Gas Fryer, U.S. and Canada

FV / Non-CE Export
2a 1062436B Computer, McDonald’s M2000 Gas Fryer, CE Export FV 1
3 8063007 Controller, McDonald’s Full Vat Gas Fryer Solid-State, With

6-second Melt Cycle
3a 8063571 Controller, McDonald’s Full Vat Gas Fryer Solid-State, With

8-second Melt Cycle
4 8063009 Controller, McDonald’s Dual Vat Gas Fryer Solid-State, With

6-second Melt Cycle
4a 8063572 Controller, McDonald’s Dual Vat Gas Fryer Solid-State, With

8-second Melt Cycle
5 8100387 KnobKnob, Replacement Control 1
6 8062071 Cable, Computer/Controller to Interface Board 1 [2]
7 8261177 Thermostat, High-Limit 425°F/218°CThermostat, High-Limit

Kit
8 8064206 Probe Assembly, Temperature 1
9 8261739 Retrofit Kit, Solid-State Controller to M100B Computer 1
10 8261675 M2000 Speaker retrofit kit 1
11 8063660 Sound Device, High Output for M100B 1 [1]
12 8262458 Speaker - 4 Watts 1
13 8261032SP Screw and Retainer Kit for computer 1

PART NOTES:

[1] - replaces M100B
[2] - for use on Solid-State Controllers

1 [1]

1

1

1

1

1

1

MH52 and BIH52 Series Gas Fryers

Electronics - Transformer Box Components

MH52 and BIH52 Series Gas Fryers

Electronics - Transformer Box Components

# PART # DESCRIPTION QTY Note

1 8074978 Transformer - Dual Voltage 100-120V/12V 30VA /24V 50VA 1
1a 8070800 Transformer, 100-120V/24V 50VA Filter and MIBTransformer

(for use in BIH152 units), 120/24VAC 50/60 Hz
2 8070855 Transformer - 120V/50-60 Hz - 12V 20VATransformer,

120/12VAC 50/60 Hz
3 8070012 Filter Relay - 18A 24VACRelay, 18 Amp 24VDC Coil 1
4 8070273 Block, 16-Pin Terminal 1
5 8071612 Clamp, 0.375-inch Strain Relief 1
6 8070255 Jumper, Double 1
7 8100045 Bushing, .875 Dia. Hole 0.6875”Bushing, .875-inch Diameter 1
8 8090362 Screw, 8 x 1.25-inch Hex Washer Head Drill PointScrew, 8-

32 x 1-inch Hex Slotted Washer Head
9 9005560 Shield, BIH152 Transformer 1
10 8071683 Relay, 12VDC Secondary Blower Fan to cool frypotRelay, 15

AMP 12VDC Coil
11 8261363 Screw - #8-32 x 0.5" NPScrew, 8-32 x 0.5-inch Slotted Truss

Head
12 8090050 Nut, 8-32 Hex 1
13 8074978 Transformer - Dual Voltage 100-120V/12V 30VA /24V 50VA 1
13a 8075129 Transformer - Dual Voltage 208-240V 1
14 8090360 Screw, 8 x 0.375-inch Hex Washer Slot HeadScrew, 8-32 x

0.375-inch Slotted Hex Washer Head
15 8071973 Terminal, PostBlock, 4-Post Threaded Terminal 1 [3]
16 8261389 Screw - 0.25"-20 x 0.75" Hex Head ZPScrew, 0.25-20 x 0.75-

inch Hex Head
17 8261362 Nut - 0.25"-20 Hex 10
17a 8090052 Nut, 10-24 HexNut, 10-24 Hex 1 [4]
18 8101163 Block, 3-Position Push-In Terminal 1 [5]
19 8261359 Screw - #4-40 x 0.75" Slotted Round Head 25
20 8261366 Nut - #4-40 Keps Hex 10
21 8070070 Terminal, Ground LugTerminal, Lug 1
22 8261363 Screw - #8-32 x 0.5" NPScrew, 8-32 x 0.5-inch Slotted Truss

Head
23 8090247 Nut - #8-32 Keps Hex 1
24 9002697 Box, MH152 Transformer 1
25 9002708 Cover, MH152 Transformer Box Top 1
26 9002703-FRY Cover, MH152 Transformer Box Left 1
27 9002709 Cover, MH152 Transformer Box Right 1
28 8261374 Screw - #10 x 0.5" Hex HeadScrew, #10 x 0.5-inch Self-

Tapping Slotted Hex Washer Head
29 9005924 Box, BIH252/MH252 Transformer 1
30 9005927 Cover, BIH252/MH252 Transformer Box Top 1
31 9005928 Cover, BIH352/MH352 Transformer Box LeftCover,

BIH252/MH252 Transformer Box Left
32 9005923 Cover, BIH252/MH252 Transformer Box Right 1
33 9005925 Box, BIH352/MH352 Transformer Box 1
34 9005929 Cover, BIH352/MH352 Transformer Box Top 1
35 9005928 Cover, BIH352/MH352 Transformer Box Left 1
36 9005930 Cover, BIH452/MH452 Transformer Box RightCover,

BIH352/MH352 Transformer Box Right

1

1 [1]

1 [2]

1

25

1

10

25

25

1

1

MH52 and BIH52 Series Gas Fryers

Electronics - Transformer Box Components

# PART # DESCRIPTION QTY Note

37 8072608 Block, 8-Post Threaded Terminal 1 [3]
38 8101162 Block, 4-Position Push-In Terminal 1 [5]
39 9005926 Box, BIH452/MH452 Transformer 1
40 9005931 Cover, BIH452/MH452 Transformer Box Top 1
41 9005932 Cover, BIH452/MH452 Transformer Box Left 1
42 9005930 Cover, BIH452/MH452 Transformer Box Right 1
43 8070156 9-Pin FemaleConnector, 9-Pin Plug 1

PART NOTES:

[1] - for use in BIH152 units
[2] - for mounting Items 1-4
[3] - used in Non-CE units
[4] - for use on Item 15 and Item 37 terminal posts
[5] - used in CE units

MH52 and BIH52 Series Gas Fryers

Filtration System Components - Filter Motor and Pump Plumbing

MH52 and BIH52 Series Gas Fryers

Filtration System Components - Filter Motor and Pump Plumbing

# PART # DESCRIPTION QTY Note

1 8261264 Pump Kit - 4 GPM Pump, 4 GPM (15 LPM) 1 [1]
1a 8160093 Gasket - Pump/MotorGasket 1
2 8261712 Motor and Gasket Kit - 115V/50-60 HzMotor and Gasket Kit,

Multi-Voltage, 100-120VAC
2a 8261713 Motor and Gasket Kit, Multi-Voltage, 200-250VAC 1
3 8072484 Solenoid Valve - 0.25"Valve, Solenoid Vent 1
4 8101404 Flexline - Oil Return (pump to rear manifold) 1 [2]
5 8101373 Flexline - Pump Bypass 1
6 8069437SP Flexline - Oil Return - 15.5" L 1
7 8130165 Elbow - 0.5" x 90° NPT StreetElbow, 0.5-inch x 90º Street 1
8 8130530 Tee, Reducing 0.5-inch x 0.25-inch x0.5-inchTee, 0.5-inch x

0.25-inch x 0.5-inch Reducing
9 8130537 Nipple - 0.25" x 2"Nipple, 0.25-inch x 2-inch 1
10 8130543 Elbow, Street 0.25” NPTElbow, 0.25-inch x 90º Street 1
11 8130265 Nipple - 0.5" x 2.5" NPNipple, 0.5-inch x 2.5-inch 1
12 8130460 Nipple, 0.5-inch X 3.0-inch NPTNipple, 0.5-inch x 3-inch 1
13 8130304 Bushing, 0.5-inch NPT to 0.25-inch NPT Flush

ReducingBushing, 0.5-inch to 0.25-inch Reducing
14 8130331 Elbow, V-Side Outlet 0.5” NPTElbow, 0.5-inch 3-way 1
15 8101159 Flexline - Oil Return - 5" LFlexline, 5-inch Oil Return 1
16 8100945 Hose, Heated Oil Return, 120/240V 1
16a 8101037 Hose, Heated Oil Return, 208-250VAC 1
17 9001958 Support, Oil Return 1
18 8101003 Valve, 180º 3-way Ball 1
19 8130022 Nipple, 0.5” Close NPT BMNipple, 0.5-inch x Close 1
20 8130062 Elbow - 0.5" BM x 90°Elbow, 0.5-inch x 90º 1
21 8130098 Nipple, 0.5-inch x 6.5-inch 1
22 8130087 Nipple, 0.5-inch NPT x 1.5-inch (3.8 cm)Nipple, 0.5-inch x

1.5-inch
23 9005543 Mount, Motor 1
24 8261389 Screw - 0.25"-20 x 0.75" Hex Head ZPScrew, 0.25-20 x 0.75-

inch Hex Head
25 8090191 Washer, Lock 0.25 Spring ZPWasher, 0.25-inch Lock 1
26 8261362 Nut - 0.25"-20 Hex 10
27 8090514 Cap Screw - 0.3125" 18 NC HexCapscrew 0.3125”x 18 NC 1
28 8090194 Flat Washer - 0.3125" ZP 1
29 8066728SP Pump Motor to Filter Box Wiring AssemblyWiring Assembly,

Pump Motor to Filter Box
30 8160093 Gasket - Pump/MotorGasket, Pump Motor 1
31 8071600 Thermal Switch, Baldor Motor, 120VAC 1
31a 8071601 Thermal Switch, Baldor Motor, 240VAC 1
31b 8071598 Thermal Switch, Magnatek Motor, 120VAC 1
31c 8071599 Thermal Switch, Magnatek Motor, 240VAC 1
32 8071420 Heater Tape 120V 25w 36” 1
32a 8069245SP Heater Tape 120V 25w 36” (Assy.) 1
33 8071472 Heater Tape 120V 40w 56” 1
33a 8068004SP Heater Tape 120V 40w 56” (Assy.) 1
34 8072304 Heater Tape 120V 100w 72” 1

1

1

1

1

10

1

MH52 and BIH52 Series Gas Fryers

Filtration System Components - Filter Motor and Pump Plumbing

# PART # DESCRIPTION QTY Note

34a 8067755SP Heater Tape 120V 100w 72” (Assy.) 1
35 8110746-FRY Aluminum Tape – 50 yard roll 1
36 8110861 Foam Insulation – by the foot 1

PART NOTES:

[1] - comes with Gasket
[2] - pump to rear manifold

MH52 and BIH52 Series Gas Fryers

Filtration System Components - Filter Pan Assemblies and Associated Components

MH52 and BIH52 Series Gas Fryers

Filtration System Components - Filter Pan Assemblies and Associated Components

# PART # DESCRIPTION QTY Note

1 8066423SP Pan Assembly, Filter, Standard 1
1a 8067377SP Pan Assembly, Filter, For use on Japanese/Far East

(JBIH52) units.
1b 8101405 Ring, Hold Down 1
2 8065618SP Pan Assembly, Filter 1 [1]
2a 8232321 Cover, Filter Pan 1
2b 8101408 Ring, Hold Down 1
3 8232027 Cover, Filter Pan 1
5 8122026 Screen, Sana Grid (9 x 17-inch/23 x 43cm, has alignment

holes)
6 8103559 Screen, Sana Grid (12 x 19.5-inch/30.5 x 49.5cm, has no

holes)
7 8232234SP Pan, Filter 1 [2]
8 8231979SP Pan, Filter 1 [3]
9 8090422 Screw, 10-32 x 0.4375-inch Slotted Truss Head 1
10 8261490 Kit, Filter Pan Check Valve Service 1 [4]
11 8101387 Check Valve Retainer 1
12 9005448 Strainer, Check Valve 1
13 8100946 Spring, Check Valve 1
14 8100948 Ball, Check Valve 1
15 8101388 Check Valve Tube 1
16 8160597PK O-Ring, Check Valve - QTY 6 1
17 8237846 Screen, Crumb 1
18 8232575SP Pan, Filter 1 [5]
18a 8232586 Cover, Filter Pan 1
18b 8232574 Ring, Hold Down 1
18c 9008829 Screen, San Grid (10 x 9-inch/23 x 25cm) Baby FP 1
19 8232578 Bracket, BIH152 Oil Return 1
20 8100697 Disconnect, Male 1
21 8261392 O-RingO-Ring, BIH152 Oil Return 5
22 8090028 Nut, Wld 10-32 Sngl Wng 1
23 8068550SP Inner Pan w/ ck valve and O-rings 1

PART NOTES:

[1] - Paper pans used in Japan
[2] - has screen alignment pins in pan bottom
[3] - has no screen alignment pins in pan bottom
[4] - consists of Items 11 through 16
[5] - for use in BIH152 units

1

1

1

MH52 and BIH52 Series Gas Fryers

Filtration System Components - Rear Flush Oil Return Components

MH52 and BIH52 Series Gas Fryers

Filtration System Components - Rear Flush Oil Return Components

# PART # DESCRIPTION QTY Note

1 8072484 Solenoid Valve - 0.25"Valve, Solenoid Vent 1 [1]
2 8103904 Quick Connect - 0.25" x 90ºElbow, 90º x 0.25-inch NPT x

0.375-inch Tube

3 8110932 Vent Tube, Teflon 0.375” OD BulkVent Tube 0.375” OD Bulk

Teflon
4 8090601 Clip, ClevisClip, Rod End Clevis 1
5 8101767 Shaft, Rear Flush Valve (For use in left oil return valve

assemblies)
5a 8101766 Shaft, Rear Flush Valve (For use in right oil return valve

assemblies)
6 9012772 Handle, Valve Rear Flush LTHandle, Rear Flush Valve (For

use in left oil return valve assemblies)
6a 9022772 Handle, Valve Rear Flush RTHandle, Rear Flush Valve (For

use in right oil return valve assemblies)
7 9002935 Retainer, Nut Oil Return ValveNut, Oil Return Valve Retainer 1
8 8130165 Elbow - 0.5" x 90° NPT StreetElbow, 90º x 0.5-inch Street 1
9 8130022 Nipple, 0.5” Close NPT BMNipple, 0.5-inch Close 1
10 8100278 Valve, 0.5” BallValve, 0.5-inch Ball 1
11 8069828SP Flexline - Oil Return - 9" L 1
12 8130469 Cap, 0.5-inch NPT PipeCap, 0.5-inch Pipe 1
13 8101360 Manifold, BIH252 Rear Flush Oil Return 1
14 8101357 Manifold, BIH352 Rear Flush Oil Return 1
15 8101378 Manifold, BIH452 Rear Flush Oil Return 1
16 9012214 Cover, BIH52 Rear Flush Oil Return Microswitch, For use in

left handle and switch assemblies.
16a 9022214 Cover, BIH52 Rear Flush Oil Return Microswitch, For use in

right handle and switch assemblies.
17 8261366 Nut - #4-40 Keps Hex 25
18 8072103 Microswitch 1
19 8101186 Cam, Filter System Microswitch 1
20 8261377 Setscrew, 10-32 x 0.25-inch 25
21 8160220 Insulation, MicroswitchInsulation, Microswitch 1
22 8232295 Handle, Rear Flush, For use in Non-CE applications 1
22a 8232259 Handle, Rear Flush, For use in CE applications only 1
23 8121253SP Cover, Rear Flush Handle 1

PART NOTES:

[1] - 145 ohms

1

1

1

1

1

1

1

1

MH52 and BIH52 Series Gas Fryers

Frypot Assembly Components - Dual Vat

MH52 and BIH52 Series Gas Fryers

Frypot Assembly Components - Dual Vat

# PART # DESCRIPTION QTY Note

1 8230970 Plenum, Dual-Vat 1
1a 8231049 Plenum, For use on units with Air Switch. HE Dual Vat

European
1b 8232181 Plenum, For use on JBIH152 models only. 1
2 8261372 Nut Grip 0.25-inch 0.25-20 Hex NPNut, 0.25-20 Hex 10
3 8261383 Washer, 0.75-inch O.D. x 0.25-inch I.D. ZPWasher, 0.25-inch

x 0.75-inch Flat
4 8160057 Gasket, Plenum 1
5 9001049 Retainer, Plenum Gasket 1
6 8261371 Screw - #8 x 0.5" Hex Head ZPScrew, #8 x 0.5-inch Hex

Head
7 8261368 Nut - 0.25-20 Serrated Flange 10
8 8100500 Spacer, .25-inch x .9375-inchSpacer, 0.25-inch x 0.9375-inch 1
9 8230968SP Retainer, Dual Vat Outer Combustion Chamber Insulation 1
10 8160558 Insulation, Dual Vat Combustion Chamber Outer Lower 1
11 8261340 Spacer, .25-inch x 1.187-inchSpacer, 0.25-inch x 1.1875-inch 10
12 9001031 Retainer, Burner Sight GlassRetainer, Sight Glass 1
13 8120356 Insulation, Burner Sight GlassGasket, Sight Glass 1
14 8140048SP Glass, Burner SightSight Glass 1
15 8230983SP Retainer, Dual Vat Inner Combustion Chamber Insulation 1
16 8120458 Burner Insulation Kit Dual Vat, Insulation, Full Vat Inner

Combustion ChamberInsulation, Dual Vat Inner Combustion

Chamber
17 9303628 Retainer, Dual Vat Frypot Outer Front Insulation 1
18 8160559 Insulation, Dual Vat Frypot Outer Front 1
19 8240865 Seal, Dual Vat Frypot Left 1
20 8240866 Seal, Dual Vat Frypot Right 1
21 8120404 Insulation, Frypot Seal 1
22 8261072 Kit, Burner Replacement, Natural and Propane Gas 1
22a 8261073 Kit, Burner Replacement, Manufactured Gas 1
23 8160577 Insulation, Burner 1
24 8232823 Rail, Dual Vat Right Burner Side W/A 1
25 8232822 Rail, Dual Vat Left Burner Side W/A 1
26 8121029 Insulation, Combustion Chamber SideInsulation, Frypot Side 1
27 9004452 Retainer, Frypot Side Insulation 1
28 8090362 Screw, 8 x 1.25-inch Hex Washer Head Drill PointScrew, #8

x 1-inch Hex Washer Head
29 8120354 Burner Insulation Kit Dual Vat, Insulation, Full Vat Rear

Combustion ChamberInsulation, Dual Vat Rear Combustion

Chamber
30 2000941 Back, Dual Vat Combustion Chamber 1
31 9000914 Retainer, Dual Vat Combustion Chamber Back 1
32 8120688 Insulation, Flue CollectionInsulation, Dual Vat Gas Collector 1
33 9300818 Bracket, Flue to PotBracket, Flue to Frypot Mounting 1
34 8100406 Spacer, 0.25-inch x 1.4375-inch 1
35 8066142SP Flue Assembly, Full VatFlue Assembly, Dual Vat 1
36 8120993 Insulation, Frypot Upper 1
37 9001515 Retainer, Frypot Upper Insulation 1
38 9000857 Bracket, BIH52 Frypot Mounting 1

1

5

25

1

1

1

MH52 and BIH52 Series Gas Fryers

Frypot Assembly Components - Dual Vat

# PART # DESCRIPTION QTY Note

39 9001401 Bracket, MH52 Frypot Mounting 1
40 8120706 Insulation, Upper Burner RailInsulation, Burner Rail 1
41 9004253 Strip, Fluecap Retainer 1
42 8240541 Riser, DV Pot Divider W/A 1
43 9102474 Pot-to-Pot Gap Clip 1
44 8130463-FRY Plug - 0.5" NPTPlug, 0.5-inch NPT BM 1
45 8130336 Plug, 0.5-inch NPT SS 1
46 1061043SP Replacement Full Vat Frypot Kit (Manufactured Gas) 1
46a 1061049SP Replacement Full Vat Frypot Kit (Natural Gas (G20/G25)) 1
46b 1061050SP Replacement Full Vat Frypot Kit (Propane/Butane

(G30/G31))
47 1061066SP Replacement Dual Vat Frypot Kit (Manufactured Gas) 1
47a 1061079SP Replacement Dual Vat Frypot Kit (Natural Gas (G20/G25)) 1
47b 1061080SP Replacement Dual Vat Frypot Kit (Propane/Butane Gas) 1
48 8260929 Full Vat Insulation Kit 1
48a 8160059 Gasket, IgnitorFull Vat Insulation Kit, Gasket 1
48b 8140048SP Glass, Burner SightFull Vat Insulation Kit, Sight Glass 1
48c 8160057 Gasket, PlenumFull Vat Insulation Kit, Gasket 1
48d 9001515 Retainer, Frypot Upper InsulationFull Vat Insulation Kit,

Insulation Retainer
49 8260930 Dual Vat Insulation Kit 1
50 8260931 Burner Insulation Kit Full Vat 1
50a 8120357 Insulation, HE BurnerBurner Insulation Kit Full Vat,

Insulation, Burner
50b 8120457 Insulation, Full Vat Inner Combustion ChamberBurner

Insulation Kit Full Vat, Insulation, Full Vat Inner Combustion

Chamber
50c 8120355 Insulation, Full Vat Rear Combustion ChamberBurner

Insulation Kit Full Vat, Insulation, Full Vat Rear Combustion

Chamber
50d 8160057 Gasket, PlenumBurner Insulation Kit Full Vat, Gasket,

Plenum
51 8260932 Burner Insulation Kit Dual Vat 1
51a 8120357 Insulation, HE BurnerBurner Insulation Kit Dual Vat,

Insulation, Burner
51b 8120458 Burner Insulation Kit Dual Vat, Insulation, Full Vat Inner

Combustion Chamber
51c 8120354 Burner Insulation Kit Dual Vat, Insulation, Full Vat Rear

Combustion Chamber
51d 8160057 Gasket, PlenumBurner Insulation Kit Dual Vat, Gasket,

Plenum
52 2100681 Probe Guard 1
53 8066142SP Flue Assembly, Full VatRiser Assembly, Flue 1 [1]
54 9002298 Shutter, BIH152 Plenum 1

PART NOTES:

[1] - replaces 8065859SP and 1061018SP.

1

1

1

1

1

1

1

1

1

1

MH52 and BIH52 Series Gas Fryers

Frypot Assembly Components - Full Vat

MH52 and BIH52 Series Gas Fryers

Frypot Assembly Components - Full Vat

# PART # DESCRIPTION QTY Note

1 8230969 Plenum 1
1a 8231048 Plenum 1 [1]
2 8261372 Nut Grip 0.25-inch 0.25-20 Hex NPNut, 0.25-20 Hex 10
3 8261383 Washer, 0.75-inch O.D. x 0.25-inch I.D. ZPWasher, 0.25-inch

x 0.75-inch Flat
4 8160057 Gasket, Plenum 1
5 9001049 Retainer, Plenum Gasket 1
6 8261371 Screw - #8 x 0.5" Hex Head ZPScrew, #8 x 0.5-inch Hex

Head
7 8261368 Nut - 0.25-20 Serrated Flange 10
8 8100500 Spacer, .25-inch x .9375-inchSpacer, 0.25-inch x 0.9375-inch 1
9 82311691SP Retainer, Full Vat Left Outer Combustion Chamber Insulation 1
10 8231169SP Retainer, Full Vat Right Outer Combustion Chamber

Insulation
11 8160561 Insulation, Full Vat Combustion Chamber Outer 1
12 8261340 Spacer, .25-inch x 1.187-inchSpacer, 0.25-inch x 1.1875-inch 10
13 9001031 Retainer, Burner Sight GlassRetainer, Sight Glass 1
14 8120356 Insulation, Burner Sight GlassGasket, Sight Glass 1
15 8140048SP Glass, Burner SightSight Glass 1
16 2000935 Retainer, Full Vat Left Inner Combustion Chamber Insulation 1 [2]
17 2000934 Retainer, Full Vat Right Inner Combustion Chamber

Insulation
18 8120457 Insulation, Full Vat Inner Combustion Chamber 1
19 2002227 Retainer, Full Vat Frypot Outer Front Insulation 1
20 8160560 Insulation, Full Vat Frypot Outer Front 1
21 8240863 Seal, Full Vat Frypot Left 1
22 8240864 Seal, Full Vat Frypot Right 1
23 8120404 Insulation, Frypot Seal 1
24 8261072 Kit, Burner Replacement, Natural and Propane Gas 1
24a 8261073 Kit, Burner Replacement, Manufactured Gas 1
25 8120357 Insulation, HE Burner 1
26 8233142 Rail, Full Vat Right Burner 1
27 8231777 Rail, Full Vat Left Burner 1
28 8121029 Insulation, Combustion Chamber SideInsulation, Frypot Side 1
29 9004452 Retainer, Frypot Side Insulation 1
30 8120355 Insulation, Full Vat Rear Combustion Chamber 1
31 2000936 Back, Left Full Vat Combustion Chamber 1
32 2000937 Back, Right Full Vat Combustion Chamber 1
33 9001221 Retainer, Full Vat Combustion Chamber Back 1
34 8100406 Spacer, 0.25-inch x 1.4375-inch 1
35 9300818 Bracket, Flue to PotBracket, Flue to Frypot Mounting 1
36 8066142SP Flue Assembly, Full Vat 1
37 8120993 Insulation, Frypot Upper 1
38 9001515 Retainer, Frypot Upper Insulation 1
39 9000857 Bracket, BIH52 Frypot Mounting 1
40 9001401 Bracket, MH52 Frypot Mounting 1
41 8090362 Screw, 8 x 1.25-inch Hex Washer Head Drill PointScrew, #8

x 1-inch Hex Washer Head

5

25

1

1 [2]

1

MH52 and BIH52 Series Gas Fryers

Frypot Assembly Components - Full Vat

# PART # DESCRIPTION QTY Note

42 8120706 Insulation, Upper Burner RailInsulation, Burner Rail 1
43 9004253 Strip, Fluecap Retainer 1
44 9102474 Pot-to-Pot Gap Clip 1
45 8130463-FRY Plug - 0.5" NPTPlug, 0.5-inch NPT 1
46 8130336 Plug, 0.5-inch NPT SS 1

PART NOTES:

[1] - use on units equipped with Air Switch
[2] - before 09/01

MH52 and BIH52 Series Gas Fryers

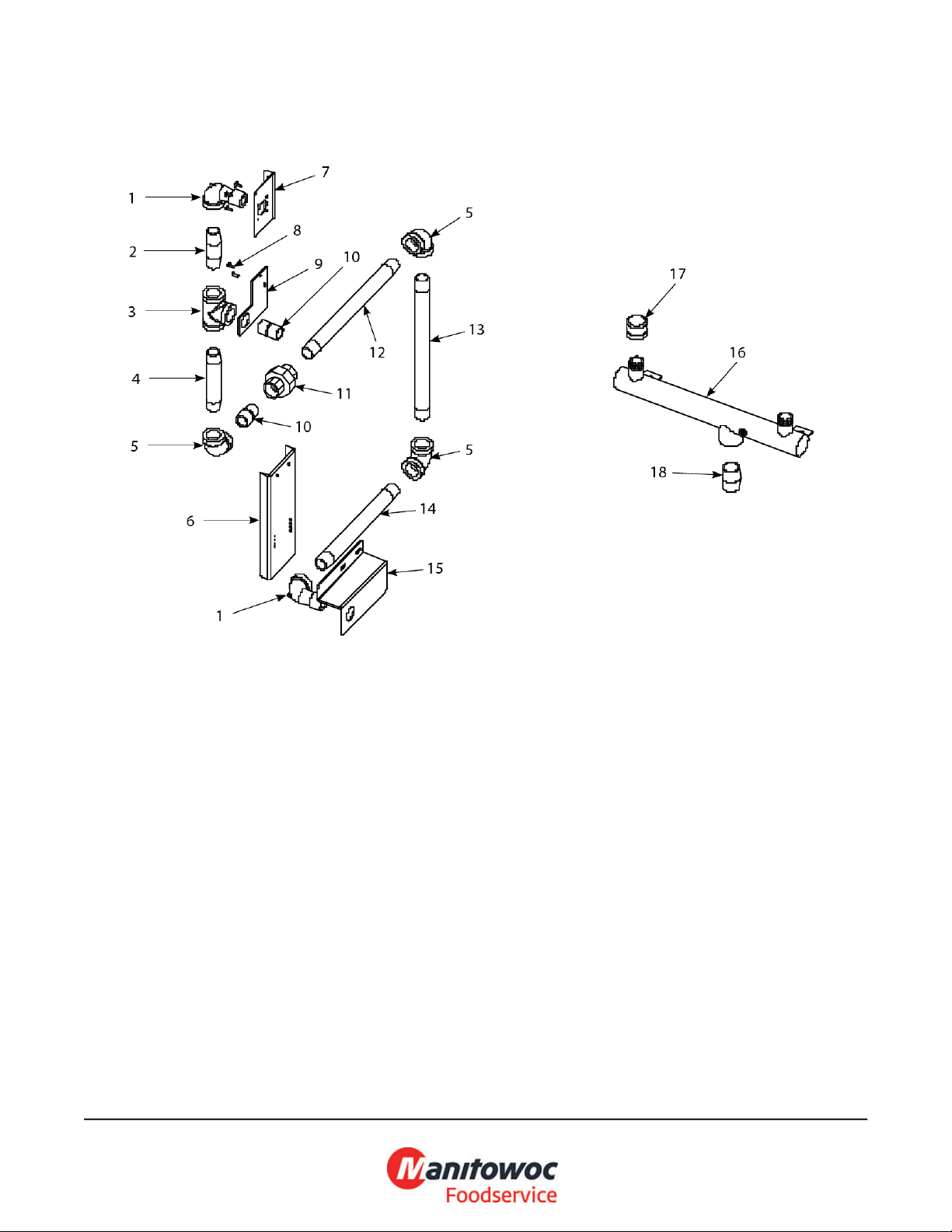

Gas Manifolds – Single BIH52-MH52 Units

MH52 and BIH52 Series Gas Fryers

Gas Manifolds – Single BIH52-MH52 Units

# PART # DESCRIPTION QTY Note

1 8130165 Elbow - 0.5" x 90° NPT StreetElbow, 0.5-inch NPT Street x

90º
2 8130265 Nipple - 0.5" x 2.5" NPNipple, 0.5-inch NPT x 2.5-inch 1
3 8130003-FRY Tee - 0.5" NPTTee, 0.5-inch NPT 1
4 8130093-FRY Nipple - 0.5" NPT x 4" 1 [1]
5 8130062 Elbow - 0.5" BM x 90°Elbow, 0.5-inch NPT x 90º 1
6 9005616 Mount, BIH152 Gas Line 1
7 9005596 Mount, Valve Plate 1 [2]
8 8090107 Screw, 8-32 x 0.375” Round Slotted Head 1
9 9008740 Mount, Valve Plate 1
9a 8101715 Valve, CE Gas G20, G25, G30, G31Mount, Valve Plate (used

with CE Gas Valve only)
10 8130022 Nipple, 0.5” Close NPT BMNipple, 0.5-inch NPT Close 1
11 8130173 Union, 0.5-inch NPT 1
12 8130496 Nipple, 0.5-inch NPT x 9.5-inch 1
13 8130253-FRY Nipple, 0.5-inch NPT x 10-inch 1 [3]
14 8130320 Nipple, 0.5-inch NPT x 8-inch 1
15 9005615 Support, BIH152 Gas Line 1
16 8100959 Manifold, MH152 1-piece Gas 1
17 8130469 Cap, 0.5-inch NPT Pipe 1
18 8130109 Nipple, 0.75-inch NPT Close 1
19 8100478 Gas Line, 1-Inch Dormont FlexibleDormont Hose Assembly 1
20 8101425 Fitting, 0.5-inch Quick Disconnect x 0.5-inch Female NPT 1

PART NOTES:

[1] - replaces Item 11 in some models
[2] - used with Non-CE Gas Valves only
[3] - Dual-vat Configuration

1

1

MH52 and BIH52 Series Gas Fryers

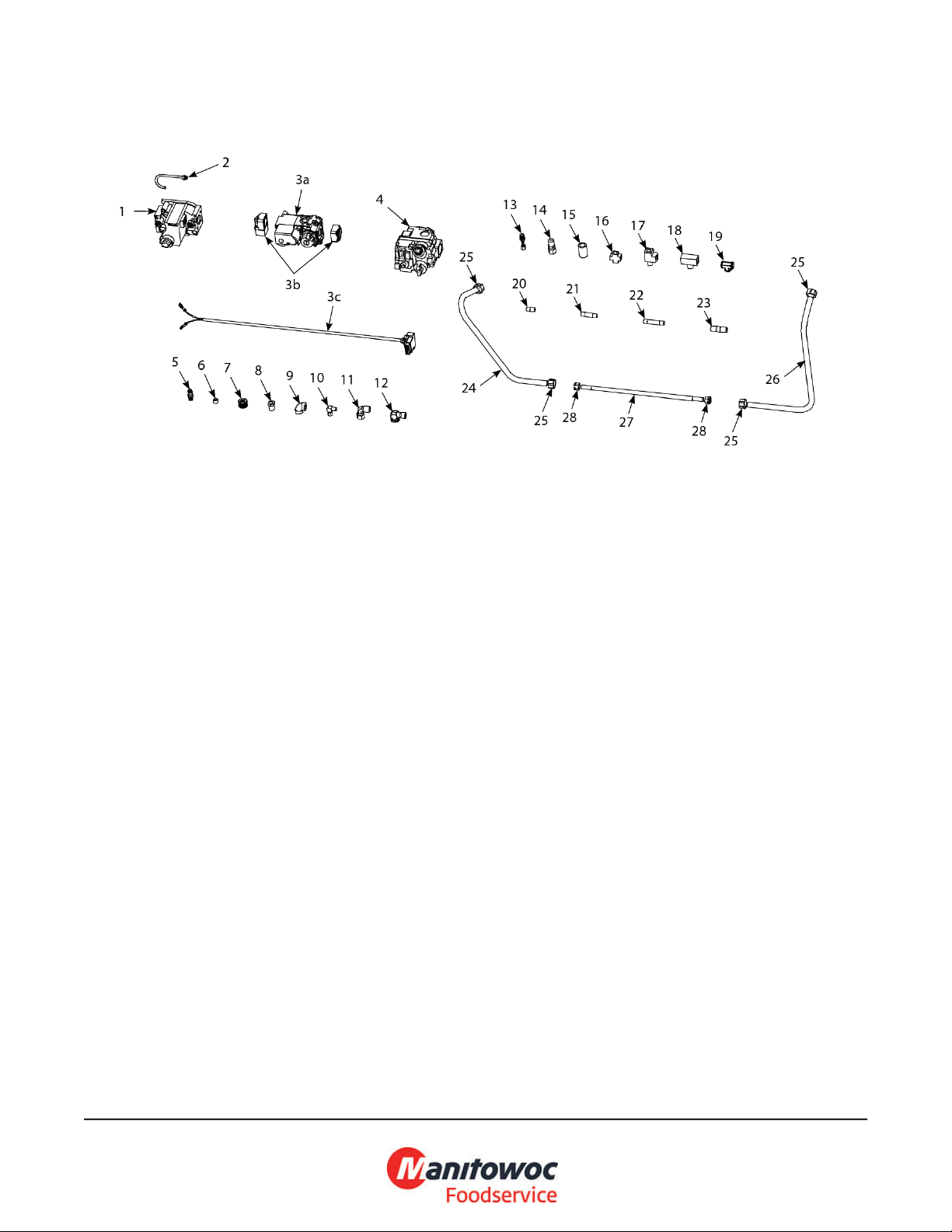

Gas Valves, Gas Lines and Fittings

MH52 and BIH52 Series Gas Fryers

Gas Valves, Gas Lines and Fittings

# PART # DESCRIPTION QTY Note

1 8261122 Valve, Non-CE, Natural Gas G20, G25Gas Valve, Non-CE

Kit, Natural Gas
1a 8261123 Valve, Non-CE, Propane Gas G30, G31Gas Valve, Non-CE

Kit, Propane (LP) Gas
2 8100691 Tube, 0.125-inch VentVent Tube 1
3 8261576 CE Gas Valve Kit 1
3a 8101715 Valve, CE Gas G20, G25, G30, G31Gas Valve, Universal CE 1 [3]
3b 8101041 Gas valve accessory kitAccessory Kit 1 [4]
3c 8069678SP Plug Assy, CE Gas Valve 1 [5]
4 8071229 Gas Valve, Manufactured Gas 1
5 8101176 Tap, 0.125-inch NPT Pressure 1
6 8130568 Plug, 0.125” SS NPT, Sq-Head 1
7 8130304 Bushing, 0.5-inch NPT to 0.25-inch NPT Flush Reducing 1
8 8101006 Bushing, 0.25-inch NPT to 0.125-inch NPT Reducing 1
9 8130004 Elbow, 90º x 0.125-inch NPT 1
10 8130354 Elbow, 0.125-inch NPT X 0.125-inch Tube

CompressionElbow, 90º x 0.125-inch NPT x 0.125-inch Tube
11 8130302 Elbow, 0.25-inch Male NPT to 0.375-inch Tube 90°Elbow,

90º x 0.375-inch Tube x 0.25-inch Male NPT
12 8130502 Elbow, 90º Street x 0.25-inch 1 [6]
13 8130340 Adapter, 0.125-inch NPT to 0.125-inch TubeConnector,

0.125-inch Tube to 0.125-inch Male NPT

13a 8100502 Enrichment Tube, 8.5-inch Connector, 0.125-inch Tube to

0.125-inch Male NPT

14 8101025 Connector, 0.25-inch Male NPT to 0.375-inch

TubeConnector, 0.375-inch Tube to 0.25-inch Male NPT
15 8130507 Coupling, 0.25-inch NPT 1 [6]
16 8130378 Fitting, 0.125-inch NPT CrossCross Fitting, 0.5-inch Female

NPT
17 8101026 Tee, 0.25-inch Male NPT to Female NPT StreetTee, 0.25-

inch NPT Street
18 8130495 Tee, 0.25-inch Male NPT to Female NPTTee, 0.25-inch Male

NPT Branch
19 8130377 Tee, 0.125-inch Female NPT 1 [6]
20 8130016 Nipple, 0.125-inch NPT Close 1
21 8130315 Nipple, 0.125-inch NPT x 1.5-inch 1 [8]
22 8130405 Nipple, 0.125-inch NPT x 2-inch 1 [9]
23 8130471 Nipple, 0.25-inch NPT x 1.5-inch 1 [8]
24 9003739 Gas Tube (Left), H52 FV Manufactured Gas 1 [10]
25 8100503 Compression Nut (Ferrule), 0.5-inch Manufactured Gas Tube 1
26 9003737 Gas Tube (Right), H52 FV Manufactured Gas 1 [10]
26a 9003735 Gas Tube (Left and Right), H52 DV Manufactured Gas 1 [10]
27 8101353 Gas Line, 0.375-inch OD X 9-inch SS Flexible Flexible

Stainless Steel Gasline (Flexline), 0.375-inch OD, 9-inch
27a 8261530 Flexible Stainless Steel Gasline (Flexline), 0.375-inch OD, 9-

inch
27b 8101354 Flexible Stainless Steel Gasline (Flexline), 0.375-inch OD,

12-inch
27c 8261531 Flexible Stainless Steel Gasline (Flexline), 0.375-inch OD,

12-inch

1 [1]

1 [2]

1 [6]

1 [6]

1 [6]

1 [7]

1 [6]

1 [6]

1 [6]

1 [6]

1 [11]

1 [11]

1 [12]

1 [12]

MH52 and BIH52 Series Gas Fryers

Gas Valves, Gas Lines and Fittings

# PART # DESCRIPTION QTY Note

27d 8101355 Gas Line, 0.375-inch OD X 15-inch SS FlexibleFlexible

Stainless Steel Gasline (Flexline), 0.375-inch OD, 15-inch
27e 8261532 Flexible Stainless Steel Gasline (Flexline), 0.375-inch OD,

15-inch
28 8100494 Compression Nut (Ferrule), 0.375-inch Flexible Gas Line 1
29 8110752 Enrichment Tube, 5.5-inch 1 [14]
30 8110756 Enrichment Tube, 8.5-inch 1 [15]
30a 8100502 Enrichment Tube, 8.5-inch 1 [15]
31 8110800 Enrichment Tube, 12.5-inch 1 [16]
32a 8261387 Orifice, 0.86 mm (for Propane gas, 0-1999 feet/0-609 meters) 1 [16]
33 8111197 Tube, 18-inch Enrichment 1 [17]

PART NOTES:

[1] - G20/G25
[2] - G30/G31
[3] - G20/G25/G30/G31
[4] - 2 straight and 2 elbow flanges, screws, O-rings, LP gas spring
[5] - used with Item 3a
[6] - Brass
[7] - Brass; manufactured gas only
[8] - 4.8 cm
[9] - 5.1 cm
[10] - pre-formed
[11] - 22.9 cm
[12] - 30.5 cm
[13] - 38.1 cm
[14] - 14 cm
[15] - 21.6 cm
[16] - 31.8 cm
[17] - 45.7 cm

1 [13]

1 [13]

MH52 and BIH52 Series Gas Fryers

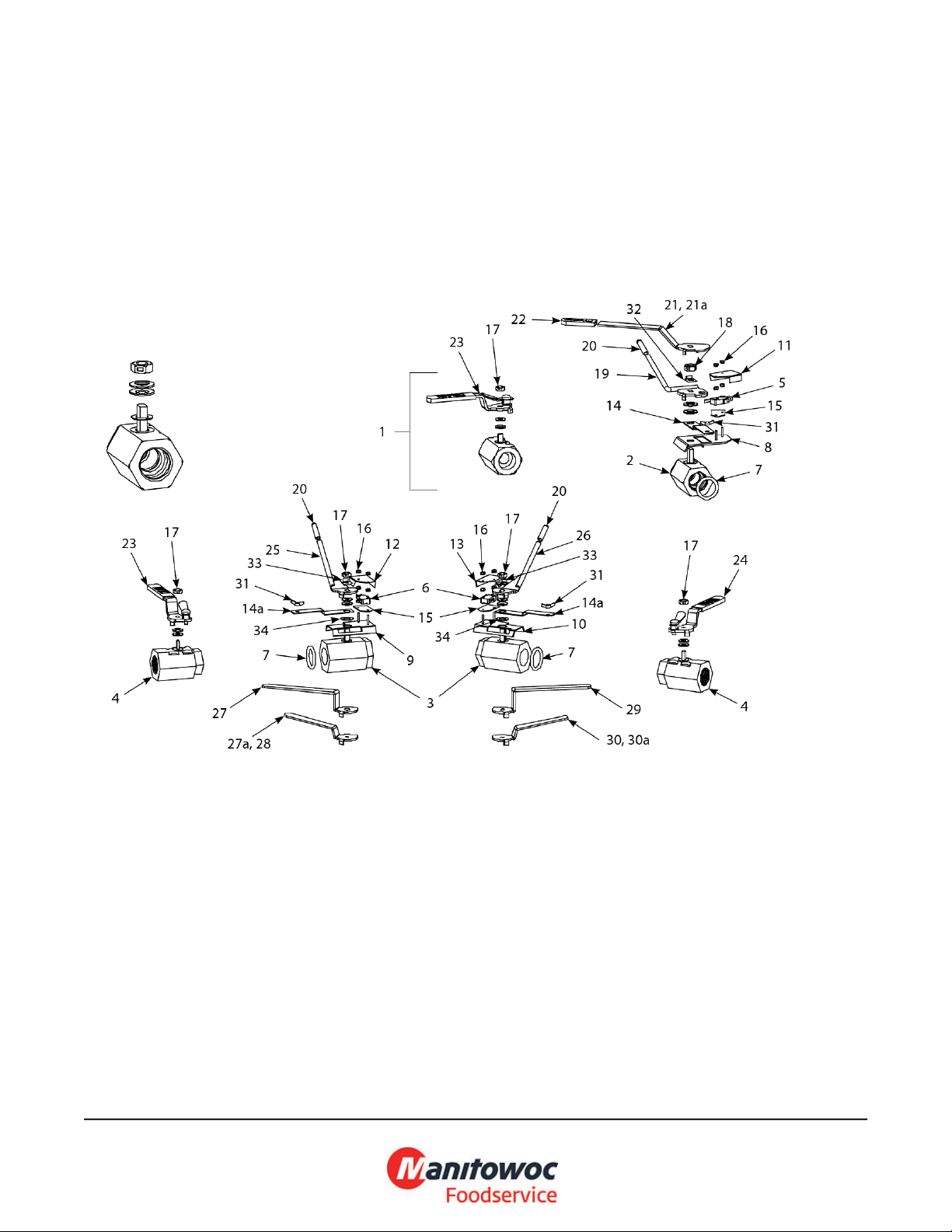

Oil Handling System Components - Drain System Components - Drain Valve Assemblies and

Associated

MH52 and BIH52 Series Gas Fryers

Oil Handling System Components - Drain System Components - Drain Valve Assemblies and Associated

# PART # DESCRIPTION QTY Note

1 8101569 Valve, 1.25-inch, Non-filter, Full-vat Drain 1 [1]
1a 8067916 Valve, 1-inch Drain w/ lock Right 1
1b 8067915 Valve, 1-inch Drain w/ lock Left 1
2 8101018 Drain Valve, 1.25”, Left 1 [2]
2a 8066373SP Valve Assembly 1.25-inch Drain 1
3 8101114 Drain Valves, Dual-vat, 1-inch Drain Valve 1 [2]
3a 8066608SP Valve, Drain Assembly Right DV 1.25-inch 1
3b 8066609SP Valve, Drain Assembly Left DV 1.25-inch 1
3c 8066400SP Valve, Drain Assembly Left DV 1-inch 1
3d 8066401SP Valve, Drain Assembly Right DV 1-inch 1
4 8101338 Valve, 1-inch, Universal Ball 1 [3]
5 8072103 MicroswitchSwitch, Drain Safety (for use on Full Vat BIH52

units)
6 8072104 Microswitch 1
7 8160135 O-ringO-Ring 1 [4]
8 8068137 Bracket Assembly, Full-Vat Drain Safety Switch 1
9 8068194 Bracket, Left Dual Vat Drain Safety Switch 1
9a 1062671 Bracket Assembly, Dual-Vat Left Drain Safety Switch 1
10 8068195 Bracket, Right Dual Vat Drain Safety Switch 1
10a 1062672 Bracket Assembly, Dual-Vat Right Drain Safety Switch 1
11 9002841 Cover, Full Vat Drain Safety Switch 1
12 9012348 Cover, Dual-Vat Left Drain Safety SwitchCover, Left Dual Vat

Drain Safety Switch
13 9022348 Cover, DV Safety SwitchCover, Right Dual Vat Drain Safety

Switch
14 9002354 Bracket, Full Vat Drain Valve 1
14a 9002355 Bracket, Dual Vat Drain Valve 1
15 8160220 Insulation, MicroswitchInsulation, Drain Safety Switch 1
16 8261366 Nut - #4-40 Keps Hex 25
17 8090539 Nut, 0.375-16 2-Way LockNut, 0.375-inch 2-Way Lock 1
18 8090540 Nut, Lock 0.5-inch-13 Hex 2-Way ZPNut, 0.5-inch 2-Way

Lock
19 9002609 Handle, FV Drain 1
19a 2108967 Handle, FV Drain SS 1
19b 8232371 Handle, Non-CE Full Vat 1
20 8100677 Grip, Handle Round 1
21 9002521 Handle, CE Full Vat BIH52 Drain Valve 1
21a 2109179 Handle, Full Vat BIH52 Drain Valve 1
22 8140047 Cap, Vinyl RedSleeve, Handle Flat 1
23 8101568 Handle, Drain Valve 1
24 8101567 Handle with Lock, Drain Valve (for Right Dual Vat MH52

Valve)
25 2013916 Valve Handle - Dual Vat - Left 1
25a 8233901 Handle, Non-CE Dual Vat BIH52 Left Drain Valve non-McD’s 1
26 2004304 Handle, Non-CE Dual Vat BIH52 Right Drain Valve 1
26a 8233902 Handle, Non-CE Dual Vat BIH52 Right Drain Valve non-

McD’s
27 9002509 Handle, CE Dual Vat BIH52 Left Drain Valve 1

1

1

1

1

1

1

MH52 and BIH52 Series Gas Fryers

Oil Handling System Components - Drain System Components - Drain Valve Assemblies and Associated

# PART # DESCRIPTION QTY Note

27a 2109922 Handle, Dual Vat BIH52 Left Drain Valve 1
28 9015713 Handle, CE Dual Vat BIH152 Left Drain Valve 1
29 9002503 Handle, CE Dual Vat BIH52 Right Drain Valve 1
30 9025713 Handle, CE Dual Vat BIH152 Right Drain Valve 1
30a 2109925 Handle, Dual Vat BIH52 Right Drain Valve 1
31 8261382 Wingnut 10
32 9002936 Retainer Nut (FV)Retainer, Drain Valve 0.5-inch Nut FV 1
33 9002934 Retainer, Dual-Vat Drain Valve NutRetainer, Drain Valve

0.375-inch Nut DV
34 8101165 Washer, Teflon Drain ValveWasher, Teflon DV 1
34a 8090196 Washer, 0.375-inch SAE FlatWasher, Felt DV 1
35 8261896 Bracket Kit for Dual Vat Drain Valves Left 1
35a 8261897 Bracket Kit for Dual Vat Drain Valves Right 1

PART NOTES:

[1] - (for use on MH52 units.)
[2] - (for use on BIH52 units)
[3] - for use on MH52 units
[4] - for use with Items 2 and 3

1

MH52 and BIH52 Series Gas Fryers

Wiring

MH52 and BIH52 Series Gas Fryers

Wiring

# PART # DESCRIPTION QTY Note

1 8068021SP Plug Assembly - 120V Upper 9-Pin 1
2 8067494SP Plug Assembly - 120V Lower 9-Pin 1
3 8066725SP Plug Assembly - CE Upper 9-Pin - 230V 1
4 8066719SP 100/120V Non-CE Export and 230V CE Lower 9-Pin Plug

Assembly
5 8101062 Cable, Filter Box Lower 9-Pin Plug to 15-Pin (C2) Connector 1
6 8072001 Cable, 15-Pin C2 Connector to Filter Terminal Block 1
7 8066728SP Pump Motor to Filter Box Wiring Assembly 1
8 8100366 Strain Relief 9-pin 1
9 WIR0287SP 120V U.S. Filter Box Internal Wiring 1
10 WIR0233SP 100-250V CE and Non-CE Export Filter Box Internal Wiring 1
11 8063941SP Harness, Full Vat Gas Valve 1
12 8063940SP Harness, Dual Vat Gas Valve 1
13 8069678SP Plug Assy, CE Gas ValvePlug Assembly, CE Gas Valve 1
14 8071978 Main Wiring Harness 250/450U.S. and Non-CE Export

MH/BIH52 Main Wiring Harness
15 8072168 CE MH/BIH52 Main Wiring Harness 1
16 8069786 3-Wire without Plug, 450V 1 [1]
17 8065332SP Electrical Cord - 3-Wire/3-Prong Plug 1 [2]
18 8066083 5-Wire with 4-Prong Twist-Lock Plug, 120V 1 [3]
18a 8071558 5-Wire, 4 pole plug 20A only 1
19 8071871 3-Wire with 3-Prong Twist-Lock Plug, 125V 1 [4]
20 8069285 3-Wire with 3-Prong Twist-Lock Plug, 250V 1 [5]
21 8071696 3-Wire with 3-Pin Sleeved Plug, 230V 1 [6]
22 8071560 Strain Relief 1
23 8066077 Plug and Wire Assembly, Transformer Box 9-Pin Female,

MH152
23a 8066597 Plug and Wire Assembly, Transformer Box 9-Pin Female,

MH152
24 8068706SP Plug and Wire Assembly, Transformer Box 9-Pin Female,

BIH252/MH252, Left Position
25 8068707SP Plug and Wire Assembly, Transformer Box 9-Pin Female,

BIH252/MH252, Right Position
26 8068719 Plug and Wire Assembly, Transformer Box 9-Pin Female,

BIH252/MH252, Right Position
27 8068720 Plug and Wire Assembly, Transformer Box 9-Pin Female,

BIH252/MH252, Left Position
28 8068708SP1 Plug and Wire Assembly, Transformer Box 9-Pin Female,

BIH352/MH352, Left Front Position
29 8068709SP2 Plug and Wire Assembly, Transformer Box 9-Pin Female,

BIH352/MH352, Left Rear Position
30 8068710SP3 Plug and Wire Assembly, Transformer Box 9-Pin Female,

BIH352/MH352, Right Position
31 8068718 4 Plug and Wire Assembly, Transformer Box 9-Pin Female,

BIH352/MH352, Right Position
32 8068721 5 Plug and Wire Assembly, Transformer Box 9-Pin Female,

BIH352/MH352, Left Front Position
33 8068722 6 Plug and Wire Assembly, Transformer Box 9-Pin Female,

BIH352/MH352, Left Rear Position
34 8068723SP Plug and Wire Assembly, Transformer Box 9-Pin Female,

BIH452/MH452, Right Front Position

1

1

1 [3]

1 [6]

1 [3]

1 [3]

1 [6]

1 [6]

1 [3]

1 [3]

1 [3]

1 [6]

1 [6]

1 [6]

1 [6]

MH52 and BIH52 Series Gas Fryers

Wiring

# PART # DESCRIPTION QTY Note

35 8070156 9-Pin Female9-pin connector 1
36 WIR0288 9-pin connector, 100-240V BIH152 1 [2]
37 WIR0109 9-pin connector, 100-240V MH152 1 [3]
38 WIR0100SP 7 9-pin connector, 100-240V BIH252/MH252 1 [3]
39 WIR0101SP 8 9-pin connector, 100-240V BIH352/MH352 1 [3]
40 WIR0102SP 9-pin connector, 100-240V BIH452/MH452 1 [3]
41 WIR0144 9-pin connector, 230V MH152 1 [6]
42 WIR0141 9 9-pin connector, 230V BIH252/MH252 1 [6]
43 WIR0142 10 9-pin connector, 230V BIH352/MH352 1 [6]
44 WIR0143 9-pin connector, 230V BIH452/MH452 1 [6]

PART NOTES:

[1] - Non-CE Export
[2] - U.S., CE, and Non-CE Export
[3] - U.S. and Non-CE Export
[4] - Mexico and South America
[5] - Far East and Pacific Rim
[6] - CE
