Frontier FM1012, FM1015, FM1017 Operator's Manual

OPERATOR’S MANUAL
FM1012
FM1015
FM1017
REAR DISCHARGE
GROOMING MOWERS
5WPMAN0183 (Rev. 7/9/2008)
TO THE DEALER:
Assembly and proper installation of this product is the responsibility of the Frontier dealer. Read manual instructions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in the Operator’s Manual are completed before releasing equipment to the owner.
The dealer must complete the Product Registration form, located on the Frontier website. Failure to complete and
return the form does not diminish customer’s warranty rights.
TO THE OWNER:
Read this manual before operating your Frontier equipment. The information presented will prepare you to do a better and safer job. Keep this manual handy for ready reference. Require all operators to read this manual carefully and become acquainted with all the adjustment and operating procedures before attempting to operate. Replacement manuals can be obtained from your selling dealer.
The equipment you have purchased has been carefully engineered and manufactured to provide dependable and satisfactory use. Like all mechanical products, it will require cleaning and upkeep. Lubricate the unit as specified. Observe all safety information in this manual and safety decals on the equipment.
For service, your authorized Frontier dealer has trained mechanics, genuine Frontier service parts, and the necessary tools and equipment to handle all your needs.
Use only genuine Frontier service parts. Substitute parts will void the warranty and may not meet standards required for safe and satisfactory operation. Record the model number and serial number of your equipment in the spaces provided:
Model: ______________________________ Date of Purchase: _____________________
Serial Number: (see Safety Decal section for location) ____________________________________
Provide this information to your dealer to obtain correct repair parts.
Throughout this manual, the term NOTICE is used to indicate that failure to observe can cause damage to equipment. The terms CAUTION, WARNING and DANGER are used in conjunction with the Safety-Alert Symbol, (a triangle with an exclamation mark), to indicate the degree of hazard for items of personal safety.
2 Introduction
Frontier (Rev. 7/20/2007)
Si no lee Ingles, pida ayuda a
alguien que si lo lea para que le
traduzca las medidas de seguridad.
LEA EL INSTRUCTIVO!
!
TABLE OF CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 7
SAFETY DECALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 12
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
OWNER SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
TROUBLE SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
DEALER SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
DEALER CHECK LISTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
PARTS LISTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
BOLT TORQUE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
BOLT SIZE CHART & ABBREVIATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . 61
INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
PRODUCT WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
REPLACEMENT PARTS WARRANTY . . . . . . . . . . . . INSIDE BACK COVER
5WPMAN0183 (Rev. 7/9/2008)
Introduction 3
SPECIFICATIONS
WARNING
MODEL FM1012 FM1015 FM1017
Cutting Width 12' (3.66 m) 15' (4.57 m) 17' (5.18 m)
Cutting Height Range 1.0" - 5.0" 1.0" - 5.0" 1.0" - 5.0"
(25 - 127 mm) (25 - 127 mm) (25 - 127 mm)
Shipping Weight (Approximately) 2,900 lbs. 3,200 lbs. 3,340 lbs.
(1315 kg) (1452 kg) (1515 kg)
Blade Speed (feet per minute) 16,950 16,950 16,950
Blade Spindles 7 9 9
Number of Blades 7 9 9
Universal Drive Series (Input: ASAE Cat 4; Wing: ASAE Cat 3)
Transport Wheels 20.5" x 8.0" - 10 20.5" x 8.0" - 10 20.5" x 8.0" - 10
Caster Wheels 15" x 6.00" - 6 15" x 6.00" - 6 15" x 6.00" - 6
Tractor PTO Speed 540 rpm 540 rpm 540 rpm
Recommended Minimum Tractor Horsepower 30 hp 35 hp 40 hp
GENERAL INFORMATION
Some illustrations in this manual show the equipment with safety shields removed to provide a better view. This equipment should never be operated with any necessary safety shielding removed.
The purpose of this manual is to assist you in operating and maintaining your Flex Wing Mower. Read it care­fully. It furnishes information and instructions that will help you achieve years of dependable performance.
These instructions have been compiled from extensive field experience and engineering data. Some informa­tion may be general in nature, due to unknown and varying operating conditions. However, through experi­ence and these instructions, you should be able to develop procedures suitable to your particular situa­tion.
Throughout this manual, references are made to right and left direction. These are determined by standing behind the tractor facing the direction of forward travel. Blade rotation is counter-clockwise as viewed from the top of the mower.
4 Introduction
5WPMAN0183 (Rev. 7/9/2008)
TRAINING
Safety is a primary concern in the design and manufacture of our products. Unfortunately, our efforts to provide safe equipment can be wiped out by an operator’s single careless act.
In addition to the design and configuration of equipment, hazard control and accident preven­tion are dependent upon the awareness, concern, judgement, and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
It has been said “The best safety device is an informed, careful operator.” We ask you to be that kind of operator.
SAFETY RULES
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Safety instructions are important! Read all attachment and power unit manuals; follow all safety rules and safety decal information. (Replace­ment manuals and safety decals are available from your dealer.) Failure to follow instructions or safety rules can result in serious injury or death.
If you do not understand any part of this manual and need assistance, see your dealer.
Know your controls and how to stop engine and attachment quickly in an emergency.
Operators must be instructed in and be capable of the safe operation of the equipment, its attach­ments, and all controls. Do not allow anyone to operate this equipment without proper instruc­tions.
Keep hands and body away from pressurized lines. Use paper or cardboard, not hands or other body parts to check for leaks. Wear safety goggles. Hydraulic fluid under pressure can easily penetrate skin and will cause serious injury or death.
Make sure that all operating and service person-
nel know that if hydraulic fluid penetrates skin, it must be surgically removed as soon as possible by a doctor familiar with this form of injury or gan­grene, serious injury, or death will result. CON­TACT A PHYSICIAN IMMEDIATELY IF FLUID ENTERS SKIN OR EYES. DO NOT DELAY.
Never allow children or untrained persons to operate equipment.
Frontier FM (Rev. 1/31/2007)
PREPARATION
Check that all hardware is properly installed. Always tighten to torque chart specifications unless instructed otherwise in this manual.
Air in hydraulic systems can cause erratic oper­ation and allows loads or equipment components to drop unexpectedly. When connecting equipment or hoses or performing any hydraulic maintenance, purge any air in hydraulic system by operating all hydraulic functions several times. Do this before putting into service or allowing anyone to approach the equipment.
Make sure all hydraulic hoses, fittings, and valves are in good condition and not leaking before starting power unit or using equipment. Check and route hoses carefully to prevent damage. Hoses must not be twisted, bent sharply, kinked, frayed, pinched, or come into contact with any moving parts. Operate moveable components through full operational range to check clearances. Replace any damaged hoses immediately.
Always wear relatively tight and belted clothing to avoid entanglement in moving parts. Wear sturdy, rough-soled work shoes and protective equipment for eyes, hair, hands, hearing, and head; and respirator or filter mask where appropriate.
When attaching a pull-type unit to the tractor drawbar, always use a high-strength drawbar pin. The drawbar pin must have a device that will lock it into position. Secure safety chain to attachment and tractor.
Make sure attachment is properly secured, adjusted, and in good operating condition.
Make sure spring-activated locking pin or collar slides freely and is seated firmly in tractor PTO spline groove.
Make sure driveline guard tether chains are attached to the tractor and equipment as shown in the pamphlet that accompanies the driveline. Replace if damaged or broken. Check that driveline guards rotate freely on driveline before putting equipment into service.
Before starting the power unit, check all equip­ment driveline guards for damage. Replace any damaged guards. Make sure all guards rotate freely on all drivelines. If guards do not rotate freely on drivelines, repair and replace bearings before put­ting equipment into service.
(Safety Rules continued on next page)
Safety 5
(Safety Rules continued from previous page)
SAFETY RULES
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Power unit must be equipped with ROPS or ROPS cab and seat belt. Keep seat belt securely fastened. Falling off power unit can result in death from being run over or crushed. Keep foldable ROPS systems in “locked up” position at all times.
Inspect chain shielding before each use. Replace if damaged.
Remove accumulated debris from this equip­ment, power unit, and engine to avoid fire hazard.
Make sure all safety decals are installed. Replace if damaged. (See Safety Decals section for location.)
Make sure shields and guards are properly installed and in good condition. Replace if dam­aged.
A minimum 20% of tractor and equipment weight must be on the tractor front wheels when attachments are in transport position. Without this weight, tractor could tip over, causing personal injury or death. The weight may be attained with front wheel weights, ballast in tires or front tractor weights. Weigh the tractor and equipment. Do not estimate.
Inspect and clear area of stones, branches, or other hard objects that might be thrown, causing injury or damage.
Never attach the mower release rope to the operator, the operator's clothing, or the tractor seat.
Make test turns, both left and right. Check that both the hydraulic hose and the mower transport lock release rope do not become taut or caught on any parts of the tractor or mower.
Never tow this implement with a motor vehicle.
OPERATION
Only engage power when equipment is at ground operating level. Always disengage power when equipment is raised off the ground.
Do not allow bystanders in the area when oper­ating, attaching, removing, assembling, or servic­ing equipment.
Never walk, stand, or place yourself or others under a raised wing or in the path of a lowering wing. Hydraulic system leak-down, hydraulic sys­tem failures, mechanical failures, or movement of control levers can cause wings to drop unexpect­edly and cause severe injury or death.
Full chain shielding must be installed when operating in populated areas or other areas where thrown objects could injure people or damage property.
• If this machine is not equipped with full chain shielding, operation must be stopped when any­one comes within 300 feet (92 m).
• This shielding is designed to reduce the risk of thrown objects. The mower deck and protec­tive devices cannot prevent all objects from escaping the blade enclosure in every mowing condition. and escape, traveling as much as 300 feet (92 m).
Never direct discharge toward people, animals, or property.
Do not operate or transport equipment while under the influence of alcohol or drugs.
It is possible for objects to ricochet
TRANSPORTATION
The maximum transport speed for towed and semi-mounted machines is 20 mph (32 km/h). Regardless of the maximum speed capability of the towing tractor, do not exceed the implement’s max­imum transport speed. Doing so could result in:
• Loss of control of the implement and tractor
• Reduced or no ability to stop during braking
• Implement tire failure
• Damage to the implement or its components.
Use additional caution and reduce speed when under adverse surface conditions, turning, or on inclines.
Do not operate PTO during transport.
6 Safety
Operate only in daylight or good artificial light.
Keep hands, feet, hair, and clothing away from
equipment while engine is running. Stay clear of all moving parts.
Always comply with all state and local lighting and marking requirements.
Never allow riders on power unit or attachment.
Power unit must be equipped with ROPS or
ROPS cab and seat belt. Keep seat belt securely fastened. Falling off power unit can result in death from being run over or crushed. Keep foldable ROPS systems in “locked up” position at all times.
(Safety Rules continued on next page)
Frontier FM (Rev. 1/31/2007)
(Safety Rules continued from previous page)
SAFETY RULES
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Always sit in power unit seat when operating controls or starting engine. Securely fasten seat belt, place transmission in neutral, engage brake, and ensure all other controls are disengaged before starting power unit engine.
Operate tractor PTO at 540 RPM. Do not exceed.
Do not modify or alter or permit anyone else to
modify or alter the equipment or any of its compo­nents in any way.
Your dealer can supply original equipment hydraulic accessories and repair parts. Substitute parts may not meet original equipment specifica­tions and may be dangerous.
Do not operate mowers on terrain that raises mowers beyond 25 degrees. Exceeding this design limit will result in U-joint “knocking noise” and potential driveline failure and could cause driveline to pull apart.
Before raising or lowering wings, front hitch/lift and rear wheel/lift cylinders must be fully extended and all four cylinder locks installed. This prevents rotor and bearing support damage that can result from ground contact.
Look down and to the rear and make sure area is clear before operating in reverse.
Do not operate or transport on steep slopes.
Do not stop, start, or change directions sud-
denly on slopes.
Use extreme care and reduce ground speed on slopes and rough terrain.
Watch for hidden hazards on the terrain during operation.
Stop power unit and implement immediately upon striking an obstruction. Dismount power unit, using proper procedure. Inspect and repair any damage before resuming operation.
Always connect safety chain from equipment to towing vehicle when transporting.
MAINTENANCE
Before dismounting power unit or performing any service or maintenance, follow these steps: disengage power to equipment, lower the 3-point hitch and all raised components to the ground, operate valve levers to release any hydraulic pres­sure, set parking brake, stop engine, remove key, and unfasten seat belt.
Before working underneath, carefully read Oper­ator’s Manual instructions, disconnect driveline, raise mower, securely block up all corners with jackstands, and check stability. Secure blocking prevents equipment from dropping due to hydrau­lic leak down, hydraulic system failures, or mechanical component failures.
To prevent contamination, clean and then cover hose ends, fittings, and motor ports with tape.
Always wear relatively tight and belted clothing to avoid entanglement in moving parts. Wear sturdy, rough-soled work shoes and protective equipment for eyes, hair, hands, hearing, and head; and respirator or filter mask where appropriate.
Do not allow bystanders in the area when oper­ating, attaching, removing, assembling, or servic­ing equipment.
Make sure attachment is properly secured, adjusted, and in good operating condition.
Keep all persons away from operator control area while performing adjustments, service, or maintenance.
Frequently check blades. They should be sharp, free of nicks and cracks, and securely fastened.
Do not handle blades with bare hands. Careless or improper handling may result in serious injury.
Your dealer can supply genuine replacement blades. Substitute blades may not meet original equipment specifications and may be dangerous.
Tighten all bolts, nuts and screws to torque chart specifications. Check that all cotter pins are installed securely to ensure equipment is in a safe condition before putting unit into service.
Make sure all safety decals are installed. Replace if damaged. (See Safety Decals section for location.)
Make sure shields and guards are properly installed and in good condition. Replace if dam­aged.
Do not disconnect hydraulic lines until engine is stopped, power unit is properly secured, equip­ment and all components are lowered to the ground, and system pressure is released by oper­ating all valve control levers.
(Safety Rules continued on next page)
Frontier FM (Rev. 1/31/2007)
Safety 7
(Safety Rules continued from previous page)
SAFETY RULES
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
When lubricating telescoping PTO drives, keep fingers out of shield access slots to prevent injury.
Wear gloves when installing belt. Be careful to prevent fingers from being caught between belt and pulley.
extended and, if released suddenly, can cause per­sonal injury.
STORAGE
Block equipment securely for storage.
Use care when installing or removing belt from
spring-loaded idler. Springs store energy when
Keep children and bystanders away from stor­age area.
8 Safety
Frontier FM (Rev. 1/31/2007)
FM1012 & FM1015 REAR DECK
(FM1017 SIMILAR)
PRODUCT IDENTIFICATION NUMBER
LENEXA, KS, U.S.A.LE NEX A, K S, U .S. A.
5 - Serial Number Plate
SHIELD MISSING
DO NOT OPERATE
PUT SHIELD ON
DANGER
18867--B
1 - 5WP18867
GUARD MISSING.
DO NOT OPERATE.
DANGER
33347E
DANGER
DANGER
GUARD MISSING.
DO NOT OPERATE.
4 - 5WP33347
CRUSHING AND
PINCHING HAZARD
Be extremely careful
handling various parts of the machine. They are heavy and hands, fingers, feet, and other body parts could be crushed or pinched between tractor and implement.
Operate tractor controls from
tractor seat only.
Do not stand between tractor
and implement when tractor is in gear.
Make sure parking brake is
engaged before going between tractor and implement.
Stand clear of machine while
in operation or when it is being raised or lowered.
FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD
RESULT IN SERIOUS INJURY
OR DEATH.
WARNING
1002941-A
18 - 5WP1002941
ROTATING BLADES AND
THROWN OBJECTS
Do not put hands or feet under or into mower when
engine is running.
Before mowing, clear area of objects that may be
thrown by blade.
Keep bystanders away.
Keep guards in place and in good condition.
BLADE CONTACT OR THROWN OBJECTS CAN
CAUSE SERIOUS INJURY OR DEATH.
DANGER
15503-C
2 - 5WP15503
(Safety Decals continued on next page)
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
SAFETY & INSTRUCTIONAL DECALS
Replace Immediately If Damaged!
5WPMAN0183 (Rev. 7/9/2008)
Safety 9
SAFETY & INSTRUCTIONAL DECALS
IMPORTANT
OPERATING MOWERS AT RAISED ANGLES EXCEEDING 25
•
WILL CREATE U-JOINT KNOCKING NOISE AND DAMAGE DRIVELINE. FAILURES RESULTING FROM THIS OPERATION WILL NOT BE COVERED BY WARRANTY.
38446
16 - 5WP38446
FM1015 & FM1017 WING
(RIGHT WING SHOWN; FM1012 SIMILAR)
3 - 5WP18864
FALLING OFF CAN RESULT IN BEING RUN OVER.
Tractor must be equipped with ROPS (or ROPS CAB) and seat belt. Keep foldable ROPS systems in “locked up” position at all times.
Buckle Up! Keep seat belt securely fastened.
Allow no riders.
RAISED EQUIPMENT CAN DROP AND CRUSH.
Before working underneath, follow all instructions and safety rules in operator’s manual and securely block up all corners of equipment with jack stands.
Securely blocking prevents equipment dropping from hydraulic leak­down, hydraulic system failures or mechanical component failures.
FALLING OFF OR FAILING TO BLOCK SECURELY CAN RESULT IN SERIOUS INJURY OR DEATH.
WARNING
18865--C
9 - 5WP18865
(Safety Decals continued from previous page)
(Safety Decals continued on next page)
DANGER
ROTATING DRIVELINE
CONTACT CAN CAUSE DEATH
KEEP AWAY!
DO NOT OPERATE WITHOUT -
All driveline guards, tractor and
equipment shields in place
Drivelines securely attached at both ends
Driveline guards that turn freely on
driveline
18864-C
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Replace Immediately If Damaged!
10 Safety
5WPMAN0183 (Rev. 7/9/2008)
SAFETY & INSTRUCTIONAL DECALS
WARNING
PIN INSERTED TO LOCK TRANSPORT LATCH
PIN STORAGE POSITION
RAISED MOWER CAN DROP AND CRUSH
n
Before working underneath rear mower:
n
Raise rear mower to transport position.
n
Insert pin to lock transport latch.
n
Securely block up rear of mower. See manual.
n
Blocking up prevents mower dropping from transport latch release or failure, hydraulic leak down, or hydraulic system failures.
FAILURE TO FOLLOW INSTRUCTIONS CAN
RESULT IN SERIOUS INJURY OR DEATH.
44650
WARNING
RAISED MOWERS CAN
DROP AND CRUSH
n
Keep away. Do not go underneath.
n
When raised, insert pins to lock transport latches.
n
Lower after transport.
FAILURE TO FOLLOW INSTRUCTIONS CAN
RESULT IN SERIOUS INJURY OR DEATH.
SIDE MOWER TRANSPORT LATCHES
44651
PIN STORAGE POSITION
PIN INSERTED TO LOCK TRANSPORT LATCH
WARNING
RAISED MOWERS EXPOSE
BLADES AND INCREASE
THROWN OBJECT HAZARDS
n
Only raise for transport.
n
Stop mowers before raising.
FAILURE TO FOLLOW INSTRUCTIONS CAN RESULT IN SERIOUS INJURY OR DEATH.
44656
17 - 5WP44656
11 - 5WP44651
7 - 5WP44650
6 - 5WP38421
RAISED MOWER CAN
DROP AND CRUSH
1
Before working underneath side mowers, lower side mowers and securely block up. See manual.
1
Blocking up prevents mower dropping from transport latch release or failure, hydraulic leak down or hydraulic system failure.
FAILURE TO FOLLOW INSTRUCTIONS CAN
RESULT IN SERIOUS INJURY OR DEATH.
WARNING
38421-A
DO NOT EXCEED PTO SPEED OF
540 RPM
PTO speeds higher than 540 RPM can cause
equipment failure and personal injury.
WARNING
18866-D
8 - 5WP18866
(Safety Decals continued on next page)
(Safety Decals continued from previous page)
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Replace Immediately If Damaged!
5WPMAN0183 (Rev. 7/9/2008)
Safety 11
15
13
13
14
11
17
10
9
18
5
8
3
4
12
3
4
12
13
3
4
CD5593A
FM1012, FM1015 & FM1017 TRAILER
13 - 5WP20105 Amber
Front Reflector
14 - 5WP57123 Red
Rear Reflector
HIGH-PRESSURE HYDRAULIC OIL LEAKS CAN PENETRATE SKIN
RESULTING IN SERIOUS INJURY, GANGRENE OR DEATH.
n
Check for leaks with cardboard; never use hand.
n
Before loosening fittings: lower load, release pressure, and be sure oil is cool.
n
Consult physician immediately if skin penetration occurs.
WARNING
19924-B
15 - 5WP19924
10 - 5WP1002423
12 - 5WP18869
BE CAREFUL!
Use a clean, damp cloth to clean safety decals.
Avoid spraying too close to decals when using a pressure washer; high-pressure water can enter through very small scratches or under edges of decals causing them to peel or come off.
Replacement safety decals can be ordered free from your dealer.
WARNING
TO AVOID SERIOUS INJURY OR DEATH:
Read Operator's Manual before operating,
servicing or repairing equipment. Follow all safety rules and instructions. (Manuals are available from your selling dealer.)
Never allow riders. Keep bystanders away from equipment during
operation.
Operate from tractor seat only. Keep all shields in place and in good condition. Lower equipment to ground, stop engine,
remove key and set brake before dismounting tractor.
Never allow children or untrained persons to
operate equipment.
Do not transport towed or semi-mounted units
over 20 MPH.
FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH.
1002423-B
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
SAFETY & INSTRUCTIONAL DECALS
Replace Immediately If Damaged!
12 Safety
SHIELD MISSING
DO NOT OPERATE - PUT SHIELD ON
5WPMAN0183 (Rev. 7/9/2008)
DANGER
18869-B
OPERATION
DANGER
WARNING
CAUTION
WARNING
(229 mm)
The operator is responsible for the safe operation of the cutter. The operator must be properly trained. Operators should be familiar with the cutter, the tractor, and all safety practices before starting operation. Read the safety rules and safety decals on pages 5 to 12.
This mower is designed for lawn and grass mowing. It is not designed for rough conditions or heavy weed mowing. It is equipped with suction type blades for best results in lawn mowing.
Recommended mowing speed for most conditions is from 2 to 5 mph (3 - 8 km/h).
Full chain shielding must be installed when operating in populated areas or other areas where thrown objects could injure people or damage property.
• If this machine is not equipped with full chain shielding, operation must be stopped when any­one comes within 300 feet (92 m).
• This shielding is designed to reduce the risk of thrown objects. The mower deck and protec­tive devices cannot prevent all objects from escaping the blade enclosure in every mowing condition. and escape, traveling as much as 300 feet (92 m).
Never allow children or untrained persons to operate equipment.
Keep bystanders away from equipment.
Make sure spring-activated locking pin or collar
slides freely and is seated firmly in tractor PTO spline groove.
It is possible for objects to ricochet
ATTACHING MOWER TO TRACTOR
Make sure spring-activated locking pin or collar slides freely and is seated firmly in tractor PTO spline groove.
Make sure shields and guards are properly installed and in good condition. Replace if dam­aged.
Never attach the mower release rope to the operator, the operator's clothing, or the tractor seat.
1. Park the mower and tractor on a level, hard-sur-
faced area.
2. Adjust tractor hitch bracket on trailer frame so the trailer is level when attached to the tractor. Pin the mower to the tractor.
NOTE: When attaching mower to tractor drawbar, make sure the correct drawbar pin is used. A Category 1 drawbar is 1" (25.4 mm); Category 2 is 1.25" (31.75 mm). Failure to use the correct pin size will result in premature wear of hitch and drawbar hole. If the hitch on the mower doesn't match your tractor drawbar, con­tact your dealer to order the correct size hitch for your tractor. If not removing mower from tractor on a regular basis, a bolt, locknut, and washers assembled tightly will reduce wear on drawbar and hitch.
A 1-3/8" 6B spline PTO shaft is used for connecting the mower to the tractor. This mower is designed for 540 rpm PTO only.
The PTO drive shaft is intended for use with tractors that have 14 inches (356 mm) between the end of the PTO shaft and the tractor's drawbar hitch pin hole.
3. Attach the safety chain to the tractor as shown in Figure 1.
Operate tractor PTO at 540 RPM. Do not exceed.
Stop power unit and implement immediately
upon striking an obstruction. Dismount power unit, using proper procedure. Inspect and repair any damage before resuming operation.
Always wear relatively tight and belted clothing to avoid entanglement in moving parts. Wear sturdy, rough-soled work shoes and protective equipment for eyes, hair, hands, hearing, and head; and respirator or filter mask where appropriate.
5WPMAN0183 (Rev. 4/25/2008)
Figure 1. Tow Chain Installation
Operation 13
4. Attach the mower drive shaft to tractor PTO. Make
WARNING
sure the lock collar engages securely.
5. Attach the end of the mower transport's lock release rope to a location on the tractor within easy reach of the operator.
NOTE: When routing the rope, do not route through the hydraulic hose guide and do not allow rope slack to drop between the driveline shields and the gearbox rotating shafts.
CV DRIVELINE TURNING LIMITS
NOTICE
Do not exceed turning angle of 80 degrees at the head of the Constant Velocity (CV) driveline or damage will occur.
Check for excessive turn angle:
1. Disconnect the driveline from the tractor.
2. Start engine and turn as far right or left as possible.
3. Shut off the engine and connect the CV driveline to
the tractor. If it cannot be connected, the turn angle is too severe.
4. Restart the tractor and straighten the angle slightly.
5. Shut off the engine and connect the CV driveline to
tractor.
6. Repeat the process until the driveline can be con­nected. The point at which the driveline can be connected is the maximum turn that can be made.
LEVELING MOWER
NOTE: To ensure satisfactory mower performance, the
trailer frame and decks must be leveled before operat­ing the mower. During normal operation the mower should be leveled twice each season. The mower must be leveled each time a tractor with a different drawbar height is used.
Follow this procedure to level the flex mower for opera­tion:
1. Park the tractor and mower on a flat level surface with the decks in mowing position.
2. Inflate all tires to the recommended pressure: 70 psi (483 kPa) for trailer tires and 30 psi (207 kPa) for deck gauge tires.
3. Level the trailer frame by adjusting the hitch. (See Figure 2.)
4. Remove the hitch clevis from the trailer frame and pin to the tractor drawbar.
5. Use the parking jack to adjust the trailer frame to the level position. Align the nearest hitch adjust­ment hole in the hitch clevis with a hole in the trailer frame.
6. Tighten the hardware to specifications in the Bolt Torque Chart on page 57. Frame level must be readjusted each time the drawbar height changes.
7. Attach the mower and the driveline to the tractor. Level the driveline by placing a bolt through the carrier bearing and the driveline height adjustment holes.
Figure 2. Level Trailer Frame
CUTTING HEIGHT ADJUSTMENT
Keep all persons away from operator control area while performing adjustments, service, or maintenance.
Before working underneath, carefully read Oper­ator’s Manual instructions, disconnect driveline, raise mower, securely block up all corners with jackstands, and check stability. Secure blocking prevents equipment from dropping due to hydrau­lic leak down, hydraulic system failures, or mechanical component failures.
NOTICE
Avoid low cutting heights. Striking the ground with blades produces one of the most damaging shock loads a mower can encounter. Allowing blades to contact ground repeatedly will cause damage to mower and drive.
1. Level mower from side to side. Check by measur-
ing from mower frame to the ground at each deck rail.
2. Verify that the same amount of spacers are under all caster arms.
3. Loosen cap screws that attach caster arm assem­bly to deck.
4. Set mower on the ground.
14 Operation
5WPMAN0183 (Rev. 4/25/2008)
5. Retighten cap screws. This equalizes the clear-
Table 1: Cutting Height Chart
Spacers Required Under
Caster Arm Pivot Tube
Cut Height 1/2"
Spacer
3/4"
Spacer
1"
Spacer
1" (25 mm)
1-1/2" (38 mm)
1
2" (51 mm)
1
2-1/2" (64 mm)
11
3" (76 mm)
2
3-1/2" (89 mm)
12
4" (102 mm)
121
4-1/2" (114 mm)
22
5" (127 mm)
122
ance in the bolt holes.
6. Best mowing results will be obtained with front of mower level with, or slightly lower than, the rear.
7. Cutting height is controlled with front and rear caster wheel adjustment.
8. To raise rear of mower, move caster adjustment spacers under caster arms.
9. To raise front of mower, move spacers under front caster wheel arms.
TRANSPORTING
When transporting the mower short distances, raise the wings and the rear deck until all three transport locks engage automatically.
Install locking pins to secure the mower wings for trans­port as shown in Figure 4 and Figure 5.
To lower the wings and the rear deck:
1. Remove the locking pins and store in holes pro­vided.
2. Slightly raise the wings and rear deck to take pres­sure off the locking mechanisms.
3. Pull the transport lock release rope to disengage the locks. Lower the wings and rear deck and release the rope.
Remember, measurement at location A, Figure 3, should not be less than location B and should not be
Figure 3. Cutting Height Adjustment
over 1/2" (13 mm) greater than location B.
5WPMAN0183 (Rev. 4/25/2008)
Figure 4. Lock Pin Installed (Right Wing)
Figure 5. Lock Pin Installed (Rear Deck)
Operation 15
STARTING AND STOPPING MOWER
WARNING
CAUTION
WARNING
CAUTION
WARNING
Do not operate PTO during transport.
Never direct discharge toward people, animals,
or property.
Keep hands, feet, hair, and clothing away from equipment while engine is running. Stay clear of all moving parts.
Stop power unit and implement immediately upon striking an obstruction. Dismount power unit, using proper procedure. Inspect and repair any damage before resuming operation.
Always sit in power unit seat when operating controls or starting engine. Securely fasten seat belt, place transmission in neutral, engage brake, and ensure all other controls are disengaged before starting power unit engine.
Power for operating the mower is supplied from the tractor PTO. Refer to your tractor manual for instruc­tions on engaging and disengaging the PTO.
Operate PTO at 540 rpm. Know how to stop tractor and mower quickly in case of an emergency.
If the mower becomes plugged causing the belt to slip for over two seconds, follow these steps:
1. Raise mower just enough to clear accumulated material.
2. Continue running at least two minutes, allowing pulleys to cool.
NOTICE
Stopping the mower with belt in contact with a very hot pulley will bake and ruin belt.
To reduce the risk of thrown objects, do not raise the mower higher than necessary.
Mower vibration tends to loosen bolts. All hardware should be checked regularly to maintain proper torque. Each time the mower is used, check all hardware to be sure it is secure.
The condition of the terrain will determine cutting results. For best results, mower blades should be kept sharp at all times and the platform as level as possible. When mower blades show excessive wear, they should be replaced.
Operating Technique
Stop power unit and implement immediately upon striking an obstruction. Dismount power unit, using proper procedure. Inspect and repair any damage before resuming operation.
Proper ground speed will depend upon the terrain, the height, type, and density of material to be cut.
Normally, ground speed will range from two to five mph. Tall dense material should be cut at a low speed; thin medium-height material can be cut at a faster ground speed.
Always operate tractor PTO at 540 rpm to maintain proper blade speed and produce a clean cut.
Under certain conditions, tractor tires may roll some grass down and prevent it from being cut at the same height as the surrounding area. When this occurs, reduce your ground speed, but maintain PTO at 540 rpm. The lower ground speed will permit grass to par­tially rebound.
In general, lower cutting heights give a more even cut with less tendency to leave tire tracks. However, it is better to cut grass frequently rather than too short. Short grass deteriorates rapidly in hot weather and invites weed growth during growing seasons. Follow local recommendations for the suitable cutting height in your area.
OPERATING
Do not operate mowers on terrain that raises mowers beyond 25 degrees. Exceeding this design limit will result in U-joint “knocking noise” and potential driveline failure and could cause driveline to pull apart.
When engaging the PTO, engine rpm should always be low. Once engaged and ready for mowing, increase PTO speed to 540 rpm and maintain speed throughout the cutting operation.
16 Operation
Operating Tips
Inspect and clear area of stones, branches, or other hard objects that might be thrown, causing injury or damage.
Extremely tall material should be cut twice. Set mower at a higher cutting height for the first pass. Then cut at desired height 90 degrees to the first pass.
Remember, sharp blades produce cleaner cuts and require less power.
5WPMAN0183 (Rev. 4/25/2008)
Analyze area to be cut to determine the best proce-
WARNING
dure. Consider height and type of grass and terrain type: hilly, level, or rough.
Plan your mowing pattern to travel straight forward whenever possible. Mow with uncut grass to the right. This will distribute the clippings over the cut area.
Uneven Terrain
OWNER PRE-OPERATION CHECK LIST
(OWNER'S RESPONSIBILITY)
___ Review and follow all safety rules and safety
decal instructions on pages 5 through 12.
___ Check that all safety decals are installed and in
good condition. Replace if damaged.
___ Check that all shields and guards are properly
installed and in good condition. Replace if dam­aged.
Do not operate or transport on steep slopes.
Do not stop, start, or change directions sud-
denly on slopes.
Use extreme care and reduce ground speed on slopes and rough terrain.
Watch for hidden hazards on the terrain during operation.
In extremely uneven terrain, rear wheel weights, front tractor weights and/or front tire ballast should be used to improve stability.
Pass diagonally through sharp dips and avoid sharp drops to prevent hanging up the tractor and the mower. Practice will improve your skills in maneuvering rough terrain.
Avoid sudden starts and stops when traveling up or down hill.
Always mow down slopes, never up or across the face. Avoid operating on steep slopes.
Slow down on sharp turns and slopes to prevent tip­ping and losing control.
REMOVING MOWER FROM TRACTOR
___ Check that chain shielding is in good condition
and replace any damaged chain links.
___ Check that all hardware and cotter pins are prop-
erly installed and secured.
___ Check to ensure blades are sharp, in good condi-
tion, and installed correctly. Replace if damaged.
___ Check that equipment is properly and securely
attached to tractor.
___ Make sure driveline spring-activated locking pin
or collar slides freely and is seated firmly in trac­tor PTO spline groove.
___ Make sure the driveline guards and tether chains
are in good condition. Guards must rotate freely on driveline. Fasten tether chains, as instructed, to the tractor and the equipment.
___ Inspect area and remove stones, branches or
other hard objects that might be thrown, causing injury or damage.
___ Do not allow riders.
___ Check all lubrication points and grease as
instructed in Lubrication Information, page 20. Make sure the PTO slip joint is lubricated and that the gearbox fluid levels are correct.
1. Park the unit on a level, hard surface with the wings and rear deck fully lowered to the ground.
2. Block the wheels to keep the mower from rolling when unhitched from tractor.
3. Attach the jack to the side of the tongue and adjust the height to take the weight off the tractor hitch.
4. Disconnect the PTO shaft and the hydraulic hose, untie the mower transport lock release rope from the tractor, and remove the hitch pin.
5. Store the PTO shaft end and the hydraulic hose couplings off the ground and keep them clean.
5WPMAN0183 (Rev. 4/25/2008)
___ Check that all hydraulic hoses and fittings are in
good condition and not leaking before starting tractor. Check that hoses are not twisted, bent sharply, kinked, frayed or pulled tight. Replace any damaged hoses immediately.
___ Make sure tractor ROPS or ROPS CAB and seat
belt are in good condition. Keep seat belt securely fastened during operation.
___ Before starting engine, operator must be in trac-
tor seat with seat belt fastened. Place transmis­sion in neutral or park, engage brake and disengage tractor PTO.
Operation 17
NOTES
18 Operation
5WPMAN0183 (Rev. 4/25/2008)
OWNER SERVICE
WARNING
DANGER
CAUTION
The information in this section is written for operators who possess basic mechanical skills. If you need help, your dealer has trained service technicians available. For your protection, read and follow the safety informa­tion in this manual.
Keep hands and body away from pressurized lines. Use paper or cardboard, not hands or other body parts to check for leaks. Wear safety goggles. Hydraulic fluid under pressure can easily penetrate skin and will cause serious injury or death.
Make sure that all operating and service person­nel know that if hydraulic fluid penetrates skin, it must be surgically removed as soon as possible by a doctor familiar with this form of injury or gan­grene, serious injury, or death will result. CON­TACT A PHYSICIAN IMMEDIATELY IF FLUID ENTERS SKIN OR EYES. DO NOT DELAY.
Keep all persons away from operator control area while performing adjustments, service, or maintenance.
condition. and escape, traveling as much as 300 feet (92 m).
Always wear relatively tight and belted clothing to avoid getting caught in moving parts. Wear sturdy, rough-soled work shoes and protective equipment for eyes, hair, hands, hearing, and head; and respirator or filter mask where appropriate.
It is possible for objects to ricochet
BLOCKING METHOD
The only approved blocking devices for this mower are jackstands with a load rating of 1,000 pounds (454 kg) or more. Twelve jackstands, located as shown in Fig­ure 6, must be installed before working underneath this unit.
Do not disconnect hydraulic lines until engine is stopped, power unit is properly secured, equip­ment and all components are lowered to the ground, and system pressure is released by oper­ating all valve control levers.
Before dismounting power unit or performing any service or maintenance, follow these steps: disengage power to equipment, lower the 3-point hitch and all raised components to the ground, operate valve levers to release any hydraulic pres­sure, set parking brake, stop engine, remove key, and unfasten seat belt.
Full chain shielding must be installed when operating in populated areas or other areas where thrown objects could injure people or damage property.
• If this machine is not equipped with full chain shielding, operation must be stopped when any­one comes within 300 feet (92 m).
• This shielding is designed to reduce the risk of thrown objects. The mower deck and protec­tive devices cannot prevent all objects from escaping the blade enclosure in every mowing
Figure 6. Jackstand Placement
Do not work underneath mower unless it is properly attached to tractor and blocked securely. When prop­erly attached, the unit will be anchored to minimize front to rear movement.
Before blocking, be sure that the mower is securely attached to the tractor. Lower mower units to the ground. Raise the mower units as needed for working room and securely block them. Set tractor brakes, turn engine off and remove key, then disconnect mower driveline.
When blocking, you must consider the overall stability of the unit. Just placing jack stands under the unit will not ensure your safety. The working surface must be level and solid to support the loaded weight of the jack stands. Ensure that jackstands are stable at both top and bottom. Before working under any portion of the mower, test the stability of your blocking with the full weight of the mower units lowered onto the jackstands.
5WPMAN0183 (Rev. 4/25/2008)
Owner Service 19
LUBRICATION INFORMATION
CAUTION
REF DESCRIPTION FREQUENCY
1 Front U-Joint 8 Hours 2 Center U-Joint 8 Hours 3 CV Body 8 Hours 4 Slip Joint Grease Fitting 8 Hours 5 Rear U-Joint 8 Hours 6 Transport Wheel Hub 8 Hours 7 Shield Bearing 8 Hours 8 Splitter Gearbox (Fill 1/2 full Check
with SAE 80W or 90W gear lube) Daily
9 Rear Deck Pivot Arm 8 Hours
10 Drive Carrier Bearing 8 Hours
When lubricating telescoping PTO drives, keep fingers out of shield access slots to prevent injury.
Remove belt shields and clean out all accumulated grass, dirt and other debris. Heat created by grass build-up can cause belt failure or fires to ignite.
Do not let excess grease collect on or around parts, particularly when operating in sandy areas.
Figure 7 and Figure 8 show lubrication points. The accompanying charts give the frequency of lubrication in operating hours, based on normal operating condi­tions. Severe or unusual conditions may require more frequent lubrication.
Raise and lower mower after applying grease so that it spreads over the slip joint working area.
Use a lithium grease of #2 consistency with a MOLY (molybdenum disulfide) additive for all locations unless otherwise noted. Be sure to clean fittings thoroughly before attaching grease gun. When applied according to the lubrication chart, one good pump of most guns is sufficient. Use SAE 80W or 90W gear lube in gear­boxes.
Daily lubrication of PTO slip joints is necessary. Failure to maintain proper lubrication can result in damage to U-joints, gearboxes and/or drive shafts. Raise or lower mower until grease fittings in PTO shields are exposed. Insert grease gun through slots and apply grease to all sides of shafts. Always stand clear of mower and wing arm mechanism to avoid being pinched or crushed should the mower or wing suddenly lower.
20 Owner Service
Figure 7. Lubrication Points - Trailer
(Rev. 7/9/2008)
5WPMAN0183 (Rev. 4/25/2008)
REF DESCRIPTION FREQUENCY
1 Caster Wheel Pivots 8 Hours 2 Caster Wheel Hubs 8 Hours 3 Blade Spindles 8 Hours 4 Gearbox (Fill 1/2 full with Check
SAE 80W or 90W gear Daily
lube) 5 Rear U-Joint 8 Hours 6 Front U-Joint 8 Hours 7Wing Pivot 8 Hours 8 Slip Joint Grease Fitting 8 Hours 9 Shield Bearing 8 Hours
10 Carrier Bearing 8 Hours
CAUTION
Figure 8. Lubrication Points - Deck
BELT Belt Replacement
One of the major causes of belt failure is improper installation. Before installing a new belt, check the fol­lowing:
1. Check pulley shafts and bearings for wear.
2. Check pulley grooves for cleanliness.
3. Make sure spindles turn freely and without wobble.
If grooves require cleaning, moisten a cloth with a non­flammable, non-toxic degreasing agent or commercial detergent and water.
(Rev. 7/9/2008) 5WPMAN0183 (Rev. 4/25/2008)
Avoid excessive force during installation. Do not use tools to pry belt into pulley groove. Do not roll belt over pulleys to install. This can cause hidden damage and premature belt failure.
Belt Installation
WING DECK - FM1012
Use care when installing or removing belt from spring-loaded idler. Springs store energy when extended and, if released suddenly, can cause per­sonal injury.
Owner Service 21
Figure 9. Belt Routing Right Wing
(3 mm)
(3 mm)
CAUTION
(3 mm)
WARNING
REAR DECK - FM1012 ALL DECKS - FM1015 & FM1017
Use care when installing or removing belt from spring-loaded idler. Springs store energy when extended and, if released suddenly, can cause per­sonal injury.
Figure 11. Belt Routing
Figure 10. Belt Routing Left Wing
1. Slide Belt under drive pulley A and over idler arm.
Position the belt around drive pulley A.
2. Loosen the bolt holding belt guide G and swing it away from pulley B. Route the belt around pulley D as shown.
3. Make sure the belt is on drive pulley A; route around idler F.
4. Grasp the belt between spindle pulley B and spin­dle pulley D. Drive pulley A. Pull spring loaded idler with belt to obtain enough belt length to route it over pulley B. Make sure spring loaded idler pivots freely with belt installed.
5. Adjust belt guide G to provide 1/16" to 1/8" (2 - 3 mm) clearance from belt. Tighten the bolt to 85 lbs/ft. (115 N-m).
1. Slide the belt under drive pulley A and over idler arm. Position the belt around drive pulley A.
2. Loosen the bolt holding belt guide G and swing it away from pulley B. Route the belt around pulley B, idler C, and pulley D as shown.
3. Make sure the belt is on drive pulley A; route around idler F.
4. Grasp the belt between spindle pulley E, spring loaded idler F, and spindle pulley D. Pull spring loaded idler with belt to obtain enough belt length to route it over pulley E. Make sure spring loaded idler pivots freely with belt installed.
5. Adjust belt guide G to provide 1/16" to 1/8" (2 - 3 mm) clearance from belt. Tighten bolt to 85 lbs/ft. (115 N-m).
BLADE Blade Servicing
Before dismounting power unit or performing any service or maintenance, follow these steps: disengage power to equipment, lower the 3-point hitch and all raised components to the ground, operate valve levers to release any hydraulic pres­sure, set parking brake, stop engine, remove key, and unfasten seat belt.
Keep all persons away from operator control area while performing adjustments, service, or maintenance.
22 Owner Service
(Rev. 7/9/2008)
5WPMAN0183 (Rev. 4/25/2008)
Make sure shields and guards are properly
WARNING
CAUTION
(0.8 mm)
installed and in good condition. Replace if dam­aged.
Blade Installation
vibration which can damage blade spindle bear­ings. Vibration may also cause structural cracks in mower components.
1. Remove blades.
2. Always sharpen both ends at the same time to
maintain balance.
3. Follow original sharpening pattern.
4. Do not sharpen blade to a razor edge. Leave from
1/32" to 1/16" (0.8 - 2 mm) blunt edge.
Your dealer can supply genuine replacement blades. Substitute blades may not meet original equipment specifications and may be dangerous.
Inspect blades before each use to determine that they are mounted tightly and are in good condition. Replace any blade that is bent, excessively nicked, worn, or has any other damage. Small nicks can be ground out when sharpening.
1. Place cap screws (3) through outer holes in blade and spindle shaft.
2. Make sure blade cutting edge is positioned to lead in a clockwise rotation, as viewed from top of mower.
3. Place locknuts (4) on screws and torque to 84 lbs/ft. (114 N-m).
5. Do not sharpen back side.
Figure 13. Blade Sharpening
CLEANING
After Each Use
Remove large debris such as clumps of dirt, grass,
crop residue, etc. from machine.
Inspect machine and replace worn or damaged
parts.
Replace any safety decals that are missing or not
readable.

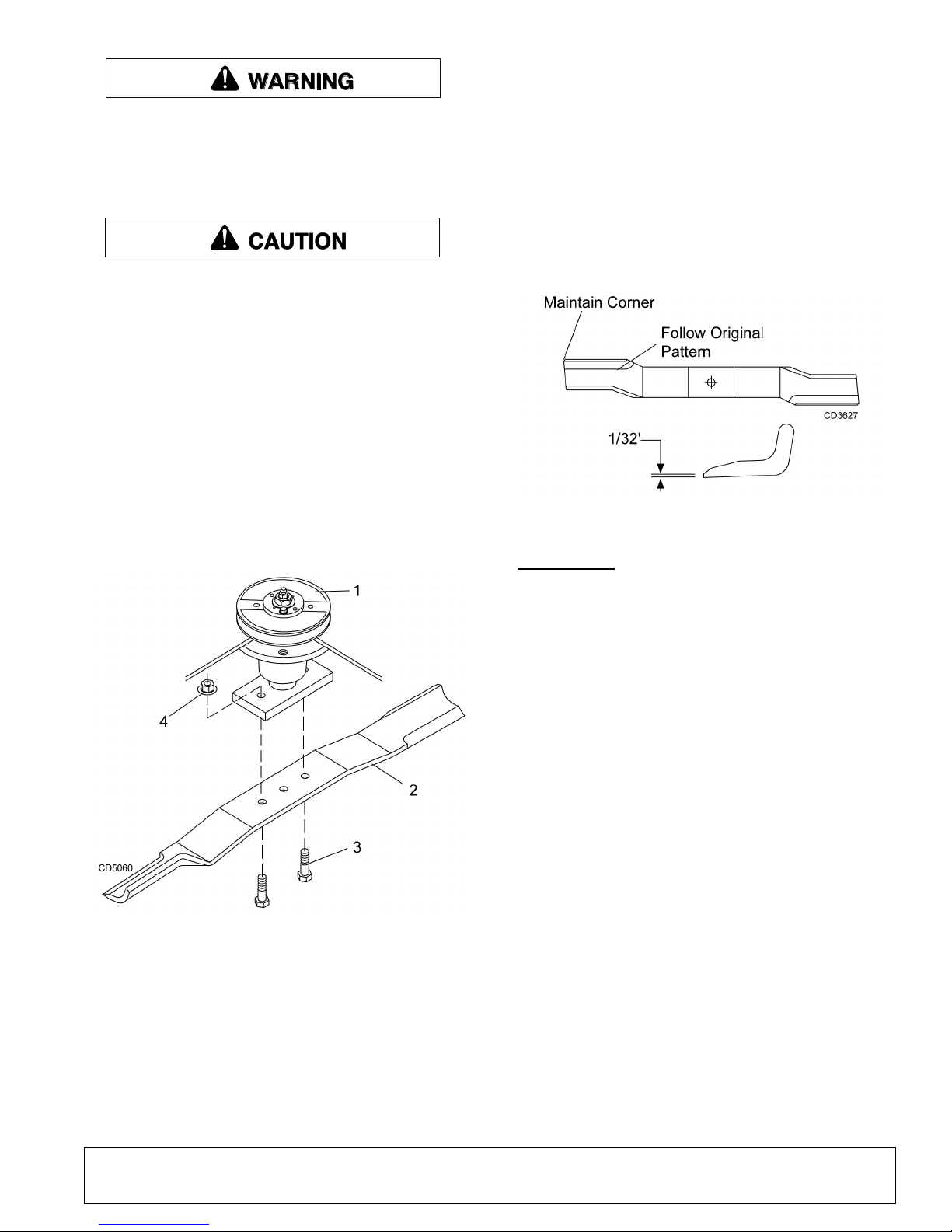

1. Spindle assembly
2. Blade
3. Screw, HHCS 1/2 NC x 1-1/2 GR5
4. Nut, flange lock 1/2 NC
Figure 12. Blade Assembly
Blade Sharpening
NOTICE
When sharpening blades, be sure to balance them. Unbalanced blades will cause excessive
5WPMAN0183 (Rev. 4/25/2008)
Periodically or Before Extended Storage
Clean large debris such as clumps of dirt, grass,
crop residue, etc. from machine.
Remove the remainder using a low-pressure water
spray.
1. Be careful when spraying near scratched or torn safety decals or near edges of decals as water spray can peel decal off surface.
2. Be careful when spraying near chipped or scratched paint as water spray can lift paint.
3. If a pressure washer is used, follow the advice of the pressure washer manufacturer.
Inspect machine and replace worn or damaged
parts.
Sand down scratches and the edges of areas of
missing paint and coat with spray paint of matching color (purchase from your dealer).
Replace any safety decals that are missing or not
readable (supplied free by your dealer). See Safety Decals section for location drawing.
Owner Service 23
TROUBLESHOOTING
MOWING CONDITIONS
PROBLEM POSSIBLE CAUSE SOLUTION
Grass cut higher in center of swath than at edge
Grass cut lower in center of swath than at edge
Streaking conditions in swath Conditions too wet for mowing Allow grass to dry before mowing.
Height of mower higher at front than at rear
Loose blade Check blade hardware.
Height of mower lower at front than at rear
Loose blade Check blade hardware.
Blades unable to cut that part of grass pressed down by path of tractor tires
Dull blades Sharpen or replace blades.
Loose blade Check blade hardware.
Adjust mower height and attitude so that mower rear and front are within 1/2 inch (13 mm) of same height. See instructions on page 14.
Adjust mower height and attitude so that mower rear and front are within 1/2 inch (13 mm) of same height. See instructions on page 14.
Slow ground speed of tractor but keep engine running at full PTO rpm. Cutting lower will help.
Adjust tractor tire spacing if possible.
Material discharges from mower unevenly; bunches of material along swath
Material too high and too much material
Grass wet Allow grass to dry before mowing.
Reduce ground speed but maintain 540 rpm at tractor PTO, or make two passes over material. Raise mower for the first pass and lower for the second and cut 90 degrees to first pass.
Raise rear of mower high enough to permit material discharge.
Slow ground speed of tractor but keep engine running at full PTO rpm.
24 Owner Service
5WPMAN0183 (Rev. 4/25/2008)
TROUBLESHOOTING
BELT CONDITIONS
PROBLEM POSSIBLE CAUSE SOLUTION
Belt slippage Mower overloading; material too tall
or heavy
Oil on belt from over lubrication Be careful not to over lubricate.
Belt hung up or rubbing Check belt position in pulleys and
Frayed edges on belt cover Belt misaligned Re-align belt. Be sure belt does not rub
Pulley misaligned Inspect to ensure belt is running in
Reduce tractor ground speed but maintain full PTO rpm.
Cut material twice, one high pass and then mow at desired height. Cut 90 degrees to first pass.
Clean lubricant from belt and pulleys with clean rag. Replace oil-soaked belt.
idlers.
Check belt for free travel in pulleys.
Check under mower and around blade spindle shaft for wire, rags, or other foreign material.
Clean all material from under mower.
any other part while running.
center of backside idler. Shim idler as necessary to align.
Belt rollover Pulley misaligned Re-align.
Damaged belt Replace belt.*
Foreign object in pulley groove Inspect all pulley grooves for rust, paint,
or weld spots and remove.
Worn pulley groove Replace pulley.
Damaged belt Rollover, high shock loads or instal-
lation damaged
Belt breakage High shock loads Avoid abusive mowing.
Belt came off drive Check pulleys for foreign material in
* Check belt for damage by laying it flat on the floor. A belt that does not lie flat (has humps or twists, indicating broken
or stretched cords) must be replaced.
Replace belt.*
Avoid hitting the ground or large obstructions.
grooves.
Avoid hitting solid objects or ground.
5WPMAN0183 (Rev. 4/25/2008)
Owner Service 25
DEALER SERVICE
WARNING
CAUTION
The information in this section is written for dealer ser­vice personnel. The repair described here requires special skills and tools. If your shop is not properly equipped or your mechanics are not properly trained in this type of repair, you may be time and money ahead to replace complete assemblies.
Before working underneath, read manual instructions, securely block up, and check stability. Secure blocking prevents equipment from drop­ping due to hydraulic leak down, hydraulic system failure, or mechanical component failure.
Keep all persons away from operator control area while performing adjustments, service, or maintenance.
Always wear relatively tight and belted clothing to avoid entanglement in moving parts. Wear sturdy, rough-soled work shoes and protective equipment for eyes, hair, hands, hearing, and head; and respirator or filter mask where appropriate.
BLOCKING METHOD
Do not work underneath mower unless it is properly attached to the tractor and blocked securely. When properly attached, the unit will be anchored to minimize front to rear movement.
The only approved blocking device for this mower is a jackstand with a load rating of 1000 pounds (454 kg) or more. One jackstand under each corner of each deck (12 total) must be installed before working underneath this unit.
Before blocking, be sure that the mower is securely attached to the tractor. Lower mower units to the ground. Raise the mower units as needed for working room and securely block them. Set tractor brakes, turn engine off and remove key, then disconnect mower driveline.
When blocking, you must consider the overall stability of the unit. Just placing jackstands under the unit will not ensure your safety. The working surface must be level and solid to support the loaded weight of the jack­stands. Ensure that jackstands are stable at both top and bottom. Before working under any portion of the mower, test the stability of your blocking with the full weight of the mower units lowered onto the jackstands.
Figure 14. Jackstand Placement
BLADE SPINDLE
Servicing
Spindle repair requires special skills and tools. If your shop is not properly equipped or your mechanics are not trained in this type of repair, you may be time and money ahead to use a new spindle assembly.
For reference, the grease fitting is in the top of the spin­dle shaft.
Per m atex is recommended as a sealant.
®1
3D Aviation Form-A-Gasket or equivalent
Spindle Removal
1. Remove blade from spindle.
2. Remove belt from pulleys.
3. Remove jam nut (1) and washer (3) from top of
spindle shaft.
4. Disassemble split taper bushing (5) (located on top of pulley) by removing the two bolts (2) and wash­ers (4).
5. Insert bolts (2) into the threaded holes of bushing flange.
6. Tighten bolts alternately to remove split taper bush­ing.
7. Remove pulley (6).
8. Remove bolts (19) that attach spindle to mower
frame and remove spindle.
9. Remove grease fitting (21) from top of shaft.
1. Permatex is a registered trademark of the Permatex Corporation.
26 Dealer Service
5WPMAN0183 (Rev. 4/25/2008)
1. Nut, Jam 7/8 NF
2. Screw, HHCS 1/4 NC x 1 GR5
3. Washer, Lock .929 x 1.66
4. Washer, Lock 1/4
5. Bushing, H 1 Strt bore w/key
6. Sheave, H 1 BK
19. Screw, HHCS 1/2 NF x 1-1/4 GR5
21. Grease fitting
Figure 15. Sheave and Blade Assembly
Spindle Disassembly
1. Place spindle assembly in press and press shaft
down through housing.
2. Remove seals from housing.
3. Remove bearing cups from housing by placing a
punch in the slots provided and driving them out. Alternate punch positions from side to side. Take care to prevent housing damage.
1. Grease fitting
2. Seal, 1.50 x 2.12 x .31
3. Sleeve, 1.14 x 1.50 x .55
4. Bearing cone
5. Bearing cup
6. Spindle, Housing
7. Shaft, Blade spindle
Figure 16. Spindle and Shaft Assembly
Spindle Assembly
Refer to Figure 16 or Figure 17.
Bearing cones and cups are designed to work together. It is important to position them so bearing cone taper mates with cup taper.
1. Lubricate new cups with a light oil. Place them in spindle housing so they will mate with bearing cones. Cups and cones are a press fit to minimize wear.
2. Seat cups securely with a press or place a large drift in the flat lip and drive them into housing until cup seats against machined shoulder of housing.
3. Place bottom bearing cone into spindle with taper positioned to mate with cup.
4. Identify the open side of the seal containing the spring.
5WPMAN0183 (Rev. 4/25/2008)
Dealer Service 27
NOTICE
Improper positioning of seals can cause seal damage. An improperly installed seal will leak and could cause bearing failure.
5. Apply a thin coat of Permatex to the area of hous-
ing where seals seat.
6. Install bottom seal with spring up toward center of housing.
7. Place seal squarely on housing and select a piece of pipe or tubing with an OD that will set on outside edge of seal. A tubing with an OD that is too small will bow seal cage.
8. Carefully press seal into housing to prevent distor­tion to metal seal cage. Bottom seal should seat firmly and squarely against machined shoulder in housing.
9. Make sure seal lip did not roll under. Distortion to seal cage or damage to seal lip will cause seal to leak. Damaged seals must be replaced.
10. Insert shaft and bearing through bottom of housing.
1. Install spindle through bottom of mower and secure
with four mounting bolts.
2. Install pulley and split taper bushing with integral key on spindle shaft. Make sure bushing is in con­tact with sleeve on spindle shaft.
3. Alternately tighten split taper bushing cap screws to 12 lbs/ft. (16 N-m).
4. Install toothed lock washer and nut on spindle shaft. Tighten nut until snug. Bend up edge of lock washer against a flat side on nut.
11. Fill housing cavity with a medium grade grease.
12. Install top bearing on shaft to mate with top cone.
13. Apply a thin coat of Permatex to shaft area where
sleeve will seat.
14. Install sleeve on shaft and press sleeve and bear­ing into housing until all free play is removed and there is a very light drag on bearings (similar to adjusting front wheel bearings on an automobile). Check by spinning spindle. It should turn freely.
15. Be careful not to overtighten bearings. Proper bearing adjustment is essential to good bearing life.
16. If you overtighten bearings, hold spindle housing and rap spindle shaft with a lead hammer.
17. Carefully press top seal in with spring up. Top seal should be flush with or to within 1/16" (2 mm) above the housing.
18. Rotate housing on spindle shaft, checking for free movement.
19. Install grease fitting in spindle shaft.
1. Grease fitting
2. Seal, 1.50 x 2.12 x .31
3. Sleeve, 1.14 x 1.50 x .55
4. Bearing cone
Spindle Installation
NOTICE
Pulley installation sequence is very important for bearing life. Follow the sequence exactly.
28 Dealer Service
5. Bearing cup
6. Spindle, Housing
7. Shaft, Blade spindle
Figure 17. Spindle and Shaft Assembly
5WPMAN0183 (Rev. 4/25/2008)
GEARBOX REPAIR
1. Seal
2. Pipe or tube
3. Seal seat
4. Casting
Pipe or tube must press at outer edge of seal
Incorrect Installation
Read this entire section before starting any repair. Many steps are dependent on each other.
Fill gearbox with SAE 80W or 90W gear lube until it runs out the side level plug.
Repair to this gearbox is limited to replacing bearings, seals, and gaskets. Replacing gears, shafts, and a housing is not cost effective. It is more economical to purchase a complete gearbox if repair to anything other than replacement of bearings, seals or gaskets is required.
Inspect gearbox for leakage and bad bearings.
Leakage is a very serious problem and must be cor­rected immediately.
NOTE: Proper seal installation is important. An improp­erly installed seal will leak.
1. Clean area in housing where seal outer diameter (OD) seats. Apply a thin coat of Permatex.
2. Inspect area of shaft where seal seats. Remove any burrs or nicks with an emery cloth.
3. Lubricate gear shaft and seal lips.
4. Place seal squarely on housing, spring-loaded lip
toward housing. Select a piece of pipe or tubing with an OD that will sit on the outside edge of the seal but will clear the housing. Tubing with an OD that is too small will bow seal cage and ruin seal.
5. Carefully press seal into housing, avoiding distor­tion to the metal seal cage.
Bearing failure is indicated by excessive noise and side-to-side or end play in gear shafts.
Seal Replacement
Recommended sealant for gearbox repair is Permatex Aviation 3D Form-A-Gasket or equivalent.
Leakage can occur at the vertical or horizontal gaskets and shaft seals.
Leakage at the horizontal gasket or seal can be repaired without removing the gearbox from the cutter.
Seal Installation
Vertical Shaft Repair (Figure 20)
1. Disconnect and remove the driveline from the
gearbox.
2. Remove vent plug (24) and siphon gear lube from housing through this opening.
3. Remove gearbox stand from mower deck.
4. Remove gearbox and pulley from gearbox stand.
5. Remove vertical shaft seal (18). Replace with new
seal (see Seal Replacement, page 29).
Vertical seal should be recessed in housing. Horizontal seal should be pressed flush with outside of housing.
NOTE: Distortion to seal cage or damage to seal lip will cause seal to leak.
6. Fill gearbox with SAE 80W or 90W gear lube until it runs out the level plug.
7. Assemble gearbox and pulley to gearbox stand. Attach gearbox stand to mower deck.
Figure 18. Seal Installation
5WPMAN0183 (Rev. 4/25/2008)
Horizontal Leak Repair (Figure 20)
1. Disconnect and remove the driveline from the
gearbox.
2. Remove vent plug (24) and siphon gear lube from housing through this opening.
3. If the leak occurred at either end of horizontal shaft, remove oil cap (20) and/or oil seal (19). Replace with new one (refer to Seal Replacement, page
29).
4. Fill gearbox with SAE 80W or 90W gear lube until it runs out the level plug.
Dealer Service 29
Gearbox Removal from Mower (Figure 19)
1. Disconnect and remove the rear driveline from the
gearbox.
2. Remove vent plug and siphon gear lube from hous­ing through this opening.
3. Remove gearbox stand (20) from mower deck by removing four flanged lock nuts (56).
4. Remove four cap screws (43) and washers (42) and remove shield (22) from gearbox.
5. Remove castle nut and hardware from output shaft of gearbox.
6. Remove sheave (19) from gearbox.
19. Sheave, Offset 12.4 PD
20. Gearbox Stand
22. Shield, Counter Cone
42. Washer, Flat Standard 5/16
43. Screw, HHCS 8mm x 1.25P x 16mm
56. Nut, Flanged Lock 1/2 NC
59. Nut, Flanged Lock 5/8 NC
63. Screw, Flanged Hex Head 5/8 NC x 1-3/4
Figure 19. Gearbox Stand Assembly
Gearbox Disassembly
1. Remove top cover (22) from housing. Turn gearbox
upside down and pour out remaining gear oil from gearbox.
2. Remove oil cap (20) (to be replaced).
3. Remove snap ring (10) and shim (13) from input
shaft (3).
4. Support gearbox in hand press and push on input shaft (3) to remove bearing (7) and spacer (11).
5. Remove gear (1) from inside housing.
6. Remove oil seal (19) from front of housing (to be
replaced).
7. Remove snap ring (10) and shim (13) from front of housing (2).
8. Remove input bearing (7) by using a punch and hammer from outside of housing.
9. Support housing in vise in a horizontal position.
10. The castle nut (15) and cotter pin (25) are already
removed with the drive sheave. Remove snap ring (21), washer (8), and seal (18).
11. Remove cotter pin (9), castle nut (14), and washer (17) from output shaft (4).
12. Remove output shaft (4) by using a punch and hammer and tap on top to drive down.
13. Remove gear (5) and shim (16) from inside hous­ing.
14. Remove bearing (26) by using a punch and ham­mer from the top, outside the housing.
15. Support housing upside down (top cover surface) and remove bearing (6) by using a punch and ham­mer from the bottom side of the housing.
16. Inspect gears for broken teeth and wear. Some wear is normal and will show on loaded side. Forged gear surfaces are rough when new. Check that wear pattern is smooth.
17. Inspect vertical and horizontal shafts for grooves, nicks, or bumps in the areas where the seals seat. Resurface any damage with emery cloth.
18. Inspect housing and caps for cracks or other dam­age.
Gearbox Reassembly (Figure 20)
NOTE: Repair to this gearbox is limited to replacing
bearings, seals, and gaskets. Replacing gears, shafts, and a housing is not cost effective. Purchasing a com­plete gearbox is more economical.
1. Clean housing, paying specific attention to areas where gaskets will be installed.
2. Wash housing and all components thoroughly. Select a clean area for gearbox assembly. Replace all seals, bearings, and gaskets. All parts must be clean and lightly oiled before reassembling.
3. Insert output bearings (6 & 26) in the housing, using a round tube of the correct diameter and a hand press.
4. Slide output shaft (4) through both bearings (6 &
26) until it rests against bearing (6).
5. Slide shim (16) over output shaft (4).
6. Press gear (5) onto output shaft (4) and secure
with washer (17), castle nut (14), and cotter pin (9).
7. Apply grease to lower seal lips (18) and press seal over output shaft (4), using a tube of the correct
30 Dealer Service
5WPMAN0183 (Rev. 4/25/2008)
diameter. Be sure not to damage the seal lip. Press
1. Crown gear
2. Gearbox housing
3. Input shaft
4. Output shaft
5. Gear pinion
6. Bearing
7. Bearing
8. Protective flat washer
9. Cotter pin
10. Snap ring
11. Snap ring
12. Spacer
13. Shim kit
14. Castle nut
15. Castle nut M24 x 2
16. Shim Kit
17. Flat washer
18. Oil seal (40 x 80 x 12)
19. Oil seal (35 x 72 x 10)
20. Cap
21. Snap ring
22. Top Cover
23. Bolt M8 x 14mm
24. Breather level plug
25. Cotter pin
26. Bearing
27. Ball Bearing
in housing so that seal is recessed.
8. Insert protective washer (8) by hand. Install snap ring (21) and position it together with dual lip seal (18) by pressing it into position. Verify that snap ring is seated correctly.
9. Press bearing (7) into the housing, using a round tube of the correct diameter and a hand press. Secure with shim (13) and snap ring (10).
10. Secure snap ring (11) on input shaft (3) if not already secure.
11. Place gear (1) through top of housing and align gear (1) and gear (5) so that gear teeth are a match.
12. While holding gear (1) in place, slide input shaft (3) through gear (1) and bearing (7). Align splines on shaft (3) and gear (1).
13. Slide spacer (12) over input shaft (3) and press bearing onto input shaft (3), using a round tube of the correct diameter and a hand press.
14. Slide shim (13) over input shaft (3) and secure with snap ring (10).
15. Check input shaft end float by moving the input shaft (3) by hand. If end float is higher than 0.012" (0.305 mm), insert shim between input shaft (3) and rear bearing (7). Repeat until end float is less than 0.012" (0.305 mm). Check rotational torque by hand. The torque should be less than 2.2 lbs.-inch (0.25 N-m).
16. Check that the gear backlash is between 0.006" and 0.016" (0.152 mm - 0.406 mm). You should not have to adjust the backlash.
17. Press in input oil seal (19), using tube of correct diameter. Be careful not to damage seal lip.
18. Press oil cap (20) on to cover the rear of housing, using a tube of the correct diameter.
19. Check gearbox housing for leaks by plugging all holes except one. Apply 4 psi (28 kPa) compressed air and immerse the gearbox in water to verify that there are no leaks.
20. Remove gearbox from water and dry off with com­pressed air. Add SAE 80W or 90W EP oil until it runs out of side level hole. Tighten all plugs.
5WPMAN0183 (Rev. 4/25/2008)
Figure 20. Gearbox Assembly
Dealer Service 31
Gearbox Installation
1. Shim
2. Idler Arm
3. Idler Pulley
4. Drive Sheave
5. Castle nut & Cotter pin
6. Gearbox Stand
1. Yoke
2. Cup and bearings
3. Snap ring
4. Journal cross
NOTE: Gearbox is heavy: do not attempt to move with­out mechanical assistance.
1. Set gearbox on gearbox stand and fasten with bolts and nuts. Torque bolts to 175 lbs.-ft. (237 N­m).
2. Attach drive sheave to output shaft. Secure using castle nut and hardware previously removed.
3. Attach Gearbox stand to mower using four flanged lock nuts.
UNIVERSAL JOINT REPAIR
DRIVE SHEAVE INSTALLATION
1. When gear stand is installed on mower, dimension
A (from the top of the mower deck to the center line of the drive pulley) must be 2-7/16" (61.913 mm) [±1/32" (±0.794 mm)]. This is a critical dimension and must be carefully adjusted for proper belt life. Add or subtract shim washers under idler pulley to align with drive pulley.
2. Tighten gear stand hardware.
3. Fill gearbox half full with SAE 80W or 90W gear
lube.
4. Check level after waiting five minutes to permit lube to work through bearings. Add lube, if neces­sary, until gearbox is half full.
5. Replace driveline shield. Attach driveline to gear­box.
Figure 22. U-Joint Exploded View
U-Joint Disassembly
1. Remove external snap rings from yokes in four
locations as shown in Figure 23.
Figure 23
2. With snap rings removed, support drive in vise,
hold yoke in hand and tap on yoke to drive cup up out of yoke. See Figure 24.
32 Dealer Service
Figure 21. Drive Sheave Installation
Figure 24
3. Clamp cup in vise as shown in Figure 25 and tap
on yoke to completely remove cup from yoke. Repeat Step 2 and Step 3 for opposite cup.
(Rev. 7/9/2008)
5WPMAN0183 (Rev. 4/25/2008)
Figure 25
4. Place universal cross in vise as shown in Figure 26
and tap on yoke to remove cup. Repeat Step 3 for final removal. Drive remaining cup out with a drift and hammer.
U-Joint Assembly
1. Place seals securely on bearing cups. Insert cup
into yoke from outside and press in with hand pres­sure as far as possible. Insert journal cross into bearing cup with grease fitting away from shaft. Be careful not to disturb needle bearings. Insert another bearing cup directly across from first cup and press in as far as possible with hand pressure.
2. Trap cups in vise and apply pressure. Be sure jour­nal cross is started into bearings and continue pressure with vise, squeezing in as far as possible. Tapping the yoke will help.
3. Seat cups by placing a drift or socket (slightly smaller than the cup) on cup and rap with a ham­mer. See Figure 27. Install snap ring and repeat on opposite cup
4. Repeat Step 1 and Step 2 to install remaining cups in remaining yoke.
5. Move both yokes in all directions to check for free movement. If movement is restricted, rap on yokes sharply with a hammer to relieve any tension. Repeat until both yokes move in all directions with­out restriction.
Figure 26
5WPMAN0183 (Rev. 4/25/2008)
Figure 27
Dealer Service 33
ASSEMBLY INSTRUCTIONS
WARNING
CAUTION
WARNING
Remove Hardware
Remove 5/8 Lock nut
DEALER SET-UP INSTRUCTIONS
The mower is shipped mostly assembled but requires dealer set-up. The Frontier dealer should deliver the mower to the owner completely assembled, lubricated, and adjusted for normal conditions.
Recommended torque values for hardware are located on page 57.
Complete the Dealer Check Lists on page 36 when assembly is complete.
Keep hands and body away from pressurized lines. Use paper or cardboard, not hands or other body parts to check for leaks. Wear safety goggles. Hydraulic fluid under pressure can easily penetrate skin and will cause serious injury or death.
Make sure that all operating and service person­nel know that if hydraulic fluid penetrates skin, it must be surgically removed as soon as possible by a doctor familiar with this form of injury or gan­grene, serious injury, or death will result. CON­TACT A PHYSICIAN IMMEDIATELY IF FLUID ENTERS SKIN OR EYES. DO NOT DELAY.
slides freely and is seated firmly in tractor PTO spline groove.
1. Remove front drive from between wing frames.
2. Attach to splitter gearbox.
3. Lift rear deck to take tension off rear lift chains.
4. Remove 3/8 bolts, washers, and nuts from both
rear lift chains. See Figure 28. This hardware is for factory shipping purposes only and can be dis­carded.
5. Gently lower deck until the deck is supported by the lift chains.
Before dismounting power unit or performing any service or maintenance, follow these steps: disengage power to equipment, lower the 3-point hitch and all raised components to the ground, operate valve levers to release any hydraulic pres­sure, set parking brake, stop engine, remove key, and unfasten seat belt.
Before working underneath, carefully read Oper­ator’s Manual instructions, disconnect driveline, raise mower, securely block up all corners with jackstands, and check stability. Secure blocking prevents equipment from dropping due to hydrau­lic leak down, hydraulic system failures, or mechanical component failures.
Always wear relatively tight and belted clothing to avoid getting caught in moving parts. Wear sturdy, rough-soled work shoes and protective equipment for eyes, hair, hands, hearing, and head; and respirator or filter mask where appropriate.
Make sure spring-activated locking pin or collar
Figure 28. Remove Shipping Hardware
6. Remove 5/8 lock nuts and remove shipping strap
from between right and left decks.
Figure 29. Remove Shipping Strap (Right Wing)
Attach Mower to Tractor
1. Park the mower on a hard level surfaced with park-
ing jack securely fastened to trailer.
2. Align tractor with hitch bracket on trailer frame.
3. Set tractor parking brake and block mower trans-
port wheels.
34 Assembly
5WPMAN0183 (Rev. 4/25/2008)
4. Adjust tractor hitch bracket on trailer frame so the
(229 mm)
WARNING
trailer is level when attached to the tractor.
5. Pin the mower to the tractor with a locking type hitch pin.
6. Attach drive shaft to tractor PTO. Make sure lock collar engages securely.
7. Attach end of transport lock release rope to a loca­tion on the tractor within easy reach of the operator and away from driveline.
NOTE: When routing the rope, do not route through the hydraulic hose guide and do not allow rope slack to drop between the driveline shields and the gearbox rotating shafts.
8. Attach towing safety chain to tractor drawbar as shown in Figure 30.
Lighting Kit Installation
1. Install electronic module to rear cylinder mount
using #10 screws (8).
2. Route wires as shown. Do not install wire ties at this time. Be sure wire labeled “Left” is routed to left light. Pass wires over axles, under deck support platform, and up the outside rear corner.
3. Install left and right light brackets as shown using 3/8" bolts (11), washers (13), and nuts (12). If more clearance is desired between light brackets and tires, add more 3/8" flat washers. Be sure wires pass through the corners before tightening light brackets.
4. Connect lights to wiring harness.
5. Starting at each light, pull the wire tight and install
wire ties as shown. Any extra slack in the wiring harness should be located at the center of machine near the electronic module. Route main wire along hydraulic hose and secure to hose using wire ties.
Figure 30. Tow Chain Installation
Attach Hydraulic Hoses
Air in hydraulic systems can cause erratic oper­ation and allows loads or equipment components to drop unexpectedly. When connecting equipment or hoses or performing any hydraulic maintenance, purge any air in hydraulic system by operating all hydraulic functions several times. Do this before putting into service or allowing anyone to approach the equipment.
Attach the mower hydraulic hose to the tractor port. Hydraulic quick coupler is not supplied.
NOTE: The mower hydraulic system should have been filled at the factory. Always assume it is empty. Fully purge air and fill the hydraulic system by raising and lowering wings several times while hooked to a tractor hydraulic supply. Keep all personnel away while raising and lowering.
1. Left hand light (not shown)
2. Right hand light
3. Left light bracket (not shown)
4. Right light bracket
5. Wire harness
6. 14" Tie strap
7. 7" Tie strap
8. #10 x 1/2" Tapping screw
9. 1/4 NC x 1" Hex head cap screw GR5
10. 1/4 NC Lock nut
11. 3/8 NC x 1" Hex head cap screw flanged GR5
12. 3/8 NC Flange lock nut
13. 3/8" Standard flat washer
Figure 31. Lighting Kit Installation
5WPMAN0183 (Rev. 4/25/2008)
Assembly 35
DEALER CHECK LISTS
PRE-DELIVERY CHECK LIST
(DEALER’S RESPONSIBILITY)
Inspect the equipment thoroughly after assembly to ensure it is set up properly before delivering it to the customer.
The following check lists are a reminder of points to inspect. Check off each item as it is found satisfactory or after proper adjustment is made.
___ Check that all safety decals are installed and in
good condition. Replace if damaged.
___ Check that shields and guards are properly
installed and in good condition. Replace if dam­aged.
DELIVERY CHECK LIST
(DEALER’S RESPONSIBILITY)
___ Show customer how to make adjustments and
select proper PTO speed.
___ Show customer how to make sure driveline is
properly installed and that spring-activated lock­ing pin or collar slides freely and is seated in groove on tractor PTO shaft.
___ Show customer how to determine the turning
limits of the CV PTO driveline.
___ Show customer the safe, proper procedures to
be used when mounting, dismounting, and stor­ing equipment.
___ Make customer aware of optional equipment
available so that customer can make proper choices as required.
___ Instruct customer how to lubricate and explain
importance of lubrication.
___ Point out the safety decals. Explain their mean-
ing and the need to keep them in place and in good condition. Emphasize the increased safety hazards when instructions are not followed.
___ Check all bolts to be sure they are properly
torqued.
___ Check that all cotter pins and safety pins are
properly installed. Replace if damaged.
___ Check that blades have been properly installed.
___ Check mower attitude and belt alignment
___ Check and grease all lubrication points as iden-
tified in lubrication information on page 20.
___ Check the level of gearbox fluids before deliv-
ery. Service, if required, as specified in the lubri­cation information on page 20.
___ Present Operator's Manual and request that
customer and all operators read it before oper­ating equipment. Point out the manual safety rules, explain their meanings and emphasize the increased safety hazards that exist when safety rules are not followed.
___ Explain to customer the potential crushing haz-
ards of going underneath raised equipment. Instruct that before going underneath to discon­nect the driveline, securely block up all corners with jackstands and to follow all instructions in the “Blocking Method” on page 19 of the opera­tors manual. Explain that blocking up prevents equipment dropping from hydraulic leak down, hydraulic system failures or mechanical compo­nent failures.
___ Point out all guards and shields. Explain their
importance and the safety hazards that exist when not kept in place and in good condition.
36 Dealer Check Lists
5WPMAN0183 (Rev. 4/25/2008)
PARTS INDEX
Rear Discharge Grooming Mowers: FM1012, FM1015, FM1017
COMMON PARTS
MAIN FRAME ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 - 39
TRAILER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 - 41
WING FRAME ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
CASTER WHEELS, ROTATING & NON-ROTATING . . . . . . . . . . . . . . . . . . . . . . . . . . 45
HEIGHT ADJUSTMENT POST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
HUB & AXLE ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
WING GEARBOX ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
BLADE AND SPINDLE ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
DRIVES
REAR & WING DRIVE (COMER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 - 51
REAR & WING DRIVE (WALTERSCHEID). . . . . . . . . . . . . . . . . . . . . . . . 52 - 53
CV DRIVE ASSEMBLY (WALTERSCHEID) . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
CV DRIVE ASSEMBLY (WEASLER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
JACKSHAFT DRIVE (WALTERSCHEID) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
JACKSHAFT DRIVE (COMER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
LIGHTING KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
REAR CHAIN SHIELDING ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
HYDRAULIC CYLINDERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
HYDRAULIC HOSE ASSEMBLY PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
FM1012
CENTER DECK ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
WING DECK ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
CENTER DECK FRONT ROLLER ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
WING DECK ANTI-SCALP ROLLER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
FM1015
CENTER & WING DECK ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
FRONT ROLLER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
FM1017
CENTER & WING DECK ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
FRONT ROLLER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
5WPMAN0183 (Rev. 7/9/2008)
Parts 37

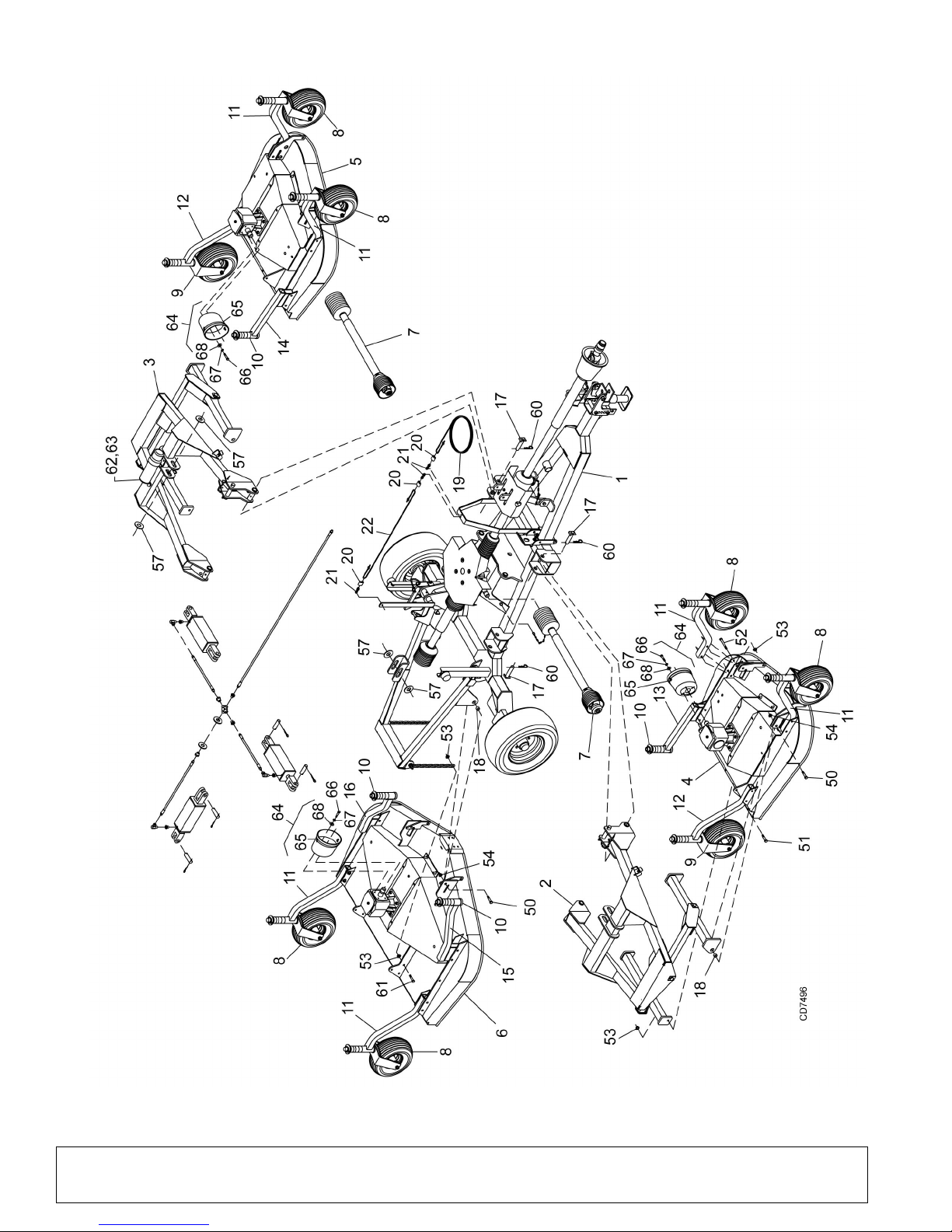

FM1012, FM1015 & FM1017 MAIN FRAME ASSEMBLY
Refer to page 59 for Hydraulic Hose Parts list.
33 - COMPLETE DECAL SET
38 Parts
5WPMAN0183 (Rev. 7/9/2008)
FM1012, FM1015 & FM1017 MAIN FRAME ASSEMBLY
REF PART QTY DESCRIPTION
1 – – – – – 1 Trailer assembly (See page 40)
2 – – – – – 1 Right wing assembly (See page 42)
3 – – – – – 1 Left wing assembly (See page 42)
4 – – – – – 1 Right deck assembly FM1012
(See page 44) -or-
4 – – – – – 1 Right deck assembly FM1015,
FM1017 (See page 43)
5 – – – – – 1 Left deck assembly FM1012
(See page 44) -or-
5 – – – – – 1 Left deck assembly FM1015,
FM1017 (See page 43)
6 – – – – – 1 Center deck assembly FM1012
(See page 43) -or-
6 – – – – – 1 Center deck assembly FM1015,
FM1017 (See page 43)
7 5WP1023226 2 Drive, Cmpl 40, 21.3 x 32.3 FM1012
(See page 50) -or-
7 5WP1023227 2 Drive, Cmpl 40, 25.6 x 40.9 FM1015
(See page 50) -or-
7 5WP1023228 2 Drive, Cmpl 40, 28.3 x 46.4 FM1017
(See page 50)
8 – – – – – 6 Rotating caster (See page 45)
9 – – – – – 2 Non-rotating caster (See page 45)
10 – – – – – 4 Height adjustment post
(See page 46)
11 5WP58956 6 Caster arm asy w/bearing
5WP31780 12 Bushing, Oilite 1.25 x 1.50 x 1.50
* 6 Grease fitting, 1/4 - 28 Tapered
thread
12 5WP58968 2 Caster arm asy, Non-rotating
13 5WP40947 1 Caster arm asy, FM1012 -or-
13 5WP40944 1 Caster arm asy, Right, FM1015 -or-
13 5WP40942 1 Caster arm asy, Right, FM1017
14 5WP40947 1 Caster arm asy, FM1012
14 5WP40945 1 Caster arm asy, Left, FM1015 -or-
14 5WP40943 1 Caster arm asy, Left, FM1017
REF PART QTY DESCRIPTION
15 5WP58993 1 Caster arm asy, Right, FM1012 -or-
15 5WP58974 1 Caster arm asy, Right, FM1015,
FM1017
16 5WP58994 1 Caster arm asy, Left, FM1012
-or-
16 5WP58978 1 Caster arm asy, Left, FM1015,
FM1017
17 5WP38001 4 Pin, Wing hinge
18 5WP1791 6 Sleeve, HT .63 x 1.00 x .56
19 5WP38296 1 Rope, .25 x 95.0
20 5WP38295 3 Rope clamp
21 5WP38257 3 S-Hook, .25 x 2.25
22 5WP38294 1 Rope, .25 x 46.0
32 5WP1631 2 Pin, Headless 1.00 x 3.63
33 5WP40908 1 Complete decal set
50 * Screw, HHCS 5/8 NC x 2-1/2 GR5
51 * Screw, HHCS 1/2 NC x 1-3/4 GR5
52 * Screw, HHCS 1/2 NC x 3-1/4 GR5
53 5WP11900 Nut, Flanged lock 1/2 NC
54 5WP19025 Nut, Flanged lock 5/8 NC
57 * Washer, Flat 1" standard
60 * Pin, Safety 3/16
61 5WP62789 Screw, HHCS 1/2 NC x 2 FT GR5
62 5WP1003828 1 Manual tube assembly
63 5WP37420 2 Clamp, Hose 3.06 - 4.00
64 5WP1024650 1 Clutch shield kit
(includes items 65 through 68)
65 5WP1002048 3 Clutch shield
66 * Screw, HHCS M8 x 1.25P x 20 mm
67 * Washer, 5/16 lock
68 * Washer, 5/16 flat
* Standard Hardware, Obtain Locally
5WPMAN0183 (Rev. 7/9/2008)
Parts 39
FM1012, FM1015 & FM1017 TRAILER ASSEMBLY
40 Parts
5WPMAN0183 (Rev. 7/9/2008)
FM1012, FM1015 & FM1017 TRAILER ASSEMBLY
REF PART QTY DESCRIPTION
1 – – – – – 1 Trailer frame
2 5WP1009501 1 Hitch, Category 1 (FM1012)
-or-
2 5WP1009502 1 Hitch, Category 2 (FM1015 &
FM1017
3 5WP1006689 2 Link, Hitch adjustment
4 5WP44639 2 Sleeve, .76 x 1.00 x 4.12
5 5WP40804 1 Lock, Rear deck
6 5WP40880 1 Lever, Rear deck lock release
7 5WP40879 2 Lock, Wing deck
8 5WP40938 1 Lever, Wing deck lock release
9 5WP19201 1 H-Frame, CV drive
10 5WP44641 2 Sleeve, HT .78 x 1.00 x .69
11 5WP31464 2 Sleeve, .38 x .63 x .34
12 5WP23790 1 Jack, Parking
13 5WP21957 3 Spring, Comp .58 x .08 x 2.4 40
14 5WP484 2 Sleeve, HT .63 x 1.00 x .44
15 5WP3502 1 Bearing, Ball
16 – – – – – 1 Housing, Bearing (Not Serviced)
17 5WP1251 1 Bearing holder w/bearing
(Includes ref. 15, 16, 77, 78)
18 5WP44637 1 Shield, Front drive
19 – – – – – 1 Drive, Yoke & shaft Non-tel 2400 x
26.4 (see page 56)
20 5WP19407 1 Chain, Safety 6400 lb
21 5WP62440 2 Bumper pad
22 5WP38264 1 Pin, Lynch chain & cotter asy
23 5WP40933 1 Gearbox, 4-Way splitter
– – 5WP58815 2 Seal, Thru shaft 4-way gearbox
– – 5WP58816 2 Seal, Wing shaft 4-way gearbox
– – 5WP58817 6 Bearing, Cup & cone 4-way box
– – 5WP1009083 1 Plug, Vent w/Washer
24 5WP62626 4 Sleeve, .76 x 1.00 x 1.00
25 5WP44636 1 Shield, Gearbox 4-way
26 5WP1001020 2 Asy, Whl hub & axle (See page 46)
27 5WP38298G 2 Wheel & tire, 20.5 x 8.00 x 10 Gray
– – 5WP38475G Wheel rim, 5-Bolt 8.00 x 10 gray
28 5WP44625 1 Drive, Cmpl CV 2480, 35.8 x 48.4
(See page 54) -or-
28 5WP1021100 1 Drive, Cmpl CV 35R 35.0 x 47.6 (See
page 55)
29 5WP1023225 1 Drive, Cmpl 40, 26.9 x 43.5
(See page 50)
30 5WP58984 2 Pin, Rear wing hinge
31 5WP40805 1 Frame, Rear wWing
32 5WP44638 2 Chain, 16 Link 1/4-proof
REF PART QTY DESCRIPTION
33 5WP3443 1 Hydraulic Hose holder
34 5WP62484 1 Socket, SMV emblem
50 * Screw, HHCS 5/8 NC x 7-1/2 GR5
51 * Screw, HHCS 5/8 NC x 7 GR5
52 * Screw, HHCS 3/4 NC x 2-1/4 GR5
53 * Screw, HHCS 5/8 NC x 2 GR5
54 * Screw, HHCS 5/8 NC x 5 GR5
55 * Screw, HHCS 1/2 NC x 5-1/4 GR5
56 * Screw, HHCS 3/8 NC x 1 GR5
57 * Screw, HHCS 3/8 NC x 1-1/4 GR5
58 * Screw, HHCS 3/8 NC x 3-1/2 GR5
59 * Screw, HHCS 1/2 NC x 1-1/4 GR5
60 * Screw, HHCS 1/2 NC x 3 GR5
61 * Screw, HHCS 1/2 NC x 2 GR5
62 * Nut, Lock 5/8 NC
63 * Nut, Lock 3/4 NC
64 5WP11900 Nut, Flanged lock 1/2 NC
66 5WP14350 Nut, Flanged lock 3/8 NC
67 * Nut, Lock 3/8 NC
68 5WP28873 Washer, Flat .75 x 1.50 x .25
69 5WP44640 Washer, Cup 1.04 x 2.25 x .17
70 5WP34467 Washer, Flat .63 x 2.00 x .38
71 5WP10635 Washer, Cup .63 x 1.75 x 14 Ga
72 * Washer, Flat 3/8 standard
73 * Washer, Flat 1/2 standard
74 5WP57811 8 Washer, Flat 1/2 extra thick hrd
75 * Washer, Lock 3/8
76 5WP1258 Bolt, Wheel 1/2 NF x 1-1/8
77 * Grease fitting, 1/4-28 90° Tapered
thread
78 5WP12128 Ring, Retaining .06 x 72 MM
79 * Pin, Spirol 3/8 x 1-1/2
80 * Grease fitting,1/4-28 Taper thread
81 * Pin, Safety 3/16
82 5WP62789 Screw, HHCS 1/2 NC x 2 FT GR5
83 * Screw, HHCS1/2 NC x 1-3/4 GR5
84 5WP14139 Nut, Flanged lock 5/16 NC
85 * Bolt, Carriage 5/16 NC x 1/2
86 5WP1004251 1 SMV Bracket
87 5WP24611 1 Sign (SMV) Slow moving vehicle
* Standard Hardware, Obtain Locally
5WPMAN0183 (Rev. 7/9/2008)
Parts 41
FM1012, FM1015 & FM1017 WING FRAME
REF PART QTY DESCRIPTION
1 5WP1000610 1 Frame, Right wing (FM1012)
-or-
1 5WP1006340 1 Frame, Right wing (FM1015)
-or-
1 5WP1000614 1 Frame, Right wing (FM1017)
2 5WP1000611 1 Frame, Left wing (FM1012)
-or-
2 5WP1006341 1 Frame, Left wing (FM1015)
-or-
2 5WP1000615 1 Frame, Left wing (FM1017)
3 5WP40907 2 Link, Wing deck lift (FM1012)
-or-
3 5WP40881 2 Link, Wing deck lift (FM1015,
FM1017)
REF PART QTY DESCRIPTION
4 5WP40895 2 Trunnion, Front deck (FM1012,
FM1015)
-or-
4 5WP40887 2 Trunnion, Front deck (FM1017)
5 5WP40896 2 Trunnion, Rear deck (FM1012,
FM1015)
-or-
5 5WP40888 2 Trunnion, Rear deck (FM1017)
6 5WP58980 2 Pin, Wing deck link
7 5WP58982 4 Pin, Deck link trunnion
8 * 6 Pin, Safety 3/16
9 5WP71444 2 Rubber bumper
10 5WP14139 2 Nut, Flanged lock 5/16 NC
11 5WP38264 2 Pin, Lynch chain & cotter asy
* Standard Hardware, Obtain Locally
42 Parts
5WPMAN0183 (Rev. 7/9/2008)
FM1012 CENTER DECK
FM1015 & FM1017 CENTER & WING DECK ASSEMBLY
REF PART QTY DESCRIPTION
1 5WP1000618 1 Deck, Weld asy 6 Foot (FM1015
center, FM1017 all) -or-
1 5WP1000617 1 Deck, Weld assembly 5 Foot
(FM1012 center, FM1015 wings)
2 5WP18879 1 V-Belt W112 (FM1015 center,
FM1017 all) -or-
2 5WP1001244 1 V-Belt W99 (FM1012 center,
FM1015 wings)
3 3 CW Spindle asy (See page 48)
4 5WP44635 2 Shield, Belt (FM1015 center,
FM1017 all) -or-
4 5WP44634 2 Shield, Belt (FM1012 center,
FM1015 wings)
5 5WP53534 1 Gearbox stand
6 5WP1002499 1 Gearbox, 1:1.92 (See page 47)
7 5WP65197 1 Sheave, Offset 12.4 P.D.
8 5WP29792 1 Key, HT 1/4 x 1/4 x 1-1/4
9 5WP53567 1 Guide, Belt 8 Ga formed
10 5WP64555 1 Idler, Flat 5.5 dia.
REF PART QTY DESCRIPTION
11 5WP58989 1 Idler arm assembly
12 5WP53595 1 Idler, Flat 5.0 Dia.
13 5WP67131 1 Spring, Ext .177 x 1.22 x 9.88
14 5WP35193 2 Bearing, Ball
50 5WP35141 Ring, Retaining int .062 x 1.56
51 5WP302178 Nut, Castle 5/8 NF
52 * Pin, Cotter 3/16 x 1-1/2
53 * Screw, HHCS 1/2 NC x 2-1/2 GR5
54 * Washer, Flat 1/2 standard
57 5WP11900 Nut, Flanged lock 1/2 NC
58 5WP19024 Screw, Flngd hex head 5/8 NC x 1-3/4
59 5WP1517 Washer, Flat .63 x 1.38 x 7 Ga
60 5WP19025 Nut, Flanged lock 5/8 NC
61 5WP4358 Screw, HHCS 1/2 NF x 1-1/4 GR5
62 5WP62153 Bolt, Flngd whiz 3/8 NC x 1
* Standard Hardware, Obtain Locally
5WPMAN0183 (Rev. 7/9/2008)
Parts 43
FM1012 WING DECK ASSEMBLY
REF PART QTY DESCRIPTION
1 5WP1000609 1 Deck, Weld asy 4 foot left -or-
1 5WP1000608 1 Deck, Weld asy 4 foot right (NS)
2 5WP40930 1 V-Belt, W80
3 3 CW Spindle asly (See page 48)
4 5WP58953 1 Shield, Belt left -or-
4 5WP58954 1 Shield, Belt right (NS)
5 5WP58295 1 Gearbox stand, Left -or-
5 5WP58294 1 Gearbox stand, Right (NS)
6 5WP1002499 1 Gearbox, 1:1.92 (See page 47)
7 5WP65197 1 Sheave, Offset 12.4 PD
8 5WP29792 1 Key, HT 1/4 x 1/4 x 1-1/4
9 5WP53567 1 Guide, Belt 8 Ga formed
10 5WP58952 2 Shield, Belt inner
11 5WP57939 1 Idler arm assembly
12 5WP57972 1 Idler, Flat 6.0 Dia
44 Parts
REF PART QTY DESCRIPTION
13 5WP67131 1 Spring, Ext .177 x 1.22 x 9.88
14 5WP35193 2 Bearing, Ball
50 5WP35141 Ring, Retaining int .062 x 1.56
51 5WP302178 Nut, Castle 5/8 NF
52 * Pin, Cotter 3/16 x 1-1/2
53 * Screw, HHCS 1/2 NC x 2-1/2 GR5
54 * Washer, Flat 1/2 standard
56 5WP52877 Sleeve, .51 x .63 x .64
57 5WP11900 Nut, Flanged lock 1/2 NC
58 5WP19024 Screw, Flngd hex head 5/8 NC x 1-3/4
60 5WP19025 Nut, Flanged lock 5/8 NC
61 5WP4358 Screw, HHCS 1/2 NF x 1-1/4 GR5
62 5WP62153 Bolt, Flngd whiz 3/8 NC x 1
NS Not Shown
* Standard Hardware, Obtain Locally
5WPMAN0183 (Rev. 7/9/2008)
NON-ROTATING
ROTATING
REF PART QTY DESCRIPTION
1 5WP38267G 1 Wheel & hub 15.00 x 6.00 x 6 Gray
5WP38476G Wheel rim & hub, 6.00 x 6 w/Cups
gray
2 * 1 Grease fitting, 1/8 Pipe thread
3 5WP2306 2 Bearing, Cup
4 5WP2304 2 Bearing, Cone
5 5WP5624 2 Seal, 1.13 x 1.78 x .47
6 5WP14318 2 Sleeve, HT .75 x 1.13 x 1.25
7 5WP38111 1 Sleeve, HT .53 x .75 x 6.75
8 5WP58958 1 Caster yoke & shaft asy, Rotating
-or- -or-
8 5WP58961 1 Caster yoke & shaft asy,
Non-rotating
9 5WP35124 1 Pin, Klik 7/16 x 2
10 5WP38107 1 Screw, HHCS 1/2 NC x 9 GR5
11 * 1 Nut, Hex 1/2 NC
12 5WP11900 1 Nut, Flanged lock 1/2 NC
REF PART QTY DESCRIPTION
Non-Rotating:
13A 5WP58987 2 Sleeve, 1.50 x 1.90 x 1.00
14A 5WP58986 2 Sleeve, 1.50 x 1.90 x .75
15A 5WP58985 1 Sleeve, 1.50 x 1.90 x .50
16A 5WP6237 1 Washer, Flat 1.50 x 2.25 x 13 Ga
Rotating:
13B 5WP52855 2 Sleeve, 1.25 x 1.90 x 1.00
14B 5WP52854 2 Sleeve, 1.25 x 1.90 x .75
15B 5WP52853 1 Sleeve, 1.25 x 1.90 x .50
16B 5WP7163 1 Washer, Flat 1.25 standard
* Standard Hardware, Obtain Locally
CASTER WHEELS
5WPMAN0183 (Rev. 7/9/2008)
Parts 45
HEIGHT ADJUSTMENT POST
REF PART QTY DESCRIPTION
1 5WP58998 1 Sleeve, Drld .81 x 1.25 x 8.00
2 5WP58999 1 Wear pad
3 * 1 Pin, Spirol .25 x 1.00
4 5WP35124 1 Pin, Klik 7/16 x 2
5 5WP52855 2 Sleeve, 1.28 x 1.66 x 1.00
6 5WP52854 2 Sleeve, 1.28 x 1.66 x .75
7 5WP52853 1 Sleeve, 1.28 x 1.66 x .50
8 * 1 Washer, Flat 1-1/4 standard
* Standard Hardware, Obtain Locally
HUB & AXLE ASSEMBLY
REF PART QTY DESCRIPTION
1 5WP1001020 1 Wheel hub & axle assembly
2 5WP1001021 1 Axle shaft
3 5WP314 1 Seal, 1.50 x 2.44 x .31
4 5WP2303 2 Bearing, Cone
5 5WP38437 1 Wheel hub, Housing w/cups
6 5WP2305 2 Bearing, Cup
7 * 2 Washer, Flat 3/4 standard
8 5WP5849 1 Nut, Slotted hex 3/4 NF
9 * 1 Pin, Cotter 3/16 x 1
10 5WP14133 1 Hub cap, Assembly w/fitting
11 5WP531 1 Hub cap
12 * 1 Grease fitting, 1/4 Tapered thread
* Standard Hardware, Obtain Locally
46 Parts
5WPMAN0183 (Rev. 7/9/2008)
WING GEARBOX ASSEMBLY
REF PART QTY DESCRIPTION
A 5WP1002499 1 Gearbox asy, complete
1 5WP57458 1 Gear crown Z25 M5.3
2 NS 1 Gearbox housing
3 5WP1005320 1 Shaft, Input 1-3/8 -6
4 5WP1005321 1 Shaft, Output 1-1/4
5 5WP57491 1 Pinion gear Z13 M5.3
6 5WP57476 1 Bearing
7 5WP57462 1 Bearing
8 5WP20888 1 Washer, Protective flat
9 * 1 Pin, Cotter 4 x 50
10 5WP57466 2 Snap ring
11 5WP20895 1 Snap ring
12 5WP57373 1 Spacer 35.5 x 48 x 2.5
13 5WP57328 2 Kit, Shim 60.3 x 71.6
14 5WP57468 1 Nut, Castle
15 5WP51946 1 Nut, Castle M24 x 2
16 5WP57328 1 Kit, Shim 30.3 x 44
17 5WP57473 1 Washer, Flat
18 5WP20900 1 Seal, Oil 40 x 80 x 12
19 5WP57463 1 Seal, Oil 35 x 72 x 10
20 5WP57374 1 Cap
21 5WP20897 1 Snap ring
REF PART QTY DESCRIPTION
22 5WP1005322 1 Cover, Top
23 * 6 Bolt 8 mm x 14 mm
24 5WP57076 1 Plug, Breather level
25 * 1 Pin, Cotter 5 x 50
26 5WP57478 1 Bearing
27 5WP20890 1 Bearing, Ball
NS Not Serviced
* Standard Hardware - Obtain Locally
5WPMAN0183 (Rev. 7/9/2008)
Parts 47
BLADE & SPINDLE ASSEMBLY
REF PART QTY DESCRIPTION
1 5WP37009 Nut, Jam 7/8 NF
2 * Screw HHCS 1/4 NC x 1 GR5
3 5WP52898 Washer, Lock .929 x 1.66
4 * Washer, Lock 1/4
5 5WP34440 Bushing, H 1 Strt bore w/key
6 5WP12622 Sheave, H 1 BK 5.0 PD (FM1012 wing
deck & FM1015 rear deck & FM1017 wWing & rear deck) -or-
6 5WP66694 Sheave, H 1 BK 4.17 PD (FM1012)
rear deck, FM1015 wing deck)
7 5WP52881 Spindle assembly complete
8 5WP52949 Seal 1.50 x 2.12 x .31
9 5WP52872 Sleeve 1.14 x 1.50 x .55
10 5WP29899 Bearing, Cone
11 5WP52882 Spindle, Housing with cups
12 5WP29898 Bearing, Cup
14 5WP52852 Shaft, Blade spindle
19 5WP4358 Screw, HHCS 1/2 NF x 1-1/4 GR5
21 * Grease fitting, 1/4-28 Tapered thread
22 5WP3379 Screw, HHCS 1/2 NC x 1-1/2 GR5
23 5WP11900 Nut, Flanged lock 1/2 NC
* Standard Hardware - Obtain Locally
BLADE KITS
5WP7144BDKT Blade kit, High Lift FM1012 complete 5WP9180BDKT Blade kit, High Lift FM1015 complete 5WP9204BDKT Blade kit, High Lift FM1017 complete
5WP7144BDKT2 Blade kit, Low lift FM1012 complete 5WP9180BDKT2 Blade kit, Low lift FM1015 complete 5WP9204BDKT2 Blade kit, Low lift FM1017 complete
5WP1008199K2 Blade kit, High lift, 48" Decks
5WP1001511K2 Blade kit, Low lift, 48" Decks
5WP1001513KT Blade kit, High lift, 60" Decks 5WP1001510KT Blade kit, Low lift, 60" Decks
5WP1008199KT Blade kit, High lift 72" Decks
5WP1001511KT Blade kit, Low lift 72" Decks
48 Parts
5WPMAN0183 (Rev. 7/9/2008)
FM1012 CENTER DECK AND
REF PART QTY DESCRIPTION
5WP1006417 1 Front roller kit, complete
2 * 1 1/2 NC Flanged lock nut
3 5WP38107 1 1/2 NC x 9 Cap screw GR5
4 * 2 1/2 Flat washer SAE
5 * 4 3/8 NC x 1 Carriage bolt
6 5WP70069 4 3/8 NC Flanged whiz nut
7 5WP1006420 1 Spacer, .75 x 6.62
8 5WP1006419 1 Bracket, Front roller
9 5WP1006418 1 Roller, 4 x 7.37
10 5WP35193 2 Bearing
* Standard Hardware, Obtain Locally
REF PART QTY DESCRIPTION
5WP1006421 Roller kit, Front complete
2 * 1 1/2 NC Flanged lock nut
3 5WP38107 1 1/2 NC x 9 Cap screw GR5
4 * 2 1/2 Flat washer SAE
5 * 4 3/8 NC x 1 Carriage bolt
6 5WP70069 4 3/8 NC Flanged whiz nut
7 5WP1006420 1 Spacer, .75 x 6.62
8 5WP1006422 1 Bracket, Front roller right
9 5WP1006423 1 Bracket, Front roller left
10 5WP1006418 1 Roller, 4 x 7.37
11 5WP35193 2 Bearing
* Standard Hardware, Obtain Locally
FM1015 & FM1017 FRONT ROLLER ASSEMBLY (OPTIONAL)
FM1012 WING DECK ANTI-SCALP ROLLER KIT
5WPMAN0183 (Rev. 7/9/2008)
Parts 49
FM1012, FM1015 & FM1017 REAR & WING DECK DRIVES (COMER)
FM1012 Wing Drive FM1015 Wing Drive
REF PART QTY DESCRIPTION
A 5WP1023226 Drive, Cmpl 40, 21.3 x 32.3
1 5WP1026999 1 Complete collar yoke C12
2 5WP36990 1 U-Joint Repair Kit 50
3 5WP38478 1 U-Joint Repair Kit 2300
4 5WP1001300 1 Complete collar yoke C12 1-3/8 - 6
5 5WP1019442 1 Outer cone fix ring
6 5WP30922 6 Protection fixing screw
7 5WP1019444 1 Inner cone fix ring
8 5WP1026987 1 Complete shield
9 NSS 1 Outer half shaft
10 NSS 1 Inner half shaft
11 5WP1001340 2 Lock collar repair kit
12 5WP1001306 1 Inner tube yoke
13 5WP1001305 1 Flexible pin
14 5WP1026985 1 Outer yoke & tube
15 5WP1026986 1 Inner yoke & tube
REF PART QTY DESCRIPTION
A 5WP1023227 Drive, Cmpl 40, 25.6 x 40.9
1 5WP1026999 1 Complete collar yoke C12
2 5WP36990 1 U-Joint Repair Kit 50
3 5WP38478 1 U-Joint Repair Kit 2300
4 5WP1001300 1 Complete collar yoke C12 1-3/8 - 6
5 5WP1019442 1 Outer cone fix ring
6 5WP30922 6 Protection fixing screw
7 5WP1019444 1 Inner cone fix ring
8 5WP1026990 1 Complete shield
9 NSS 1 Outer half shaft
10 NSS 1 Inner half shaft
11 5WP1001340 2 Lock collar repair kit
12 5WP1001306 1 Inner tube yoke
13 5WP1001305 1 Flexible pin
14 5WP1026988 1 Outer yoke & tube
15 5WP1026989 1 Inner yoke & tube
FM1017 Wing Drive All Rear Wing Drives
REF PART QTY DESCRIPTION
A 5WP1023228 Drive, Cmpl 40, 28.3 x 46.4
1 5WP1026999 1 Complete collar yoke C12
2 5WP36990 1 U-Joint Repair Kit 50
3 5WP38478 1 U-Joint Repair Kit 2300
4 5WP1001300 1 Complete collar yoke C12 1-3/8 - 6
5 5WP1019442 1 Outer cone fix ring
6 5WP30922 6 Protection fixing screw
7 5WP1019444 1 Inner cone fix ring
8 5WP1026998 1 Complete shield
9 NSS 1 Outer half shaft
10 NSS 1 Inner half shaft
11 5WP1001340 2 Lock collar repair kit
12 5WP1001306 1 Inner tube yoke
13 5WP1001305 1 Flexible pin
14 5WP1026991 1 Outer yoke & tube
15 5WP1026992 1 Inner yoke & tube
REF PART QTY DESCRIPTION
A 5WP1023225 Drive, Cmpl 40, 26.9 x 43.5
1 5WP1001300 1 Complete collar yoke C12 1-3/8 - 6
2 5WP38478 1 U-Joint Repair Kit 2300
3 5WP38478 1 U-Joint Repair Kit 2300
4 5WP1001300 1 Complete collar yoke C12 1-3/8 - 6
5 5WP1019442 1 Outer cone fix ring
6 5WP30922 6 Protection fixing screw
7 5WP1019444 1 Inner cone fix ring
8 5WP1026984 1 Complete shield
9 5WP1026978 1 Outer half shaft
(includes outer half of item 8)
10 5WP1026979 1 Inner half shaft
(includes inner half of item 8)
11 5WP1001340 2 Lock collar repair kit
12 5WP1001306 1 Inner tube yoke
13 5WP1001305 1 Flexible pin
14 NSS 1 Outer yoke & tube
15 NSS 1 Inner yoke & tube
50 Parts
NSS Not Serviced Separately
5WPMAN0183 (Rev. 7/9/2008)
FM1012, FM1015 & FM1017 REAR & WING DECK DRIVES (COMER)
Check profile and order from correct parts list.
5WPMAN0183 (Rev. 7/9/2008)
Parts 51
FM1012, FM1015 & FM1017 REAR & WING DECK DRIVES (WALTERSCHEID)
FM1012 Wing Drive FM1015 Wing Drive
REF PART QTY DESCRIPTION
A 5WP44628 - Drive, Compl 2300, 21.7 x 32.6
1 5WP44681 1 Yoke, 1-3/8 - 6 Spline QD
2 5WP38352 1 U-Joint Repair Kit 2400
3 5WP38394 1 Slide Lock Collar Repair Kit
4 5WP40778 2 Screw, Guard Retainer
5 5WP40766 2 Bearing Ring, Guard
6 5WP40777 2 Chain, Guard Anti-Rotation
7 5WP38498 1 Yoke, 1-3/8 - 6 Spline QD
8 5WP38478 1 U-Joint Repair Kit 2300
9 5WP40589 1 Slide Lock Collar Repair Kit
10 5WP44682 1 Yoke & Shaft, Male
11 5WP44693 1 Guard, Outer Half
12 5WP44665 1 Drive, Male Half Complete
13 5WP44683 1 Yoke & Shaft, Female
14 5WP44694 1 Guard, Inner Half
15 5WP44666 1 Drive, Female Half Complete
REF PART QTY DESCRIPTION
A 5WP44629 - Drive, Compl 2300, 26.0 x 41.5
1 5WP44681 1 Yoke, 1-3/8 - 6 Spline QD
2 5WP38352 1 U-Joint Repair Kit 2400
3 5WP38394 1 Slide Lock Collar Repair Kit
4 5WP40778 2 Screw, Guard Retainer
5 5WP40766 2 Bearing Ring, Guard
6 5WP40777 2 Chain, Guard Anti-Rotation
7 5WP38498 1 Yoke, 1-3/8 - 6 Spline QD
8 5WP38478 1 U-Joint Repair Kit 2300
9 5WP40589 1 Slide Lock Collar Repair Kit
10 5WP44684 1 Yoke & Shaft, Male
11 5WP44695 1 Guard, Outer Half
12 5WP44667 1 Drive, Male Half Complete
13 5WP44685 1 Yoke & Shaft, Female
14 5WP44696 1 Guard, Inner Half
15 5WP44668 1 Drive, Female Half Complete
FM1017 Wing Drive All Rear Wing Drives
REF PART QTY DESCRIPTION
A 5WP44630 - Drive, Compl 2300, 28.7 x 47.0
1 5WP44681 1 Yoke, 1-3/8 - 6 Spline QD
2 5WP38352 1 U-Joint Repair Kit 2400
3 5WP38394 1 Slide Lock Collar Repair Kit
4 5WP40778 2 Screw, Guard Retainer
5 5WP40766 2 Bearing Ring, Guard
6 5WP40777 2 Chain, Guard Anti-Rotation
7 5WP38498 1 Yoke, 1-3/8 - 6 Spline QD
8 5WP38478 1 U-Joint Repair Kit 2300
9 5WP40589 1 Slide Lock Collar Repair Kit
10 5WP44686 1 Yoke & Shaft, Male
11 5WP44697 1 Guard, Outer Half
12 5WP44669 1 Drive, Male Half Complete
13 5WP44687 1 Yoke & Shaft, Female
14 5WP44698 1 Guard, Inner Half
15 5WP44670 1 Drive, Female Half Complete
REF PART QTY DESCRIPTION
A 5WP44627 - Drive, Compl 2300, 26.8 x 43.3
1 5WP38498 1 Yoke, 1-3/8 - 6 Spline QD
2 5WP38478 1 U-Joint Repair Kit 2300
3 5WP40589 1 Slide Lock Collar Repair Kit
4 5WP40778 2 Screw, Guard Retainer
5 5WP40766 2 Bearing Ring, Guard
6 5WP40777 2 Chain, Guard Anti-Rotation
7 5WP38498 1 Yoke, 1-3/8 - 6 Spline QD
8 5WP38478 1 U-Joint Repair Kit 2300
9 5WP40589 1 Slide Lock Collar Repair Kit
10 5WP44679 1 Yoke & Shaft, Male
11 5WP44691 1 Guard, Outer Half
12 5WP44663 1 Drive, Male Half Complete
13 5WP44680 1 Yoke & Shaft, Female
14 5WP44692 1 Guard, Inner Half
15 5WP44664 1 Drive, Female Half Complete
52 Parts
5WPMAN0183 (Rev. 7/9/2008)
FM1012, FM1015 & FM1017 REAR & WING DECK DRIVES (WALTERSCHEID)
LIGHTING KIT
REF PART QTY DESCRIPTION
A 5WP1004486 - Lighting kit
1 5WP90401149 1 Lighting 4 pin LH
2 5WP90401150 1 Lighting 4 pin RH
3 5WP1004481 1 Light bracket LH
4 5WP1004480 1 Light bracket RH
5 5WP1004479 1 Wire harness
6 * - 356 mm (14 in) Tie strap
7 * - 178 mm (7 in) Tie strap
8 * - #10 x 1/2 Tapping screw
9 * - 1/4 NC x 1 Hex head cap screw GR5
10 * - 1/4 NC Lock nut
11 5WP62153 - 3/8 NC x 1 Hex hd cap screw flanged GR5
12 5WP14350 - 3/8 NC Flange lock nut
13 * - 3/8 Std Flat washer
* Obtain Locally
Check profile and order from correct parts list.
5WPMAN0183 (Rev. 7/9/2008)
Parts 53
CV DRIVE ASSEMBLY
PAGE 54
PAG E 5 5
(WALTERSCHEID PROFILE)
REF PART QTY DESCRIPTION
5WP44625 Drive, Walterscheid complete CV
2480, 35.8 x 48.4
1 5WP44671 1 Yoke, 1-3/8 - 6 Spline QD
2 5WP44674 1 U-Joint repair kit 2480
3 5WP38394 1 Slide lock collar repair kit
4 5WP40778 2 Screw, Guard retainer
5 5WP40766 2 Bearing ring, Guard
6 5WP40777 1 Chain, Guard anti-rotation
7 5WP40779 1 Grease fitting, Drive line
8 5WP44699 1 Shield, CV Cone & bearing
9 5WP44672 1 CV Body
10 5WP44673 1 Yoke, Inner profile
54 Parts
REF PART QTY DESCRIPTION
11 5WP44688 1 Guard, Outer half
12 5WP44661 1 Drive, Inner half complete
13 5WP44677 1 Yoke, Outer profile
14 5WP44689 1 Guard, Inner half
15 5WP44662 1 Drive, Outer half complete
16 5WP38352 1 U-Joint repair kit 2400
17 5WP40764 2 Pin, Spring 10mm x 80mm
18 5WP44675 1 Drive tube, Inner profile
19 5WP44676 1 Drive tube, Outer profile
20 5WP40767 1 Bearing, Guard support
21 5WP38351 1 Yoke, 1-3/8 - 6 Spline QD
5WPMAN0183 (Rev. 7/9/2008)
CV DRIVE ASSEMBLY
PAG E 5 4
PAGE 55
(WEASLER PROFILE)
REF PART QTY DESCRIPTION
A 5WP1021100 1 Drive, Weasler complete CV 35R,
1 5WP19851 2 Slide lock repair kit
2 5WP1021301 1 Yoke QD CV 1-3/8 - 6
3 5WP52520 2 U-Joint repair kit 35CV
4 5WP52522 1 CV Body w/fitting
5 5WP1021321 1 Yoke and shaft - CV splined 20.9
6 5WP1024636 2 Drive shaft bearing kit
7 5WP18864 1 Decal, danger rotating driveline
8 5WP1021302 1 Outer shield CV
9 5WP1021303 1 Inner shield CV
10 5WP33347 1 Decal, danger guard missing
11 5WP1021304 1 Yoke and tube 35R x 27.5 x 1.31 - 20
12 5WP110 1 Universal joint repair kit 35N
13 5WP55143 1 Yoke QD 36 1-3/8 - 6
5WPMAN0183 (Rev. 7/9/2008)
35.0 x 47.6
Parts 55
FM1012, FM1015 & FM1017 JACKSHAFT DRIVE ASSEMBLY (WALTERSCHEID)
Check profile and order from correct parts list.
REF PART QTY DESCRIPTION
A 5WP44626 Drive, Yk & shft non-tel 2400 x 26.4
1 5WP38351 1 Yoke, 1-3/8 - 6 Spline QD
2 5WP38352 1 U-Joint repair kit 2400
3 5WP38394 1 Slide lock collar repair Kit
4 5WP38353 1 Yoke, Inboard
5 5WP40764 1 Pin, Spring 10mm x 80mm
FM1012, FM1015 & FM1017 JACKSHAFT DRIVE ASSEMBLY (COMER)
REF PART QTY DESCRIPTION
6 5WP44678 1 Shaft, Stub 1-3/8 - 6 x 26.38
7 5WP40778 1 Screw, Guard retainer
8 5WP40766 1 Bearing ring, Guard
9 5WP40777 1 Chain, Guard anti-rotation
10 5WP40767 1 Bearing, Guard support
11 5WP44690 1 Guard, Inner half
REF PART QTY DESCRIPTION
A 5WP1011759 Complete jackshaft drive asy
1 5WP1028775 1 Complete collar yoke
2 5WP36990 1 U-Joint repair kit
3 5WP1011756 1 Yoke, outer
4 5WP1001330 1 Flexible pin
5 5WP1028776 1 Outer bearing ring
56 Parts
REF PART QTY DESCRIPTION
6 5WP30922 6 Retainer, shield
7 5WP1011757 1 Centering ring
8 5WP1011755 1 Inner bearing ring
9 5WP1011754 1 Shield, complete (includes 5, 6, 7
& 8)
10 5WP1001340 1 Lock collar repair kit
11 NSS 1 Jackshaft
NSS Not Serviced Separately
5WPMAN0183 (Rev. 7/9/2008)
REAR CHAIN SHIELDING ASSEMBLY
REF PART QTY DESCRIPTION
- 5WP55348 Chain shield assembly, 5 ft. deck
- 5WP53566 Chain shield assembly, 6 ft. deck
- Chain shield assembly, 4 ft. deck
1 5WP1007854 1 Pin, 40 to 42 chains (5 ft) -or-
1 5WP1007856 1 Pin, 52 to 54 chains (6 ft) -or-
1 5WP1007850 1 Pin, 31 to 33 chains (4 ft)
2 5WP4763 - Chain, 3 link, 1/4 Proof (use 54 for 5 ft;
66 for 6 ft, 41 for 4 ft)
3 5WP55345 1 Shield, Chain plate (5 ft) -or-
3 5WP53554 1 Shield, Chain plate (6 ft) -or-
3 5WP58997 1 Shield, Chain plate (4 ft)
14 * Bolt, Carriage 3/8 NC x 1
15 5WP14350 Nut, Flanged lock 3/8 NC
*nStandard Hardware, Obtain Locally
nNo longer sold as a complete assembly: Order separately:
1 of 5WP58997, 1 of 5WP1007850, 3 of 5WP14350, 41 of 5WP4763, and obtain locally 3 Carriage bolts 3/8 NC x 1”
5WPMAN0183 (Rev. 7/9/2008)
Parts 57
HYDRAULIC CYLINDERS
Note: The center deck uses a 3 x 8 cylinder.
The wing decks use 3 x 10 cylinders. Verify cylinder size before ordering replacement parts.
3 x 8 3 x 10
REF PART PART QTY DESCRIPTION
1 5WP29547 5WP1019460 Complete cylinder
2 5WP19810 5WP19810 1 Seal repair kit (includes items 2A - 2G 2A 1 Wiper seal 2B 1 Rod seal 2C 1 Rod O-ring 2D 2 Cap seal 2E 2 Cap O-ring 2F 2 Piston seal
2G 1 Piston O-ring
3 N/S N/S 1 Cylinder housing - rod end
4N/S N/S1Piston
5N/S N/S1Jam nut
6 N/S N/S 4 Cylinder tie rod
7 * * 3 1/2 Pipe plug
8 N/S N/S 1 Cylinder housing - butt end
9 N/S N/S 2 Cylinder barrel
10 N/S N/S 8 Tie rod nut 11 N/S N/S 1 Cylinder clevis 12 N/S N/S 1 Cylinder rod 13 * * 1 Set screw 3/8 x 3/4 dog point
Included in seal kit
* Standard hardware, obtain locally
N/S Not serviced
58 Parts
5WPMAN0183 (Rev. 7/9/2008)
HYDRAULIC HOSE ASSEMBLY
REF PART QTY DESCRIPTION
14 5WP1019460 2 Cylinder, Hydraulic 3 x 10 (See pg 58)
15 5WP29547 1 Cylinder, Hydraulic 3 x 8 (See pg 58)
16 5WP8346 4 Pin, Headless 1.00 x 4.58
17 5WP1631 2 Pin, Headless 1.00 x 3.63
18 * Pin, Cotter 1/4 x 1-3/4
19 5WP1006404 1 Hose, 108" x 9/16 JICF x 1/4 NPTM
20 5WP1006403 1 Hose, 48" x 9/16 JICF x 9/16 JICM
21 5WP1006402 3 Hose, 33" x 9/16 JICF x 9/16 JICM
22 5WP1006401 1 Cross, 9/16 JICM x 1/4 NPTF
23 5WP1006400 1 Bulkhead fitting, 9/16 JICM x 1/4 NPTM
24 5WP1006405 3 Elbow, 9/16 JICF x 1/2 NPTM 90° 3/32 RSTR
* Standard Hardware, Obtain Locally
5WPMAN0183 (Rev. 7/9/2008)
Parts 59
BOLT TORQUE CHART
A
SAE SERIES TORQUE CHART
SAE Bolt Head
Identification
SAE Grade 2
(No Dashes)
SAE Grade 5
(3 Radial Dashes)
SAE Grade 8
(6 Radial Dashes)
A
METRIC SERIES TORQUE CHART
Metric Bolt Head
Identification
8.8
Metric
Grade 10.9
10.9
Metric
Grade 8.8
A
A
A
Typical Washer Installations
Lock Washer
Flat Washer
8/9/00
Bolt
Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific application.
Fasteners must always be replaced with the same grade as specified in the manual parts list. Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for metric hardware. Make sure fastener threads are clean and you start thread engagement properly. All torque values are given to specifications used on hardware defined by SAE J1701 MAR 99 & J1701M JUL 96.
MARKING ON HEAD
Diameter
(Inches)
1/4" 7/16" 6 8 10 13 14 18
5/16"1/2"121719262737
3/8"9/16"233135474967
7/16"5/8"3648557578106
1/2" 3/4" 55 75 85 115 120 163
9/16" 13/16" 78 106 121 164 171 232
5/8" 15/16" 110 149 170 230 240 325
3/4" 1-1/8" 192 261 297 403 420 569
7/8" 1-5/16" 306 416 474 642 669 907
1" 1-1/2" 467 634 722 979 1020 1383
Wrench
Size
SAE 2 SAE 5 SAE 8
lbs-ft N-m lbs-ft N-m lbs-ft N-m
Coarse Thread Fine Thread
Marking on Head Marking on Head
Diameter &
Thread Pitch
(Millimeters)
6 x 1.0 10 mm 8 6 11 8 8 6 11 8 6 x 1.0
8 x 1.25 13 mm 20 15 27 20 21 16 29 22 8 x 1.0
10 x 1.5 16 mm 39 29 54 40 41 30 57 42 10 x 1.25
12 x 1.75 18 mm 68 50 94 70 75 55 103 76 12 x 1.25
14 x 2.0 21 mm 109 80 151 111 118 87 163 120 14 x 1.5
16 x 2.0 24 mm 169 125 234 173 181 133 250 184 16 x 1.5
18 x 2.5 27 mm 234 172 323 239 263 194 363 268 18 x 1.5
20 x 2.5 30 mm 330 244 457 337 367 270 507 374 20 x 1.5
22 x 2.5 34 mm 451 332 623 460 495 365 684 505 22 x 1.5
24 x 3.0 36 mm 571 421 790 583 623 459 861 635 24 x 2.0
30 x 3.0 46 mm 1175 867 1626 1199 1258 928 1740 1283 30 x 2.0
60 Appendix
Wrench
Size
Metric 8.8 Metric 10.9 Metric 8.8 Metric 10.9
N-m lbs-ft N-m lbs-ft N-m lbs-ft N-m lbs-ft
Diameter &
Thread Pitch
(Millimeters)
Bolt Torque & Size Charts (Rev. 3/28/2007)
BOLT SIZE CHART
5/16 3/8 1/2 5/8 3/4 7/8
SAE Bolt Thread Sizes
MM 25 50 75 100 125 150 175
IN 1 7
Metric Bolt Thread Sizes
8MM 18MM14MM12MM10MM 16MM
2
34
5
6
NOTE: Chart shows bolt thread sizes and corresponding head (wrench) sizes for standard SAE and metric bolts.
ABBREVIATIONS
AG .............................................................. Agriculture
ASABE.................... American Society of Agricultural &
Biological Engineers (formerly ASAE)
ASAE ....... American Society of Agricultural Engineers
ATF ............................... Automatic Transmission Fluid
BSPP .............................British Standard Pipe Parallel
BSPTM ................British Standard Pipe Tapered Male
CV.....................................................Constant Velocity
CCW .............................................. Counter-Clockwise
CW............................................................... Clockwise
F ...................................................................... Female
FT ..............................................................Full Thread
GA .................................................................... Gauge
GR (5, etc.) ........................................... Grade (5, etc.)
HHCS ........................................Hex Head Cap Screw
HT........................................................... Heat-Treated
JIC .................Joint Industry Council 37° Degree Flare
LH .................................................................Left Hand
LT........................................................................... Left
m......................................................................... Meter
mm................................................................ Millimeter
M.......................................................................... Male
MPa......................................................... Mega Pascal
N.......................................................................Newton
NC ......................................................National Coarse
NF ...........................................................National Fine
NPSM.....................National Pipe Straight Mechanical
NPT .......................................... National Pipe Tapered
NPT SWF .........National Pipe Tapered Swivel Female
ORBM .......................................... O-Ring Boss - Male
P...........................................................................Pitch
PBY ...................................................... Power-Beyond
psi..........................................Pounds per Square Inch
PTO.....................................................Power Take Off
QD....................................................Quick Disconnect
RH ..............................................................Right Hand
ROPS ........................... Roll-Over Protective Structure
RPM ........................................Revolutions Per Minute
RT ....................................................................... Right
SAE ..........................Society of Automotive Engineers
UNC .....................................................Unified Coarse
UNF...........................................................Unified Fine
UNS......................................................Unified Special
Bolt Torque & Size Charts (Rev. 3/28/2007)
Appendix 61
INDEX
ASSEMBLY
Dealer Set-up Instructions 34
DEALER CHECK LISTS
Delivery (Dealer’s Responsibility) 36 Pre-Delivery (Dealer’s Responsibility) 36
DEALER SERVICE
Blade Spindle
Assembly 27 Disassembly 27 Installation 28 Removal 26
Servicing 26 Blocking Method 26 Drive Sheave Installation 32 Gearbox
Disassembly 30
Horizontal Leak Repair 29
Installation 32
Reassembly 30
Removal from Mower 30
Repair 29
Seal Installation 29
Seal Replacement 29
Vertical Shaft Repair 29 Universal Joint
Assembly 33
Disassembly 32
Repair 32
Cutting Height Adjustment 14 CV Driveline Turning Limits 14 Leveling Mower 14 Operating 16
On Uneven Terrain 17 Technique 16
Tips 16 Removing Mower from Tractor 17 Starting and Stopping Mower 16 Transporting 15
OWNER SERVICE
Belt
Installation 21
Replacement 21
Routing 22 Blade
Installation 23
Servicing 22
Sharpening 23 Blocking Method 19 Cleaning
After Each Use 23
Before Storage 23 Lubrication
Deck Lubrication Points 21
Lubrication Information 20
Trailer Lubrication Points 20 Troubleshooting
Belt Conditions 25
Mowing Conditions 24
GENERAL
Abbreviations 61 Bolt Size Chart 61 Bolt Torque Chart 60 General Information 4 Introduction, Inside Front Cover Specifications 4 Warranties
Product 64 Replacement Parts 65
OPERATION
Attaching Mower to Tractor 13 Check List
Owner Pre-Operation (Owner’s Responsibility)
17
62 Index
PARTS
Parts Index 37
SAFETY
Blocking Method 19, 26 Check Lists
Dealer Delivery (Dealer’s Responsibility) 36
Dealer Pre-Delivery (Dealer’s Responsibility)
36
Owner Pre-Operation (Owner’s Responsibility)
17 Safety Decals 9-12 Safety Rules 5-8 Safety Symbols explained, Inside Front Cover Uneven Terrain 17
5WPMAN0183 (Rev. 7/9/2008)
NOTES
5WPMAN0183 (Rev. 7/9/2008)
Index 63
WARRANTY
Please enter information below and save for future reference.
Date Purchased: ______________________ From (Dealer): _________________________
Model Number: ______________________ Serial Number: _________________________
Woods Equipment Company (“WOODS”) warrants this product to be free from defect in material and workmanship. Except as otherwise set forth below, the duration of this Warranty shall be for TWELVE (12) MONTHS COMMENCING ON THE DATE OF DELIVERY OF THE PRODUCT TO THE ORIGINAL PURCHASER.
The warranty periods for certain components are listed below:
Model No. Part Warranted Duration
Gearbox
GM1060, GM1072, GM1084, FM1012, FM1015, FM1017 and GM1190
GM3054, GM3060, GM3072
components
Blade spindles
Gearbox
components
Under no circumstances will this Warranty apply in the event that the product, in the good faith opinion of WOODS, has been subjected to improper operation, improper maintenance, misuse, or an accident. This Warranty does not apply in the event that the product has been materially modified or repaired by someone other than WOODS, a WOODS authorized dealer or distributor, and/or a WOODS authorized service center. This Warranty does not cover normal wear or tear, or normal maintenance items. This Warranty also does not cover repairs made with parts other than those obtainable through WOODS.
This Warranty is extended solely to the original purchaser of the product. Should the original purchaser sell or otherwise transfer this product to a third party, this Warranty does not transfer to the third party purchaser in any way. There are no third party beneficiaries of this Warranty.
WOODS makes no warranty, express or implied, with respect to engines, batteries, tires or other parts or accessories not manufactured by WOODS. Warranties for these items, if any, are provided separately by their respective manufacturers.
WOODS’ obligation under this Warranty is limited to, at WOODS’ option, the repair or replacement, free of charge, of the product if WOODS, in its sole discretion, deems it to be defective or in noncompliance with this Warranty. The product
must be returned to WOODS with proof of purchase within thirty (30) days after such defect or noncompliance is discovered or should have been discovered, routed through the dealer and distributor from whom the purchase was made, transportation charges prepaid. WOODS shall complete such repair or replacement within a reasonable time
after WOODS receives the product. THERE ARE NO OTHER REMEDIES UNDER THIS WARRANTY. THE REMEDY OF REPAIR OR REPLACEMENT IS THE SOLE AND EXCLUSIVE REMEDY UNDER THIS WA R R A N T Y.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF THIS WARRANTY. WOODS MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND WOODS SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY AND/OR ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
WOODS shall not be liable for any incidental or consequential losses, damages or expenses, arising directly or indirectly from the product, whether such claim is based upon breach of contract, breach of warranty, negligence, strict liability in tort or any other legal theory. Without limiting the generality of the foregoing, Woods specifically
disclaims any damages relating to (i) lost profits, business, revenues or goodwill; (ii) loss of crops; (iii) loss because of delay in harvesting; (iv) any expense or loss incurred for labor, supplies, substitute machinery or rental; or (v) any other type of damage to property or economic loss.
This Warranty is subject to any existing conditions of supply which may directly affect WOODS’ ability to obtain materials or manufacture replacement parts.
No agent, representative, dealer, distributor, serviceperson, salesperson, or employee of any company, including without limitation, WOODS, its authorized dealers, distributors, and service centers, is authorized to alter, modify, or enlarge this Warranty.
For warranty services contact your selling dealer.
5 years from the date of delivery to the original purchaser
3 years from the date of delivery to the original purchaser
3 years from the date of delivery to the original purchaser (1 year if used in rental or commercial applications)
W-07011-V (Rev. 6/13/2008) (cf. F-3079)
WARRANTY
for Replacement Parts
Woods Equipment Company (“WOODS”) warrants this product to be free from defect in material and workmanship for a period of ninety (90) days from the date of delivery of the product to the original purchaser with the exception of V-belts, which will be free of defect in material and workmanship for a period of 12 months.
Under no circumstances will this Warranty apply in the event that the product, in the good faith opinion of WOODS, has been subjected to improper operation, improper maintenance, misuse, or an accident. This Warranty does not cover normal wear or tear, or normal maintenance items.
This Warranty is extended solely to the original purchaser of the product. Should the original purchaser sell or otherwise transfer this product to a third party, this Warranty does not transfer to the third party purchaser in any way. There are no third party beneficiaries of this Warranty.
WOODS’ obligation under this Warranty is limited to, at WOODS’ option, the repair or replacement, free of charge, of the product if WOODS, in its sole discretion, deems it to be defective or in noncompliance with this Warranty. The product must be returned to WOODS with proof of purchase within thirty (30) days after
such defect or noncompliance is discovered or should have been discovered, routed through the dealer and distributor from whom the purchase was made, transportation charges prepaid. WOODS shall
complete such repair or replacement within a reasonable time after WOODS receives the product. THERE ARE NO OTHER REMEDIES UNDER THIS WARRANTY. THE REMEDY OF REPAIR OR REPLACEMENT IS THE SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF THIS WARRANTY. WOODS MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND WOODS SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY AND/OR ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
WOODS shall not be liable for any incidental or consequential losses, damages or expenses, arising directly or indirectly from the product, whether such claim is based upon breach of contract, breach of warranty, negligence, strict liability in tort or any other legal theory. Without limiting the generality of the
foregoing, Woods specifically disclaims any damages relating to (i) lost profits, business, revenues or goodwill; (ii) loss of crops; (iii) loss because of delay in harvesting; (iv) any expense or loss incurred for labor, supplies, substitute machinery or rental; or (v) any other type of damage to property or economic loss.
This Warranty is subject to any existing conditions of supply which may directly affect WOODS’ ability to obtain materials or manufacture replacement parts.
No agent, representative, dealer, distributor, service person, salesperson, or employee of any company, including without limitation, WOODS, its authorized dealers, distributors, and service centers, is authorized to alter, modify, or enlarge this Warranty.
For warranty services contact your selling dealer.
W-07012-V Rev. 3/24/2005 (cf. F-8494)
©2002 Woods Equipment Company. All rights reserved. WOODS and the Woods logo are trademarks of Woods Equipment Company. Frontier Equipment and the Frontier logo are trademarks of Deere & Company. All other trademarks, trade names, or service marks that appear in this manual are the property of their respective companies or mark holders. Specifications subject to change without notice.
PART NUMBER
5WPMAN0183
Loading...
