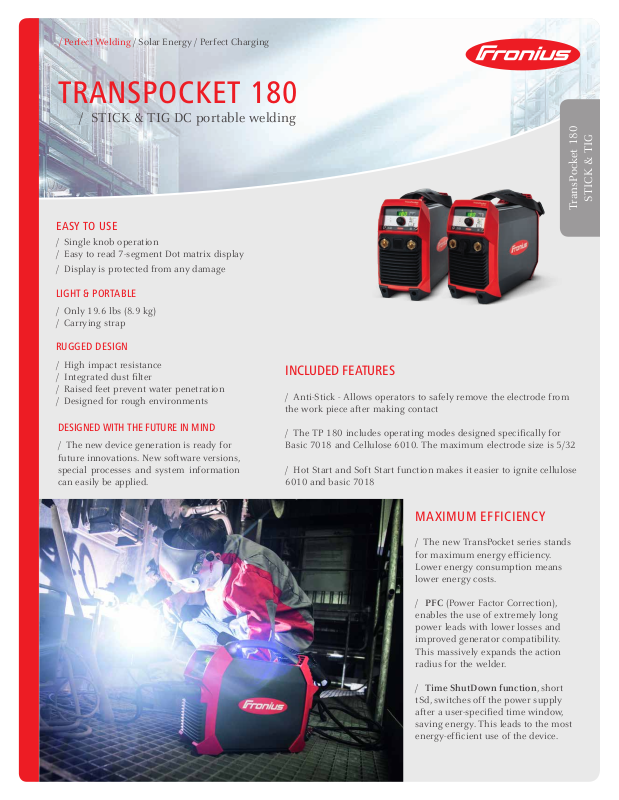

TRANSPOCKET 180
/ STICK & TIG DC portable welding
EASY TO USE
/ Single knob operation
/ Easy to read 7-segment Dot matrix display
/ Display is protected from any damage
LIGHT & PORTABLE
/ Only 19.6 lbs (8.9 kg)
/ Carrying strap
STICK & TIG
TransPocket 180
RUGGED DESIGN
/ High impact resistance
/ Integrated dust lter
/ Raised feet prevent water penetration
/ Designed for rough environments
DESIGNED WITH THE FUTURE IN MIND
/ The new device generation is ready for
future innovations. New software versions,
special processes and system information
can easily be applied.
INCLUDED FEATURES
/ Anti-Stick - Allows operators to safely remove the electrode from
the work piece after making contact
/ The TP 180 includes operating modes designed specifically for
Basic 7018 and Cellulose 6010. The maximum electrode size is 5/32
/ Hot Start and Soft Start function makes it easier to ignite cellulose
6010 and basic 7018
MAXIMUM EFFICIENCY
/ The new TransPocket series stands
for maximum energy efficiency.
Lower energy consumption means
lower energy costs.
/ PFC (Power Factor Correction),
enables the use of extremely long
power leads with lower losses and
improved generator compatibility.
This massively expands the action
radius for the welder.
/ Time ShutDown function, short
tSd, switches off the power supply
after a user-specified time window,
saving energy. This leads to the most
energy-efficient use of the device.
Page 2
Let’s get connected!
Text and images c orrespond to t he current state of technology at the time of print ing. Subject to mo dificat ions.
All information is w ithout gua rantee in spite of carefu l editin g - liabilit y excluded. C opyright © 2011 Fronius™. All rights re served .
TransPocket 180
/ Order Information
Equipment Package # Description
☐
STICK Package*
49,0400,0002
TransPocket 180 MV, 13 ft electrode cable, 13 ft ground cable, mains cable (110
and 230), PowerBox portable carrying case
TIG / STICK
☐
Package**
49,0400,0005
TransPocket 180 MV TIG, 13ft electrode cable, 13 ft ground cable, 13 ft air cooled
TIG torch, mains cable (110 and 230), owmeter with gas adapter, Power Box
portable carrying case
The TIG / STICK package 49,0400,0005 is equipped with: an integrated gas solenoid valve‚ TIG pulsing, TAC tacking function
and TMC (TIG Multi Connector) connection. The TransPocket 180 TIG is also designed for welding currents up to 220 A.
* Stick welder is also capable of TIG when you add a check valve TIG torch (no pulsing features) (Lift Arc only)
** TIG / Stick welder also capable of stick welding
Technical Data
Key Specs
Weight 19.3 lbs
Open Circuit voltage 101 V
Safety Seals UL, CSA*
*Please note that each package will carry either the CE or CSA/UL certication.
Mains Voltage
Max Fuse protection
Max power
Voltage range -Stick
TIG
Current range - Stick
TIG
Duty Cycle (104 F)
Stick
TIG
1 x 120 Vac
(-15% / +15%)
20A or less (slow-blow)
3.48 kVA
20.4 - 27.2 V
10.4 - 18.8 V
10 – 120 A
10 – 170 A
40% - 60% - 100%
120 100 90
170 130 100
1 x 110 Vac
(-15% / +15%)
15A or less (slow-blow)
2.28 kVA
20.4 - 27.2 V
10.4 - 18.8 V
10 – 85 A
10 – 140 A
40% - 60% - 100%
85 70 65
140 110 100
1 x 230 Vac
(-15% / +15%)
16A or less (slow-blow)
5.75 kVA
20.4 - 27.2 V
10.4 - 18.8 V
10 - 180 A
10 - 220 A
40% - 60% - 100%
180 150 120
220 160 130
Power Box carrying case
STICK
TIG
