Fronius Selectiva 2040 2kW, Selectiva 2050 2kW, Selectiva 2060 2kW, Selectiva 2070 2kW, Selectiva 2080 3kW Operating Instruction

Operating
Instructions

Selectiva

2040 2kW
2050 2kW
2060 2kW
2070 2kW
2080 3kW
2100 3kW
2120 3kW
4020 2kW
4035 2kW
4045 3kW
4060 3kW

Operating Instructions

EN

42,0426,0226,EN 013-19042023

Contents

Safety rules 5

General 5
Intended use 5
Environmental conditions 5
Mains connection 6
Dangers due to grid and charging current 6
Danger due to acid, gases and vapours 6
General information on working with batteries 7
Personal protection and protection of others 7
Safety measures in normal operation 7
EMC Device Classifications 7
EMC measures 8
Data protection 8
Maintenance 8
Obligations of the operator 8
Safety inspection 8
Markings on the device 8
Disposal 9
Copyright 9

General information 10

Explanation of safety notices 10
Device concept 10
Proper use 10
Mains connection 12
Charging lead 12
Correct installation of the mains/charging cables 12
Warning notices on the device 13
Warning notices inside the device 14
Setup regulations 15

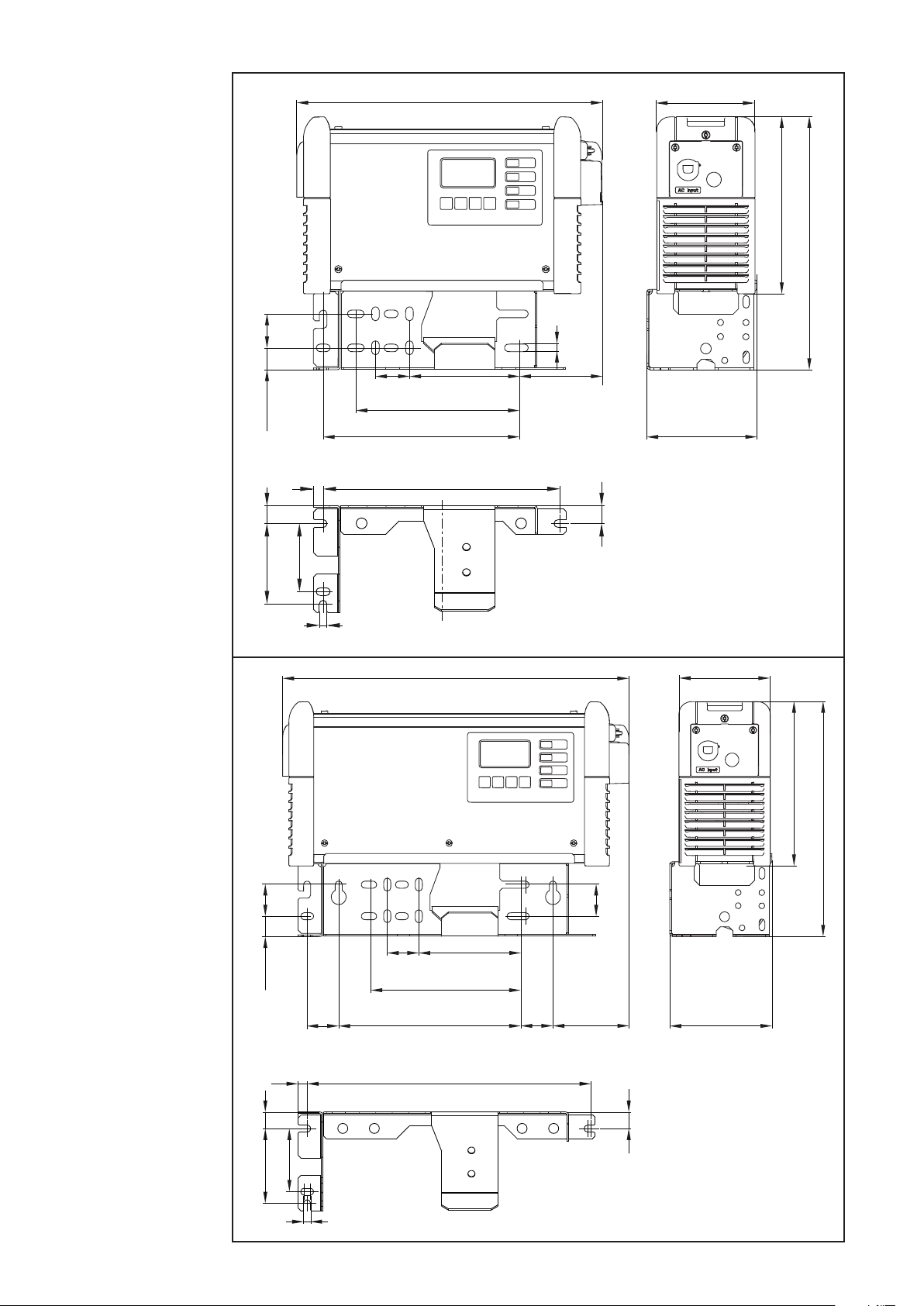

Wall and floor bracket 16

Control elements and connections 20

General 20

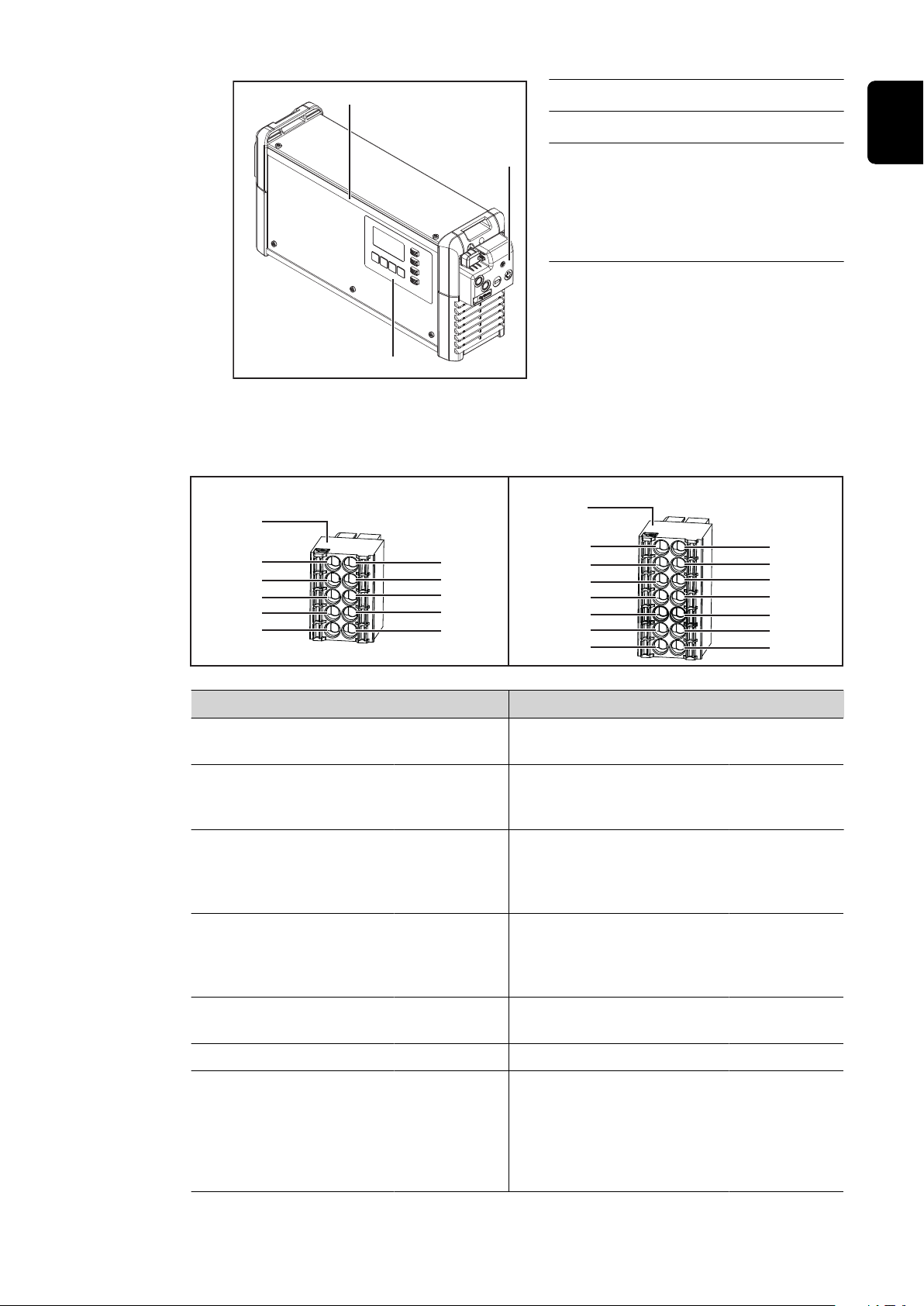

Controls and connections 20

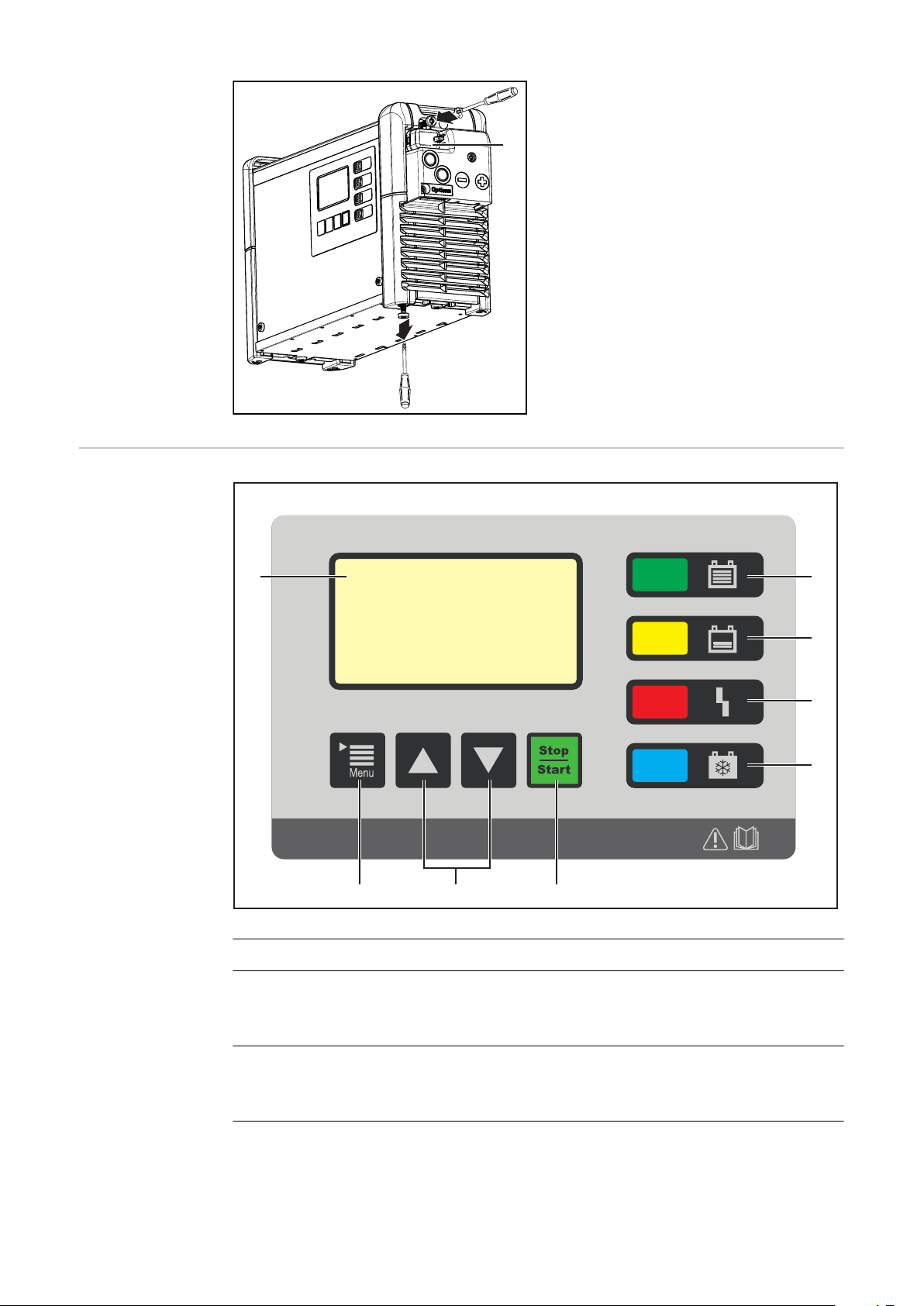

Control panel 22

Charging the battery 24

Charging 24
Interrupting charging 26
Stopping charging 27

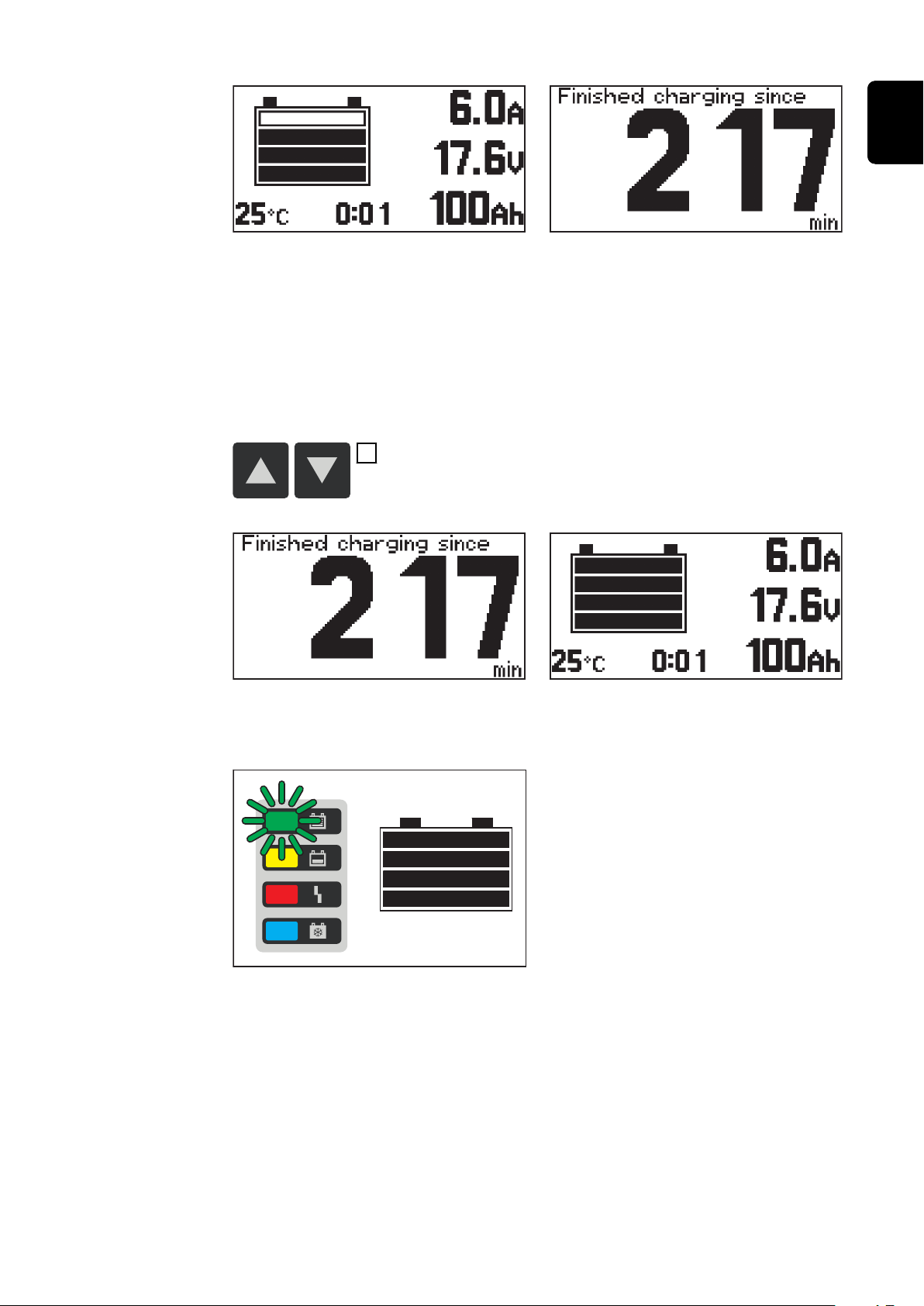

Display 28

Overview of display modes 28
Standard mode 29
Menu selection 29

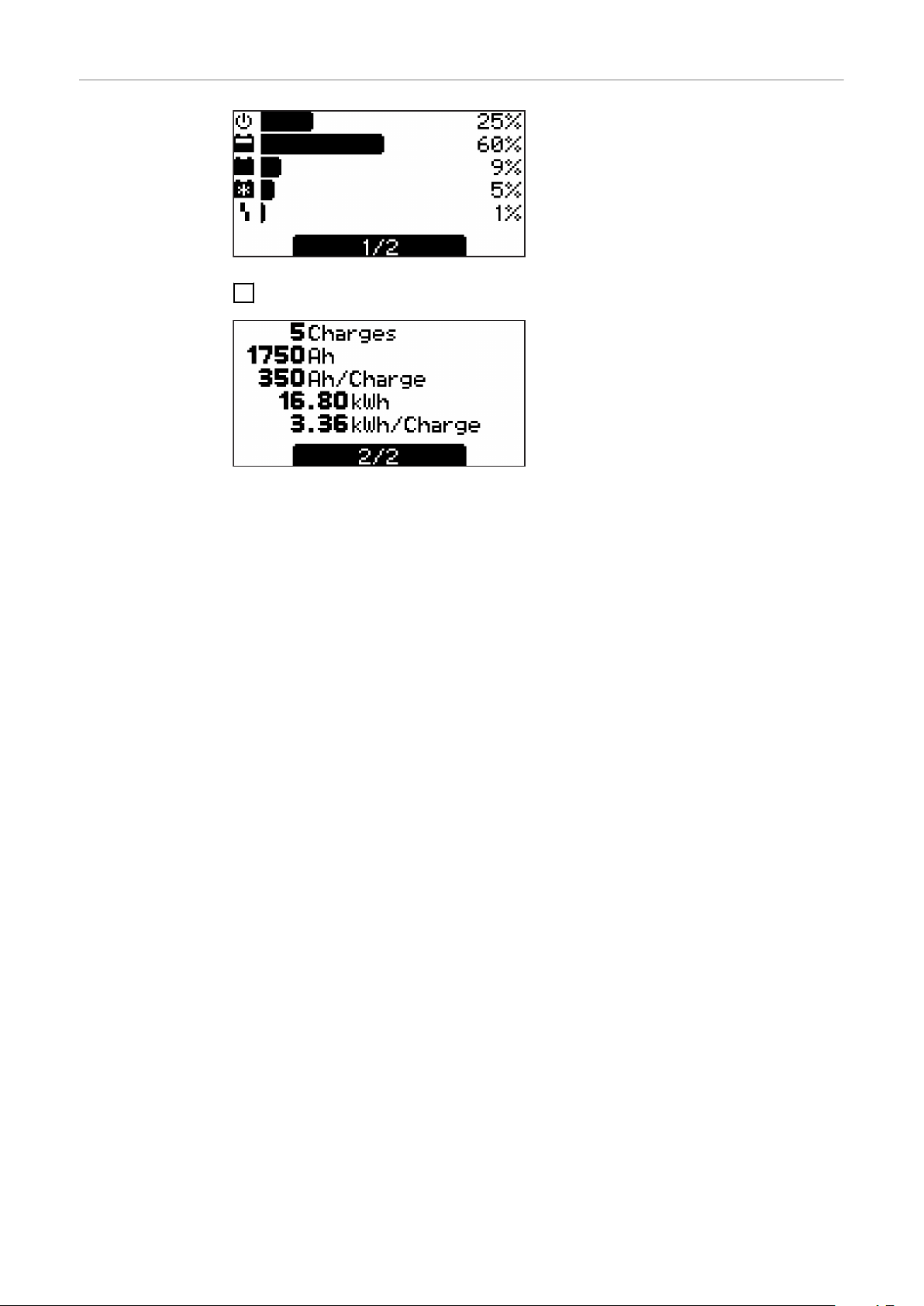

Statistics mode 30
History mode 31

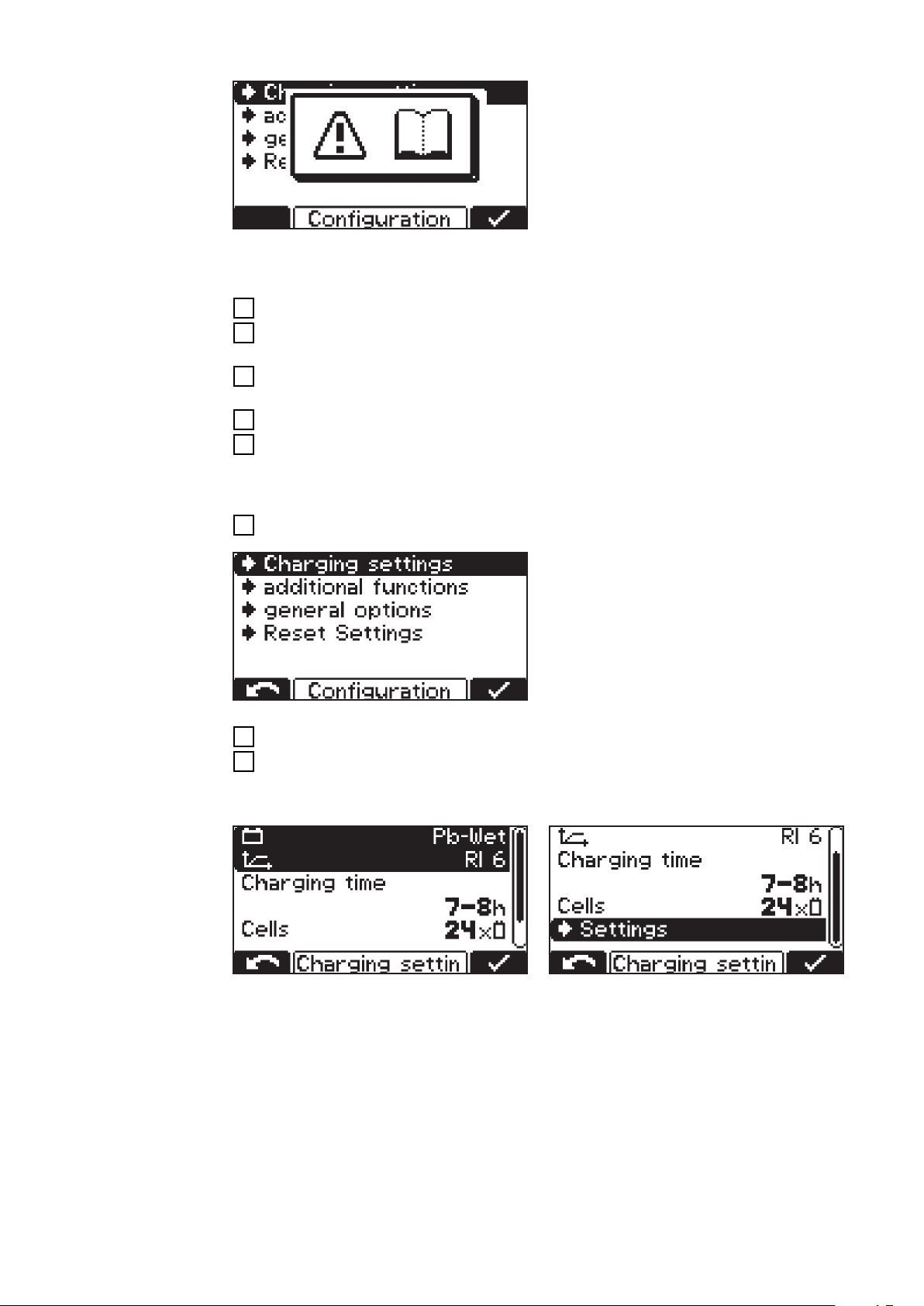

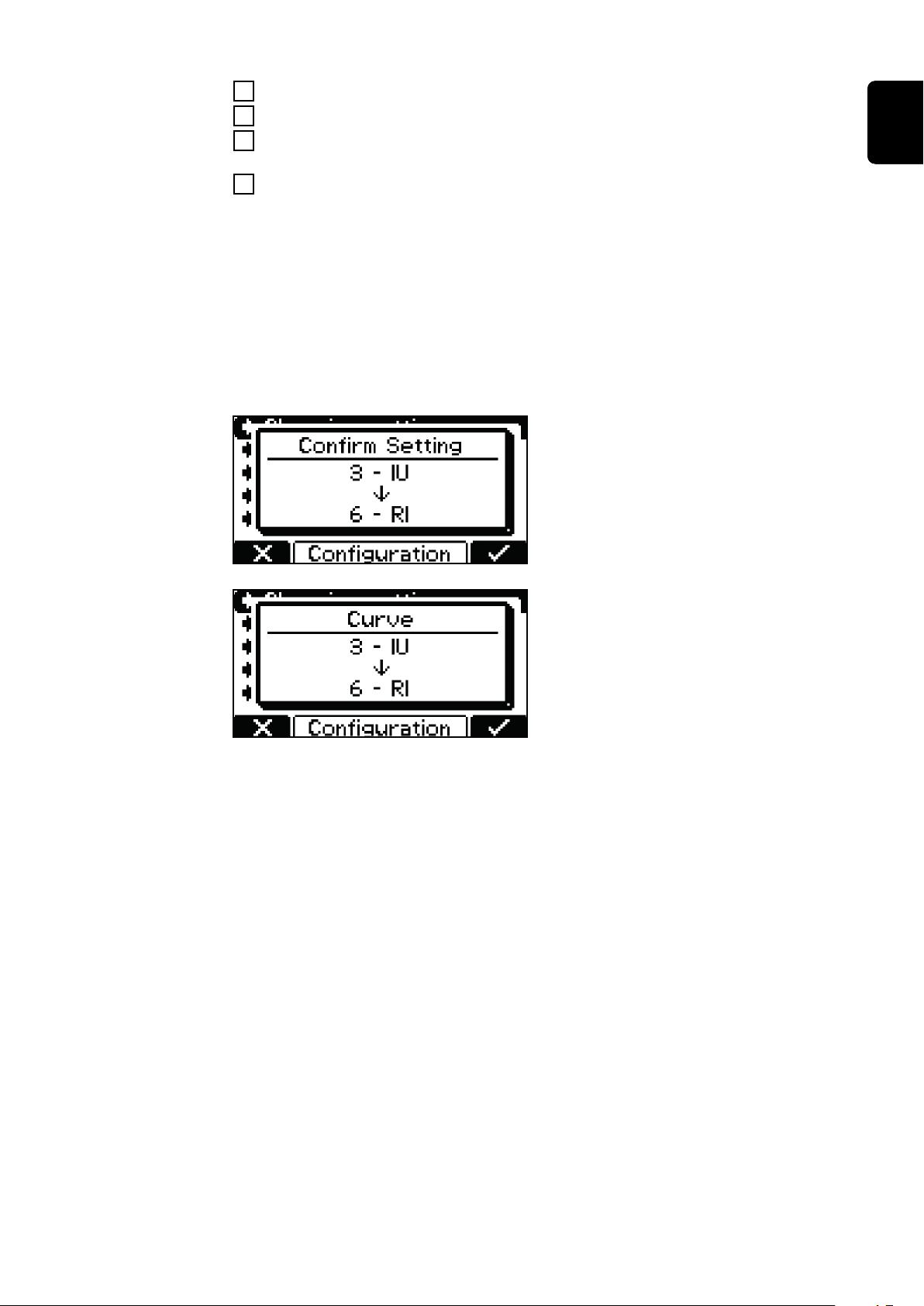

Configuration mode 32

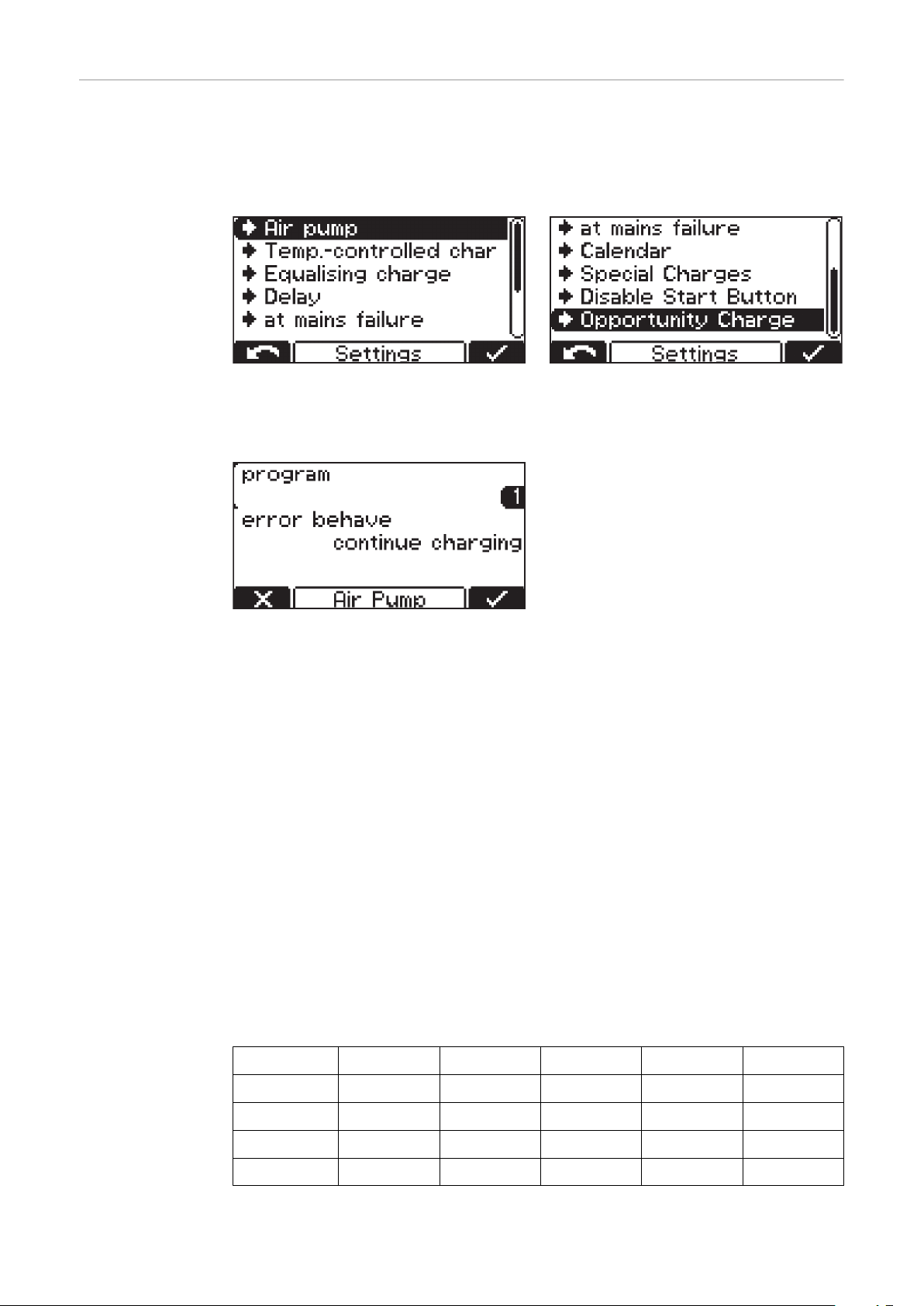

Settings 36

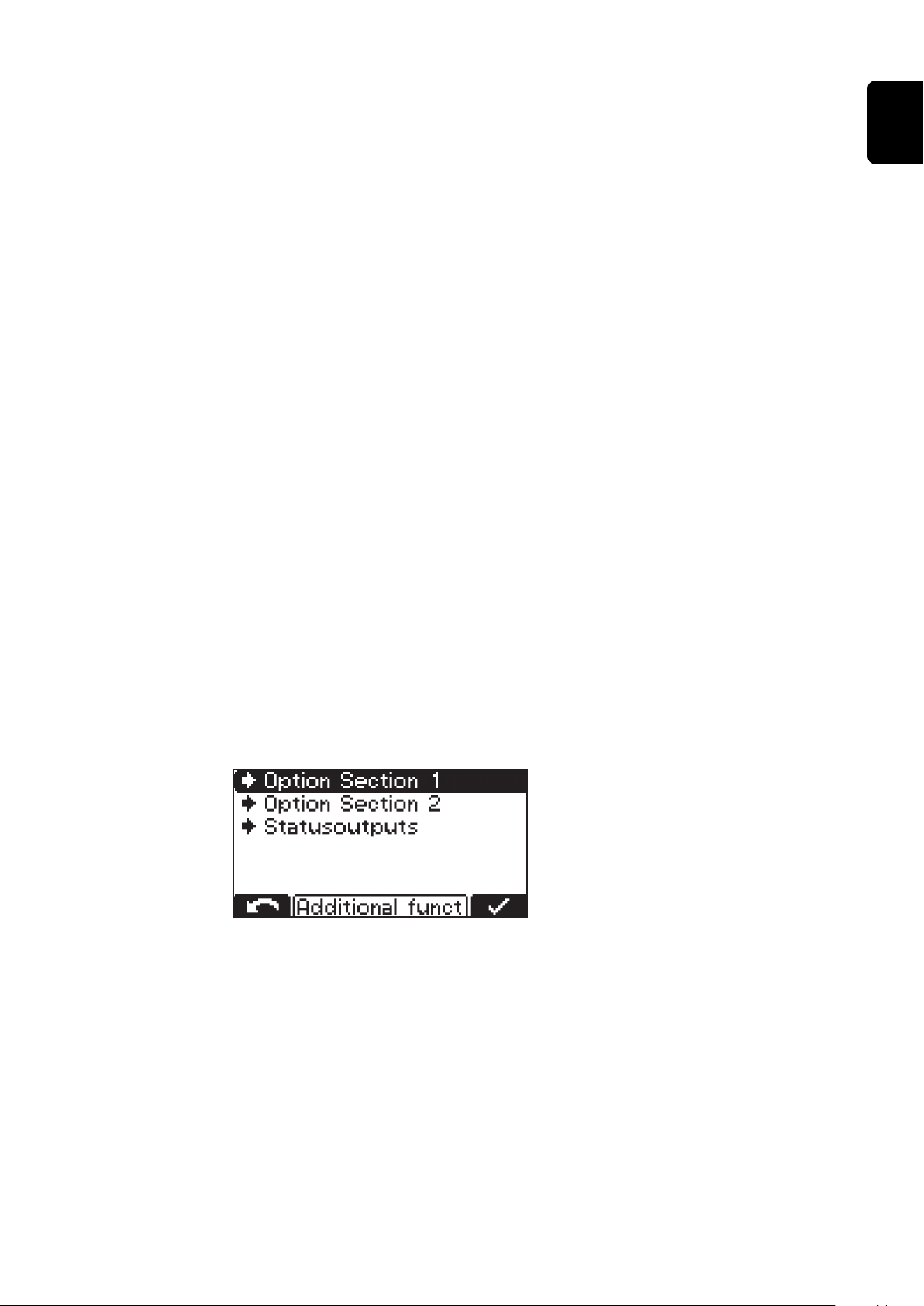

Additional functions 42
General settings 45

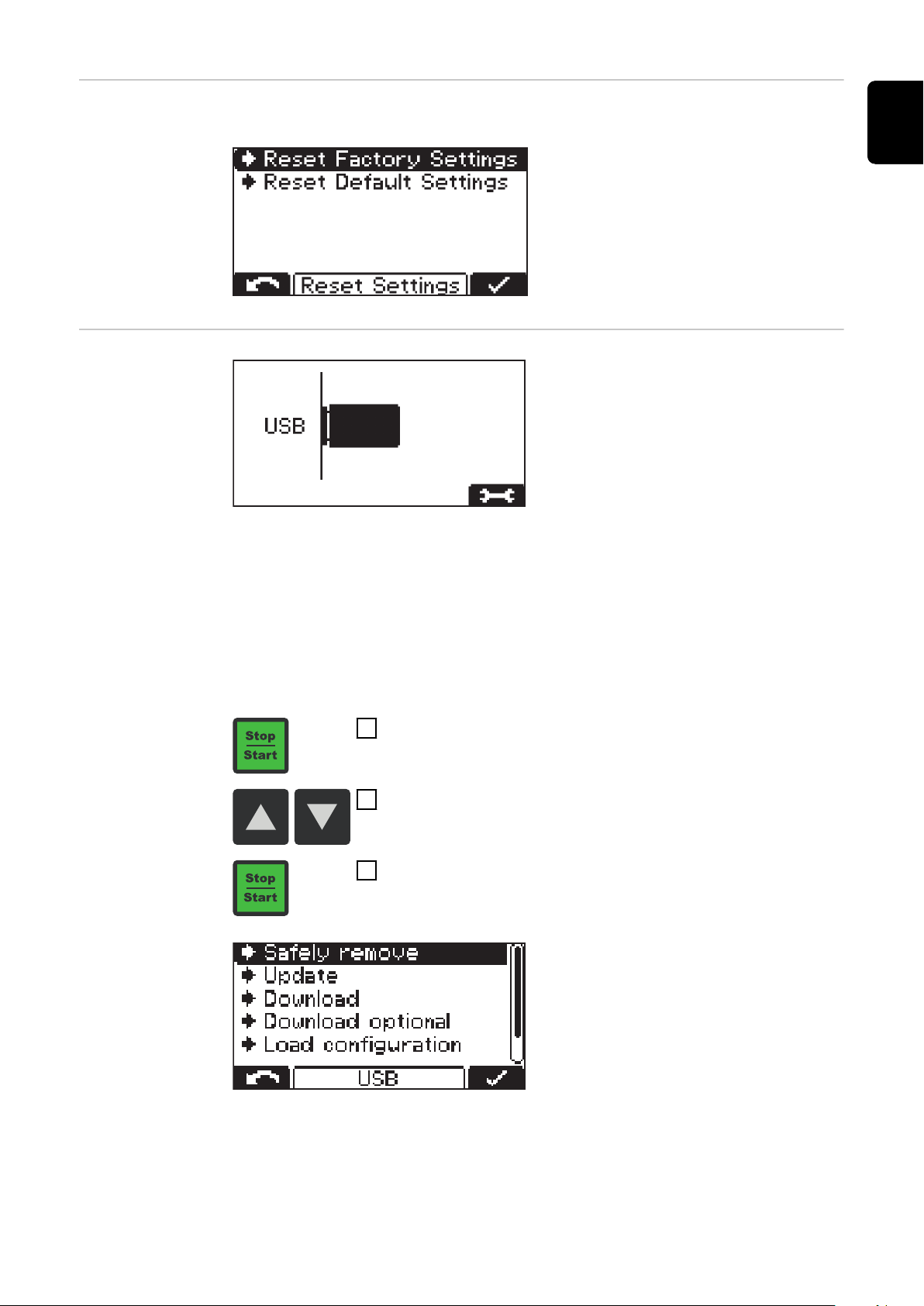

Reset settings 47

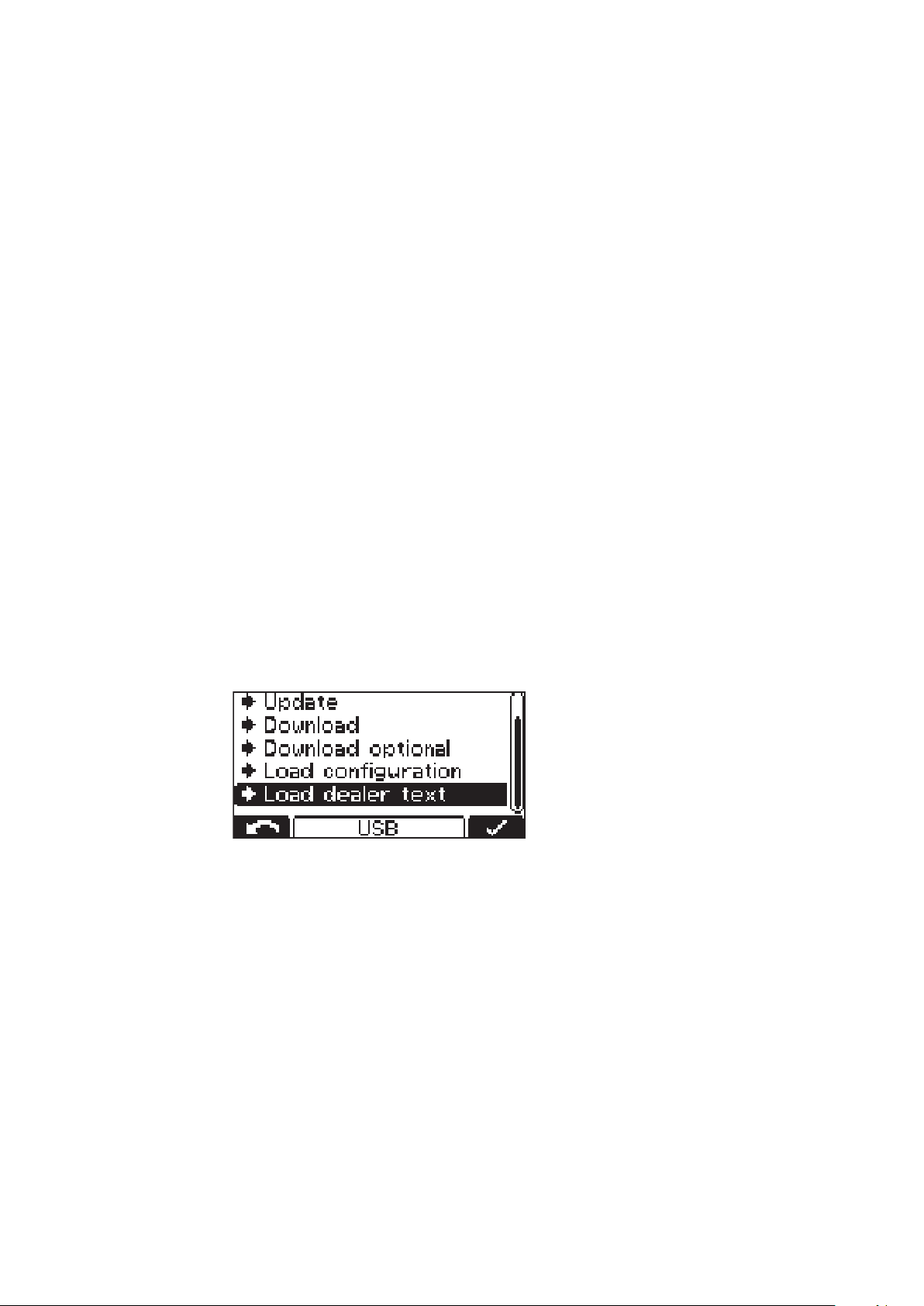

USB mode 47

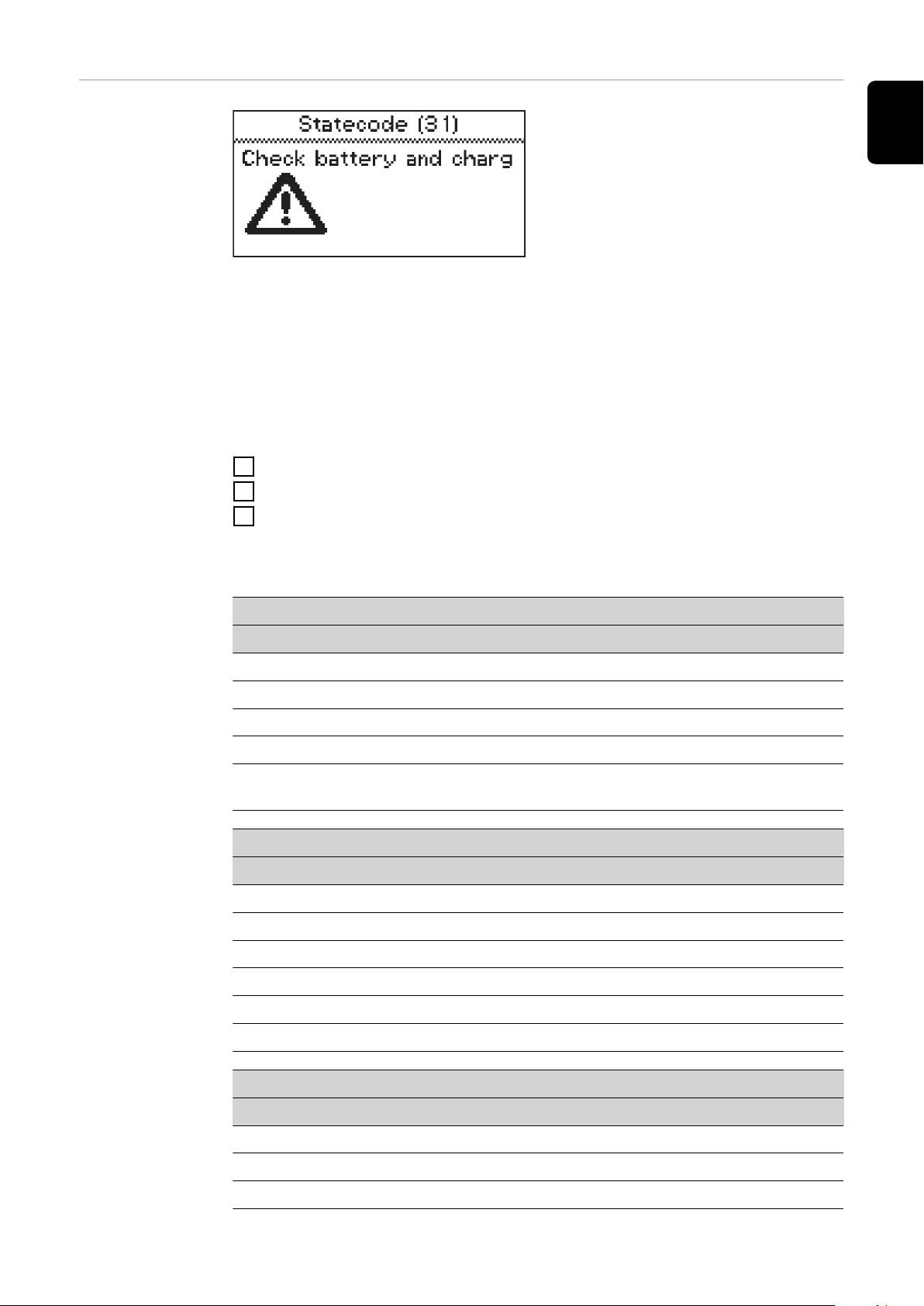

Status codes 49

Options 52

Safety 52
Electrolyte circulation 3 kW (C1) 52
External start/stop 54
Temperature-controlled charging 54
LED strip 54
Air filter 54
Wall and floor bracket 54
"Mobile" kit 54

EN

3

Option box 55
Mounting plate 56

Technical data 57

Selectiva 2 kW 57
Selectiva 3 kW 58

4

Safety rules

General The device has been manufactured in line with the state of the art and according

to recognized safety standards. If used incorrectly or misused, however, it can
cause:

Serious or fatal injury to the operator or third parties

-

Damage to the device and other material assets belonging to the operating

-

company
Inefficient operation of the device

-

All persons involved in the commissioning, operation, maintenance, and servicing
of the device must:

Be suitably qualified

-

Have fully read and precisely followed these Operating Instructions

-

The Operating Instructions must always be kept to hand wherever the device is
being used. In addition to the Operating Instructions, all applicable local rules
and regulations regarding accident prevention and environmental protection
must also be followed.

All safety and danger notices on the device:

Must be kept in a legible state

-

Must not be damaged

-

Must not be removed

-

Must not be covered, pasted, or painted over

-

EN

For the location of the safety and danger notices on the device, refer to the sec­tion headed "General information" in the Operating Instructions for the device.
Before switching on the device, eliminate any faults that could compromise
safety.

Your personal safety is at stake!

Intended use The device is to be used exclusively for its intended purpose. Any use above and

beyond this purpose is deemed improper. The manufacturer is not liable for any
damage, or unexpected or incorrect results arising out of such misuse.

Proper use also includes:

Carefully reading and following all Operating Instructions, safety and danger

-

notices
Performing all stipulated inspection and servicing work

-

Following all instructions from the battery and vehicle manufacturers

-

Proper handling of the device is essential for it to function correctly. Never pull
on the cable when handling the device.

Environmental
conditions

Operation or storage of the device outside the stipulated area will be deemed as
not in accordance with the intended purpose. The manufacturer shall not be held
liable for any damage arising from such usage.

For exact information on permitted environmental conditions, please refer to the
"Technical data" section.

5

Mains connec­tion

Devices with a higher rating may affect the energy quality of the mains due to
their current consumption.

This may affect a number device types in terms of:

Connection restrictions

-

-

Criteria with regard to the maximum permissible mains impedance

-

Criteria with regard to the minimum short-circuit power requirement

*)

at the interface with the public grid

*)

*)

see "Technical data"

In this case, the plant operator or the person using the device should check
whether the device may be connected, where appropriate by discussing the mat­ter with the power supply company.

IMPORTANT! Ensure that the mains connection is earthed properly

Dangers due to
grid and char­ging current

Danger due to
acid, gases and
vapours

Working with battery chargers poses a number of dangers, such as:

Electrical hazard due to grid and charging current

-

Hazardous electromagnetic fields that may pose a risk of death for individu-

-

als with pacemakers.

An electric shock can be fatal. Every electric shock poses a risk of death. To pre­vent electric shock during operation:

Do not touch any voltage-carrying parts inside or outside of the device.

-

Never touch the battery poles.

-

Do not short-circuit the charging cable or charging terminals.

-

All cables and leads must be secured, undamaged, insulated, and adequately di­mensioned. Loose connections, scorched, damaged, or under-dimensioned
cables and leads must be repaired immediately by an authorized specialist.

Batteries contain acids which pose a risk to the eyes and skin. Furthermore, char­ging batteries produces gases and vapors that may be hazardous to your health
and are highly explosive under certain circumstances.

Only use battery chargers in well ventilated rooms in order to prevent the accu­mulation of explosive gases. Battery charging rooms are not considered at risk of
explosion if a hydrogen concentration of less than 4 % is guaranteed by natural or
artificial ventilation.

During charging, observe a minimum distance of 0.5 m (19.69 in.) between the
battery and battery charger. Keep potential sources of ignition such as fire and
open flames away from the battery.

Never disconnect the battery (e.g., charging terminals) during charging.

Never breathe in the gases and vapors produced by the battery – ensure there is
a sufficient supply of fresh air.

Do not place any tools or electrically conductive metals on the battery, in order
to prevent short circuits.

Never allow battery acid to come into contact with your eyes, skin, or clothing.
Wear eye protection and appropriate protective clothing. Rinse away any
splashed acid immediately and thoroughly with clean water, and consult a physi­cian if necessary.

6

General informa­tion on working
with batteries

Protect batteries from dirt and mechanical damage.

-

Store charged batteries in cool rooms. The lowest self discharge occurs at

-

approx. +2°C (35.6°F).
Refer to the specifications of the battery manufacturer or conduct weekly

-

visual inspections to ensure that the battery is filled with acid (electrolyte)
up to the maximum marking.
Do not start operating the device, or immediately stop operation, and have

-

the battery inspected by an authorized specialist if:

The acid level is uneven or there is high water consumption in individual

-

cells caused by a possible defect
The battery heats up to an impermissible level, above 55°C (131°F)

-

EN

Personal protec­tion and protec­tion of others

Safety measures
in normal opera­tion

Keep persons, especially children, away from the device and working area during
operation. However, if persons are in the vicinity:

Inform them of any dangers (hazardous acids and gases, risk due to grid and

-

charging current, etc.),
Provide suitable protective equipment.

-

Before leaving the working area, ensure that no personal injury or property dam­age can occur in your absence.

Operate devices with ground conductors only on a grid with a ground conductor
and a socket with a ground conductor contact. Operating the device on a grid
without a ground conductor or on a socket without a ground conductor contact is
considered gross negligence. The manufacturer accepts no liability for any dam­age resulting from improper use.

Only operate the device in accordance with the protection class shown on the
rating plate.

Never commission the device if it is damaged.

Have the grid and device supply lead regularly inspected by an electrician to en­sure that the ground conductor is functioning properly.

Safety devices that are not fully functional and components with defects must
be repaired by an authorized specialist before the device is turned on.

EMC Device
Classifications

Never bypass or disable protection devices.

A freely accessible mains plug is required after installation.

Devices in emission class A:

Are only designed for use in industrial settings

-

Can cause line-bound and radiated interference in other areas

-

Devices in emission class B:

Satisfy the emissions criteria for residential and industrial areas. This is also

-

true for residential areas in which the energy is supplied from the public low­voltage mains.

EMC device classification as per the rating plate or technical data.

7

EMC measures In certain cases, even though a device complies with the standard limit values for

emissions, it may affect the application area for which it was designed (e.g. when
there is sensitive equipment at the same location, or if the site where the device
is installed is close to either radio or television receivers).
If this is the case, then the operating company is obliged to take appropriate ac­tion to rectify the situation.

Data protection The user is responsible for the safekeeping of any changes made to the factory

settings. The manufacturer accepts no liability for any deleted personal settings.

Maintenance Before each start-up, check the mains plug and mains cable and charging cables

and charging terminals for damage.
If dirt accumulates on the device, clean the surface of the device housing with a
soft cloth and only with solvent-free cleaning agents.

Obligations of
the operator

Safety inspec­tion

The operator must only allow persons to work with the device who:

are familiar with the fundamental instructions regarding safety at work and

-

accident prevention and have been instructed in how to use the device
have read and understood these operating instructions, especially the sec-

-

tion "safety rules", and have confirmed as much with their signatures
are trained to produce the required results.

-

Checks must be carried out at regular intervals to ensure that operators are
working in a safety-conscious manner.

The manufacturer recommends that a safety inspection of the device is per­formed at least once every 12 months.

The safety inspection may only be performed by an appropriately qualified elec­trician

After any changes have been made

-

After any additional parts are installed, or after any conversions

-

After repair, care and maintenance are carried out

-

At least every twelve months

-

For safety inspections, follow the appropriate national and international stand­ards and directives.

Further details on safety inspections can be obtained from your service centre.
They will provide you on request with any documents you may require.

Markings on the
device

8

Devices with the CE marking satisfy the essential requirements of the applicable
guidelines.

Devices displaying the EAC mark of conformity satisfy the requirements of the
relevant standards in Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan.

Disposal Waste electrical and electronic equipment must be collected separately and re-

cycled in an environmentally responsible manner in accordance with the EU Dir­ective and national law. Used equipment must be returned to the distributor or
through a local, authorised collection and disposal system. Proper disposal of the
old device promotes sustainable recycling of material resources. Ignoring this
may lead to potential health/environmental impacts.

Packaging materials

Collected separately. Check your municipality’s regulations. Reduce the volume
of the box.

Copyright Copyright of these operating instructions remains with the manufacturer.

The text and illustrations are all technically correct at the time of printing. We
reserve the right to make changes. The contents of the operating instructions
shall not provide the basis for any claims whatsoever on the part of the pur­chaser. If you have any suggestions for improvement, or can point out any mis­takes that you have found in the instructions, we will be most grateful for your
comments.

EN

9

General information

Explanation of
safety notices

DANGER!

Indicates immediate danger.

If not avoided, death or serious injury will result.

▶

WARNING!

Indicates a potentially hazardous situation.

If not avoided, death or serious injury may result.

▶

CAUTION!

Indicates a situation where damage or injury could occur.

If not avoided, minor injury and/or damage to property may result.

▶

NOTE!

Indicates a risk of flawed results and possible damage to the equipment.

Device concept The single-phase battery charging systems for 24 V and 48 V batteries are fitted

with intelligent charging technology. The successful Active Inverter Technology
with the revolutionary Ri charging process adapts itself to the requirements of
the battery and only charges the battery with the current that it actually needs.

The technology is embedded in a robust industry-standard housing. The excep­tionally compact design complies with all safety standards, requires less installa­tion space and protects the components to ensure a long service life.

Fitted with a graphical display, an integrated datalogger, new interfaces and addi­tional options, the device is perfectly equipped for the future.

Proper use

Danger due to unsuitable batteries being connected to the charger.

This can result in serious injury and damage to property due to escaping gas, fire
or explosion.

▶

The battery charging system is only suitable for charging the following batteries:

WARNING!

Never connect a battery to the charger unless it is compatible in terms of its
type, voltage and capacity and corresponds to the charger settings.

10

Power
category Cell type

Minimum
number
of cells

Maxim­um num­ber of
cells

Minimum
nominal ca­pacity [Ah]

Maximum
nominal ca­pacity [Ah]

EN

Selectiva
2040 2
kW

Selectiva
2050 2
kW

Selectiva
2060 2
kW

Selectiva
2070 2 kW

Selectiva
4020 2
kW

Selectiva
4035 2
kW

Selectiva
2080 3
kW

Pb­Wet/GEL

NiCd 2 20 10 800

Pb­Wet/GEL

NiCd 2 20 10 1000

Pb­Wet/GEL

NiCd 2 20 10 1200

Pb­Wet/GEL

NiCd 2 20 10 1400

Pb­Wet/GEL

NiCd 2 40 10 400

Pb­Wet/GEL

NiCd 2 40 10 700

Pb­Wet/GEL

NiCd 2 20 20 1600

1 12 10 800

1 12 10 1000

1 12 10 1200

1 12 10 1400

1 24 10 400

1 24 10 700

1 12 20 1600

Selectiva
2100 3 kW

Selectiva
2120 3 kW

Selectiva
4045 3
kW

Selectiva
4060 3
kW

Any use above and beyond this purpose is deemed improper. The manufacturer
shall not be liable for any damage resulting from such use.

Proper use also includes:

Carefully reading and following all Operating Instructions, safety and danger

-

notices
Performing all stipulated inspection and maintenance work

-

Following all instructions from the battery and vehicle manufacturers

-

Pb­Wet/GEL

NiCd 2 20 20 2000

Pb­Wet/GEL

NiCd 2 20 20 2000

Pb­Wet/GEL

NiCd 2 40 20 900

Pb­Wet/GEL

NiCd 2 40 20 1000

1 12 20 2000

1 12 20 2000

1 24 20 900

1 24 20 1000

11

Mains connec­tion

WARNING!

Danger from incorrect operation.

This can result in severe personal injury and damage to property.

Do not use the functions described here until you have fully read and under-

▶

stood the following documents:
All the Operating Instructions for the system components, especially the

▶

safety rules
Battery and vehicle manufacturer's Operating Instructions and safety rules

▶

WARNING!

Danger due to faulty or insufficient power supply.

This can result in severe personal injury and damage to property.

The power supply requirements detailed in "Technical data" must be met.

▶

Charging lead

Correct installa­tion of the
mains/charging
cables

WARNING!

Danger from flying sparks due to improper disconnection of the charging plug.

This can result in severe personal injury and damage to property. The resulting
sparks can ignite the charging gases that form during charging and cause a fire or
explosion

End the charging process via the battery charger and, after the charging

▶

cables have cooled down, wind them up or, if available, place them on the
cable holder.

WARNING!

Danger due to charging cables lying around.

This can result in severe personal injury and damage to property. Personnel can
get caught or trip on unplugged, loose cables.

Lay charging cables so that no one can trip over them or get caught on them.

▶

CAUTION!

Danger due to overheating as a result of incorrectly laid mains/charging cables.

Risk of damage to the mains/charging cables.

The mains/charging cable may only be replaced by a qualified electrician.

▶

Lay the mains/charging cable without a loop.

▶

Do not cover the mains/charging cable.

▶

Charging cables longer than 5 m (16 ft. 4.85 in.) must be laid individually (no

▶

bundling).
Charging cables longer than 5 m (16 ft. 4.85 in.) can have an increased sur-

▶

face temperature (be aware of hot surfaces).
In the following cases, pay special attention that the surface temperature of

▶

the charging cables does not exceed 80°C (176°F):

- Ambient temperature is 30°C (86°F) or more

- Cross-section of the charging cable is 95 mm2 or more

- Length of the charging cable is 5 m (16 ft. 4.85 in.) or more

12

2 kW

Selectiva xxxx xkW

4,010,xxx

xxxxxxxx

xxxxxxxx

XXXX

WARNING

Explosive gases. Prevent flames and sparks.

Provide adequate ventilation during charge!

Always stop charging before you disconnect the charging cable!

OVC II

U

AC nom.

IAC max.
PAC max.
UDC nom.
IDC max.

Part No.:
Ser. No.:

Protective class I

IP21

1~ NPE 230V 50/60Hz

xxA

xxV

xxxxW

xxA

www.fronius.com

Ladevorgang immer stoppen bevor das Ladekabel abgezogen wird!
Explosive Gase. Flammen und Funken vermeiden.
Während des Ladens für ausreichend Frischluft-Zufuhr sorgen!

Always stop charging before you disconnect the charging cable!
Explosive gases. Prevent flames and sparks.
Provide adequate ventilation during charge!

Toujours arrêter la charge avant de déconnecter le câble de charge!
Gaz explosifs. Éviter les flammes et les étincelles.
Prévoir une ventilation adaptée pendant la charge!

¡Detener siempre la carga antes de desconectar el cable de carga!
Gases explosivos. Evitar llamas y chipas.
¡Mantener una ventilación adecuada durante la carga!

Interrompere sempre la carica prima di scollegare il cavo di carica!
Gas esplosivi. Evitare fiamme libere e scintille.
Predisporre una ventilazione adeguata durante la carica!

WARNUNG - WARNING - ATTENTION
ADVERTENCIA - AVVISO

42,0409,0419

EN

Warning notices
on the device

A number of safety symbols can be seen on the charger's rating plate. The safety
symbols must not be removed or painted over.

13

3 kW

Ladevorgang immer stoppen bevor das Ladekabel abgezogen wird!
Explosive Gase. Flammen und Funken vermeiden.
Während des Ladens für ausreichend Frischluft-Zufuhr sorgen!

Always stop charging before you disconnect the charging cable!
Explosive gases. Prevent flames and sparks.
Provide adequate ventilation during charge!

Toujours arrêter la charge avant de déconnecter le câble de charge!
Gaz explosifs. Éviter les flammes et les étincelles.
Prévoir une ventilation adaptée pendant la charge!

¡Detener siempre la carga antes de desconectar el cable de carga!
Gases explosivos. Evitar llamas y chipas.
¡Mantener una ventilación adecuada durante la carga!

Interrompere sempre la carica prima di scollegare il cavo di carica!
Gas esplosivi. Evitare fiamme libere e scintille.
Predisporre una ventilazione adeguata durante la carica!

WARNUNG - WARNING - ATTENTION
ADVERTENCIA - AVVISO

42,0409,0419

Selectiva xxxx xkW

4,010,xxx

xxxxxxxx

xxxxxxxx

XXXX

WARNING

Explosive gases. Prevent flames and sparks.

Provide adequate ventilation during charge!

Always stop charging before you disconnect the charging cable!

OVC II

UAC nom.
IAC max.
PAC max.
UDC nom.
IDC max.

Part No.:
Ser. No.:

Protective class I

IP21

1~ NPE 230V 50/60Hz

xxA

xxV

xxxxW

xxA

www.fronius.com

Warning notices
inside the device

Do not dispose of used devices with domestic waste. Dispose of them
according to the safety rules.

Possible sources of ignition, such as fire, sparks and naked flames,
must be kept away from the battery.

Risk of explosion! Oxyhydrogen is generated in the battery during char­ging.

Battery acid is corrosive and MUST be kept away from eyes, skin and
clothes.

Ensure an adequate supply of fresh air during charging.

Do not use the functions until you have read all the Operating Instruc­tions.

WARNING!

Danger from electric shocks.

This can result in serious injury or death.

The housing must never be opened by anyone other than a service technician

▶

trained by the manufacturer.
The device must be disconnected from the grid before starting any work with

▶

the housing open. A suitable measuring instrument must be used to ensure
that electrically charged components (e.g. capacitors) are fully discharged.
Use an easily legible and understandable warning sign to ensure that the

▶

device is not reconnected to the grid before all the work has been com­pleted.

14

Inside the device:

2 kW (B1)

4,010,xxx
xxxxxxxx

XXXX

UDC nom. xxV
Part No.:
Ser. No.:

1

2

1 Display
2 Battery CR2032

Ext. Start Stopp (1)

Temperature
controlled charging

Not connected (3)

CAN High (5)

(4) Not connected

(6) CAN Termination

(8) CAN Termination

(10) +13V

(2) Ext. Start Stopp

Temperature
controlled charging

CAN Low (7)

CAN GND (9)

WARNING Hazardous Voltage

Kondensator Entladezeit < 2 min.
Capacitor discharge time < 2 min.

Décharge de condensateur < 2 min.

Condensador tiempo de descarga < 2 min.

Condensatore tempo di scaricamento < 2 min.

3 kW (C1)

4,010,xxx
xxxxxxxx

XXXX

UDC nom. xxV
Part No.:
Ser. No.:

1

2

1 Display
2 Battery CR2032

Ext. Start Stopp (1)
Temperature
controlled charging

Not connected (3)

CAN1 High (5)

CAN1 Low (7)

CAN1 GND (9)

Status 1 (11)

Status 3 (13)

(4) Not connected

(6) CAN2 High

(8) CAN2 Low

(10) +13V

(12) Status 2 / CAN2 GND

(14) Status 4

(2) Ext. Start Stopp

Temperature
controlled charging

WARNING Hazardous Voltage

Kondensator Entladezeit < 2 min.

Capacitor discharge time < 2 min.

Décharge de condensateur < 2 min.

Condensador tiempo de descarga < 2 min.

Condensatore tempo di scaricamento < 2 min.

EN

Setup regula­tions

WARNING!

Danger from devices falling or toppling over.

This can result in severe personal injury and damage to property.

Set up all system components in a stable position.

▶

When using a floor bracket or wall bracket, always ensure that all fastening

▶

elements are firmly seated.

The device has been tested according to protection class 21. This means:

Protection against the penetration of solid foreign bodies with a diameter of

-

more than 12.5 mm (0.49 in.)
Protection against dripping water falling vertically

-

The device can be set up and operated in dry, closed rooms in accordance with
protection class 21. Avoid exposure to moisture.

The permissible operating position of
the device is horizontal.

15

Cooling air

(a)

The device must be set up so that cooling air can flow through the housing open­ings provided unhindered. There must always be a minimum distance of 20 cm
(7.87 in.) from the air inlet and outlet openings. The ambient air must be free
from:

Excessive dust exposure

-

Electrically conductive particles (carbon black or metal chips)

-

Heat sources

-

Battery acid vapors

-

The cooling air flows in and out as indicated by the arrow symbols in the follow­ing illustrations.

CAUTION!

Danger due to partially or completely covered air intake and outlet openings.

This can result in damage to property.

The setup of several devices one behind the other should be staggered.

▶

Wall and floor
bracket

If the devices are arranged in a line one behind the other without being
staggered, the distance between the devices must be as follows:

Minimum distance 20 cm (7.87 in.)

a)

WARNING!

Danger from incorrectly performed work and falling equipment.

This can result in severe personal injury and damage to property.

The mounting must only be carried out by trained and qualified personnel.

▶

Depending on the substrate, different dowels and screws are required. Therefore,
dowels and screws are not part of the scope of supply. The system installer is re­sponsible for selecting the proper dowels and screws.

WARNING!

Danger from objects falling or toppling over.

This can result in severe personal injury and damage to property.

Only use this wall bracket with the battery charger provided by the manufac-

▶

turer.
Mount the device horizontally.

▶

For wall mounting, the load bearing capacity of the wall must be sufficient.

▶

16

Weight of wall bracket:

*

TX25

3

3

3

*

*

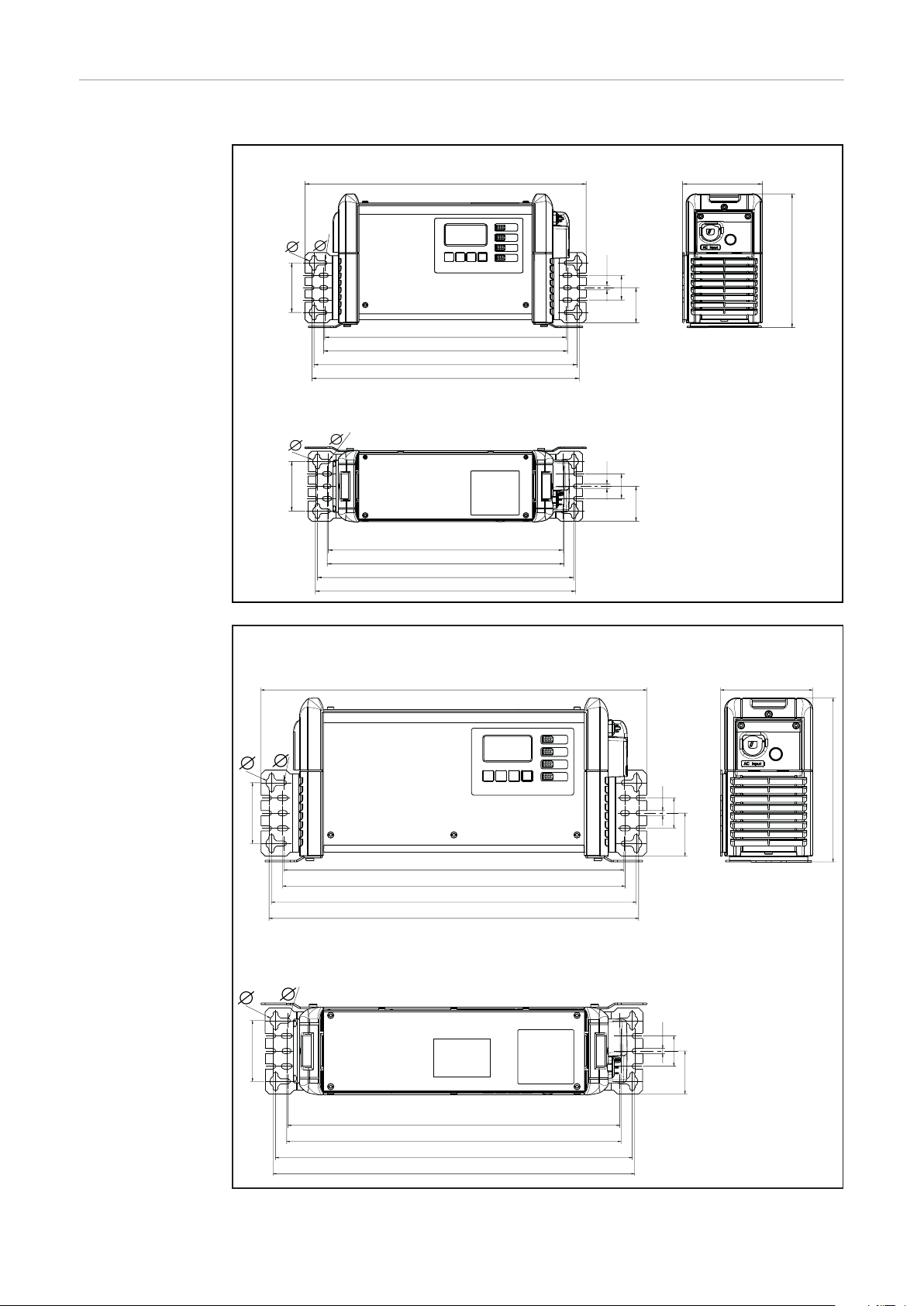

2 kW (B1)mm (in.)

341 (13.43)

182 (7.17)

38 (1.5) 123,5 (4.86) 91,5 (3.6)

8.5 (.33)

220 (8.66) 123 (4.84)

110 (4.33)

198 (7.8)

283 (11.14)

38 (1.5) 24,5 (.96)

11 (.43)

8.5 (.33)

90 (3.54)

76 (2.99)

20 (.79)

20 (.79)

266 (10.47)

2 kW (B1) 1.10 kg (2.43 lb)

3 kW (C1) 1.35 kg (2.98 lb)

1

EN

2

17

3 kW (C1)mm (in.)

417 (16.42)

182 (7.17)

38 (1.5) 123,5 (4.86)

40 (1.57) 89,5 (3.52)38 (1.5)

11 (.43)

8,5 (.33)

342 (13.46)

220 (8.66)

123 (4.84)

110 (4.33)

198 (7.8)

283 (11.14)

38 (1.5)

20 (.79) 90 (3.54)

38 (1.5)

20 (.79)

24,5 (.96)

76 (2.99)

18

3 kWmm (in.)

417 (16.42)

182 (7.17)

38 (1.5) 123,5 (4.86)

40 (1.57) 89,5 (3.52)38 (1.5)

11 (.43)

8,5 (.33)

342 (13.46)

220 (8.66)

123 (4.84)

110 (4.33)

198 (7.8)

283 (11.14)

38 (1.5)

20 (.79) 90 (3.54)

38 (1.5)

20 (.79)

24,5 (.96)

76 (2.99)

2 kWmm (in.)

341 (13.43)

182 (7.17)

38 (1.5) 123,5 (4.86) 91,5 (3.6)

8.5 (.33)

220 (8.66) 123 (4.84)

110 (4.33)

198 (7.8)

283 (11.14)

38 (1.5) 24,5 (.96)

11 (.43)

8.5 (.33)

90 (3.54)

76 (2.99)

20 (.79)

20 (.79)

266 (10.47)

EN

19

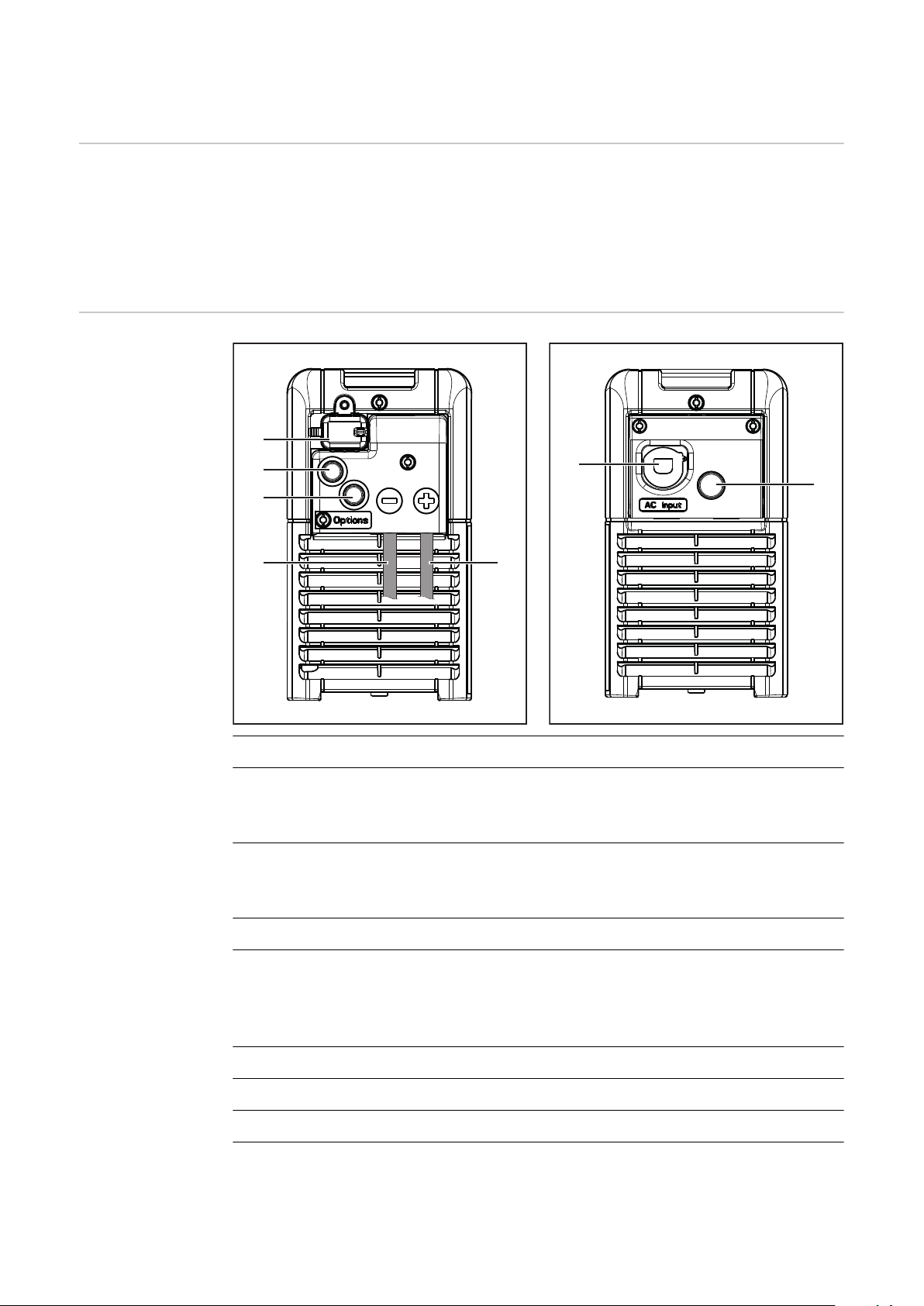

Control elements and connections

(3) (4)

(1)

(2)

(2)

(5)

(6)

General Please note:

as a result of firmware updates, you may find that there are functions available
on your device that are not described in these Operating Instructions, or vice
versa.
Certain illustrations may also differ slightly from the actual controls on your
device, but these controls function in exactly the same way.

Controls and
connections

No. Function

(1) USB port

(2) Position for options

(3) (-) Charging cable

(4) Cover for option plug and charging cables *

(5) (+) Charging cable

(6) Mains cable

(7) Position for electrolyte circulation option

The USB port allows a USB flash drive to be used to update the device
and also to log the charging parameters while charging is in progress.

- External start/stop option

- Temperature-controlled charging option

The option plug can only be accessed by removing the cover (4). The
warning notices in the "Safety" section of the "Options" chapter must be
obeyed.

20

(7)

(8)

(9)

No. Function

2 kW (B1) 3 kW (C1)

(9)
(7)

(5)
(3)

(1)

(A)

(10)
(8)

(6)
(4)

(2)

(13)

(11)

(9)
(7)

(5)

(14)
(12)

(10)
(8)

(6)

(3) (4)
(1) (2)

(A)

(8) Control panel

(9) Optional LED strip

Lights up in different colours
depending on the state of
charge, as explained in the
"Control panel" section

The option plug (A) is located behind the cover on the front of the device, upon
which the charging cables can be found. For the CAN connection area, the warn­ing notices in the "Safety" section of the "Options" chapter apply.

EN

2 kW (B1) 3 kW (C1)

(13) Status 3 /

(11) Status 1 /

(9) CAN GND (10) + 13 V (9) CAN 1 GND (10) + 13 V

(7) CAN Low (8) CAN

termination

(5) CAN High (6) CAN

termination

(3) Not assigned (4) Not assigned (3) Not assigned (4) Not assigned

(1) External

start/stop or
temperat­ure-con­trolled char­ging

(2) External

start/stop or
temperat­ure-con­trolled char­ging

(14) Status 4 /

red

(12) Status 2 /

blue

(7) CAN 1 Low (8) CAN 2 Low

(5) CAN 1 High (6) CAN 2 High

(1) External

start/stop or
temperat­ure-con­trolled char­ging

(2) External

green

yellow
CAN 2 GND

Air-Puls
pressure
switch

Air-Puls
pressure
switch

start/stop or
temperat­ure-con­trolled char­ging

21

2

1

TX25

(1)

Control panel

(1) (8)

(7)

(6)

(5)

(4)(3)(2)

The cover (1) for the USB port can be
secured with a screw.

No. Function

(1) Display

Displays the current charging parameters
Displays settings

(2) "Menu" key

Selects the desired menu
Selects the appropriate symbol to return to the previous display

(3) Up/down keys

Select the desired menu item
Set the desired value

22

(4) Stop/Start key

For interrupting and resuming the charging process
Confirms a menu item or setting

(5) "Battery cooled down" indicator (blue)

Indicates that a battery has cooled down and is ready for use
On steady: After charging has finished, the set cooling time or optionally
the battery temperature has been reached.
Flashes every second: The water refill indicator has also tripped. More in­formation can be found under "Additional functions" in the "Display" sec­tion.

(6) "Fault" indicator (red)

On steady: The charger outputs an error. The current conditions do not al-

low proper charge. While the red indicator is on, charging cannot take
place (charging interrupted). The relevant status code appears in the dis­play.
Flashes briefly every 3 seconds: The charger outputs a warning. Charging
is continued despite the adverse charging parameters. The relevant status
code and the state of charge appear alternately on the display.

(7) "Charge" indicator (yellow)

On: During charging
Flashes: If charging has been interrupted

EN

(8) "Battery charged" indicator (green)

On steady: Charging ended.
Flashes every second: Charging ended. The water refill indicator has also

tripped.

23

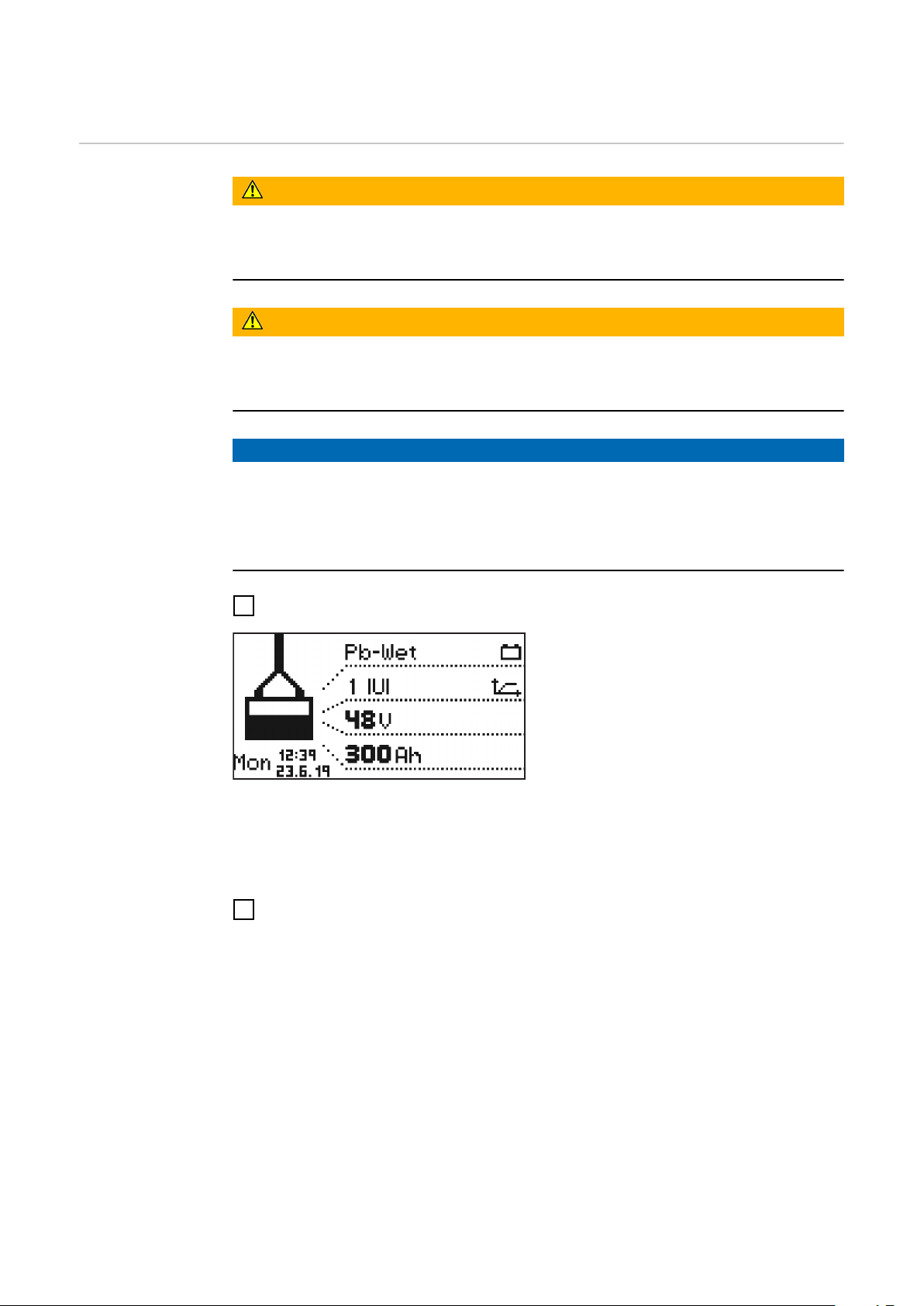

Charging the battery

Charging

WARNING!

Danger due to escaping battery acid or explosion if faulty batteries are charged.

This may result in serious injury and damage to property.

Before charging, ensure that the battery to be charged is fully functional.

▶

WARNING!

Danger due to faulty charging settings or a defective battery.

This may result in serious injury and damage to property.

Before charging, ensure that the battery to be charged is fully functional.

▶

NOTE!

Risk of property damage if the charging plug contacts are very dirty.

The resulting increase in contact resistance can lead to overheating and sub­sequent destruction of the charging plug.

Keep the charging plug contacts free from impurities and clean them if ne-

▶

cessary

Connect the charger mains plug to the electrical mains supply

1

The display appears in standard mode.
The display shows the charger para­meters:

Type of battery (e.g. wet)

-

Charging characteristic (e.g. IUI)

-

Nominal voltage (e.g. 48 V)

-

Capacity (e.g. 300 Ah)

-

Day of the week, date and time

-

The charger parameters can be set individually. More information on the charger
parameters can be found under "Configuration mode" in the "Display functions"
chapter. Ensure that the battery to be charged matches the configuration of the
battery charging system.

Connect the charging plug

2

or connect the
(+) charging lead to the positive pole of the battery and the
(-) charging lead to the negative pole of the battery

The charger detects that the battery is connected and starts charging. If start-up
delay is activated, then charging will start at the end of the set delay time. For
more information, see "Configuration mode" in the "Display" section.

During the charging process the display shows the following values:

Current charging current (A)

-

Current charging voltage (V)

-

The charge already input (Ah)

-

Battery temperature with the "temperature-controlled charging" option

-

The time (hh:mm) since charging started

-

24

The battery symbol indicates the current state of charge. The greater the number
of bars that are displayed, the further advanced the charging process is. As soon
as the battery is fully charged, a minute counter will appear (see figure on right).
This counts the minutes since the end of charging; when a number of chargers
are being used, this makes it easier to decide which battery will have already
cooled down most.

If, however, the standard display is still to be shown rather than the minute
counter:

Use the "Up/Down" keys to toggle between the minute

1

counter and standard display

EN

When the battery is fully charged all 4 bars of the battery symbol appear black.
As soon as the battery is fully charged, the charger begins conservation charging.

All bars are displayed

-

The green "Battery charged" in-

-

dicator is on
The battery is always ready to

-

use
The battery can remain connec-

-

ted to the charger for as long as
required
Conservation charging counter-

-

acts battery self discharge

25

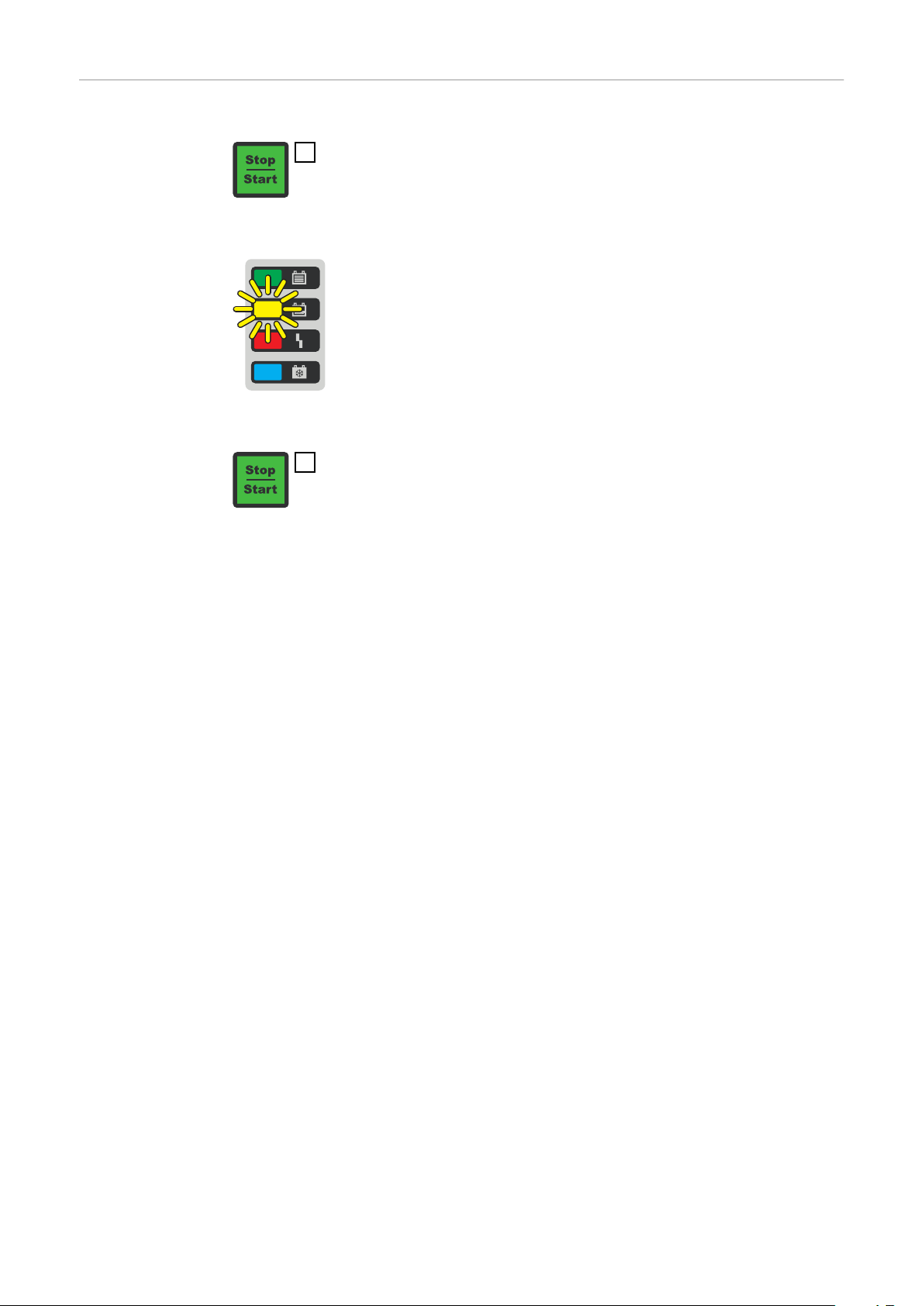

Interrupting
charging

To interrupt the charging process:

Press the "Stop/Start" key

1

While the charging progress is interrupted:

The "Charge" indicator (yellow) flashes

To resume the charging process:

Press the "Stop/Start" key again

2

As long as a battery is connected to the charger, only the charging process can
be interrupted and resumed using the "Stop/Start" key. Display modes can be
changed using the "Menu" key as described in the "Display" section, but this is
only possible when there is no battery connected to the charger.

26

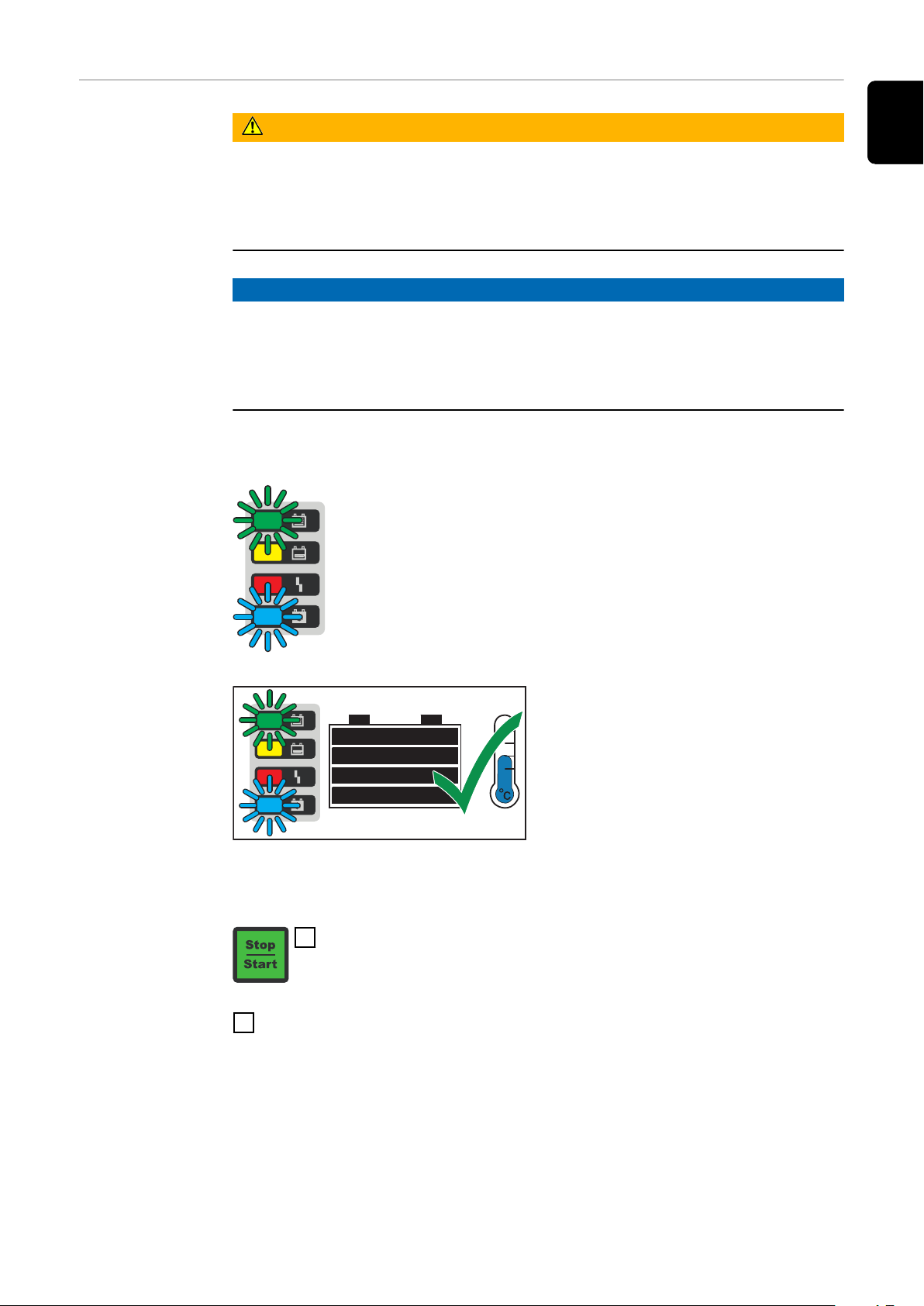

Stopping char­ging

WARNING!

Danger due to ignition of oxyhydrogen caused by sparks generated when the
charging cables are disconnected.

This can result in serious injury and damage to property.

Before disconnecting or unplugging the charging plug, first stop the charging

▶

process by pressing the "Stop/Start" key

NOTE!

Risk of damage to the battery if it is disconnected from the battery charger be­fore the charging process is complete.

This may result in damage to the battery.

Only disconnect the battery from the charger when it is fully charged (green

▶

"Battery charged" indicator lights up)

As soon as the battery is fully charged and has cooled down, the following in­dicators light up:

"Battery charged" indicator (green)

-

"Battery cooled down" indicator (blue)

-

EN

For an optimal battery life, only dis-

connect the battery from the bat­tery charger when the blue "Battery
cooled down" indicator is showing in
addition to the green indicator, in ac­cordance with the explanation below.
If several battery chargers are in use,
first disconnect the battery which
has been fully charged for the
longest (the coolest).

To stop the charging process:

Press the "Stop/Start" key

1

Unplug the charging plug

2

or disconnect the
(-) charging lead from the negative pole of the battery and the
(+) charging lead from the positive pole of the battery

When the charging contacts are open, the automatic open circuit voltage detec­tion ensures that the charging contacts are de-energised.

27

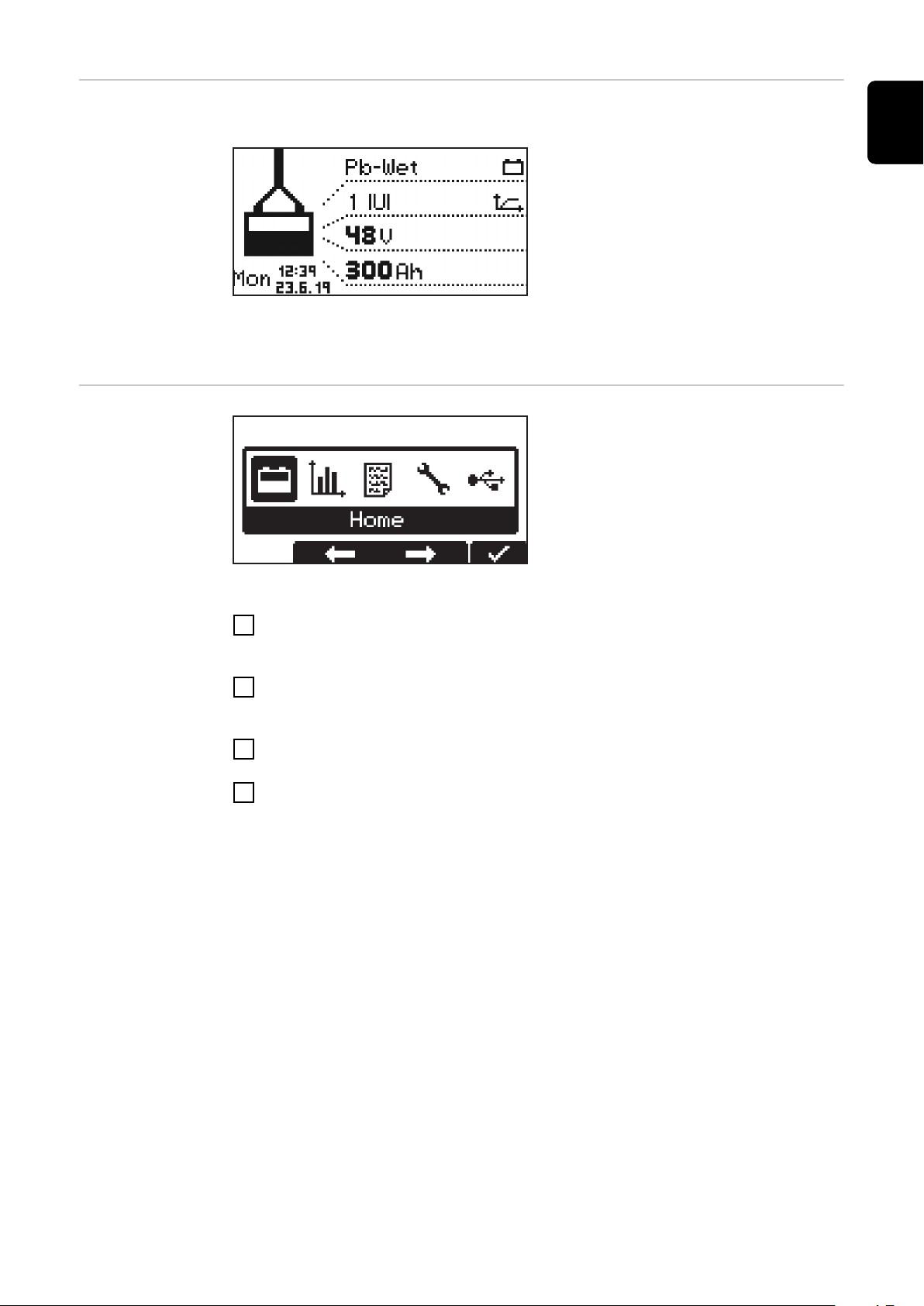

Display

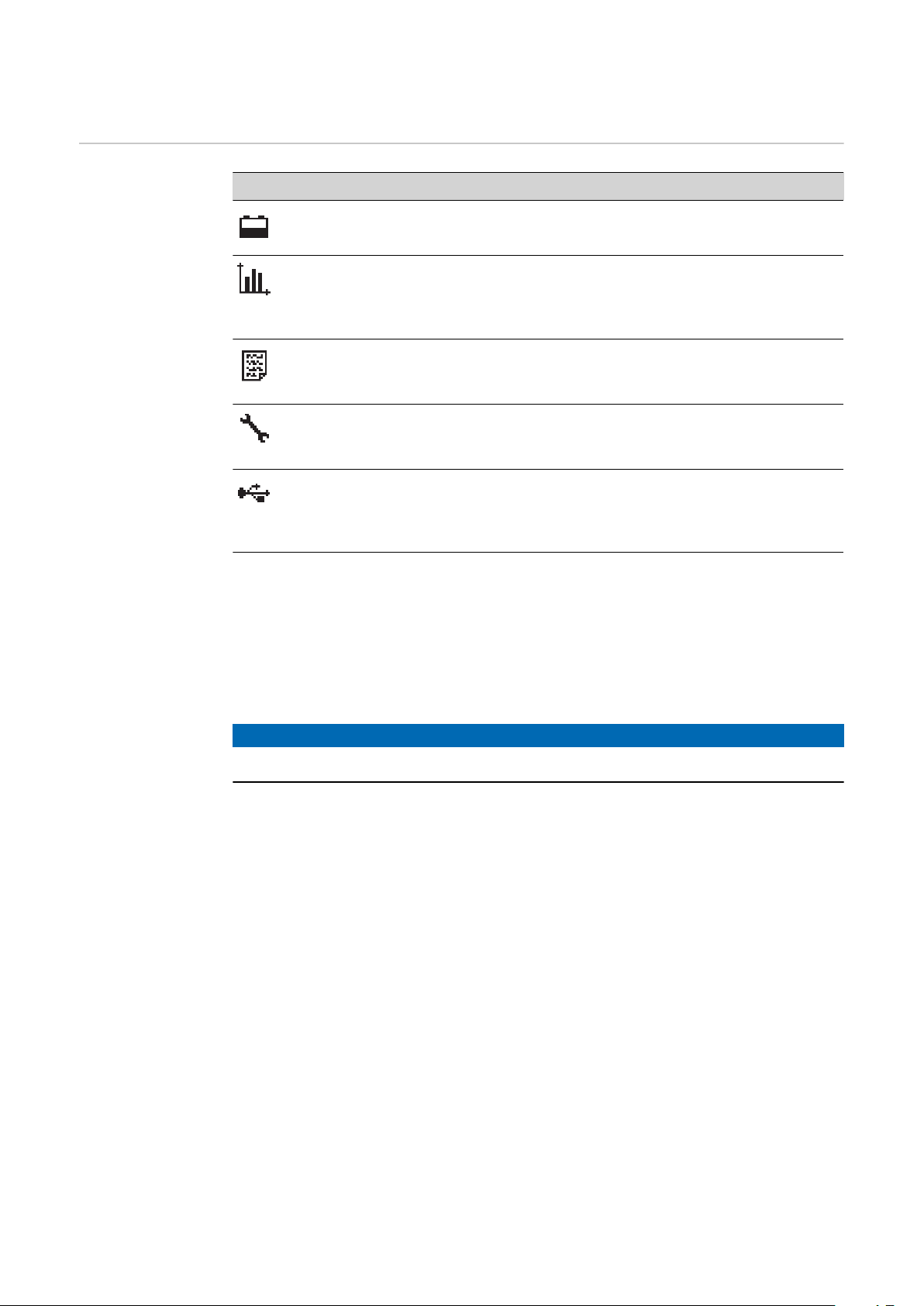

Overview of dis­play modes

No. Function

Standard mode

In standard mode the display shows the charging parameters.

Statistics mode

Visualises the frequency of the device operating modes and shows the
total number of charging actions. Also shows an overview of the total
and average Ah produced and energy consumed per charge.

History mode

Provides information about the parameters for all the stored charging
processes.

Configuration mode

Configuration mode enables all the settings for the device and the
charging process to be adjusted.

USB mode

USB mode enables a device to be updated, device configurations to be
saved and loaded, and the charging parameters to be recorded during
the charging process - all using a USB flash drive.

As long as a battery is connected to the battery charger, the charging process
can only be interrupted and resumed by pressing the "Pause/Start" button. It is
only possible to change the display modes with the "Menu" button after discon­necting the battery from the battery charger. A detailed description of the dis­play modes is given in the following chapter.

A limited menu selection is available while charging has been paused.

NOTE!

A limited menu selection is available while charging has been paused.

28

Standard mode Once the mains plug has been connected to the electrical mains supply, the dis-

play will automatically operate in standard mode.

In standard mode, the display shows
the following charger parameters:

Type of battery (e.g. Pb-WET)

-

Charging characteristic (e.g. IUI)

-

Nominal voltage (e.g. 48 V)

-

Capacity (e.g. 300 Ah)

-

Day of the week, date and time

-

The charger parameters can be set individually. More information can be found in
the "Configuration mode" section.

Menu selection

EN

Change from standard mode to the menu selection as follows:

Press and hold the "Menu" key for approx. 5 seconds.

1

Change from all other modes to the menu selection as follows:

Briefly press the "Menu" key.

1

To select the desired mode:

Use the "Up/Down" keys to select the symbol for the desired mode.

2

e.g. the battery symbol for standard mode

-

Use the "Pause/Start" key to confirm the "Tick" symbol.

3

29

Statistics mode In statistics mode, horizontal bars dis-

play the frequency of the following
device operating statuses:

Idle

-

Charging

-

Floatingcharge

-

Cooldown

-

Error

-

Use the "Up/Down" keys to toggle between page 1/2 and page 2/2.

1

Page 2/2 shows the following values:

Total number of charges.

-

Total Ah output.

-

Average Ah output per charge.

-

Total energy consumed (kWh).

-

Average energy consumed (kWh)

-

per charge.

The consumed energy display is a standard value and can deviate from the actual
amount of energy by up to 5% at nominal output. At lower power levels the devi­ation may be higher.

30

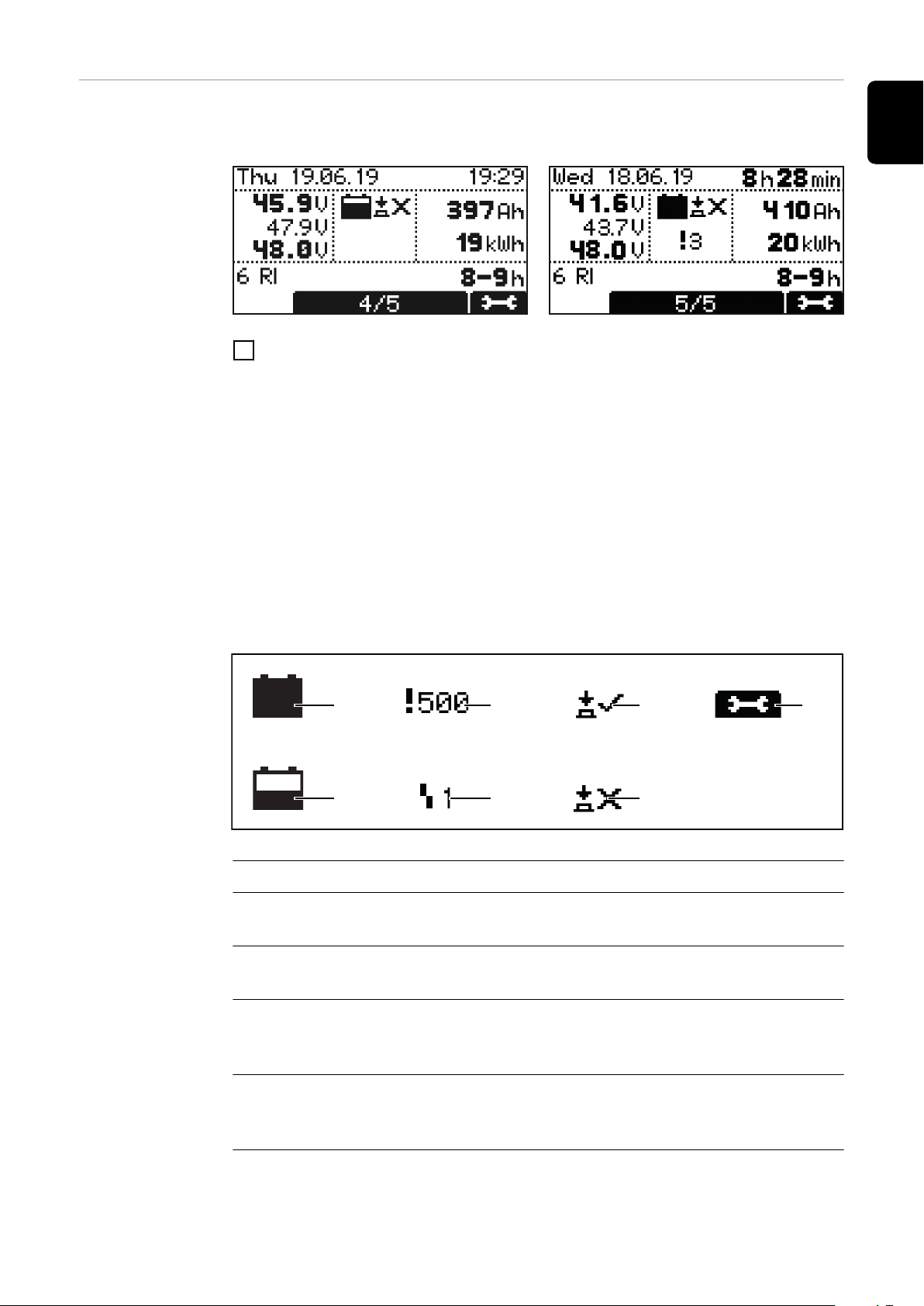

History mode History mode provides information about the parameters for all the stored char-

(1)

(2)

(3)

(4)

(5) (7)

(6)

ging processes. In order to show changing or different displays, two versions of
the display window are shown below:

Use the "Up/Down" keys to switch between the pages for each stored char-

1

ging process.

Contents of the display window

Charge start date, e.g.: Thursday, 19/06/14.

-

Charge start time, e.g.: 19:29 or charging time, e.g.: 8 h 28 min.

-

Voltage at charge start, e.g.: 45.9 V.

-

Voltage after 5 minutes, e.g.: 47.9 V.

-

Voltage at charge end, e.g.: 48.0 V.

-

Ah consumed, e.g.: 397 Ah.

-

kWh consumed, e.g.: 19 kWh.

-

Charging characteristic, e.g.: 6 RI.

-

Set charging time, e.g.: 8 - 9 h or set Ah, e.g.: 400 Ah or set charge end time

-

(not shown).

EN

Symbols shown

No. Function

(1) Full battery

Charging has been completed.

(2) Empty battery

Charging has not been completed.

(3) Exclamation mark with number

Warning issued, with code for the corresponding status code. Detailed in­formation can be found in the Status codes section.

(4) Symbol with number

Error issued, with code for the corresponding status code. Detailed in­formation can be found in the Status codes section.

(5) Key symbol with a tick

Charging was stopped properly using the "Pause/Start" key.

31

(6) Key symbol with a cross

Charging was stopped without using the "Pause/Start" key.

(7) Charging details

Displays certain battery data at the beginning and end of the charging
process:
Number of cells
Ah
Characteristic
Type of battery

Configuration
mode

Configuration mode provides the following setting options:

"Charging settings": settings for the battery

Type of battery, e.g. "Wet".

-

Charging characteristic, e.g. "IU".

-

Capacity (Ah) or charging time (h) depending on the charging characteristic.

-

Cells: voltage (V) and number of battery cells or automatic setting of the

-

number of cells.

CAUTION!

Danger of damage to the battery.

This may result in damage to the battery.

The number of cells should only be set automatically for batteries with

▶

the following nominal voltages: 12 V and 24 V for 24 V devices, 24 V and
48 V for 48 V devices.
Do not set the number of cells automatically for deep discharged batter-

▶

ies.

Additional settings:

-

for individual adaptation options for the charging characteristic.

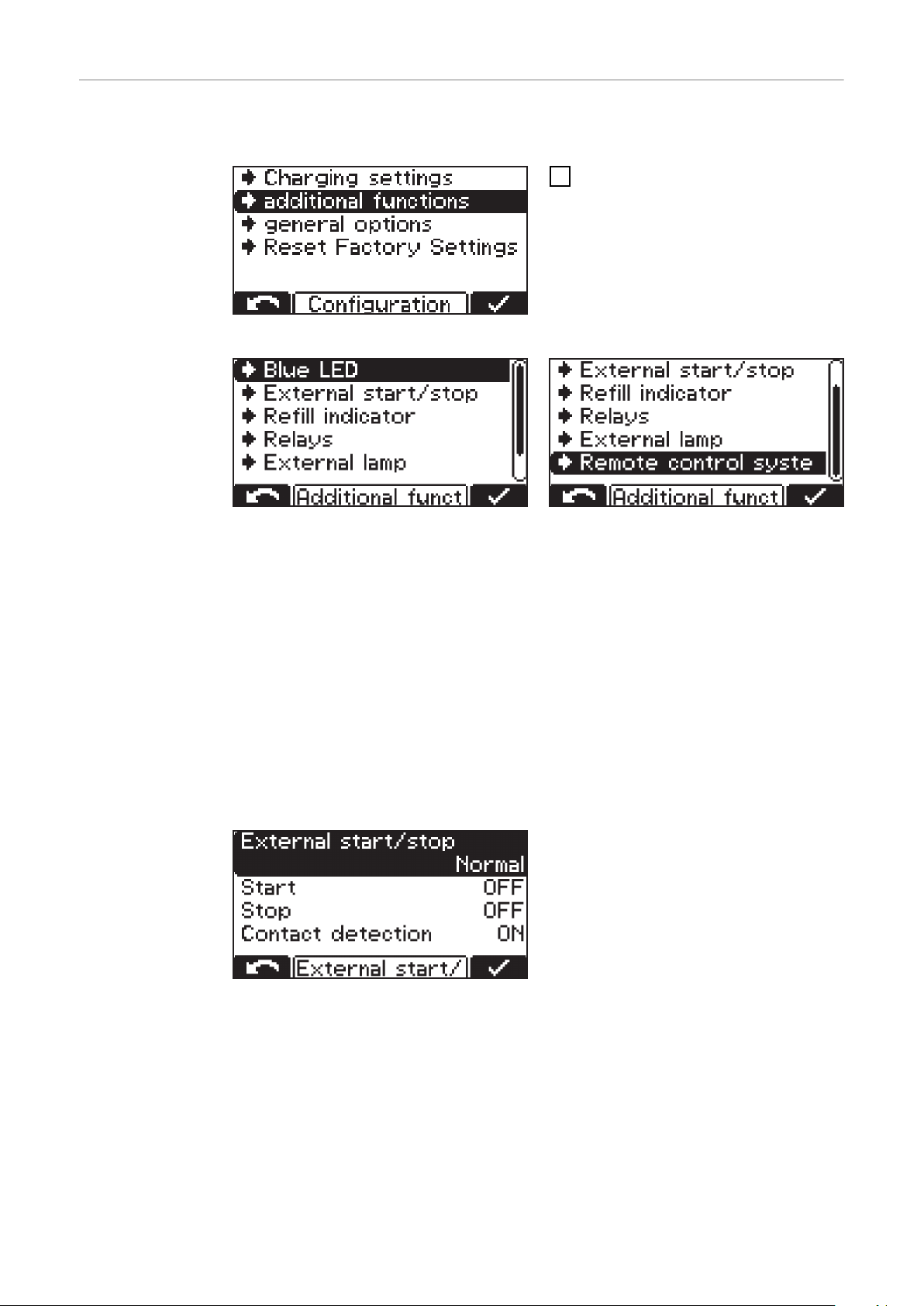

"Additional functions": Additional functions

Blue LED

-

External start/stop

-

Refill indicator

-

Options area

-

Start charging again after a grid failure

-

32

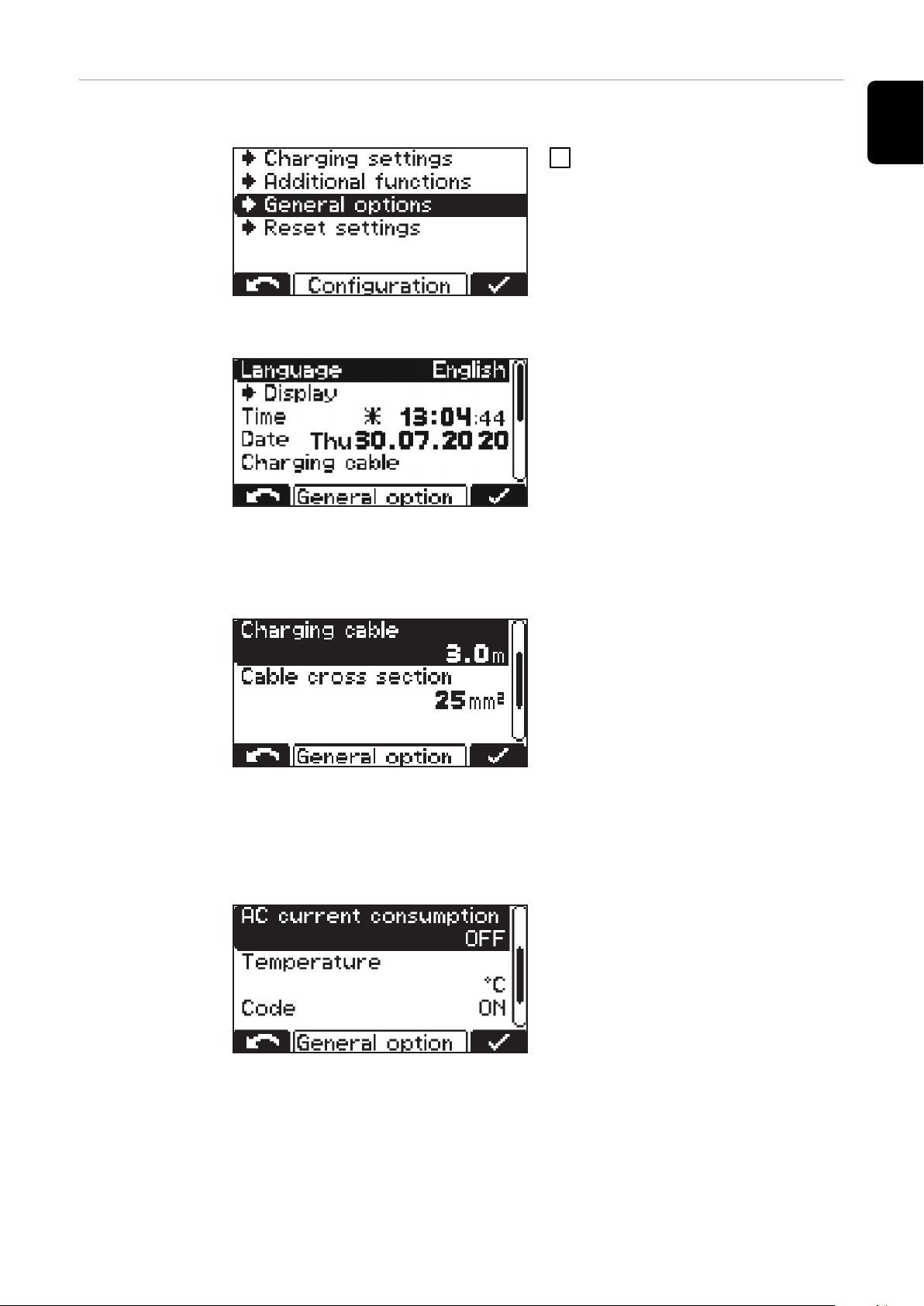

"General options": General settings

Language

-

Contrast

-

Time (hh:mm:ss)

-

Time zone
Daylight saving time/normal time
Date (dd:mm:yy)

-

Length of charging cable (m)

-

-

Charging cable cross section (mm2)

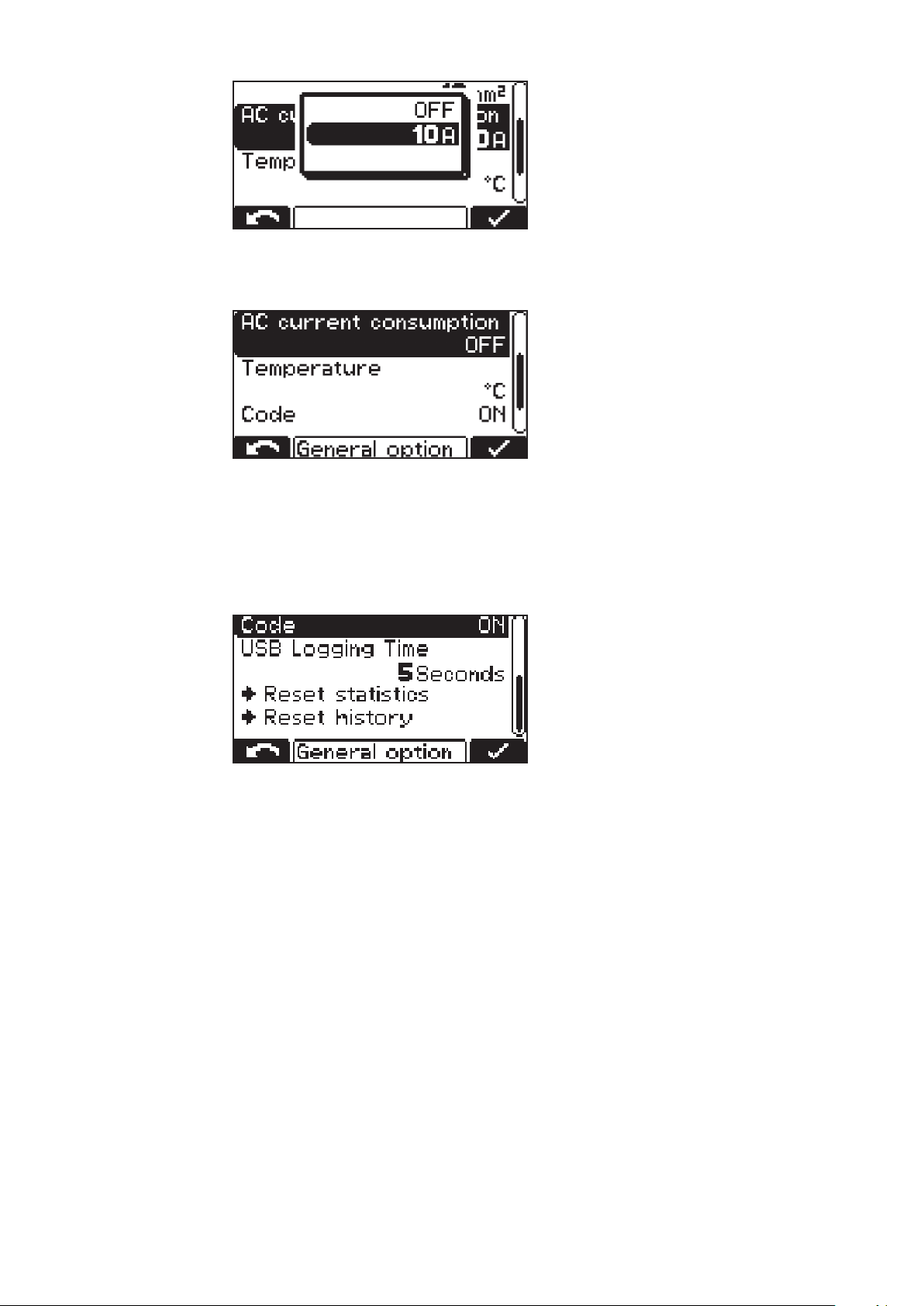

AC current limitation

-

Unit for temperature values

-

Code for accessing the configuration menu activated/deactivated.

-

Time interval for the parameters recorded on the USB flash drive (s).

-

Reset statistics

-

Reset history

-

“Reset Settings”

Includes a double-check prompt ("OK?") that requires the operator to recon-

-

firm that this step is intended.

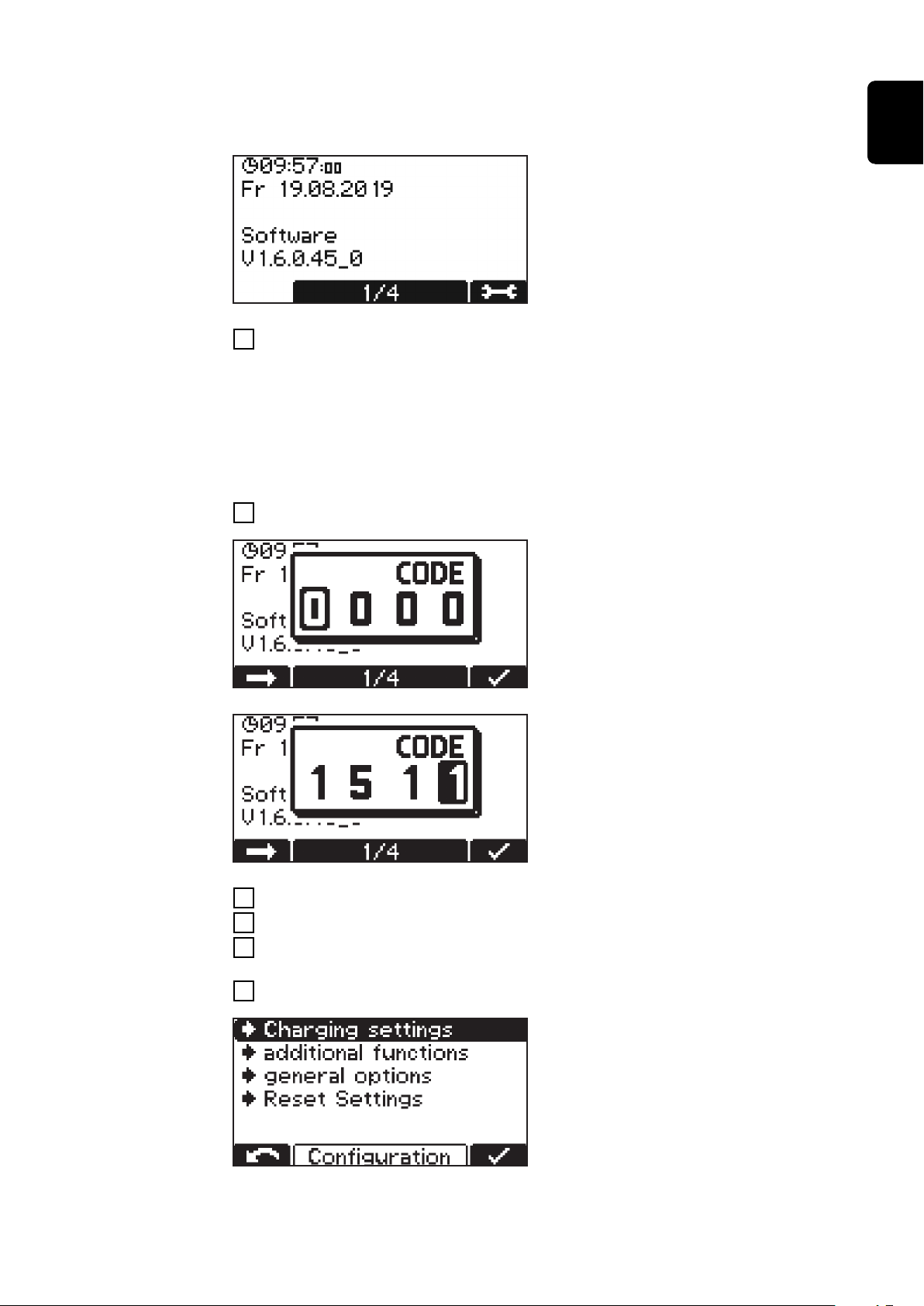

First the screen will appear in its initial
format, showing the date, time and
software version.

The "Up/Down" keys can be used to retrieve the following information:

1

Serial number of the charger plus serial number and version of the con-

-

figuration memory.
PC board for controller/power electronics: hardware version and serial

-

number.
Software: main software, secondary software, primary software and char-

-

acteristic block version.

The procedure for opening the configuration menu is as follows:

Press the "Pause/Start" key.

1

EN

You will be prompted to enter a code.

The code required is "1511" and is
entered as follows:

Using the "Up/Down" keys, enter the first digit of the code.

1

Press the "Menu" key to move to the next digit of the code.

2

Continue following the procedure described above until the complete code

3

has been entered.

Use the "Pause/Start" key to confirm the code entered.

4

You will now be prompted to select
one of the main menu items for the
configuration mode.

33

When you select a menu item you may
be presented with a prompt to read
the Operating Instructions. Confirm
this prompt by pressing the "Pause/
Start" key again.

The procedure for navigating the configuration menu and its submenus is as fol­lows:

Use the "Up/Down" keys to select the desired menu item.

1

Use the "Pause/Start" key to confirm the menu item, and reconfirm any

2

double-check prompt (e.g. "OK?").

Use the "Up/Down" keys as necessary to choose an item, e.g. "Off/On" or

3

enter a value.

Use the "Pause/Start" key to confirm what you have entered.

4

If the cursor moves to another setting or position after confirmation of the

5

previous setting, repeat the procedure described in points (3) and (4).

To exit the current menu:

Press the "Menu" key to return to the higher-level menu.

6

See the following explanation of how
to set the charging settings by way of
example:

Use the "Up/Down" keys to select the "Charging settings" menu item.

1

Use the "Pause/Start" key to confirm this menu item.

2

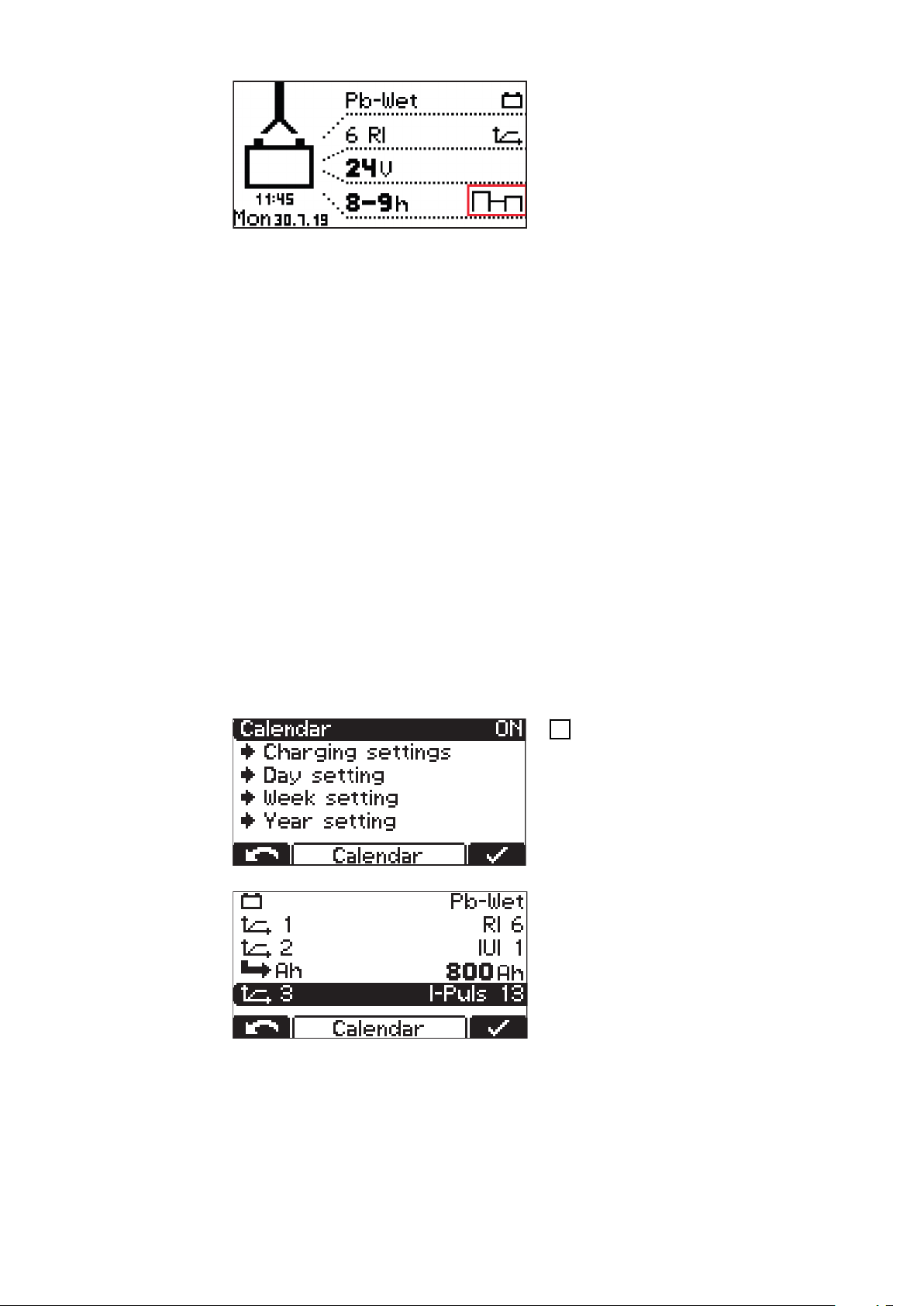

The choice of settings for the "Charging settings" menu item will now be dis­played:

the display may vary depending on the selection made. If the "Pb-WET" type of
battery has been selected in combination with the "RI" characteristic ("Curve") as
in the example here, the "Ah" heading is replaced by the "Charging time" setting
option.

34

Both the start and end time can be set for this charging time period. The starting
time can be deselected as required; the charging time then bases itself exclus­ively on the specified charge end time following a manual charge start.

When applying the settings, the user will be guided through the menu in much
the same way as a wizard function.

Use the "Up/Down" keys to select the desired parameter (e.g. "Cells").

3

Use the "Pause/Start" key to confirm the parameter.

4

Use the "Up/Down" keys to set the desired value (e.g. "24" for the number of

5

battery cells).

Use the "Pause/Start" key to confirm what you have entered.

6

If one or more relevant settings are changed for the charging process in configur­ation mode, you will once again be prompted to confirm acceptance of the
changed settings when exiting configuration mode.

The following settings need to be confirmed when exiting configuration mode:

Characteristic

-

Battery capacity in Ah (excluding the RI characteristic)

-

Number of cells

-

Equalising charge ON/OFF

-

CAN protocol

-

Example:

Changing the characteristic from 3 ­UI (Pb-WET) to 6 - RI (Pb-WET).

EN

If the setting is not confirmed, the
charger returns to configuration mode
and the setting can be changed to the
desired value.

35

Settings Below is a detailed description of the "Settings" menu item for the "Charging set-

tings" menu item discussed above. Navigation is performed as described in the
"Configuration mode" section.

A list appears with the following selection options:

The individual selection options are explained in greater detail below:

Electrolyte circulation ("Air pump") - for 3 kW (C1) devices only:

The electrolyte circulation cycle is controlled by the battery charger's control
system. A number of selection options are available for this purpose.

More information on the electrolyte
circulation can be found under
"Electrolyte circulation 3 kW (C1)" in
the "Options" chapter.

The following settings are available for electrolyte circulation:

Off:

-

Electrolyte circulation switched off

-

Continuous operation ("continuous"):

-

Electrolyte circulation permanently on

-

Program 1 to 5:

-

Default electrolyte circulation programs and their relevant parameters

-

can be found in the table under "Settings" in the "Display" chapter.

Automatic:

-

Automatic adjustment of electrolyte circulation flow rate based on the

-

set battery parameters

"User" - "On"/"Off":

-

Individual setting of the electrolyte circulation

-

The settings for "On" and "Off" determine the pulse/pause ratio of the

-

air flow intervals

Default electrolyte circulation programs and their relevant parameters can be
found in the table below:

Program ON 1 OFF 1 Repeat ON 2 OFF 2

1 30 min 25 min 1 x 5 min 25 min

2 3 min 10 min 4 x 3 min 20 min

3 3 min 12 min 1 x 3 min 12 min

36

4 5 min 10 min 3 x 5 min 20 min

5 2.5 min 7.5 min 1 x 2.5 min 7.5 min

In each of these programs, the solenoid valve opens for a time "ON 1" and closes
for a time "OFF 1". This process is repeated for the number of times specified
under "Repeat". After this number of repetitions has been completed, the pro­cess continues with the "ON 2" and "OFF 2" times until charging is completed.

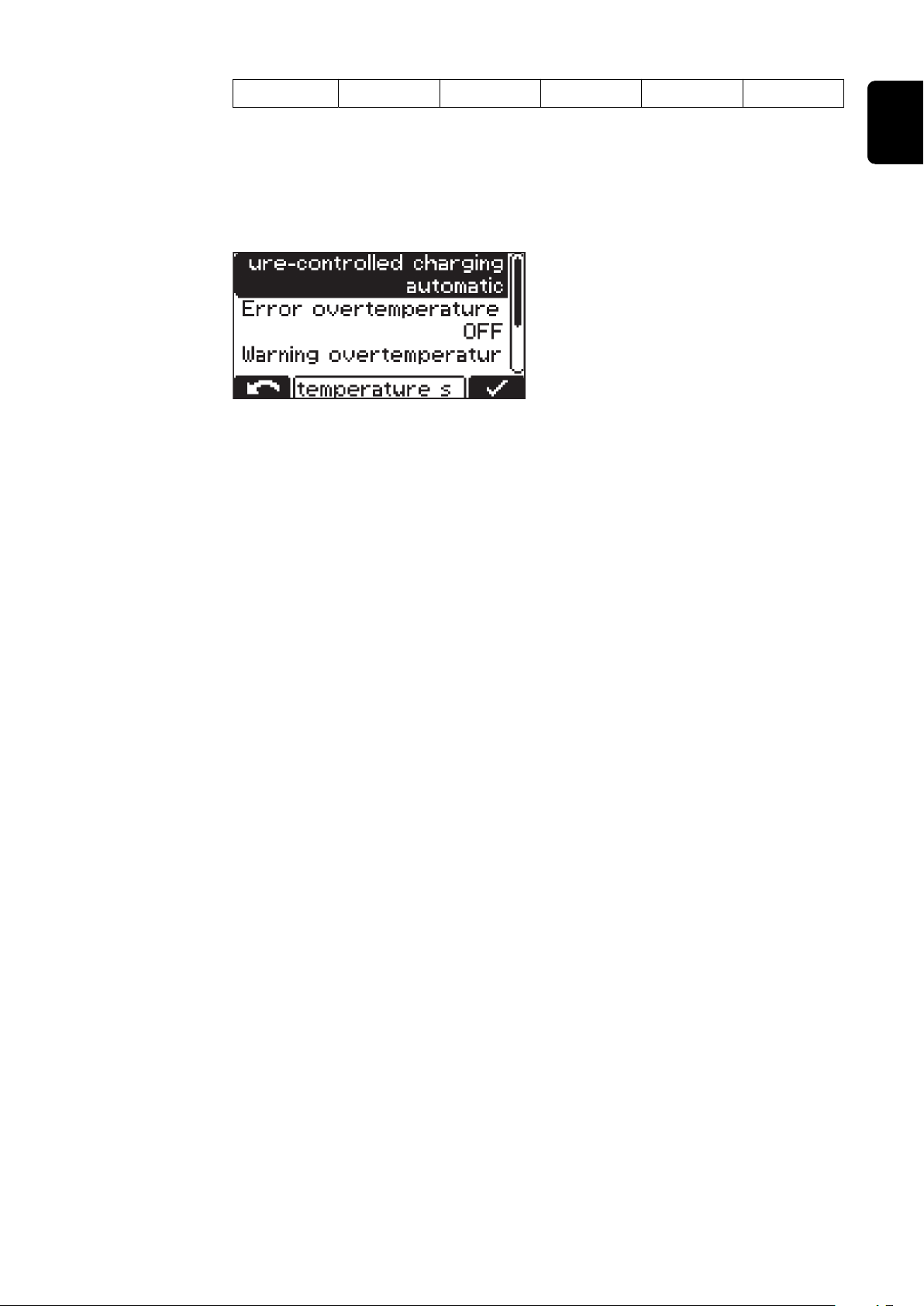

Temperature-controlled charging:

The following settings are available for temperature-controlled charging:

automatic/OFF/required:

-

automatic ... Temperature-dependent adjustment of the charging char-

-

acteristic
OFF ... The measured battery temperature is not taken into account

-

required ...

-

Charging only starts when a temperature sensor is connected

Error overtemperature ON/OFF:

-

ON ... Error message in the event of battery overtemperature

-

Charging process stops and can only be continued once the battery has
cooled down and been reconnected
OFF ... No error message in the event of battery overtemperature

-

Warning overtemperature ON/OFF:

-

ON ... Warning in the event of battery overtemperature

-

OFF ... No battery overtemperature warning

-

EN

Equalising charge:

OFF:

-

There is no equalising charge.
Delay:

-

If the battery remains connected to the battery charger for the duration of
the equalising charge delay ("equalize charge delay"), then a special type of
charging takes place. This prevents acid stratification.
The parameters for the current (ampere / 100 ampere hours), voltage (volt /
cell) and duration of the equalising charge can be changed.
Weekday:

-

Specify the weekday on which the equalising charge is to take place.
The parameters for the current (ampere / 100 ampere hours), voltage (volt /
cell) and duration of the equalising charge can be changed.
Manual equalising charge ("Manual"):

-

An equalising charge can be started manually by pressing the relevant key on
the display. The equalising charge starts after a set delay time has been ob­served. The charge parameters that have been set are followed. The para­meters for the current (ampere / 100 ampere hours), voltage (volt / cell) and
duration of the equalising charge may all be changed. This function is only
available for Pb-Wet characteristics.

If a setting for the equalising charge is enabled, a symbol on the home screen
next to the set ampere hours or charging time shows whether an equalising
charge is being carried out or can be started.

37

Delay:

charge start delay:
Delay time (minutes) of actual start of charging relative to the moment when
charge start was initiated

charge end delay:
Delay time (minutes) before charge end is signalled (e.g. green indicator) relative
to the moment when charging actually stopped

at mains failure restart charging:
If this option is selected, the charging process is restarted automatically as soon
as the electrical grid becomes available again after a disruption to the electrical
grid.

Calendar:

The calendar function allows charging to be started automatically according to
the following criteria:

Time window in which charging may not be started if a battery is connected

-

Time window in which charging is to be started using a defined characteristic

-

1 if a battery is connected
Time window in which charging is to be started using a defined characteristic

-

2 if a battery is connected

To activate the calendar function,

1

select the "ON" setting and con­firm

The first menu item "Charging set­tings" allows three characteristics to
be defined:

Type of battery for every charac-

-

teristic:
e.g. Pb-Wet
Curve settings when selecting the

-

relevant characteristic

Additional settings can be found under the "Calendar" function:

38

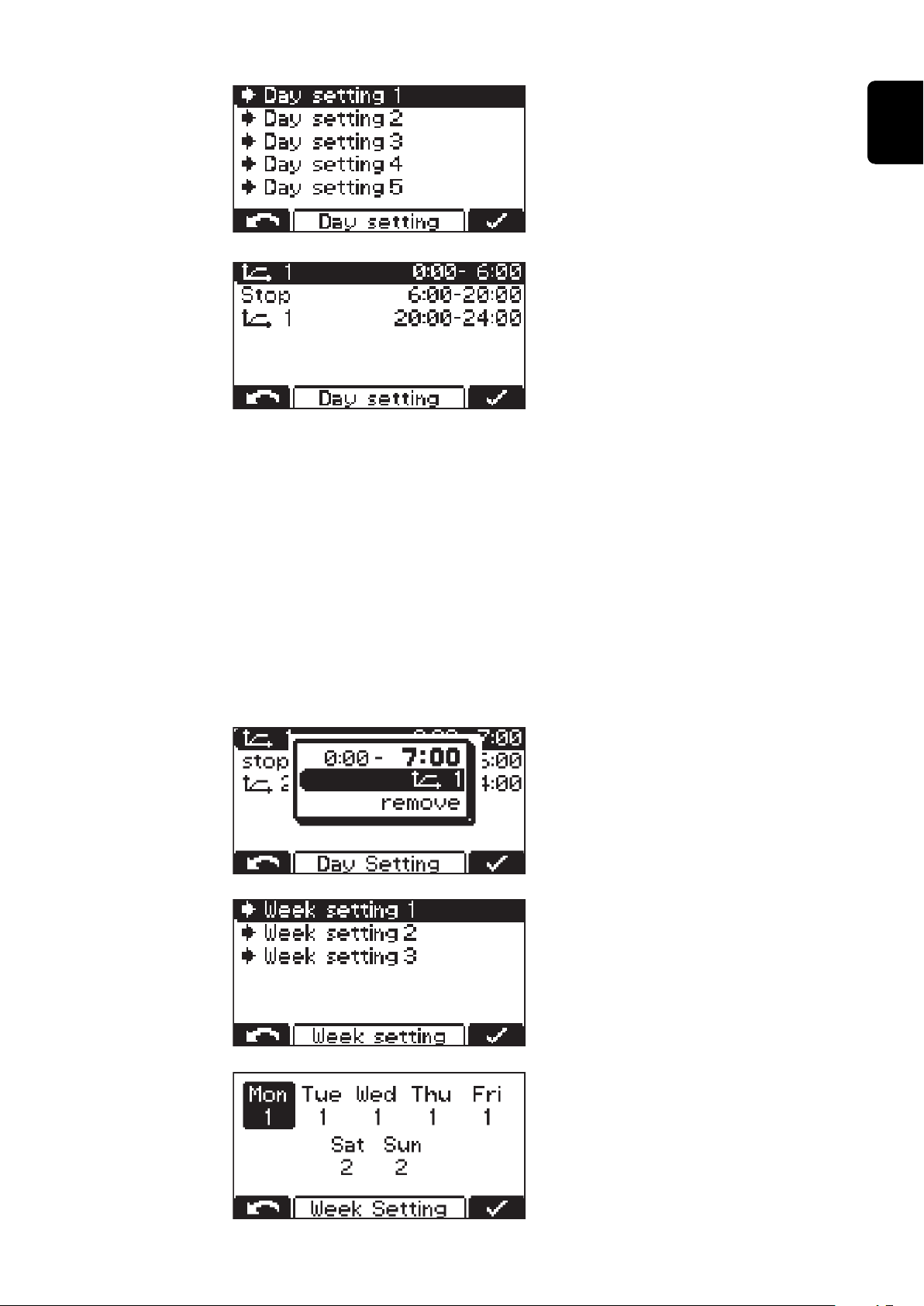

Day Setting 1-5:

The day settings allow up to five dif­ferent charging start time profiles to
be defined with the following set­tings:

Symbol for characteristic 1:

-

Time window in which charging is
to be started using characteristic 1
(e.g. 0:00-6:00)
Stop:

-

Time window in which charging
must not take place (e.g.
6:00-20:00)
Symbol for characteristic 2:

-

Time window in which charging is
to be started using characteristic 2
(e.g. 20:00-24:00)

Please note:

Ongoing charging operations are not affected by the set time windows.
If in the example above a battery is connected at 5:45, the charge end time is
governed by the requirements of the battery and is not interrupted by the end
time specified for the set time window (6:00 in the example).

EN

If the battery is connected during the "stop" time window, charging is started
automatically during the next time window.

If charging is started manually during the "stop" time window, charging will al­ways take place using characteristic 1.

Additional settings:

Change the allocated characterist-

-

ic:
characteristics symbol
Remove the selected characterist-

-

ic:
"remove"

Week Setting:

Three different week settings can

-

be defined.

A previously created day setting can be
assigned to any day of the week.

39

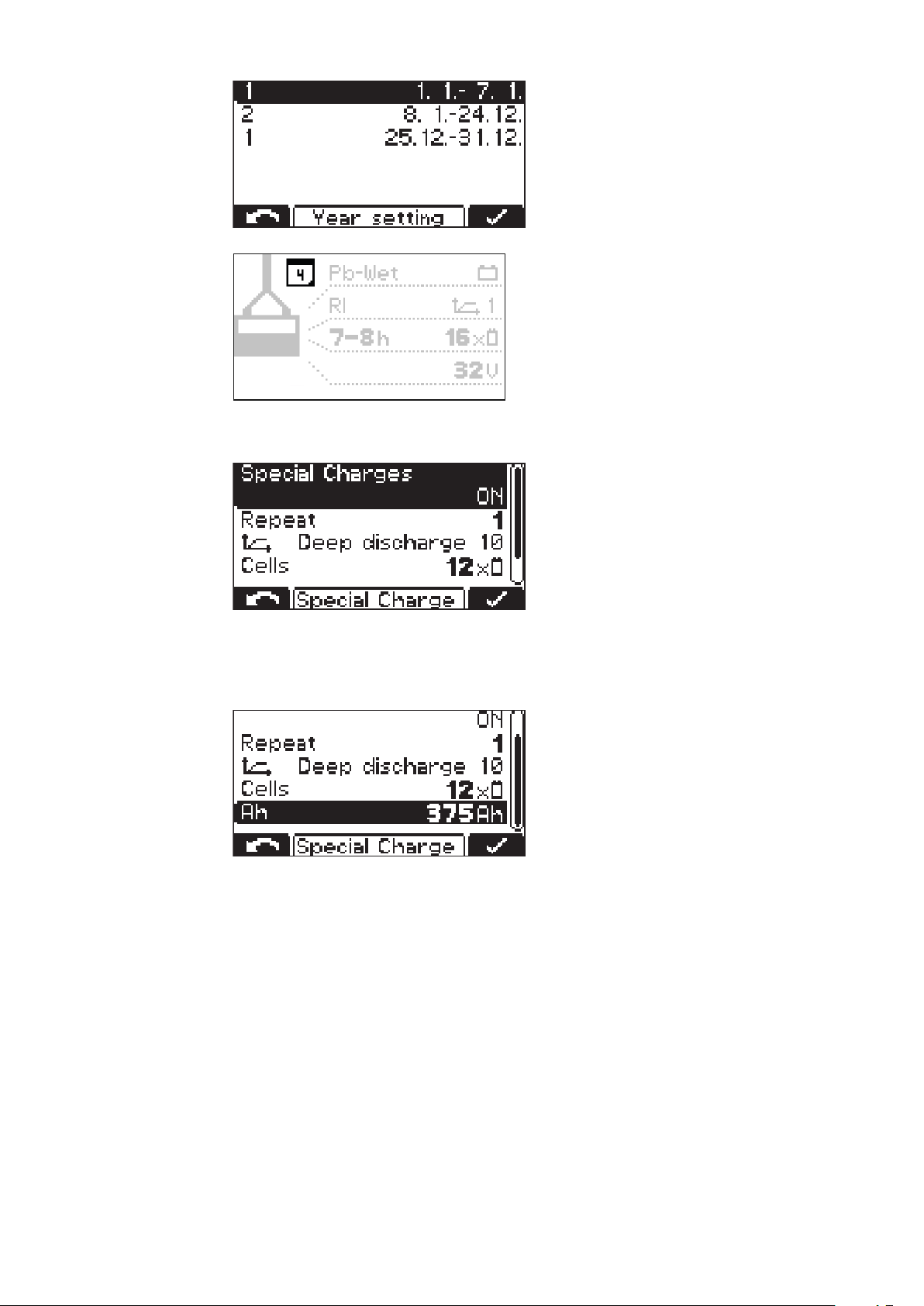

Special Charges:

Year Setting:

Multiple periods throughout the

-

year may be defined, each contain­ing a single week setting (e.g. 1/1 ­7/1).

When the calendar function is active, a
calendar symbol appears with the cur­rent day (shown here with the number
"4").

Selecting "Special Charges" allows one
or more of the alternative charging
types to be performed temporarily:

ON: Function activated

-

OFF: Function deactivated

-

The "repeat" setting defines how often the alternative charging mode should be
performed until the device reverts to the original charging parameters again:

Setting range: 1 to 99 repetitions

-

The following settings are also pos­sible:

Characteristic:

-

e.g. "Deep discharge 10"
Number of battery cells:

-

"Cells" - e.g. 12x
Battery capacity in Ah:

-

e.g. 375 Ah

Disable Start Button:

ON:

-

The charging process cannot be started using the "Stop/Start" key; one reas­on for this is to prevent unauthorised intervention.
OFF:

-

The charging process can be started using the "Stop/Start" key.

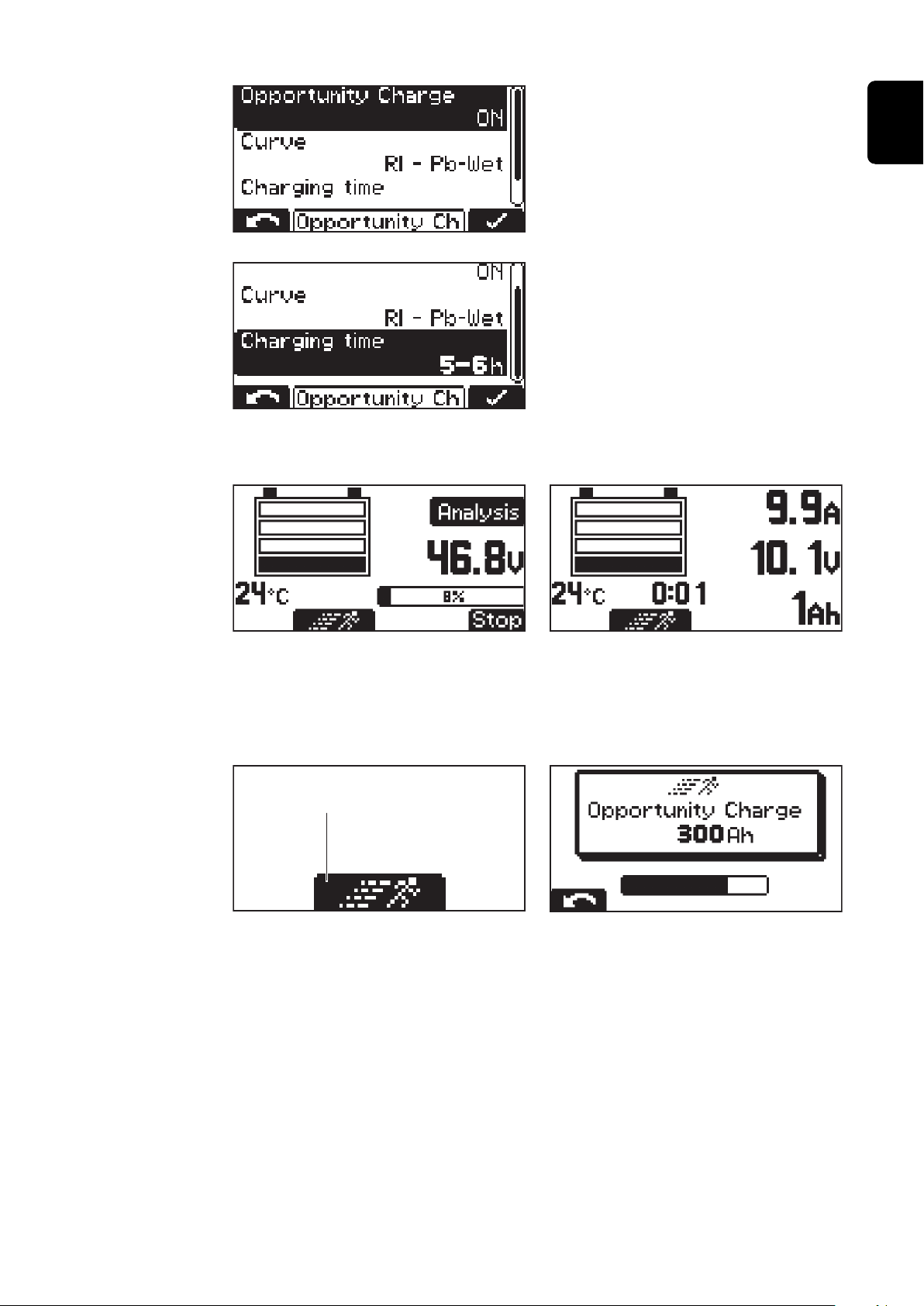

"Opportunity Charge" special function:

40

To extend the usage interval of a bat-

(1)

tery, it is possible to recharge it at a
time when it will not be needed, e.g.
during scheduled plant shutdowns.

ON: Function activated

-

OFF: Function deactivated

-

The following curve settings are avail­able:

-

Curve - e.g. RI - Pb-Wet

-

Charging time - e.g. 5-6 h

When opportunity charging is "ON" and a battery is connected, the following
appears:

EN

Figure on left: Display when RI characteristic is selected

-

Figure on right: Display for all other characteristics

-

To start opportunity charging:

Use the "Up" key to select the runner symbol (1)

-

Figure on left: "Runner symbol" (1)

-

Figure on right: Display when opportunity charging starts

-

41

Additional func­tions

Detailed description of the "additional functions" menu item in configuration
mode. Navigation is performed as described in the "Configuration mode" section.

Select the "additional functions"

1

menu item.

A list appears with the following selection options:

The individual selection options are explained in greater detail below:

Setting the "Blue LED" indicator

Time (minutes) that must be allowed to pass before the blue "battery cooled" in­dicator comes on to indicate that a battery has cooled down sufficiently. The
time from the end of charging is used as the setting.

A temperature value can be set here in conjunction with the "Temperature-con­trolled charging" option. The blue "battery cooled" indicator will light up to signal
a sufficiently-cooled battery once the temperature drops below this value.

External start/stop

The following settings are available when external start/stop is selected:

Button

The function of the "OK/STOP" key can be simulated using an external but-

-

ton.

42

Normal

Start ON

-

Charging starts when an external switch is closed and a battery is detected,
or when the charging plug is connected by closing the auxiliary contacts and
a battery is detected.

Start OFF

-

Charging starts when a battery is connected.

Stop ON

-

Charging is interrupted when an external switch is opened,
or when the charging plug is disconnected by opening the auxiliary contacts.

Stop OFF

-

Opening of an external switch or the auxiliary contacts is ignored.

Contact detection

ON

-

When Start Normal is ON, a battery is connected and the external start/stop
contact is not closed, error 16 is set.
When Stop Normal is ON, charging has started, the external start/stop con­tact is open and the battery is not disconnected, error 16 is set.

OFF

-

Contact detection does not take place.

Refill Indicator

The refill indicator is a message that appears as soon as the battery needs top­ping up with distilled water. The time at which refilling is deemed necessary can
be defined as follows:

EN

Every nth week and weekday

e.g. top up with water every fortnight on a Friday

-

If set to "OFF", the refilling request does not have to be confirmed.

Option Section

Option Section 1

Setting options:

-

CAN1 (option box)
Cool Bat Guide Easy (Fronius variants only)

Option Section 2 (3 kW only)

Setting options:

-

CAN2 (option box)
AirPuls (EUW)

Status outputs (3 kW only)

Setting for external lamp (normal or RGB)

-

43

At mains failure restart charging

If this option is selected, the charging process is restarted automatically as soon
as the mains supply becomes available again after a disruption to the electrical
mains supply.

44

General settings Detailed explanation of the "general options" menu item in configuration mode.

Select the "general options" menu

1

item.

A list appears with the following selection options:

Language

-

Display settings

-

Contrast

-

LED brightness

-

Show Ah at charge end

-

ON/OFF

Time and Date

-

daylight saving time / normal

-

time
Predefined time zones

-

User-defined time zones

-

EN

Charging cable:

Cable cross section:

Cross-section of the charging cable (mm²)

-

AC current consumption:

Basic length of charging cable (m)

-

Adapt the maximum consumed

-

device current to the on-site elec­trical installation or the device
connector fitted on the device.

45

The minimum and maximum values

-

differ depending on the different
device classes. The minimum value
is approx. 25% of the maximum
nominal current of the charger.

Temperature:

Temperature in °C / °F

-

Code:

Code entry required / not required to access configuration mode ("Code

-

ON / OFF")

USB Logging Time:

Time interval (s) for recording

-

charging parameters on the USB
flash drive (USB Logging Time)

Reset statistics

Reset history

For more detailed information on the statistics and history, please refer to the
"Statistics mode" and "History mode" sections.

46

Reset settings The menu item offers 2 possibilities to reset all settings made:

Reset Factory Settings:

Resets to factory settings.

-

Reset Default Settings:

Resets settings to the manufac-

-

turer's defaults.

USB mode In USB mode, the display shows

whether or not a USB flash drive is
connected.

The USB flash drive must conform to
the following specifications:

Formatting: FAT32

-

32 Gigabyte maximum

-

Non multi-partitioned

-

The I-SPoT VIEWER software supports the visualisation and evaluation of data
on the USB flash drive.

EN

Only insert the USB flash drive when charging is not in progress of if the charging
process has been interrupted.

If the charging process is only interrupted, not completed, it is only possible to
read out data. A new update or configuration cannot be loaded.

Use the "Stop/Start" key to access the following settings.

1

Use the "Up/Down" keys to scroll between the settings.

2

Use the "Stop/Start" key to confirm the desired setting.

3

47

Safely remove

-

Safely remove the USB flash drive as soon as the desired action has been
completed.

Update

-

A list of the suitable update files stored on the USB flash drive opens.
Select and confirm the desired file in the same way as scrolling through the
settings.
Do not change the automatically assigned file names of the update file!

Download

-

The data relating to the logged charging parameters stored in the device's
datalogger is saved to the USB flash drive for the I-SPoT VIEWER.
Additionally, events - such as the device settings and user characteristics
(configuration) - are saved.
The following time ranges can be selected for the datalogger:

1 month

-

3 months

-

All

-

Since the last save

-

Download optional

-

The following options are available:

I-SPoT VIEWER

-

The logged data is saved in the same way as for the "Download" function,
but saving only the I-SPoT VIEWER data.
Save datalogger

-

The logged data is saved in the same way as for the "Download" function,
but is saved not in the I-SPoT VIEWER format, but as ".csv" files
(Automatic folder structure for the ".csv" files: *
Fronius\<device serial number>\Charges\<yyyymmdd>\<hhmmss.csv>
Save events

-

Events are saved to the USB flash drive.
Save configuration

-

The device settings are saved to the USB flash drive.

48

Load configuration

-

Loads onto the device one of the suitable device configurations stored on the
USB flash drive, provided the configuration files are present.

Load dealer text

-

A text file can be loaded from the USB flash drive that is displayed as soon
as the device enters an error state. The text file can, for example, contain the
contact details of the dealer. The file must be saved on the USB flash drive
as a ".txt" file in "unicode" format. The file name must be "dealer.txt". The
number of characters is restricted to 99.

* If a USB flash drive is connected while charging is in progress, the ".csv"

files are saved directly to the USB flash drive. The folder structure here is
also created automatically and differs due to the presence of the "Datalog"
folder instead of the "Charges" folder.

Status codes

If a fault occurs during operation, specific status codes may be displayed. Faults
can result from the following:

Battery is connected with reverse polarity

-

The voltage of the connected battery is unsuitable

-

The device has overheated

-

There is a software or hardware fault

-

If an error message appears on the display and if you cannot resolve the error
yourself:

Note the displayed status code: e.g. "Statecode (31)"

1

Note the configuration of the device

2

Contact After-Sales Service

3

Freely-defined text, which could for example include the contact details of
the dealer, can be displayed if the device is in an error state. More informa­tion can be found in the "USB mode" section.

EN

Status codes caused by external factors

Number Cause

(11) Mains overvoltage or undervoltage

(13) External temperature sensor faulty

(14) Electrolyte circulation faulty (pressure switch not switching)

(16) External start/stop is not closed

(17) Open circuit voltage detection triggered more than once during

charging (e.g. worn charging contacts)

Status codes in the event of a battery fault

Number Cause

(22) Battery undervoltage

(23) Battery overvoltage

(24) Battery too hot (with external temperature sensor only)

(25) Battery too cold (with external temperature sensor only)

(26) Cell fault detected

(29) Battery is connected with reverse polarity

Status codes in the event of a charging error

Number Cause

(31) Timeout in I1 phase

(32) Timeout in U1 phase

(33) Battery overvoltage in the I2 phase

49

Status codes in the event of a charging error

Number Cause

(34) Ah limit exceed

(35) Timeout in I2 phase

(36) Target voltage in I2 phase not reached (with format characterist-

ic only)

(37) Problem with RI charge

(38) Set charging time cannot be reached

Status codes in the event of a fault in the primary circuit

Number Cause

(500) Primary temperature sensor faulty

(503) Primary overtemperature

(504) Ventilator current outside the tolerance

(505) Intermediate circuit overvoltage/undervoltage

(507) Primary supply voltage outside the tolerance

(508) Power failure

(510) Primary EEPROM faulty

(527) Phase shifter overcurrent

(530) Communication error

(532) Microcontroller error (e.g. Division by 0)

(533) Reference voltage outside the tolerance

(534) Start-up error

(535) PFC overcurrent

(536) Phase shifter or PFC faulty

Status codes in the event of a fault in the secondary circuit

Number Cause

(520) Secondary temperature sensor faulty

(521) Secondary overtemperature

(522) Fuse fault

(524) Reference voltage outside the tolerance

(525) Current offset compensation error

(526) Current offset outside the tolerance

50

(529) Secondary communication not working

(531) EEPROM faulty / access not working

(532) Microcontroller error (e.g. Division by 0)

(537) Voltage measurement faulty

(570) Secondary relay cannot be switched

(571) ADC/SPI error

Status codes in the event of a fault in the controller

Number Cause

(540) CFM missing/faulty

(541) No secondary communication

(542) Secondary initialisation failed

(543) Program/memory fault in characteristic control

(544) Program/memory fault in characteristic control

(545) Primary initialisation failed

(546) Update failed

(547) Load/save settings failed

(548) Load/save characteristic settings failed

(549) Charging process could not be continued after a power outage,

due to a fault in the backup battery

(550) Time not set

(551) Hardware change detected

(552) CFM invalid

EN

51

Options

Safety The housing has to be partially opened to connect the options.

WARNING!

Danger of electric shock.

This may result in serious injuries or death.

The housing must never be opened by anyone other than a service technician

▶

trained by the manufacturer.
Before working with the housing open, the device must be disconnected from

▶

the grid.
A suitable measuring device must be used to ensure that electrically charged

▶

components (e.g., capacitors) are completely discharged.
With the aid of a clearly legible, understandable warning sign, ensure that

▶

the device remains disconnected from the grid until all work has been com­pleted.

WARNING!

Danger due to work that is not carried out properly.

This can result in severe personal injury and damage to property.

All work involved with connecting optional components must only be carried

▶

out by service technicians trained by the manufacturer.
If there are Installation Instructions or User Information for the optional

▶

component concerned, then all warning notices and instructions therein
must be obeyed.
For all options with electrical connections, a safety inspection must be car-

▶

ried out in accordance with the applicable national and international stand­ards and guidelines after connection work has been carried out.
You can obtain more information about the safety inspection from the au-

▶

thorized service body.
The service body will provide the necessary documents upon request.

▶

Electrolyte cir­culation 3 kW
(C1)

52

NOTE!

Danger due to the ingress of electrolyte from the battery or due to operation
without any back pressure.

This may result in damage to the air pump.

Always set up the charger at least 0.5 m (1 ft. 7.69 in.) above the battery to

▶

be charged.
Always use an undamaged connecting hose provided specifically for this pur-

▶

pose to connect the charger's compressed air outlet to the battery.

NOTE!

Danger due to non-observance of the permissible mains voltage tolerance.

This can cause malfunctions and damage.

For the electrolyte circulation option, a restricted mains voltage tolerance

▶

vis-à-vis the charger of +/-10 V applies.

The electrolyte circulation option introduces air into the battery through capil­lary tubes that are provided specifically for this purpose. This allows intensive

mixing of the electrolyte to take place. The benefit is reduced heating of the bat­tery, and consequently longer battery-life, plus reduced water loss during char­ging.

If a pump fault or leaks in the connection with the battery result in a fault being
detected, then the status code "Statecode 14" will appear on the display. One
way in which this fault can be indicated is by using an external indicator lamp to
show a common error.

Weight of the electrolyte circulation set:
Air-Puls + air hose kit

3 kW (C1) 2.5 kg (5.51 lb)

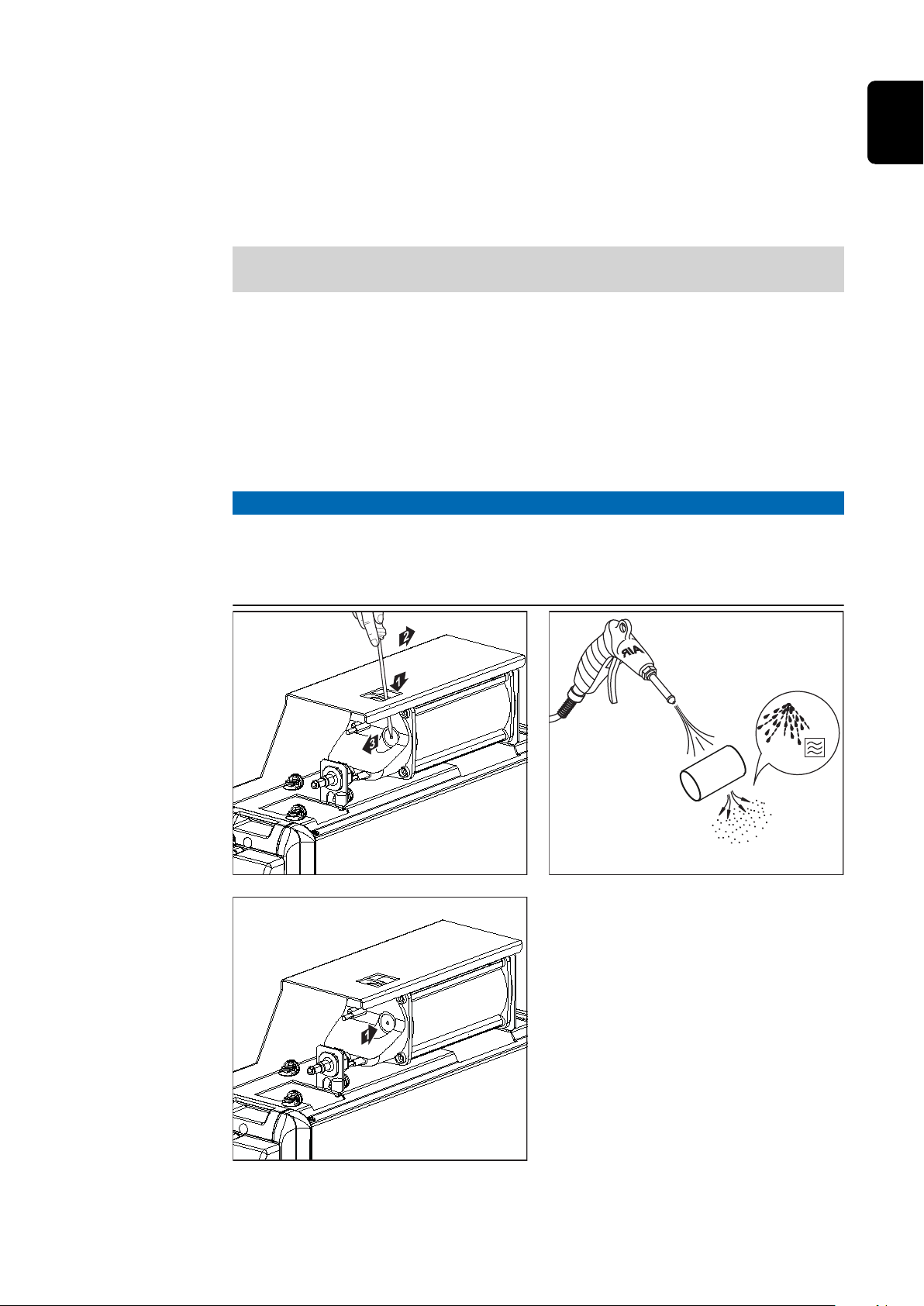

Electrolyte circulation air filter insert

The air filter insert for the integrated air pump should be cleaned once a year. In
dusty environments, the cleaning interval should be shortened accordingly. The
air filter insert must be removed for cleaning. Remove the air filter by levering it
out with a slotted screwdriver; then refit it as follows.

NOTE!

Danger from using the air filter with unsuitable chargers.

This can result in damage to property.

Only use the air filter with the chargers provided by the manufacturer for

▶

this purpose.

EN

53

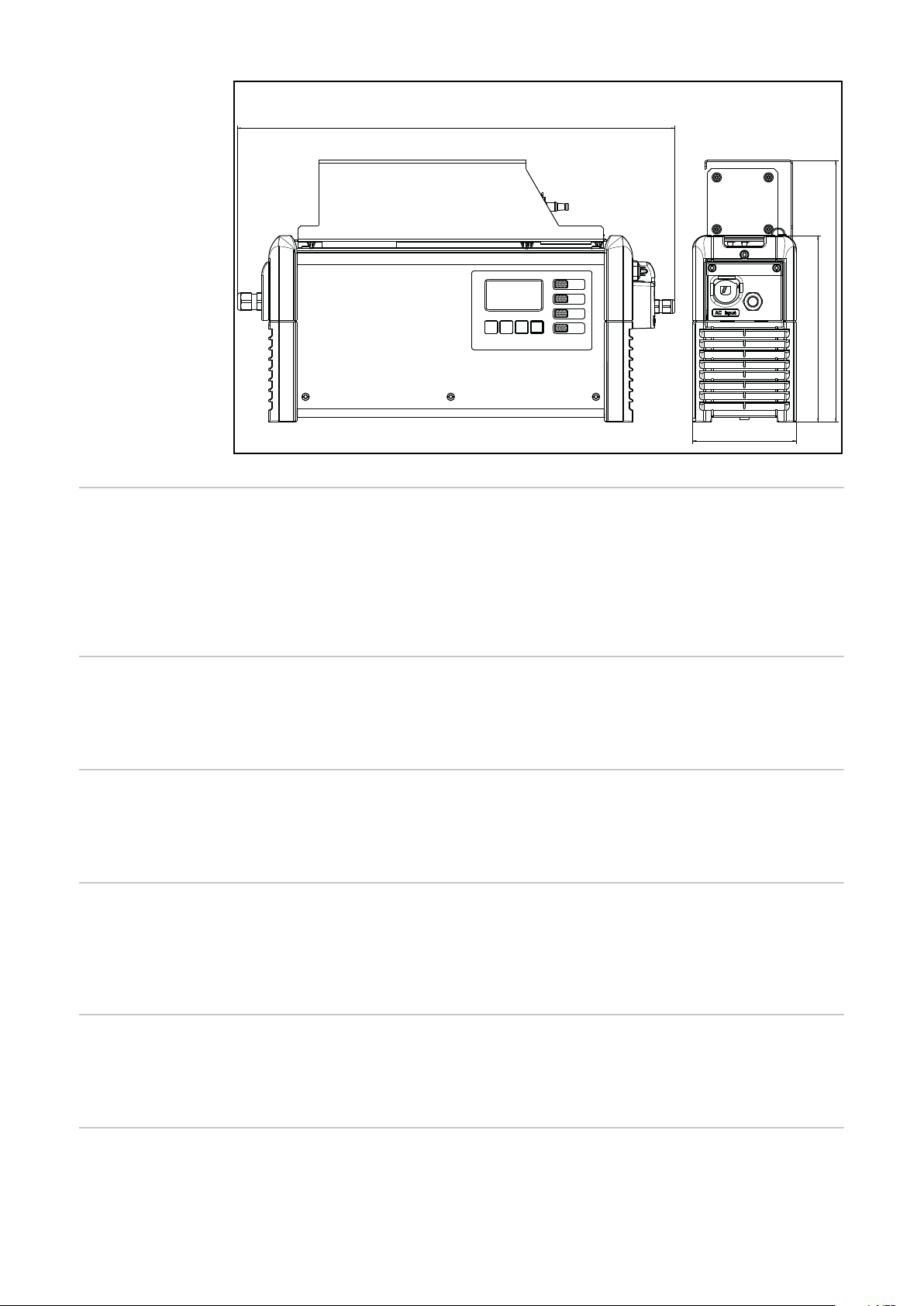

mm (in.)

464 (18.27)

110 (4.33)

198 (7.8)

278 (10.94)

External start/
stop

The external start/stop option prevents spark formation at the charging plug if it
is disconnected during charging. Special contacts inside the charging plug re­gister a disconnection. These contacts are leading in comparison to the main
contacts. An immediate charging stop is triggered. There is therefore no wear on
the main contacts and the level of safety against oxyhydrogen ignition is in­creased.

Temperature­controlled char­ging

The temperature-controlled charging option always adjusts the charging voltage
according to the current temperature of the battery. This results in considerably
longer battery-life, especially where batteries are used in cold stores.

LED strip The LED strip acts as a status indicator and lights up in the same colours as the

display elements on the control panel. An LED strip including a diffuser is in­stalled in the gap between the front wall and upper part of the housing.

Air filter In dusty environments, the air filter prevents the inside of the device from be-

coming dirty. This avoids a possible reduction in power and other problems. De-

Wall and floor
bracket

tailed information can be found in the corresponding User Information.
Cleaning interval as required (manufacturer's recommendation: monthly)

The robust wall and floor bracket with integrated cable holder ensures safe in­stallation at the place of use. Detailed information and diagrams can be found in
under "Wall and floor bracket" in the "General information" chapter.

"Mobile" kit A carrying strap makes it easier to move the device.

54

Option box Using the option box, information on the state of charge of the connected bat-

tery can be obtained via an external circuit.
Error messages and additional features such as the Aquamatic control function,
external air pump and refill indicator can also be displayed.

EN

55

Mounting plate The mounting plate may be used as a space-saving floor or wall bracket.

406 (15.98)

mm (in.)

2 kW (B1)

349 (13.74)
352 (13.86)
380 (14.96)
386 (15.2)

339 (15.98)
342 (13.74)
370 (13.86)
376 (14.96)

115 (4.53)

6,5 (.26)

38 (1.5)38 (1.5)

53.8

(2.12)

53.8

(2.12)

6,5 (.26)6,5 (.26)

76 (2.99)

205 (8.07)

76 (2.99)

14 (.55)

6,5 (.26)

14 (.55)

425 (16.73)

482 (18.98) 115 (4.53)

428 (16.85)
456 (17.95)
462 (18.19)

415 (16.34)
418 (16.46)
446 (17.56)
452 (17.80)

6,5 (.26)

38 (1.5)38 (1.5)

53.8

(2.12)

53.8

(2.12)

6,5 (.26)6,5 (.26)

76 (2.99)

205 (8.07)

76 (2.99)

14 (.55)

6,5 (.26)

14 (.55)

mm (in.)

3 kW (C1)

56

Technical data

EN

Selectiva 2 kW

Mains voltage

1)

~ 230 V, ± 15%

Grid frequency 50/60 Hz

Mains fuse protection

2)

max. 16 A

Minimum mains lead cross section 1.5 mm² (0.002325 in.²)

Protection class I (with ground conductor)

Max. permitted mains impedance Z

3)

PCC

max

on

None

Standby usage 4.9 W

EMC device class B

Dimensions L x W x H 341 x 110 x 198 mm

(13.43 x 4.33 x 7.8 in.)

Degree of contamination 3

Degree of protection

4)

IP21

Overvoltage category II

Operating temperature

5)

-20°C to +40°C
(-4°F to 104°F)

Storage temperature -25°C to +80°C

(-13°F to 176°F)

Relative humidity maximum 85%

Maximum altitude above sea level 2000 m (6561 ft.)

Mark of conformity according to rating plate

Product standard EN62477-1

1)

The device is approved for operation on neutral-earthed networks.

2)

The thermal stress of the circuit breaker must not exceed 30,000 A2s.
The leakage current to earth is less than 3.5 mA.

3)

Interface to a 230/400 V and 50 Hz public grid.

4)

For indoor use only, do not expose to rain or snow.

5)

A high ambient temperature may result in power degradation (derating).

Max.
Device-specific
data

Max. AC
current

Max. AC
power

Nominal
voltage

charging

current Weight

2040 2 kW 7.9 A 1540 W 24 V 40 A 5.8 kg

(12.79 lb)

2050 2 kW 9.9 A 1930 W 24 V 50 A 6.1 kg

(13.45 lb)

6)

2060 2 kW 12.0 A 2330 W 24 V 60 A 6.1 kg

(13.45 lb)

57

Max.
Device-specific
data

Max. AC
current

Max. AC
power

Nominal
voltage

charging

current Weight

2070 2 kW 12.1 A 2350 W 24 V 70 A 6.1 kg

(13.45 lb)

4020 2 kW 7.9 A 1530 W 48 V 20 A 5.8 kg

(12.79 lb)

4035 2 kW 11.9 A 2330 W 48 V 35 A 5.8 kg

(12.79 lb)

6)

With standard mains and charging leads

6)

Selectiva 3 kW

Mains voltage

1)

~ 230 V, ± 15%

Grid frequency 50/60 Hz

Mains fuse protection

2)

max. 16 A

Minimum mains lead cross section 1.5 mm² (0.002325 in.²)

Protection class I (with ground conductor)

Max. permitted mains impedance Z

3)

PCC

max

on

None

Standby consumption
24 V devices
48 V devices

4.9 W

5.1 W

EMC device class B

Dimensions L x W x H 417 x 110 x 198 mm

(16.42 x 4.33 x 7.8 in.)

Degree of contamination 3

Degree of protection

4)

IP21

Overvoltage category II

Operating temperature

5)

-20°C to +40°C
(-4°F to 104°F)

58

Storage temperature -25°C to +80°C

(-13°F to 176°F)

Relative humidity maximum 85%

Maximum altitude above sea level 2000 m (6561 ft.)

Mark of conformity according to rating plate

Product standard EN62477-1

1)

The device is approved for operation on neutral-earthed networks.

2)

The thermal stress of the circuit breaker must not exceed 30,000 A2s.
The leakage current to earth is less than 3.5 mA.

3)

Interface to a 230/400 V and 50 Hz public grid.

4)

For indoor use only, do not expose to rain or snow.

5)

A high ambient temperature may result in power degradation (derating).

Max.
Device-specific
data

Max. AC
current

Max. AC
power

Nominal
voltage

charging

current Weight

2080 3 kW 15.1 A 3040 W 24 V 80 A 8.2 kg

(18.08 lb)

2100 3 kW 15.3 A 3290 W 24 V 100 A 8.2 kg

(18.08 lb)

2120 3 kW 15.5 A 3340 W 24 V 120 A 8.7 kg

(19.18 lb)

4045 3 kW 15.0 A 3250 W 48 V 45 A 7.4 kg

(16.31 lb)

4060 3 kW 15.2 A 3280 W 48 V 60 A 7.4 kg

(16.31 lb)

6)

With standard mains and charging leads

EN

6)

59
