RAPID SHUTDOWN COMBINER
/ 1,000 V for commercial and utility projects
Innovative Solar is based in San Jose, California and has over thirty years of design and engineering experience. Their focus
is manufacturing high-quality BOS components for the solar industry and offer a range of rapid shutdown products.
Innovative Solar was selected to design and build a cost-effective 1,000 V rapid shutdown combiner for the commercial
and utility markets. The product was customized to meet our stringent specifications. It is currently undergoing compatibility
testing at Fronius International and is expected to receive CSA certification in early 2017.
FEATURES
• Six input strings combined into two output strings
• Self-powered from the PV array
• Supports paired strings with 30 A fuses
• Rated operating temperature is -40 C to 60 C
• Maintenance-free spring clamp inputs
• Designed with simple O+M in mind: battery-free circuit board design and built-in diagnostics
• Field upgradeable
• Lockable disconnect handle
• Rated at 1,000 V DC
• Installation flexibility, can be mounted horizontally or vertically
• Upgradeable surge protection
• Choice or polycarbonate or powder coated CRS enclosure

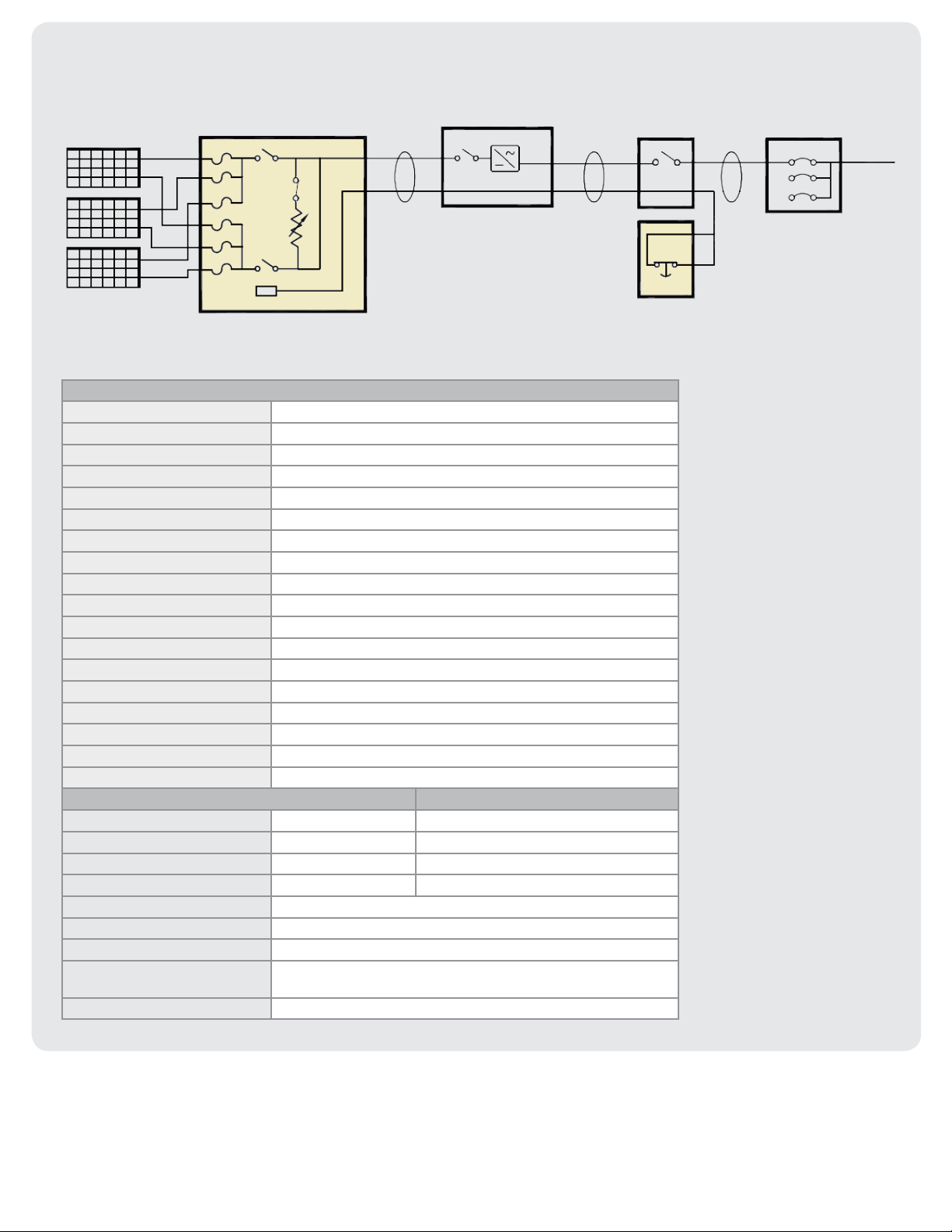

CONFIGURATION
PV PANELS RAPID SHUTDOWN COMBINER INVERTER AC SWITCH MAIN AC PANEL
OPTIONAL
E-STOP
TECHNICAL SPECIFICATIONS
Version: 2 MPPT x 3 String Un-Grounded
Rapid shutdown Sealed HV contactors
Capacitor discharge Discharges to <30 V in <10 sec
Surge protection (UL1449) 6.5 kA, upgradeable to 40 kA at single 8/20μS impulse
Max. voltage 1000 V dc
Max input current 30 A (per string)
Fuses 15 A (30 A compatible)
Conductor size 14-6 AWG (CU only)
Termination type Spring clamp, with lever
PV output 2 MPPT
Max. current 80 A / MPPT
Conductor size 8-2/0 AWG (90 C tested)
Lug type Box lug terminal block
Control power Self-Powered (PV) (Standard)
Power consumption 11 W from PV
Min. start up voltage 200 V
Operating voltage 125 V
Rapid shutdown control Remote contact closure or voltage source
Conductor size 22-14 AWG (stranded or solid)
Enclosure
Enclosure type Polycarbonate Powder coated CRS
Enclosure rating NEMA 4X NEMA 3R/4
Dimensions H x W x D (nominal) 18 in. x16 in. x 10 in. 20 in. x16 in. x 8 in.
Net weight (approx.) 26 lb. 34 lb.
Mounting angle Any
Operating temperature -40 C to 60 C (-40 F to 140 F)
Storage temperature -40 C to 85 C (-40 F to 185 F), non-operating
Certications UL1741 (690.11, 690.12, 1699B) (Q4, 2016)
CSA. C22.2 107.1, AE-004-2015 (Q4, 2016)
Warranty 7 years
