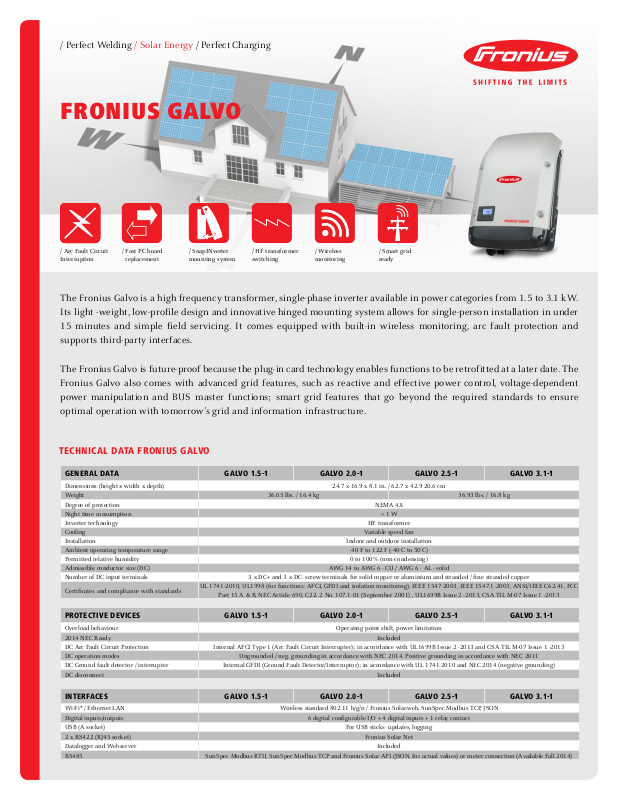

Page 1
/ Perfect Welding / Solar Energy / Perfect Charging
FRONIUS GALVO
/ Arc Fault Circuit
Interruption
/ Fast PC board
replacement
/ SnapINverter
mounting system
/ HF transformer
switching
/ Wireless
monitoring
/ Smart grid
ready
The Fronius Galvo is a high frequency transformer, single-phase inverter available in power categories from 1.5 to 3.1 kW.
Its light -weight, low-profile design and innovative hinged mounting system allows for single-person installation in under
15 minutes and simple field servicing. It comes equipped with built-in wireless monitoring, arc fault protection and
supports third-party interfaces.
The Fronius Galvo is future-proof because the plug-in card technology enables functions to be retrofitted at a later date. The
Fronius Galvo also comes with advanced grid features, such as reactive and effective power control, voltage-dependent
power manipulation and BUS master functions; smart grid features that go beyond the required standards to ensure
optimal operation with tomorrow’s grid and information infrastructure.
TECHNICAL DATA FRONIUS GALVO
GENERAL DATA GALVO 1.5-1 GALVO 2.0-1 GALVO 2.5-1 GALVO 3.1-1
Dimensions (height x width x depth) 24.7 x 16.9 x 8.1 in. / 62.7 x 42.9 20.6 cm
Weight 36.05 lbs. / 16.4 kg 36.93 lbs. / 16.8 kg
Degree of protection NEMA 4X
Night time consumption < 1 W
Inverter technology HF transformer
Cooling Variable speed fan
Installation Indoor and outdoor installation
Ambient operating temperature range -40 F to 122
Permitted relative humidity 0 to 100% (non-condensing)
Admissible conductor size (DC) AWG 14 to AWG 6 - CU / AWG 6 - AL - solid
Number of DC input terminals 3 x DC+ and 3 x DC- screw terminals for solid copper or aluminium and stranded / ne stranded copper
Certicates and compliance with standards
UL 1741-2010, UL1998 (for functions: AFCI, GFDI and isolation monitoring), IEEE 1547-2003, IEEE 1547.1-2003, ANSI/IEEE C62.41, FCC
Part 15 A & B, NEC Article 690, C22. 2 No. 107.1-01 (September 2001) , UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 -2013
F (-40 C to 50 C)
PROTECTIVE DEVICES GALVO 1.5-1 GALVO 2.0-1 GALVO 2.5-1 GALVO 3.1-1
Overload behaviour Operating point shift, power limitation
2014 NEC Ready Included
DC Arc Fault Circuit Protection Internal AFCI Type 1 (Arc Fault Circuit Interrupter); in accordance with UL1699B Issue 2 -2013 and CSA TIL M-07 Issue 1 -2013
DC operation modes Ungrounded / neg. grounding in accordance with NEC 2014. Positive grounding in accordance with NEC 2011
DC Ground fault detector / interrupter Internal GFDI (Ground Fault Detector/Interruptor); in accordance with UL 1741-2010 and NEC 2014 (negative grounding)
DC disconnect Included
INTERFACES GALVO 1.5-1 GALVO 2.0-1 GALVO 2.5-1 GALVO 3.1-1
Wi-Fi* / Ethernet LAN Wireless standard 802.11 b/g/n / Fronius Solar.web, SunSpec Modbus TCP, JSON
Digital inputs/outputs 6 digital congurable I/O + 4 digital inputs + 1 relay contact
USB (A socket) For USB sticks- updates, logging
2 x RS422 (RJ45 socket) Fronius Solar Net
Datalogger and Webserver Included
RS485 SunSpec Modbus RTU, SunSpec Modbus TCP and Fronius Solar API (JSON, for actual values) or meter connection (Available Fall 2014)
Page 2
TECHNICAL DATA FRONIUS GALVO
INPUT DATA GALVO 1.5-1 GALVO 2.0-1 GALVO 2.5-1 GALVO 3.1-1
Max. permitted PV power 2.25 kW 3 kW 3.75 kW 4.65 kW
Max. usable input current 240 V 13.4 A 17.9 A 16.1 A 20.0 A
Max. admissible input current 16.7 A 22.4 A 20.1 A 25.0 A
Nominal input voltage 260 V 330 V
Min./Max. input voltage 120 V / 420 V 165 V / 550 V
DC startup voltage 140 V 185 V
MPP Voltage Range 120 V - 335 V 165 V - 440 V
OUTPUT DATA GALVO 1.5-1 GALVO 2.0-1 GALVO 2.5-1 GALVO 3.1-1
AC nominal output power 1,500 VA 2,000 VA 2,500 VA 3,100 VA
Max. output power 1,500 VA 2,000 VA 2,500 VA 3,100 VA
Max. output fault current / Duration 232 A Peak / 3.6 ms 232 A Peak / 3.6 ms 488 A Peak / 1.4 ms 488 A Peak / 1.4 ms
Max. continuous output current 240 V 6.3 A 8.3 A 10.4 A 12.9 A
Recommended OCPD/AC breaker size 240 V 10.0 A 15.0 A 15.0 A 20.0 A
208 V 10.0 A 15.0 A 15.0 A 20.0 A
Max. eciency 95.8 % 95.8 % 96.0 % 96.0 %
CEC eciency 208 V 94.0 % 94.5 % 95.0 % 95.0 %
240 V 94.5 % 94.5 % 95.0 % 95.5 %
Admissible conductor size (AC) AWG 14 to AWG 6 - CU / AWG 6 - AL - solid
Max. output overcurrent protection 20 A
Grid connection 208 / 240 V
Frequency 60 Hz
Frequency range 45 - 65 Hz
Total harmonic distortion < 4 %
Power factor range 0.85 - 1 ind./cap
208 V 13.4 A 17.0 A 16.1 A 18.7 A
208 V 7.2 A 9.1 A 12.0 A 14.1 A
Fronius Canada Ltd. / 2875 Argentia Road, Units 3 - 6 / Mississauga, ON L5N 8G6 / www.fronius.ca / 905-288-2100
December 12 , 2016
