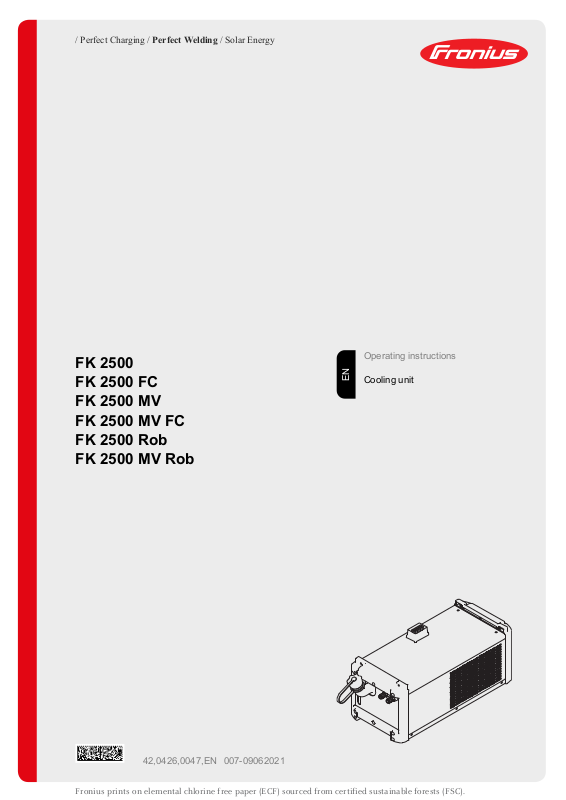

Fronius FK 2500, FK 2500 FC, FK 2500 MV, FK 2500 MV FC, FK 2500 Rob Operating Instruction

...

Download

Page 1

Fronius prints on elemental chlorine free paper (ECF) sourced from certified sustainable forests (FSC).

/ Perfect Charging / Perfect Welding / Solar Energy

FK 2500 FK 2500 FC FK 2500 MV FK 2500 MV FC FK 2500 Rob FK 2500 MV Rob

Operating instructions

Cooling unit

42,0426,0047,EN 007-09062021

Page 2

Page 3

Contents

Safety rules 5

Explanation of safety notices 5 General 5 Proper use 5 Environmental conditions 6 Obligations of the operator 6 Obligations of personnel 6 Mains connection 6 Protecting yourself and others 7 Noise emission values 7 Danger from toxic gases and vapours 8 Danger from flying sparks 8 Risks from mains current and welding current 9 Meandering welding currents 10 EMC Device Classifications 10 EMC measures 10 EMF measures 11 Specific hazards 11 Requirement for the shielding gas 12 Danger from shielding gas cylinders 12 Danger from escaping shielding gas 13 Safety measures at the installation location and during transport 13 Safety measures in normal operation 13 Commissioning, maintenance and repair 14 Safety inspection 14 Disposal 15 Safety symbols 15 Data protection 15 Copyright 15

General 16

Device concept 16 Application areas 16 Scope of supply 16 Device variants and their equipment 16 Thermostat function 17 Flow sensor function 17 Validity of "General Delivery and Payment Conditions" 17 Information about the coolant 18 Warning notices on the device 18 Information on leaks 18

Control elements and connections 20

Safety 20 Control elements and connections 20

Before installation and commissioning 21

Safety 21 Setup regulations 21 Information about the coolant 22 Guarantee provisions regarding the coolant pump 22 Proper use 22

Fitting the cooling unit to the trolley 23

General 23 Fitting the cooling unit to the trolley 23

Connecting the cooling unit to the power source 24

Safety 24 Connecting the cooling unit to the power source 24

Putting the cooling unit into service 25

Safety 25 General 25 Filling the cooling unit 25 Connecting the welding torch 26

Page 4

Commissioning the cooling unit 26 Notes on changing the welding torch 26

Care, maintenance and disposal 27

Safety 27 General 27 Symbols for care and maintenance of the cooling unit 28 Maintenance intervals, maintenance work 28 Gas purging the cooler 29 Changing the coolant 29 Disposal 30

Troubleshooting 31

Safety 31 Troubleshooting 31

Twisting the coolant pump shaft 34

Safety 34 Turning the coolant pump shaft 34

Technical data 35

General 35 FK 2500, FK 2500 FC 35 FK 2500 MV, FK 2500 MV FC 36 FK 2500 Rob, FK 2500 MV Rob 36

Page 5

Safety rules

Explanation of safety notices

DANGER!

Indicates immediate danger.

If not avoided, death or serious injury will result.

▶

WARNING!

Indicates a potentially hazardous situation.

If not avoided, death or serious injury may result.

▶

CAUTION!

Indicates a situation where damage or injury could occur.

If not avoided, minor injury and/or damage to property may result.

▶

NOTE!

Indicates a risk of flawed results and possible damage to the equipment.

General The device is manufactured using state-of-the-art technology and according to recog-

nised safety standards. If used incorrectly or misused, however, it can cause:

- injury or death to the operator or a third party,

- damage to the device and other material assets belonging to the operating company,

- inefficient operation of the device.

All persons involved in commissioning, operating, maintaining and servicing the device must:

- be suitably qualified,

- have sufficient knowledge of welding and

- read and follow these operating instructions carefully.

The operating instructions must always be at hand wherever the device is being used. In addition to the operating instructions, attention must also be paid to any generally applicable and local regulations regarding accident prevention and environmental protection.

All safety and danger notices on the device

- must be in a legible state,

- must not be damaged,

- must not be removed,

- must not be covered, pasted or painted over.

For the location of the safety and danger notices on the device, refer to the section headed "General" in the operating instructions for the device. Before switching on the device, rectify any faults that could compromise safety.

This is for your personal safety!

Proper use The device is to be used exclusively for its intended purpose.

Page 6

The device is intended solely for the welding processes specified on the rating plate. Any use above and beyond this purpose is deemed improper. The manufacturer shall not be held liable for any damage arising from such usage.

Proper use includes:

- carefully reading and following all the instructions given in the operating instructions

- studying and obeying all safety and danger notices carefully

- performing all stipulated inspection and maintenance work.

Never use the device for the following purposes:

- Thawing out pipes

- Charging batteries

- Starting engines

The device is designed for use in industry and the workshop. The manufacturer accepts no responsibility for any damage caused through use in a domestic setting.

The manufacturer likewise accepts no liability for inadequate or incorrect results.

Environmental conditions

Obligations of the operator

Operation or storage of the device outside the stipulated area will be deemed as not in accordance with the intended purpose. The manufacturer shall not be held liable for any damage arising from such usage.

Ambient temperature range:

- during operation: -10 °C to + 40 °C (14 °F to 104 °F)

- during transport and storage: -20 °C to +55 °C (-4 °F to 131 °F)

Relative humidity:

- up to 50% at 40 °C (104 °F)

- up to 90% at 20 °C (68 °F)

The surrounding air must be free from dust, acids, corrosive gases or substances, etc. Can be used at altitudes of up to 2000 m (6561 ft. 8.16 in.)

The operator must only allow persons to work with the device who:

- are familiar with the fundamental instructions regarding safety at work and accident prevention and have been instructed in how to use the device

- have read and understood these operating instructions, especially the section "safety rules", and have confirmed as much with their signatures

- are trained to produce the required results.

Checks must be carried out at regular intervals to ensure that operators are working in a safety-conscious manner.

Obligations of personnel

Mains connection Devices with a higher rating may affect the energy quality of the mains due to their cur-

Before using the device, all persons instructed to do so undertake:

- to observe the basic instructions regarding safety at work and accident prevention

- to read these operating instructions, especially the "Safety rules" section and sign to confirm that they have understood them and will follow them.

Before leaving the workplace, ensure that people or property cannot come to any harm in your absence.

rent consumption.

Page 7

This may affect a number device types in terms of:

- Connection restrictions

Criteria with regard to the maximum permissible mains impedance

Criteria with regard to the minimum short-circuit power requirement

at the interface with the public grid

see "Technical data"

In this case, the plant operator or the person using the device should check whether the device may be connected, where appropriate by discussing the matter with the power supply company.

IMPORTANT! Ensure that the mains connection is earthed properly

Protecting yourself and others

Anyone working with the device exposes themselves to numerous risks, e.g.

- flying sparks and hot pieces of metal

- Arc radiation, which can damage eyes and skin

- Hazardous electromagnetic fields, which can endanger the lives of those using cardiac pacemakers

- Risk of electrocution from mains current and welding current

- Greater noise pollution

- Harmful welding fumes and gases

Suitable protective clothing must be worn when working with the device. The protective clothing must have the following properties:

- Flame-resistant

- Insulating and dry

- Covers the whole body, is undamaged and in good condition

- Safety helmet

- Trousers with no turn-ups

Protective clothing refers to a variety of different items. Operators should:

- Protect eyes and face from UV rays, heat and sparks using a protective visor and regulation filter

- Wear regulation protective goggles with side protection behind the protective visor

- Wear stout footwear that provides insulation even in wet conditions

- Protect the hands with suitable gloves (electrically insulated and providing protection against heat)

- Wear ear protection to reduce the harmful effects of noise and to prevent injury

Noise emission values

Keep all persons, especially children, out of the working area while any devices are in operation or welding is in progress. If, however, there are people in the vicinity:

- Make them aware of all the dangers (risk of dazzling by the arc, injury from flying sparks, harmful welding fumes, noise, possible risks from mains current and welding current, etc.)

- Provide suitable protective equipment

- Alternatively, erect suitable safety screens/curtains.

The device generates a maximum sound power level of <80 dB(A) (ref. 1pW) when idling and in the cooling phase following operation at the maximum permissible operating point under maximum rated load conditions according to EN 60974-1.

It is not possible to provide a workplace-related emission value during welding (or cutting) as this is influenced by both the process and the environment. All manner of different welding parameters come into play, including the welding process (MIG/MAG, TIG welding), the type of power selected (DC or AC), the power range, the type of weld metal, the resonance characteristics of the workpiece, the workplace environment, etc.

Page 8

Danger from toxic gases and vapours

The fumes produced during welding contain harmful gases and vapours.

Welding fumes contain substances that cause cancer, as stated in Monograph 118 of the International Agency for Research on Cancer.

Use at-source extraction and a room extraction system. If necessary, use a welding torch with an integrated extraction device.

Keep your face away from welding fumes and gases.

Fumes and hazardous gases

- must not be breathed in

- must be extracted from the working area using appropriate methods.

Ensure an adequate supply of fresh air. Ensure that there is a ventilation rate of at least 20 m³ per hour at all times.

Otherwise, a welding helmet with an air supply must be worn.

If there is any doubt about whether the extraction capacity is sufficient, the measured toxic emission values should be compared with the permissible limit values.

The following components are responsible, amongst other things, for the degree of toxicity of welding fumes:

- Metals used for the workpiece

- Electrodes

- Coatings

- Cleaners, degreasers, etc.

- Welding process used

Danger from flying sparks

The relevant material safety data sheets and manufacturer's specifications for the listed components should therefore be studied carefully.

Recommendations for trade fair scenarios, risk management measures and for identifying working conditions can be found on the European Welding Association website under Health & Safety (https://european-welding.org).

Flammable vapours (e.g. solvent fumes) should be kept away from the arc's radiation area.

Close the shielding gas cylinder valve or main gas supply if no welding is taking place.

Flying sparks may cause fires or explosions.

Never weld close to flammable materials.

Flammable materials must be at least 11 metres (36 ft. 1.07 in.) away from the arc, or alternatively covered with an approved cover.

A suitable, tested fire extinguisher must be available and ready for use.

Sparks and pieces of hot metal may also get into adjacent areas through small gaps or openings. Take appropriate precautions to prevent any danger of injury or fire.

Welding must not be performed in areas that are subject to fire or explosion or near sealed tanks, vessels or pipes unless these have been prepared in accordance with the relevant national and international standards.

Do not carry out welding on containers that are being or have been used to store gases, propellants, mineral oils or similar products. Residues pose an explosive hazard.

Page 9

Risks from mains current and welding current

An electric shock is potentially life threatening and can be fatal.

Do not touch live parts either inside or outside the device.

During MIG/MAG welding and TIG welding, the welding wire, the wirespool, the feed rollers and all pieces of metal that are in contact with the welding wire are live.

Always set the wirefeeder up on a sufficiently insulated surface or use a suitable, insulated wirefeeder holder.

Make sure that you and others are protected with an adequately insulated, dry base or cover for the earth or ground potential. This base or cover must extend over the entire area between the body and the earth or ground potential.

All cables and leads must be secured, undamaged, insulated and adequately dimensioned. Replace loose connections and scorched, damaged, or inadequately dimensioned cables and leads immediately. Use the handle to ensure the power connections are tight before every use. In the case of power cables with a bayonet connector, rotate the power cable around the longitudinal axis by at least 180° and pretension.

Do not wrap cables or leads around the body or parts of the body.

The electrode (rod electrode, tungsten electrode, welding wire, etc.) must

- never be immersed in liquid for cooling

- Never touch the electrode when the power source is switched on.

Double the open circuit voltage of a power source can occur between the welding electrodes of two power sources. Touching the potentials of both electrodes at the same time may be fatal under certain circumstances.

Arrange for the mains cable to be checked regularly by a qualified electrician to ensure the ground conductor is functioning properly.

Protection class I devices require a mains supply with ground conductor and a connector system with ground conductor contact for proper operation.

Operation of the device on a mains supply without ground conductor and on a socket without ground conductor contact is only permitted if all national regulations for protective separation are observed. Otherwise, this is considered gross negligence. The manufacturer shall not be held liable for any damage arising from such usage.

If necessary, provide adequate earthing for the workpiece.

Switch off unused devices.

Wear a safety harness if working at height.

Before working on the device, switch it off and pull out the mains plug.

Attach a clearly legible and easy-to-understand warning sign to the device to prevent anyone from plugging the mains plug back in and switching it on again.

After opening the device:

- Discharge all live components

- Ensure that all components in the device are de-energised.

If work on live parts is required, appoint a second person to switch off the main switch at the right moment.

Page 10

Meandering welding currents

If the following instructions are ignored, meandering welding currents can develop with the following consequences:

- Fire hazard

- Overheating of parts connected to the workpiece

- Irreparable damage to ground conductors

- Damage to device and other electrical equipment

Ensure that the workpiece is held securely by the workpiece clamp.

Attach the workpiece clamp as close as possible to the area that is to be welded.

Position the device with sufficient insulation against electrically conductive environments, e.g. Insulation against conductive floor or insulation to conductive racks.

If distribution boards, twin-head mounts, etc., are being used, note the following: The electrode of the welding torch / electrode holder that is not used is also live. Make sure that the welding torch / electrode holder that is not used is kept sufficiently insulated.

In the case of automated MIG/MAG applications, ensure that only an insulated wire electrode is routed from the welding wire drum, large wirefeeder spool or wirespool to the wirefeeder.

EMC Device Classifications

EMC measures In certain cases, even though a device complies with the standard limit values for emis-

Devices in emission class A:

- Are only designed for use in industrial settings

- Can cause line-bound and radiated interference in other areas

Devices in emission class B:

- Satisfy the emissions criteria for residential and industrial areas. This is also true for residential areas in which the energy is supplied from the public low-voltage mains.

EMC device classification as per the rating plate or technical data.

sions, it may affect the application area for which it was designed (e.g. when there is sensitive equipment at the same location, or if the site where the device is installed is close to either radio or television receivers). If this is the case, then the operator is obliged to take appropriate action to rectify the situation.

Check and evaluate the immunity to interference of nearby devices according to national and international regulations. Examples of equipment that may be susceptible to interference from the device include:

- Safety devices

- Power, signal and data transfer lines

- IT and telecommunications devices

- Measuring and calibrating devices

Supporting measures for avoidance of EMC problems:

1. Mains supply

- If electromagnetic interference arises despite correct mains connection, addi-

tional measures are necessary (e.g. use a suitable line filter).

2. Welding power leads

- must be kept as short as possible

- must run close together (to avoid EMF problems)

- must be kept well apart from other leads

3. Equipotential bonding

4. Earthing of the workpiece

- If necessary, establish an earth connection using suitable capacitors.

Page 11

5. Shielding, if necessary

- Shield off other nearby devices

- Shield off entire welding installation

EMF measures Electromagnetic fields may pose as yet unknown risks to health:

- effects on the health of others in the vicinity, e.g. wearers of pacemakers and hearing aids

- wearers of pacemakers must seek advice from their doctor before approaching the device or any welding that is in progress

- for safety reasons, keep distances between the welding cables and the welder's head/torso as large as possible

- do not carry welding cables and hosepacks over the shoulders or wind them around any part of the body

Specific hazards Keep hands, hair, clothing and tools away from moving parts. For example:

- Fans

- Cogs

- Rollers

- Shafts

- Wirespools and welding wires

Do not reach into the rotating cogs of the wire drive or into rotating drive components.

Covers and side panels may only be opened/removed while maintenance or repair work is being carried out.

During operation

- Ensure that all covers are closed and all side panels are fitted properly.

- Keep all covers and side panels closed.

The welding wire emerging from the welding torch poses a high risk of injury (piercing of the hand, injuries to the face and eyes, etc.).

Therefore always keep the welding torch away from the body (devices with wire-feed unit) and wear suitable protective goggles.

Never touch the workpiece during or after welding - risk of burns.

Slag can jump off cooling workpieces. The specified protective equipment must therefore also be worn when reworking workpieces, and steps must be taken to ensure that other people are also adequately protected.

Welding torches and other parts with a high operating temperature must be allowed to cool down before handling.

Special provisions apply in areas at risk of fire or explosion - observe relevant national and international regulations.

Power sources for work in areas with increased electric risk (e.g. near boilers) must carry the "Safety" sign. However, the power source must not be located in such areas.

Risk of scalding from escaping coolant. Switch off cooling unit before disconnecting coolant flow or return lines.

Observe the information on the coolant safety data sheet when handling coolant. The coolant safety data sheet may be obtained from your service centre or downloaded from the manufacturer's website.

Use only suitable load-carrying equipment supplied by the manufacturer when transporting devices by crane.

Page 12

- Hook chains and/or ropes onto all suspension points provided on the load-carrying equipment.

- Chains and ropes must be at the smallest angle possible to the vertical.

- Remove gas cylinder and wire-feed unit (MIG/MAG and TIG devices).

If the wire-feed unit is attached to a crane holder during welding, always use a suitable, insulated wirefeeder hoisting attachment (MIG/MAG and TIG devices).

If the device has a carrying strap or handle, this is intended solely for carrying by hand. The carrying strap is not to be used if transporting with a crane, counterbalanced lift truck or other mechanical hoist.

All lifting accessories (straps, handles, chains, etc.) used in connection with the device or its components must be tested regularly (e.g. for mechanical damage, corrosion or changes caused by other environmental factors). The testing interval and scope of testing must comply with applicable national standards and directives as a minimum.

Odourless and colourless shielding gas may escape unnoticed if an adapter is used for the shielding gas connection. Prior to assembly, seal the device-side thread of the adapter for the shielding gas connection using suitable Teflon tape.

Requirement for the shielding gas

Danger from shielding gas cylinders

Especially with ring lines, contaminated shielding gas can cause damage to equipment and reduce welding quality. Meet the following requirements regarding shielding gas quality:

- Solid particle size < 40 µm

- Pressure condensation point < -20 °C

- Max. oil content < 25 mg/m³

Use filters if necessary.

Shielding gas cylinders contain gas under pressure and can explode if damaged. As the shielding gas cylinders are part of the welding equipment, they must be handled with the greatest of care.

Protect shielding gas cylinders containing compressed gas from excessive heat, mechanical impact, slag, naked flames, sparks and arcs.

Mount the shielding gas cylinders vertically and secure according to instructions to prevent them falling over.

Keep the shielding gas cylinders well away from any welding or other electrical circuits.

Never hang a welding torch on a shielding gas cylinder.

Never touch a shielding gas cylinder with an electrode.

Risk of explosion - never attempt to weld a pressurised shielding gas cylinder.

Only use shielding gas cylinders suitable for the application in hand, along with the correct and appropriate accessories (regulator, hoses and fittings). Only use shielding gas cylinders and accessories that are in good condition.

Turn your face to one side when opening the valve of a shielding gas cylinder.

Close the shielding gas cylinder valve if no welding is taking place.

If the shielding gas cylinder is not connected, leave the valve cap in place on the cylinder.

Page 13

The manufacturer's instructions must be observed as well as applicable national and international regulations for shielding gas cylinders and accessories.

Danger from escaping shielding gas

Safety measures at the installation location and during transport

Risk of suffocation from the uncontrolled escape of shielding gas

Shielding gas is colourless and odourless and, in the event of a leak, can displace the oxygen in the ambient air.

- Ensure an adequate supply of fresh air with a ventilation rate of at least 20 m³/hour.

- Observe safety and maintenance instructions on the shielding gas cylinder or the main gas supply.

- Close the shielding gas cylinder valve or main gas supply if no welding is taking place.

- Check the shielding gas cylinder or main gas supply for uncontrolled gas leakage before every start-up.

A device toppling over could easily kill someone. Place the device on a solid, level surface such that it remains stable

- The maximum permissible tilt angle is 10°.

Special regulations apply in rooms at risk of fire or explosion

- Observe relevant national and international regulations.

Use internal directives and checks to ensure that the workplace environment is always clean and clearly laid out.

Only set up and operate the device in accordance with the degree of protection shown on the rating plate.

Safety measures in normal operation

When setting up the device, ensure there is an all-round clearance of 0.5 m (1 ft. 7.69 in.) to ensure that cooling air can flow in and out freely.

When transporting the device, observe the relevant national and local guidelines and accident prevention regulations. This applies especially to guidelines regarding the risks arising during transport.

Do not lift or transport operational devices. Switch off devices before transport or lifting.

Before transporting the device, allow coolant to drain completely and detach the following components:

- Wirefeeder

- Wirespool

- Shielding gas cylinder

After transporting the device, the device must be visually inspected for damage before commissioning. Any damage must be repaired by trained service technicians before commissioning the device.

Only operate the device when all safety devices are fully functional. If the safety devices are not fully functional, there is a risk of

- injury or death to the operator or a third party

- damage to the device and other material assets belonging to the operator

- inefficient operation of the device

Any safety devices that are not functioning properly must be repaired before switching on the device.

Never bypass or disable safety devices.

Page 14

Before switching on the device, ensure that no one is likely to be endangered.

Check the device at least once a week for obvious damage and proper functioning of safety devices.

Always fasten the shielding gas cylinder securely and remove it beforehand if the device is to be transported by crane.

Only the manufacturer's original coolant is suitable for use with our devices due to its properties (electrical conductibility, anti-freeze agent, material compatibility, flammability, etc.).

Only use suitable original coolant from the manufacturer.

Do not mix the manufacturer's original coolant with other coolants.

Only connect the manufacturer's system components to the cooling circuit.

The manufacturer accepts no liability for damage resulting from use of other system components or a different coolant. In addition, all warranty claims will be forfeited.

Cooling Liquid FCL 10/20 does not ignite. The ethanol-based coolant can ignite under certain conditions. Transport the coolant only in its original, sealed containers and keep well away from any sources of ignition.

Used coolant must be disposed of properly in accordance with the relevant national and international regulations. The coolant safety data sheet may be obtained from your service centre or downloaded from the manufacturer's website.

Check the coolant level before starting to weld, while the system is still cool.

Commissioning, maintenance and repair

Safety inspection The manufacturer recommends that a safety inspection of the device is performed at

It is impossible to guarantee that bought-in parts are designed and manufactured to meet the demands made of them, or that they satisfy safety requirements.

- Use only original spare and wearing parts (also applies to standard parts).

- Do not carry out any modifications, alterations, etc. to the device without the manufacturer's consent.

- Components that are not in perfect condition must be replaced immediately.

- When ordering, please give the exact designation and part number as shown in the spare parts list, as well as the serial number of your device.

The housing screws provide the ground conductor connection for earthing the housing parts. Only use original housing screws in the correct number and tightened to the specified torque.

least once every 12 months.

The manufacturer recommends that the power source be calibrated during the same 12month period.

A safety inspection should be carried out by a qualified electrician

- after any changes are made

- after any additional parts are installed, or after any conversions

- after repair, care and maintenance has been carried out

- at least every twelve months.

For safety inspections, follow the appropriate national and international standards and directives.

Page 15

Further details on safety inspection and calibration can be obtained from your service centre. They will provide you on request with any documents you may require.

Disposal Do not dispose of this device with normal domestic waste! To comply with the European

Directive on Waste Electrical and Electronic Equipment and its implementation as national law, electrical equipment that has reached the end of its life must be collected separately and returned to an approved recycling facility. Any device that you no longer require must either be returned to your dealer or given to one of the approved collection and recycling facilities in your area. Ignoring this European Directive may have potentially adverse affects on the environment and your health!

Safety symbols Devices with the CE mark satisfy the essential requirements of the low-voltage and elec-

tromagnetic compatibility directives (e.g. relevant product standards of the EN 60 974 series).

Fronius International GmbH hereby declares that the device is compliant with Directive 2014/53/EU. The full text on the EU Declaration of Conformity can be found at the following address: http://www.fronius.com

Devices marked with the CSA test mark satisfy the requirements of the relevant standards for Canada and the USA.

Data protection The user is responsible for the safekeeping of any changes made to the factory settings.

The manufacturer accepts no liability for any deleted personal settings.

The text and illustrations are all technically correct at the time of printing. We reserve the right to make changes. The contents of the operating instructions shall not provide the basis for any claims whatsoever on the part of the purchaser. If you have any suggestions for improvement, or can point out any mistakes that you have found in the instructions, we will be most grateful for your comments.

Page 16

General

Device concept The cooling unit and the power source

form a unit. As with the standalone power source, the power source/cooling unit combination can be mounted on the trolley.

The cooling units described in these instructions can be operated with all power sources in the:

- TransTig 2500 / 3000 series

- MagicWave 2500 / 3000 series

Application areas The FK 2500 cooling unit can be used for:

- manual and automated applications with the MagicWave 2500/3000 and TransTig 2500/3000 power sources

- TIG cold-wire welding

- water-cooled TIG manual welding torches

- water-cooled TIG machine welding torches

- water-cooled TIG robot welding torches

Scope of supply - Cooling unit

- 5 l coolant in a canister

- Four "Extrude-Tite" Allen screws (for securing the power source on the cooling unit)

- Four M5 hexagonal nuts (for securing the power source on the cooling unit)

- One 2 A fuse (spare)

- Operating instructions

Device variants and their equipment

FK 2500 equipment:

- Centrifugal pump for single-shift operation

- Thermostat

FK 2500 FC equipment:

- Centrifugal pump for single-shift operation

- Thermostat

- Flow sensor

FK 2500 MV equipment:

- Centrifugal pump for single-shift operation

- Thermostat

- Auto-transformer (for multivoltage operation)

Page 17

FK 2500 MV FC equipment:

- Centrifugal pump for single-shift operation

- Thermostat

- Flow sensor

- Auto-transformer (for multivoltage operation)

FK 2500 Rob equipment:

- Sealless, magnetically-coupled centrifugal pump for multi-shift operation - service life = approx. 15,000 operating hours

- Thermostat

- Flow sensor

FK 2500 MV Rob equipment:

- Sealless, magnetically-coupled centrifugal pump for multi-shift operation - service life = approx. 15,000 operating hours

- Thermostat

- Flow sensor

- Auto-transformer (for multivoltage operation)

Thermostat function

Flow sensor function

- The thermostat is fitted as standard on all cooling unit versions

- The thermostat monitors the coolant temperature

- If the coolant temperature rises to above 70°C (158°F), the "hot | H2O" indication is automatically displayed and the welding current is interrupted. The cooling unit remains operational

- The thermostat restores the welding current when the temperature falls to 65°C (149°F).

- The flow sensor monitors the coolant flow during welding

- If the coolant flow falls below 0.7l/min (0.18 gal./min [US]), the "no | H2O" indication is automatically displayed, the welding current is interrupted and the cooling unit switches off

- If the welding system has a Comfort or WeldProcessData (OPC Fronius LocalNet server) control panel, the coolant flow can be shown on it

• To display the coolant flow value, press the F3 parameter selection / indicator

key on the Comfort control panel

A disruption in the coolant flow can occur as a result of:

- Insufficient coolant

- Contaminated coolant

- Leaks in the cooling circuit

- Faulty coolant pump

- Frozen coolant (welding at too low a temperature)

Validity of "General Delivery and Payment Conditions"

With regard to cooling units, the "General Delivery and Payment Conditions" according to the price list only apply under the following conditions:

- FK 2500, FK 2500 FC, FK 2500 MV FC: Max. 8 hrs/day operation (single shift operation)

- FK 2500 Rob, FK 2500 MV Rob: 24 hrs/day operation (multi-shift operation)

- Only original coolant from the manufacturer is used

- Regular maintenance and regular change of coolant

Page 18

Information about

4 bar (0.4 MPa) 800 W

1l/min

50/60 Hz

IEC 60 974-2/-10 Cl.A IP 23

0.7 A

400 V

max

pmax

the coolant

CAUTION!

Danger from using non-permitted coolant.

This can result in serious damage to property.

Only use coolant available from the manufacturer.

▶

Do not mix different coolants.

▶

When changing the coolant, make sure all the coolant is replaced.

▶

When switching from ethanol-based coolant to FCL 10 coolant, Change Kit FCL10

▶

must be used and the instructions provided must be followed.

Warning notices on the device

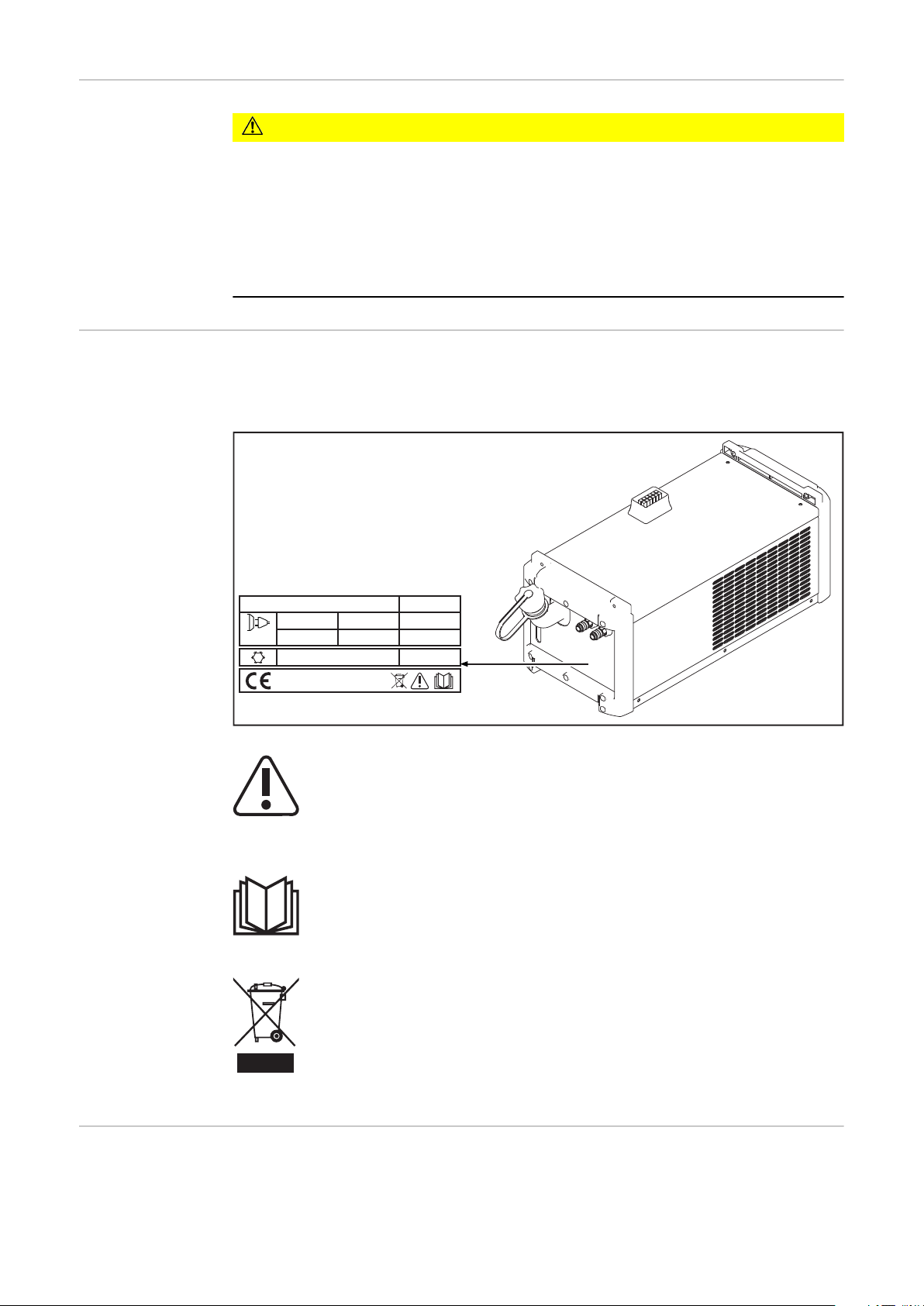

The cooling unit is fitted with safety symbols and a rating plate. The rating plate and safety symbols must not be removed or painted over. The symbols warn against operating the equipment incorrectly, as this may result in serious injury and damage.

Welding is dangerous. The following basic requirements must be met to ensure the equipment is used properly:

- Welders must be sufficiently qualified

- Suitable protective equipment must be used

- All persons not involved must be kept at a safe distance from the cooling unit and the welding process

Information on leaks

Do not use the functions described here until you have thoroughly read and understood the following documents:

- these operating instructions

- all the operating instructions for the system components, especially the safety rules

Do not dispose of used devices with domestic waste. Dispose of them according to the safety rules.

The following information on leaks does not apply to the FK 2500 Rob, FK 2500 MV Rob.

Page 19

The shaft sealing surfaces inside the coolant pump are lubricated by the coolant, meaning that a certain leakage flow should always be expected. A low leakage flow is permitted.

The coolant pump requires a certain warm-up time after being started for the first time or upon restarting after a long period of downtime. An increased leakage flow can occur during this warm-up phase. The leakage flow will normally sink back down to a low level after the warm-up phase. If this is not the case then contact After-Sales Service.

Page 20

Control elements and connections

50-60 Hz

1-400 V

0,6/0,7 A

Pmax 4,2 bar

Machine connected at:

Options:

1 l/min 0,75 kW

Pmax 0,95 kW

(1)

(5)(6)

(2) (3) (4)

(7) (8) (9)

(10)(11)

Safety

Control elements and connections

WARNING!

Operating the equipment incorrectly can cause serious injury and damage.

All functions described in this document must only be used by trained and qualified personnel. Do not use any of the functions described until you have thoroughly read and understood the following documents:

this document

▶

all the operating instructions for the system components, especially the safety rules

▶

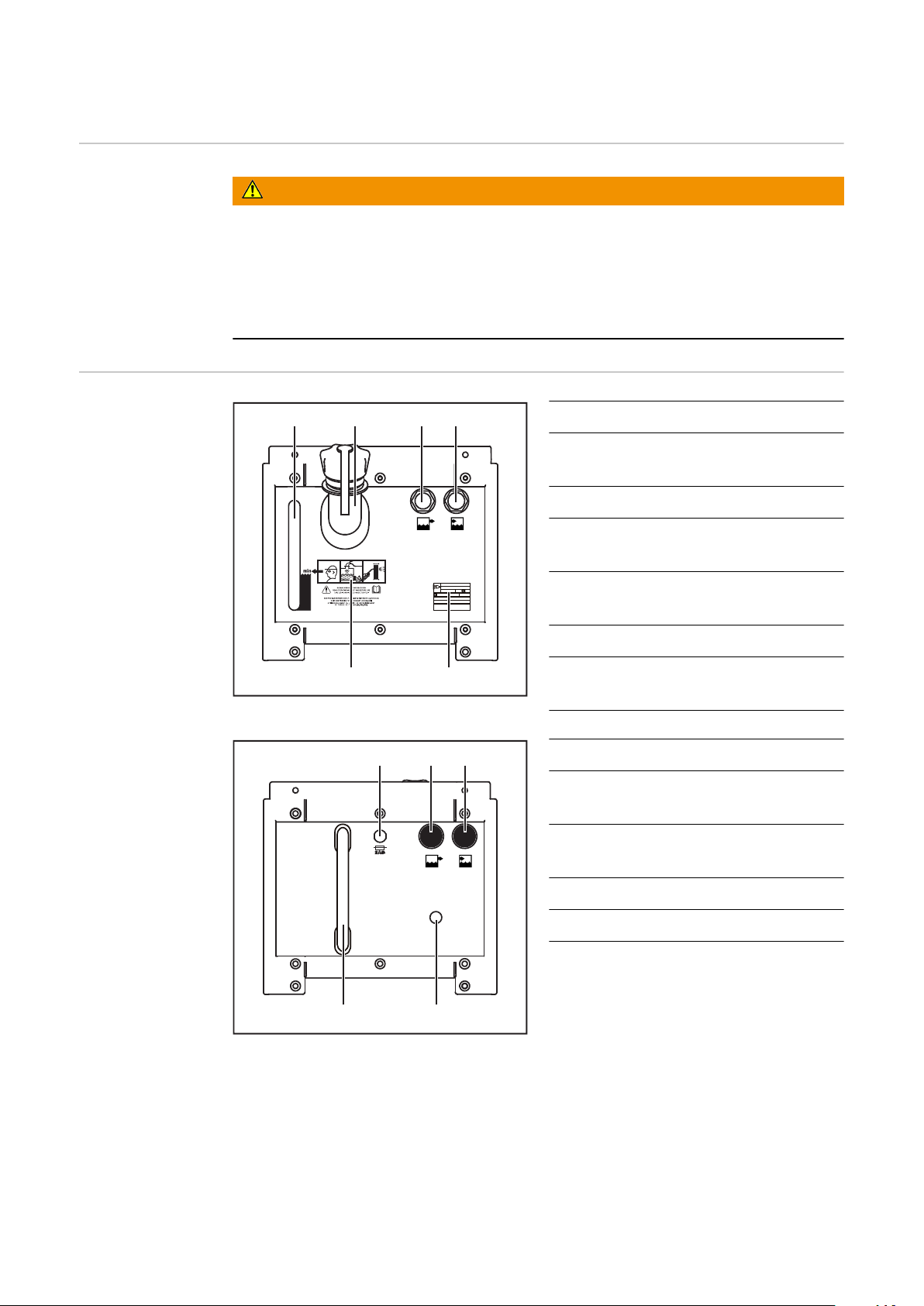

No. Function

(1) Viewing window for coolant

level

(2) Fill nozzle with screw cap

(3) Blanking cover or coolant flow

connection (blue)

(4) Blanking cover or coolant return

connection (red)

(5) Rating plate

(6) Operating and maintenance

instructions

Controls and connections on the front

(7) Coolant pump fuse

(8) Blanking cover or coolant return

connection (red)

(9) Blanking cover or coolant flow

connection (blue)

(10) Bushing for coolant pump shaft

(11) Drain hose

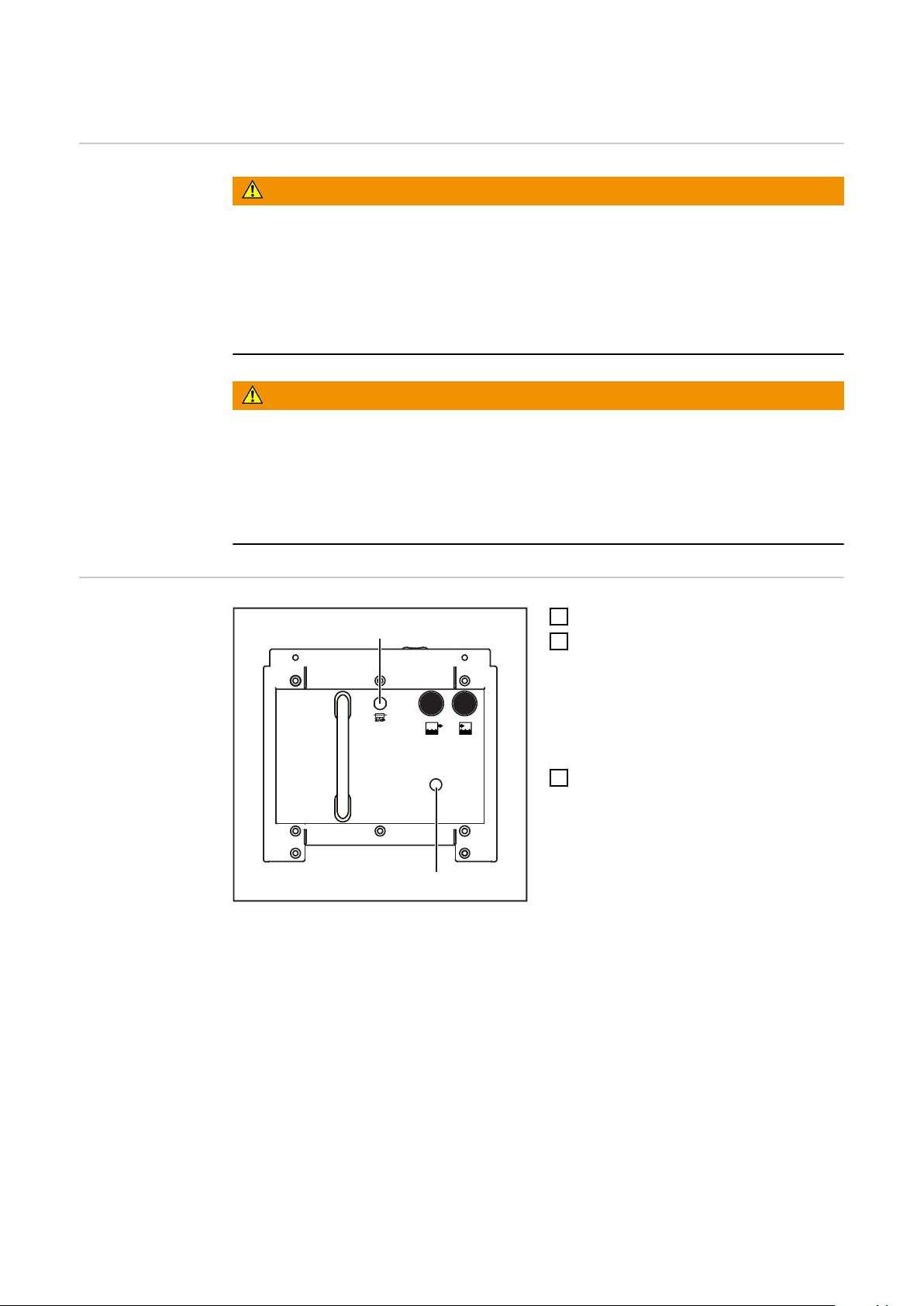

Controls and connections on the rear

Page 21

Before installation and commissioning

Safety

Setup regulations

WARNING!

Danger due to incorrect operation and incorrectly performed work.

This can result in severe personal injury and damage to property.

All the work and functions described in this document must only be carried out and

▶

used by trained and qualified personnel. Fully read and understand this document.

▶

Fully read and understand all the Operating Instructions for the system components,

▶

especially the safety rules.

WARNING!

Danger from machines falling or toppling over.

This can result in serious injury and damage to property.

Place all system components on a solid, level surface in such a way that they

▶

remain stable.

WARNING!

Danger from electric current.

An electric shock can be fatal.

Ensure the cooling unit is properly insulated.

▶

Always ensure that there is no electrically conductive connection between the base

▶

plate of the cooling unit and the surface. Before installing the cooling unit, remove all electrically conductive parts between

▶

the base plate of the cooling unit and the surface.

The device is tested to IP 23 protection, meaning:

- Protection against penetration by solid foreign bodies with diameters > 12.5 mm (0.49 in.)

- Protection against spraywater at any angle up to 60° to the vertical

Cooling air

The system must be set up in such a way that the cooling air can flow unimpeded through the slots in the side panels. Ensure that there is always an all-round clearance of

0.5 m (1 ft 7.69 in.) around the device.

CAUTION!

Risk from insufficient cooling air supply.

This can result in serious damage to property.

Air inlets and outlets must never be covered, not even partially.

▶

Dust

Ensure that any metallic dust, for example from grinding work, is not sucked into the system by the fan.

Outdoor operation

The device can be set up and operated outdoors in accordance with degree of protection IP23. Avoid direct wetting (e.g. from rain).

Page 22

Information about the coolant

The cooling unit is delivered empty.

Use only original Fronius coolant (Cooling Liquid FCL 10/20 or torch coolant) when filling the cooling unit. Other coolants are not recommended for electrical conductivity and material compatibility reasons.

Guarantee provisions regarding the coolant pump

Proper use The device is intended solely for use in conjunction with Fronius system components.

The coolant pump may only be used with original coolant supplied by the manufacturer. Do not allow the coolant pump to run dry (even for a very short time), as this will destroy the coolant pump. The manufacturer accepts no liability for damage caused in such cases.

The device is to be used exclusively for its intended purpose.

Any use above and beyond this purpose is deemed improper. The manufacturer is not liable for any damage, or unexpected or incorrect results arising out of such misuse.

Proper use also includes:

- carefully reading these operating instructions

- following all the instructions and safety rules in these operating instructions

- performing all stipulated inspection and maintenance work

The device is designed for use in industry and the workshop. The manufacturer accepts no responsibility for any damage caused through use in a domestic setting.

Page 23

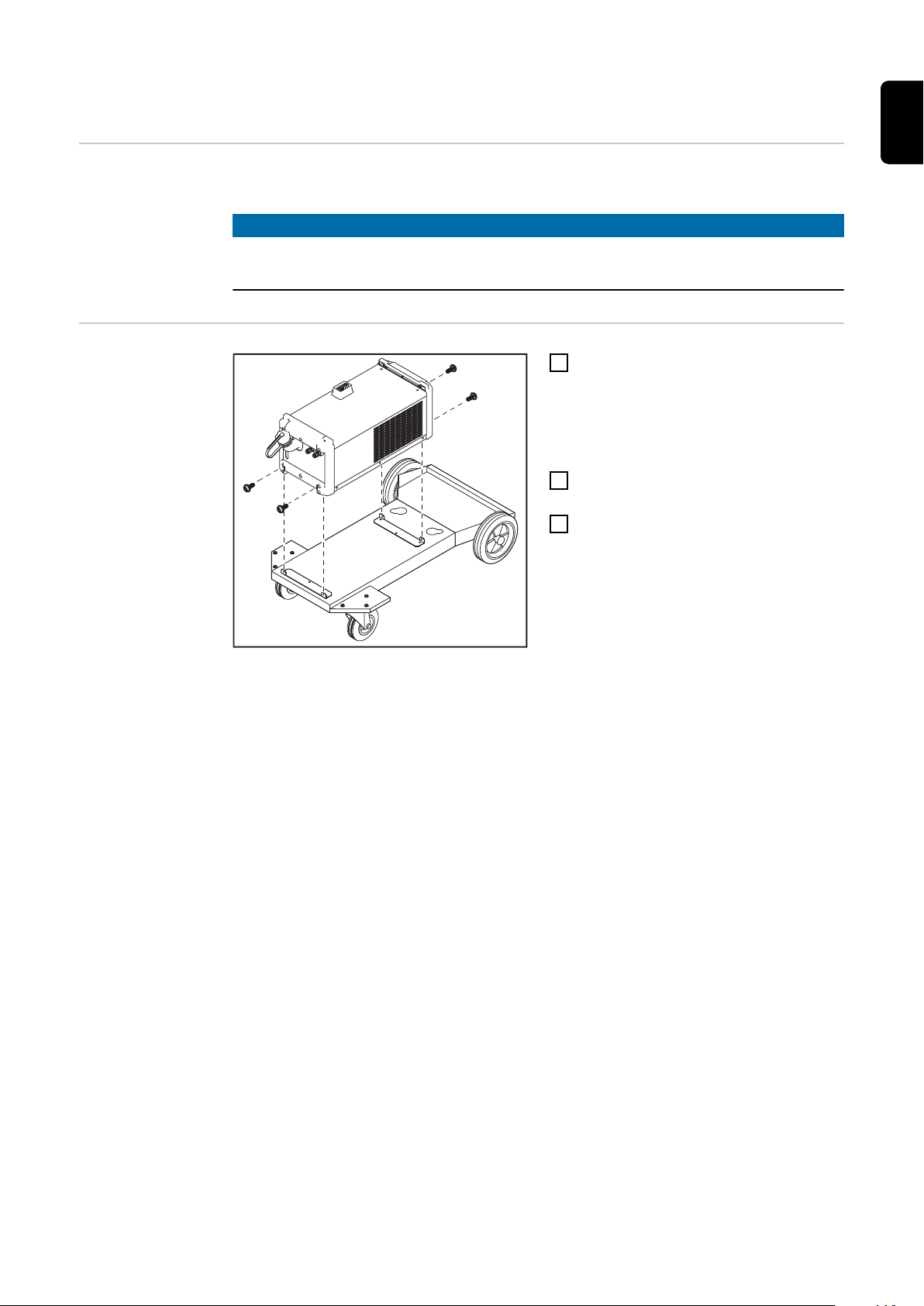

Fitting the cooling unit to the trolley

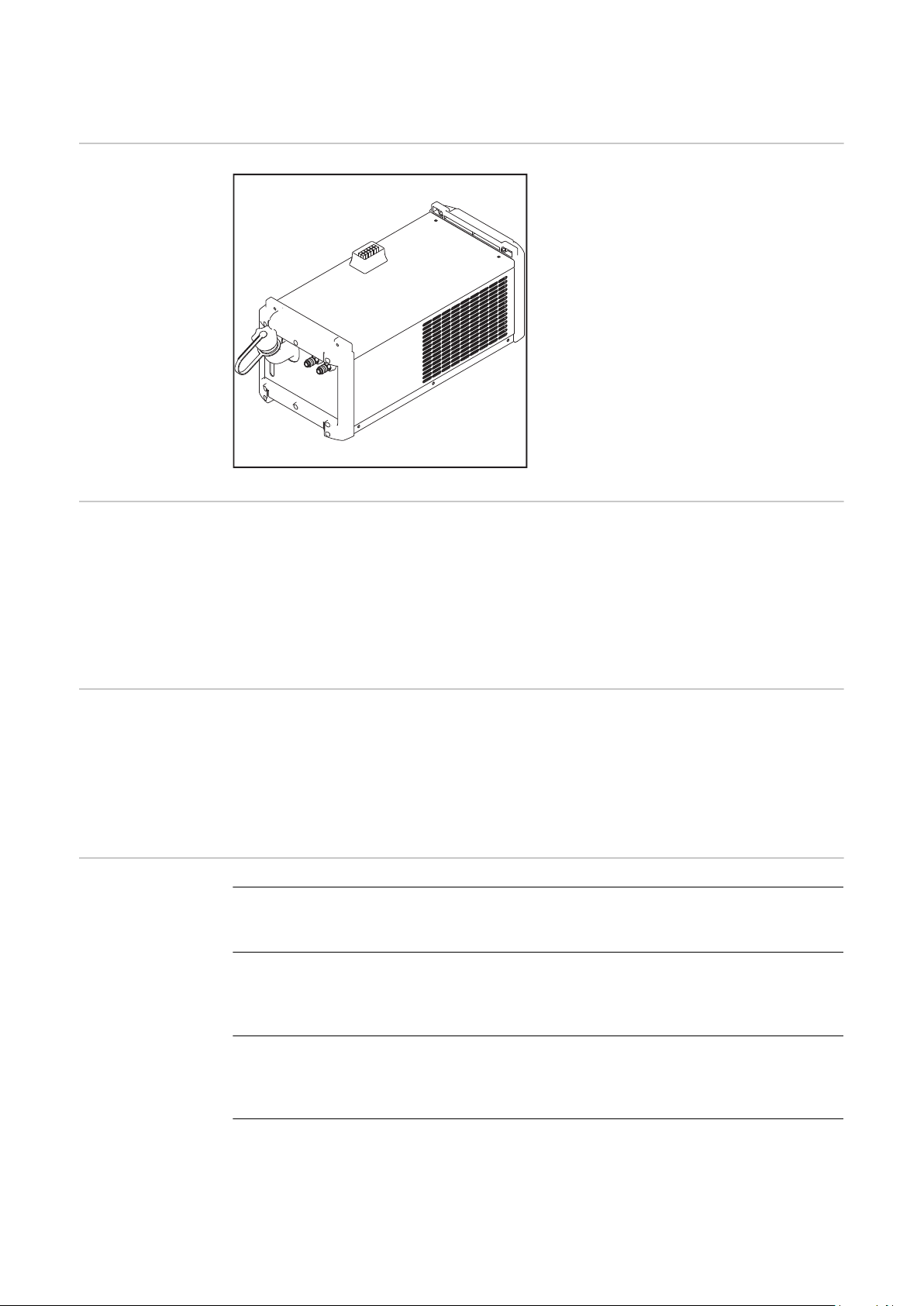

General The welding system can be fitted to a trolley to make the entire system more mobile.

NOTE!

If the welding system is not equipped with an auto-transformer, the cooling unit must be installed right at the bottom.

Fitting the cooling unit to the trolley

If there are no fixing brackets fitted to

the trolley: firmly screw each fixing bracket to the trolley base using three "Extrude-Tite" screws - use the screws supplied with the trolley

Place the cooling unit on the base of

the trolley

Firmly attach the cooling unit to the

trolley base fixing brackets using two "Extrude-Tite" screws at the front and two "Extrude-Tite" screws at the rear use the screws supplied with the trolley

Page 24

Connecting the cooling unit to the power source

(1) (1)

(1)

Safety

Connecting the cooling unit to the power source

WARNING!

Danger from electric current.

An electric shock can be fatal.

Turn the power source mains switch to the "O" position.

▶

Disconnect the power source from the mains.

▶

Ensure that the power source remains disconnected from the mains until all work

▶

has been completed.

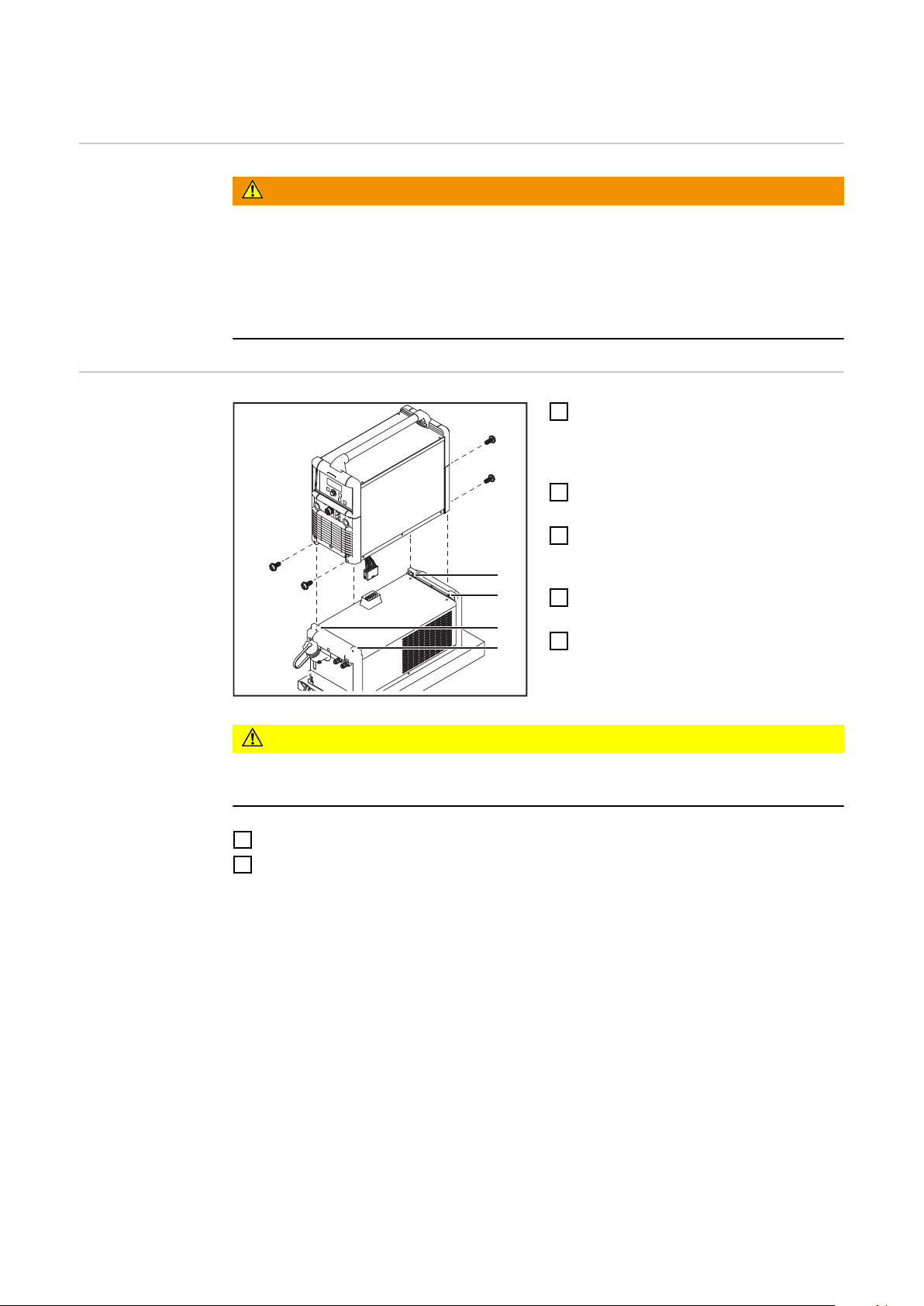

Firmly press four M5 hexagonal nuts

(supplied with cooling unit) into the hexagonal recesses (1) in the fastening bars

Remove the protective cover on the

underside of the power source

Pull the power source connector as far

as possible through the opening on the underside of the power source

Position the power source above the

cooling unit

Make connection between power

source and cooling unit

CAUTION!

Risk of short circuit from kinked or damaged cables.

When positioning the power source, ensure that the cable is not kinked.

Carefully place the power source onto the cooling unit

Firmly attach the power source to the cooling unit fastening bars (1) using two

"Extrude-Tite" Allen screws at the front and two "Extrude-Tite" Allen screws at the rear - use the "Extrude-Tite" Allen screws supplied with the cooling unit

Page 25

Putting the cooling unit into service

(1)(2)

Safety

Danger from electric current.

An electric shock can be fatal.

▶ ▶ ▶

General The cooling unit is powered from the power source. If the power source mains switch is

turned to position "1", the cooling unit also switches on.

Filling the cooling unit

Make sure that no coolant enters the device.

If there is any coolant on the exterior of the device, remove it immediately.

WARNING!

Turn the power source mains switch to the "O" position. Disconnect the power source from the mains. Ensure that the power source remains disconnected from the mains until all work

has been completed.

NOTE!

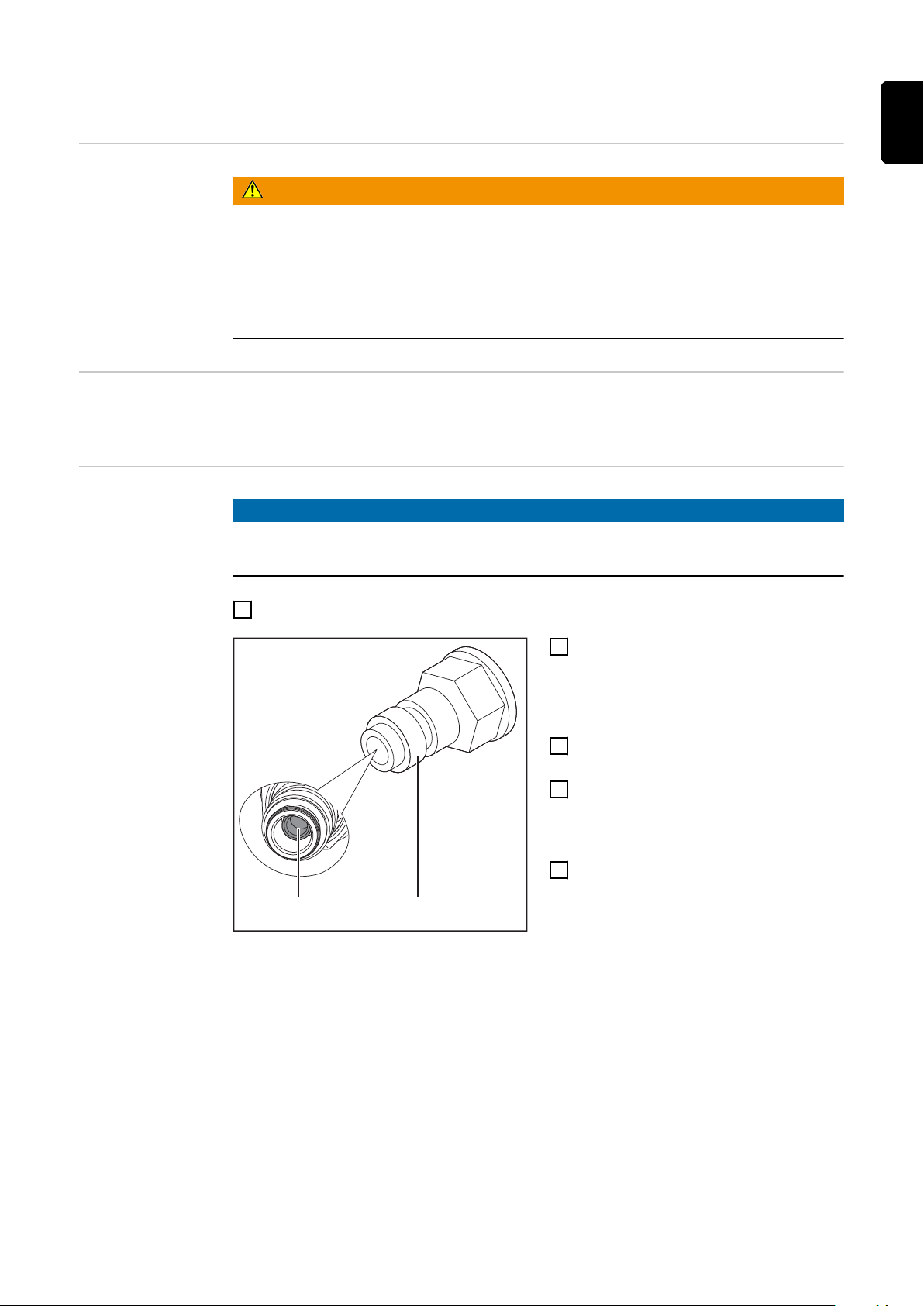

Undo the screw cap on the fill nozzle

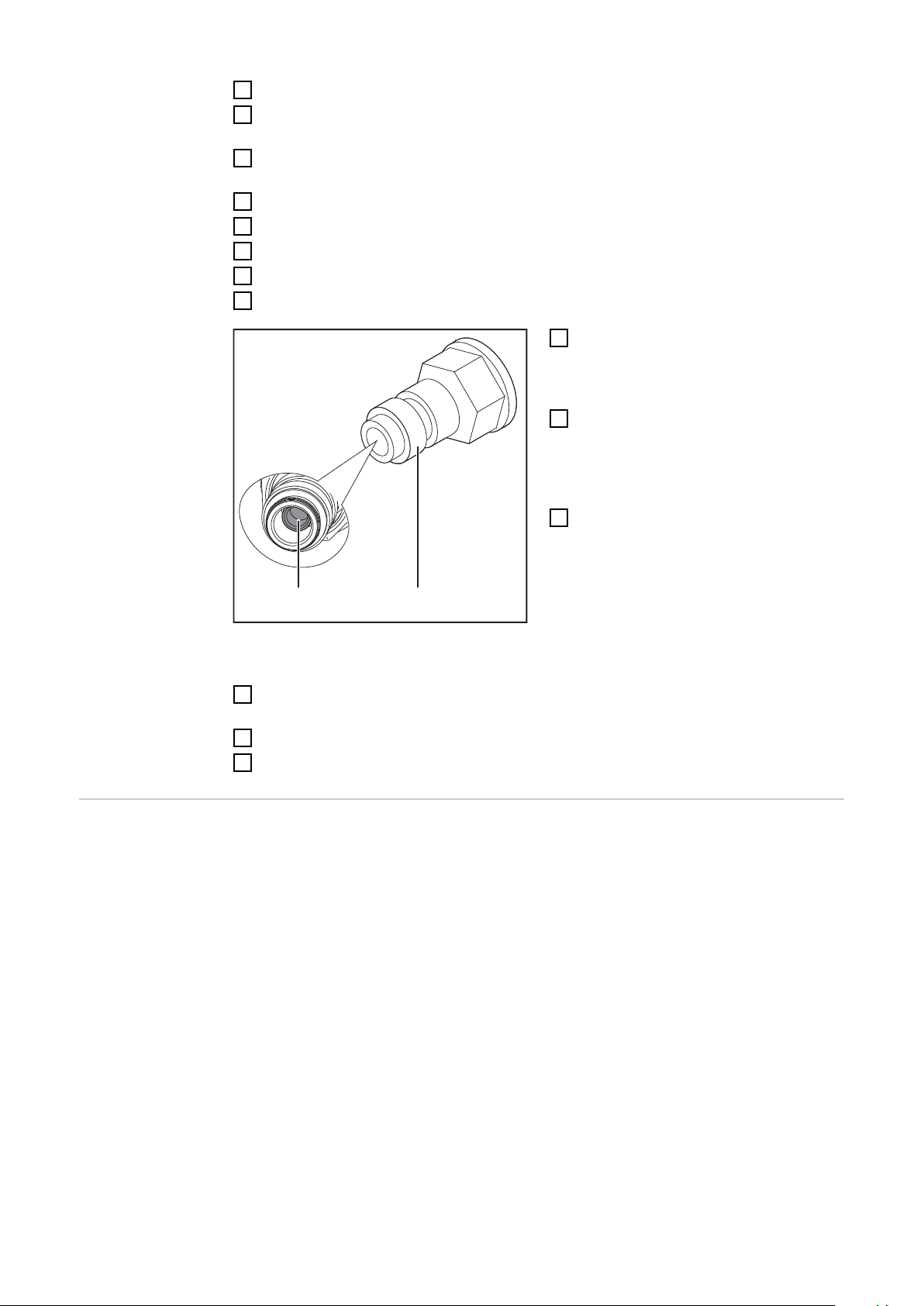

Locking ring on coolant flow connection, sealing cone

inside coolant flow connection

Carefully push back the sealing cone

(2) in the centre of the coolant flow connection using a wooden or plastic pin (Ø = max. 6 mm / 0.236 in.), until it audibly engages

Fill to the "max" mark with fresh

coolant

Pull back the locking ring (1) on the

coolant flow connection to release the sealing cone (2) and then let go of the locking ring (1)

Screw the screw cap onto the fill

nozzle

Page 26

Connecting the welding torch

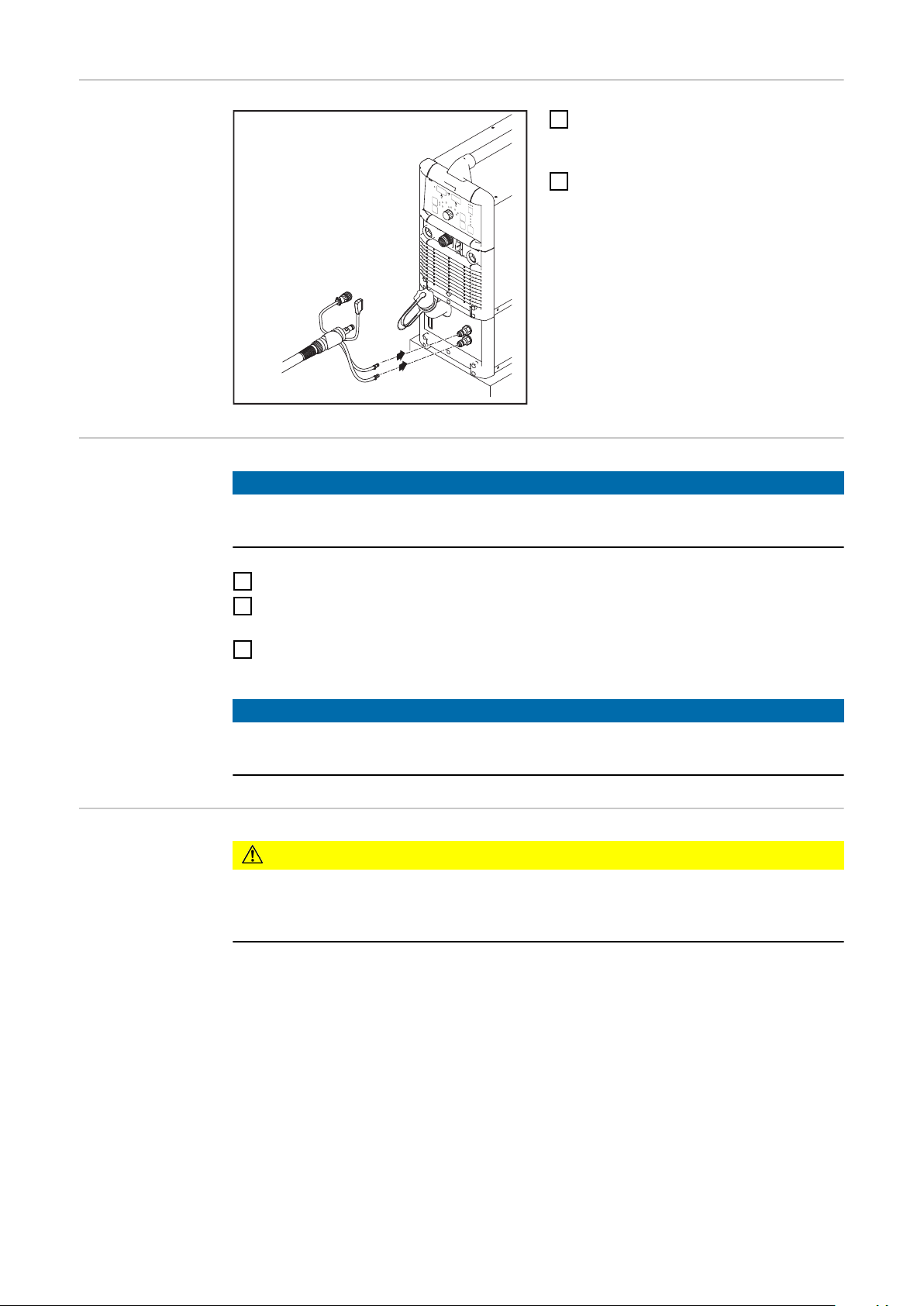

Connect the red welding torch coolant

hose to the coolant return connection on the cooling unit

Connect the blue coolant hose to the

coolant flow connection on the cooling unit

Commissioning the cooling unit

Notes on changing the welding torch

NOTE!

The coolant level and cleanliness of the coolant must always be checked before commissioning the cooling unit.

Connect the power source to the mains

Turn the power source mains switch to the "I" position

- The coolant pump starts up

Check the coolant flow until you can see a steady return flow of coolant through the

fill nozzle

NOTE!

During welding, check at regular intervals that the coolant is flowing properly.

You should be able to see a steady return flow of coolant through the fill nozzle.

CAUTION!

Excess pressure will damage the cooling unit.

Before gas purging the welding torch with compressed air, undo the screw cap on the fill nozzle.

Page 27

Care, maintenance and disposal

Safety

WARNING!

Danger due to work that has been carried out incorrectly.

All the work described below must only be carried out by trained and qualified personnel.

Fully read and understand this document.

▶

Fully read and understand all the Operating Instructions for the system components,

▶

especially the safety rules.

WARNING!

Danger from electric current.

An electric shock can be fatal.

Turn the power source mains switch to the "O" position.

▶

Disconnect the power source from the mains.

▶

Ensure that the power source remains disconnected from the mains until all work

▶

has been completed. After opening the device, use a suitable measuring instrument to check that electric-

▶

ally charged components (e.g. capacitors) have been discharged.

WARNING!

Danger from inadequate ground conductor connection.

This can result in serious injury and damage to property.

The housing screws provide a suitable ground conductor connection for earthing the

▶

housing and must NOT be replaced by any other screws that do not provide a reliable ground conductor connection.

CAUTION!

Danger from hot coolant.

This can result in severe scalds.

Wait until the coolant has cooled down before carrying out any of the activities

▶

described below.

CAUTION!

Risk from coolant leakage.

This can result in serious damage to property.

Make sure that no coolant gets into the device.

▶

If there is any coolant on the exterior of the cooling unit, remove it immediately.

▶

General Under normal operating conditions, the device requires only a minimum of care and

maintenance. However, it is vital to observe some important points to ensure the welding system remains in a usable condition for many years.

Page 28

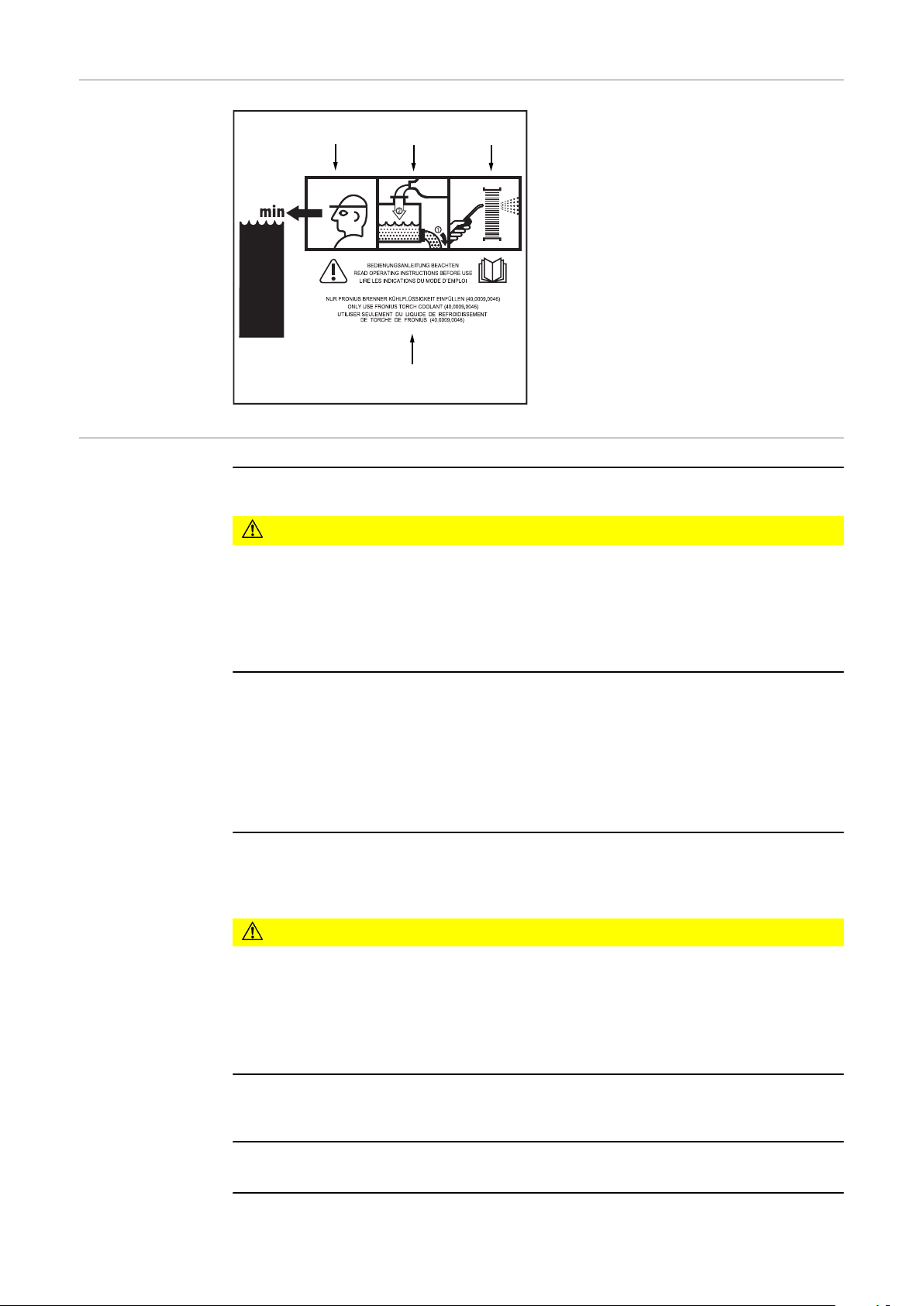

Symbols for care

(1)

(2) (3)

(4)

and maintenance of the cooling unit

(1) Check coolant level (2) Change the coolant (3) Gas purge the cooler (4) Read operating instructions

The relevant maintenance intervals and work are described in detail in the following pages.

Maintenance intervals, maintenance work

At every start-up

CAUTION!

Risk due to start-up without coolant.

This can result in serious damage to property.

If water-cooled system components are operated without coolant, this will normally

▶

result in the failure of the system components. Fronius shall not be liable for any damage resulting from such action. In addition, no warranty claims will be entertained.

- Ensure that all the hosepacks, the welding torch and the ground earth connection are undamaged

- Check that there is an all-round clearance of 0.5 m (1 ft 7.69 in.) to ensure that cooling air can flow in and out freely

- Check the screw connections between all system components for tightness

- Check all the coolant connections of the welding system for tightness

- Monitor the coolant return flow in the coolant container

- If no coolant is returning to the container, identify and remedy the cause

Once a week

- Check coolant level. If the coolant level is below the "min" mark, top up with coolant

- Check the purity of the coolant. Change the coolant if necessary

Risk from non-permitted coolant.

This can result in serious damage to property.

▶ ▶

Every 2 months

- If present: Check the coolant filter for dirt and clean if necessary

Every 6 months

- Gas purge the cooler

CAUTION!

Page 29

Every 6 months in 3-shift operation with ethanol-based coolant

- Gas purge the cooler

- Change the coolant

Every 12 months in single-shift operation with ethanol-based coolant

- Change the ethanol-based coolant

Every 12 months in 3-shift operation with FCL 10/20 coolant

- Change the coolant

Every 24 months in single-shift operation with FCL 10/20 coolant

- Change the coolant

Gas purging the cooler

Gas purging the cooler:

NOTE!

For the sake of clarity, the cooling unit is shown in the following figures without the power source.

However, the power source can remain on the cooling unit when gas purging the cooler. Always follow the instructions in the "Safety" section at the start of the "Care, maintenance and disposal" chapter.

NOTE!

Risk of damage to electronic components.

Do not bring air nozzle too close to electronic components.

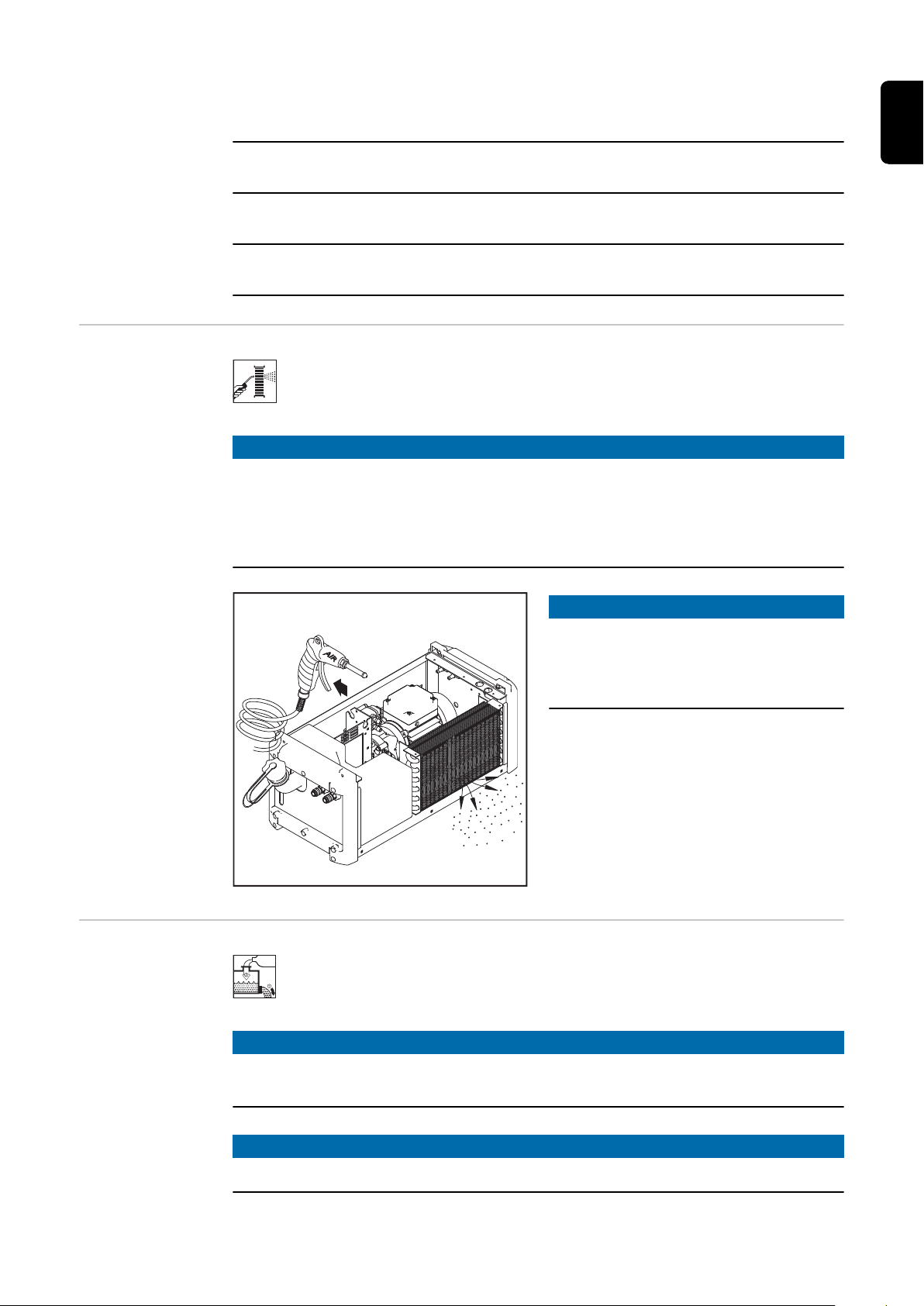

- Remove the side panels and clean the cooler

If a large amount of dust has accumulated:

- Remove device side panels and clean inside of device with dry reduced compressed air

Changing the coolant

Changing the coolant:

NOTE!

The coolant must not be disposed of in the public sewage system.

Dispose of coolant in accordance with the applicable local and national regulations.

NOTE!

Use only original Fronius coolant when refilling the cooling unit.

Page 30

Undo the screw cap on the fill nozzle

(1)(2)

Place a suitable container underneath the cooling unit drain hose to catch the

coolant

Pull the drain hose out of the upper recess of the cooling unit and hold it in the con-

tainer

Remove the drain hose cap

Allow the coolant to flow into the container

Dispose of used coolant properly

Place the cap on the drain hose

Return the drain hose to its original position

Pull back the locking ring (1) on the

coolant flow connection, disconnect the coolant hose and let go of the locking ring (1)

Carefully push back the sealing cone

(2) in the centre of the coolant flow connection using a wooden or plastic pin (Ø = max. 6 mm / 0.236 in.), until it audibly engages

Fill to the "max" mark with fresh

coolant

Locking ring on coolant flow connection, sealing cone

inside coolant flow connection

Pull back the locking ring (1) on the coolant flow connection to release the sealing

cone again (2) and then let go of the locking ring (1)

Connect the coolant flow connection hose to the coolant flow connection

Screw the screw cap onto the fill nozzle

Disposal Dispose of in accordance with the applicable national and local regulations.

Page 31

Troubleshooting

Safety

WARNING!

Danger due to work that has been carried out incorrectly.

This can result in serious injury and damage to property.

All the work described below must only be carried out by trained and qualified per-

▶

sonnel. Fully read and understand this document.

▶

Fully read and understand all the Operating Instructions for the system components,

▶

especially the safety rules.

WARNING!

Danger from electric current.

An electric shock can be fatal.

Turn the power source mains switch to the "O" position.

▶

Disconnect the power source from the mains.

▶

Ensure that the power source remains disconnected from the mains until all work

▶

has been completed. After opening the device, use a suitable measuring instrument to check that electric-

▶

ally charged components (e.g. capacitors) have been discharged.

WARNING!

Danger from inadequate ground conductor connections.

This can result in serious injury and damage to property.

The housing screws provide a suitable ground conductor connection for earthing the

▶

housing and must NOT be replaced by any other screws that do not provide a reliable ground conductor connection.

CAUTION!

Danger from hot coolant.

This can result in severe scalds.

Wait until the coolant has cooled down before carrying out any of the activities

▶

described below.

CAUTION!

Risk from coolant leakage.

This can result in serious damage to property.

Make sure that no coolant gets into the device.

▶

If there is any coolant on the exterior of the cooling unit, remove it immediately.

▶

Troubleshooting Make a note of the serial number and configuration of the device and contact our After-

Sales Service team with a detailed description of the error, if

- errors occur that are not listed below

- the troubleshooting measures listed are unsuccessful

Page 32

hot l H2O

The cooling unit thermostat has tripped.

Cause:

Remedy:

no l H2O

If present: The cooling unit flow sensor has tripped.

Cause:

Remedy:

Cause:

Remedy:

Insufficient or no coolant flow

Cause:

Remedy:

Cause:

Remedy:

Coolant temperature too high

Wait until the end of the cooling phase, i.e. until "hot | H2O" is no longer displayed. If using a ROB 5000 or field bus coupler for robot control: After completion of troubleshooting and before resuming welding, set the "Source error reset" signal.

Coolant flow problem

Check coolant level, cleanliness and proper return; change coolant if necessary

Coolant filter (if present) misplaced when connecting coolant return

Clean coolant filter using clean tap water or change filter element

Coolant level too low

Top up coolant

Constriction or foreign body in cooling circuit

Remove constriction or foreign body

Cause:

Remedy:

Cause:

Remedy:

Cause:

Remedy:

Cause:

Remedy:

Cause:

Remedy:

Coolant pump fuse defective

Replace coolant pump fuse

Coolant contaminated

Change the coolant

Coolant filter (if present) misplaced when connecting coolant return

Clean coolant filter using clean tap water or change filter element

Coolant pump sticking

Turn coolant pump shaft (see operating instructions, "Turning the coolant pump shaft" section). Contact after-sales service if the coolant pump shaft proves impossible to turn

Coolant pump defective

Contact After-Sales Service

Page 33

Insufficient cooling power

Cause:

Remedy:

Faulty fan

Contact after-sales service

Cause:

Remedy:

Cause:

Remedy:

Cause:

Remedy:

High operating noise level

Cause:

Remedy:

Cause:

Remedy:

Coolant pump defective

Contact after-sales service

Cooler contaminated

Gas purge cooler with dry compressed air

Cooling capacity of connected cooling unit not high enough

Use a cooling unit with a greater cooling power

Coolant level too low

Top up coolant

Coolant pump defective

Contact After-Sales Service

Page 34

Twisting the coolant pump shaft

(2)

(1)

Safety

Turning the coolant pump shaft

WARNING!

Danger due to work that has been carried out incorrectly.

This can result in severe personal injury and damage to property

All the work described below must only be carried out by trained and qualified per-

▶

sonnel. Fully read and understand this document.

▶

Fully read and understand all the Operating Instructions for the system components,

▶

especially the safety rules.

WARNING!

Danger from electric current.

An electric shock can be fatal.

Turn the power source mains switch to the "O" position.

▶

Disconnect the power source from the mains.

▶

Ensure that the power source remains disconnected from the mains until all work

▶

has been completed.

Remove the coolant pump fuse (1)

Insert a suitable slotted screwdriver

from the outside through the coolant pump shaft bushing (2) and turn the coolant pump shaft

- Contact After-Sales Service if the coolant pump shaft proves impossible to turn

Replace coolant pump fuse

Page 35

Technical data

General The cooling capacity of a cooling unit depends on

- Ambient temperature

- Delivery head

- Flow rate Q (l/min) - The flow rate Q depends on the length of the interconnecting hosepack and the diameter of the hose.

FK 2500, FK 2500 FC

FK 2500 FK 2500 FC

Mains voltage 400 V AC 400 V AC

Mains voltage tolerance -10% / +10% -10% / +10%

Mains frequency 50 / 60 Hz 50 / 60 Hz

Current consumption 0.6 A / 0.7 A 0.6 A / 0.7 A

Fuse 2 A slow-blow 2 A slow-blow

Cooling power at Q = 1 l/min + 25°C (77°F) Q = 1 l/min + 40°C (104°F) Q = max. + 25°C (77°F) Q = max. + 40°C (104°F)

Max. delivery head 30 m

Max. delivery rate 3 l/min

Max. pump pressure 4.2 bar

Pump Centrifugal pump Centrifugal pump

Pump service life approx. 8,000 hrs approx. 8,000 hrs

770 W 485 W 1020 W 640 W

98 ft. 5.10 in.

0.79 gal./min [US]

60.92 psi

770 W 485 W 1020 W 640 W

30 m 98 ft. 5.10 in.

3 l/min

0.79 gal./min [US]

4.2 bar

60.92 psi

Coolant quantity 4 l

1.06 gal. [US]

Protection class IP 23 IP 23

Dimensions l/w/h 625/240/225 mm

24.61/9.45/8.86 in.

Weight (without coolant) 9 kg

19.84 Ib.

Flow monitoring* (sensor)

Coolant temperature monitoring Error message above

Marks of conformity S, CE S, CE

* If present.

- Error message below

70 °C (158°F)

4 l

1.06 gal. [US]

625/240/225 mm

24.61/9.45/8.86 in.

9 kg

19.84 Ib.

0.7 l/min (0.18 gal./ min) [US]

Error message above 70 °C (158°F)

Page 36

FK 2500 MV, FK 2500 MV FC

FK 2500 MV FK 2500 MV FC

Mains voltage 200-230/400-480 V AC 200-230/400-480 V AC

Mains voltage tolerance -10% / +10% -10% / +10%

Mains frequency 50 / 60 Hz 50 / 60 Hz

Current consumption 0.6 A -1.4 A 0.6 A -1.4 A

Fuse 2 A slow-blow 2 A slow-blow

Cooling power at Q = 1 l/min + 25°C (77°F) Q = 1 l/min + 40°C (104°F) Q = max. + 25°C (77°F) Q = max. + 40°C (104°F)

770 W 485 W 1020 W 640 W

Max. delivery head 30 m

98 ft. 5.10 in.

Max. delivery rate 3 l/min

0.79 gal./min [US]

Max. pump pressure 4.2 bar

60.92 psi

Pump Centrifugal pump Centrifugal pump

Pump service life approx. 8,000 hrs approx. 8,000 hrs

Coolant quantity 4 l

1.06 gal. [US]

Protection class IP 23 IP 23

Dimensions l/w/h 625/240/225 mm

24.61/9.45/8.86 in.

Weight (without coolant) 11.6 kg

25.57 Ib.

Flow monitoring* (sensor)

Coolant temperature monitoring Error message above

- Error message below

70 °C (158°F)

30 m 98 ft. 5.10 in.

3 l/min

0.79 gal./min [US]

4.2 bar

60.92 psi

4 l

1.06 gal. [US]

625/240/225 mm

24.61/9.45/8.86 in.

11.7 kg

25.79 Ib.

0.7 l/min (0.18 gal./ min) [US]

Error message above 70 °C (158°F)

FK 2500 Rob, FK 2500 MV Rob

Marks of conformity S, CE, CSA S, CE, CSA

* If present.

FK 2500 Rob FK 2500 MV Rob

Mains voltage 400 V AC 200-240/400-460 V AC

Mains voltage tolerance -10% / +10% -10% / +10%

Mains frequency 50 / 60 Hz 50 / 60 Hz

Current consumption 0.6 A - 0.7 A 0.6 A - 0.7 A

Fuse 2 A slow-blow 2 A slow-blow

Page 37

FK 2500 Rob FK 2500 MV Rob

Cooling power at Q = 1 l/min + 25°C (77°F) Q = 1 l/min + 40°C (104°F) Q = max. + 25°C (77°F) Q = max. + 40°C (104°F)

Max. delivery head 30 m

Max. delivery rate 3.5 l/min

Max. pump pressure 4.2 bar

Pump Magnetically-coupled

Pump service life approx. 15,000 hrs approx. 15,000 hrs

Coolant quantity 4 l

Protection class IP 23 IP 23

Dimensions l/w/h 625/240/225 mm

Weight (without coolant) 9 kg

800 W 500 W 1160 W 730 W

98 ft. 5.10 in.

0.92 gal./min [US]

60.92 psi

centrifugal pump

1.06 gal. [US]

24.61/9.45/8.86 in.

19.84 Ib.

800 W 500 W 1160 W 730 W

30 m 98 ft. 5.10 in.

3.5 l/min

0.92 gal./min [US]

4.2 bar

60.92 psi

Magnetically-coupled centrifugal pump

4 l

1.06 gal. [US]

625/240/225 mm

24.61/9.45/8.86 in.

9.1 kg

20.06 Ib.

Flow monitoring (sensor)

Coolant temperature monitoring Error message above

Marks of conformity S, CE S, CE, CSA

Error message below

0.7 l/min (0.18 gal./ min) [US]

70 °C (158°F)

Error message below

0.7 l/min (0.18 gal./ min) [US]

Error message above 70 °C (158°F)

Page 38

Page 39

Page 40

FRONIUS INTERNATIONAL GMBH

Froniusstraße 1

A-4643 Pettenbach

AUSTRIA

[email protected]

www.fronius.com

Under www.fronius.com/contact you will find the addresses

of all Fronius Sales & Service Partners and locations
