MODEL FR50RC - Fridge capacity 42Lt
Fridge (0° C +15° C) with remote compressor.
The internal walls are in 304BA (polished) stainless steel,
while the external front and door are in 316SB (brushed)
stainless steel.
The refrigeration unit is available at 12 / 24Vdc, 110Vac 60Hz
or at 220Vac 50Hz with forced air or water cooling.
Our refrigerators are made of high quality stainless steel and
are also suitable for outdoor use, provided they are protected
from the elements with appropriate covers.
Various options are also available.
CODICE PRODOTTO / PRODUCT CODE REVISIONE / REVISION:
R04
mod. FR50RC
DATA / DATE:
01/01/2023
Via Confin 64, 30020 Torre di Mosto (Venezia) Italia - Tel: +39 0421.325214
PROPRIETA' DI FRIGONAUTICA srl
Senza autorizzazione scritta della stessa il presente disegno non potrà essere utilizzato per la costruzione dell’oggetto rappresentato, nè venire comunicato
a terzi o riprodotto anche parzialmente. La socità proprietaria tutela i propri diritti a rigor di legge.
ALL PROPRIETRY RIGHT RESERVED BY FRIGONAUTICA srl
This drawing shall not be reproduced also patially or in any way utilized for the manufacture of the component or unit herein illustrated and must not be
released to other parties without written consent. Any infringement will be legally pursued.
E-Mail: [email protected] - P.IVA: 03687150270
www.frigonautica.it
Page 2
SPECIFICATIONS
350
610
620
LIFTING
FEET
260
45 45
GAS PIPES
L.2,5m
CONDENSATE
DRAIN
45
462
402
30 30
304
45
FEATURES CABINET FR50RC
- W350xD462xH610 [mm] Fridge capacity 42 Lt;
- Range of temperature from 0°C to +15°C;
- External plasticized galvanized metal sheet;
- Internal walls in 304BA stainless steel (Polished);
- Front part and door in 316SB stainless steel (Brushed);
- Predisposition for door opening on both the right and left;
- Polyurethane foam insulation thickness 45mm;
- Weight 18Kg (without compressor);
- Condensate drainage connected by ¼ coupling;
- N. 02 stainless steel shelves adjustable in height;
- N. 02 stainless steel bottle holders;
- Gas expansion by capillary pipe;
- Mechanical thermostat for temperature control;
- External compressor (pipe lenght 2,5m);
- Internal led light with door switch;
- In case of external use, do not expose the refrigerator
directly to atmospheric agents, but protect it adequately with
special covers.
CODICE PRODOTTO / PRODUCT CODE REVISIONE / REVISION:
R04
mod. FR50RC
DATA / DATE:
01/01/2023
520
45
Via Confin 64, 30020 Torre di Mosto (Venezia) Italia - Tel: +39 0421.325214
PROPRIETA' DI FRIGONAUTICA srl
Senza autorizzazione scritta della stessa il presente disegno non potrà essere utilizzato per la costruzione dell’oggetto rappresentato, nè venire comunicato
a terzi o riprodotto anche parzialmente. La socità proprietaria tutela i propri diritti a rigor di legge.
ALL PROPRIETRY RIGHT RESERVED BY FRIGONAUTICA srl
This drawing shall not be reproduced also patially or in any way utilized for the manufacture of the component or unit herein illustrated and must not be
released to other parties without written consent. Any infringement will be legally pursued.
E-Mail: [email protected] - P.IVA: 03687150270
www.frigonautica.it
Page 3
ACCESSORIES - OPTIONAL
A

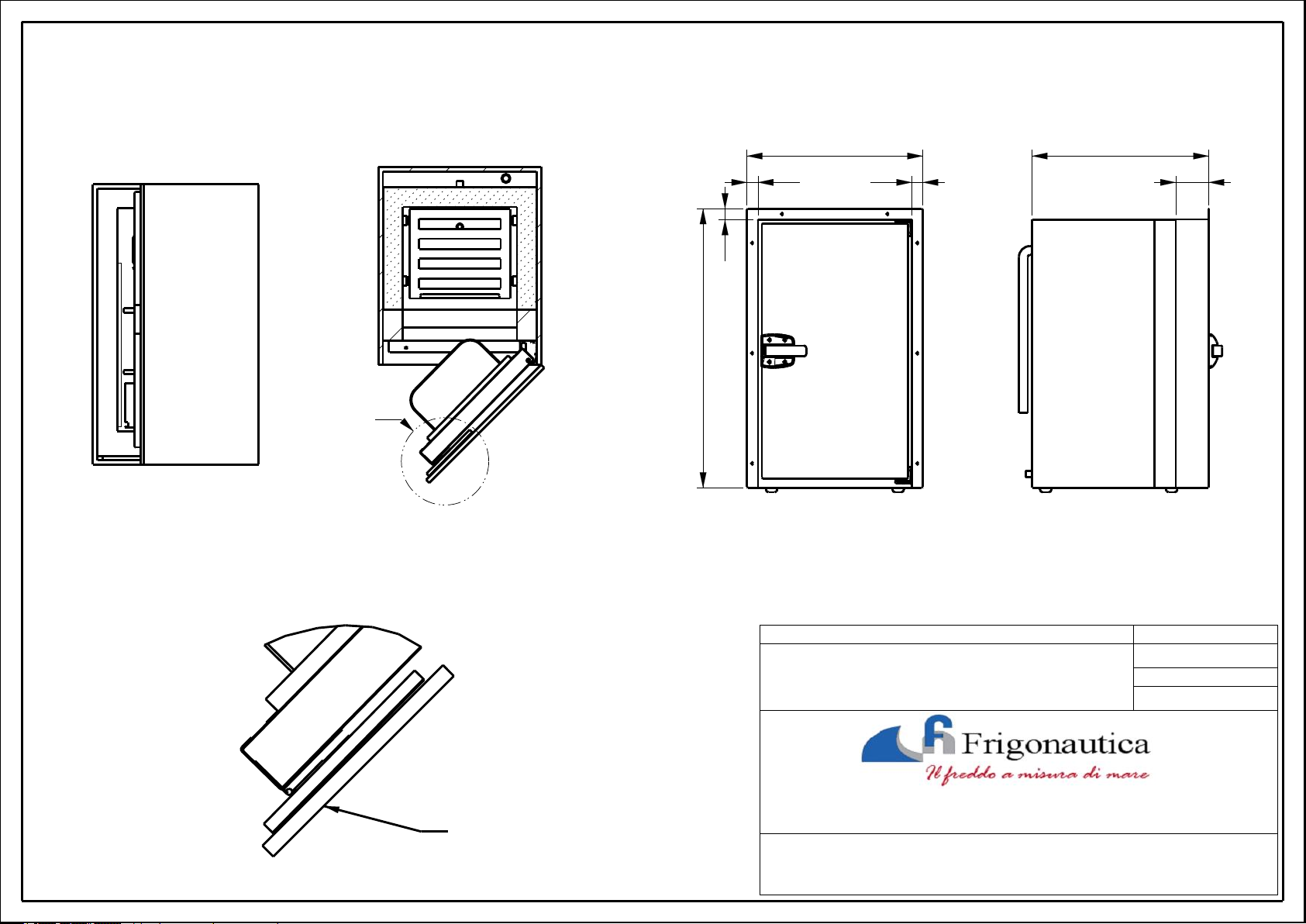

- DOOR SLIDING KIT
Sliding mechanism which replaces the handle in the case
of a fully built-in installation with an exterior cabinet door.
635
400
25 25
25
- FIXING KIT
Special stainless steel frame which allows to
easily fix the cupboard to the forniture.
402
75
VIEW - A-
CUSTOMER DOOR
CODICE PRODOTTO / PRODUCT CODE REVISIONE / REVISION:
R04
mod. FR50RC
Via Confin 64, 30020 Torre di Mosto (Venezia) Italia - Tel: +39 0421.325214
PROPRIETA' DI FRIGONAUTICA srl
Senza autorizzazione scritta della stessa il presente disegno non potrà essere utilizzato per la costruzione dell’oggetto rappresentato, nè venire comunicato
a terzi o riprodotto anche parzialmente. La socità proprietaria tutela i propri diritti a rigor di legge.
ALL PROPRIETRY RIGHT RESERVED BY FRIGONAUTICA srl
This drawing shall not be reproduced also patially or in any way utilized for the manufacture of the component or unit herein illustrated and must not be
released to other parties without written consent. Any infringement will be legally pursued.
E-Mail: [email protected] - P.IVA: 03687150270
www.frigonautica.it
DATA / DATE:
01/01/2023
Page 4
ACCESSORIES - OPTIONAL
STAINLESS STEEL PLATE

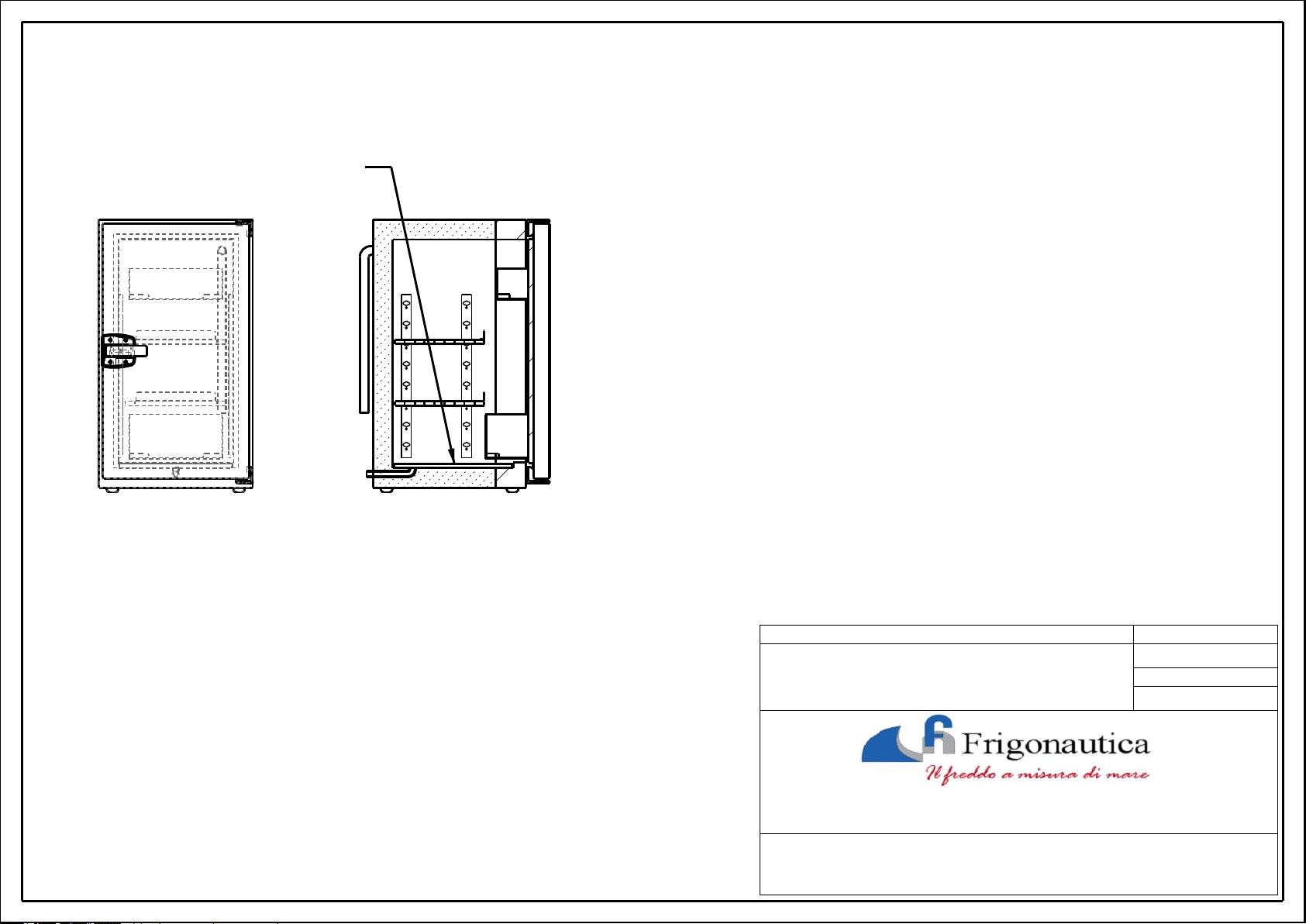

- STAINLESS STEEL PLATE FOR BOTTOM
Raised stainless steel plate keeps foods out of
condensation water in the bottom of the fridge.
CODICE PRODOTTO / PRODUCT CODE REVISIONE / REVISION:
R04
mod. FR50RC
DATA / DATE:
01/01/2023
Via Confin 64, 30020 Torre di Mosto (Venezia) Italia - Tel: +39 0421.325214
PROPRIETA' DI FRIGONAUTICA srl
Senza autorizzazione scritta della stessa il presente disegno non potrà essere utilizzato per la costruzione dell’oggetto rappresentato, nè venire comunicato
a terzi o riprodotto anche parzialmente. La socità proprietaria tutela i propri diritti a rigor di legge.
ALL PROPRIETRY RIGHT RESERVED BY FRIGONAUTICA srl
This drawing shall not be reproduced also patially or in any way utilized for the manufacture of the component or unit herein illustrated and must not be
released to other parties without written consent. Any infringement will be legally pursued.
E-Mail: [email protected] - P.IVA: 03687150270
www.frigonautica.it
Page 5
ACCESSORIES - OPTIONAL

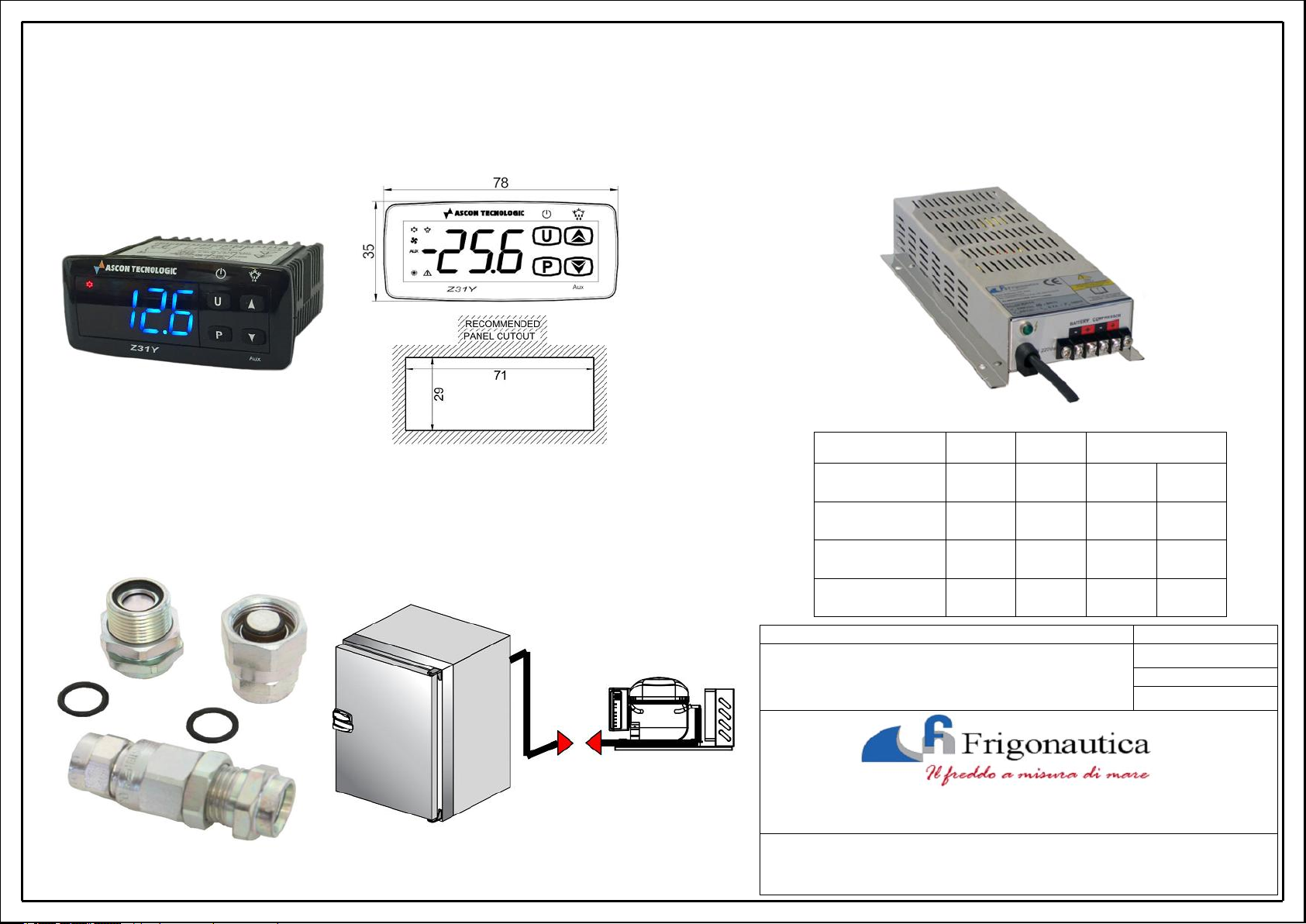

- REMOTE ELECTRONICAL THERMOSTAT (DIGITAL THERMOSTAT)
In order to keep the internal temperature under control and have
real time indications of fridge functionality.
- QUICKLY COUPLINGS
Special couplings which allow to separate cabinet from compressor
avoiding gas loosing. That’s very useful during installation which do not
request skilled technical personnel.
- SWITCHING POWER SUPPLY
Compact and powerful switching power supply.
Dimension: W120 x D270 x H50[mm] - 1,1Kg
Model Input
RA15-110V
12Vdc
RA15-110V
24Vdc
RA15-220V
12Vdc
RA15-220V
24Vdc
CODICE PRODOTTO / PRODUCT CODE REVISIONE / REVISION:
110Vac 168W 12Vdc 14A
110Vac 168W 24Vdc 7A
220Vac 168W 12Vdc 14A
220Vac 168W 24Vdc 7A
mod. FR50RC
Power
input
Output
R04
DATA / DATE:
01/01/2023
Via Confin 64, 30020 Torre di Mosto (Venezia) Italia - Tel: +39 0421.325214
PROPRIETA' DI FRIGONAUTICA srl
Senza autorizzazione scritta della stessa il presente disegno non potrà essere utilizzato per la costruzione dell’oggetto rappresentato, nè venire comunicato
a terzi o riprodotto anche parzialmente. La socità proprietaria tutela i propri diritti a rigor di legge.
ALL PROPRIETRY RIGHT RESERVED BY FRIGONAUTICA srl
This drawing shall not be reproduced also patially or in any way utilized for the manufacture of the component or unit herein illustrated and must not be
released to other parties without written consent. Any infringement will be legally pursued.
E-Mail: [email protected] - P.IVA: 03687150270
www.frigonautica.it
Page 6

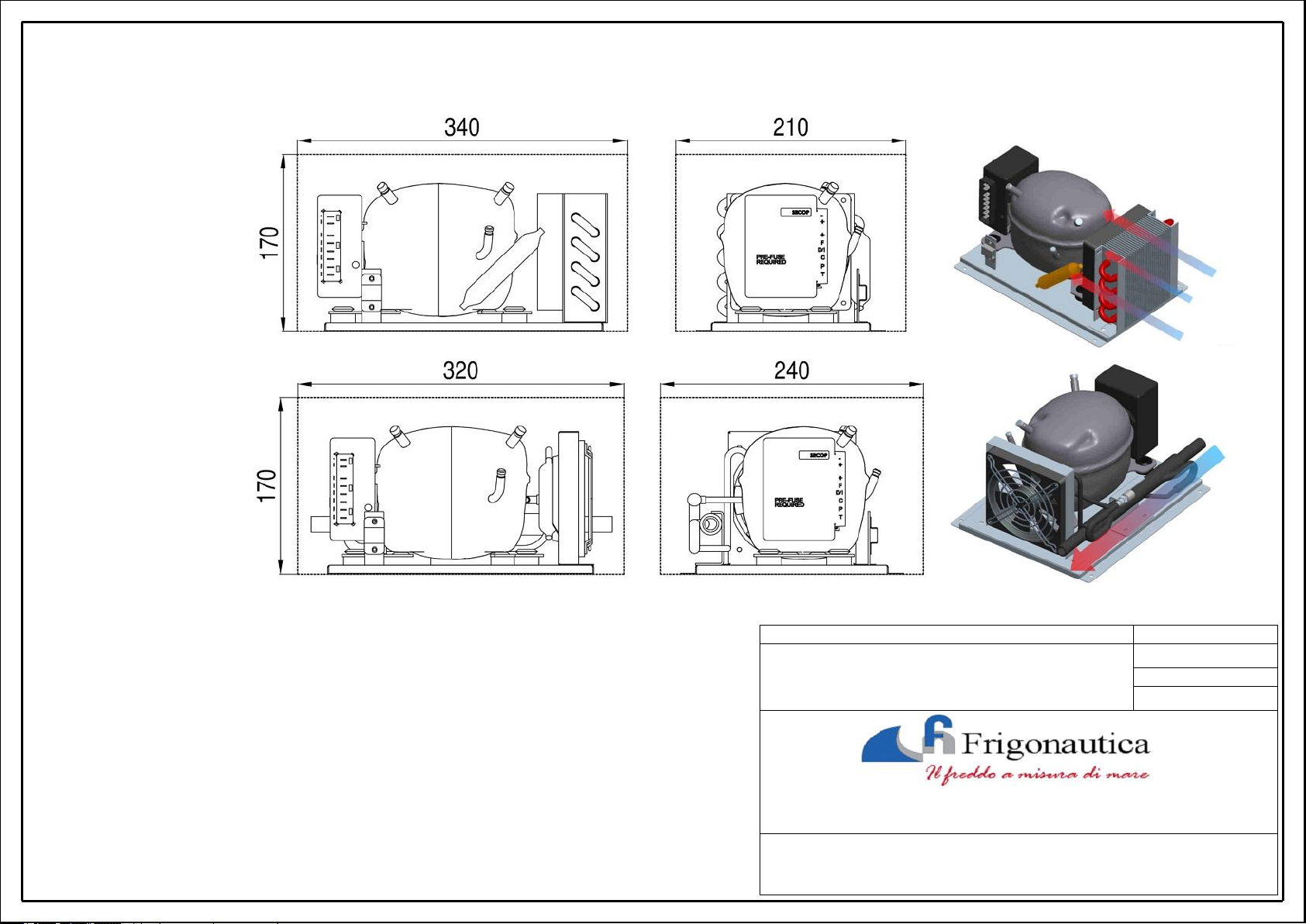

REFRIGERATION UNITS - 12/24Vdc
