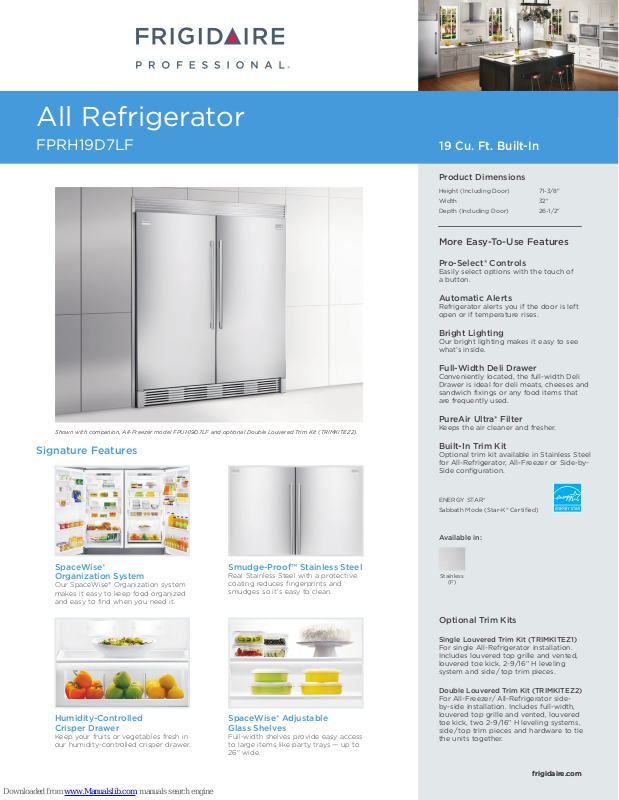

Page 1
All Refrigerator
FPRH19D7LF
Shown with companion, All-Freezer model FPUH19D7LF and optional Double Louvered Trim Kit (TRIMKITEZ2).
Signature Features
19 Cu. Ft. Built-In
Product Dimensions
Height (Including Door) 71-3/8"
Width 32"
Depth (Including Door) 26-1/2"
More Easy-To-Use Features
Pro-Select® Controls
Easily select options with the touch of
a button.
Automatic Alerts
Refrigerator alerts you if the door is left
open or if temperature rises.
Bright Lighting
Our bright lighting makes it easy to see
what’s inside.
Full-Width Deli Drawer
Conveniently located, the full-width Deli
Drawer is ideal for deli meats, cheeses and
sandwich fixings or any food items that
are frequently used.
PureAir Ultra® Filter
Keeps the air cleaner and fresher.
Built-In Trim Kit
Optional trim kit available in Stainless Steel
for All-Refrigerator, All-Freezer or Side-bySide configuration.
SpaceWise®
Organization System
Our SpaceWise® Organization system
makes it easy to keep food organized
and easy to find when you need it.
Humidity-Controlled
Crisper Drawer
Keep your fruits or vegetables fresh in
our humidity-controlled crisper drawer.
Smudge-Proof™ Stainless Steel
Real Stainless Steel with a protective
coating reduces fingerprints and
smudges so it's easy to clean.
SpaceWise® Adjustable
Glass Shelves
Full-width shelves provide easy access
to large items like party trays — up to
26" wide.
ENERGY STAR®
Sabbath Mode (Star-K® Certified)
Available in:
Stainless
(F)
Optional Trim Kits
Single Louvered Trim Kit (TRIMKITEZ1)
For single All-Refrigerator installation.
Includes louvered top grille and vented,
louvered toe kick, 2-9/16" H leveling
system and side / top trim pieces.
Double Louvered Trim Kit (TRIMKITEZ2)
For All-Freezer / All-Refrigerator sideby-side installation. Includes full-width,
louvered top grille and vented, louvered
toe kick, two 2-9/16" H leveling systems,
side / top trim pieces and hardware to tie
the units together.
frigidaire.com
frigidaire.com
Page 2
Features
Door Design
Door Handle Design
Cabinet Finish
Door Hinge Covers
Automatic Door Closer
Leveling System / Leveling Legs
Airflow Ports
Brushed Stainless Steel
Stainless Steel
Grey
Hidden
Yes
Yes / 2
Yes
Controls
Controls
Location of Controls
Temperature Display C° / F°
Lock / Light
Temp Failure Alerts (Audible & Duration)
Door Ajar Alert (Audible)
Power Failure Alert (Duration)
Air Filter / Air Filter Change Indicator Light
Pro-Select®
Inside Cabinet, on Top
Yes
Yes
Yes
Yes
Yes
PureAir Ultra® / Yes
Refrigerator Features
Refrigerator Shelves
Full-Width Deli Drawer
Full-Width Bottom Crisper
Humidity Control
Crisper Divider Quantity
Full-Width Gallon Door Bin
Half-Width Liter Bin
Dairy Bin
Tall Bottle Retainers
Condiment Bin
Lighting
2 SpaceWise®
Adjustable Glass
1
1
Yes
2
2
4 Clear
1 White
Bright
Optional Accessories
Single Louvered Trim Kit
Double Louvered Trim Kit
PN # TRIMKITEZ1
PN # TRIMKITEZ2
Certifications
Sabbath Mode (Star-K® Certified)
ENERGY STAR®
Yes
Yes
Specifications
Total Capacity (Cu. Ft.)
Shelf Area (Sq. Ft.)
Annual Energy (kWH)
Annual Energy Cost (.1065 / kWH)
Power Supply Connection Location
Voltage Rating
Connected Load (kW rating) @ 115 Volts
Amps @ 115 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
An electrical supply with grounded three-prong receptacle is required.
The power supply circuit must be installed in accordance with current
edition of National Electrical Code (NFPA 70) and local codes &
ordinances.
18.6
20.6
365
$39
Right Bottom Rear
120V / 60Hz / 20A
1
0.55
5
20
240 Lbs.
All Refrigerator
FPRH19D7LF 19 Cu. Ft.
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Overall Exterior Dimensions
A - Height (Incl. Door)
B - Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
Built-In Cutout Dimensions
Single Unit without Trim Kit –
A - Height
B - Width
C - Depth
Single Unit with Trim Kit &
Leveling System –
A - Height
B - Width
C - Depth
1
Minimum depth from face of cabinet side panels and requires recessed electrical outlet.
2
Side-by-Side
72"
33"
25-1/4" min.
75" or 79"
33"
25-1/4" min.
Built-In Cutout Dimensions
Double Unit2 without Trim Kit –
A - Height
B - Width
1
C - Depth
Double Unit
Leveling System –
A - Height
B - Width
1
C - Depth
71-3/8"
32"
26-1/2"
57-1/4"
2
with Trim Kit &
Accessories information available
on the web at frigidaire.com
72"
66"
25-1/4" min.
75" or 79"
66"
25-1/4" min.
1
1
•
USA
10200 David Taylor Drive
•
CANADA
FPRH19D7L 05/13 © 2013 Electrolux Major Appliances, NA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Page 3

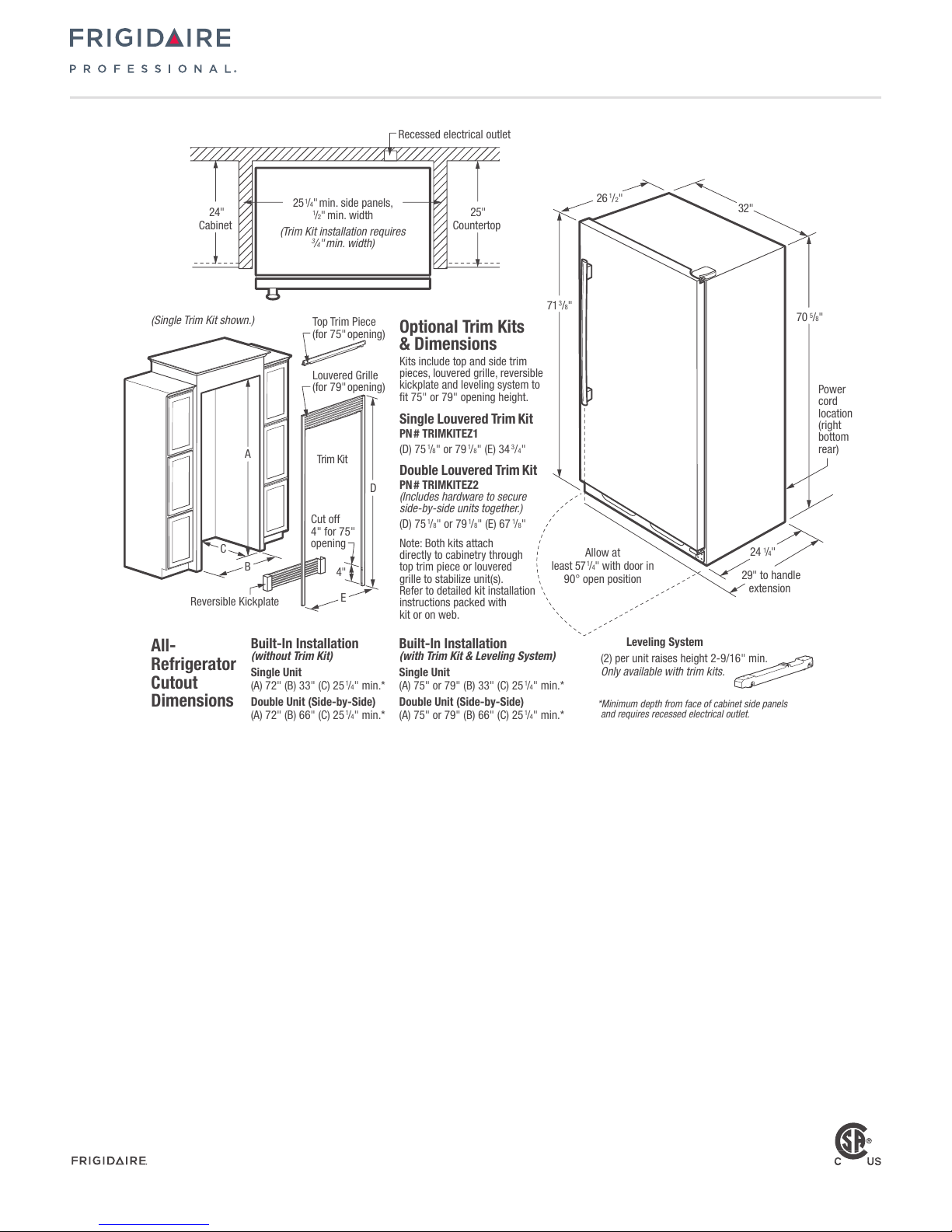

All Refrigerator (18.6 Cu. Ft.) with no water filter
Professional
Leveling System
(2) per unit raises height 2-9/16" min.
Only available with trim kits.
*Minimum depth from face of cabinet side panels
and requires recessed electrical outlet.
Built-In Installation
(without Trim Kit)
Single Unit
(A) 72" (B) 33" (C) 25
1
/4" min.*
Double Unit (Side-by-Side)
(A) 72" (B) 66" (C) 25
1
/4" min.*
Built-In Installation
(with Trim Kit & Leveling System)
Single Unit
(A) 75" or 79" (B) 33" (C) 25
1
/4" min.*
Double Unit (Side-by-Side)
(A) 75" or 79" (B) 66" (C) 25
1
/4" min.*
All-
Refrigerator
Cutout
Dimensions
Allow at
least 57
1/4" with door in
90° open position
71
3/8"
24
1
/4"
29" to handle
extension
Power
cord
location
(right
bottom
rear)
70
5
/8"
26
1
/2"
32"
Recessed electrical outlet
25"
Countertop
24"
Cabinet
25
1/4" min. side panels,
1
/2" min. width
(Trim Kit installation requires
3
/4" min. width)
Optional Trim Kits
& Dimensions
Kits include top and side trim
pieces, louvered grille, reversible
kickplate and leveling system to
fit 75" or 79" opening height.
Single Louvered Trim Kit
PN # TRIMKITEZ1
(D) 75
1
/8" or 791/8" (E) 34
3/4"
Double Louvered Trim Kit
PN # TRIMKITEZ2
(Includes hardware to secure
side-by-side units together.)
(D) 751/8" or 791/8" (E) 67
1/8"
Note: Both kits attach
directly to cabinetry through
top trim piece or louvered
grille to stabilize unit(s).
Refer to detailed kit installation
instructions packed with
kit or on web.
Louvered Grille
(for 79"
opening)
(Single Trim Kit shown.)
B
C
A
Cut off
4" for 75"
opening
Top Trim Piece
(for 75" opening)
Trim Kit
E
D
4"
Reversible Kickplate
All Refrigerator
FPRH19D7LF 19 Cu. Ft.
Built-In All-Refrigerator Specifications
•
Product Weight – 240 Lbs.
•
An electrical supply with grounded three-prong receptacle is required.
The power supply circuit must be installed in accordance with current
edition of National Electrical Code (NFPA 70) and local codes &
ordinances.
•
Voltage Rating – 120V / 60 Hz / 20 Amps
•
Connected Load (kW Rating) @ 115 Volts = 0.55 kW
•
Amps @ 115 Volts = 5 Amps
•
Always consult local and national electric codes.
•
Minimum 25-1/4" depth requires recessed electrical outlet.
•
To allow for ease of installation, tape excess power cord to back of unit.
•
When installing refrigerator adjacent to wall, cabinet or other appliance
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 140° door swing, providing
complete drawer / crisper access and removal. (Absolute 4" minimum
clearance will ONLY allow for 90° door swing which will provide limited
drawer / crisper access with restricted removal.)
•
Refrigerator must be placed on level surface of hard material, same
height as flooring. Surface must support approximately 800 lbs. when
fully loaded. Unit equipped with 4-point leveling.
“Built-In Look” Specifications
•
Minimum opening of 72" H x 33" W x 25-1/4" D required for singleunit “Built-In Look” installation; 66" W required for double-unit
installation. (72" H to be measured from finished floor to underside
of soffit or overhead cabinet.)
•
Remove all wall / floor molding prior to built-in installation.
Optional Trim Kit Specifications
•
If optional Single or Double Louvered Trim Kit is to be used, different
cutout dimensions are required. Kit can be adapted to fit either 75"
or 79" opening height. (Refer to cutout dimensions on this page and
detailed Louvered Trim Kit installation instructions included with kit
or on web.)
•
Remove all wall / floor molding prior to built-in installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
Single Louvered Trim Kit – (PN # TRIMKITEZ1).
•
Double Louvered Trim Kit – (PN # TRIMKITEZ2).
•
PureAdvantage® Air Filter
Replacement Cartridge – (PN # 241754001).
•
USA
10200 David Taylor Drive
•
CANADA
FPRH19D7L 05/13 © 2013 Electrolux Major Appliances, NA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
