Frigidaire PRMC2285AF Owner’s Manual

Download

Page 1

REFRIGERATOR

use

Introduction .......................................................2

Important Safety Information ....................3

Features ..............................................................6

Installation .........................................................8

Door Removal .................................................10

Door Handle Installation ............................. 13

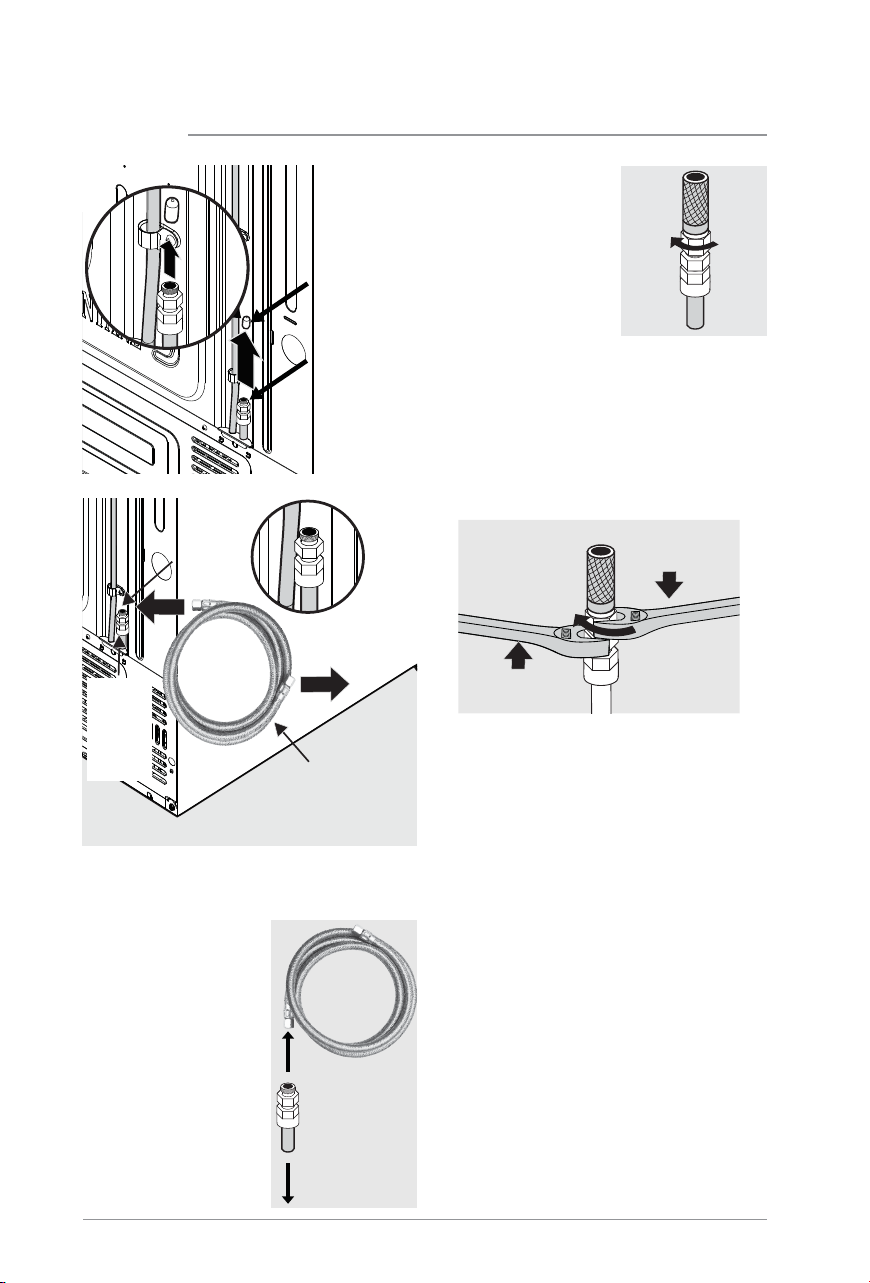

Water Supply Connection .......................... 15

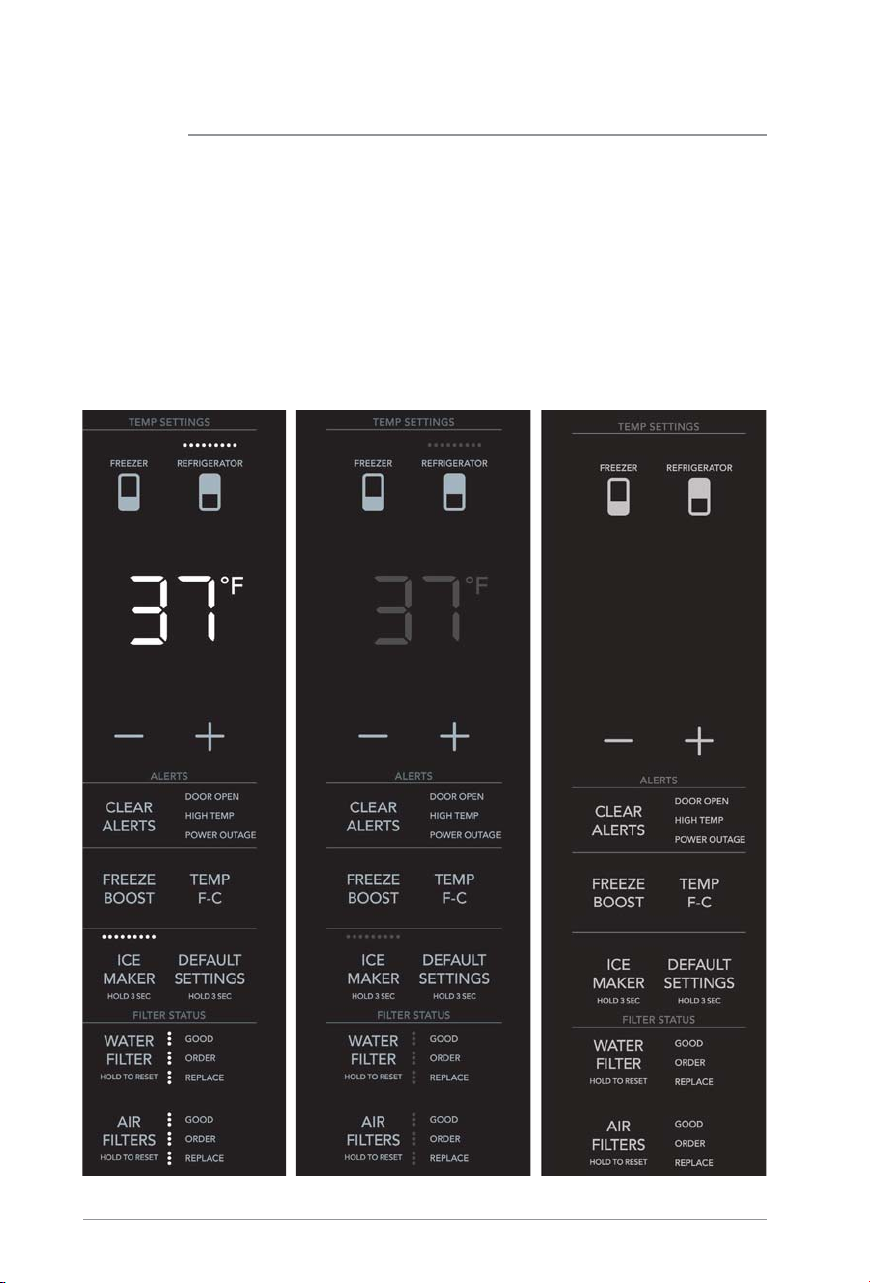

Controls and Settings .................................. 17

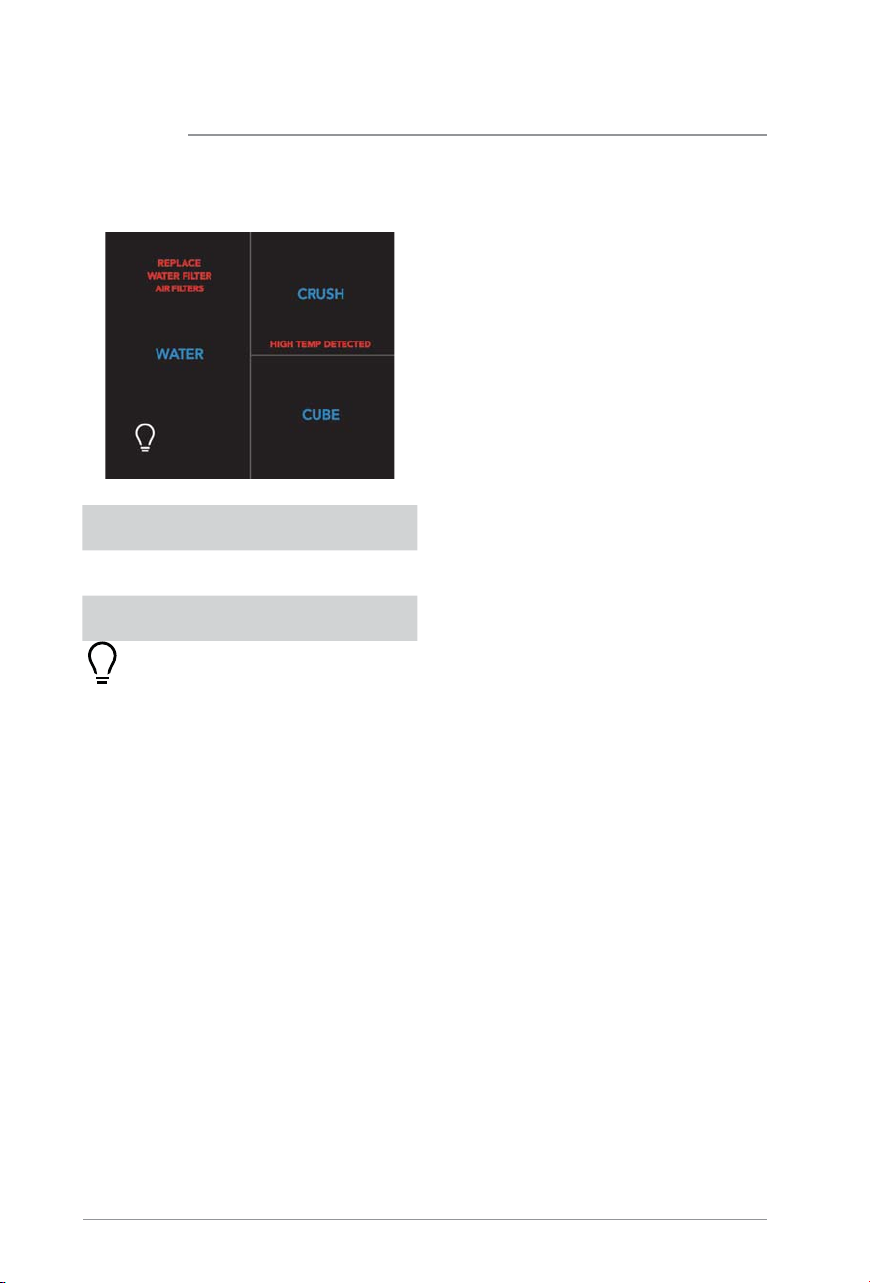

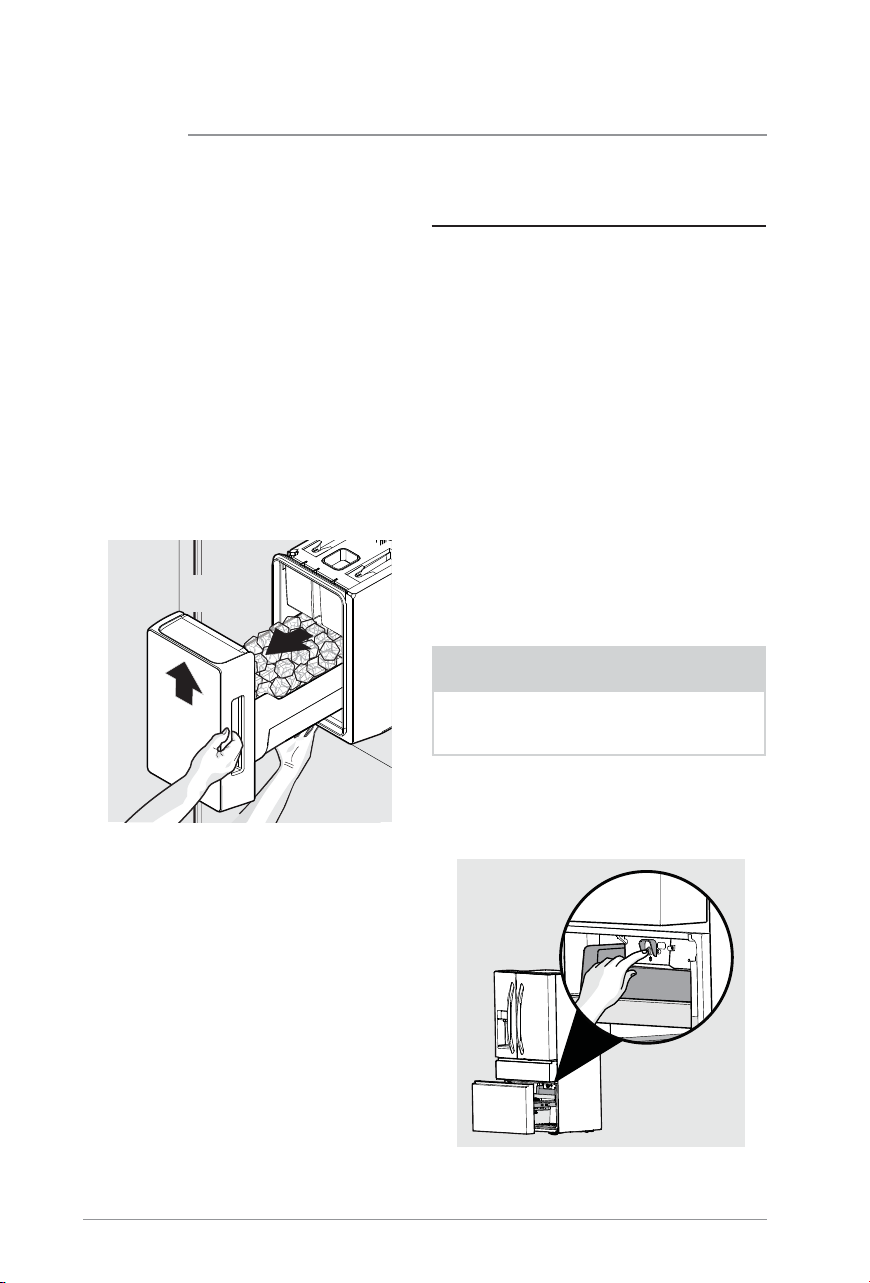

Automatic Ice and Water Dispenser ..... 26

Storage Features .......................................... 30

Storing Food and Saving Energy ........... 34

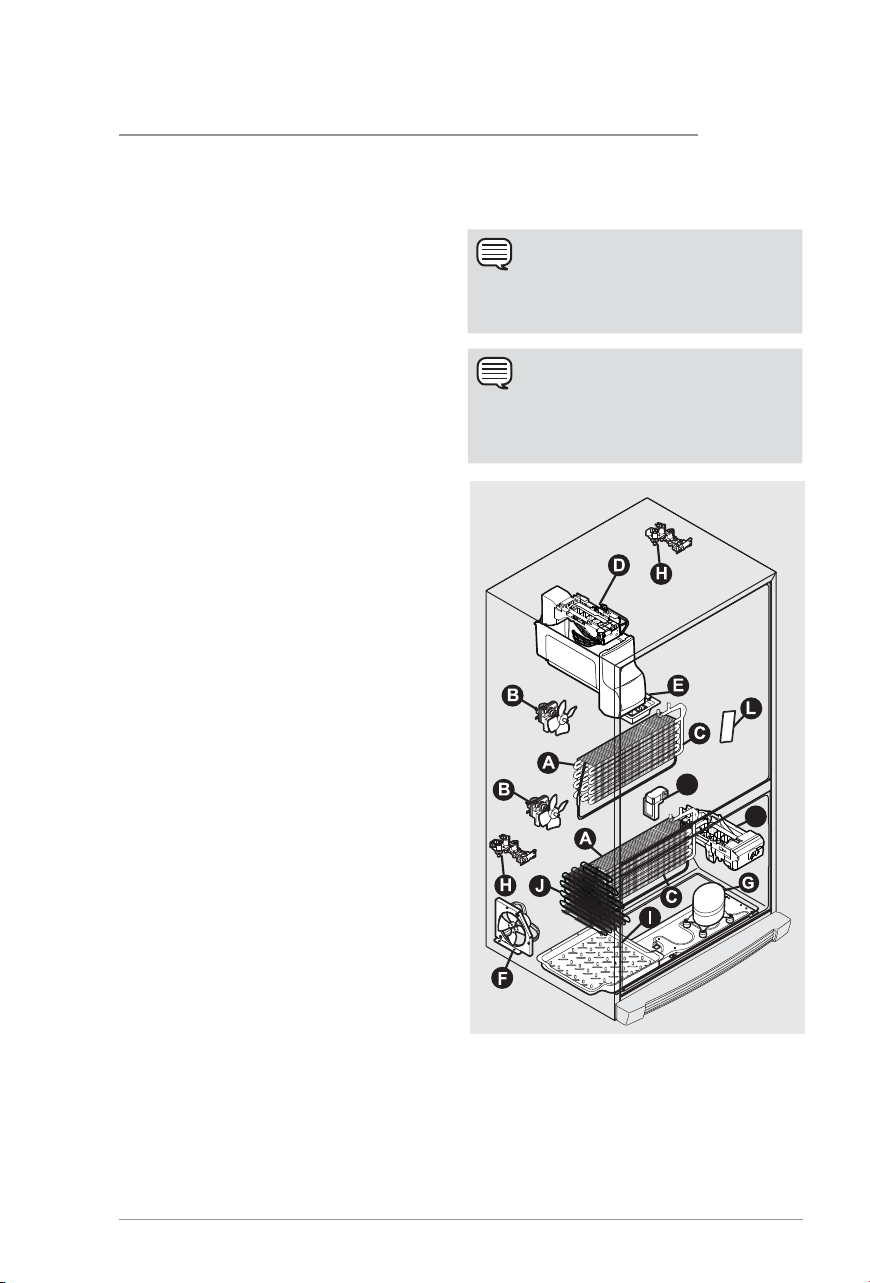

Normal Operating Sounds ........................ 35

Filter Replacement ...................................... 36

Care and Cleaning ....................................... 38

Troubleshooting ............................................40

Limited Warranty ......................................... 45

care

A16492301 (October 2019)

Frigidaire.com USA 1-800-374-4432 Frigidaire.ca Canada 1-800-265-8352

Page 2

INTRODUCTION

Welcome to our

family

Thank you for bringing Frigidaire into your home! We see your purchase as the beginning of a long relationship together.

This manual is your resource for the use and care of your product. Please read it before using your appliance. Keep it handy for quick reference. If something doesn’t seem right, the troubleshooting section will help you with common issues.

FAQs, helpful tips and videos, cleaning products, and kitchen and home accessories are available at www.frigidaire.com.

We are here for you! Visit our website, chat with an agent, or call us if you need help. We may be able to help you avoid a service visit. If you do need service, we can get that started for you.

Let’s make it ocial! Be sure to register your product.

Keep your product info here so it’s easy to ﬁnd.

Model Number

Serial Number

Purchase Date

Installation Checklist

Doors

 Handles are secure and tight  Door seals completely to cabinet on

all sides

Leveling

 Refrigerator is level side-to-side and

slightly elevated in front to assist with door and drawer closing (front should be higher than back)

 Cabinet is setting solid on all corners

Electrical Power

 House power turned on  Refrigerator plugged in

Ice Maker

 House water supply connected to

refrigerator

 No water leaks present at all

connections - recheck in 24 hours  Ice maker is turned ON  Ice & water dispenser operates

correctly

Final Checks

 Shipping material removed  Fresh food and freezer temperatures

set  Registration card sent in

j f k ;fkda; jf k;f

kda;j

fd j f k;fkd

fd jfk;

; a

a jfk

k ;jfd

j d f k;

; a

;jf

kd ; j jfk

; a

jfk;

kda;jf ;jfd

jfk

d a

; a

kda j f

k;f

;f a

;

;jfd

d f k

;

j jfda kd

fd f

;f a;jf

jfk

k; a

;

jfda

; jf

fk d

a;jfda

;f a

a j

kda;j ; jf

k;fkda

a ; fkd

Serial Number Location

Page 3

IMPORTANT SAFETY INFORMATION

WARNING

Please read all instructions before using this refrigerator.

Safety Deﬁnitions

This is the safety alert symbol. It is used to alert of potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

DANGER

DANGER Risk of ﬁre or explosion. Flammable refrigerant used. Do not use mechanical devices to defrost refrigerator. Do not puncture refrigerant tubing.

DANGER Risk of ﬁre or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. Do not puncture refrigerant tubing.

CAUTION

CAUTION Risk of ﬁre or explosion. Flammable refrigerant used. Consult repair manual/owner’s guide before attempting to service this product. All safety precautions must be followed.

CAUTION Risk of ﬁre or explosion. Dispose of property in accordance with federal or local regulations. Flammable refrigerant used.

CAUTION Risk of ﬁre or explosion due to puncture of refrigerant tubing. Follow handling instructions carefully. Flammable refrigerant used.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

IMPORTANT

IMPORTANT indicates installation, operation or maintenance information which is important but not hazard-related.

WARNING

WARNING! CALIFORNIA RESIDENTS Cancer and Reproductive Harm www.P65Warnings.ca.gov

Page 4

IMPORTANT SAFETY INFORMATION

Safety Instructions

• DO NOT store or use gasoline, or other ﬂammable liquids in the vicinity of this or any other appliance. Read product labels for warnings regarding ﬂammability and other hazards.

• DO NOT operate the refrigerator in the presence of explosive fumes.

• Avoid contact with any moving parts of automatic ice maker.

• Remove all staples from the carton. Staples can cause severe cuts, and also destroy ﬁnishes if they come in contact with other appliances or furniture.

Child Safety

Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the refrigerator is unpacked. Children should NEVER use these items to play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suocation.

Proper Disposal of Refrigerator or Freezer

Risk of child entrapment

Child entrapment and suocation are not problems of the past. Junked or abandoned refrigerators or freezers are still dangerous – even if they will sit for “just a few days”. When disposing of an old refrigerator or freezer, please follow the instructions below to help prevent accidents.

Proper Disposal of Refrigerators/Freezers

We strongly encourage responsible appliance recycling/disposal methods. Check with the utility company or visit www.energystar.gov/ recycle for more information on recycling an old refrigerator.

Before disposing of an old refrigerator/ freezer:

• Remove doors.

• Leave shelves in place so children may not easily climb inside.

• Have refrigerant removed by a qualiﬁed service technician.

IMPORTANT

CFC/HCFC Disposal

Some old refrigerators may have a cooling system that used CFCs or HCFCs (chloroﬂuorocarbons or hydrochloroﬂuorocarbons). CFCs and HCFCs are believed to harm stratospheric ozone if released to the atmosphere. Other refrigerants may also cause harm to the environment if released to the atmosphere.

If disposing of an old refrigerator, make sure the refrigerant is removed for proper disposal by a qualiﬁed technician. Intentionally released refrigerant may subject one to ﬁnes and imprisonment under provisions of environmental legislation.

Page 5

IMPORTANT SAFETY INFORMATION

Electrical information

• The refrigerator must be plugged into its own dedicated 115 Volt, 60 Hz., 15 Amp, AC only electrical outlet. The power cord of the appliance is equipped with a three-prong grounding plug for protection against electrical shock hazards. It must be plugged directly into a properly grounded three prong receptacle. The receptacle must be installed in accordance with local codes and ordinances. Consult a qualiﬁed electrician. Avoid connecting refrigerator to a Ground Fault Interrupter (GFI) circuit. Do not use an extension cord or adapter plug.

• If the power cord is damaged, it should be replaced by an authorized service technician to prevent any risk.

• Never unplug the refrigerator by pulling on the power cord. Always grip the plug ﬁrmly, and pull straight out from the receptacle to prevent damaging the power cord.

• Unplug the refrigerator before cleaning and before replacing a light bulb to avoid electrical shock.

• Performance may be aected if the voltage varies by 10% or more. Operating the refrigerator with insucient power can damage the compressor. Such damage is not covered under the warranty.

• Do not plug the unit into an electrical outlet controlled by a wall switch or pull cord to prevent the refrigerator from being turned o accidentally.

Grounding type wall receptacle

Do not, under any circumstances, cut, remove, or bypass the grounding prong.

Power cord with 3-prong grounded plug

Page 6

FEATURES

E F

Frigidaire Gallery

A Adjustable Hinges

B Auto CrispSeal™ Drawers

C Flip Shelf*

D Flipper Mullion

E Fresh Food Ice Maker*

F Flipper Guide

G Air Filter

H Water Filter

I Dairy Compartment*

J Slide-Under Shelf*

K Cantilever Shelves

L Adjustable Door Bins

M SnackZone™ Storage Compartments

(Recessed below Crispers)

N Door Bin*

O Custom-Flex™ Temp Drawer

P Freezer Drawer

Q Freezer Basket

R Anti-tip Leg

*Features may vary according to model

IMPORTANT

Accessories are available for refrigerator and can be purchased at www.frigidaire.com or by calling 1-800-374-4432.

Page 7

FEATURES

Frigidaire Professional

A SnackZone™ Storage Compartments

(Recessed below Crispers)

B Adjustable Hinges

C Auto CrispSeal™ Drawers

D Flip Shelf*

E Flipper Mullion

F Fresh Food Ice Maker*

G Flipper Guide

H Air Filter

I Water Filter

*Features may vary according to model

J Dairy Compartment*

K Slide-Under Shelf*

L Cantilever Shelves

M Adjustable Door Bins

N Door Bin*

O Custom-Flex™ Temp Drawer

P Ice Maker

Q Freezer Basket

R Anti-tip Leg

IMPORTANT

Accessories are available for refrigerator and can be purchased at www.frigidaire.com or by calling 1-800-374-4432.

Page 8

Tools Necessary:

INSTALLATION

(OR)

Phillips Head

Quadrex Head

Screwdriver

This Use & Care Guide provides general installation and operating instructions for this model. We recommend using a service or kitchen contracting professional to install the refrigerator. Use the refrigerator only as instructed in this Use & Care Guide. Before starting the

refrigerator, follow these important ﬁrst steps.

6mm

Allen Wrench

Location

• Choose a place that is near a grounded, non-GFCI, electrical outlet. Do Not use an extension cord or an adapter plug.

• If possible, place the refrigerator out of direct sunlight and away from the range, dishwasher, or other heat sources.

• The refrigerator must be installed on a ﬂoor that is level and strong enough to support a fully loaded refrigerator.

• Consider water supply availability for models equipped with an automatic ice maker.

ANDAND

8mm Socket

Wrench

Adjustable

Wrench

Ǫ Fixed

Wrench

Installation

Allow the following clearances for ease of installation, proper air circulation, and plumbing and electrical connections:

Sides & Top 3/8 inch (9.5 mm)

Back 1 inch (25.4 mm)

NOTE

If the refrigerator is placed with the door hinge side against a wall, allow additional space so the door can be opened wider.

Door opening

The refrigerator should be positioned to allow easy access to a counter when removing food. For best use of refrigerator drawers and freezer baskets, the refrigerator should be in a position where both can be fully opened.

CAUTION

Do Not install the refrigerator where the temperature will drop below 55°F (13°C) or rise above 110°F (43°C). The compressor will not be able to maintain proper temperatures inside the refrigerator.

Page 9

INSTALLATION

WRONG

Cabinet Leveling & Refrigerator Door Alignment (if necessary)

Guidelines for ﬁnal positioning of refrigerator:

• All four corners of the cabinet must rest ﬁrmly on the ﬂoor.

• The front should be slightly elevated to ensure that doors close and seal properly.

• Doors should align with each other and be level.

Most of these conditions can be met by raising or lowering the adjustable anti-tip legs.

To level the cabinet using the anti-tip legs:

1. Slightly open freezer drawer.

2. Lower anti-tip legs until they are both touching the ﬂoor. Use a pair of pliers to adjust.

To raise unit: turn leg clockwise.

To lower unit: turn leg counterclockwise.

Anti-Tip

Legs

To make ﬁnal door height adjustments:

1. Open Custom-Flex Temp drawer to make lower hinge visible.

2. Insert 6mm Allen shaft of the lower hinge.

To lower door: turn adjustment

screw clockwise.

To raise door: turn adjustment

screw counterclockwise.

wrench into the

Raise

Flipper Mullion

Adjust Flipper Mullion for proper connection with the mullion guide by ensuring the ﬂipper mullion is folded and perpendicular to the fresh food door. If the mullion guide is not in the correct position, it could prevent the door from closing completely.

3. Ensure both doors are bind-free with their seals touching the cabinet on all four sides and that cabinet is stable.

Door

Page 10

DOOR REMOVAL

Getting through narrow spaces

If refrigerator will not ﬁt through an entrance area, doors can be removed. Check ﬁrst by measuring the entrance.

To prepare for removing the doors:

1. Make sure the electrical power cord is unplugged from the wall outlet.

2. Remove any food from the door shelves and close the doors.

To remove the refrigerator doors:

1. Open doors to 90°.

2. Remove all ﬁve Phillips from top hinge cover and lift up.

Phillips Screws

screws

To p Hinge Cover

5. Pull up on water line gently to remove from door.

Waterline

NOTE

Use care while pulling the water tube from the door to be sure that tube does not kink.

NOTE

Approximately four feet of water tube will be pulled from the refrigerator door.

3. Trace lightly around the door’s top hinges with a pencil. This makes reinstallation easier.

4. Disconnect electrical harness running from door to hinge cover.

CAUTION

Be sure doors are set aside in a secure position where they cannot fall and cause personal injury, or damage to the doors or handles.

6. Remove three 8mm bolts from both top hinges. Lift doors up o lower hinges and carefully set aside.

Page 11

DOOR REMOVAL

7. To gain access to lower hinge, drawer will need to be extended. Unscrew the three lower hinge screws and slide the hinge inwards.

Lower Hinge Removal

8. To reinstall doors, reverse procedure.

IMPORTANT

Make sure water line tubing goes through hole at top of dispenser pocket. There is also a metal wrap on the tubing to prevent damage from the hinge rubbing against it. This needs to be ﬁxed back around the tube in the proper location upon reinstallation (just as long as the tube is protected from the hinge).

NOTE

When reinserting the water tube and replacing the top hinge cover, use care to be sure the tube does not kink.

Once both doors are in place, ensure they are aligned with each other and level (Reference the Installation section for more details), and replace the top hinge cover.

To remove the Custom-FlexTM Temp Drawer

1. Fully open drawer.

2. Remove basket from drawer.

3. Unsnap the 4 cable ties by pressing clip sides together and pushing through opening.

Cable Clip

NOTE: Do Not Remove or Cut Cable Ties From Wire Harness

4. Remove screw and retaining clip and disconnect the harness

Screw

Retaining Clip

5. Remove drawer by pressing on the liner clips and slide rail past clips on both sides to fully remove drawer from cabinet.

Cable

Tie

Retaining

Clip

(4) Cable

Ties

To Cabinet

Harness

Press the two

tabs on both

sides to release

the sliders

Page 12

DOOR REMOVAL

Reinstalling the Custom-FlexTM Temp Drawer

1. Place drawer with brackets and sliders inside compartment and click sliders into place on each side.

CAUTION

Drawer is heavy. Use caution when lifting.

Click

Into Place

2. Reconnect cabinet harness.

3. Replace retaining clip and secure with screw.

Reconnect

Cabinet Harness

4. Reattach electrical harness by positioning the cable clips over the black markings on the harness and push the 4 cable clips through openings in rail to secure harness in place.

Black

Marking

Screw

Retaining Clip

Removing Freezer Drawer

1. Open drawer and fully extend.

2. Remove the freezer drawer.

3. Remove the freezer basket.

4. Inside the cabinet, press the two tabs on both sides to release the sliders.

5. Remove the drawer with brackets and sliders.

Press the two tabs on both sides to release the sliders

Freezer Drawer

Freezer Basket

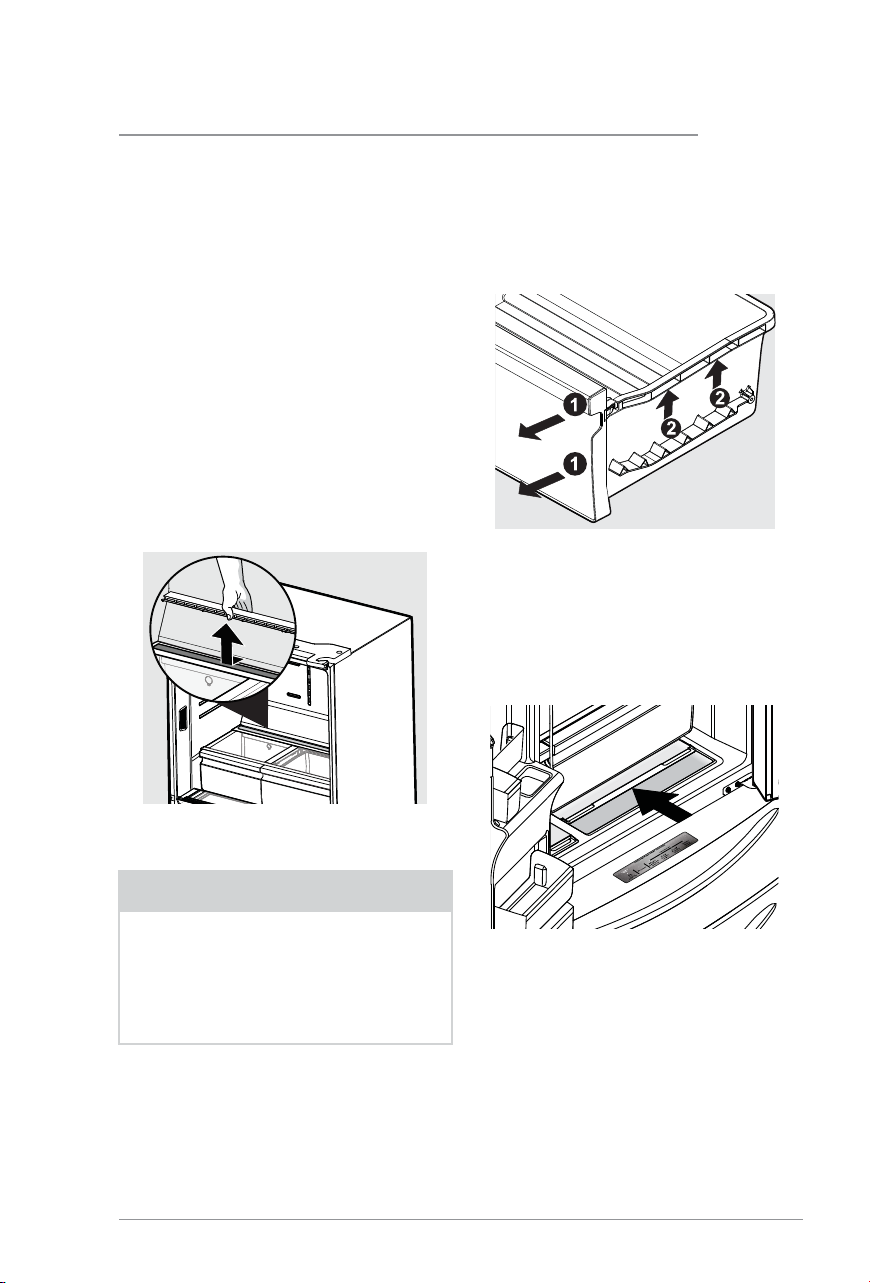

Reinstalling Freezer Drawer

1. Place drawer with brackets and sliders inside the cabinet and click into place.

2. Replace the basket.

5. Slide basket into place.

6. Close drawer.

Position cable clips over the black markings before attaching.

NOTE

For additional instructions, see Storage Features section.

Page 13

DOOR HANDLE INSTALLATION

CAUTION

Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.

Door Handle Mounting Instructions for Frigidaire Gallery

1. Remove handles from carton and any other protective packaging.

2. Position fresh food handle end caps over upper and lower pre-installed shoulder bolts (A) that are fastened into door, ensuring the holes for the set screws are facing towards the opposite door.

3. While holding handle ﬁrmly against door, fasten upper and lower Allen set screws (B) with supplied Allen wrench.

4. Repeat steps 2 and 3 to install opposite handle. Ensure the holes for the set screws are facing towards the ﬁrst door.

5. Position freezer/Custom-FlexTM Temp Drawer handle end caps over left and right pre-installed shoulder bolts (A) that are fastened to the door, ensuring the holes for the set screws are facing down.

6. While holding handle ﬁrmly against door, loosely tighten right Allen set screw (B) with supplied Allen wrench until there is no gap between handle and door.

7. Still holding the handle ﬁrmly to the door, ﬁrmly tighten left Allen set screw (B) with supplied Allen wrench.

8. Return to the right Allen set screw (B) and ﬁrmly tighten with supplied Allen wrench.

When tightening the Allen set screws, it is imperative that force be applied to the longer arm of the Allen wrench supplied in the handle packaging.

Mounting Refrigerator Handles

Mounting Freezer

Custom-Flex

Temp Drawer Handle

NOTE

All set screws should be tightened so the screw is below the surface of the handle. The handles should be drawn tight to doors/drawer with no gaps. Opening the opposite door while tightening the Allen screw makes installation easier.

The door handle may loosen over time or if it was installed improperly. If this happens, tighten the set screws on the handles.

Page 14

DOOR HANDLE INSTALLATION

CAUTION

Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.

Door Handle Mounting Instructions for Frigidaire Professional®

1. Remove handles from carton and any other protective packaging.

2. Position fresh food handle end over upper and lower preinstalled shoulder bolts (A) that are fastened into door, ensuring the holes for the set screws are facing towards the opposite door.

3. While holding handle ﬁrmly against door, fasten further most upper and further most lower Allen set screws (B) with supplied Allen wrench.

4. Repeat steps 2 and 3 to install opposite handle. Ensure the holes for the set screws are facing towards the ﬁrst door.

5. Firmly tighten the inside Allen set screws.

NOTE

When tightening the Allen set screws, it is imperative that force be applied to the longer arm of the Allen wrench supplied in the handle packaging.

Mounting Refrigerator Handles

NOTE

All set screws should be tightened so the screw is below the surface of the handle. The handles should be drawn tight to doors with no gaps. Opening the opposite door while tightening the Allen screw makes installation easier.

The door handle may loosen over time or if it was installed improperly. If this happens, tighten the set screws on the handles.

Page 15

WATER SUPPLY CONNECTION

WARNING

To avoid electric shock, which can cause death or severe personal injury, disconnect the refrigerator from electrical power before connecting a water supply line to the refrigerator.

CAUTION

To Avoid Property Damage:

• Copper or Stainless Steel braided tubing is recommended for the water supply line. Water supply tubing made of 1/4 inch plastic is not recommended to be used. Plastic tubing greatly increases the potential for water leaks, and the manufacturer will not be responsible for any damage if plastic tubing is used for the supply line.

• DO NOT install water supply tubing in areas where temperatures fall below freezing.

• Chemicals from a malfunctioning water softener can damage the ice maker. If a water softening system is present, ensure the softener is maintained and working properly.

IMPORTANT

Ensure that the water supply line connections comply with all local plumbing codes.

To install the water supply line, the following are needed:

• Basic Tools: adjustable wrench,

ﬂat-blade screwdriver, and Phillips screwdriver

• Access to a household cold water

line with water pressure between 30 and 100psi.

• A water supply line made of 1/4inch

(6.4mm) OD, copper or braided stainless steel tubing. To determine the length of tubing needed, measure the distance from the ice maker inlet valve at the back of the refrigerator

to the cold water pipe. Then add approximately 7feet (2.1meters), so the refrigerator can be moved out for cleaning.

• A shuto valve to connect the water supply line to the household water system. DO NOT use a self-piercing type shuto valve.

• Do not re-use compression ﬁtting or use thread seal tape.

• A compression nut and ferrule (sleeve) for connecting a copper water supply line to the ice maker inlet valve.

NOTE

Check with local building authority for recommendations on water lines and associated materials prior to installing refrigerator. Depending on local/state building codes, Frigidaire recommends for homes with existing valves its Smart

Choice

water line kit 5304437642 with a 6ft. (1.8 meters) braided Stainless Steel Water Line. Please refer to www.frigidaire.com for more information.

NOTE

Expect the ﬁrst ice harvest within ﬁrst 24hours of unit operation. To prevent any issues concerning ice production, please ensure that all water lines are primed. See “Priming the water supply system” in the “AUTOMATIC ICE AND WATER DISPENSER” section.

IMPORTANT

The refrigerator’s water supply system includes several tubing lines, a water ﬁlter, and a water valve. To ensure that the water dispenser works properly, this system must be completely ﬁlled with water when the refrigerator is ﬁrst connected to the household water supply line.

Page 16

WATER SUPPLY CONNECTION

Remove plastic cap from water inlet fitting

Water Inlet Fitting

¼ inch plastic tube to water valve

Water

Inlet

Fitting

Connection to

household

water supply

Plastic

tubing

to water valve

6 ft. (1.8 Meters)

Stainless Steel water

line from household

water supply line

To Connect Water Tube to Household Water Supply

1. Disconnect refrigerator from electrical power source.

2. Place end of water supply line into sink or bucket. Turn ON water supply and ﬂush supply line until water is clear. Turn OFF water supply at shuto valve.

Household

Water

Supply

Water

Valve

Unit

3. Remove plastic cap from water inlet ﬁtting and discard cap.

4. If using (recommended) stainless steel braided tubing

- the nut and ferrule are already assembled on the tubing. Slide compression nut onto water inlet ﬁtting and ﬁnger tighten.

5. Using two adjustable wrenches (one to hold the household water line nut and the other to hold the water inlet ﬁtting nut), tighten a half turn with wrench. DO NOT over tighten.

Place wrench

here. Turn clockwise.

Place wrench

here. Do not turn.

6. Turn ON water supply at shuto valve and tighten any connections that leak.

7. Reconnect refrigerator to electrical power source.

8. Ensure ice maker is turned ON.

9. Purge air from Ice and Water Dispenser System by operating the water dispenser for 3-4 minutes. This will require dispensing several glasses of water.

Page 17

CONTROLS AND SETTINGS

Frigidaire Gallery Display (options may vary by model)

Sleep Mode Display

Sleep Mode

As a default, the display will go to sleep after a short time. If any icon is pressed, the display will be awakened. After a short time, it will go back to sleep. When in sleep mode, wake up the display to conﬁrm ice maker is On/O. Sleep mode can be turned o to have the display on full time (awake mode). When sleep mode is O, the display will always be illuminated. To turn sleep mode On/O, simultaneously press and hold “Crush” and “ Light” icons for 5 seconds. Tone will conﬁrm.

Awake Mode Display

Awake Mode

To change from sleep mode (on) to awake mode (o), simultaneously press and hold “Crush” and “ Light” icons for 5 seconds. Display will show the current temperature/ice maker status. Tone will conﬁrm.

Page 18

CONTROLS AND SETTINGS

Frigidaire Gallery Display (options may vary by model)

Quick Freeze (on/o)

Activates a faster rate for freezing food in the freezer. Use this feature when loading several items into the freezer at one time. Automatically deactivates after 12 hours.

Cold Drink Timer

Quickly chills a drink inside the freezer compartment. To enable, touch the Cold Drink Timer key. A time value will appear on the freezer temp display (in minutes) and can be changed using the +/- buttons. A tone will sound when the time has been input. Range is from 20-45 minutes in 5 minute intervals. Drinks will freeze if temperature setting is too low or timer setting is too long.

11 12

WARNING

When using the cold drink timer, make sure to remove drinks from freezer compartment when alarm sounds. Carbonated drinks may explode if left in freezer for too long.

Ice Maker

Press and hold for 3 seconds to turn ice maker on/o. When indicator is lit, ice maker is on. When ice maker is OFF, ice maker OFF indicator is lit. When ice maker is in the OFF state, it will stop making ice. When sleep mode is enabled, wake the display to conﬁrm ice maker is on/ o (see Sleep Mode section). While o, ice dispensing can continue as long as there is ice in the bucket. When ice maker is o and ice is dispensing, indicator above ice maker button and ice maker OFF will both blink.

The lock button can be used to lock

the display preventing it from being used in certain situations. Press and hold for 3 seconds to enable/disable. While in the locked state, no changes can be made to settings on the display. Dispensing ice and water will be disabled. The indicator will ﬂash and an audible warning tone is played.

Power Outage

In the event of a power failure, the power outage alert will be illuminated once power has been restored and a tone will sound. The alert will only be illuminated if the refrigerator or freezer reached unsafe temperatures during the outage. Press any button to silence the tone.

Page 19

CONTROLS AND SETTINGS

Frigidaire Gallery Additional Features (Continued)

Adjusting Temp

Illuminates when temperatures are changed on the display and will remain illuminated until the desired temperatures are reached inside the refrigerator and freezer. Press either the + or - to adjust to desired temperature setting. Freezer temp Control temperatures range from

-6°F / -21°C to +6°F / -15°C. Refrigerator temp Control temperatures range from +34°F / +1°C to +44°F / +7°C. This unit is designed to operate at 37°F Refrigerator/0°F Freezer. Unit should stabilize temperatures within 24 hours of installation.

Door Open

Illuminates whenever the doors are open. If a door is left open for 5 minutes or more, an alarm will sound and the display will be illuminated until the doors are shut. Pressing any button will mute the alarm temporarily. Check to make sure no food is blocking the doorway.

Replace Water Filter

Display illuminates every 6 months or when ﬁlter needs replacing. Replace ﬁlter and then press and hold ‘Reset Water Filter’ for 3 seconds to deactivate warning on display. See “Replacing the Filter” section for more information.

Replace Air Filter

Display illuminates every 6 months or when ﬁlter needs replacing. Replace ﬁlter and then press and hold ‘Reset Air Filter’ for 3 seconds to deactivate warning on display. See “Replacing the Filter” section for more information.

Water

Press the “water” key to dispense water. An indicator light will be illuminated above the active feature.

Cube

Press the “cube” key to dispense cubed ice. An indicator light will be illuminated above the active feature.

Crush

Press the “crush” key to dispense crushed ice. An indicator light will be illuminated above the active feature.

°F/°C

To toggle between Fahrenheit (°F) and Celsius (°C), simultaneously press and hold + and - for 5 seconds on refrigerator side of display.

Quick Chill

Quick chill is a faster rate for chilling food in the refrigerator compartment. Use this feature when loading several items into the refrigerator at one time. Deactivates after 6 hours.

Reset Air Filter

After replacing ﬁlter, press and hold for 3 seconds to reset.

Reset Water Filter

After replacing ﬁlter, press and hold for 3 seconds to reset.

Toggles dispenser light On and O.

Page 20

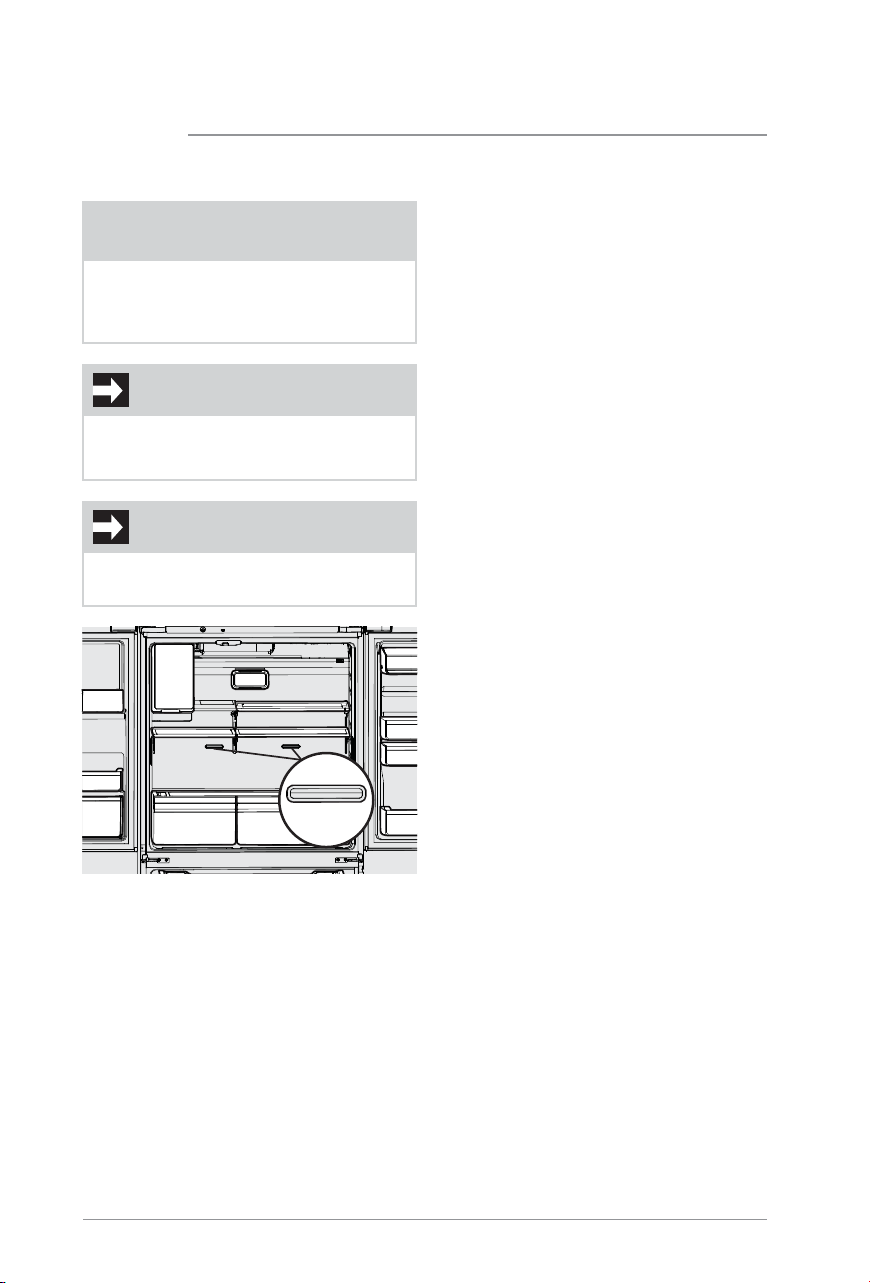

Setting temperatures

The recommended settings for a product installed in a kitchen is 37˚F for the fresh food compartment and 0˚F for the freezer.

If food is freezing in the fresh food compartment, increase the temperature setting 1 or 2 degrees.

Food placed within 1 inch in front of the air ports may cause food to freeze.

CONTROLS AND SETTINGS

NOTE

IMPORTANT

Air Port

Page 21

CONTROLS AND SETTINGS

Frigidaire Gallery Additional Features (Continued)

NOTE

Control features and alarms may vary by model.

Alarms

Power Outage

Water Filter

When illuminated, the water ﬁlter needs to be replaced. Change the water ﬁlter every 6 months or when 125 gallons of water has been dispensed. To reset, press and hold button for 3 seconds. Tone will sound once it has been reset.

Air Filter

When illuminated, air ﬁlter needs to be replaced. Change the air ﬁlter every 6 months. To reset, press and hold button for 3 seconds. Tone will sounds once it has been reset.

Door

If a door has been left open for ﬁve minutes or more, an alarm will sound and the door open indicator will illuminate on the display. The alarm can be turned o by closing the door or pressing any key. Control panel will return to normal operations after the door is closed.

Error Tone

An alarm will sound if the user tries to make a selection that is not available.

High Temperature

In the event of a high temperature condition, alarm will sound. The interface will display HI on whichever compartment the alarm is detected in and alarm will sound over 10 seconds until the alert is acknowledged. This alarm can be reset by touching any key or opening a door.

Sabbath Mode

The Sabbath Mode is a feature that disables portions of the refrigerator and its controls in accordance with observance of the weekly Sabbath and religious holidays within the Orthodox Jewish community.

Sabbath Mode is turned ON and OFF by simultaneously pressing and holding both the “” (freezer side) and “” (refrigerator side) for ﬁve seconds. Other than the High Temp alarm, no audible sounds will occur until the user exits the Sabbath mode. The display shows “Sb” while in Sabbath mode.

In the Sabbath Mode, the High Temp alarm is active for health reasons. For example, if the door is left ajar the High Temp alarm is activated. The refrigerator will function normally once the door is closed, without any violation of the Sabbath/Holidays. The High Temp alarm is permitted when cabinet temperature is outside the safe zone for 20 minutes. The alarm silences itself after 10 minutes while the High Temp icon stays lit until the Sabbath mode is exited.

For further assistance, guidelines for proper usage and a complete list of models with the Sabbath feature, please visit the web at

http:\\www.star-k.org.

NOTE

While in Sabbath Mode, neither the lights, dispenser, nor the control panel will work until Sabbath Mode is deactivated.

Refrigerator stays in Sabbath Mode after power failure recovery. It must be deactivated with the buttons on the control panel.

NOTE

Although the Sabbath Mode has been initiated, the ice maker will complete the cycle it had already started. The ice cube compartment will remain cold and new ice cubes can be made with standard trays.

Page 22

Your display is equipped with a sleep and lock mode to prevent accidental changes to the unit settings during opening and closing of the doors. When both doors are closed, the display will be in sleep mode. When either door is ﬁrst opened, the display will be in lock mode where all the current settings are visible but dimmed.

Pressing any button on the display will awake the display and a tone will be played. All settings will then be fully lit. Touch the display again to change any setting.

If there is no button pressed for 10 seconds while any door is open, the display will default back to lock mode.

Awake Mode View Lock Mode View Sleep Mode View

CONTROLS AND SETTINGS

Frigidaire Professional Display Mode Views

Page 23

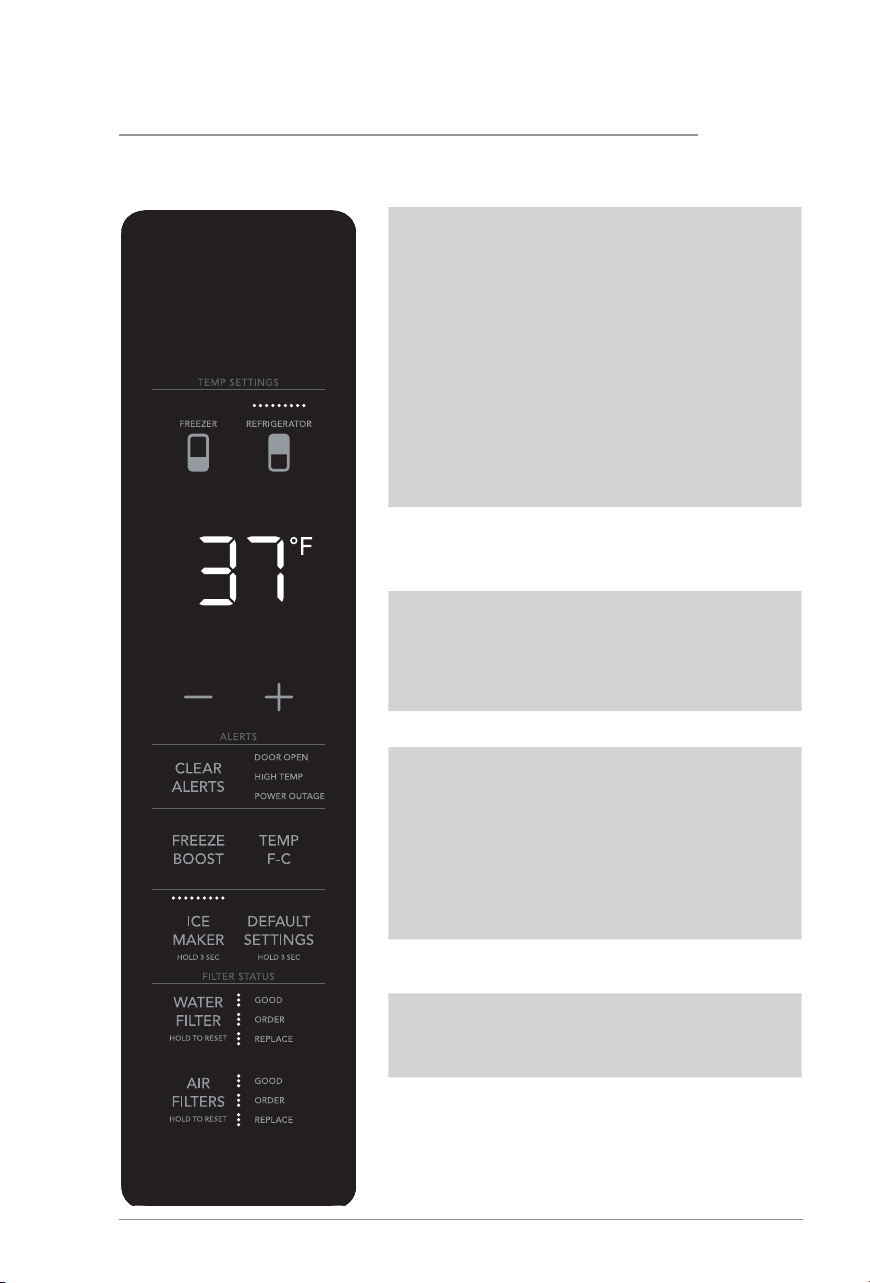

CONTROLS AND SETTINGS

Frigidaire Professional Display (options may vary by model)

TEMP SETTINGS

CLEAR ALERTS Resets any alarms that are

FREEZE BOOST Activates a faster rate for

TEMP F•C Press to toggle between F & C.

ICE MAKER For the Ice Maker inside the

DEFAULT SETTINGS

Select compartment for temperature change (FREEZER OR REFRIGERATOR). Press either the + or - to adjust to desired temperature setting. Freezer temp - Control temperatures range from -6°F / -21°C to +6°F / -15°C. Refrigerator temp - Control temperatures range from +34°F / +1°C to +44°F / +7°C. This unit is designed to operate at 37°F Refrigerator/0°F Freezer. Unit should stabilize temperatures within 24 hours of installation.

active and illuminated on the display (DOOR OPEN, HIGH TEMP, POWER OUTAGE).

freezing food in the freezer. Use this feature when loading several items into the freezer at one time. Automatically deactivates after 12 hours.

refrigerator, press and hold for 3 seconds to turn ice maker on/o. When indicator is lit, ice maker is on. When indicator is not lit, ice maker is in the OFF state and will stop making ice. While o, ice dispensing can continue as long as there is ice in the bucket.

Press and hold for 3 seconds to reset to default settings.

WATER FILTER Status is shown at right of

AIR FILTER Status is shown at right of

button. After replacing ﬁlter, press and hold for 3 seconds to reset. Status will reset to GOOD.

Page 24

CONTROLS AND SETTINGS

Frigidaire Professional

Dispenser Controls

WATER Press the “WATER” key to

select water.

CRUSH Press the “CRUSH” key to

select crushed ice.

CUBE Press the “CUBE” key to

select cubed ice.

light Toggles dispenser light on

and o.

Clear Alerts

Door Open

If the freezer or fresh food doors have been left open for ﬁve minutes or more, an alarm will sound and the door ajar indicator will illuminate on the display. Press “CLEAR ALERTS” to reset any system alarms.

High Temp Alarm

High temp will illuminate next to clear alerts button. Alarm is played every 60 seconds. Press “CLEAR ALERTS” button to acknowledge the alarm The highest temp value will be displayed when the alarm is ﬁrst acknowledged.

Power Outage

In the event of a power failure, the power fail alert will be illuminated. Press “CLEAR ALERTS” to acknowledge the alarm. Other modes may be turned o until the alarm is acknowledged. While a power failure alert is displayed on the control panel, the unit will continue normal operation. The high temp alarm may also be illuminated until a safe operating range temperature has been reached.

Freezer Temp

If the freezer temperature reaches 26°F or greater, the alarm will sound and the temperature will ﬂash and the dispenser control will display “HIGH TEMP DETECTED”. You can disable the alarm by pressing “CLEAR ALERTS” but the “HIGH TEMP DETECTED” indicator will illuminate until the temperature goes below 26°F.

Fresh Food Temp

If the fresh food temperature reaches 55°F or greater, the alarm will sound and the temperature will ﬂash and the dispenser control will display “HIGH TEMP DETECTED”. You can disable the alarm by pressing “CLEAR ALERTS” but the “HIGH TEMP DETECTED” indicator will illuminate until the temperature goes below 55°F.

Flapper

When “CUBE” or “CRUSH” is selected, if the ﬂapper (or ice chute door) is being held open by a jammed ice cube, an alarm will sound and the current selection will blink on the dispenser control. The alarm will reset when the ice cube is removed.

Page 25

CONTROLS AND SETTINGS

Sabbath Mode

Sabbath Mode is turned ON and OFF by simultaneously pressing and holding both the “-” and “TEMP F-C”buttons for ﬁve seconds. Other than the High Temp alarm, no audible sounds will occur until the user exits the Sabbath mode. The display shows “Sb” while in Sabbath mode.

For further assistance, guidelines for

proper usage and a complete list of models with the Sabbath feature, please visit the web at

http:\\www.star-k.org.

NOTE

While in Sabbath Mode, neither the lights, dispenser, nor the control panel will work until Sabbath Mode is deactivated.

Refrigerator stays in Sabbath Mode after power failure recovery. It must be deactivated with the buttons on the control panel.

NOTE

Page 26

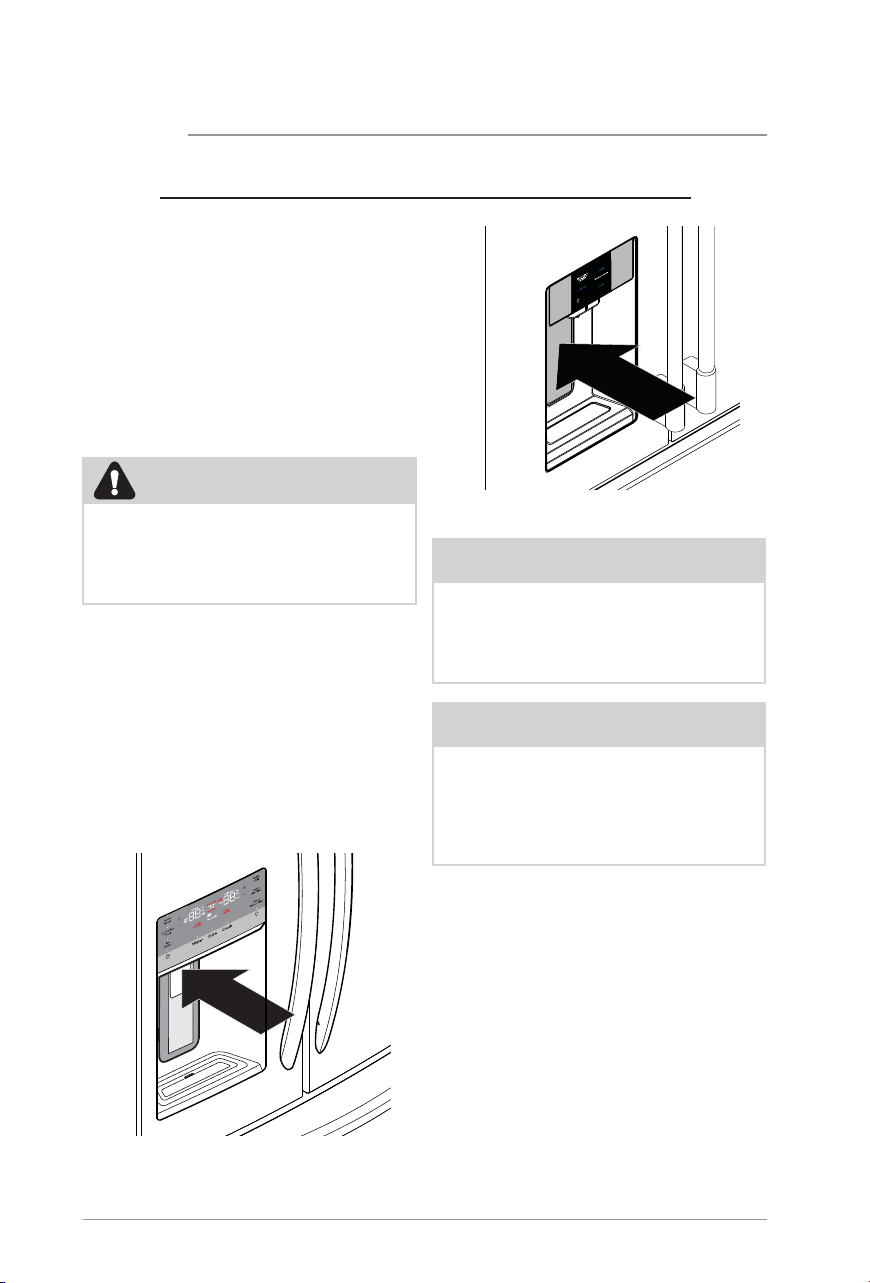

AUTOMATIC ICE AND WATER DISPENSER

Fresh Food Ice Maker

Using the ice maker after installation

Before making ice for the ﬁrst time, be sure to prime the water supply system. Air in new plumbing lines can result in two or three empty ice maker cycles. Furthermore, if the system is not ﬂushed, the ﬁrst ice cubes may be discolored or have an odd ﬂavor.

Priming the water supply system

CAUTION

For proper dispenser operation, recommended water supply pressure should fall between 30psi and 100psi. Excessive pressure may cause the system to malfunction.

1. Begin ﬁlling the system by pressing and holding a drinking glass against the dispenser.

2. Keep the glass in this position until water comes out of the dispenser. It may take about 1

3. Continue dispensing water for about four minutes to ﬂush the system and plumbing connections of any impurities (stopping to empty the glass as necessary).

/2 minutes.

Professional Dispenser

NOTE

The water dispenser has a built-in device that shuts o the water ﬂow after two minutes of continuous use. To reset this shuto device, simply release the dispenser paddle.

NOTE

After the initial 26 ounces (750 ml), water will remain room temperature until the tank has reﬁlled and been given enough time to chill the next 26 ounces (750 ml) of water. May take up to 8 hours to chill.

Gallery Dispenser

Ice maker operation & care

After the refrigerator is installed properly and has cooled for several hours, the ice maker can produce ice within 24hours. The ice maker will ﬁll the ice bin from the rear. Dispense some ice to force the ice forward in the bin. This will allow the bin to ﬁll completely.

Ice Maker and Storage Bin Capacity

This ice maker should produce 2 to 2.5 pounds of ice per 24 hours. The ice bin will hold about 4 pounds of ice.

Page 27

AUTOMATIC ICE AND WATER DISPENSER

Turning the fresh food ice maker on and o

CAUTION

IMPORTANT

The ice maker is turned on at the factory so it can work as soon as the refrigerator is installed. If it is not possible to connect a water supply, set the ice maker’s On/O feature to O; otherwise, the ice maker’s ﬁll valve may make a loud chattering noise when it attempts to operate without water.

Ice production is controlled by the ice maker’s On/O feature on the control panel. Pressing the On/O feature turns the ice maker on and o.

NOTE

The ice maker also has a built-in plastic signal arm that automatically stops ice production when the ice bin is full. This signal arm should not be used to manually stop the ice maker.

IMPORTANT

Turning o the ice maker simply disables ice making. Existing ice can still be dispensed, and water can be dispensed.

IMPORTANT

On occasion, unusually small ice cubes may be noticed in the bucket or in dispensed ice. This could occur in normal operation of the ice maker. If happening frequently, it may be an indication of low water pressure or the water ﬁlter needs to be replaced. As the water ﬁlter nears the end of its useful life and becomes clogged with particles, less water is delivered to the ice maker during each cycle. Remember, if it’s been six months or longer since last changing the water ﬁlter, replace it with a new one. Poor quality household water may require the ﬁlter to be changed more frequently.

If the water supply to the refrigerator is softened, be sure the softener is properly maintained. Chemicals from a water softener can damage the ice maker.

Ice maker/dispenser tips

• If refrigerator is not connected to a water supply or the water supply is turned o, turn o the ice maker as described in the previous section.

• The following sounds are normal when the ice maker is operating:

- Motor running

- Ice dropping into ice bin

- Water valve opening or closing

- Running water

• If a large quantity of ice is needed at one time, it is best to get cubes directly from the ice bin.

• Ice cubes stored too long may develop an odd ﬂavor. Empty the ice bin as explained below.

• When dispensing cubed ice, it is normal to have a small quantity of little pieces along with the whole cubes.

• To avoid splashing, dispense ice into the container before adding liquids.

• It is normal for ice to ﬁll to the top of the ice bin.

Cleaning the ice maker

Clean the ice maker and ice bin at regular intervals, especially prior to vacation or moving.

1. Turn o the ice maker.

2. Remove the ice bin by lifting upward and pulling straight out.

3. Empty and carefully clean the ice bin with mild detergent. Do not use harsh or abrasive cleaners. Do not place in dishwasher. Rinse with clear water.

Page 28

AUTOMATIC ICE AND WATER DISPENSER

4. Allow the ice bin to dry completely before replacing in the freezer.

5. Replace the ice bin. Turn the ice maker on.

Remove and empty the ice bin if:

• An extended power failure (one hour or longer) causes ice cubes in the ice bin to melt and refreeze together after power is restored, jamming the dispenser mechanism.

• Ice dispenser is used infrequently. Ice cubes will freeze together in the bin, jamming the dispenser mechanism.

Remove the ice bin by (1) lifting upward and (2) pulling straight out, then shake to loosen the cubes or clean as explained above.

(2) Pull Bin Straight Out

(1) Lift

Upward

Freezer Ice Maker

(select models)

Ice Maker Operation & Care

After the refrigerator is installed properly, the ice maker can produce ice within 24hours. When using the ice maker for the ﬁrst time, and in order for it to work properly, it is necessary to clear air from the water tubing and the ﬁlter. Furthermore, if the system is not ﬂushed, the ﬁrst ice cubes may be discolored or have an odd ﬂavor. Once the ice maker begins making ice, allow the bin to ﬁll completely, then discard the ﬁrst FULL bin of ice.

Ice Maker and Storage Bin Capacity

This ice maker should produce between 2 and 2.5 pounds of ice per 24 hours depending on usage conditions. The ice bin will hold about 4.5 pounds of ice.

NOTE

The ice maker will only produce the advertised production rate if the product is set at 0°F.

Removing Ice Bin

Turning the ice maker on and o

Press power button to turn Ice Maker on (button should be illuminated).

Page 29

AUTOMATIC ICE AND WATER DISPENSER

NOTE

The Freezer Ice maker ﬁlls in the center of the ice bin. Occasionally move the ice to the borders to allow the bin to ﬁll completely.

Ice maker tips

• The following sounds are normal when the ice maker is operating:

- Motor running

- Ice dropping into ice bin

- Water valve opening or closing

- Running water

• Ice cubes stored too long may develop an odd ﬂavor. Empty the ice bin as explained below.

Freeze Boost (Professional) or Quick Freeze (Gallery) Function

Your refrigerator is equipped with a Freeze Boost/Quick Freeze Function for freezing food at a faster rate, but it can also increase ice production. This function terminates automatically after 12 hours.

This function aects only the ice maker in the freezer.

CAUTION

If the water supply to your refrigerator is softened, be sure the softener is properly maintained. Chemicals from a water softener can damage the ice maker.

4. Allow the ice bin to dry completely before replacing in the freezer.

5. Replace the ice bin. Turn the ice maker on.

Remove and empty the ice bin if an extended power failure (one hour or longer) causes ice cubes in the ice bin to melt and refreeze together after power is restored.

Remove the ice bin and shake to loosen the cubes or clean as explained above.

CAUTION

NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice bin.

To loosen stuck ice, use warm water. Before replacing the ice bin, make sure it is completely dry.

IMPORTANT

When removing or replacing the ice bin, ensure that the ice bin is fully seated before closing the freezer door. If the ice bin is not positioned correctly the refrigerator will not dispense ice. The freezer door also may not close properly causing warm air to leak into the freezer compartment.

Cleaning the ice maker

Clean the ice maker and ice bin at regular intervals, especially prior to vacation or moving.

1. Turn o the ice maker.

2. Remove the ice bin.

3. Empty and carefully clean the ice bin with mild detergent. Do not use harsh or abrasive cleaners. Rinse with clean water.

Page 30

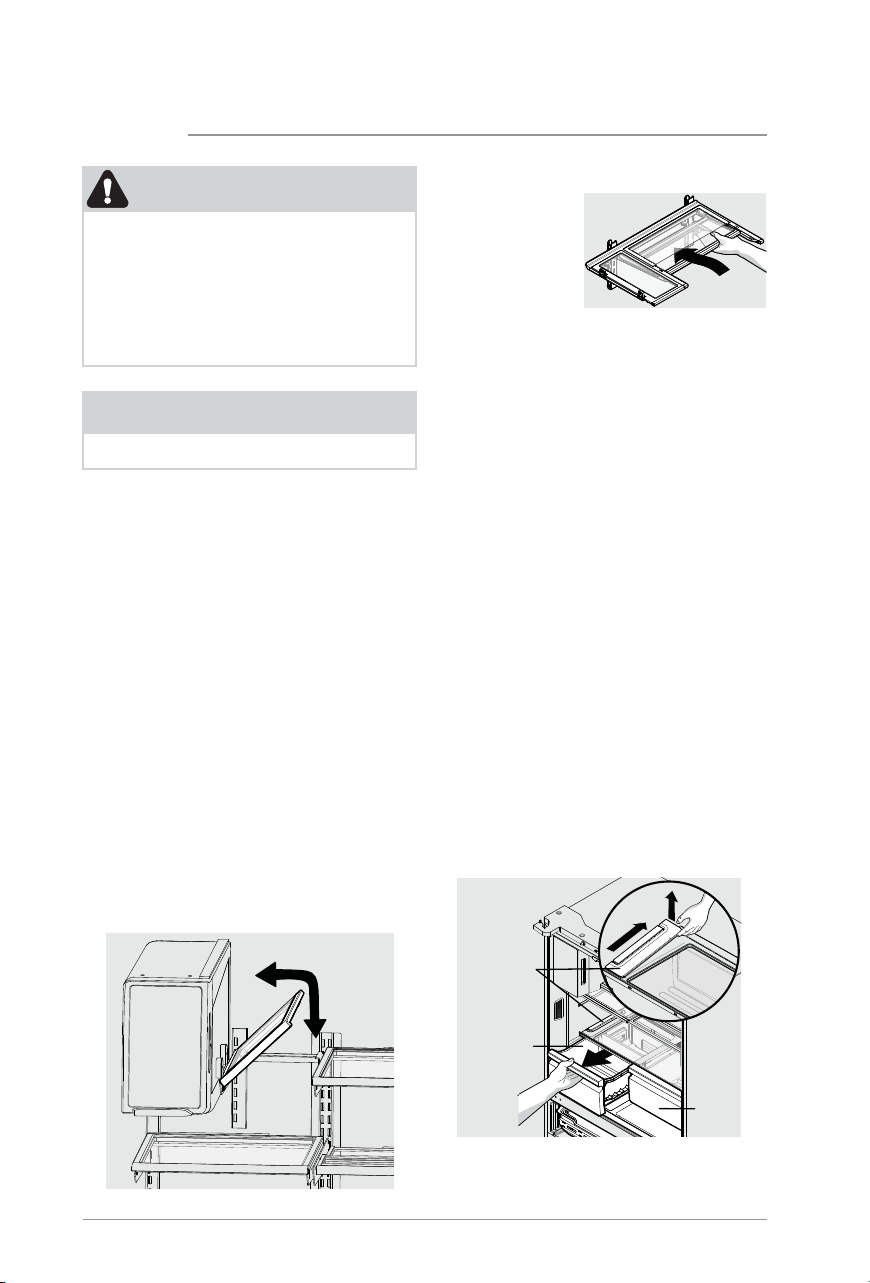

STORAGE FEATURES

CAUTION

To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change. Allow the glass shelves to stabilize to room temperature before cleaning. Do not wash in dishwasher.

NOTE

Features may vary according to model.

Shelf positions can easily be adjusted in the fresh food compartments as needed. The shelves have mounting brackets that attach to slotted supports at the rear of each compartment.

Change the Position of a Shelf

1. Remove all food from shelf.

2. Lift the front edge up and pull the shelf out.

3. Replace by inserting the mounting bracket hooks into the desired support slots.

4. Lower the shelf and lock into position.

To adjust ﬂip shelf:

1. Remove food from shelf.

2. Lift the right side edge of shelf upwards and push to the left towards ice maker.

To adjust slide-under shelf (some models):

1. Push front half shelf backward towards rear of cabinet until the rear half shelf drops down, then gently continue pushing front half shelf back and under the rear half shelf.

Slide-Under Shelf

Drawers

The refrigerator includes a variety of storage drawers.

CrispSeal Drawer

Crisper drawers are designed for storing fruits, vegetables, and other fresh produce. Crispers have an auto humidity control on the side of each crisper under the humidity control cover.

Frigidaire Gallery Models

To remove the auto humidity control membrane for cleaning:

1. Reach to back of humidity control cover.

2. Pull up on cover.

3. Pull cover towards back of cabinet

and remove.

4. Clean humidity membrane with hot

soapy water.

5. Replace membrane and cover by

reversing the steps above. Repeat for both crispers.

Flip Shelf

Auto

Humidity

Membrane

Crisper

Removing Auto Humidity

Control Membrane

Crisper

Page 31

STORAGE FEATURES

Frigidaire Professional Models

To remove the auto humidity control membrane for cleaning:

1. Reach to back of humidity control cover.

2. Place ﬁngers between the humidity control and the back wall, pull up on cover.

3. Pull cover towards the front of cabinet and remove.

4. Remove the humidity membrane from the housing by lifting up sliding over.

5. Clean humidity membrane with hot soapy water.

6. Replace membrane in housing and unit by reversing the steps above.

To remove the Auto CrispSeal drawer for cleaning:

1. Pull the drawer out until it stops.

2. Lift the front slightly and remove the drawer.

Removing Auto CrispSeal Drawer

SnackZone - Recessed Snack Drawers

These drawers are ideal for storage of deli meats and cheeses.

To open: slide back the cover to allow access to the drawers.

Removing Auto Humidity

Control Membrane

NOTE

Frigidaire does not recommend replacing the auto-humidity membrane unless it becomes damaged or ruined. If the membrane becomes soiled, it can be washed with soap and water. Ensure membrane is dry before replacing in unit.

Opening SnackZone

Recessed Snack Drawers

Page 32

1 2 3 4 5 6

Do not use the Custom-Flex Temp Drawer to store fresh produce as these items may freeze and cause damage to the fruits and leafy vegetables stored in the drawer.

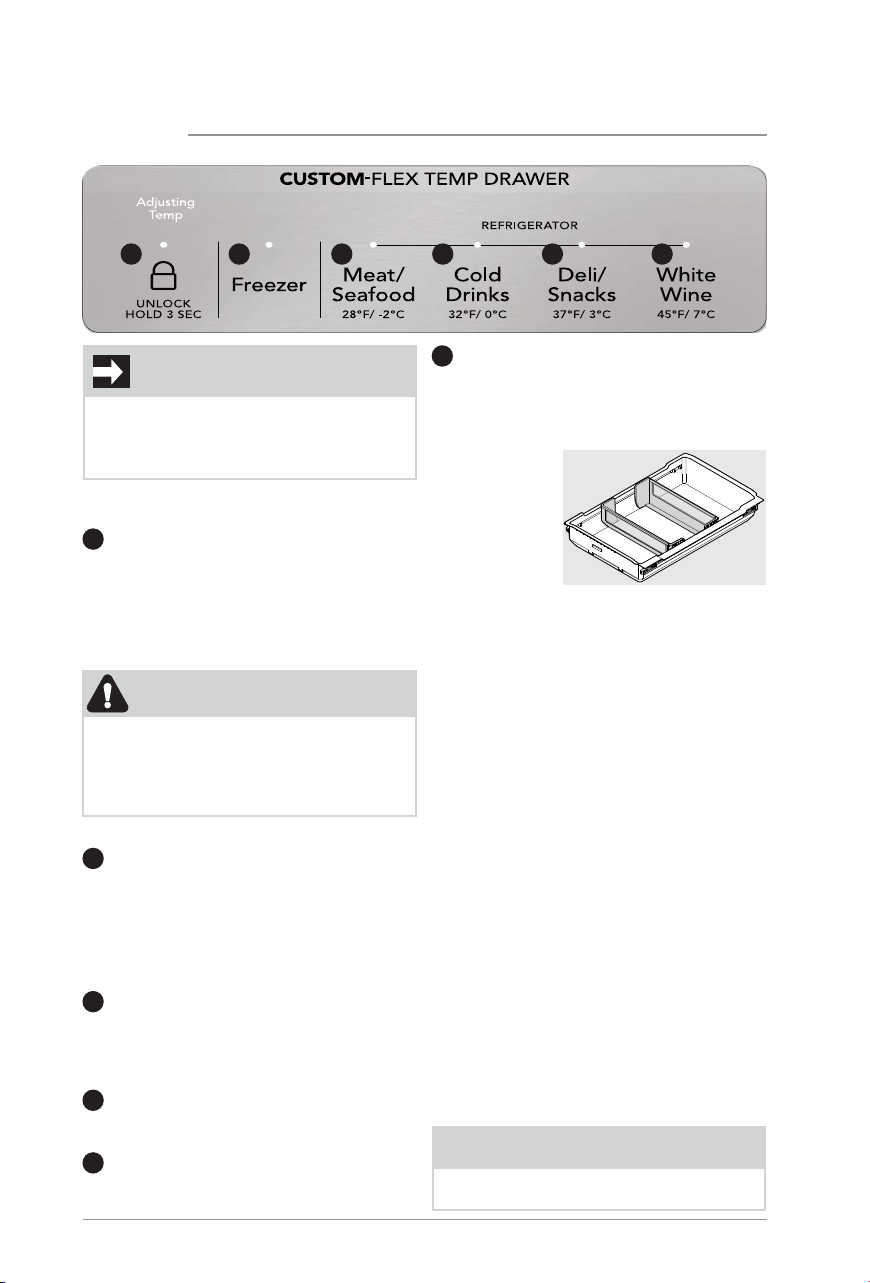

Using Your Custom-Flex Controls

The drawer automatically defaults to a

locked state to prevent any unwanted use. To change the drawer’s settings, it ﬁrst needs to be unlocked. To unlock, press and hold the UNLOCK icon for 3 seconds. It will automatically lock after 10 seconds without any interaction.

Do not store glass bottles in the CustomFlex Temp Drawer when the Temperature setting is in Freezer, Meat/Seafood, or Cold Drink modes. The glass may break and shatter, causing physical harm and injury.

Freezer:

To change the drawer temperature

when in the freezer temp setting, use the control panel display on the front door. Changing the temp on the display will change both the drawer temp setting AND the freezer compartment.

Refrigerator:

Choosing Meat/Seafood will set drawer

temperature to 28°F (-2°C). A tone will sound to conﬁrm choice. Use this setting for short term storage. Any meat to be kept longer than two days should be frozen.

Choosing Cold Drinks will set drawer

temperature to 32°F (0°C). A tone will sound to conﬁrm choice.

Choosing Deli/Snacks will set drawer

temperature to 37°F (3°C). A tone will sound to conﬁrm choice.

STORAGE FEATURES

IMPORTANT

Temp Drawer

CAUTION

Choosing White Wine will set drawer

temperature to 45°F (7°C). A tone will sound to conﬁrm choice.

Custom-Flex Temp Drawer Dividers (may vary by model

To position drawer dividers, slide left or right. For easier repositioning, dividers do not lock but instead use the weight of stored items to keep the dividers in place. Dividers may shift when opening/ closing drawer when fewer items are stored.

Doors

Storage bins

The doors to the fresh food compartment use a system of modular storage bins. All of these bins are removable for easy cleaning. Bins can be adjusted as needed.

Door bins are ideal for storing jars, bottles, cans, and large drink containers. They also enable quick selection of frequently used items.

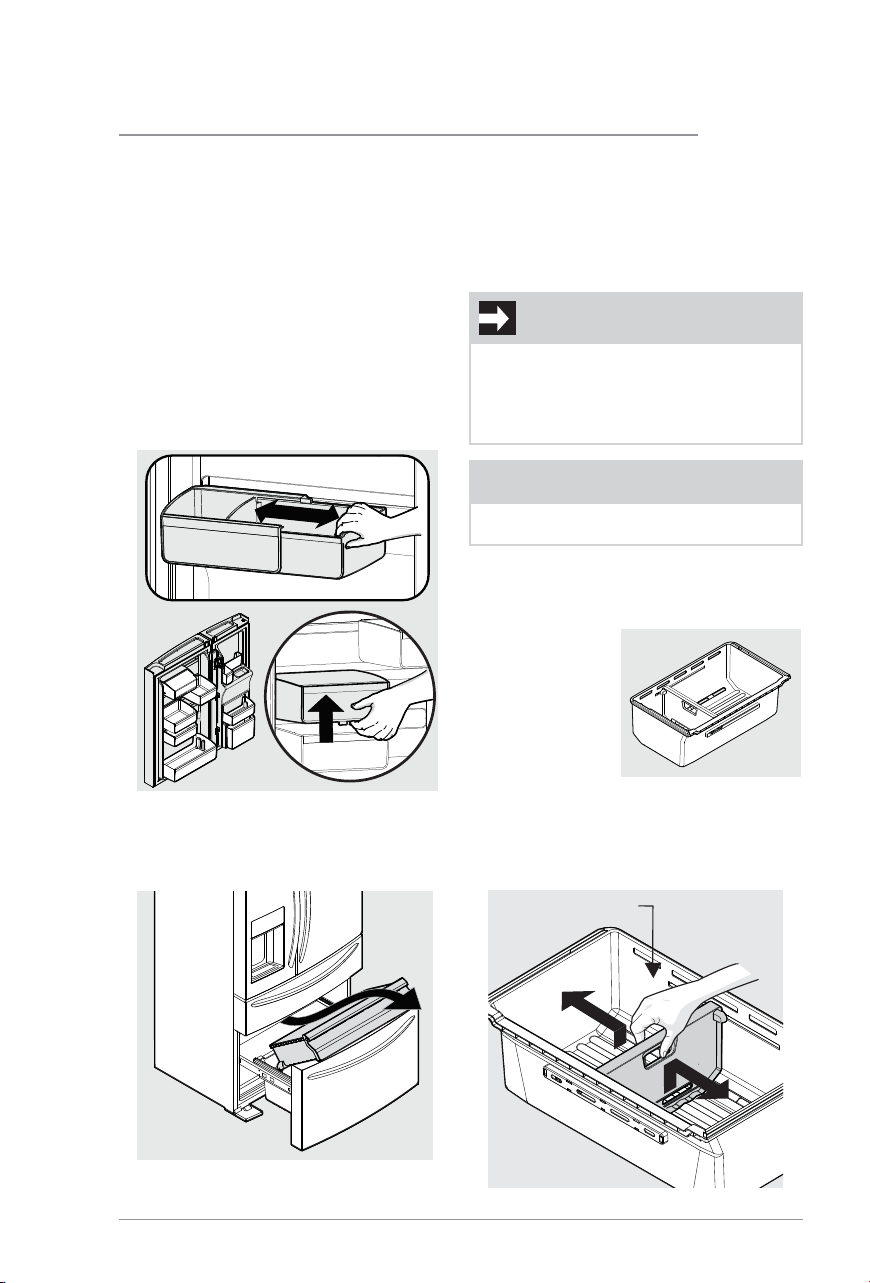

Adjustable door bins

Some models have adjustable door bins that can be moved to suit individual needs.

To adjust the collapsible door bin:

1. Make sure bin is securely seated on rail in door.

2. Grab one side of bin and place other hand on adjustable side.

3. Pull on side of bin until the bin is adjusted to desired width.

NOTE

It can be dicult to pull out the collapsible bin. Some force may be required.

Page 33

STORAGE FEATURES

To move door bin side-to-side:

4. Tilt bin up so the back of the bin is o the door but the hook is still engaged.

5. Slide bin along rail to desired position.

6. Lower bin back into place.

To move door bin up or down:

7. Lift bin up disengaging the hook.

8. Move bin to desired rail location.

9. Push bin hook into rail engaging the hook.

Adjustable Door Bins

Freezer Features (varies by model)

To remove upper freezer drawer:

1. Open freezer compartment completely.

2. Lift up and out to remove upper freezer drawer.

3. Reverse the steps to reinstall drawer.

IMPORTANT

There are wheels on the bottom of the drawer. Make sure all wheels are aligned on their respective tracks for proper function. If drawer is not aligned properly, it will cause problems with the door operation.

NOTE

If basket is not resting on stabilizer bar retainer clips, the drawer will not close properly.

To remove freezer basket:

1. Open freezer compartment completely.

2. Lift the basket up and remove.

3. Reverse the steps to reinstall freezer basket.

Dividers

Grab hand hold on lower divider and pull up slightly to slide to next position. (The divider cannot be removed.)

Lower Basket Divider

Freezer Drawer

Plastic Lower Basket Divider

Page 34

STORING FOOD AND SAVING ENERGY

Ideas for storing foods

Fresh food storage

• Keep the fresh food compartment between 34°F and 44°F with an optimum temperature of 37°F.

• Avoid overcrowding the refrigerator shelves, which reduces air circulation and causes uneven cooling.

• Avoid placing food in front of air ports. (See Controls Section for illustration.)

Fruits and vegetables

• Store fruits and vegetables in crisper drawers, where trapped moisture helps preserve food quality for longer time periods.

• Do not wash items until ready to use. Remove excess water before placing inside unit.

• Wrap any items that have strong odors or high moisture content.

Meat

• Wrap raw meat and poultry separately and securely to prevent leaks and contamination of other foods or surfaces.

• Use the Custom-Flex to store meat/poultry for short-term storage. Any meat to be kept longer than two days should be frozen.

Frozen food storage

• Keep the freezer compartment at 0°F or lower.

• A freezer operates most eciently when it is at least Ҁ full.

Packaging foods for freezing

• To minimize food dehydration and quality deterioration, use aluminum foil, freezer wrap, freezer bags, or airtight containers. Force as much air out of the packages as possible and seal them tightly. Trapped air can cause food to dry out, change color, and develop an o-ﬂavor (freezer burn).

• Wrap fresh meats and poultry with suitable freezer wrap prior to freezing.

• Do not refreeze meat that has completely thawed.

Loading the freezer

• Prior to grocery shopping, activate “Quick Freeze/Freeze Boost” so

Temp Drawer

newly purchased food designated for the freezer will be preserved as quickly as possible.

• Activating “Quick Freeze/Freeze Boost” also will help the freezer more eciently maintain the selected temperature after placing new purchases with pre-existing frozen foods.

• Avoid adding too much warm food to the freezer at one time. This overloads the freezer, slows the rate of freezing, and can raise the temperature of frozen foods.

• Leave a space between packages, so cold air can circulate freely, allowing food to freeze as quickly as possible.

Ideas for saving energy

Installation

• Locate the refrigerator in the coolest part of the room, out of direct sunlight, and away from heating ducts or registers.

• Do not place the refrigerator next to heat-producing appliances such as a range, oven, or dishwasher. If this is not possible, a section of cabinetry or an added layer of insulation between the two appliances will help the refrigerator operate more eciently.

• Level the refrigerator so that the doors close tightly.

Temperature settings

• Refer to the “Controls” section for procedures on temperature settings.

Food storage

• Avoid overcrowding the refrigerator or blocking cold air vents. Doing so causes the refrigerator to run longer and use more energy.

• Cover foods and wipe containers dry before placing them in the refrigerator. This cuts down on moisture build-up inside the unit.

• Organize the refrigerator to reduce door openings. Remove as many items as needed at one time and close the door as soon as possible.

• Do not place a hot container directly on a cold shelf. Remember, such an extreme temperature change may damage the glass.

Page 35

NORMAL OPERATING SOUNDS

Understanding the sounds coming from the refrigerator

High-eciency refrigerators may introduce unfamiliar sounds. These sounds normally indicate the refrigerator is operating correctly. Some surfaces on ﬂoors, walls, and kitchen cabinets may make these sounds more noticeable.

The following is a list of major components in the refrigerator and the sounds they can cause:

A Evaporators Refrigerant through the

evaporators may create a boiling or gurgling sound.

B Evaporator fans Sounds of air being

forced through the refrigerator by the evaporator fans may be heard.

C Defrost heaters During defrost cycles,

water dripping onto the defrost heaters may cause a hissing or sizzling sound. After defrosting, a popping sound may occur.

D Automatic ice maker When ice has

been produced, sounds of ice cubes falling into the ice bin may be heard. Ice maker fan, water valve activation, and refrigerant gas ﬂuid may create sounds from its operation.

E Electronic control & automatic

defrost control These parts can

produce a snapping or clicking sound when turning the cooling system on and o.

F Condenser fan Sounds of air being

forced through the condenser may be heard.

G Compressor Modern, high-eciency

compressors run much faster than older models. The compressor may have a high-pitched hum or pulsating sound.

H Water valves Make a buzzing sound

each time they open to ﬁll the ice maker.

I Drain pan (not removable) Sounds

of water dripping into the drain pan during the defrost cycle may be heard.

J Condenser May create minimal sounds

from forced air.

K Motorized damper May produce a

light humming during operation.

L Ice dispenser When dispensing ice, a

snapping, clicking, or popping sound may be heard.

NOTE

Energy ecient foam in the refrigerator is not a sound insulator.

NOTE

During automatic defrost cycle, a red glow in the back wall vents of the freezer compartment is normal.

Features vary by model

Page 36

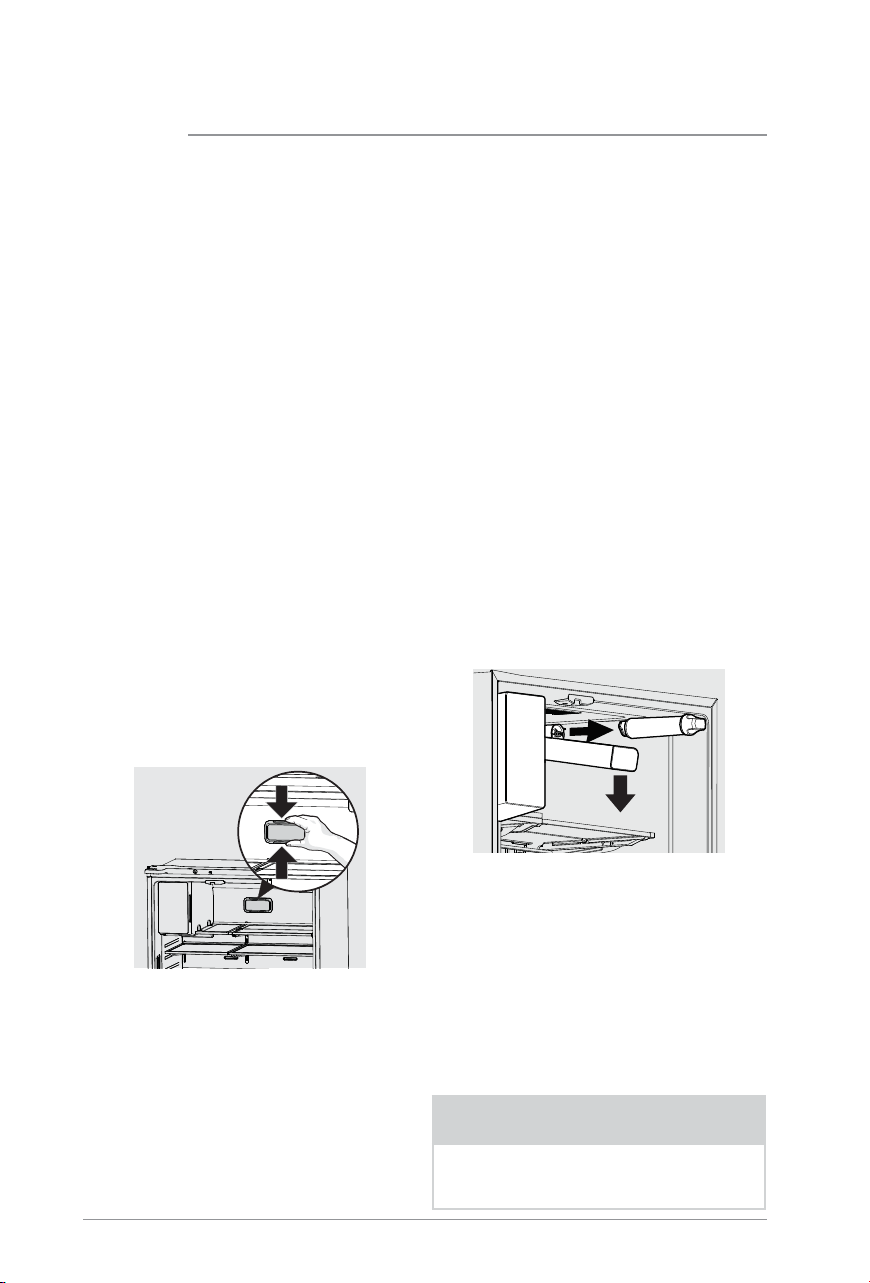

FILTER REPLACEMENT

Air Filter (select models)

The air ﬁlter is located in the top center of the fresh food compartment.

Replacing the PureAir Ultra IITM Air Filter

To ensure optimal ﬁltering of refrigerator odors, change the air ﬁlter every six months (Replace Air Filter on the Display indicates replacing the ﬁlter after six months).

1. Remove the air ﬁlter cover by squeezing the top and bottom of the cover together and removing from liner.

2. Remove the old ﬁlter and discard it.

3. Unpack the new ﬁlter and snap it into the ﬁlter cover. The open face (carbon media)of the ﬁlter should be installed facing outward in the cover.

4. Replace the air ﬁlter cover by squeezing the sides and snapping it back into place.

5. Gallery models: To reset, press and hold the “Reset Air Filter” on the display for 3 seconds. Tone will sounds once it has been reset. Pro Models: To reset, After replacing ﬁlter, press and hold “ Air Filter” on the display for 3 seconds. Status will reset to GOOD.

Water Filter

The refrigerator is equipped with a water ﬁltering system. The water ﬁltering system ﬁlters all dispensed drinking water, as well as the water used to produce ice. The water ﬁlter is located at the top right side of the fresh food compartment.

Accessing Your Water Filter

Change the water ﬁlter every six months to ensure the highest possible water quality. Replace Water Filter on the display indicates when to replace the ﬁlter after a standard amount of water (125 gallons/473 liters for PureSource UltraII through the system.

If the refrigerator has not been used for a period of time (during moving for example), change the ﬁlter before reinstalling the refrigerator.

To Remove: Pull cover forwards and cover will drop down and allow access to ﬁlter.

To Reinstall: Push cover up towards liner and then push towards rear of cabinet. Filter cover will snap back into place.

TM)

has ﬂowed

Ordering Replacement Air Filters

Order replacement ﬁlters online at www.frigidaire.com/store, by calling 1-800-374- 4432 or through the dealer from which the refrigerator was purchased. Frigidaire recommends replacing ﬁlters at least once every six months.

Here is the product number to request when ordering:

Air Filter Replacement cartridge, part #PAULTRA2

Ordering Replacement Water Filters

Here is the product number to request when ordering:

PureSource Ultra II Part #EPTWFU01

NOTE

When ordering replacement ﬁlters, please reorder the same ﬁlter type that is currently in the refrigerator.

Water Filter

Page 37

FILTER REPLACEMENT

More about the Advanced Water Filter

The PureSource Ultra II ice and water ﬁlter system is tested and certiﬁed to NSF/ ANSI Standards 43, 53 and 401 for the reduction of claims speciﬁed on the performance data sheet.

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certiﬁed for cyst reduction may be used on disinfected waters that may contain ﬁlterable cysts.

Test & certiﬁcation results:

• Rated Capacity - 125 gallons/473 liters for PureSource Ultra IITM ice and water ﬁlter

• Rated service ﬂow - .65 gallons per minute

• Operating Temp: Min. 33°F, Max. 100°F

• Maximum Rated Pressure - 100 pounds per square inch

• Recommended Minimum Operating Pressure: 30pounds per square inch

5. Push lightly inward on the ﬁlter while rotating it clockwise (to the right). The ﬁlter will then pull itself inward as it is rotated. Rotate the ﬁlter 90 degrees until it stops and the grip end is horizontal. A very light click may be heard as the ﬁlter locks into place.

6. Press a drinking glass against the water dispenser while checking for any leaks at the ﬁlter housing. Any spurts and sputters that occur as the system purges air out of the dispenser system are normal.

7. Continue dispensing water for 3-4 minutes. It may be necessary to empty and reﬁll the container several times.

8. Gallery Models: To reset, press and hold the “Reset Water Filter” on the display for 3 seconds. Tone will sound once it has been reset. Pro models: After replacing ﬁlter, press and hold “Water Filter” on the display for 3 seconds. Status will reset to GOOD.

9. Replace ﬁlter cover by pushing up and snapping into place.

To replace the PureSource Ultra

water ﬁlter:

It is not necessary to turn the water supply o to change the ﬁlter. Be ready to wipe up any small amounts of water released during the ﬁlter replacement. (Instructional video of procedure can be found on www.frigidaire.com.)

1. Pull forward and then push down on front edge of ﬁlter cover. Cover will tilt down and expose water ﬁlter.

2. Remove the old ﬁlter by rotating it counter-clockwise (to the left) 90 degrees to release it.

3. Slide the old ﬁlter cartridge straight out of the housing and discard it.

4. Unpackage the new ﬁlter cartridge. Slide it into the ﬁlter housing as far as it will go with the grip end vertical.

Page 38

CARE AND CLEANING

Care & Cleaning Tips

Keeping the refrigerator clean maintains its appearance and prevents odor build-up. Wipe up any spills immediately and clean the freezer and fresh food compartments at least twice a year.

NOTE

Do not use abrasive cleaners such as window sprays, scouring cleansers, ﬂammable ﬂuids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. Do not use scouring pads or other abrasive cleaning materials.

• Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline solutions on any surface.

• Never use CHLORIDE or cleaners with bleach to clean stainless steel.

• Do not wash any removable parts in a dishwasher.

NOTE

When setting temperature controls to turn o cooling, power to lights and other electrical components will continue until the power cord is unplugged from the wall outlet.

• Always unplug the electrical power cord from the wall outlet before cleaning.

• Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can scratch the appliance surface.

• Do not remove the serial plate. Removal of the serial plate voids the warranty.

• Before moving refrigerator, raise the anti-tip brackets so the rollers will work correctly. This will prevent the ﬂoor from being damaged.

Refer to the guide on the next page for details on caring and cleaning speciﬁc areas of refrigerator.

CAUTION

• Pull the refrigerator straight out to move it. Shifting it from side to side may damage

ﬂooring. Be careful not to move the refrigerator beyond the plumbing connections.

• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or

damp hands.

IMPORTANT

When storing or moving refrigerator in freezing temperatures, be sure to completely drain the water supply system. Failure to do so could result in water leaks when the refrigerator is put back into service. Contact a service representative to perform this operation.

Vacation and moving tips

Occasion Tips Short

Vacations

Long Vacations

Moving • Remove all food and ice.

• Leave refrigerator operating during vacations of three weeks or less.

• Use all perishable items from refrigerator compartment.

• Turn automatic ice maker o and empty ice bucket, even if only away a few days.

• Remove all food and ice if leaving for one month or more.

• Turn the cooling system o (see “Controls” section for location of On/ O button) and disconnect power cord.

• Turn water supply valve to closed position.

• Clean interior thoroughly.

• Leave both doors open to prevent odors and mold build-up. Block doors open if necessary.

• If using a handcart, load from the side.

• Adjust rollers all the way up to protect them during sliding or moving.

• Pad cabinet to avoid scratching surface.

Page 39

CARE AND CLEANING

Care & Cleaning Tips

Part What To Use Tips and Precautions

Interior & Door Liners

Door Gaskets • Soap and water Wipe gaskets with a clean soft cloth. Drawers & Bins • Soap and water Use a soft cloth to clean drawer runners

Glass Shelves • Soap and water

Exterior & Handles

(Stainless Steel Models Only)

• Soap and water

• Baking soda and water

• Glass cleaner

• Mild liquid sprays

• Soap and water

• Non Abrasive Glass Cleaner

• Soap and water

• Stainless Steel Cleaners

Use two tablespoons of baking soda in one quart of warm water. Be sure to wring

excess water out of sponge or cloth before cleaning around controls, light bulb or any electrical part.

and tracks. Allow glass to warm to room temperature

before immersing in warm water.

Do not use commercial household cleaners containing ammonia, bleach or alcohol to clean handles. Use a soft cloth to clean smooth handles or exterior. DO

NOT use a dry cloth to clean smooth doors.

Never use CHLORIDE or cleaners with bleach to clean stainless steel.

Clean stainless steel front and handles with non-abrasive soapy water and a dishcloth. Rinse with clean water and a soft cloth. Use a non-abrasive stainless steel cleaner. These cleaners can be purchased at most home improvement or major department stores. Always follow manufacturer’s instructions. Do not use household cleaners containing ammonia or bleach.

NOTE: Always clean, wipe and dry with the grain to prevent scratching. Wash the

rest of the cabinet with warm water and mild liquid detergent. Rinse well, and wipe dry with a clean soft cloth. Stainless steel cleaning supplies can be purchased from www.frigidaire.com

Page 40

Let us help you troubleshoot your concern! This section will help you with common issues. If you need us, visit our website, chat with an agent, or call us. We may be able to help you avoid a service visit. If you do need service, we can get that started for you!

TROUBLESHOOTING

1-800-374-4432 (United States)

Frigidaire.com

1-800-265-8352 (Canada)

Frigidaire.ca

Concern Potential Cause Common Solution Automatic Ice Maker

Ice maker is not making any ice.

• Ice maker is turned o.

• Refrigerator is not connected to water line or water valve is not open.

• The water supply line is kinked.

• The water ﬁlter is not seated properly.

• The water ﬁlter may be clogged with foreign material.

• Freezer ice maker signal arm is being prevented from lowering down to check the ice level in the bin at the appropriate time.

• Turn on ice maker. Fresh Food Ice Maker - press and hold the ice maker button on the side user interface for 3 seconds. The LED indicator will illuminate to indicate that the ice maker is ON. Freezer Ice Maker - press and release the power button on the front of the ice maker. The LED indicator will illuminate to indicate that the ice maker is ON.

• Connect the unit to the household water supply and ensure the water valve is open.

• Ensure that the supply line does not kink when the refrigerator is pushed into place against the wall.

• Remove and re-install the water ﬁlter. Be sure to seat it fully into the locked position.

• If water dispenses slowly or not at all, or if the ﬁlter is six months old or older, it should be replaced.

• Remove any item or frozen clump of cubes that may prevent the signal arm from lowering down to check the ice level in the bin. Additionally, be sure the bin is in its properly installed position.

Page 41

TROUBLESHOOTING

Concern Potential Cause Common Solution Automatic Ice Maker (Continued)

Ice maker is not making enough ice.

Ice cubes are freezing together.

• Ice maker is producing less ice than expected.

• The water ﬁlter may be clogged with foreign material.

• The water supply line is kinked.

• Saddle valve on cold water pipe is clogged or restricted by foreign material.

• Heavy trac, opening or closing of the doors excessively.

• Freezer control is set too warm (freezer ice maker).

• Water pressure is extremely low. Cut-o and cut-on pressures are too low (well systems only).

• Reverse osmosis system is in regenerative phase.

• Ice cubes are not being used frequently enough or interruption of power for prolonged time.

• Ice cubes are hollow (shells of ice with water inside). The hollow cubes break open in the bin and leak their water onto existing ice, which causes it to freeze together.

• The ice maker will produce approximately 2 to 2.5 pounds of ice every 24 hours depending on usage conditions.

• If water dispenses slower than normal, or if the ﬁlter is six months old or older, it should be replaced.

• Ensure that the supply line does not kink when the refrigerator is pushed into place against the wall.

• Turn o household water line valve. Remove valve. Ensure that valve is not a self-piercing saddle valve. Clean valve. Replace valve if necessary.

• Press FREEZE BOOST to temporarily increase ice production rate. (Freezer ice maker only.)

• Set freezer control to colder setting to improve performance of the ice maker (freezer ice maker). Allow 24 hours for temperature to stabilize.

• Have someone turn up the cut-o and cut-on pressure on the water pump system (well systems only).

• It is normal for a reverse osmosis system to be below 20 psi during the regenerative phase.

• Remove ice container and discard ice. The ice maker will produce fresh supply. Ice should be used at least twice weekly to keep the cubes separated.

• This generally occurs when the ice maker does not get enough water. This is usually the result of a clogged water ﬁlter or restricted water supply. Replace the water ﬁlter and if the condition still occurs, check to see if the water valve is not turned on all the way or if there is a kinked water supply line.

Page 42

TROUBLESHOOTING

Concern Potential Cause Common Solution Dispenser (Ice & Water)

Dispenser will not dispense ice.

Ice dispenser is jammed.

Dispenser will not dispense water.

Water not cold enough.

Water has an odd taste and/or odor.

• There is no ice in the bin to be dispensed.

• The refrigerator doors are not completely closed.

• Dispenser paddle has been pressed too long and the dispenser motor has overheated.

• Ice has melted and frozen around auger due to infrequent use, temperature ﬂuctuations, and/or power outages.

• Ice cubes are jammed between ice maker and back of ice container.

• Water ﬁlter not seated properly.

• Water ﬁlter is clogged.

• Household water line valve is not open.

• As warmer tap water goes through the ﬁlter and enters the water supply system, the chilled water is pushed through to the dispenser. Once the chilled water is used up, it will take several hours to bring the freshly replaced water to a cooler temperature.

• Water has not been dispensed for an extended period of time.

• Unit not properly connected to cold water line.

• See the “Ice maker is not making any ice” section.

• Be sure the refrigerator doors are completely closed.

• The motor overload protector will reset in about three minutes and then ice can be dispensed.

• Remove ice container, thaw, and empty the contents. Clean container, wipe dry, and replace in proper position. When new ice is made, dispenser should operate.

• Remove ice cubes that are jamming the dispenser.

• Remove and reinstall the water ﬁlter. For Puresource Ultra II, be sure to rotate it to the right until it stops and the grip end is vertical.

• Replace ﬁlter cartridge. Be sure to rotate it to the right until it stops and the grip end is vertical.

• Open household water line valve. See CONCERN column AUTOMATIC ICE MAKER.

• Add ice to cup or container before dispensing water.

Note: Only ﬁrst 26 ounces are chilled.

• Draw and discard 10-12 glasses of water to freshen the supply.

• Connect unit to cold water line that supplies water to the kitchen faucet.

Page 43

TROUBLESHOOTING

Concern Potential Cause Common Solution Opening/Closing Of Doors/Drawers

Door(s) will not close.

Drawers are dicult to move.

Running of Refrigerator

Compressor does not run.

• Door was closed too hard, causing other door to open slightly.

• Refrigerator is not level. It rocks on the ﬂoor when moved slightly.

• Refrigerator is touching a wall or cabinet.

• Food/packaging is obstructing the door from closing.

• Flipper mullion on left fresh food door is not in the correct position.

• Food is touching shelf on top of drawer.

• Track that drawers slide on is dirty.

• Refrigerator is in defrost cycle.

• Plug at electrical outlet is disconnected.

• Close both doors gently.

• Ensure ﬂoor is level and solid, and can adequately support the refrigerator. Contact a carpenter to correct a sagging or sloping ﬂoor.

• Make sure there is no food/ packaging blocking the doorway.

• Ensure the ﬂipper mullion is in the correct position to allow the door to close. (See Flipper Mullion section.)

• Remove top layer of items in drawer.

• Ensure drawer is properly installed on track.

• Clean drawer, rollers, and track. See Care & Cleaning.

• This is normal for a fully automatic defrost refrigerator. The defrost cycle occurs periodically, lasting about 30 minutes.

• Ensure plug is tightly pushed into outlet.

Refrigerator seems to run too much or too long.

• House fuse blown or tripped circuit breaker.

• Power outage.

• The variable speed compressor is designed to run 100% of the time except during the defrost cycle. At times it will run faster, such as after a defrost cycle.

• Check/replace fuse with a 15 amp time-delay fuse. Reset circuit breaker.

• Check house lights. Call local electric company.

• It is normal for the compressor to run continuously except during defrost mode.

Page 44

TROUBLESHOOTING

Concern Potential Cause Common Solution Digital Temperature Setting Display

Digital temperature displays an error.

• Electronic control system has detected a performance problem.

• Contact Electrolux Customer Care for assistance with any errors or codes ﬂashing in the display by calling 1-800-374-4432.

Water/Moisture/Frost Inside Refrigerator

Moisture collects on inside of refrigerator walls.

Water collects on bottom side of drawer cover.

Water collects in bottom of drawer.

• Weather is hot and humid.

• Flipper mullion

• Vegetables contain and give o moisture.

• Washed vegetables and fruit drain while in the drawer.

• The rate of frost buildup and internal sweating increases.

• Adjust ﬂipper mullion. (See “To adjust the ﬂipper mullion” in the Installation section.)

• It is not unusual to have moisture on the bottom side of the cover.

• Both crispers contain an automatic humidity control, which should adjust automatically to the varying levels of moisture inside the drawer without creating additional condensation or drying out the air inside the crisper drawer, works with various types of produce. If excess moisture is noticed, check to verify humidity membrane is not damaged and replace as necessary.

• Dry items before putting them in the drawer. Water collecting in bottom of drawer is normal.

Water/Moisture/Frost Outside Refrigerator

Moisture collects on outside of refrigerator or between doors.

• Weather is humid. • This is normal in humid weather. When humidity is lower, the moisture should disappear.

Food/Drinks in Fresh Food Compartment/Custom-Flex Drawer

Food is freezing.

• Temperature setting is

too low.

• Temperature sensor is

covered by food (right side of fresh food area).

• Food is covering the air

ports.

• Move the setting to a higher degree.

• Allow space for air ﬂow to the sensor.

• Allow space between the air ports and the food.

Cold Drink Timer

Drinks are freezing.

• Temperature setting is too low.

• Cold drink timer is set too long.

• Move temperature setting higher.

• Reduce time of cold drink timer accordingly.

Page 45

LIMITED WARRANTY

Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased “as-is” are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air ﬁlters, water ﬁlters, other consumables, or knobs, handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the ﬁnish of appliance or home incurred during installation, including but not limited to ﬂoors, cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, ﬁres, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or speciﬁcations as described or illustrated are subject to change without notice.

USA

1-800-374-4432

Frigidaire 10200 David Taylor Drive Charlotte, NC 28262

Electrolux Canada Corp.

Mississauga, Ontario, Canada

Canada

1.800.265.8352

5855 Terry Fox Way

L5V 3E4

Page 46

welcome

home

Our home is your home. Visit us if you need help with any of these things:

owner support

accessories

service

registration

(See your registration card for more information.)

Frigidaire.com 1-800-374-4432

Frigidaire.ca 1-800-265-8352
