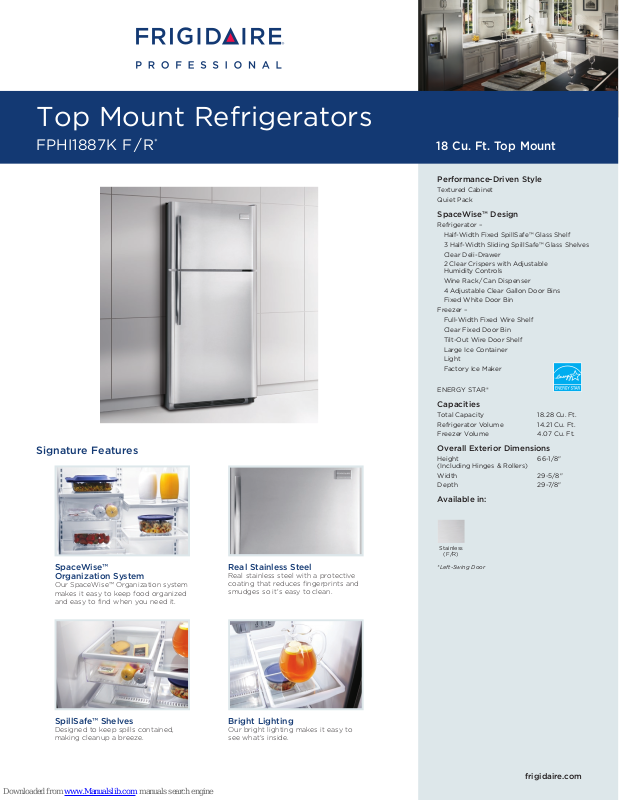

Page 1
Top Mount Refrigerators
FPHI1887K F/R
Signature Features
*
18 Cu. Ft. Top Mount
Performance-Driven Style
Textured Cabinet
Quiet Pack
SpaceWise™ Design
Refrigerator –
Half-Width Fixed SpillSafe™ Glass Shelf
3 Half-Width Sliding SpillSafe™ Glass Shelves
Clear Deli-Drawer
2 Clear Crispers with Adjustable
Humidity Controls
Wine Rack/Can Dispenser
4 Adjustable Clear Gallon Door Bins
Fixed White Door Bin
Freezer –
Full-Width Fixed Wire Shelf
Clear Fixed Door Bin
Tilt-Out Wire Door Shelf
Large Ice Container
Light
Factory Ice Maker
ENERGY STAR®
Capacities
Total Capacity 18.28 Cu. Ft.
Refrigerator Volume 14.21 Cu. Ft.
Freezer Volume 4.07 Cu. Ft.
Overall Exterior Dimensions
Height 66-1/8"
(Including Hinges & Rollers)
Width 29-5/8"
Depth 29-7/8"
Available in:
SpaceWise™
Organization System
Our SpaceWise™ Organization system
makes it easy to keep food organized
and easy to find when you need it.
SpillSafe™ Shelves
Designed to keep spills contained,
making cleanup a breeze.
Real Stainless Steel
Real stainless steel with a protective
coating that reduces fingerprints and
smudges so it's easy to clean.
Bright Lighting
Our bright lighting makes it easy to
see what's inside.
Stainless
(F/R)
*Left-Swing Door
frigidaire.com
Page 2
Top Mount Refrigerator - 18 Cu. Ft.
Professional
Top Mount Refrigerators
FPHI1887K F/R 18 Cu. Ft.
Top Mount Refrigerator Specifications
•
Product Shipping Weight (approx.) – 205 Lbs.
•
An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = .54 kW
•
Amps @ 120 Volts = 4.5 Amps
•
Always consult local and national electric & plumbing codes.
•
Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.
•
Minimum 3/8" clearance required for sides and top of refrigerator
with 1" clearance at rear to allow for ease of installation, proper air
circulation, and plumbing / electrical connections.
•
When installing refrigerator adjacent to wall, cabinet or other
appliance that extends beyond front edge of unit, 20" minimum
clearance recommended to allow for optimum 140° door swing,
providing complete crisper access and removal. (Absolute 3"
minimum clearance will ONLY allow for 90° door swing which
will provide limited crisper access with restricted removal.)
FRIGIDAIRE®
USA • 250 Bobby Jones Expressway • Martinez, GA 30907 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
FPHI1887K 05/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
•
To ensure optimum performance, do not install in areas where
temperature drops below 55° F or rises above 110° F and
avoid installing in direct sunlight or close proximity to range,
dishwasher or other heat source.
•
For proper ventilation, front grille MUST remain unobstructed.
•
Recess electrical outlet when possible.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
•
Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
•
Adjustable front rollers to assist with door alignment.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Specifications
subject to change.
