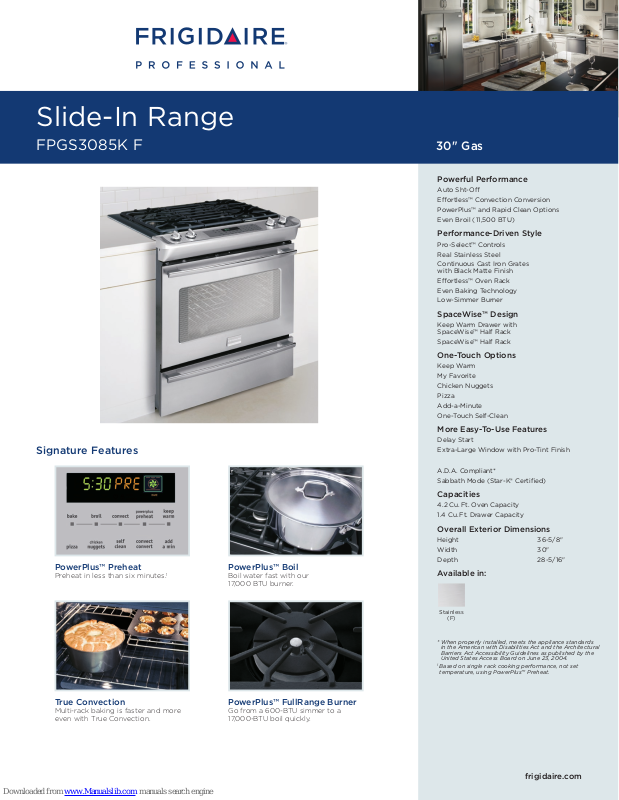

Frigidaire Professional FPGS3085K F Specification Sheet
Slide-In Range
FPGS3085K F
Signature Features
30" Gas
Powerful Performance
Auto Sht-O
Eortless™ Convection Conversion
PowerPlus™ and Rapid Clean Options
Even Broil ( 11,500 BTU )
Performance-Driven Style
Pro-Select™ Controls
Real Stainless Steel
Continuous Cast Iron Grates
with Black Matte Finish
Eortless™ Oven Rack
Even Baking Technology
Low-Simmer Burner
SpaceWise™ Design
Keep Warm Drawer with
SpaceWise™ Half Rack
SpaceWise™ Half Rack
One-Touch Options
Keep Warm
My Favorite
Chicken Nuggets
Pizza
Add-a-Minute
One-Touch Self-Clean
More Easy-To-Use Features
Delay Start
Extra-Large Window with Pro-Tint Finish
PowerPlus™ Preheat
Preheat in less than six minutes.
1
True Convection
Multi-rack baking is faster and more
even with True Convection.
PowerPlus™ Boil
Boil water fast with our
17,000 BTU burner.
PowerPlus™ FullRange Burner
Go from a 600-BTU simmer to a
17,000-BTU boil quickly.
A.D.A. Compliant*
Sabbath Mode (Star-K® Certified)
Capacities
4.2 Cu. Ft. Oven Capacity
1.4 Cu. Ft. Drawer Capacity
Overall Exterior Dimensions
Height 36-5/8"
Width 30"
Depth 28-5/16"
Available in:
Stainless
(F)
* When properly installed, meets the appliance standards
in the American with Disabilities Act and the Architectural
Barriers Act Accessibility Guidelines as published by the
United States Access Board on June 23, 2004.
1
Based on single rack cooking performance, not set
temperature, using PowerPlus™ Preheat.
frigidaire.com
30" Gas Slide-In Range
Professional
Slide-In Range
FPGS3085K F 30" Gas
Slide-In Range Specifications
•
Product Shipping Weight (approx.) – 250 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = 1 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120V = 10 Amps
•
Always consult local and national electric and gas codes.
•
Range ships with 3/4" factory regulator.
•
LP Gas conversion kit supplied.
•
Gas supply piping can be routed through side wall of right cabinet.
Right side cabinet is ideal location for main shutoff valve.
•
Countertop MUST be level in all directions and adjustable range
height at least 1/16" greater than tallest cabinet height, to ensure
metal rangetop flange will fit properly on countertop edge.
•
When installing optional Backguard Kit, cutout depth of 21-3/4"
minimum / 22-1/8" maximum needs increased to 24".
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•
Allow 24" minimum clearance between rangetop and bottom of cabinet
when bottom of wood or metal cabinet is protected by not less than
1/4" flame-retardant millboard covered with not less than No. 28 MGS
sheet steel, 0.015" stainless steel, 0.024" aluminum or 0.020" copper.
Allow 30" minimum clearance when cabinet is unprotected.
•
Allow 5" minimum clearance from edge of rangetop to nearest
combustible wall on either side of unit.
•
To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
Countertop Preparation
For detailed preparation instructions, refer to installation guide
on the web.
•
Flat square-finish (flat) countertop requires no preparation since
rangetop flange lays directly on countertop edge.
•
Formed front-edged countertops require front molded edge to
be shaved flat 3/4" from each front corner of opening.
•
Tile countertops may need cut back 3/4" from each front corner
of opening and /or rounded edge flattened.
•
For existing cutout width greater than 30-1/16" reduce the 3/4"
overlap dimension or for cutout width of 29", replace actual side
trim panels with smaller side trim panels, available with optional
Side Trim Kit (refer to detailed kit installation instructions).
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
Stainless Steel Rear Filler Kit – (PN # 901193-901S).
•
Stainless Steel Side Panel Kit – (PN # 903074-901S).
•
Stainless Steel Backguard Kit – (PN # 903046-901S).
•
Stainless Steel Side Trim Kit – (PN # 903075-901S).
FRIGIDAIRE®
USA • 250 Bobby Jones Expressway • Martinez, GA 30907 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
FPGS3085K 05/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
Specifications
subject to change.
