important Safety instructions ........... 2
Installation .......................................... 3
Connecting Water Supply ................. 4
Door Removal .................................... 5
if we can't resolve your service issue,
we'll schedule a reputable local
service technician for you!
_/ Order Genuine Electrolux Parts &
Accessories
_/ Purchase Extended Warranty
Protection
READ AND SAVE THESE INSTRUCTIONS pIN241857700(Apt2oo7)
Temperature Controls ....................... 6
Water Dispenser & ice Service ......... 7
Normal Operating Sounds & Sights. 8
Care and Cleaning ............................. 11
Warranty ............................................. 12
Before you Call .................................. 13
FORYOUR SAFETY
• Do not store or use gasoline, or other flammable liquids
in the vicinity of this or any other appliance. Read product
labels for warnings regarding flammability and other
hazards.
• Do not operate the refrigerator in the presense of
explosive fumes.
• Avoid contact with any moving parts of automatic ice
maker.
• Remove all staples from the carton. Staples can cause
severe cuts, and also destroy finishes if they come in
contact with other appliances or furniture.
CHILD SAFETY
Destroy or recycle the carton, plastic bags, and any exterior
wrapping material immediately after the refrigerator is
unpacked. Children should NEVER use these items to play.
Cartons covered with rugs, bedspreads, plastic sheets or
stretch wrap may become airtight chambers, and can quickly
cause suffocation.
PROPER DISPOSAL OFYOUR REFRIGERATOR OR
FREEZER
Risk of child entrapment
Child entrapment and suffocation
are not problems of the past.
Junked or abondoned
refrigerators or freezers are still
dangerous even if they will sit
for "just a few days." If you are
getting rid of your old refrigerator
or freezer, please follow the
instructions below to help
prevent accidents.
Before you throw away your old refrigerator/freezer:
• Remove doors.
• Leave shelves in place so children may not easily climb
inside.
• Have refrigerant removed by a qualified service
technician.
any circumstances,
cut_ remove,
or bypass the
grounding prong.
iiiiiiiii
ELECTRICAL iNFORMATION
• The refrigerator must be plugged into its own dedicated
115 Volt, 60 Hz., AC only electric outlet. The power cord
of the appliance is equipped with a three-prong grounding
plug for your protection against electrical shock hazards. It
must be plugged directly into a properly grounded three-
prong receptacle. The receptacle must be installed in
accordance with local codes and ordinances. Consult a
qualified electrician. Do not use an extension cord or
adapter plug.
• If the power cord is damaged, it should be replaced by the
manufacturer, service technician or a qualified person to
prevent any risk.
• Never unplug the refrigerator by pulling on the power
cord. Always grip the plug firmly, and pull straight out
from the receptacle to prevent damaging the power cord.
• Unplug the refrigerator before cleaning and before
replacing a light bulb to avoid electrical shock.
• Performance may be affected if the voltage varies by 10%
or more. Operating the refrigerator with insufficient power
can damage the compressor. Such damage is not covered
under your warranty.
• Do not plug the unit into an outlet controlled by a wall
switch or pull cord to prevent the refrigerator from being
turned off accidentally.
• Avoid connecting refrigerator to a Ground Fault Interruptor
(GFI) circuit.
2
This Use & Care Manual provides specific operating
instructions for your model. Use the refrigerator only as
instructed in this Use & Care Manual. Before starting the
refrigerator, follow these important first steps.
LOCATION
,, Choose a place that is near a grounded electrical outlet.
Do Not use an extension cord or an adapter plug.
• If possible, place the refrigerator out of direct sunlight
and away from the range, dishwasher or other heat
sources.
The refrigerator must be installed on a floor that is level
and strong enough to support a fully loaded refrigerator.
Consider water supply availability for models equipped
with an automatic ice maker.
INSTALLATION
DOOR OPENING
Your refrigerator should be positioned to allow easy access to
a counter when removing food.
LEVELING
All four corners of your refrigerator must rest firmly on a solid
floor. Your refrigerator is equipped with adjustable front rollers
or front leveling screws to help level your unit.
To LeveiYour Refrigerator: J
1. Remove toe grille.
Use flat-blade
2.
or 3/8" socket wrench to
adjust front rollers. Use
adjustable wrench to
adjust leveling screws.
Installation Clearances
• Allow the following clearances for ease of installation,
proper air circulation, and plumbing and electrical
connections:
Sides & Top 3/8"
Back 1"
Raise
Adjustable Front Roller
(some models)
WATER DISPENSER DRIP TRAY
The drip tray for your
refrigerator's water dispenser
comes from the factory detached.
Its removal also allows easy ....
cleaning. To install the drip tray,
fit it into the bottom of the
dispenser bay and snap into
place.
Raise
Stationary Front Roller
with Leveling Screw
(some models)
ToConnectWaterSupplyLineTo ice Maker inlet Valve
1. Disconnect refrigerator from electric power source.
2. Place end of water supply line into sink or bucket. Turn ON
water supply and flush supply line until water is clear. Turn
OFF water supply at shutoff valve.
3. Unscrew plastic cap from water valve inlet and discard
cap.
4. Slide brass compression nut, then ferrule (sleeve) onto
water supply line, as shown.
5. Push water supply line into water valve inlet as far as it
will go (1Ainch). Slide ferrule (sleeve) into valve inlet and
finger tighten compression nut onto valve. Tighten another
half turn with a wrench; DO NOT over tighten.
6. With steel clamp and screw, secure water supply line to
rear panel of refrigerator as shown.
7. Coil excess water supply line (about 2Y2 turns) behind
refrigerator as shown and arrange coils so they do not
vibrate or wear against any other surface.
8. Turn ON water supply at shutoff valve and tighten any
connections that leak.
9. Reconnect refrigerator to electrical power source.
10. To turn ice maker on, lower wire signal arm (see ice
maker front cover for ON/OFF position of arm).
Before Installing The Water Supply Line, You Will Need
• Basic Tools: adjustable wrench, flat-blade screwdriver,
and PhillipsTM screwdriver
• Access to a household cold water line with water pressure
between 30 and 100 psi.
• A water supply line made of 1Ainch (6.4 mm) OD, copper
tubing. To determine the length of copper tubing needed,
you will need to measure the distance from the ice maker
inlet valve at the back of the refrigerator to your cold water
pipe. Then add approximately 7 feet (2.1 meters), so the
refrigerator can be moved out for cleaning (as shown).
• A shutoff valve to connect the water supply line to your
household water system. DO NOT use a self-piercing type
shutoff valve.
• A compression nut and ferrule (sleeve) for connecting the
water supply line to the ice maker inlet valve.
\Plastic Water Tubing _ Clamp
\\ to ceMaker/ ! u[I
\_--Fill Tube _ I_, I Brass
\_ / W I Compression
,_ _ Steel
I'
) Ferrule
_ _ ,_ Copper
water,,ne
/(( etorvs,vo
erater I ne
Copp w "
/_ (Include enough tubing in loop to allow
moving refrigerator oat for cJeaning.)
from househo d water suppy
4
Door Stop Handle
Screw ---\...._ _Scrow
Screge *_'_ Center "-_ Hinge
Hinge Screw
)p Hinge
TooJs Necessary:
Adjustable Fixed
Wrench Wrench
3/8"
OR
Phillips'" heac
and
Flat Head
Screw Driver
DOOR REMOVAL INSTRUCTIONS:
If your refrigerator will not fit through an entrance area, you can reduce its size by removing the
doors. Check first by measuring the entrance.
) TopHinge
Cable
Cable Bracket
Block
Bottom
1. Disconnect electrical supply.
2. Remove toe grille (see page 4 to learn how).
To remove freezer door:
1. Remove top hinge cover.
2. Trace around the hinge with a soft lead pencil. This makes reinstallation easier.
3. Remove top hinge and lift door off center hinge pin.
4. Reverse this procedure to reinstall freezer door.
To remove refrigerator door:
1. Place wood block under door to support its weight.
2. Unfasten the multi-wire cable bracket by removing its screw from the cabinet.
3. Detach the multi-wire cable connector located below the door.
Place your thumbs on flat sides of each connector, grasp firmly, and bend both ends back
and forth while pulling apart.
4. Detach the water tube from the connector located below the door. The connector
releases when you press its outer sleeve inward.
5.
Remove the bottom hinge screws and hinge, holding the door as its weight rests on the
wood block. Lay the door on its side to avoid damage to cable and tube.
6.
Remove the center hinge screws and hinge. Ensure plastic washer stays on hinge pin.
7.
Reverse this procedure to reinstall refrigerator door. When both doors are reinstalled,
connect water line by inserting tube and pushing until mark touches face of fitting.
Connect cable, replace toe grille, and plug in electrical power cord.
Fiat TOD SCONNECT
Screwdriver !. Press outer ring against face
TO CONNECT
/
remove tube
Insert tube and
push until mark touches face of fitting
COOL DOWN PERIOD
To ensure safe food storage, allow the refrigerator to operate
with the doors closed for at least 8 to 12 hours before loading
it with food.
REFRIGERATOR & FREEZER CONTROLS
OR
Freezer Control (some models)
TEMPERATURE ADJUSTMENT
• Adjust temperature gradually: move the knob in small
increments, allowing the temperature to stabilize.
. For colder temperatures, turn the knob towards Colder.
. For warmer temperatures, turn the knob towards Cold.
Turning the refrigerator control will change temperatures in
both compartments. For example, if the refrigerator control is
turned to a colder setting, the freezer control may have to be
adjusted to a warmer setting. Turning the freezer control will
change only the freezer temperature.
To maintain temperatures, a fan circulates air in the
refrigerator and freezer compartments. For good circulation,
do not block cold air vents with food items.
OR
Refrigerator & Freezer Control (some models)
Refrigerator Control
(some models)
TEMPERATURE ADJUSTMENT GUIDE
If Refrigerator compartment Is Too Warm Turn Refrigerator Control Slightly Towards Colder.
if Refrigerator compartment is Too Cold Turn Refrigerator Control Slightly Towards Cold.
If Freezer compartment Is Too Warm Turn Freezer Control Slightly Towards Colder.
If Freezer compartment Is Too Cold Turn Freezer Control Slightly Towards Cold.
* To Turn Refrigerator Off Turn Refrigerator Control To 0.
6

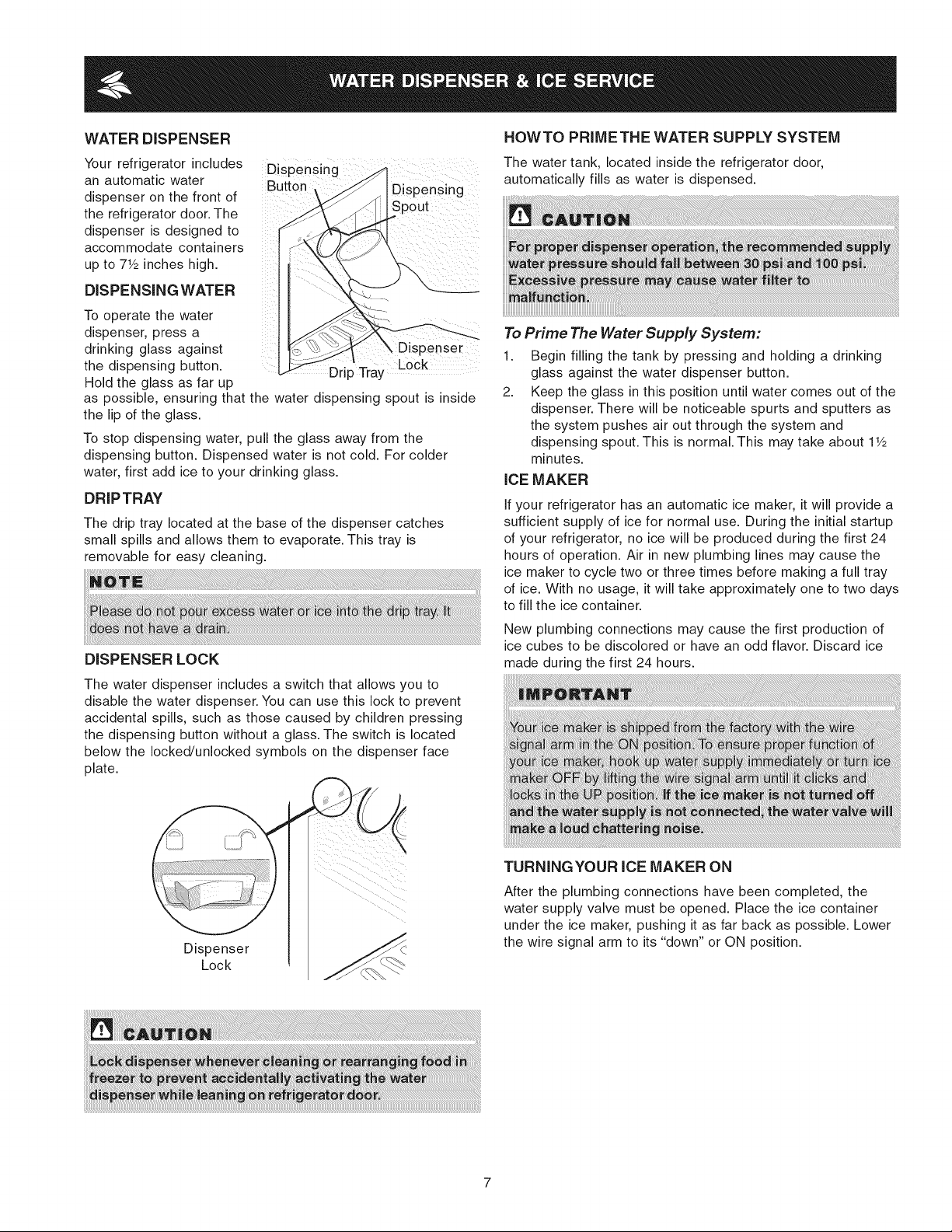

WATERDISPENSER
Your refrigerator includes
an automatic water
dispenser on the front of
the refrigerator door. The
dispenser is designed to
accommodate containers
up to 71/2inches high.
DISPENSING WATER
To operate the water
dispenser, press a
drinking glass against 3enser
the dispensing button. Drip Tray Lock
Hold the glass as far up
as possible, ensuring that the water dispensing spout is inside
the lip of the glass.
To stop dispensing water, pull the glass away from the
dispensing button. Dispensed water is not cold. For colder
water, first add ice to your drinking glass.
DRIPTRAY
The drip tray located at the base of the dispenser catches
small spills and allows them to evaporate. This tray is
removable for easy cleaning.
DISPENSER LOCK
The water dispenser includes a switch that allows you to
disable the water dispenser. You can use this lock to prevent
accidental spills, such as those caused by children pressing
the dispensing button without a glass. The switch is located
below the locked/unlocked symbols on the dispenser face
plate.
Dispensing
Button
Dispensing
pout
HOWTO PRIMETHE WATER SUPPLY SYSTEM
The water tank, located inside the refrigerator door,
automatically fills as water is dispensed.
To Prime The Water Supply System:
1. Begin filling the tank by pressing and holding a drinking
glass against the water dispenser button.
2. Keep the glass in this position until water comes out of the
dispenser. There will be noticeable spurts and sputters as
the system pushes air out through the system and
dispensing spout. This is normal. This may take about 11/2
minutes.
iCE MAKER
If your refrigerator has an automatic ice maker, it will provide a
sufficient supply of ice for normal use. During the initial startup
of your refrigerator, no ice will be produced during the first 24
hours of operation. Air in new plumbing lines may cause the
ice maker to cycle two or three times before making a full tray
of ice. With no usage, itwill take approximately one to two days
to fill the ice container.
New plumbing connections may cause the first production of
ice cubes to be discolored or have an odd flavor. Discard ice
made during the first 24 hours.
Dispenser
Lock
TURNINGYOUR ICE MAKER ON
After the plumbing connections have been completed, the
water supply valve must be opened. Place the ice container
under the ice maker, pushing it as far back as possible. Lower
the wire signal arm to its "down" or ON position.
TURNINGYOURiCEMAKEROFF
Tostoptheicemaker,liftthewire
signalarmuntilitclicksand
locksinthe"up"orOFFposition.
Theicemakeralsoturnsoff
automaticallywhentheice
containerisfull.Ifyourmodel
hasanadjustablefreezershelf,
placetheshelfinthelower
Signal Arm
position,sothatthewiresignal
armwillhittheicewhenthe
containerisfull.
iCE PRODUCTION: WHATTO EXPECT
The ice maker will produce 2.5 to 3 pounds of ice every 24
hours depending on usage conditions. Ice is produced at a
rate of 8 cubes every 80 to 160 minutes.
8
PureSource TM*iCE AND WATER FILTER (some models)
Order new filter cartridges through the dealer where you bought the refrigerator, contact the
Electrolux Solutions Hotline at 1-800=944-9044, or go to our web site at www.frigidaire.com, it
might be good to order some filter cartridges when you first install your refrigerator. Be sure to
ask for the RG=100 PureSource TM*replacement cartridge.
System Startup:
Water supply does not need to be turned off, however, do not use ice and water dispenser while installing filter. The filter
cartridge has already been installed in the filter housing at the factory. Refer to the How to Prime the Water Supply System
section to properly fill the system with water.
Small O-rin _[._._!1
F ter Cartr dg_ _
Large O-ring-_
Filter Cup _
Twist to Remove
The PureSource TM * NGRG-
2000 Ice and Water Filter
System with the RG-100
cartridge is tested and
certified by NSF International,
the nationally recognized and respected,
not for profit, certification organization for
public health safety. The PureSource TM*
system is tested and certified to ANSI/NSF
Standard 42. See performance data sheet
for specifications. This system should not
be used on water that is microbiologically
unsafe or with water of unknown quality
unless the water has been adequately
disinfected before or after traveling through
the filtration system.
• Rated Capacity - 400 gallons
• Rated service flow - .5 GPM
• Maximum Rated Pressure - 100 PSI
• Maximum Operating Temp. - 100° F
Changing the Filter:
Water conditions vary throughout the world, but changing the water filter every
6 - 9 months normally will ensure the highest possible water quality. Ice jams in
the ice maker and/or hollow ice cubes (partially frozen cubes with water
inside), may also be a sign that your water filter needs changing, if the filter has
been in a refrigerator that has not been in use for awhile (during moving for
example), change the filter before reinstalling the refrigerator. The dispenser
system will also operate without filtration (with filter cartridge removed).
To change filter:
It is not necessary to turn the water supply off to change the filter.
1. Set ice maker wire signal arm to the OFF (up) position. Turn dispenser lock to
the locked position.
2. Hold filter cup firmly, and unscrew towards left (Some water could leak out as
you remove cup. This is normal.). Filter cartridge should come down with cup.
If cartridge remains in housing, pull down gently, while twisting filter back and
forth.
3. Rinse out cup under running water.
4. The large o-ring that seals the filter system sets in the o-ring groove
down inside the cup. Should the o-ring fall out during filter cartridge
replacement, simply place it back in the groove prior to screwing the cup
back in place. If the o-ring becomes damaged, you will need to order one
from the Electrolux Solutions Hotline.
5. Discard old filter cartridge.
6. Remove new filter cartridge from packaging and place in cup. The end
with the small o-ring should be up, out of the cup.
7. Screw cup, with filter, back onto housing. Do Not Use Wrench To Reinstall
Cup. Filter cartridge will self-align as cup is tightened. Be sure cup is
completely tightened with PureSource TM logo facing outward. Do Not
Tighten Past Stop.
8. Set ice maker wire signal arm to the ON (down) position.
9. Check for leaks. Open refrigerator door. Wipe any water droplets from the
filter cup. Unlock the dispenser lock. Fill a glass with water. If there is a leak,
unscrew filter cup, and reinsert the filter cartridge. Check placement of large
O-ring. Reinstall filter cup, making certain it is tightened completely.
10. To prime filter system and purge air from water line, continue flushing the
system for approximately 3 minutes to assure that the purest water possible is
stored in the water tank. There will be noticeable spurts and sputters as the
system pushes air out through the system and out the dispensing spout. This
is normal.
* White Westinghouse uses the name CrystaIClear instead of PureSource, but they are the same filter
UNDERSTANDINGTHE SOUNDSYOU MAY HEAR
Your new high-efficiency refrigerator may make unfamiliar
sounds. These are all normal sounds and soon will become
familiar to you. They also indicate your refrigerator is operating
as designed. Hard surfaces, such as vinyl or wood floors,
walls, and kitchen cabinets may make sounds more
noticeable. Listed below are descriptions of some of the most
common sounds you may hear, and what is causing them.
D. Automatic Ice Maker
If your refrigerator is equipped with an automatic ice
maker,you will hear ice cubes falling into the ice bin.
E. Cold Control & Defrost Timer or Automatic
Defrost Control
These parts can produce a snapping or clicking sound
when turning the refrigerator on and off. The timer also
produces sounds similar to an electric clock.
F. Condenser Fan
If condenser coils are located underneath your
refrigerator as shown in the drawing at the left, you
have a condenser fan. You may hear air being forced
through the condenser by the condenser fan.
G. Compressor
Modern, high-efficiency compressors operate much
faster than older models. The compressor may have a
high-pitched hum or pulsating sound.
H. Water Valve
If your refrigerator is equipped with an automatic ice
maker, you will hear a buzzing sound as the water valve
opens to fill the ice maker during each cycle.
L Drain Pan (Nonremovable)
You may hear water running into the drain pan during
the defrost cycle. The drain pan will be located on top
of the compressor for air-cooled condensers (black coils
on back of refrigerator).
J. Condenser Coils (Fan-cooled models only)
A. Evaporator
The flow of refrigerant through the evaporator may
create a boiling or gurgling sound.
B. Evaporator Fan
You may hear air being forced through the refrigerator
by the evaporator fan.
C. Defrost Heater
During defrost cycles, water dripping onto the defrost
heater may cause a hissing or sizzling sound. After
defrosting, a popping sound may occur.
REPLACJNGTHE FREEZER UGHT BULB (SOME
MODELS)
1. Unplug refrigerator.
2. Wear gloves as protection against possible broken glass.
3. Unsnap light shield.
4. Unscrew and replace old bulb with an appliance bulb of
the same wattage.
5. Replace light shield.
6. Remember to plug the refrigerator back in.
10
Keep your refrigerator and freezer clean to prevent odor build-up. Wipe up any spills immediately and clean both sections at
least twice a year. Never use any type of scouring pads, brushes, abrasive cleaners or strong alkaline solutions on any surface.
Do not wash any removable parts in a dishwasher. Always unplug the electrical power cord from the wall outlet before
cleaning.
_!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!_;ii
Part
Interior/Door
Liner
Door Gaskets
Drawers/Bins
Glass Shelves
Care
What To Use
Soap and water
Baking soda and water
Soap and water
Soap and water
• Soap and water
• Glass cleaner
& Cleaning Chart
Tips and Precautions
Use 2 tablespoons of baking soda in 1 quart of warm water. Be sure to wring
excess water out of sponge or cloth before cleaning around controls,
light bulb or any electrical part.
Wipe gaskets with a clean soft cloth.
Do not wash any removable items (bins, drawers, etc.) in dishwasher.
Allow glass to warm to room temperature before immersing in warm water.
• Mild liquid sprays
Toe Grille
• Soap and water
• Mild liquid sprays
Vacuum dust from front of toe grille. Remove toe grille Vacuum backside and
wipe with sudsy cloth or sponge. Rinse and dry.
• Vacuum attachment
Exterior and Do not use commercial household cleaners, ammonia, or alcohol to clean
Handles handles.
Exterior and
Handles
(Stainless Steel
Models Only)
• Soap and water
• Soap and water
• Ammonia
• Stainless Steel Cleaners
CAUTION: Never use CHLORIDE to clean stainless steel.
Clean stainless steel front and handles with non-abrasive soapy water and a
dishcloth. Rinse with clean water and a soft cloth. Wipe stubborn spots with an
ammonia-soaked paper towel, and rinse. Use a non-abrasive stainless steel
cleaner. These cleaners can be purchased at most home improvement or
major department stores. Always follow manufacturer's instructions.
NOTE: Always clean, wipe and dry with the grain to prevent cross-grain
scratching. Wash the rest of the cabinet with warm water and mild liquid
detergent. Rinse well, and wipe dry with a clean soft cloth.
Condenser
Coils
(Fan-cooled
models only)
Condenser
Coils
(Air-cooled
• Condenser Cleaning
Brush is available from
your dealer.
• Vacuum Cleaner
Vacuum Cleaner
No need to clean unless operating refrigerator under particularly dusty or
greasy conditions, or if there is significant pet traffic in your home. If cleaning
is necessary, remove toe grille and use extended vacuum attachment and
condenser cleaning brush to remove dust build-up from condenser coils (see
item "J" in "NORNAL OPERATING SOUNDS & SIGHTS").
Use the dusting tool attachment on your vacuum to remove dust build-up on
the condenser coils (black tubes and wires) attached to the back of air-cooled
refrigerators only.
models only)
Defrost Water • Soap and water Some models have defrost water pan located on top of compressor at bottom
Pan cloth. NOTE: The defrost water pan is NOT removable.
Exterior
• Soap and water
• Mild liquid sprays
(Easy Care
Stainless Steel
Models)
rear of refrigerator (see illustration on next page). Wipe water pan with damp
CAUTION: DO NOT use abrasive or stainless steel cleaners on Easy
Care Stainless Steel Models. It will remove the protective finish.
Use warm soapy water to clean Easy Care surfaces. Mild liquid sprays may
be used on stubborn spots.
11
Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to
be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc.,which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN
LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE.
If You Need
Service
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and
parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Major Appliances
North America
RO. Box 212378
Augusta, GA30907
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
1.800.668.4606
Electrolux
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
12
Canada
L5V 3E4
1-800-944-9044 (United States) ] Visit our web site at
1=800=668=4606 (Canada) / www.frigidaire.com.
PROBLEM CAUSE _ CORRECTION
RUNNING OF REFRIGERATOR
Compressor does not run. • Refrigerator control is set to
TEMPERA TURES ARE TOO COLD
Freezer temperature too • Freezer control is set too cold. • Set freezer control to a warmer setting. Allow 24 hours
cold. Fresh Food for temperature to stabilize.
temperature is satisfactory.
Fresh Food temperature • Fresh Food control is set too • Set fresh food control to a warmer setting. Allow 24
too cold. Freezer cold. hours for tern 3erature to stabilize.
temperature is satisfactory.
AUTOMATIC ICE MAKER
Ice maker is not making
any ice.
Ice maker is not making
enough ice.
Ice cubes are freezing
together.
WATER DISPENSER
Dispenser will not
dispense water,
Water pressure is
extremely low.
OFF.
• Refrigerator is in defrost cycle.
• Plug at electrical outlet is
disconnected.
• House fuse blown or tripped
circuit breaker.
• Power outage.
• Ice maker wire signal arm is in
the "up" or OFF position.
• Household water line valve is
not open.
• Freezer is not cold enough.
Saddle valve on cold water
pipe is clogged or restricted by
foreign material.
Ice maker is producing less ice
than you expect.
Freezer is not cold enough.
Household water line valve is
not completely open.
Ice cubes are not being used
frequently enough.
Ice cubes are hollow (partially
frozen cubes with water
inside).
• Household water line valve is
not open.
• Freezer door is not closed.
• Ice & water filter cartridge is
clogged.
• Cut-off and cut-on pressures
are too low (well systems
only).
• Reverse osmosis system is in
regenerative phase.
Set refrigerator control. See Temperature Controls
section.
This is normal for a fully automatic defrost refrigerator.
The defrost cycle occurs periodically, lasting about 30
minutes.
Ensure plug is tightly pushed into outlet.
Check/replace fuse with a 15 amp time-delay fuse.
Reset circuit breaker.
Check house lights. Call local Electric Company.
• Move wire signal arm to the "down" or ON position.
(side mounted)
• Turn on household water line valve.
• Set freeze control to a colder setting. Allow 24 hours
for temperature to stabilize.
• Turn off household water line valve. Remove valve.
Ensure that valve is not a self-piercing saddle valve.
Clean valve. Replace valve if necessary.
• Ice maker should produce 2 1/2to 3 pounds of ice
every 24 hours.
• Set freeze control to a colder setting. Allow 24 hours
for temperature to stabilize.
• Turn on household water line valve.
• Remove ice container and discard ice from container.
Ice maker will produce fresh supply.
• The ice & water filter cartridge may be clogged.
Replace filter cartridge.
• Open household water line valve. See PROBLEM
section ICE MAKER IS NOT MAKING ANY ICE.
• Ensure that freezer door is closed.
• Replace filter cartridge.
Have someone turn up the cut-off and cut-on pressure
on the water pump system (well systems only).
It is normal for a reverse osmosis system to be below
20 psi during the regenerative phase.
13
Loading...
