Page 1

Refrigerator

use & care

Introduction .......................................................2

Important Safety Information ....................3

Features ..............................................................7

Installation .........................................................9

Door Removal .................................................. 11

Door Handle Installation ............................. 16

Water Supply Connection .......................... 17

Controls and Settings

Internal Water Dispenser............................19

Controls and Settings

External Water Dispenser ......................... 22

Frigidaire.com USA 1-800-374-4432 Frigidaire.ca Canada 1-800-265-8352

Automatic Ice and

External Water Dispenser ......................... 26

Internal Water Dispenser...........................29

Ice Maker .........................................................30

Storage Features ........................................... 31

Storing Food and Saving Energy ........... 37

Normal Operating Sounds ........................ 38

Filter Replacement ...................................... 39

Care and Cleaning .......................................42

Troubleshooting ..........................................44

Limited Warranty .........................................49

A17856405 (December 2023)

Page 2

INTRODUCTION

Welcome to our family

Thank you for bringing Frigidaire into your home! We see your purchase as the beginning of a long relationship together.

This manual is your resource for the use and care of your product. Please read it before using your appliance. Keep it handy for quick reference. If something doesn’t seem right, the troubleshooting section will help you with common issues.

FAQs, helpful tips and videos, cleaning products, and kitchen and home accessories are available at Frigidaire.com.

We are here for you! Visit our website, chat with an agent, or call us if you need help. We may be able to help you avoid a service visit. If you do need service, we can get that started for you.

Let’s make it ocial! Be sure to register your product.

Keep your product info here so it’s easy to ﬁnd.

Model Number ____________________

Serial Number ____________________

Purchase Date ____________________

Installation Checklist

Doors

 Handles are secure and tight  Doors seal completely to cabinet on

all sides

Leveling

 Refrigerator is level side-to-side and

slightly elevated in front to assist with door and drawer closing (front should be higher than back)

 Cabinet is setting solid on all corners

Electrical Power

 House power turned on  Refrigerator plugged in

Ice Maker(s)

 House water supply connected to

refrigerator. WARNING: Potable water

supply only.

 No water leaks present at all

connections - recheck in 24 hours  Ice maker(s) is/are turned ON  Ice and water dispenser

operates correctly

Final Checks

 Shipping material removed  Refrigerator and freezer temperatures

are set  Registration card sent in

Serial Number Location

Page 3

IMPORTANT SAFETY INFORMATION

WARNING

Please read all instructions before using this appliance.

Safety Deﬁnitions

This is the safety alert symbol. It is used to alert of potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

IMPORTANT

DANGER

DANGER Risk of ﬁre or explosion. Flammable refrigerant used. Do not use mechanical devices to defrost refrigerator. Do not puncture refrigerant tubing.

DANGER Risk of ﬁre or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. Use only manufacturer-authorized service parts. Any repair equipment used must be designed for ﬂammable refrigerants. Follow all manufacturer repair instructions. Do not puncture refrigerant tubing.

CAUTION

CAUTION Risk of ﬁre or explosion. Dispose of refrigerator properly in accordance with the applicable federal or local regulations. Flammable refrigerant used.

CAUTION Risk of ﬁre or explosion due to puncture of refrigerant tubing. Follow handling instructions carefully. Flammable refrigerant used.

WARNING

CALIFORNIA RESIDENTS ONLY Cancer and Reproductive Harm

www.P65Warnings.ca.gov

IMPORTANT indicates installation, operation or maintenance information which is important but not hazard-related.

Page 4

IMPORTANT SAFETY INFORMATION

Child Safety

Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the refrigerator is unpacked. Children should NEVER use these items to play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suocation.

Safety Instructions

• DO NOT store or use gasoline, or other ﬂammable liquids in the vicinity of this or any other appliance. Read product labels for warnings regarding ﬂammability and other hazards.

• DO NOT operate the refrigerator in the presence of explosive fumes.

• Avoid contact with any moving parts of automatic ice maker.

• Remove all staples from the carton. Staples can cause severe cuts, and also destroy ﬁnishes if they come in contact with other appliances or furniture.

WARNING

Do not use electrical appliances inside the food storage compartments of the appliance unless they are of the type recommended by the manufacturer.

Proper Disposal of your Appliance

Risk of child entrapment

Child entrapment and suocation are not problems of the past. Junked or abandoned refrigerators or freezers are still dangerous – even if they will sit for “just a few days”. If you are getting rid of your old refrigerator or freezer, please follow the instructions below to help prevent accidents.

We strongly encourage responsible appliance recycling/disposal methods. Check with your utility company or visit energystar.gov/recycle for more information on recycling your old refrigerator.

Before you throw away your old refrigerator/freezer:

• Remove doors.

• Leave shelves in place so children may not easily climb inside.

• Have refrigerant removed by a qualiﬁed service technician.

IMPORTANT

CFC/HCFC Disposal

Your old refrigerator may have a cooling system that used CFCs or HCFCs (chloroﬂuorocarbons or hydrochloroﬂuorocarbons). CFCs and HCFCs are believed to harm stratospheric ozone if released to the atmosphere. Other refrigerants may also cause harm to the environment if released to the atmosphere.

If you are throwing away your old refrigerator, make sure the refrigerant is removed for proper disposal by a qualiﬁed technician. If you intentionally release refrigerant, you may be subject to ﬁnes and imprisonment under provisions of environmental legislation.

Page 5

Grounding type wall receptacle

Power cord with 3-prong grounded plug

Do not, under any circumstances, cut, remove, or bypass the grounding prong.

IMPORTANT SAFETY INFORMATION

Electrical information

• Plug the unit into its own dedicated 115 Volt, 60 Hz., 15 Amp, AC only electrical outlet. The power cord of the appliance is equipped with a 3-prong grounding plug for your protection against electrical shock hazards. Plug it directly into a properly grounded 3-prong receptacle. You must install the receptacle in accordance with local codes and ordinances. Consult a qualiﬁed electrician. Avoid connecting the unit to a Ground Fault Interrupter (GFI) circuit. Do not use an extension cord or adapter plug.

• If the power cord is damaged, an authorized service technician should replace it to prevent any risk.

• Never unplug the refrigerator by pulling on the power cord. Always grip the plug ﬁrmly, and pull it straight out from the receptacle to prevent damaging the power cord.

• Unplug the refrigerator before cleaning to avoid electrical shock.

• Performance may be aected if the voltage varies by 10% or more. Operating the refrigerator with insucient power can damage the compressor. Such damage is not covered under your warranty.

• Do not plug the unit into an electrical outlet controlled by a wall switch or pull cord to prevent the unit from being turned o accidentally.

IMPORTANT

To turn o power to your refrigerator you must unplug the power cord from the electrical outlet.

CAUTION

To avoid personal injury or property damage, handle the tempered glass shelves carefully. The shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change.

Page 6

FEATURES

Internal Water Dispenser Model

A Appliance Control Display

B Condiment Bins

C L-Shaped Bin

D Internal Water Dispenser

E Dairy Bin

F Flipper Mullion

G Standard Bin

H Flipper Guide

I Air Filter

J Slide-Under ½-Width Shelves

K Edge-to-Edge Glass Shelf

L Crispers

M Water Filter

N Adjustable Temp Drawer Controls

O Adjustable Temp Drawer

P Freezer Ice Maker

Q Upper Freezer Basket

R Lower Freezer Basket

S Standard Bins

IMPORTANT

Accessories are available for your appliance and may be purchased at Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in Canada) or from an authorized seller.

Page 7

FEATURES

Quick Freeze

External Water Dispenser Model

A Ice and Water Dispenser

Appliance Control Display

C L-Shaped Bin

D Dairy Bin

E Flipper Mullion

F Gallon Bin

G Slim Bin

H Flipper Guide

I Air Filter

J Fresh Food Ice Maker and Bin

Slide-Under ¼- & ½-Width Shelves

L Edge-to-Edge Glass Shelf

M Crispers

N Water Filter

O Adjustable Temp Drawer Controls

P Adjustable Temp Drawer

Q Freezer Ice Maker

Upper Freezer Basket

S Lower Freezer Basket

T Standard Bins

U Condiment Bins

IMPORTANT

Accessories are available for your appliance and may be purchased at Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in Canada) or from an authorized seller.

Page 8

Top Hinge Cover Front Screw

Top Hinge Cover Rear Screw

Lower

Hinge

Screw

Top

Hinge

Screw

Components Provided:

Tools Necessary:

Quadrex Head

Screwdriver

Wrench

Fixed

Wrench

Allen Wrench

INSTALLATION

(OR)

Phillips Head

This Use & Care Manual provides general installation and operating instructions for your model. Use a service or kitchen contracting professional to install your refrigerator. Use the refrigerator only as instructed in this Use & Care Manual.

Before starting the refrigerator, follow these important ﬁrst steps.

Location

• Choose a place near a grounded, nonGFCI, electrical outlet. Do Not use an extension cord or an adapter plug.

• If possible, place the refrigerator out of direct sunlight and away from the range, dishwasher, or other heat sources.

• Install the unit on a ﬂoor that is level and strong enough to support a fully loaded refrigerator.

• Consider water supply availability for models equipped with an automatic ice maker.

6mm

ANDAND

⅜" and ¼"

Socket

Adjustable

WARNING

This appliance is intended for use in residential household and similar interior applications such as:

• Kitchen / Kitchenette

• Pantry Room

• Basement

• Enclosed Garage

• Other interior residential-type environments

CAUTION

Do Not install the refrigerator where the temperature will drop below 55°F (13°C) or rise above 110°F (43°C). The compressor will not be able to maintain proper temperatures inside the refrigerator.

WARNING

Installation

Allow the following clearances for ease of installation, proper air circulation, and plumbing and electrical connections:

• Sides & Top ³⁄8 " (9.5 mm)

• Back 1" (25.4 mm)

⅜"

Page 9

NOTE



If you place your refrigerator with the door hinge side against a wall, you may have to allow additional space so you can open the door wider.

Door opening

Position your refrigerator to allow easy access to a counter when removing food. For best use of the refrigerator drawers and freezer baskets, position the refrigerator where you can fully open both.

Cabinet Leveling and Refrigerator Door Alignment (if necessary)

Guidelines for ﬁnal positioning of refrigerator:

• Firmly rest all four corners of the cabinet on the ﬂoor.

• Slightly elevate the front to ensure the doors close and seal properly.

• Align and level the doors with each other.

You can meet most of these conditions by raising or lowering the adjustable front rollers.

To level the cabinet using the front rollers:

1. Slightly open the freezer drawer to reveal the adjustable rollers at the bottom of the cabinet.

2. Use the front roller height adjusting screws to make initial cabinet adjustments. Use a ⅜" socket wrench to turn the adjustment screws (1 per side).

To raise the unit: Turn the adjustment screw clockwise.

To lower the unit: Turn the adjustment screw counterclockwise.

INSTALLATION

3. Ensure both doors are bind-free with their seals touching the cabinet on all four sides and the cabinet is stable.

4. After you level the unit, lower the anti-tip leg until it ﬁrmly contacts the ﬂoor. You might need an adjustable wrench for this adjustment.

Door

NOTE



The doors are shipped adjusted to the lowest position on the hinges.

To make ﬁnal door height adjustments:

1. Open the freezer drawer to access the hinges for fresh food doors.

2. Insert the 6 mm Allen wrench (included) into the shaft of the lower hinge.

To lower the door: turn the adjustment screw counterclockwise if looking at the door from below.

To raise the door: turn the

adjustment screw clockwise if looking at the door from below.

Door

Anti-tip Leg

Raise

Lower

Page 10

WRONG

INSTALLATION

Flipper Mullion

Adjust the Flipper Mullion for proper connection with the mullion guide by ensuring the ﬂipper mullion is folded and perpendicular to the fresh food door. If the mullion guide is not in the correct position, it could prevent the door from closing completely.

To adjust the ﬂipper mullion:

1. Loosen the two screws located on the ﬂipper mullion hinge.

Flipper Mullion

2. Adjust the ﬂipper mullion height. For proper connection with the ﬂipper mullion guide, there should be a separation about the thickness of a coin (0.060 inches, or 1.5 mm) between the guide and ﬂipper mullion.

Mullion Guide

Flipper Mullion

Thickness of a Coin

Adjusting Flipper Mullion Height

3. Retighten the screws.

Screws

Adjusting Flipper Mullion Screw

Page 11

Getting through narrow spaces

If your refrigerator will not ﬁt through an entrance area, you can remove the doors. Check ﬁrst by measuring the entrance.

To prepare for removing the doors:

1. Make sure the electrical power cord is unplugged from the wall outlet.

2. Remove any food from the door shelves and close the doors.

WARNING

DOOR REMOVAL

Make sure the electrical power cord is unplugged from the wall outlet.

To remove the refrigerator doors:

1. Remove the three screws from both hinge covers on the left and right top of the cabinet, taking care not to damage electrical connections or sensors.

2. After you remove the hinge covers, disconnect any harnesses between the cabinet and doors by grasping both sides of the connector ﬁrmly, depressing the latch and pulling it apart.

Left Door Non- Dispenser Unit

Right Door Dispenser Unit

Left Door Dispenser Unit

Right Door Non-Dispenser Unit

Page 12

DOOR REMOVAL

3. Lightly trace around the door’s top hinges with a pencil. This makes reinstallation easier.

4. Remove the bulkhead cover at the rear of the unit to access the water tube. Disconnect the water tube at the push-lock connection on the rear of the unit below the bulkhead. The dispenser line is connected to the yellow water line coming from the main water valve.

5. Pull the water tube out of the conduit from the top of the cabinet.

NOTE



You will be pulling approximately ﬁve feet of water tube from the back of the refrigerator. Use care while pulling the water tube from the unit to be sure you do not kink the tube.

6. Open both doors to a 90° angle.

Press

90˚

CAUTION

Set the doors aside in a secure position where they cannot fall and cause personal injury or damage to the doors or handles.

Page 13

DOOR REMOVAL

7. Remove hex screws from top hinge plate, and then remove the top hinge.

8. Lift the doors o the bottom hinges and set aside.

9. Unscrew the three bottom hinge screws and remove the bottom hinges.

Lower Hinge Removal

To reinstall the refrigerator doors:

1. Replace the three bottom hinge screws and hinges on both sides of the cabinet. Ensure the screws are tightly snug to the hinges on both sides of the cabinet before reinstalling the doors.

2. Holding the door at a 90° angle, drop the pin down into the bottom hinge opening. Rotate it slightly in either direction until the door falls onto the hinge and is fully seated.

Pin Mechanism

Bottom

Hinge

Opening

NOTE



When reinserting the water tube and replacing the top hinge cover, use care to be sure you do not kink the tube. It may also be dicult to pass the water line back through the conduit inside the cabinet.

Page 14

Bottom of the Doors



Upon replacement, fully insert the tube up to the marking line.

3. Reinstall the top hinges and screws.

4. Insert and feed the water line back into the conduit at the top left door hinge until tube reappears at rear of unit.

DOOR REMOVAL

NOTE

Push

To reset the door pin:

If you remove the doors at less than a 40° angle, the pin returns to the home position. You can reset it by turning the door upside down and using a 5/32" Allen wrench to rotate the left-hand pin 90° clockwise and the right-hand pin 90° counterclockwise.

For

LEFT DOOR,

turn pin 90˚

clockwise

For

RIGHT DOOR,

turn pin 90˚

counter-

clockwise

Push

5. Reconnect all harnesses.

6. Replace the top hinge covers and screws.

7. Reconnect the water line to the push-lock connection, and reinstall the water line bulkhead cover at the rear of the unit.

8. Reconnect the electrical power cord to the wall outlet.

Once you reset the door pins, follow the steps To reinstall the refrigerator doors.

Page 15

DOOR REMOVAL

Removing Freezer the Drawer

CAUTION

Drawer is heavy. Use caution when lifting.

1. Remove the four hex head drawer screws (two per side) securing the drawer to the slide assemblies.

2. Lift up drawer to remove.

Remove

Hex Head

Drawer

Screw

CAUTION

Do Not loosen or remove the 3 hex screws.

Replacing Freezer Drawer

1. Extend the freezer slides from the unit.

2. Carefully align support pin with hooks on end of freezer slides, and then lower freezer door onto slides.

3. Replace the four hex head screws securing the slides to the door (two on each side) and tighten.

NOTE



To locate the pin, look inside the drawer. The pin is next to the door liner and the slides. Not all parts are shown in the illustration.

Page 16

DOOR HANDLE INSTALLATION

CAUTION

Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.

Door Handle

Mounting Refrigerator Handles

Mounting Instructions

1. Remove handles and any other protective packaging from the carton.

2. Position the refrigerator handle end caps over the upper and lower pre-installed shoulder bolts (A) fastened into the door, ensuring the holes for the set screws are facing the opposite door.

3. While ﬁrmly holding the handle against the door, fasten the upper and lower Allen set screws (B) with the supplied Allen wrench.

4. Repeat steps 2 and 3 to install the opposite handle. Ensure the holes for the set screws are facing the opposite door.

5. Position the freezer handle end caps over the left and right pre-installed shoulder bolts (A) fastened to the door, ensuring the holes for the set screws are facing down.

6. While holding the handle ﬁrmly against door, loosely tighten the right Allen set screw (B) with supplied Allen wrench until there is no gap between the handle and the door.

7. Still ﬁrmly holding the handle to the door, ﬁrmly tighten the left Allen set screw (B) with the supplied Allen wrench.

8. Return to the right Allen set screw (B) and ﬁrmly tighten it with the supplied Allen wrench.

NOTE



When tightening the Allen set screws, apply force to the longer arm of the Allen wrench supplied in the handle packaging.

BBB

Mounting Freezer Handle

B B

NOTE



Tighten all set screws so the screw is below the surface of the handle. Tightly draw the handles to the freezer and refrigerator doors with no gaps. Open the opposite door while tightening the Allen screw to make installation easier.

The door handle may loosen over time or if you did not install it properly. If this happens, tighten the set screws on the handles.

Page 17

WATER SUPPLY CONNECTION

WARNING

To avoid electric shock, which can cause death or severe personal injury, disconnect the refrigerator from electrical power before connecting a water supply line to the refrigerator.

CAUTION

To Avoid Property Damage:

• Copper or Stainless Steel braided tubing is recommended for the water supply line. Water supply tubing made of ¼ inch plastic is not recommended to be used. Plastic tubing greatly increases the potential for water leaks, and the manufacturer will not be responsible for any damage if plastic tubing is used for the supply line.

• DO NOT install water supply tubing in areas where temperatures fall below freezing.

• Chemicals from a malfunctioning water softener can damage the ice maker. If your home has a water softening system, ensure the softener is maintained and working properly.

IMPORTANT

Ensure your water supply line connections comply with all local plumbing codes.

Before Installing The Water Supply Line, You Will Need:

• Basic Tools: adjustable wrench, ﬂat-blade screwdriver, and PhillipsTM screwdriver

• Access to a household cold water line with water pressure between 30 and 100psi.

• A water supply line made of ¼inch (6.4mm) OD, copper or stainless steel tubing. To determine the length of tubing needed, measure the distance from the water inlet valve at the back of the refrigerator to your cold water pipe. Then add

approximately 6ft. (1.8 meters), so the refrigerator can be moved out for cleaning (as shown).

• A shuto valve to connect the water supply line to your household water system. DO NOT use a self-piercing type shuto valve.

• Do not reuse compression ﬁttings or use thread seal tape.

• A compression nut and ferrule (sleeve) for connecting a copper water supply line to the ice maker inlet valve.

NOTE



Check with your local building authority for recommendations on water lines and associated materials prior to installing your new refrigerator. Depending on your local/state building codes, We recommend for homes with existing valves its

Smart Choice® water line kit 5305513409

with a 6ft. (1.8 meters) Stainless Steel Water Line, and for homes without an existing valve we recommend Smart

Choice® water line kit 5305510264 with a

20ft. (6meters) Copper Water Line with self-tapping saddle valve. Please refer to Frigidaire.com for more information.

To Connect Water Supply Line To Main Water Inlet Valve

1. Disconnect refrigerator from electric power source.

2. Place end of water supply line into sink or bucket. Turn ON water supply and ﬂush supply line until water is clear. Turn OFF water supply at shuto valve.

3. Remove plastic cap from water valve inlet and discard cap.

Page 18

WATER SUPPLY CONNECTION

4. If you use copper tubing - Slide

brass compression nut, then ferrule (sleeve) onto water supply line. Push water supply line into water valve inlet as far as it will go (¼inch/6.4mm). Slide ferrule (sleeve) into valve inlet and ﬁnger tighten compression nut onto valve. Tighten another half turn with a wrench; DO NOT over tighten. See Figure 1.

If you use braided ﬂexible stainless steel tubing - The nut is already

assembled on the tubing. Slide nut onto valve inlet and ﬁnger tighten nut onto valve. Tighten another half turn with a wrench; DO NOT over tighten. See Figure 2.

5. With steel clamp and screw, secure water supply line to rear panel of refrigerator as shown.

6. Coil excess water supply line (copper tubing only), about 2½turns, behind refrigerator as shown and arrange coils so they do not vibrate or wear against any other surface. Do not kink tubing.

7. Turn ON water supply at shuto valve and tighten any connections that leak.

8. Reconnect refrigerator to electrical power source.

9. To turn ice maker on, ensure Ice Maker is enabled on display (LED will be lit) or set the ice maker’s On/o power switch to the “ON” position (freezer ice maker).

NOTE



These instructions do not cover after market ice maker installation. Instructions in after market ice maker kit should be used.

Steel

Clamp

Compression

Copper waterline

from household

water supply

(Include enough tubing in loop to allow moving

refrigerator out for cleaning)

Figure 1

Brass

Ferrule

(Sleeve)

Copper

Water line

Water Valve

Bracket

Valve Inlet

Water Valve

IMPORTANT

Your refrigerator’s water supply system includes several tubing lines, a water ﬁlter, and a water valve. To ensure your water dispenser works properly, you must completely ﬁll this system with water when you ﬁrst connect your refrigerator to the household water supply line.

Steel

Clamp

Braided Flexible

(Include enough tubing in loop to allow moving refrigerator out for cleaning)

Stainless

Steel

Water Line

Valve Inlet

Nut

stainless steel water line from household

Figure 2

Water Valve

6 ft. (1.8 Meters)

Braided ﬂexible

water supply.

Page 19

CONTROLS AND SETTINGS

INTERNAL WATER DISPENSER

Appliance Control Display Mode Views

Your display is equipped with a sleep and lock mode to prevent accidental changes to the unit settings when you open and close the doors. When you close both doors, the display is in sleep mode. When you ﬁrst open either door, the display is in lock mode where all the current settings are visible but dimmed.

Pressing any button on the display awakens the display and a tone sounds. All settings are then fully lit. Touch the display again to change any setting.

If you do not press a button for 10 seconds while any door is open, the display defaults back to lock mode.

Awake Mode View Lock Mode View Sleep Mode View

Page 20

CONTROLS AND SETTINGS INTERNAL WATER DISPENSER

Change

Temperature

Clear Alerts

Freeze

Boost

Temp F/C Touch to toggle display from Fahrenheit

Water

Dispenser

Default

Settings

Water Filter

Air Filters Press and hold Air Filters to reset after

Select FREEZER or REFRIGERATOR to change the temperature.

Select +/— buttons to set the temperature

Freezer control range:

Refrigerator control range:

Resets any active and illuminated alarms (Door Open, High Temp, Power Outage).

Prior to grocery shopping, we recommend you activate Freeze Boost to lower the temperature and freeze food faster. Freeze Boost remains active for up to 24 hours before automatically deactivating or manually exiting by pressing Freeze Boost to turn the function o. This resets the freezer to the previous temperature setting.

to Celsius.

When the water dispenser is on the LEDs above Water Dispenser illuminate.

Press and hold Default Settings for 3 seconds to reset to factory settings.

Press and hold Water Filter to reset after you have replaced the ﬁlter. The status shown at the right will reset to GOOD.

you have replaced the ﬁlter. The status shown at the right will reset to GOOD.

-6˚F/-21˚C to 6˚F/-15˚C

34˚F/1˚C to 44˚F/7˚C

NOTE

Setting cooling temperatures

Select the compartment where you want to change the temperature by pressing FREEZER or REFRIGERATOR at the top of the display. Press + or — to adjust the temperature to the desired setting.

The temperature setting begins to blink with the ﬁrst touch. The display times out after 10 seconds and returns to the basic display.



The recommended settings for a product installed in a kitchen is 37˚F for the refrigerator and 0˚F for the freezer.

Page 21

CONTROLS AND SETTINGS

INTERNAL WATER DISPENSER

Clear Alerts

Door Open

If you have left the freezer or refrigerator doors open for ﬁve minutes or more, an alarm sounds and the Door Open indicator illuminates on the display. Press Clear

Alerts to reset any system alarms.

High Temp Alarm High Temp illuminates next to Clear

Alerts. The alarm plays every 60 seconds.

Press

Clear Alerts

alarm. The highest temp value displays when the alarm is ﬁrst acknowledged.

Power Outage

In the event of a power outage, the power outage alert illuminates. Press to acknowledge the alarm. Other modes may be turned o until you acknowledge the alarm. While a power outage alert displays on the appliance control display, the unit continues normal operation. The high temp alarm may also illuminate until a safe operating range temperature has been reached.

NOTE



Food placed within 1 in. in front of air ports may cause food to freeze.

to acknowledge the

Clear Alerts

Sabbath Mode

The Sabbath Mode disables portions of the refrigerator and its controls in accordance with observance of the weekly Sabbath and religious holidays within the Orthodox Jewish community.

Sabbath Mode turns ON and OFF by simultaneously pressing and holding both — and Temp F-C for ﬁve seconds. The display shows Sb while in Sabbath mode.

In the Sabbath Mode, the High Temp alarm is active for health reasons. For example, if you leave the door ajar, High Temp activates. The refrigerator functions normally once you close the door, without any violation of the Sabbath/holidays. High Temp alerts when the cabinet temperature is outside the safe zone for 20 minutes. The alarm silences itself after 10 minutes while High Temp stays lit until you exit the Sabbath mode.

For further assistance, guidelines for proper usage and a complete list of models with the Sabbath

star-k.org..



While in Sabbath Mode, the lights, dispenser, nor the appliance control display work until you deactivate Sabbath Mode.

The refrigerator stays in Sabbath Mode after power failure recovery. You must deactivate it with the buttons on the appliance control display.

feature, please visit the web at

NOTE



Although you have entered the Sabbath Mode, the ice maker completes the cycle it had already initiated. The ice cube compartment remains cold and you can make new ice cubes with standard trays.

Page 22

CONTROLS AND SETTINGS

Sleep Mode

As a default, the display goes to sleep after a short time. If you press any icon, the display awakens. After a short time, it goes back to sleep. When in sleep mode, wake up the display to conﬁrm ice maker is On/O. Sleep mode can be turned o to have the display on full time (awake mode). When sleep mode is O, the display always illuminates. To turn sleep mode On/O, simultaneously press and hold Crush and

Light for 5 seconds. A tone conﬁrms.

EXTERNAL WATER DISPENSER

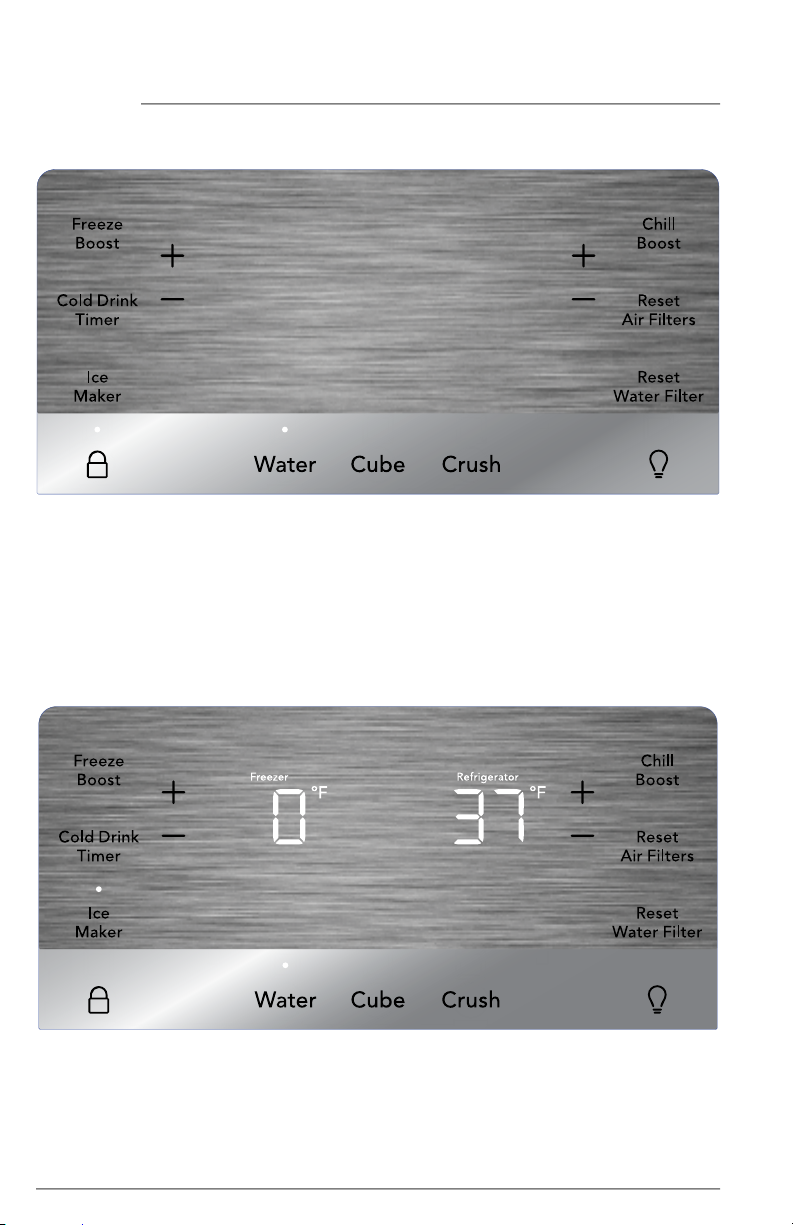

Sleep Mode Display

Awake Mode Display

Awake Mode

To change from sleep mode (o) to awake mode (on), simultaneously press and hold Crush and Light for 5 seconds. The display shows the current temperature/ice maker status. A tone conﬁrms.

Page 23

CONTROLS AND SETTINGS

EXTERNAL WATER DISPENSER

Freeze Boost (on/o)

Cold Drink Timer

To quickly chill a drink inside the freezer compartment, touch Cold Drink Timer. A time value will appear on the freezer temp display (in minutes) and can be changed using the +/— buttons. A tone will sound when you have input the time. Range is from 20-45 minutes in 5 minute intervals. Drinks freeze if the temperature setting is too low or timer setting is too long.

WARNING

When using the cold drink timer, remove drinks from the freezer compartment when the alarm sounds. Carbonated drinks may explode if left in the freezer for too long.

11 12

Ice Maker Press and hold for 3 seconds to turn the ice maker on/o. When the indicator is lit, the ice maker is on. When the indicator is not lit, the ice maker is OFF and stops making ice. While o, ice dispensing can continue as long as there is ice in the bucket. When the ice maker is o and ice is dispensing, the indicator blinks.

Lock Control Use the lock button to lock the display preventing it from being used in certain situations. Press and hold for 3 seconds to enable/ disable. While locked, you can make no changes to settings on the display. Dispensing ice and water is disabled. The indicator ﬂashes and an audible warning plays.

Power Outage In the event of a power outage, Power Outage illuminates once power has been restored and a tone sounds. Press any button to silence the tone.

174

Page 24

CONTROLS AND SETTINGS EXTERNAL WATER DISPENSER

Adjusting Temp

Illuminates when you change temperatures on the display and remain illuminated until you reach the desired temperatures inside the refrigerator and freezer. Press either + or — to adjust to desired temperature setting. Freezer temp - Control temperatures range from -6°F / -21°C to 6°F / -15°C. Refrigerator temp - Control temperatures range from 34°F / 1°C to 44°F / 7°C. This unit is designed to operate at 37°F Refrigerator / 0°F Freezer. The unit should stabilize temperatures within 24 hours of installation.

Door Open

This alert indicates the door has been open for 5 minutes or more. Door Open illuminates and the audible alert sounds until you close the door. You can turn o the audible alert by pressing Door Open or by closing the door. If the door is open for 5 minutes, the interior light turns o.

Water Filter

Illuminates every 6 months or when you need to replace the ﬁlter. Replace the ﬁlter, and then press and hold Reset Water Filter for 3 seconds to deactivate the warning on the display. See Replacing the

Filter for more information. Air Filter

Illuminates every 6 months or when you need to replace the ﬁlter. Replace the ﬁlter, and then press and hold Reset Air Filter for 3 seconds to deactivate the warning on the display. See Replacing the

Filter for more information. Water

Press Water to select water. An indicator light illuminates above the active feature.

Cube

Press Cube to select cubed ice. An indicator light illuminates above the active feature.

Crush

Press Crush to select crushed ice. An indicator light illuminates above the active feature.

°F/°C

To toggle between Fahrenheit (°F) and Celsius (°C), simultaneously press and hold + and — for 5 seconds on the Refrigerator side of the display.

Chill Boost

Prior to grocery shopping, we recommend you activate Chill Boost to lower the temperature and cool food faster. Chill Boost remains active for up to 6 hours before automatically deactivating, or manually exit by pressing Chill Boost to turn the function o. This resets the freezer to the previous temperature setting.

Reset Air Filters

This status always displays when the door is open. Press and hold for 3 seconds to reset after changing the ﬁlter.

Reset Water Filter

Press and hold for 3 seconds to reset after ﬁlter change.

Light

Toggles dispenser light On and O.

NOTE



The recommended settings for a product installed in a kitchen are 37˚F for the refrigerator and 0˚F for the freezer.

Setting cooling temperatures

Press + or — next to the Refrigerator or Freezer temperature display to adjust the

temperature to the desired setting.

The temperature setting begins to blink with the ﬁrst touch. The display times out after 10 seconds and returns to the basic display.

Page 25

CONTROLS AND SETTINGS

EXTERNAL WATER DISPENSER

Clear Alerts

Door Open

If the freezer or refrigerator doors are left open for ﬁve minutes or more, an alarm sounds and the door open indicator illuminates on the display. Close the door or press any key on the display to silence the alarm. The appliance control display returns to normal operations after you close the door.

High Temp Alarm

An alarm sounds in the event of a high temperature condition. The appliance control displays HI on whichever compartment the alarm is detected and the alarm sounds every 10 seconds until you acknowledge it. Touch any key or open a door to silence the alarm.

Power Outage

In the event of a power outage, a tone sounds and Power Outage illuminates once power has been restored. Press any key on the appliance control display to silence the alarm.

Flapper (Dispenser Models Only)

If the ﬂapper (or ice chute door) is held open by a jammed ice cube when you select Cube or Crush, an alarm sounds and the current selection blinks on the dispenser display. The alarm resets when you remove the ice cube.

NOTE



Food placed within one inch in front of the air ports may cause food to freeze.

Sabbath Mode

The Sabbath Mode disables portions of the refrigerator and its controls in accordance with observance of the weekly Sabbath and religious holidays within the Orthodox Jewish community.

Turn Sabbath Mode ON and OFF by simultaneously pressing and holding both FZ− and FF+ for 10 seconds. The display shows Sb while in Sabbath mode.

In the Sabbath Mode, High Temp is active for health reasons. For example, if you leave the door ajar, the High Temp alarm activates. The refrigerator functions normally once you close the door, without any violation of the Sabbath/holidays. The High Temp alarm is permitted when the cabinet temperature is outside the safe zone for 20 minutes. The alarm silences itself after 10 minutes while High Temp stays lit until you exit the Sabbath mode.

For further assistance, guidelines for proper usage and a complete list of models with the Sabbath

star-k.org.



While in Sabbath Mode, the lights, dispenser, nor the control display will work until Sabbath Mode is deactivated.

The refrigerator stays in Sabbath Mode after power failure recovery. You must deactivate it with the buttons on the control display.

feature, please visit the web at

NOTE



Although you have entered the Sabbath Mode, the ice maker completes the cycle it had already initiated. The ice cube compartment remains cold and you can make new ice cubes with standard trays.

Page 26

AUTOMATIC ICE AND EXTERNAL WATER DISPENSER

Priming the water supply system

Using the dispenser after installation

Before making ice for the ﬁrst time, be sure to prime the water supply system. Air in new plumbing lines can result in two or three empty ice maker cycles. Furthermore, you do not ﬂush the system, the ﬁrst ice cubes may have discolored water or have an odd ﬂavor.

Purging air from the system

1. Press and hold a drinking glass against the water dispenser paddle until water comes out (it may take up to four minutes to purge air from the system).

2. Run approximately one full gallon of water through the dispenser before use, and discard.

Dispenser

(varies by model)

NOTE



The water dispenser has a built-in device that shuts o the water ﬂow after three minutes of continuous use. To reset this shuto device, simply release the dispenser paddle.

NOTE



Dispensed water is not chilled. For colder water, add ice to cup or container before dispensing water.

Ice maker operation and care

After you have properly installed the refrigerator and it has cooled for several hours, the ice maker can produce ice within 24hours. The ice makerl ﬁlls the ice bin from the rear. You must dispense some ice to force the ice forward in the bin. This allows the bin to ﬁll completely.

Ice Maker and Storage Bin Capacity

In a Standard Depth model, the refrigerator ice maker should produce 3.0 to 3.4 pounds of ice per 24 hours. In a Counter Depth model, the refrigerator ice maker should produce 2.7 to 3.2 pounds of ice per 24 hours.

In a Standard Depth model, the refrigerator ice bin holds around 5 pounds of ice. In a Counter Depth model, the refrigerator ice bin holds around 3.7 pounds of ice.

CAUTION

For proper dispenser operation, the recommended water supply pressure should fall between 30psi and 100psi. Excessive pressure may cause the system to malfunction.

Page 27

AUTOMATIC ICE AND

EXTERNAL WATER DISPENSER

Turning the refrigerator ice maker on and o

Ice production is controlled by the ice maker’s On/O feature on the control display. Pressing the On/O feature turns the ice maker on & o.

IMPORTANT

Turning o the ice maker simply disables ice making. You can still dispense existing ice, and you can still dispense water.

NOTE



The ice maker also has a built-in plastic signal arm that automatically stops ice production when the ice bin is full. Do not use this signal arm to manually stop the ice maker.

IMPORTANT

Your ice maker is turned on at the factory so it can work as soon as you install your refrigerator. If you cannot connect a water supply, set the ice maker’s On/O feature to O; otherwise, the ice maker’s ﬁll valve may make a loud chattering noise when it attempts to operate without water.

IMPORTANT

On occasion, you may notice unusually small ice cubes in the bucket or in dispensed ice. This could occur in normal operation of the ice maker. If you start seeing these more frequently, it may indicate low water pressure or you need to replace the water ﬁlter. As the water ﬁlter nears the end of its useful life and becomes clogged with particles, less water is delivered to the ice maker during each cycle. Remember, if it’s been six months or longer since you last changed your water ﬁlter, replace the water ﬁlter with a new one. Poor quality household water may require the ﬁlter to be changed more frequently.

Ice maker/dispenser tips

• If your refrigerator is not connected to a water supply or the water supply is turned o, turn o the ice maker as described in the previous section.

• The following sounds are normal when the ice maker is operating:

- Motor running

- Ice dropping into ice bin

- Water valve opening or closing

- Running water

• If you need a large quantity of ice at one time, it is best to get cubes directly from the ice bin.

• Ice cubes stored too long may develop an odd ﬂavor. Empty the ice bin as explained below.

• When dispensing cubed ice, it is normal to have a small quantity of little pieces along with the whole cubes.

• To avoid splashing, dispense ice into your container before adding liquids.

• It is normal for ice to ﬁll to the top of the ice bin.

CAUTION

If the water supply to your refrigerator is softened, properly maintain the softener. Chemicals from a water softener can damage the ice maker.

Page 28

AUTOMATIC ICE AND

Cleaning the Ice Maker

Clean the ice maker and ice bin at regular intervals, especially prior to vacation or moving.

1. Turn o the ice maker.

2. Lift the ice bin up, and then pull it straight out to remove.

3. Empty and carefully clean the ice bin with mild detergent. Do not use harsh or abrasive cleaners. Rinse with clean water.

4. Allow the ice bin to dry completely before replacing in the freezer.

5. Replace the ice bin. Turn the ice maker on.

Remove and empty the ice bin if:

• An extended power failure (one hour or longer) causes ice cubes in the ice bin to melt and refreeze together, jamming the dispenser mechanism, after power is restored.

• You do not use the ice dispenser frequently. Ice cubes will freeze together in the bin, jamming the dispenser mechanism.

EXTERNAL WATER DISPENSER

Removing Ice Bin

CAUTION

NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice bin and dispenser mechanism.

To loosen stuck ice, use warm water. Before replacing the ice bin, make sure it is completely dry.

IMPORTANT

When removing or replacing the ice bin, avoid rotating the auger in the ice bin. If the auger accidentally rotates, you must realign the auger by turning it in 45° turns (see below) until the ice bin ﬁts into place with the drive mechanism. If you do not properly align the auger when replacing the ice bin, the refrigerator will not dispense ice. The refrigerator door also may not close properly causing warm air to leak into the refrigerator compartment.

Adjusting Ice Bin Auger

Page 29

INTERNAL WATER DISPENSER

Your refrigerator is equipped with an internal water dispenser mounted inside the cabinet, on the left hand fresh food door.

Priming the water supply system

CAUTION

For proper dispenser operation, the recommended water supply pressure should fall between 30psi and 100psi. Excessive pressure may cause the system to malfunction.

Before dispensing water for the ﬁrst time, be sure to prime the water supply system. If you do not ﬂush the system, the ﬁrst glasses of water may have discolored water or have an odd ﬂavor.

1. Before dispensing, please ensure Water Dispenser is enabled on the display (LEDs above button are lit).

Using the dispenser after installation

Dispenser ON

1. Your appliance arrives with the water dispenser already activated and ready to use. To disable the water dispenser press and hold Water Dispenser for 3 seconds, when the LEDs above Water Dispenser are not lit the water dispensing function is disabled.

2. Place a cup against the paddle and press to dispense water to use the dispenser.

Dispenser OFF

CAUTION

Hold the door with one hand while dispensing water to keep the door from moving and possible dispensing water on ﬂoor.

2. Begin ﬁlling the system by pressing and holding a drinking glass against the water dispenser paddle.

3. Keep the glass in this position until water comes out of the dispenser. It may take about 1½ minutes.

4. Continue dispensing water for about four minutes to ﬂush the system and plumbing connections of any impurities (stop to empty the glass as necessary).

NOTE



If you prefer to keep the internal water dispenser disabled, use the appliance display to disable it. The LEDs are not illuminated above Water Dispenser.

NOTE



The water dispenser has a built-in device that shuts o the water ﬂow after three minutes of continuous use. To reset this shuto device, simply release the dispenser paddle.

Page 30

ICE MAKER

Ice Maker Operation and Care

After you have properly installed the refrigerator, the ice maker can produce ice within 24hours. When using the ice maker for the ﬁrst time, and in order for it to work properly, clear air from the water tubing and the ﬁlter. Furthermore, if you do not ﬂush the system, the ﬁrst ice cubes may be discolored or have an odd ﬂavor. Once the ice maker begins making ice, allow the bin to ﬁll completely, and then discard the ﬁrst FULL bin of ice.

Ice Maker and Storage Bin Capacity

This ice maker should produce between 2 and 2.5 pounds of ice per 24 hours depending on usage conditions. For a Standard Depth unit, the ice bin should hold around 12 pounds of ice. For a Counter Depth unit, the ice bin should hold around 9 pounds of ice.

NOTE



The ice maker produces the advertised production rate only if the product is set at 0°F.

Turning the ice maker on and o

Press the power button to turn Ice Maker on (the button will not illuminate).

NOTE



The Freezer Ice maker ﬁlls from the back left-hand corner of the bin. Moving the ice to the edges of the bin allows the bin to ﬁll completely.

Ice maker tips

• The following sounds are normal when the ice maker is operating:

- Motor running

- Ice dropping into ice bin

- Water valve opening or closing

- Running water

• Ice cubes stored too long may develop an odd ﬂavor. Empty the ice bin as explained below.

CAUTION

If the water supply to your refrigerator is softened, be sure the softener is properly maintained. Chemicals from a water softener can damage the ice maker.

Cleaning the ice maker bin

Clean the ice maker and ice bin at regular intervals, especially prior to vacation or moving.

1. Turn o the ice maker.

2. Remove the ice bin.

3. Empty and carefully clean the ice bin with mild detergent. Do not use harsh or abrasive cleaners. Rinse with clean water.

4. Allow the ice bin to dry completely before replacing in the freezer.

5. Replace the ice bin. Turn the ice maker on.

Remove and empty the ice bin if an extended power failure (one hour or longer) causes ice cubes in the ice bin to melt and refreeze together after power is restored.

on o

CAUTION

NEVER use an ice pick or similar sharp instrument to break up the ice. This could damage the ice bin.

To loosen stuck ice, use warm water. Before replacing the ice bin, make sure it is completely dry.

Page 31

STORAGE FEATURES

Shelves

CAUTION

To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change. Allow the glass shelves to stabilize to room temperature before cleaning. Do not wash in the dishwasher.

You can easily adjust shelf positions in the refrigerator compartments to suit your needs. The shelves have mounting brackets that attach to slotted supports at the rear of each compartment.

To change the position of a shelf:

1. Remove all food from the shelf.

2. Lift the front edge up and pull the shelf out.

Reposition the Air Seal

For glass shelves:

1. Remove the air seal by pushing the seal straight back.

2. Position the air seal toward the outside edge of the shelf to avoid the air tower when you push the shelf back into place.

3. Install the seal by sliding the open channel end of the seal onto the back edge of the shelf until the seal sits snug on the back of the shelf and the ﬂap sits at about a 10° angle from the shelf surface.

IMPORTANT

Note the air seal located at the rear of the shelf. Mount the air seal on the far left side of shelves located on the left side. Mount the air seal on the far right side of shelves located on the right side. This is to ensure there is no interference with the large air tower on the back wall of the cabinet. This also applies to the crispers.

3. Replace by inserting the mounting bracket hooks into the desired support slots.

4. Lower the shelf and lock into position.

To adjust the slide-under shelf:

1. Push the front half of the shelf backward toward the rear of the cabinet until the rear half shelf drops down, and then gently continue pushing the front half shelf back and under the rear half shelf.

Slide-Under Shelf

Page 32

jdkf;ajfd;a jfd;a da; fdjak; da jfdk;a jfdk; jfdk;a ‘’euea hfnzv;a djwte aupjhls’ whyoereoa hga; wuyoepa sp;a uywpere;

STORAGE FEATURES

Drawers

Your refrigerator includes a variety of storage drawers.

Crispers

Crispers are designed for storing fruits, vegetables, and other fresh produce.

Opening Crisper Drawer

Crisper Humidity Control

Crispers have an auto humidity control on the back of each crisper under the humidity control cover.

To remove the auto humidity control membrane:

1. Remove any shelves placed above the crisper cover, and then lift up and remove the crisper cover from the unit.

2. Remove three screws on the bottom of the crisper cover to release the auto humidity cover,

3. Slide out the auto humidity cover from the crisper cover to gain access to the humidity membrane

4. Clean the membrane with hot soapy water.

5. Replace the membrane and cover by reversing the steps above.

PureAir Produce Keeper™

The crisper ethylene absorbers help to keep food fresher longer in the crispers. See FILTER REPLACEMENT for details on how to order replacements.

Removing Auto Humidity Control

NOTE



We do not recommend replacing the auto-humidity membrane unless it becomes damaged or ruined. If the membrane becomes soiled, you can wash it with soap and water. Ensure the membrane is dry before replacing in the unit.

Membrane

Page 33

To remove the Crisper for cleaning:

1. Pull the drawer out until it stops.

2. Lift the front slightly and remove the drawer.

Removing Crisper Drawer

STORAGE FEATURES

CAUTION

Remove the Produce Keeper prior to washing the crisper

To replace the Crisper after cleaning:

1. Place the crisper on top of the deli

cover and tilt upward slightly.

NOTE



Gasket should be on the outside wall of the crisper when assembled.

2. Push the crisper straight once the bottom rollers clear the front deli crisper support rollers.

Page 34

STORAGE FEATURES

Adjustable Temp Drawer

2 3 4

Ideal for storage of deli meats, cheese, and beverages.

IMPORTANT

Do not use the Adjustable Temp Drawer to store fresh produce as these items may freeze and cause damage to the fruits and leafy vegetables stored in the drawer.

Lock Control

The drawer automatically locks to prevent any unwanted use. To change the drawer’s settings, you ﬁrst need to unlock it by pressing and holding for 3 seconds. It will automatically lock after 10 seconds without any interaction.

Meat/Seafood Setting

Select Meat/Seafood for short term storage. Freeze any meat to be kept longer than two days. A tone sounds to conﬁrm choice.

Cold Drinks Settings

Select Cold Drinks when storing individually packaged beverages such as soda cans or juice boxes. A tone sounds to conﬁrm choice.

Deli/Snacks Settings

Select Deli/Snacks when storing meat and cheeses. A tone sounds to conﬁrm choice.

Page 35

STORAGE FEATURES

Doors

Storage bins (vary by model)

The doors to your refrigerator compartment use a system of modular storage bins. You can remove all of these bins for easy cleaning. Some of them have ﬁxed positions, while you can adjust others to your needs.

Door bins are ideal for storing jars, bottles, cans, and large drink containers. They also enable quick selection of frequently used items.

To change the position of an adjustable door bin:

1. Remove all food from door bin.

2. Grip the bin ﬁrmly with both hands and lift it up.

3. Remove the bin.

4. Place the bin just above the desired position.

5. Lower the bin onto the supports until it is locked in place.

6. Place the bin liner into the bin.

Freezer Accessories

Your freezer has baskets and dividers you can adjust to your needs.

To remove the upper freezer basket:

1. Fully open the freezer drawer.

2. Fully extend the upper freezer drawer from the cabinet.

3. Slightly push inward on the basket tabs to release the upper basket from the slide assemblies (one per side, in front).

Adjustable Door Bins

4. Lift the basket up and out of the freezer compartment.

Page 36

STORAGE FEATURES

To replace the upper freezer basket:

1. Completely open the freezer drawer.

2. Pull both upper slides out of the freezer compartment, fully extending them.

3. Take the upper basket assembly and snap the basket back into the docks on the slide assemblies. Perform this on one side at a time as slides will move freely during installation.

4. Once you fully seat the basket on the upper slide assemblies, push the basket back into the freezer compartment.

To remove the lower freezer basket:

1. Completely open the freezer compartment.

2. Locate basket clips in the rear corners of the basket and pull them out to remove.

3. Lift the basket up and remove.

Reverse the steps to reinstall the lower freezer basket.

5. Completely close the freezer drawer.

Push to replace

Lower Basket Divider

Grab the lower divider and pull up slightly to slide to the desired position. (The divider cannot be removed.)

Lower Basket

Divider

Page 37

STORING FOOD AND SAVING ENERGY

Ideas for storing foods

Refrigerator storage

• Keep the refrigerator compartment between 34°F and 40°F with an optimum temperature of 37°F.

• Avoid overcrowding the refrigerator shelves, which reduces air circulation and causes uneven cooling.

• Avoid placing food in front of air ports. (See CONTROLS AND

SETTINGS for illustration.)

Fruits and vegetables

• Store fruits and vegetables in crispers, where trapped moisture helps preserve food quality for longer time periods.

• Wash items and remove excess water.

• Wrap any items with strong odors or high moisture content.

Meat

• Wrap raw meat and poultry separately and securely to prevent leaks and contamination of other foods or surfaces.

• Use the deli drawer to store meat/ poultry for short-term storage. Freeze any meat to be kept longer than two days.

Frozen food storage

• Keep the freezer compartment at 0°F or lower.

• A freezer operates most eciently when it is at least ⅔ full.

Packaging foods for freezing

• To minimize food dehydration and quality deterioration, use aluminum foil, freezer wrap, freezer bags, or airtight containers. Force as much air out of the packages as possible and seal them tightly. Trapped air can cause food to dry out, change color, and develop an o-ﬂavor (freezer burn).

• Wrap fresh meats and poultry with suitable freezer wrap prior to freezing.

• Do not refreeze completely thawed meat.

Loading the freezer

• Prior to grocery shopping, we recommend you activate Freeze Boost to freeze your food faster. It will remain active up to 24 hours.

• Activating Freeze Boost helps your freezer more eciently maintain the selected temperature after placing new purchases with pre-existing frozen foods.

• Avoid adding too much warm food to the freezer at one time. This overloads the freezer, slows the rate of freezing, and can raise the temperature of frozen foods.

• Leave a space between packages, so cold air can circulate freely, allowing food to freeze as quickly as possible.

Ideas for saving energy

Installation

• Locate the refrigerator in the coolest part of the room, out of direct sunlight, and away from heating ducts or registers.

• Do not place the refrigerator next to heat-producing appliances such as a range, oven, or dishwasher. If this is not possible, a section of cabinetry or an added layer of insulation between the two appliances will help the refrigerator operate more eciently.

• Level the refrigerator so the doors close tightly.

Temperature settings

• Refer to CONTROLS AND SETTINGS for procedures on temperature settings.

Food storage

• Avoid overcrowding the refrigerator or blocking cold air vents. Doing so causes the refrigerator to run longer and use more energy.

• Cover foods and wipe containers dry before placing them in the refrigerator. This cuts down on moisture build-up inside the unit.

• Organize the refrigerator to reduce door openings. Remove as many items as needed at one time and close the door as soon as possible.

• Do not place a hot container directly on a cold shelf. Remember, such an extreme temperature change may damage the glass.

Page 38



Energy ecient foam in your refrigerator is not a sound insulator.



During the automatic defrost cycle, a red glow in the back wall vents of your freezer compartment is normal.

NORMAL OPERATING SOUNDS

NOTE

Understanding the sounds you may hear

Your new, high-eciency refrigerator may introduce unfamiliar sounds. These sounds normally indicate your refrigerator is operating correctly. Some surfaces on ﬂoors, walls, and kitchen cabinets may make these sounds more noticeable.

The following is a list of major components in your refrigerator and the sounds they can cause:

A. Evaporator Refrigerant through the

evaporator may create a boiling or gurgling sound.

B. Evaporator fan You may hear

air being forced through the refrigerator by the evaporator fan.

C. Defrost heater During defrost

cycles, water dripping onto the defrost heater may cause a hissing or sizzling sound. After defrosting, a popping sound may occur.

D. Automatic ice maker When ice has

been produced, you will hear ice

cubes falling into the ice bin. Ice maker fan, water valve activation, and refrigerant gas ﬂuid may create

sounds from its operation.

E. Electronic control & automatic

defrost control These parts can

produce a snapping or clicking sound when turning the cooling system on and o.

F. Condenser fan You may hear air

being forced through the condenser.

G. Compressor High-eciency

compressors run much faster than previous models. The compressor may have a noticeable hum or pulsating sound during operation.

H. Water valve Makes a buzzing

sound each time it opens to ﬁll

the ice maker.

I. Drain pan (not removable) You

may hear water dripping into the drain pan during the defrost cycle.

J. Condenser May create minimal

sounds from forced air.

K. Motorized damper May produce a

light humming during operation.

L. Ice dispensing paddle When

dispensing ice, you will hear a snapping, clicking, or popping sound.

Features vary by model

Page 39

FILTER REPLACEMENT

PurePour™ Water Filter

Keep safe, great-tasting water ﬂowing with a PurePour water ﬁlter. Using a Pure-

Pour water ﬁlter:

• Makes Safe Water Second Nature PurePour water ﬁlters are certiﬁed

to reduce contaminants* and keep great-tasting water ﬂowing for you and your family.

• Produces Purity You Can Trust Know for certain your PurePour wa- ter ﬁlter is a protector. Counterfeits and knockos put your refrigerator and health at risk. Frigidaire Genuine Filters are the smarter, safer choice.

• Every Drop Gives Back Partnered on sustainability eorts, the use of a PurePour water ﬁlter helps cut back on the cost and use of plastic used to produce and package bottled water

Ordering your replacement water ﬁlter

If you have not used your refrigerator for a period of time (during moving for example), change the ﬁlter before reinstalling the refrigerator. To order your replacement ﬁlters, please visit our online store at Frigidaire.com, by calling toll-free at 1 (800) 372-4432, or by visiting the dealer where you purchased your refrigerator. We recommend you order extra ﬁlters when you ﬁrst install your refrigerator, and you replace your ﬁlters at least once every 6 months.

Here are the product numbers to request when ordering:

PurePour™ Water & Ice Refrigerator

Filter PWF-1™ FPPWFUO1

NOTE



When you order your replacement ﬁlter, please reorder the same ﬁlter type currently in your refrigerator.

More about your Advanced Water Filter

Certiﬁed by IAPMO R&T against NSF/ANSI Standards 42, 53, 401, CSA B483.1 and NSF/ANSI/CAN 372 in PurePour PWF-1 systems for reduction of the claims on the Performance Data Sheet*.

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Use systems certiﬁed for cyst reduction on disinfected waters that may contain ﬁlterable cysts.

Test & certiﬁcation results:

• Rated Capacity - 125 gal/453 L for PurePour and ice and water ﬁlter

• Rated service ﬂow - .50 gal/min.

• Operating Temp.: Min. 33°F, Max. 100°F

• Maximum Rated Pressure - 100 lbs/in.²

• Recommended Minimum Operating Pressure: 30 lbs/in²

Replacing your water ﬁlter

The water ﬁlter is located at the left side of the Adjustable Temp Drawer. In general, you should change the water ﬁlter every 6 months to ensure the highest possible water quality. Water Filter Status on the user interface prompts you to replace the ﬁlter after a standard amount of water (125 gal/453 L for PurePour) has ﬂowed through the system.

*Find the Performance Data Sheet located in the Guides and Manuals section for your speciﬁc water ﬁlter on Frigidaire.com.

Page 40

FILTER REPLACEMENT

It is not necessary to turn the water supply o to change the ﬁlter. Be ready to wipe up any small amounts of water released during the ﬁlter replacement.

1. Turn O the ice maker(s).

2. Remove the ﬁlter by pushing on the end/face of the ﬁlter.

3. Slide the old water ﬁlter cartridge straight out of the housing and discard it.

4. Unpackage the new ﬁlter cartridge. Using the alignment guide, slide it gently into the ﬁlter housing until it stops against the snap-in connector at the back of the housing.

5. Push ﬁrmly until the cartridge snaps into place (you should hear a click as the cartridge engages the snap-in connector).

6. Press a drinking glass against the water dispenser while checking for any leaks at the ﬁlter housing. Any spurts and sputters that occur as the system purges air out of the dispenser system are normal.

7. After ﬁlling one glass of water, continue ﬂushing the system for about 4 minutes.

8. Turn On the ice maker(s).

9. Press and hold the Water Filter reset button on the Ice & Water Dispenser control panel for 3 seconds. When the display changes from red to green, the status has been reset.

PureAirTM RAF-2 Air Filter

The air ﬁlter is located at the top of the air tower.

Ordering your air ﬁlter

To order replacement ﬁlters, please visit our online store at Frigidaire.com, by calling toll-free at 1 (800) 372-4432, or by visiting the dealer where you purchased your unit.

Here are the product numbers to request when ordering:

PureAir RAF-2 replacement cartridge FRGPAAF2

Replacing your air ﬁlter

To ensure optimal ﬁltering of refrigerator odors, you should change the air ﬁlter every six months (the ﬁlter status light on the appliance control display prompts you to replace the ﬁlter after six months).

1. Place ﬁngers on bottom of air ﬁlter cover and pull from the top toward the front of the unit, releasing the top snaps on the air ﬁlter cover from the air tower.

2. Lift the bottom snaps up and out of air tower assembly to disengage and remove the front cover.

3. Replace the air ﬁlter by snapping the ﬁlter into the snaps on the air ﬁlter cover.

4. Reverse the above steps to install the front cover.

5. To reset Air Filter status, refer to instructions in CONTROLS

AND SETTINGS.

Page 41

FILTER REPLACEMENT

jdkf;ajfd;a jfd;a da; fdjak; da jfdk;a jfdk; jfdk;a ‘’euea hfnzv;a djwte aupjhls’ whyoereoa hga; wuyoepa sp;a uywpere;

;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;



;

PureAir Produce Keeper™

Keep fruits and vegetables fresher longer with PureAir Produce Keeper. Our produce keeper absorbs ethylene gas, the natural gas that causes produce to ripen quicker. Reduce food waste, save money and enjoy fresh-tasting produce with a longer storage life. To order replacement ﬁlter please visit our online store at Frigidaire.com, by calling toll-free at 1 (800) 372-4432, or by visiting the dealer where you purchased your refrigerator. We recommend you replace your ﬁlters at least once every 6 months.

Here are the product numbers to request when ordering:

PureAir Produce Keeper PK-1 FRPAPKRF

Installing your PureAir Produce Keeper:

1. Remove the plastic wrapper. Insert unopened packet into the holder in the Crisper Drawer.

2. For optimal results, replace the reﬁll every 6 months along with your air ﬁlter.

CAUTION

DO NOT OPEN. Contents may irritate

eyes or skin. Keep out of reach of children. FIRST AID: Contains potassium permanganate. In case of contact with eyes or skin, rinse immediately with water. DO NOT EAT: If swallowed, seek medical treatment immediately.

Page 42

CARE AND CLEANING

Protecting your investment

Keeping your refrigerator clean maintains its appearance and prevents odor build-up.

NOTE



Do not use abrasive cleaners such as window sprays, scouring cleansers, ﬂammable ﬂuids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. Do not use paper towels, scouring pads, or other abrasive cleaning materials.

Wipe up any spills immediately and clean the freezer and refrigerator compartments at least twice a year.

• Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline solutions on any surface.

• Never use CHLORIDE or cleaners with bleach to clean stainless steel.

NOTE



If you set your temperature controls to turn o cooling, power to lights and other electrical components continue until you unplug the power cord from the wall outlet.

• Do not wash any removable parts in a dishwasher.

• Always unplug the electrical power cord from the wall outlet before cleaning.

• Remove adhesive labels by hand. Do not use a razor blade or other sharp instrument which can scratch the appliance surface.

• Do not remove the serial plate. Removing the serial plate voids your warranty.

• Before moving your refrigerator, raise the anti-tip brackets so the rollers work correctly. This prevents ﬂoor damage.

Refer to the guide on the next page for details on caring for and cleaning speciﬁc areas of your refrigerator.

CAUTION

• Pull the refrigerator straight out to move it. Shifting it from side to side may damage the ﬂoor. Be careful not to move the refrigerator beyond the plumbing connections.

• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.

IMPORTANT

If you store or move your refrigerator in freezing temperatures, be sure to completely drain the water supply system. Failure to do so could result in water leaks when you use the refrigerator again. Contact a service representative to perform this operation.

Page 43

CARE AND CLEANING

Vacation and moving tips

Occasion Tips Short

Vacations

Long Vacations

Moving • Unplug the unit

Interior & Door Liners

Door Gaskets • Soap and water Wipe gaskets with a clean soft cloth. Drawers & Bins • Soap and water Glass Shelves • Soap and water

Exterior & Handles

(Stainless Steel Models Only)

• Leave the refrigerator operating during vacations of three weeks or less.

• Use all perishable items from the refrigerator compartment.

• Turn the automatic ice maker o and empty the ice bucket even if you will be gone only a few days.

• Remove all food and ice if you will be gone one month or more.

• Turn the cooling system o (see location of the On/O button) and disconnect power cord.

• Turn water supply valve to closed position.

• Clean the interior thoroughly.

• Leave both doors open to prevent odors and mold build-up. Block doors open if necessary.

• Remove all food and ice.

• Use a handcart, loading from the side.

• Adjust rollers all the way up to protect them during sliding or moving.

• Pad the cabinet to avoid scratching the surface.

CONTROLS AND SETTINGS

Care and Cleaning Tips

Part What To Use Tips and Precautions

• Soap and water

• Baking soda and water

• Glass cleaner

• Mild liquid sprays

• Soap and water

• Non Abrasive Glass Cleaner

• Soap and water

• Stainless Steel Cleaners

Use two tablespoons of baking soda in one quart of warm water. Be sure to wring excess water

out of sponge or cloth before cleaning around controls, light bulb or any electrical part.

Use a soft cloth to clean drawer runners and tracks. Allow glass to warm to room temperature

before immersing in warm water.

Do not use commercial household cleaners containing ammonia, bleach or alcohol to clean handles. Use a soft cloth to clean smooth handles. DO NOT use a dry cloth to

clean smooth doors. Never use CHLORIDE or cleaners with

bleach to clean stainless steel.

Clean stainless steel front and handles with non-abrasive soapy water and a dishcloth. Rinse with clean water and a soft cloth. Use a non-abrasive stainless steel cleaner. You can purchase these cleaners at most home improvement or major department stores. Always follow the manufacturer’s instructions. Do not use household cleaners containing ammonia or bleach.

NOTE: Always clean, wipe and dry with the grain to prevent scratching. Wash the rest of

the cabinet with warm water and mild liquid detergent. Rinse well, and wipe dry with a clean soft cloth.

for the

Page 44

Let us help you troubleshoot your concern! This section will help you with common issues. If you need us, visit our website, chat with an agent, or call us. We may be able to help you avoid a service visit. If you do need service, we can get that started for you!

TROUBLESHOOTING

1-800-374-4432 (United States)

Frigidaire.com

1-800-265-8352 (Canada)

Frigidaire.ca

Concern Potential Cause Common Solution

Automatic Ice Maker

Ice maker is not making any ice.

• Ice maker is turned o.

• Refrigerator is not connected to water line or water valve is not open.

• The water supply line is kinked.

• The water ﬁlter is not seated properly.

• The water ﬁlter may be clogged with a foreign material.

• Ice maker bail arm is being held up by an item not allowing it to go in the on or down position.

• Turn on ice maker. For the refrigerator ice maker, press and hold the Ice Maker On-O button on your display. For the freezer ice maker, turn the ice maker on by pressing the toggle switch on the — side.

• Connect the unit to the household water supply and ensure the water valve is open.

• Ensure the supply line does not kink when you push the refrigerator into place against the wall.

• Remove and reinstall the water ﬁlter. Be sure to fully seat it into the locked position.

• If water dispenses slowly or not at all, or if the ﬁlter is six months old or older, replace it.

• Move any item or frozen ice cubes blocking the bail arm from being in the on or down position. Additionally, the ice bin itself may be out of position so that it prevents the bail arm from dropping all the way down. Be sure the bin is pushed all the way to the rear of the shelf. See ICE MAKER.

Page 45

TROUBLESHOOTING

Concern Potential Cause Common Solution

Automatic Ice Maker (Cont’d)

Ice maker is not making enough ice.

Freezer ice maker will not stop making ice (select models).

• Ice maker is producing less ice than expected.

• The water ﬁlter may be clogged with a foreign material.

• The water supply line is kinked.

• Saddle valve on cold water pipe is clogged or restricted by foreign material.

• Heavy trac, opening or closing the doors excessively.

• Freezer control is set too warm (freezer ice maker).

• Water pressure is extremely low. Cut-o and cut-on pressures are too low (well systems only).

• Reverse osmosis system is in regenerative phase.

• Ice maker bail arm is being held down by a package in the freezer that has fallen against ice maker.

• Ice cubes are located in one spot inside the freezer ice bin

• In a Standard Depth model, the refrigerator ice maker should produce 3 to 3.4 lbs of ice per 24 hours. In a Counter Depth model, the refrigerator ice maker should produce 2.7 to 3.2 lbs of ice per 24 hours.

• In a Standard Depth model, the refrigerator ice bin holds around 5 lbs of ice. In a Counter Depth model, the refrigerator ice bin holds around 3.7 lbs of ice.

• If water dispenses slower than normal, or if the ﬁlter is six months old or older, replace it.

• Ensure the supply line does not kink when you push the refrigerator into place against the wall.

• Turn o the household water line valve. Remove and clean the valve. Replace the valve if necessary.

• Set the freezer control to a colder setting to improve the freezer ice maker performance. Allow 24 hours for the temperature to stabilize.

• Have someone turn up the cut-o and cut-on pressure on the water pump system (well systems only).

• It is normal for a reverse osmosis system to be below 20 psi during the regenerative phase.

• Move any item or frozen ice cubes that may block the bail arm from being in the o or upward position. See

• Periodically move ice cubes around the ice bin so the ice maker will continue to make ice.

ICE MAKER

Page 46

TROUBLESHOOTING

Concern Potential Cause Common Solution

Automatic Ice Maker (Cont’d)

Ice cubes are freezing together.

Dispenser (Ice & Water)

Dispenser will not dispense ice.

Ice dispenser is jammed.

Dispenser will not dispense wa t e r.

Water not cold enough.

Water has an odd taste and/or odor.

• Ice cubes are not being used frequently enough or interruption of power for prolonged time.

• Ice cubes are hollow (shells of ice with water inside). The hollow cubes break open in the bin and leak their water onto existing ice, which causes it to freeze together.

• There is no ice in the bin to be dispensed.

• The refrigerator doors are not completely closed.

• Dispenser paddle has been pressed too long and the dispenser motor has overheated.

• Ice has melted and frozen around the auger due to infrequent use, temperature ﬂuctuations, and/or power outages.

• Ice cubes are jammed between ice maker and back of ice container.

• Water ﬁlter is not seated properly.

• Water ﬁlter is clogged.

• Household water line valve is not open.

• The water dispensing system is not designed to chill water.

• Water has not been dispensed for an extended period of time.

• Unit not properly connected to cold water line.

• Remove the ice bin and discard the ice. The ice maker will produce a fresh supply. Use ice at least twice weekly to keep the cubes separated.

• This generally occurs when the ice maker does not get enough water. This is usually the result of a clogged water ﬁlter or restricted water supply. Replace the water ﬁlter and if the condition still occurs check for a clogged saddle valve, the water valve not turned on all the way, or a kinked water supply line.

• See the Ice maker is not making any ice section above.

• Be sure the refrigerator doors are completely closed.

• The motor overload protector resets in about three minutes and then you can dispense ice.

• Remove the ice bin, thaw, and empty the contents. Clean the bin, wipe it dry, and replace it in the proper position. When new ice is made, the dispenser should operate.

• Remove ice cubes jamming the dispenser.

• Remove and reinstall the water ﬁlter. For PurePour, be sure to push the ﬁlter in all the way until it clicks into place and is secured inside of the water ﬁlter housing.

• Replace the ﬁlter cartridge. Be sure to push the ﬁlter all the way in until it clicks into place and is secured inside of the water ﬁlter housing.

• Open the household water line valve. See CONCERN column AUTOMATIC

ICE MAKER

• Add ice to cup or container before dispensing water.

• Draw and discard 10-12 glasses of water to freshen the supply.

• Connect the unit to the cold water line supplying water to the kitchen faucet.

Page 47

TROUBLESHOOTING

Concern Potential Cause Common Solution

Opening/Closing Of Doors/Drawers

Door(s) will not close.

Drawers are dicult to move.

Running of Refrigerator

Compressor does not run.

Refrigerator seems to run too much or too long.

Digital Temperature Setting Display

Digital temperature displays an error.

• Door was closed too hard, causing other door to open slightly.

• Refrigerator is not level. It rocks on the ﬂoor when moved slightly.

• Refrigerator is touching a wall or cabinet.

• Food is touching shelf on top of drawer.

• Track drawers slide on is dirty.

• Freezer control is set to OF.

• Refrigerator is in defrost cycle.

• Plug at electrical outlet is disconnected.

• House fuse blown or tripped circuit breaker.

• Power outage.

• Your variable speed compressor is designed to run 100% of the time except during the defrost cycle. At times it will run faster, such as after a defrost cycle.

• Electronic control system has detected a performance problem.

• Close both doors gently.

• Ensure ﬂoor is level and solid and can adequately support the refrigerator. Contact a carpenter to correct a sagging or sloping ﬂoor.

• Ensure ﬂoor is level and solid, and can adequately support the refrigerator. Contact a carpenter to correct a sagging or sloping ﬂoor.

• Remove the top layer of items in the drawer.

• Ensure drawer is properly installed on track.

• Clean drawer, rollers, and track. See CARE AND CLEANING.

• Set freezer control.

• This is normal for a fully automatic defrost refrigerator. The defrost cycle occurs periodically, lasting about 30 minutes.

• Ensure plug is tightly pushed into outlet.

• Check/replace fuse with a 15 amp time-delay fuse. Reset circuit breaker.

• Check house lights. Call local electric company.

• It is normal for the compressor to run continuously except during defrost mode.

• Call your service representative, who can interpret any messages or number codes ﬂashing on the digital displays.

Page 48

TROUBLESHOOTING

Concern Potential Cause Common Solution

Water/Moisture/Frost Inside Refrigerator

Moisture collects on the inside of refrigerator walls.

Water collects on the bottom side of the drawer cover.

Water collects in the bottom of the drawer.

Water/Moisture/Frost Outside Refrigerator

Moisture collects on outside of refrigerator or between doors.

Food in Fresh Food Compartment

Food is freezing.

• Weather is hot and humid.

• Flipper mullion

• Vegetables contain and give o moisture.

• Washed vegetables and fruit drain while in the drawer.

• Weather is humid. • This is normal in humid weather.

• Temperature setting is too low.

• Temperature sensor is covered by food (right side of fresh food area).

• Food is covering the air ports.

• The rate of frost buildup and internal sweating increases.

• Adjust ﬂipper mullion. (See To adjust the ﬂipper mullion in INSTALLATION.)

• It is not unusual to have moisture on the bottom side of the cover. Move the humidity control (some models) to lower setting.

• Water collecting in the bottom of the drawer is normal. Dry items before putting them in the drawer or store produce in tightly sealed bags to help reduce condensation inside of the drawer.

When humidity is lower, the moisture should disappear.

• Move the setting to a higher degree.

• Allow space for air ﬂow to the sensor.

• Allow space between the air ports and the food.

Page 49

LIMITED WARRANTY

Your appliance is covered by a one year limited warranty. For one year from your date of delivery, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.

Exclusions This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased “as-is” are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air ﬁlters, water ﬁlters, other consumables, or knobs, handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the ﬁnish of appliance or home incurred during installation, including but not limited to ﬂoors, cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, ﬁres, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or speciﬁcations as described or illustrated are subject to change without notice.

USA 1-800-374-4432

Frigidaire 10200 David Taylor Drive Charlotte, NC 28262

1.800.265.8352

Canada

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

L5V 3E4

Page 50

welcome home

Our home is your home. Visit us if you need help with any of these things:

owner support

accessories

service

registration

(See your registration card for more information.)

Frigidaire.com 1-800-374-4432

Frigidaire.ca 1-800-265-8352
