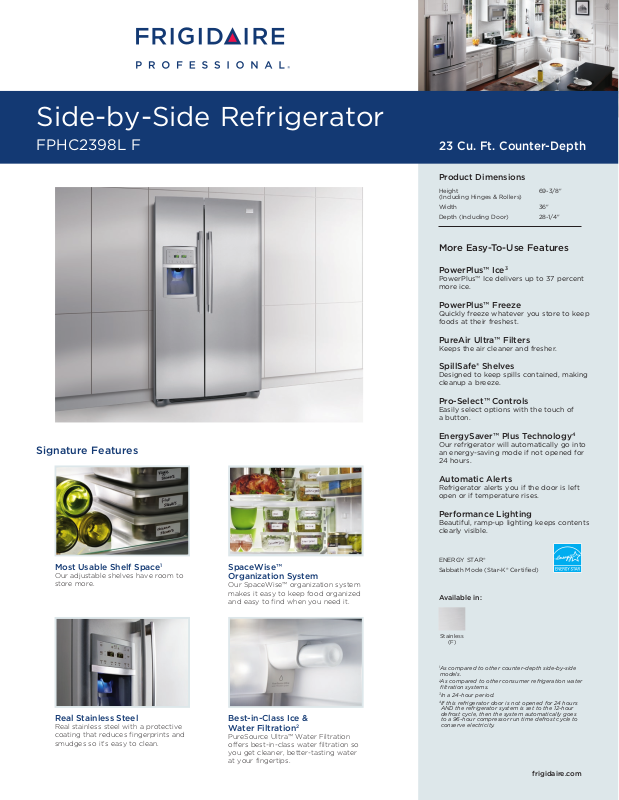

Frigidaire FPHC2398L DATASHEET

Side-by-Side Refrigerator

FPHC2398L F

Signature Features

23 Cu. Ft. Counter-Depth

Product Dimensions

Height 69-3/8"
(Including Hinges & Rollers)

Width 36"

Depth (Including Door) 28-1/4"

More Easy-To-Use Features

PowerPlus™ Ice

PowerPlus™ Ice delivers up to 37 percent
more ice.

PowerPlus™ Freeze

Quickly freeze whatever you store to keep
foods at their freshest.

PureAir Ultra™ Filters

Keeps the air cleaner and fresher.

SpillSafe® Shelves

Designed to keep spills contained, making
cleanup a breeze.

Pro-Select™ Controls

Easily select options with the touch of
a button.

EnergySaver™ Plus Technology

Our refrigerator will automatically go into
an energy-saving mode if not opened for
24 hours.

3

4

Most Usable Shelf Space

Our adjustable shelves have room to
store more.

1

Real Stainless Steel

Real stainless steel with a protective
coating that reduces fingerprints and
smudges so it’s easy to clean.

SpaceWise™
Organization System

Our SpaceWise™ organization system
makes it easy to keep food organized
and easy to find when you need it.

Best-in-Class Ice &
Water Filtration

PureSource Ultra™ Water Filtration
offers best-in-class water filtration so
you get cleaner, better-tasting water
at your fingertips.

2

Automatic Alerts

Refrigerator alerts you if the door is left
open or if temperature rises.

Performance Lighting

Beautiful, ramp-up lighting keeps contents
clearly visible.

ENERGY STAR®

Sabbath Mode (Star-K® Certified)

Available in:

Stainless

(F)

1

As compared to other counter-depth side-by-side
models.

2

As compared to other consumer refrigeration water
filtration systems.

3

In a 24-hour period.

4

If this refrigerator door is not opened for 24 hours
AND the refrigerator system is set to the 12-hour
defrost cycle, then the system automatically goes
to a 96-hour compressor run time defrost cycle to
conserve electricity.

frigidaire.com

Features

Door Design

Door Handle Design

Cabinet Finish

Door Stops / Door Closers

Door Hinge Covers

Rollers – Front / Rear

EnergySaver™ Plus Technology

Water Filter Location

Sound Package

Soft-Arc

Stainless Steel

Stainless Look

Yes / Yes

Hidden

Adjustable / Yes

Yes

Top Right Rear-Side

Quiet Pack

Dispenser

Controls

Dispenser Design

Number of Dispenser Buttons

Crushed Ice / Cube Ice / Chilled Water

Ice Option

Freeze Option

Display On / O Option

Control Lock  / Light

Temp / Door Ajar / Power Failure Alerts

Water Filter Change Indicator Light

Air Filter Change Indicator Light

Pro-Select™

Tall, Single Paddle

13

Yes / Yes / Yes

PowerPlus™ Ice

PowerPlus™ Freeze

Yes

Yes / Yes

Yes / Yes / Yes

Yes

Yes

Refrigerator Features

Interior Lighting

Water Filter Type 

Air Filter Type

Fixed Shelves

Sliding Shelves

Cool Zone™ Drawer

Wine / Can Rack

Upper Crisper / Lower Crisper

Humidity Controls

Dairy Compartment

Fixed Door Bins

Adjustable Door Bins

Non-Slip Bin Liner  / Bottle Retainers

Condiment Bin

Performance

PureSource Ultra™

PureAir Ultra™

3 SpillSafe®

1 Stacked

No / 1 Clear

1 Clear / 1 Clear

2

1 Clear

1 One-Gallon Clear

2 Two-Liter Clear

Yes / 1 Clear

1 Clear

Freezer Features

Door Bins / Tilt-Out Wire Door Bins

Fixed Shelves

Full Extension Baskets 

Full Freezer Baskets

Half Freezer Baskets

Ice Cream Shelf / Pizza Shelf

SpaceSaver™ Shelf

Lighting

2 White / 2

1 Flip-Out / 1 Wire

2 Wire

1 Wire

Yes

Yes

Certifications

Sabbath Mode (Star-K® Certified)

ENERGY STAR®

Yes

Yes

Specifications

Total Capacity (Cu. Ft.)

Refrigerator Capacity (Cu. Ft.)

Freezer Capacity (Cu. Ft.)

Power Supply Connection Location

Water Inlet Connection Location

Voltage Rating

Connected Load (kW Rating)
@ 120 Volts

1

Amps @ 120 Volts

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

1

For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.

22.6

14.1

8.5

Right Bottom Rear

Left Bottom Rear

120V / 60Hz / 15 or 20A

1.02

8.5

15

310 Lbs.

Side-by-Side Refrigerator

FPHC2398L F 23 Cu. Ft. Counter-Depth

NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Product Dimensions

A - Height (Incl. Hinges and Rollers)

B - Width

C - Depth (Incl. Door)

Depth with Door Open 90˚

69-3/8"

36"

28-1/4"

45"

"Built-In Look" Cutout Dimensions

Height (Incl. Hinges and Rollers)

Width

Depth

Accessories information available

on the web at frigidaire.com

70-1/4"

36"

25"

•
