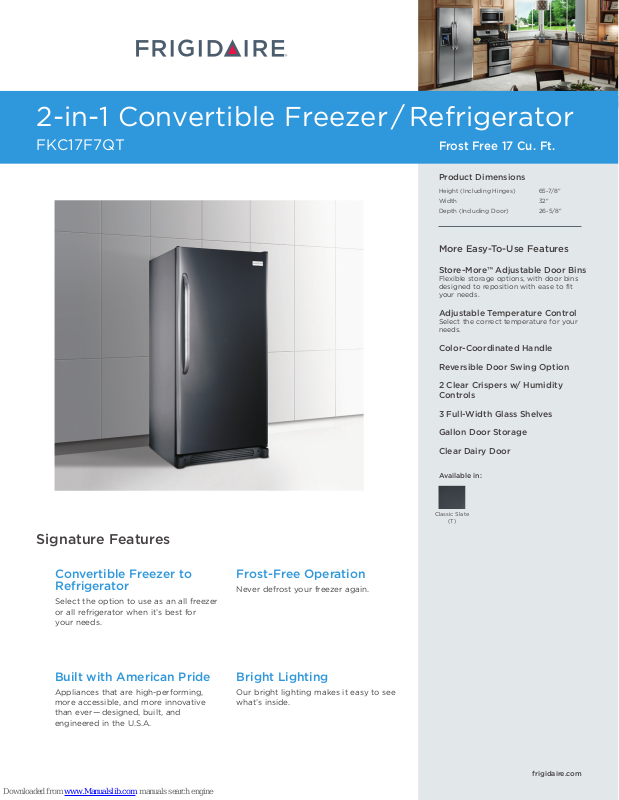

Frigidaire FKC17F7QT? Features & Specifications
2-in-1 Convertible Freezer / Refrigerator
FKC17F7QT
Frost Free 17 Cu. Ft.
Product Dimensions
Height (Including Hinges) 65-7/8"
Width 32"
Depth (Including Door) 26-5/8"
More Easy-To-Use Features
Store-More™ Adjustable Door Bins
Flexible storage options, with door bins
designed to reposition with ease to fit
your needs.
Adjustable Temperature Control
Select the correct temperature for your
needs.
Color-Coordinated Handle
Reversible Door Swing Option
2 Clear Crispers w/ Humidity
Controls
3 Full-Width Glass Shelves
Gallon Door Storage
Signature Features
Convertible Freezer to
Refrigerator
Select the option to use as an all freezer
or all refrigerator when it’s best for
your needs.
Built with American Pride
Appliances that are high-performing,
more accessible, and more innovative
than ever — designed, built, and
engineered in the U.S.A.
Frost-Free Operation
Never defrost your freezer again.
Bright Lighting
Our bright lighting makes it easy to see
what’s inside.
Clear Dairy Door
Available in:
Classic Slate
(T)
frigidaire.com
Features
C
A
B

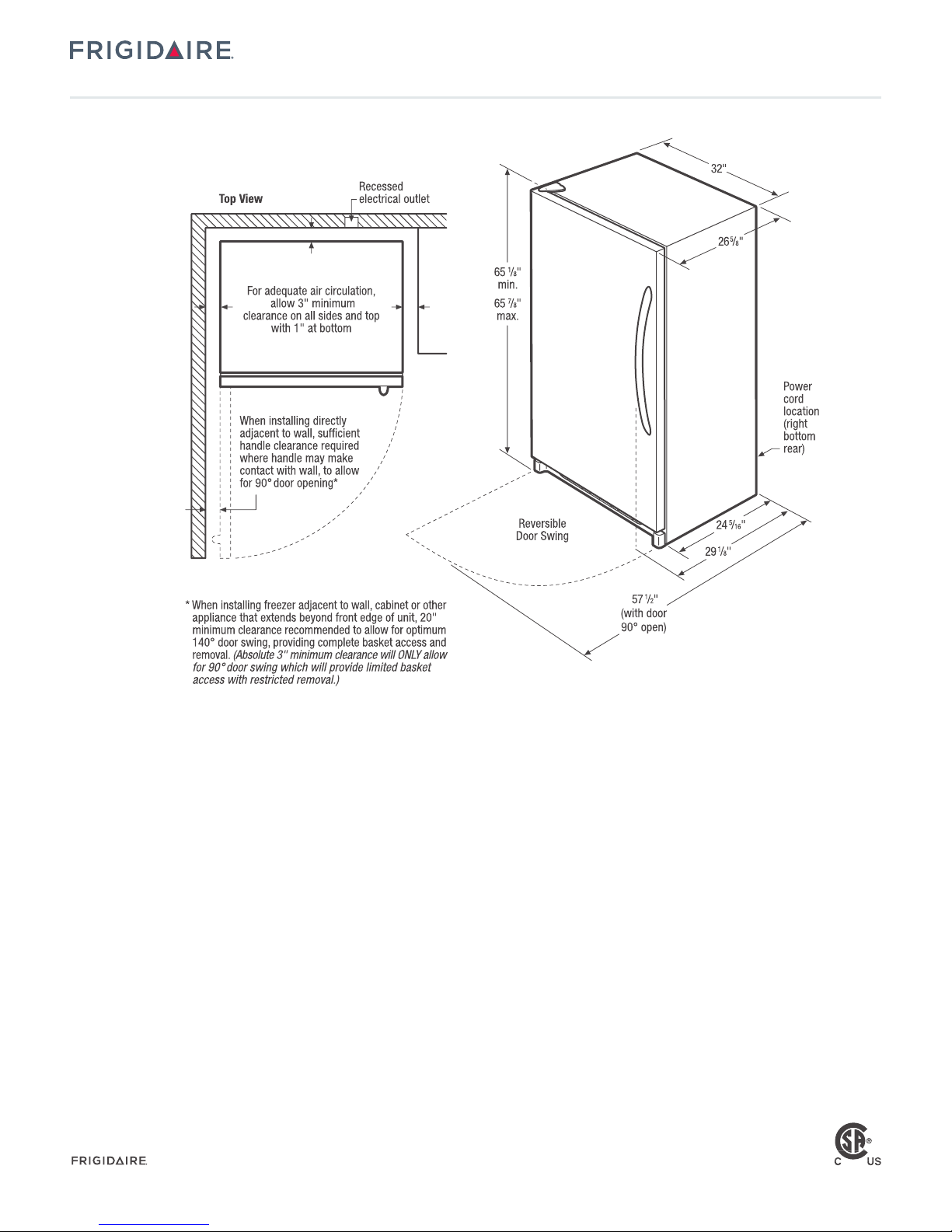

* When installing freezer adjacent
to wall, cabinet or other appliance
that extends beyond front edge of
unit, 20" minimum clearance
recommended to allow for
optimum 140° door swing,
providing complete basket access
and removal. (Absolute 3"
minimum clearance will ONLY
allow for 90°
door swing which
will provide limited basket access
with restricted removal.)
When installing directly
adjacent to wall, sufficient
handle clearance required
where handle may make
contact with wall, to allow
for 90° door opening*
For adequate air circulation,
allow 3" minimum
clearance on all sides and top
with 1" at bottom
Top View
Recessed
electrical outlet
Door Handle Design
Reversible Door
Automatic Door Closer
Leveling Legs
Defrost
Adjustable Temperature Control
Interior Lighting
Full-Width Adjustable Shelves
Full-Width Fixed Shelves
Crisper Drawer
Humidity Controls
Store-More™ Adjustable Door Bins
Full-Width Door Bins
Convertible
Reach-Through
Yes
Yes
Yes
Frost Free
Yes
Bright
2 Glass
1 Glass
2 Clear
2
4 Clear
1 White
Yes
Certifications
CSA Rating
Household
Specifications
Total Capacity (Cu. Ft.)
Shelf Area (Sq. Ft.)
Annual Energy (kWH)
Annual Energy Cost (.1065 / kWH)
Power Supply Connection Location
Voltage Rating
Connected Load (kW rating) @ 120 Volts
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
An electrical supply with grounded three-prong receptacle is required. The
power supply circuit must be installed in accordance with current edition
of National Electrical Code (NFPA 70) and local codes & ordinances.
16.7
17.6
615
$65
Lower Right Rear
120V / 60Hz / 15A
1
.6
5
15
205 Lbs.
Convertible Freezer / Refrigerator
FKC17F7QT 17 Cu. Ft.
•
USA
10200 David Taylor Drive
CANADA
FKC17F7Q 01/14 © 2014 Electrolux Home Products, Inc.
•
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Including Hinges)
B - Width
C - Depth (Including Door)
D - Depth with Door Open 90˚
65-7/8"
32"
26-5/8"
57-1/2"
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
