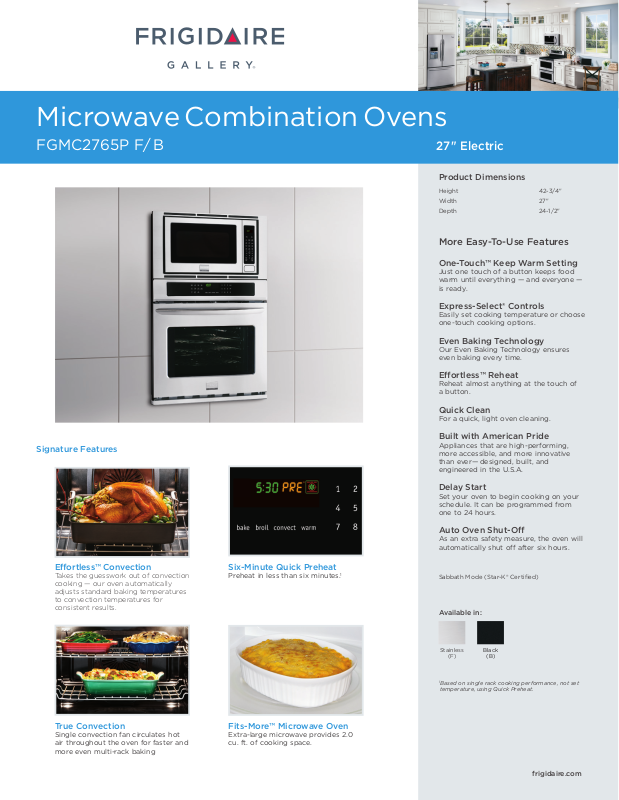

Microwave Combination Ovens
FGMC2765P F/ B
Signature Features
27" Electric
Product Dimensions
Height 42-3/4"
Width 27"
Depth 24-1/2"
More Easy-To-Use Features
One-Touch™ Keep Warm Setting
Just one touch of a button keeps food
warm until everything — and everyone —
is ready.
Express-Select® Controls
Easily set cooking temperature or choose
one-touch cooking options.
Even Baking Technology
Our Even Baking Technology ensures
even baking every time.
Eortless™ Reheat
Reheat almost anything at the touch of
a button.
Quick Clean
For a quick, light oven cleaning.
Built with American Pride
Appliances that are high-performing,
more accessible, and more innovative
than ever — designed, built, and
engineered in the U.S.A.
Eortless™ Convection
Takes the guesswork out of convection
cooking — our oven automatically
adjusts standard baking temperatures
to convection temperatures for
consistent results.
True Convection
Single convection fan circulates hot
air throughout the oven for faster and
more even multi-rack baking
Six-Minute Quick Preheat
Preheat in less than six minutes.
1
Fits-More™ Microwave Oven
Extra-large microwave provides 2.0
cu. ft. of cooking space.
Delay Start
Set your oven to begin cooking on your
schedule. It can be programmed from
one to 24 hours.
Auto Oven Shut-O
As an extra safety measure, the oven will
automatically shut off after six hours.
Sabbath Mode (Star-K® Certified)
Available in:
Stainless
(F)
1
Based on single rack cooking performance, not set
temperature, using Quick Preheat.
Black
(B)
frigidaire.com
Page 2
Features
Control / Timing System
Exterior Door Finish
Handle Design
Microwave Features
Microwave Capacity (Cu. Ft.)
Watts (IEC-705 Test Procedure)
Window
Interior Light
Interior Color
Turntable Diameter
Turntable On / O
Control Lock / Clock
Touch Pad Buttons / Power Levels
Microwave Control Options
Popcorn Button
Chicken Nugget Button
Baked Potato Button
Reheat Button / Snack Button
Auto Melt / Soften Options
Auto Reheat Options
Snack Menu Options
Auto Cook Options
Auto Defrost Options
Keep Warm / Add-30-Seconds
Sensor Cooking Options
Vegetable Cook Sensor
Delay Start / User Preferences
Oven Features
Oven Capacity (Cu. Ft.)
Oven Window
Oven Lights
Hidden Bake Element
Convection System
Baking System
Broiling System
Quick Preheat
Bake / Broil Element (Watts)
Oven Rack Configuration
Oven Cleaning System
Oven Controls
Convection Conversion
My Favorite / Slow Cook
Eortless™ Temperature Probe
Chicken Nugget Button / Pizza Button
Keep Warm / Add-a-Minute
Optional Accessories
3"-High Bottom Trim – Stainless
Steel (F) / Black (B)
10'-Long Armored Power Cable
Certifications
Sabbath Mode (Star-K® Certified)
Specifications
Microwave Oven Interior ( H x W x D )
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 240 / 208 Volts
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
Express-Select®
Smudge-Proof™ Stainless
Steel (F), Color-Coord. (B)
Stainless Steel (F),
Color-Coordinated (B)
2.0
1,200
Large
Yes
White
16"
Yes / Yes
28 / 10
Yes
Yes
Yes
Yes / Yes
4
3
3
3
6
Yes / Yes
5
Yes
Yes / Yes
3.8
Extra-Large
2 Halogen
Yes
True Convection
Even Baking Technology
Vari-Broil™
Yes
1,450 / 3,400
2 Heavy Duty, 1 Oset Rack
Self Clean / Steam Clean
Eortless™
Yes
Yes / No
(F) PN # 903114-901S
(B) PN # 903114-9010
PN # 903056-9010
Yes
10-1/2" x 17-3/8" x 18-5/8"
17" x 20-1/2" x 18-3/4"
Left Bottom Rear
240V / 208V / 60Hz
6.9 /5.2
28.8/ 25
30
215 Lbs.
Microwave Combination Ovens
FGMC2765P F/B 27" Electric
B
A
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web
at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
D - Height (Wrapper)
E - Width (Wrapper)
Depth with Door Open 90˚
1
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt,
60 Hertz AC only electrical supply with ground required on
separate circuit fused on both sides of line.
42-3/4"
27"
24-1/2"
40-15/16"
24-5/8"
45-1/2"
Cutout Dimensions
Height (Min.) / (Max.)
Width (Min.) / (Max.)
Depth (Min.)
E
Spacer
C
D
41-1/8" / 41-1/4"
24-7/8" / 25-1/4"
23-1/2"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FGMC2765P 09/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Page 3
Microwave Combination Ovens
27" Microwave / Wall Oven Combination
Gallery
FGMC2765P F/B 27" Electric
Microwave Combination Oven Specifications
•
Product Shipping Weight (approx.) – 215 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit
fused on both sides of line.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 6.9 / 5.2 kW
•
Amps @ 240 / 208 Volts = 28.8 / 25 Amps
•
Recommended Circuit Breaker – 30 Amps
•
Always consult local and national electric codes.
•
Minimum 21" clearance for oven door depth when open.
•
Suggested distance from floor is 11-1/2". Minimum required distance
is 4-1/2".
•
To adapt Microwave Combination Oven to fit cutout height greater
than 41-11/16", add one 2"-wide wood shim of appropriate height
to each side of opening under oven side rails. Lifting oven will hide
larger cutout opening at top and oven’s 1"-high bottom trim will
hide shims at bottom. (Standard 1"-High Bottom Trim included.)
•
USA
10200 David Taylor Drive
•
CANADA
FGMC2765P 09/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
•
To adapt Microwave Combination Oven to fit cutout height greater
than 42-3/16", optional 3"-High Bottom Trim available.
•
Minimum 23-1/2" deep cutout dimension is critical for proper
installation, to ensure that oven’s faceplate will fit flush against
cabinet front.
•
Full oven base of solid plywood or similar material required,
capable of supporting 225 Lbs.
•
Base must be level and cabinet front must be square.
•
Microwave Combination Ovens are NOT approved to be used
in stackable or side-by-side installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
3"-High Stainless Steel Bottom Trim – (PN # 903114-901S).
•
3"-High Black Bottom Trim – (PN # 903114-9010).
•
10'-Long Armored Power Cable – (PN # 903056-9010).
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Page 4
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front

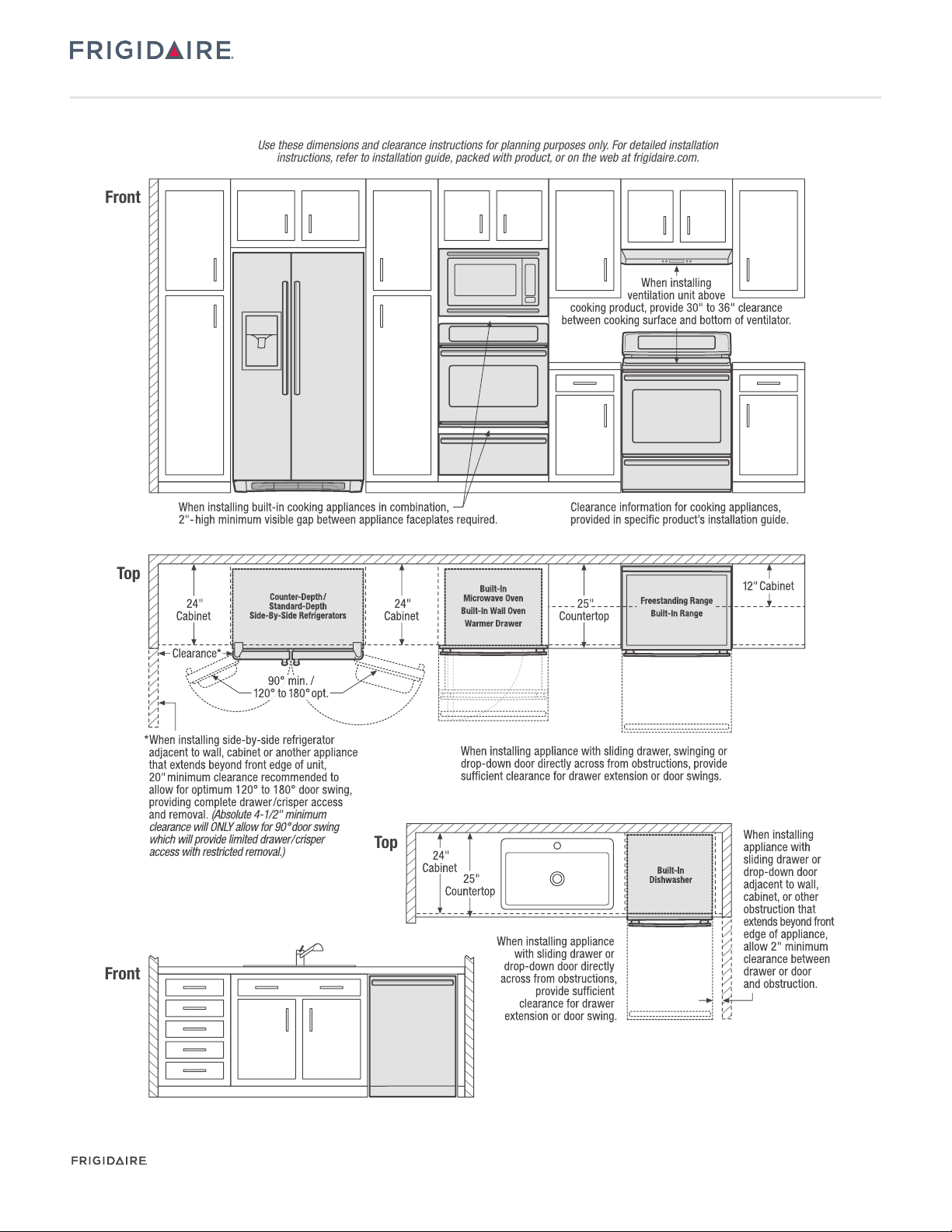

General Installation Guidelines
with Side-by-Side Refrigerator
•
USA
10200 David Taylor Drive
•
CANADA
INSTGDLNS_SSR FR 04/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Page 5
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top

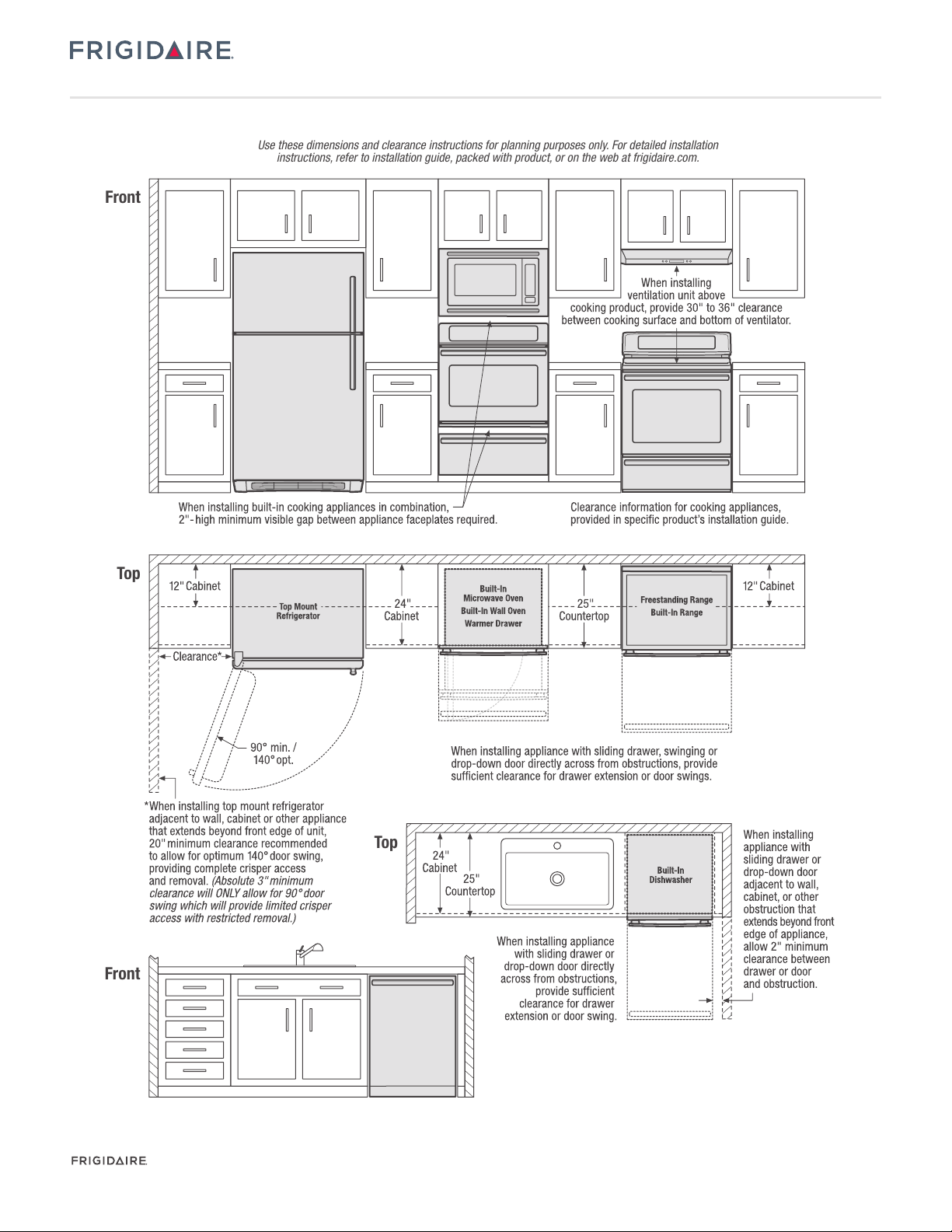

General Installation Guidelines
with Top Mount Refrigerator
•
USA
10200 David Taylor Drive
•
CANADA
INSTGDLNS_TMR FR 04/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Page 6
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front

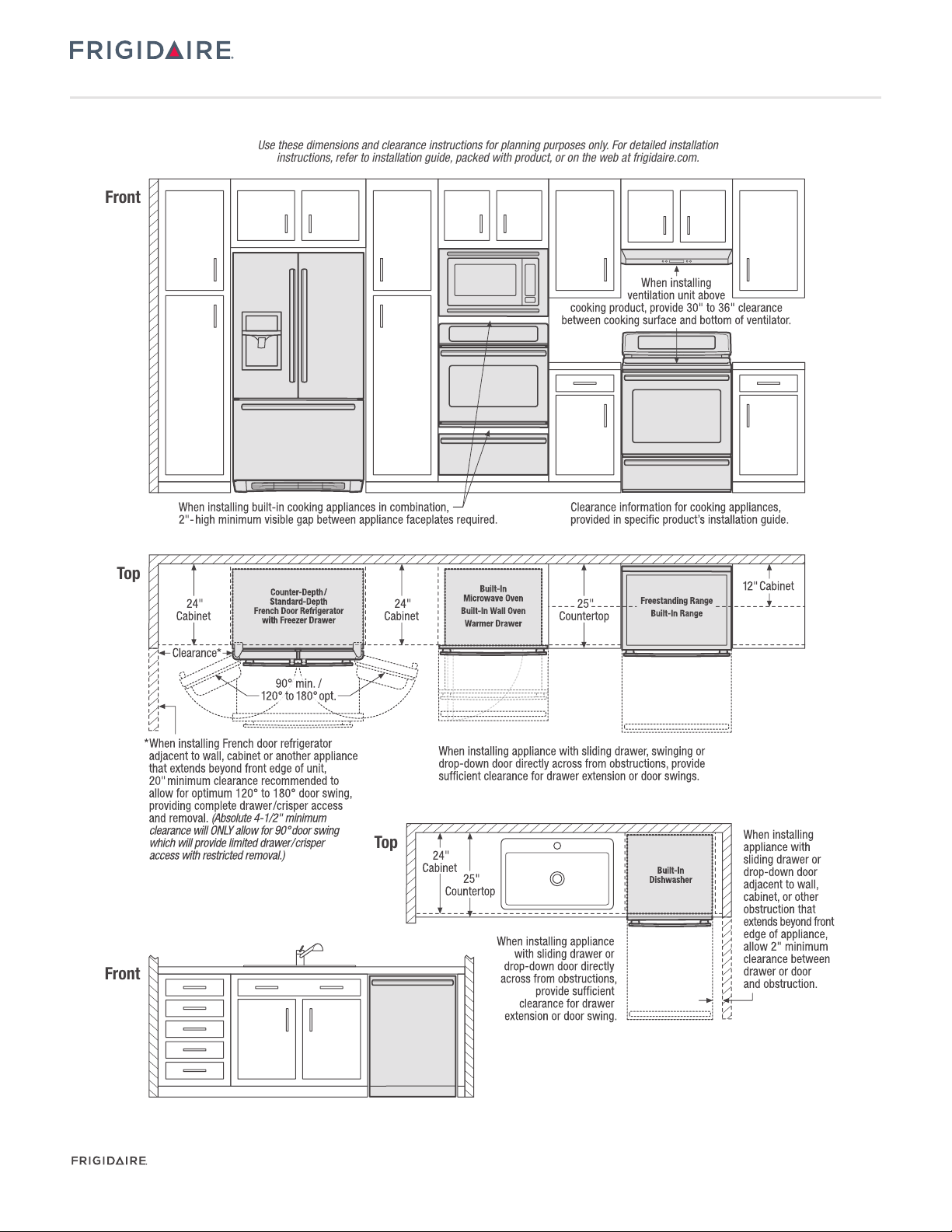

General Installation Guidelines
with French Door Refrigerator
•
USA
10200 David Taylor Drive
•
CANADA
INSTGDLNS_FDR FR 04/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Page 7
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top
General Installation Guidelines
with All Refrigerator or All Freezer
•
USA
10200 David Taylor Drive
•
CANADA
INSTGDLNS_ARAF FR 04/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
