Product No. FGIH3047VDA FGIH3047VFA
Series 30" FSFC elec 30" FSFC elec
Color black stainless stainless
Market North America North America
Owner's Guide A13081101 A13081101
Installation Instructions 809127105 809127105
Service Data Sheet 808533505 808533505
Quick Start Guide 808595718 808595718
FGIH3047VF.jpeg CFGIH3047VDA.wmf VFGIH3047VDA.wmf TFGIH3047VDA.wmf
DFGEH3047VDA.wmf 808533505-2.wmf 808533505-1.wmf
Frigidaire
P.O. BOX 8020
CHARLOTTE, NC 28262
Publication No.
5995715124
19/06/03
(EN/SERVICE/ECL)
369

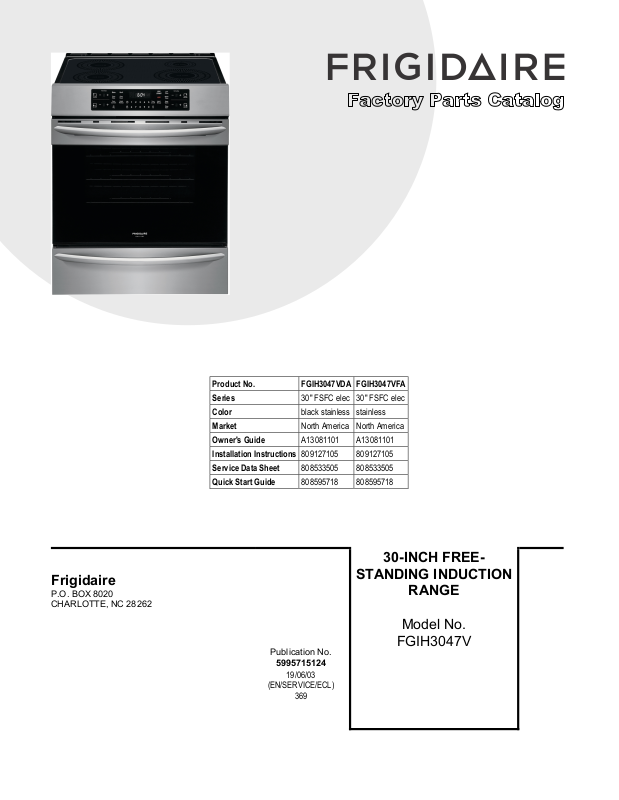

30-INCH FREE-
STANDING INDUCTION
RANGE
Model No.
FGIH3047V
Page 2
Publication No: 5995715124 FGIH3047V
BACKGUARD/INDUCTION UNIT
06/19 2
Page 3
FGIH3047V Publication No: 5995715124
BACKGUARD/INDUCTION UNIT
POS. NO PART NO. DESCRIPTION
1 5304519431 A B Panel, mounting, induction
2 # 5304521812 A B Control Assembly, induction mod., complete
19 5304519390 A - Control Panel, front, black stainless
19 5304521811 - B Control Panel, front, stainless
* 5304520393 A B Spacer, foam block, 2" x 1", w/adhesive
20 # 5304519401 A B Controller, electronic, black, ES501I inductn
20* 5304521041 A B Insulator, controller, w/adhesv tape
21 5304521020 A B Seal, control panel
22 5304521042 A - Bumper Guard, assembly, magnetic
97 # 5304516862 A B PC Board, assembly, OVC3
97* 5303289910 A B Screw, truss sqdr, 8A x 1", 62*
* # 5304521814 A B Harness, wiring, communication, UI to generator
* # 5304514353 A B Harness, generator, low voltage
* # 5304519440 A B Harness, wiring, induction, w/ferrite core
* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black
* 316021109 A B Screw, 8-18 x 0.5, chrome
Model Index: A FGIH3047V (FGIH3047VDA)
B FGIH3047V (FGIH3047VFA)
# Functional Parts 3 06/19
* Non-Illustrated Parts
Page 4
Publication No: 5995715124 FGIH3047V

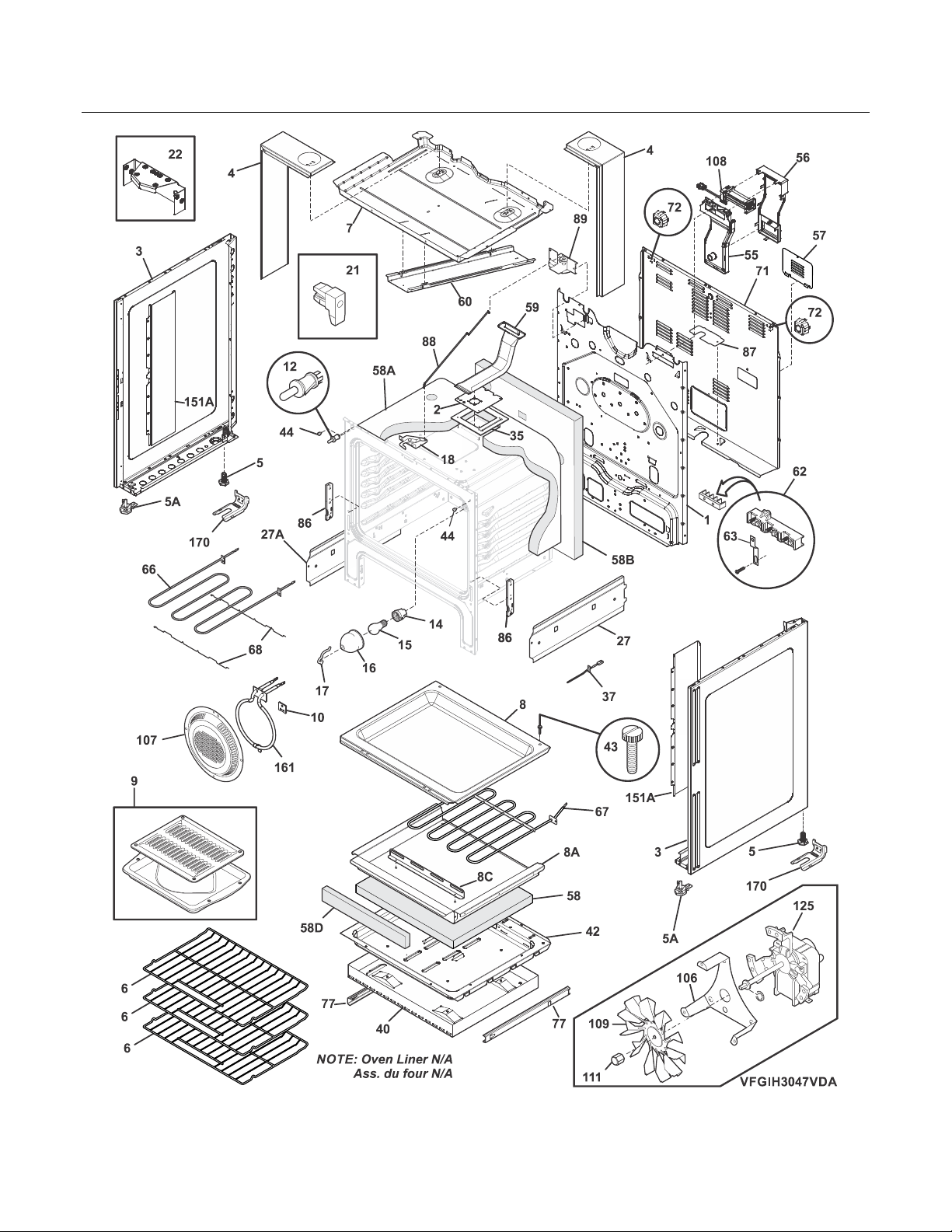

BODY
06/19 4
Page 5
FGIH3047V Publication No: 5995715124
BODY
POS. NO PART NO. DESCRIPTION
1 5304514161 A B Back, main
2 5304514136 A B Plate, oven vent
2* 297174300 A B Screw, self pierce, #8, 18x.63
3 316400136 A B Panel, bodyside, black, RH
3 316400137 A B Panel, bodyside, black, LH
4 5304521813 A B Duct Assembly Kit, fan intake, both LH & RH
5 316272900 A B Screw, leveling, plastic, rear, (2)
5A 5304509869 A B Leveling Leg Assy, metal, front, (2), bracket & leg
* 316021132 A B Screw, 8-18 X 11/16, black, (3)
6 316498003 A B Rack, oven
7 5304519432 A B Shield, cassis top
8 316505601 A B Panel, oven bottom
8* 316064600 A B Support, oven bottom
8A 316505701 A B Base, bake element
8C 316505801 A B Support, element
9 5304494997 A B Broil Pan Kit, pan & insert, slate blue, Optional, accessory
10 5304521822 A B Plate, cover, w/seal
12 # 316445501 A B Switch, oven light, door frame
14 # 316116400 A B Receptacle, oven light
15 # 316538901 A B Lamp, oven light
16 5304521821 A B Glass, oven light lens, w/seal
17 316087500 A B Retainer, lens
18 # 316405800 A B Latch Assembly, oven door
* 5303285179 A B Screw, wafer head, 8-32T x 0.500, black, 44*
21 316408000 A B Clip, bodyside
22 5304514125 A B Bracket, support, body side, (2)
22* 316279600 A B Screw, bracket, stiffener, (4)
27 316604100 A B Shield, warmer side, RH
27A 316604101 A B Shield, warmer side, LH
35 316542101 A B Gasket, fluebox insul.
37 # 316490003 A B Probe, oven temp
40 316602600 A B Shield, warmer drawer
42 316601600 A B Shield, chassis, lower
43 3131732 A B Screw, 8-18 x 1.438, oven bottom
44 316517600 A B Bumper, front, main
55 5304514171 A B Duct, inlet air, front
56 5304514172 A B Duct, inlet air, rear
57 316283600 A B Cover, access
58 316403804 A B Insulation, oven sump
58A 316403700 A B Insulation, oven wrapper
58B 316403600 A B Insulation, oven back
58D 316509700 A B Insulation, oven bottom
59 5304514160 A B Tube, oven vent, upper
60 5304514357 A B Duct, cooling
62 # 5303935271 A B Terminal Block Kit
62* 316001003 A B Screw, ground wire
62* 316205500 A B Nut, hex flange, 3/8 10-32
62* 316542203 A B Insulator
63 316542600 A B Plate, grounding strap
Model Index: A FGIH3047V (FGIH3047VDA)
B FGIH3047V (FGIH3047VFA)
# Functional Parts 5 06/19
* Non-Illustrated Parts
Page 6
Publication No: 5995715124 FGIH3047V
BODY
06/19 6
Page 7
FGIH3047V Publication No: 5995715124
BODY
POS. NO PART NO. DESCRIPTION
66 # 5304521819 A B Element, broil, 4000, 6 pass w/seal
67 # 316505500 A B Element, bake, 3000W
68 316429100 A B Support, element, broil
71 5304514174 A B Shield, wire, rear
72 5304514177 A B Spacer, wire shield, (2)
77 316456700 A B Glide, warmer drawer, outer/RH & LH, (2)
86 316508600 A B Receptacle, hinge, (2)
* 316418900 A B Screw, sims lp, #8-32 x 5/16", black
87 316081200 A B Bracket, cable mtg
88 316232702 A B Rod, auto latch
89 # 316464300 A B Motor-latch
106 316404100 A B Bracket, motor mtg.
107 316026701 A B Cover, fan
* 5303271648 A B Screw, wafer hd sq dr, 8-18AB x 0.5
108# 5304514166 A B Fan Assembly, cooling
109 318398302 A B Fan Blade
111 316136600 A B Nut, fan retainer
125# 316256100 A B Motor-fan
* 5303289910 A B Screw, truss sqdr, 8A x 1", 62*
151A 5304516866 A B Shield, heat, bodyside
161# 5304521820 A B Element, convection, 900W, w/seal
170 316112005 A B Anti Tip Kit, assy, w/template
170* 316107200 A B Bracket, anti-tip
170* 316116000 A B Screw, concrete, 1.75", anti-tip brkt
170* 316541700 A B Template, anti-tip
* # 5304519400 A B Harness, wiring, main
* # 5304518021 A B Harness, wiring, low voltage
* # 5304512924 A B Harness Assembly, electric filter, w/capacitors
* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black
* 316021109 A B Screw, 8-18 x 0.5, chrome
* 316089500 A B Screw, 10-16 x .486
* 5303288566 A B Screw, TR HD SQD AB, 8-18 x 0.25, (8)
Model Index: A FGIH3047V (FGIH3047VDA)
B FGIH3047V (FGIH3047VFA)
# Functional Parts 7 06/19
* Non-Illustrated Parts
Page 8
Publication No: 5995715124 FGIH3047V

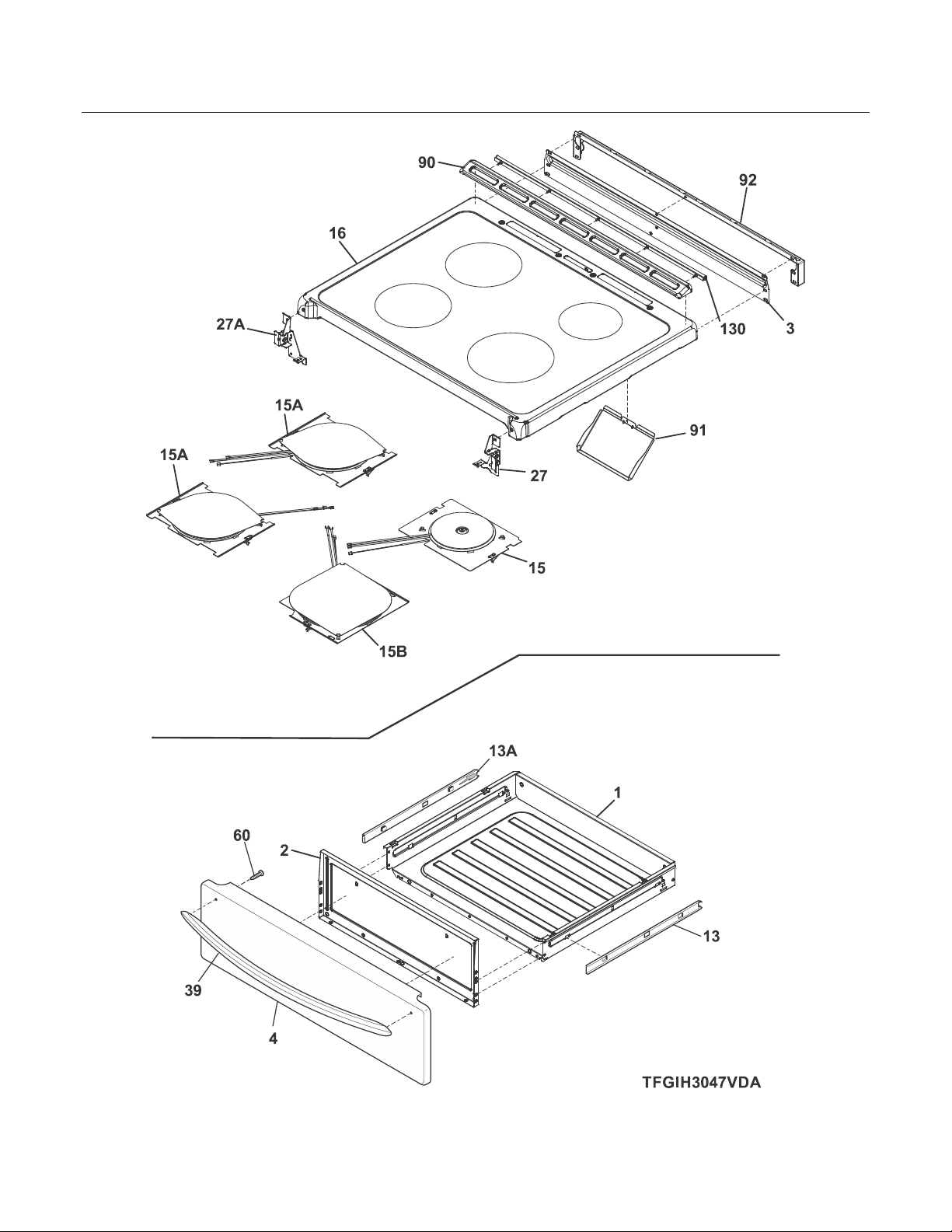

TOP/DRAWER
06/19 8
Page 9
FGIH3047V Publication No: 5995715124
TOP/DRAWER
POS. NO PART NO. DESCRIPTION
1 807108405 A B Drawer, warmer
* 316089500 A B Screw, 10-16 x .486
2 316403203 A B Liner, black, drawer
3 5304514133 A B Shield, rear wall, upper
4 5304517133 A - Panel, drawer, black stainless
4 5304517477 - B Panel, drawer, stainless
13 316415000 A B Glide, warmer, inner RH
13A 316415001 A B Glide, warmer, inner LH
15 # 387404759 A B Element Assembly, induction coil, 140MM, RH rear
15A# 387404866 A B Element Assembly, induction coil, 180MM, LH rear/front
15B# 387761248 A B Element Assembly, induction coil, 210MM, RH front
16 5304519397 A B Smoothtop, assembly, glass/steel, black
27 5304514123 A B Bracket, mounting, RH, cooktop
27A 5304514124 A B Bracket, mounting, LH, cooktop
* 5303285179 A B Screw, wafer head, 8-32T x 0.500, black, 44*
39 5304518030 A - Handle, door/drawer, black stainless
39 5304518029 - B Handle, door/drawer, stainless
60 5303288572 A B Screw-handle mtg
90 5304514157 A B Trim, vent, black, rear
91 5304514354 A B Deflector, moisture, (2)
92 5304520261 A B Rear Filler Kit, FCFS range, black
130 808931802 A B Seal, maintop, silicone, rear
* # 5304517540 A B Harness, wiring, surface
* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black
* 316021109 A B Screw, 8-18 x 0.5, chrome
Model Index: A FGIH3047V (FGIH3047VDA)
B FGIH3047V (FGIH3047VFA)
# Functional Parts 9 06/19
* Non-Illustrated Parts
Page 10
Publication No: 5995715124 FGIH3047V

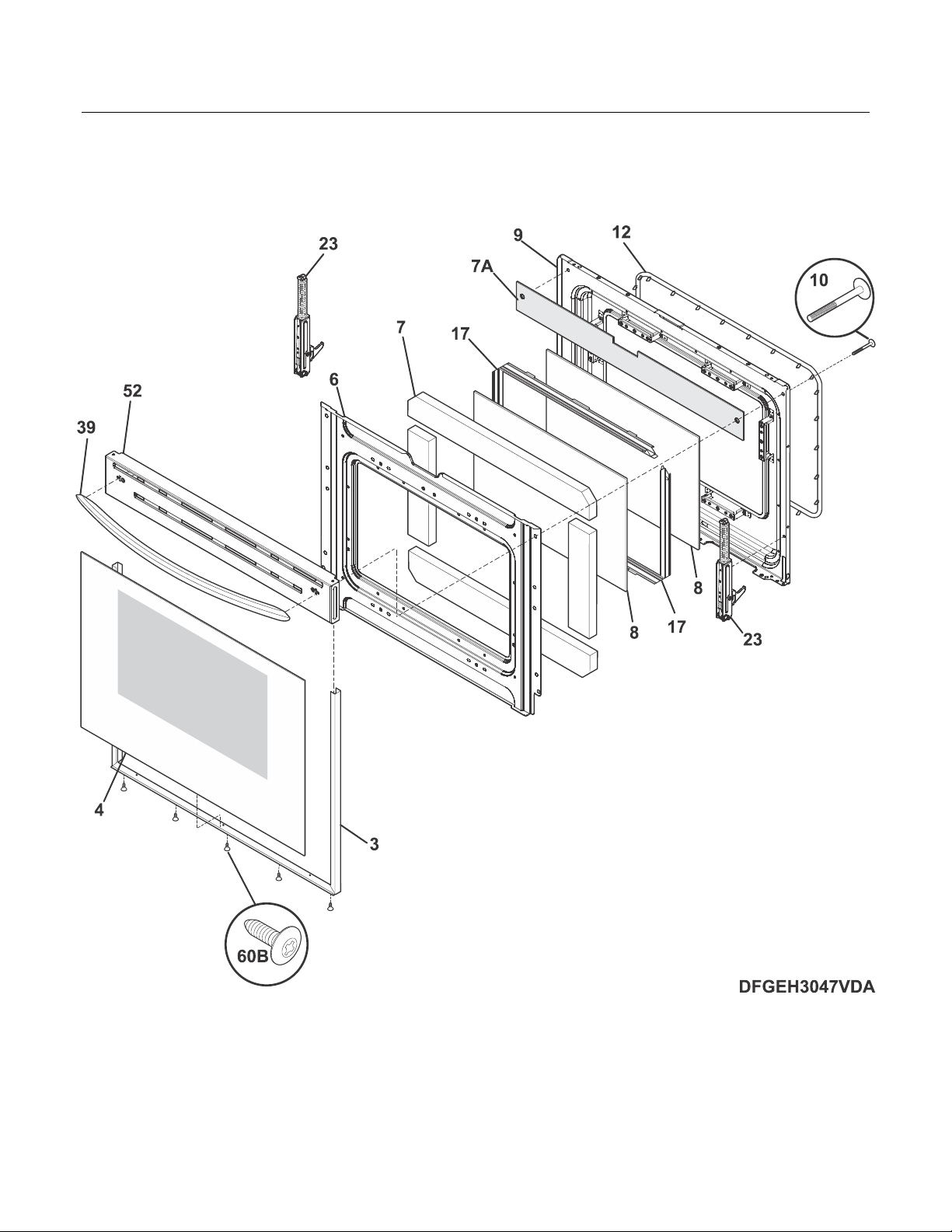

DOOR
06/19 10
Page 11
FGIH3047V Publication No: 5995715124
DOOR
POS. NO PART NO. DESCRIPTION
3 5303935378 A B Trim kit-door, 3 sided, black, w/tape
4 316355501 A B Glass Assembly, door, black, outer, w/foil
6 316402315 A B Shield, wool
7 316403900 A B Insulation, oven door
7A 5304518033 A B Insulation, door liner, top
8 316117506 A B Glass, oven door, inner
9 316423814 A B Liner, oven door
10 316513301 A B Screw, handle mtg, 10-24 x 2.188, (2)
12 5304498835 A B Seal, oven door
17 5304504811 A B Spacer, glass
23 5304521043 A B Hinge, door, orange, dual spring
23* 316418900 A B Screw, sims lp, #8-32 x 5/16", black
39 5304518030 A - Handle, door/drawer, black stainless
39 5304518029 - B Handle, door/drawer, stainless
52 5304518017 A - Door Cap, assembly, black stainless, insul & spacers
52 5304518016 - B Door Cap, assembly, stainless, insul & spacers
60B 316021109 A B Screw, 8-18 x 0.5, chrome
* 316483102 A B Label, anti-tip
Model Index: A FGIH3047V (FGIH3047VDA)
B FGIH3047V (FGIH3047VFA)
# Functional Parts 11 06/19
* Non-Illustrated Parts
Page 12
Publication No: 5995715124 FGIH3047V

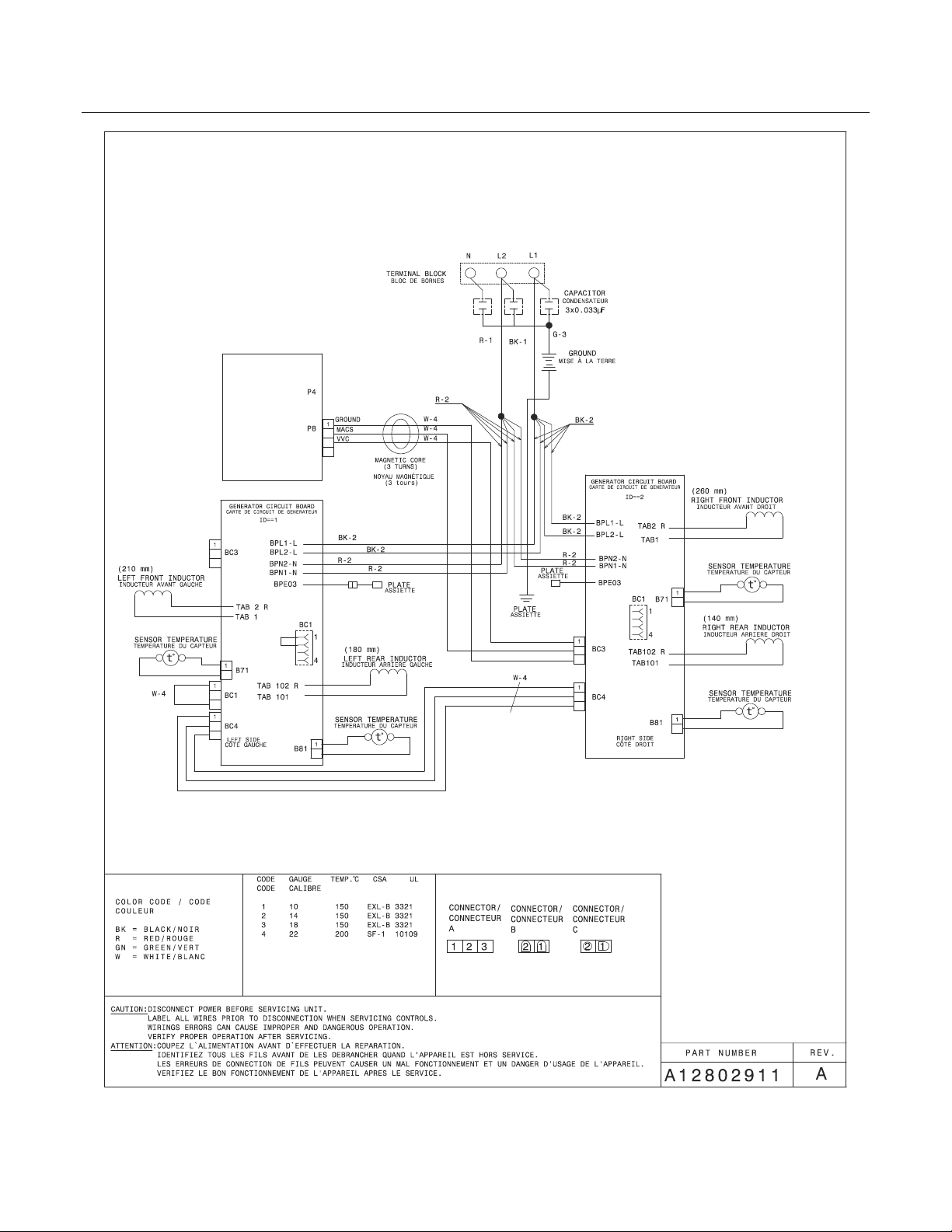

WIRING DIAGRAM
06/19 12
Page 13
FGIH3047V Publication No: 5995715124

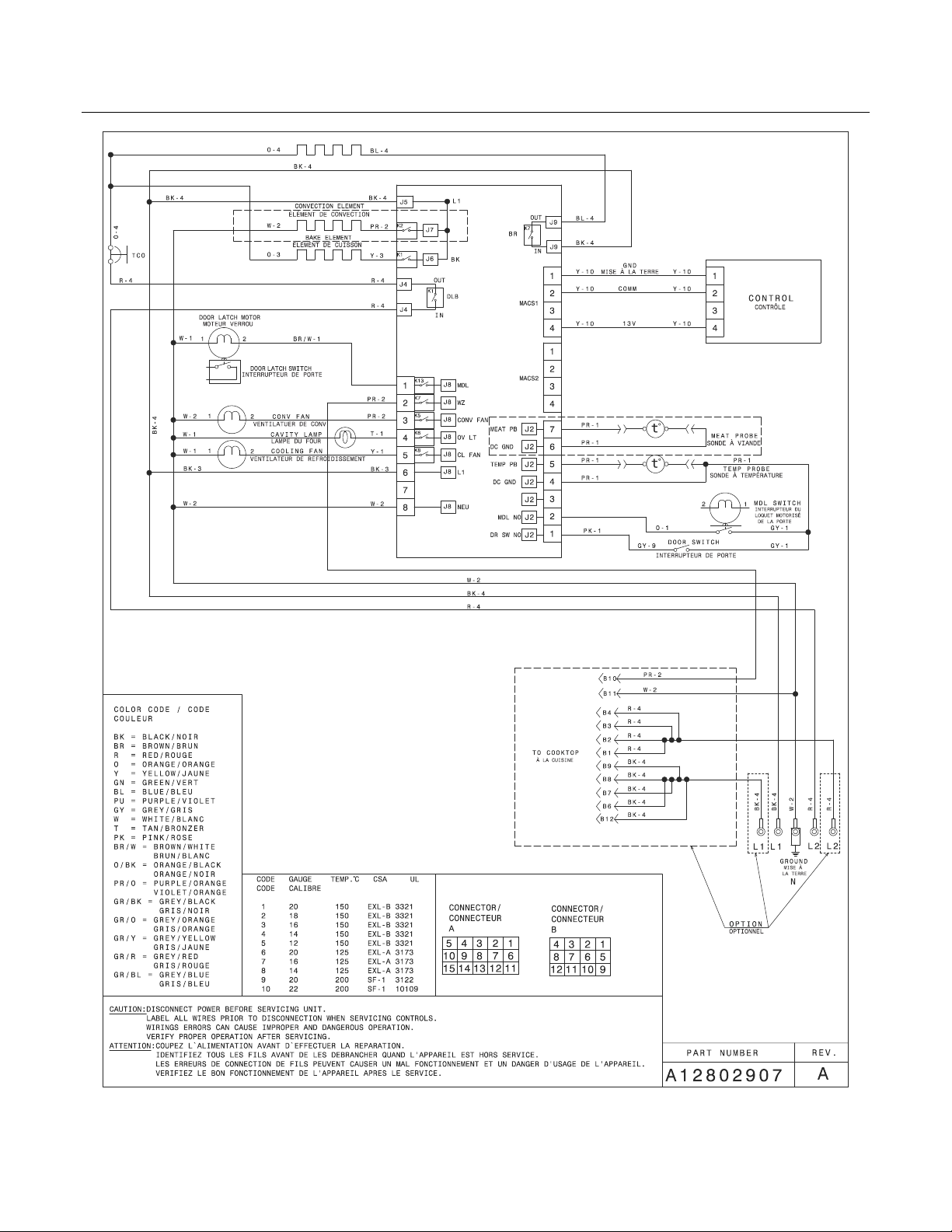

WIRING DIAGRAM
# Functional Parts 13 06/19
* Non-Illustrated Parts
