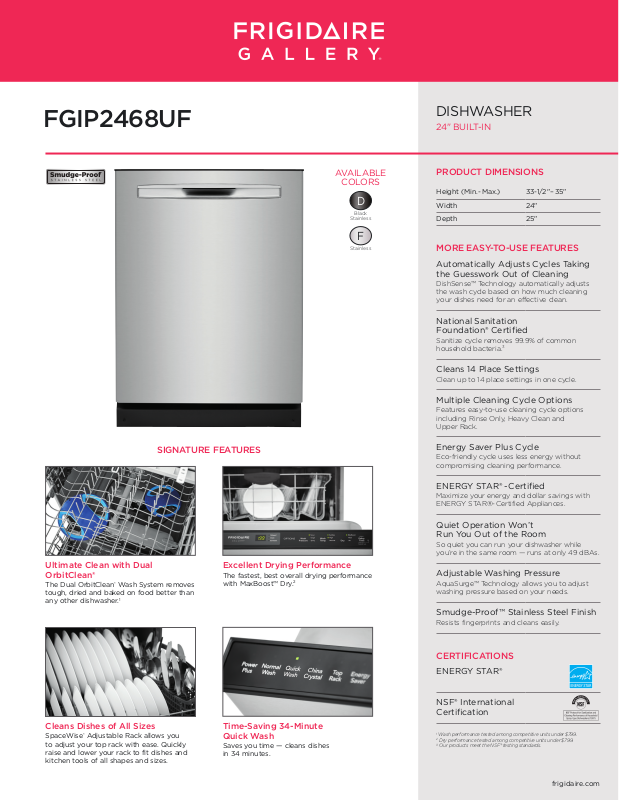

Page 1
FGIP2468UF
D
F
DISHWASHER
24" BUILT-IN
®
AVAILABLE
PRODUCT DIMENSIONS
COLORS
Height (Min. - Max.) 33-1/2" – 35"
Black
Stainless
Stainless
Width 24"
Depth 25"
MORE EASY-TO-USE FEATURES
Automatically Adjusts Cycles Taking
the Guesswork Out of Cleaning
DishSense™ Technology automatically adjusts
the wash cycle based on how much cleaning
your dishes need for an effective clean.
National Sanitation
Foundation® Certified
Sanitize cycle removes 99.9% of common
household bacteria.
3
Cleans 14 Place Settings
Clean up to 14 place settings in one cycle.
Multiple Cleaning Cycle Options
Features easy-to-use cleaning cycle options
including Rinse Only, Heavy Clean and
Upper Rack.
SIGNATURE FEATURES
Energy Saver Plus Cycle
Eco-friendly cycle uses less energy without
compromising cleaning performance.
Ultimate Clean with Dual
OrbitClean®
The Dual OrbitClean® Wash System removes
tough, dried and baked on food better than
any other dishwasher.1
Cleans Dishes of All Sizes
SpaceWise® Adjustable Rack allows you
to adjust your top rack with ease. Quickly
raise and lower your rack to fit dishes and
kitchen tools of all shapes and sizes.
Excellent Drying Performance
The fastest, best overall drying performance
with MaxBoost™ Dry.2
Time-Saving 34-Minute
Quick Wash
Saves you time — cleans dishes
in 34 minutes.
ENERGY STAR® - Certified
Maximize your energy and dollar savings with
ENERGY STAR®- Certified Appliances.
Quiet Operation Won’t
Run You Out of the Room
So quiet you can run your dishwasher while
you’re in the same room — runs at only 49 dBAs.
Adjustable Washing Pressure
AquaSurge™ Technology allows you to adjust
washing pressure based on your needs.
Smudge-Proof™ Stainless Steel Finish
Resists fingerprints and cleans easily.
CERTIFICATIONS
ENERGY STAR®
NSF® International
Certification
1
Wash performance tested among competitive units under $799.
2
Dry performance tested among competitive units under $799.
3
Our products meet the NSF® testing standards.
frigidaire.com
Page 2
FGIP2468UF
DISHWASHER
24" BUILT-IN
FEATURES
Control Design
Digital Display Yes
Door Latch Yes
Stay-Put Door Hinge Design Yes
Low Rinse-Aid Indicator Light Yes
Interior Color Greystone
Interior Design Tall Tub
Wash System Direct Feed
Wash Arms Dual OrbitClean®
Wash Levels 5
Wash Speeds 3
DishSense™ Technology Yes
AquaSurge™ Technology Yes
Sound Package SilentDesign™ I
Filter Stainless Steel
Filter Trap Removable
Smart Soil Sensor Yes
Food Disposer Yes (Hard)
dB Level 49
Drying System MaxBoost™ Dry
Fully-Integrated
Express-Select®
CYCLES
Number of Cycles 8
PowerPlus™ (Heavy Wash) Yes
Normal Wash Yes
Quick Wash (34-Min.) Yes
Favorite Yes
China Crystal Yes
Rinse Only Yes
Energy Saver Plus Ye s
Top Rack Ye s
OPTIONS
MaxBoost™ Dry Yes
Heat / No Heat Dry Yes
Wash Pressure Ye s
Hi-Temp Wash Yes
NSF® Certified Sanitize Rinse Yes
Delay Start 1–24 Hour
RACK SYSTEM
Rack Design Supreme
Rack Coating Nylon TufRacks™
Lower Rack –
SpaceWise® Silverware Basket 3-Piece Split
Small Items Cover 2
Fold-Down Tines 2 Full Rows
Upper Rack –
Stemware Ye s
Champagne Glass Holders Ye s
Fold-Down Tines Yes
Cup Shelves 2
Stemware Grips No
Adjustable Rack Yes
CERTIFICATIONS
ENERGY STAR® - Certified Ye s
NSF® International Certification Yes
SPECIFICATIONS
Water Inlet Location Left Bottom Front
Water Usage (Gallons) 4.9 – 8.5 (Normal Cycle)
Water Pressure (PSI) 20 – 120
Integral Air Gap on Supply Ye s
Leveling Legs Yes
Power Supply Connection Location Right Bottom Front
Voltage Rating 120V / 60 Hz / 15A
Connected Load (kW Rating) @ 120 Volts11.20
Amps @ 120 Volts 10.0
Shipping Weight (Approx.) 83 Lbs.
1
For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
•
USA
10200 David Taylor Drive
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
PRODUCT DIMENSIONS
A - Height (Adjustable) 33-1/2" – 35"
B - Width 24"
C - Depth (Including Door) 25"
D - Depth (To Tub Flange) 22-1/2"
Depth with Door Open 90° 49-1/4"
CUTOUT DIMENSIONS
Height (Min.) 34-1/4"
Height (Max.) 35-3/4"
Width (Min.) 24"
Depth (Min.) 24"
B
C
D
A
Meets
requirements of
ASSE 1006
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
© 2019 Electrolux Home Products, Inc.
FGIP2468U 02/19
Page 3
"2
FGIP2468UF
DISHWASHER
24" BUILT-IN
Front
24"
33
1/2"
Adjustable
to 35"
25"
Water inlet
(left bottom front)
90° 90°
Electrical, water,
lines
and drain
must be confined
to shaded
area
34
min.
1
/4"
24"
min.
RightLeft
49
1/4"
Door in 90°
open position
Power supply location (right bottom front)
18"
22
1/2"
7
3/4"
6"
1/2
2
INSTALLATION SPECIFICATIONS
•
Product Shipping Weight (approx.) – 83 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps (maximum 20 Amps if connected
with disposer)
•
Connected Load (kW Rating) @ 120 Volts = 1.20kW
(For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.)
•
Amps @ 120V = 10 Amps
•
Always consult local and national electric & plumbing codes. Meets
requirements of ASSE 1006 — integral air gap on supply.
•
Water Pressure – Hot water line to dishwasher must provide between 20 and
120 pounds per square inch (psi) with at least 120° F hot water temperature.
•
Make sure location has correct drain, water and electrical outlets to make
connections — MUST be confined to shaded areas.
•
Electrical and water supplies should enter cabinet opening on floor, or through
back or side walls, as shown in shaded areas.
•
Keep back free of drain, water & electrical supply.
Hot
water
line
4"
3
"
Electrical
wiring
6"
1/2"
24"
•
Connections preferably located toward left side of dishwasher. Do not cross
drain, water or electrical lines in front of motor, blower or frame.
•
If connecting drain hose to sink trap, local code may require installation of
Air Gap Kit (not included).
•
Leveling legs supplied to adjust height.
•
When installing adjacent to wall, cabinet or other obstruction that extends
beyond front edge of unit, allow 2" minimum clearance between opened door
and obstruction.
•
Floor should be flat and free of obstructions with carpet removed to provide
motor clearance.
•
When installing at end of cabinet line, sides and back must be fully enclosed.
•
Do not install unit under a cooktop, damage will occur.
•
Recommended to seal cabinets, enclosing all sides of dishwasher, including
underside of countertop, with oil-based paint or moisture-proof polyurethane
to prevent possible steam/moisture damage.
Meets
requirements of
ASSE 1006
•
USA
10200 David Taylor Drive
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
© 2019 Electrolux Home Products, Inc.
FGIP2468U 02/19
