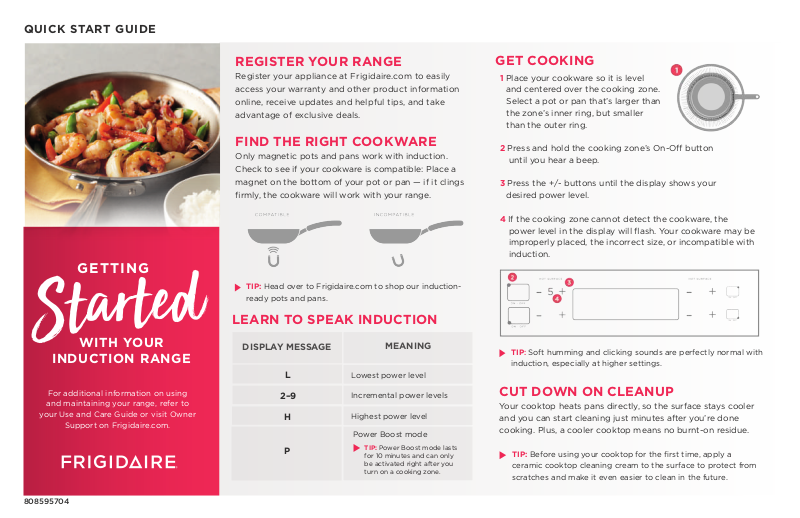

Frigidaire FGIF3036TD Quick Start Guide

QUICK START GUIDE

GETTING

Started

INDUCTION RANGE

For additional information on using

and maintaining your range, refer to

your Use and Care Guide or visit Owner

Support on Frigidaire.com.

WITH YOUR

Register your appliance at Frigidaire.com to easily access your warranty and other product information online, receive updates and helpful tips, and take advantage of exclusive deals.

FIND THE RIGHT COOKWARE

Only magnetic pots and pans work with induction. Check to see if your cookware is compatible: Place a magnet on the bottom of your pot or pan — if it clings ﬁrmly, the cookware will work with your range.

TIP: Head over to Frigidaire.com to shop our induction-

ready pots and pans.

LEARN TO SPEAK INDUCTION

DISPLAY MESSAGE

2–9

MEANING

Lowest power level

Incremental power levels

Highest power level

Power Boost mode

TIP: Power Boost mode lasts

for 10 minutes and can only be activated right after you turn on a cooking zone.

GET COOKING

1 Place your cookware so it is level

and centered over the cooking zone. Select a pot or pan that’s larger than the zone’s inner ring, but smaller than the outer ring.

2 Press and hold the cooking zone’s On-O button

until you hear a beep.

3 Press the +/- buttons until the display shows your

desired power level.

4 If the cooking zone cannot detect the cookware, the

power level in the display will ﬂash. Your cookware may be improperly placed, the incorrect size, or incompatible with induction.

TIP: Soft humming and clicking sounds are perfectly normal with

induction, especially at higher settings.

CUT DOWN ON CLEANUP

Your cooktop heats pans directly, so the surface stays cooler and you can start cleaning just minutes after you’re done cooking. Plus, a cooler cooktop means no burnt-on residue.

TIP: Before using your cooktop for the ﬁrst time, apply a

ceramic cooktop cleaning cream to the surface to protect from scratches and make it even easier to clean in the future.

808595704

COOKING BY THE NUMBERS

Cooking with induction power levels is a bit dierent than cooking with Hi-Med-Lo settin gs, but we’ve got you covered. Here’s a quick induction cheat sheet to help you choose the right power levels for some brea kfast, lun ch and dinner basic s.*

MELT CHOCOLATE

Power Level: L

PAN–SEAR CHICKEN

Power Level: 7–8

SIMMER SPAGHETTI SAUCE

Power Level: 3–4

SEARED STEAK

Power Level: 9–H

GET BAKING

1 Press Bake and use the up and down arrows to select a cooking temperature. The preheat light will

illuminate and the oven will start heating.

2 Your oven will chime when it reaches the set temperature. Place your dish in the oven and close the door.

3 Press Bake Time and use the up and down arrows to select a cooking time. The timer will immediately

start counting down.

4 When the set bake time runs out, the oven will chime and automatically shut o. Immediately remove

your dish from the oven.

TIP: You can schedule your oven to start baking at a later time with the Delay Start feature. After selecting a

cooklng temperature and setting the timer, simply press Start Time and use the up and down arrows to choose the time of day you want to start baking.

For additional information on using and maintaining your induction range, refer to your Use and Care Guide or visit Owner Support on Frigidaire.com

* Results may vary.

COOK PANCAKES

Power Level: 5-6

BOIL WATER

Power Level: P

SET THE CLOCK

Be sure to set the display clock to the correct time before using the oven timer or Delay Start feature.

1 Press Set Clock once (do not hold the button down).

2 Press and hold the up or down arrow until the

correct time of day appears in the display.
