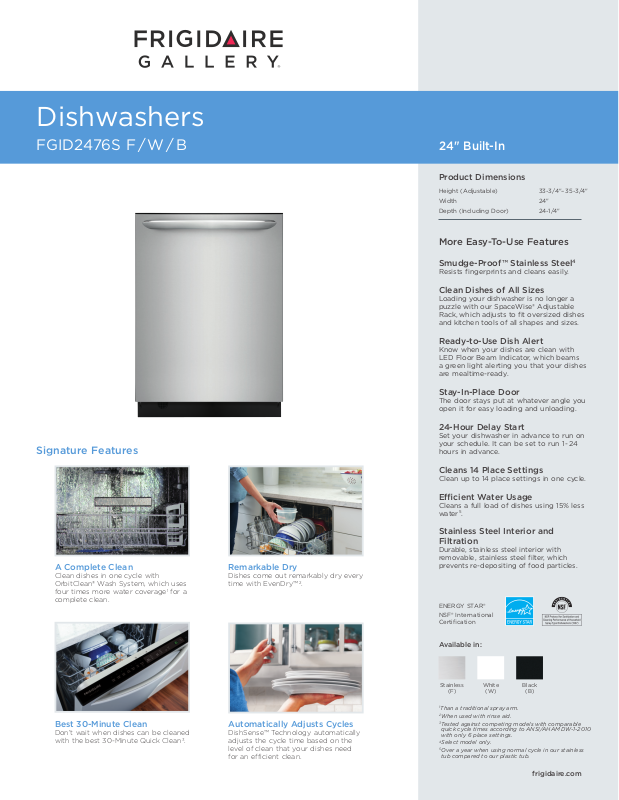

Page 1
Dishwashers
FGID2476S F / W / B
Signature Features
24" Built-In
Product Dimensions
Height (Adjustable) 33-3/4"– 35-3/4"
Width 24"
Depth (Including Door) 24-1/4"
More Easy-To-Use Features
Smudge-Proof™ Stainless Steel
Resists fingerprints and cleans easily.
Clean Dishes of All Sizes
Loading your dishwasher is no longer a
puzzle with our SpaceWise® Adjustable
Rack, which adjusts to fit oversized dishes
and kitchen tools of all shapes and sizes.
Ready-to-Use Dish Alert
Know when your dishes are clean with
LED Floor Beam Indicator, which beams
a green light alerting you that your dishes
are mealtime-ready.
Stay-In-Place Door
The door stays put at whatever angle you
open it for easy loading and unloading.
24-Hour Delay Start
Set your dishwasher in advance to run on
your schedule. It can be set to run 1 - 24
hours in advance.
4
A Complete Clean
Clean dishes in one cycle with
OrbitClean® Wash System, which uses
four times more water coverage
complete clean.
1
for a
Best 30-Minute Clean
Don’t wait when dishes can be cleaned
with the best 30-Minute Quick Clean
3
.
Remarkable Dry
Dishes come out remarkably dry every
time with EvenDry™
2
.
Automatically Adjusts Cycles
DishSense™ Technology automatically
adjusts the cycle time based on the
level of clean that your dishes need
for an efficient clean.
Cleans 14 Place Settings
Clean up to 14 place settings in one cycle.
Ecient Water Usage
Cleans a full load of dishes using 15% less
5
.
water
Stainless Steel Interior and
Filtration
Durable, stainless steel interior with
removable, stainless steel filter, which
prevents re-depositing of food particles.
ENERGY STAR®
NSF® International
Certification
Available in:
Stainless
(F)
1
Than a traditional spray arm.
2
When used with rinse aid.
3
Tested against competing models with comparable
quick cycle times according to ANSI/AHAM DW-1-2010
with only 6 place settings.
4
Select model only.
5
Over a year when using normal cycle in our stainless
tub compared to our plastic tub.
White
(W)
Black
(B)
frigidaire.com
Page 2
Features
B
A
D
C
Control Design
Digital Display
Door Latch / Stay-Put Door Hinge Design
Low Rinse-Aid Indicator Light
Interior Color / Interior Design
Wash System
Wash Arm
Wash Levels / Wash Speeds
DishSense™ Technology
AquaSurge™ Technology
Sound Package
Filter / Filter Trap
Soft Food Disposer
dB Level
Drying System
Cycles
Number of Cycles
PowerPlus™ (Heavy)
Normal
Light
Quick Wash (30-Min.)
Favorite
China Crystal
Rinse Only
Energy Saver Plus
Upper Rack Wash Only
Cycle Indicator Light / Control Lock
Cycle Complete Floor Beam Indicator
Options
Heat / No Heat Dry
Hi-Temp Wash
NSF® Certified Sanitize Rinse
Delay Start
Rack System
Rack Design
Rack Coating
Upper Rack –
Rack Handles
Stemware / Champagne Glass Holders
Fold-Down Tines
Cup Shelves / Stemware Grips
Versa-Tray™
Adjustable Rack
Lower Rack –
SpaceWise® Silverware Basket
Fold-Down Tines
Small Items Cover
Third-Level Rack (Single Tray)
Certifications
ENERGY STAR®
NSF® International Certification
Specifications
Water Inlet Location
Water Usage (Gallons)
Water Pressure (PSI)
Integral Air Gap on Supply
Leveling Legs
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts
Amps @ 120 Volts
Shipping Weight (Approx.)
Fully-Integrated
Express-Select®
Yes
Yes / Yes
Stainless Steel / Tall Tub
Direct Feed
OrbitClean®
5 / 5
Yes
Yes
SilentDesign™
S. Steel / Removable
49
EvenDry™
8
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No / Yes
LED
Yes / Yes
Yes
Yes
1–24 Hour
Deluxe
Nylon TufRacks™
Yes
Yes
2 / No
Yes
3-Piece Split
2 Full Rows
2
Yes
Yes
Left Bottom Front
4.0 – 8.0
20 – 120
Yes
Yes
Right Bottom Front
120V / 60 Hz / 15A
1
1.44
15.0
91 Lbs.
Dishwashers
FGID2476S F / W / B 24" Built-In
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Adjustable)
B - Width
C - Depth (Including Door)
D - Depth (To Tub Flange)
Depth with Door Open 90°
1
For use on adequately wired 120V, dedicated circuit
having 2-wire service with a separate ground wire.
Appliance must be grounded for safe operation.
33-3/4" – 35-3/4"
23-3/4"
24-1/4"
22-1/2"
50-1/4"
Cutout Dimensions
Height (Min.)
Height (Max.)
Width (Min.)
Depth (Min.)
Meets requirements
of ASSE 1006
34"
35-3/4"
24"
24"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FGID2476S 05
5855 Terry Fox Way
/20
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
© 2017 Electrolux Home Products, Inc.
Specifications
subject to change.

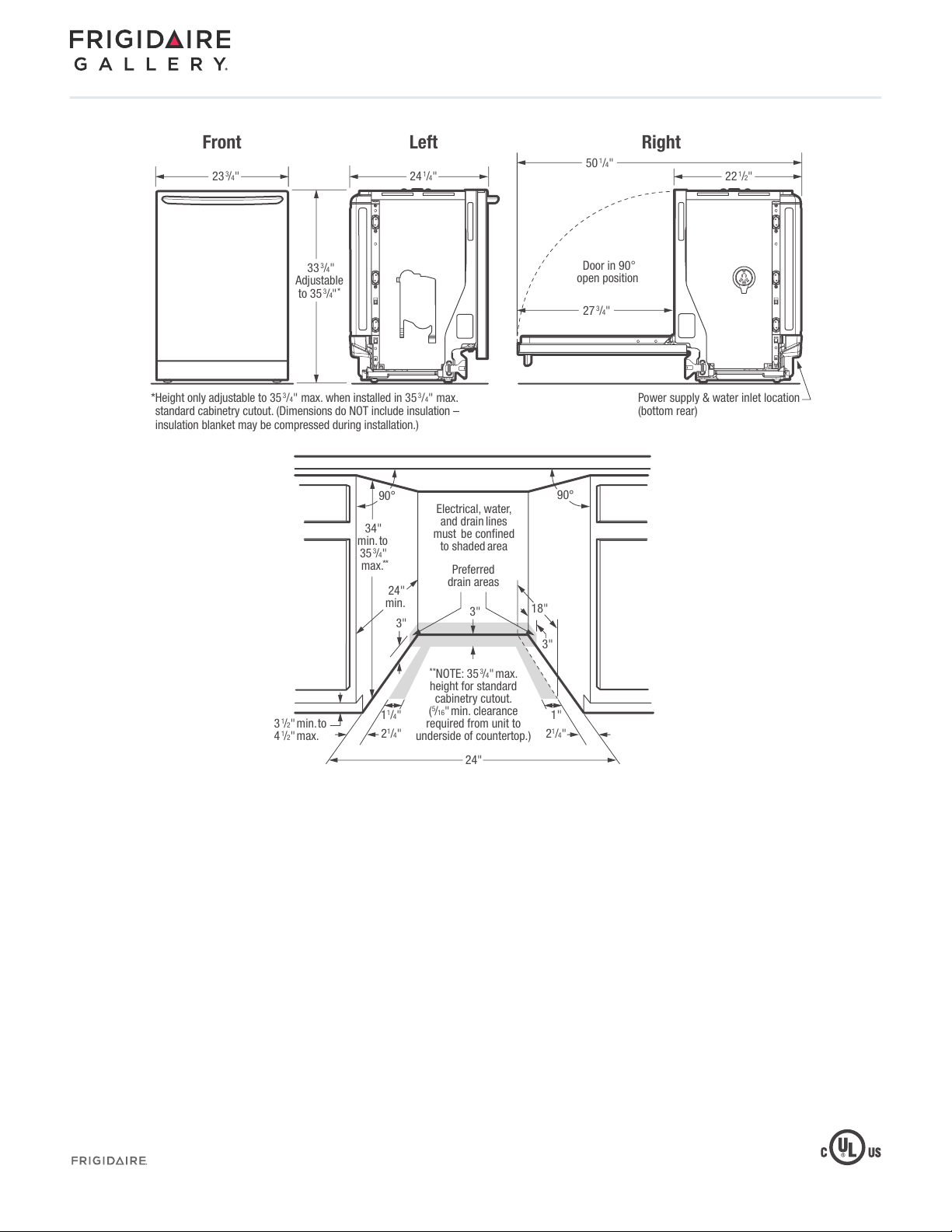

Page 3
*Height only adjustable to 35
3
/4" max. when installed in 35
3
/4" max.
standard cabinetry cutout. (Dimensions do NOT include insulation –
insulation blanket may be compressed during installation.)
33
3/4"
Adjustable
to 35
3/4"
*
Front
23
3/4"
Left
24
1/4"
Power supply & water inlet location
(bottom rear)
50
1
/4"
Right
Door in 90°
open position
27
3/4"
22
1/2"
3
1/2" min. to
4
1/2" max.
1"
2
1
/4"21/4"
**
NOTE: 35
3/4"
max.
height for standard
cabinetry cutout.
(5/16" min. clearance
required from unit to
underside of countertop.)
3"
18"
24"
min.
Electrical, water,
and drain
lines
must be confined
to shaded
area
11/4"
24"
3
"
90°
90°
Preferred
drain areas
3
"
34"
min. to
35
3/4"
max.
**
Dishwashers
FGID2476S F / W / B 24" Built-In
Dishwasher Specifications
•
Product Shipping Weight (approx.) – 91 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps (maximum 20 Amps if
connected with disposer)
•
Connected Load (kW Rating) @ 120 Volts = 1.44 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120V = 15 Amps
•
Always consult local and national electric & plumbing codes.
Meets requirements of ASSE 1006 — integral air gap on supply.
•
Water Pressure – Hot water line to dishwasher must provide
between 20 and 120 pounds per square inch (psi) with at least 120° F
hot water temperature.
•
Make sure location has correct drain, water and electrical outlets
to make connections — MUST be confined to shaded areas.
•
Electrical and water supplies should enter cabinet opening on floor,
or through back or side walls, as shown in shaded areas.
•
Keep back free of drain, water & electrical supply.
•
Connections preferably located toward left side of dishwasher.
Do not cross drain, water or electrical lines in front of motor, blower
or frame.
•
USA
10200 David Taylor Drive
•
CANADA
FGID2476S 05
5855 Terry Fox Way
/20
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
•
frigidaire.com
1-800-265-8352
•
© 2017 Electrolux Home Products, Inc.
frigidaire.ca
•
If connecting drain hose to sink trap, local code may require
installation of Air Gap Kit (not included).
•
Leveling legs supplied to adjust height. (Note: Height only adjustable
to 35-3/4" max. when installed in 35-3/4" max. standard cabinetry
cutout. 5/16" min. clearance required from top of unit to underside
of countertop. Dimensions do NOT include insulation — insulation
blanket may be compressed during installation.)
•
When installing adjacent to wall, cabinet or other obstruction that
extends beyond front edge of unit, allow 2" minimum clearance
between opened door and obstruction.
•
Floor should be flat and free of obstructions with carpet removed
to provide motor clearance.
•
When installing at end of cabinet line, sides and back must be
fully enclosed.
•
Do not install unit under a cooktop, damage will occur.
•
Recommended to seal cabinets, enclosing all sides of dishwasher,
including underside of countertop, with oil-based paint or moistureproof polyurethane to prevent possible steam/moisture damage.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Meets
requirements of
ASSE 1006
subject to change.
Specifications
