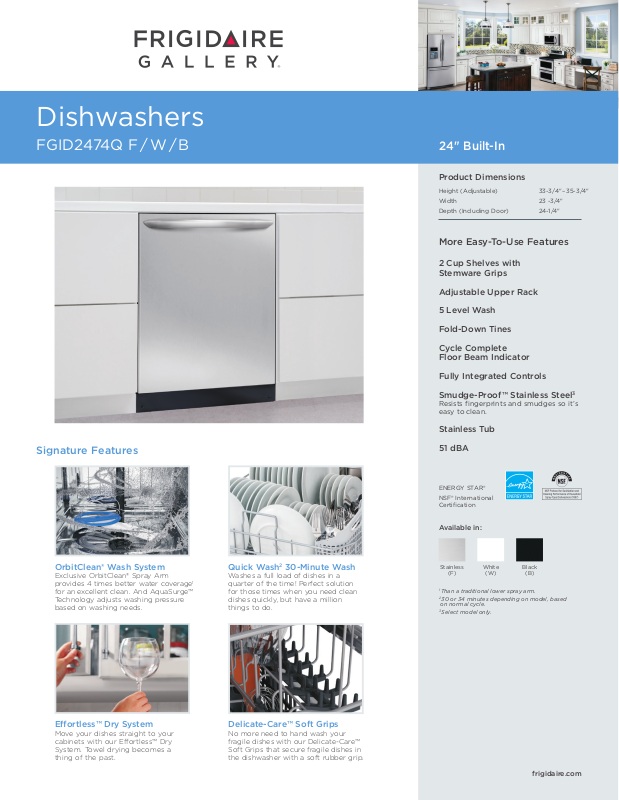

Frigidaire FGID2474QF, FGID2474QB, FGID2474QW Specification
Dishwashers
FGID2474Q F / W / B
24" Built-In
Product Dimensions
Height (Adjustable) 33-3/4" – 35-3/4"
Width 23 -3/4"
Depth (Including Door) 24-1/4"
More Easy-To-Use Features
2 Cup Shelves with
Stemware Grips
Adjustable Upper Rack
5 Level Wash
Fold-Down Tines
Cycle Complete
Floor Beam Indicator
Fully Integrated Controls
Smudge-Proof™ Stainless Steel
Resists fingerprints and smudges so it’s
easy to clean.
Stainless Tub
3
Signature Features
OrbitClean® Wash System
Exclusive OrbitClean® Spray Arm
provides 4 times better water coverage
for an excellent clean. And AquaSurge™
Technology adjusts washing pressure
based on washing needs.
Eortless™ Dry System
Move your dishes straight to your
cabinets with our Effortless™ Dry
System. Towel drying becomes a
thing of the past.
51 dBA
ENERGY STAR®
NSF® International
Certification
Available in:
Quick Wash2 30-Minute Wash
1
Washes a full load of dishes in a
quarter of the time! Perfect solution
for those times when you need clean
dishes quickly, but have a million
things to do.
Stainless
(F)
1
Than a traditional lower spray arm.
2
30 or 34 minutes depending on model, based
on normal cycle.
3
Select model only.
White
(W)
Black
(B)
Delicate-Care™ Soft Grips
No more need to hand wash your
fragile dishes with our Delicate-Care™
Soft Grips that secure fragile dishes in
the dishwasher with a soft rubber grip.
frigidaire.com
B
A
D
C
Features
Control Design
Digital Display
Door Latch / Stay-Put Door Hinge Design
Low Rinse-Aid Indicator Light
Interior Design / Interior Color
Wash System
Wash Arm
Wash Levels / Wash Speeds
DishSense™ Technology
AquaSurge™ Technology
Sound Package
Filter / Filter Trap
Soft Food Disposer
dB Level
Drying System (Fan Assisted)
Fully-Integrated
Express-Select®
Yes
Yes / Yes
Tall Tub / Stainless Steel
Direct Feed
OrbitClean®
5 / 5
Yes
Yes
SilentDesign™
S. Steel / Removable
51
Eortless™ Dry
Cycles
Number of Cycles
PowerPlus® (Heavy)
Normal
Light
Quick Wash (30-Min.)
Favorite
China Crystal
Rinse Only
Energy Saver Plus
Upper Rack Wash Only
Cycle Indicator Light / Control Lock
Cycle Complete Floor Beam Indicator
7
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No / Yes
LED
Options
Heat / No Heat Dry
Hi-Temp Wash
NSF® Certified Sanitize Rinse
Delay Start
Yes
Yes
Yes
1–24 Hour
Rack System
Rack Design
Rack Coating
Upper Rack –
Rack Handles
Delicate-Care™ Soft Grips
Fold-Down Tines
Cup Shelves / Stemware Grips
Utensil Tray
Adjustable Rack Height
Lower Rack –
SpaceWise® Silverware Basket
Fold-Down Tines
Small Items Cover
Deluxe
Nylon TufRacks™
Yes
Yes
Yes
2 / 6
Yes
3-Piece Split
2 Full Rows
3
Certifications
ENERGY STAR®
NSF® International Certification
Yes
Yes
Specifications
Water Inlet Location
Water Usage (Gallons)
Water Pressure (PSI)
Integral Air Gap on Supply
Leveling Legs
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts
Amps @ 120 Volts
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.
Left Bottom Front
4.0 – 8.0
20 – 120
Yes
4
Right Bottom Front
120V / 60 Hz / 15A
1
1.44
15
91 Lbs.
Dishwashers
FGID2474Q F / W / B 24" Built-In
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Adjustable)
B - Width
C - Depth (Including Door)
D - Depth (To Tub Flange)
Depth with Door Open 90°
33-3/4” - 35-3/4”
23-3/4"
24-1/4"
22-1/2"
50-1/4"
Cutout Dimensions
Height (Min.)
Height (Max.)
Width (Min.)
Depth (Min.)
Meets requirements
of ASSE 1006
34"
35-3/4"
24"
24"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FGID2474Q 05/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
*Height only adjustable to 35
3/4" max. when installed in 35
3/4" max.
standard cabinetry cutout. (Dimensions do NOT include insulation –
insulation blanket may be compressed during installation.)
33
3/4"
Adjustable
to 35
3/4"
*
Front
23
3/4"
Left
24
1/4"
Power supply & water inlet location
(bottom rear)
50
1/4"
Right
Door in 90°
open position
27
3
/4"
22
1/2"
3
1/2" min. to
4
1/2" max.
1"
2
1
/4"21/4"
**
NOTE: 35
3/4"
max.
height for standard
cabinetry cutout.
(5/16" min. clearance
required from unit to
underside of countertop.)
3"
18"
24"
min.
Electrical, water,
and drain
lines
must be confined
to shaded
area
11/4"
24"
3
"
90°
90°
Preferred
drain areas
3
"
34"
min. to
35
3/4"
max.
**
Dishwashers
FGID2474Q F / W / B 24" Built-In
Dishwasher Specifications
•
Product Shipping Weight (approx.) – 91 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps (maximum 20 Amps if
connected with disposer)
•
Connected Load (kW Rating) @ 120 Volts = 1.44 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120V = 15 Amps
•
Always consult local and national electric & plumbing codes.
Meets requirements of ASSE 1006 — integral air gap on supply.
•
Water Pressure – Hot water line to dishwasher must provide
between 20 and 90 pounds per square inch (psi) with at least 120° F
hot water temperature.
•
Make sure location has correct drain, water and electrical outlets
to make connections.
•
Electrical and water supplies should enter cabinet opening on floor,
or through back or side walls, as shown in shaded areas.
•
Keep back free of drain, water & electrical supply.
•
Connections preferably located toward left side of dishwasher.
Do not cross drain, water or electrical lines in front of motor, blower
or frame.
•
If connecting drain hose to sink trap, local code may require
installation of Air Gap Kit (not included).
•
Leveling legs supplied to adjust height. (Note: Height only adjustable
to 35-3/4" max. when installed in 35-3/4" max. standard cabinetry
cutout. 5/16" min. clearance required from top of unit to underside
of countertop. Dimensions do NOT inlcude insulation — insulation
blanket may be compressed during installation.)
•
When installing adjacent to wall, cabinet or other obstruction that
extends beyond front edge of unit, allow 2" minimum clearance
between opened door and obstruction.
•
Floor should be flat and free of obstructions with carpet removed
to provide motor clearance.
•
When installing at end of cabinet line, sides and back must be
fully enclosed.
•
Do not install unit under a cooktop, damage will occur.
•
Recommended to seal cabinets, enclosing all sides of dishwasher,
including underside of countertop, with oil-based paint or moistureproof polyurethane to prevent possible steam/moisture damage.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
•
USA
10200 David Taylor Drive
•
CANADA
FGID2474Q 05/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Meets
requirements of
ASSE 1006
Specifications
subject to change.
