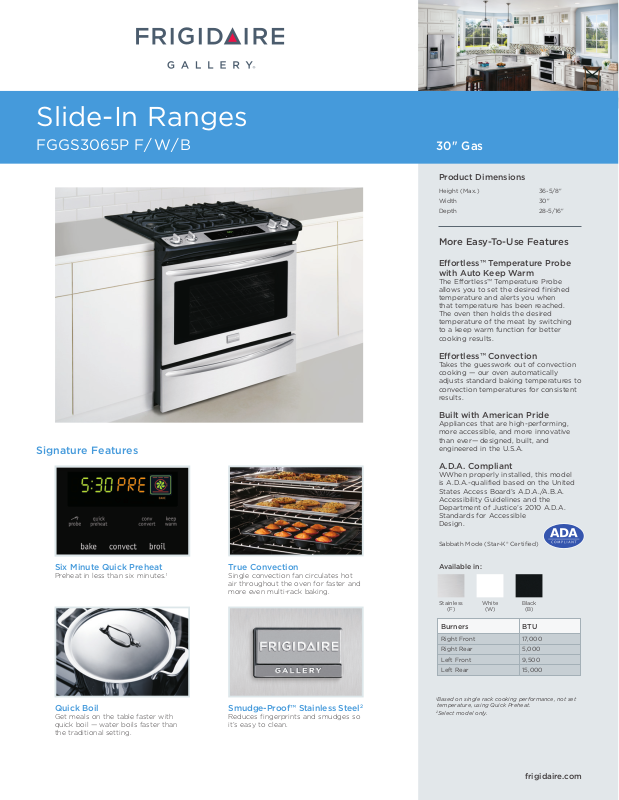

Slide-In Ranges
FGGS3065P F/ W/ B
Signature Features
|
|
|
Six Minute Quick Preheat |
True Convection |
|
Preheat in less than six minutes.1 |
Single convection fan circulates hot |
|
|
|
air throughout the oven for faster and |
|
|
more even multi-rack baking. |
|
|
|
|
|
|
Quick Boil |
Smudge-Proof™ Stainless Steel2 |
Get meals on the table faster with |
Reduces fingerprints and smudges so |
quick boil — water boils faster than |
it’s easy to clean. |
the traditional setting. |
|
30" Gas
Product Dimensions
Height (Max.) |
36-5/8" |
Width |
30" |
Depth |
28-5/16" |
More Easy-To-Use Features
Effortless™ Temperature Probe with Auto Keep Warm
The Effortless™ Temperature Probe allows you to set the desired finished temperature and alerts you when that temperature has been reached. The oven then holds the desired temperature of the meat by switching to a keep warm function for better cooking results.
Effortless™ Convection
Takes the guesswork out of convection cooking — our oven automatically adjusts standard baking temperatures to convection temperatures for consistent results.
Built with American Pride
Appliances that are high-performing, more accessible, and more innovative than ever — designed, built, and engineered in the U.S.A.
A.D.A. Compliant
WWhen properly installed, this model is A.D.A.-qualified based on the United States Access Board’s A.D.A./A.B.A.
Accessibility Guidelines and the Department of Justice’s 2010 A.D.A. Standards for Accessible
Design.
Sabbath Mode (Star-K® Certified)
Available in:
Stainless |
|
Black |
White |
||
(F) |
(W) |
(B) |
Burners |
BTU |
Right Front |
17,000 |
Right Rear |
5,000 |
Left Front |
9,500 |
Left Rear |
15,000 |
|
|
1Based on single rack cooking performance, not set temperature, using Quick Preheat.
2Select model only.
frigidaire.com
Features |
|
Oven Control / Timing System |
Express-Select® |
Surface Type |
Black Porcelain (F) |
|
Color-C. Porc. (W/B) |
Sealed Gas Burners |
Yes |
Grates |
Continuous Cast Iron |
|
w/Black Matte Finish |
Window |
Extra-Large |
Exterior Door Finish |
Smudge-Proof™ Stainless |
|
Steel (F), Color-Coord. (W/B) |
Handle Design |
Stainless Steel (F) |
|
Color-Coordinated (W/B) |
Exterior Finish (Side Panels) |
Black (F) |
|
Color-Coordinated (W/B) |
Convection System |
True Convection |
Oven Cleaning System |
Self-Clean |
Drawer Functionality |
Storage |
Oven Controls |
|
Bake / Broil |
Yes / Variable (400 – 550 °F) |
Effortless™ Convection Conversion |
Yes |
Convection Bake / Broil / Roast |
Yes / No/ Yes |
Quick Preheat |
Yes |
My Favorite |
|
Chicken Nugget Button |
|
Pizza Button |
|
Slow Cook |
|
Effortless™ Temperature Probe |
Yes |
Keep Warm |
Yes |
Add-a-Minute |
|
Delay Start |
Yes/2, 3, 4 Hours |
Self-Clean / Clean Options |
Yes |
Steam Clean |
|
Delay Clean |
2, 3, 4 Hours |
Kitchen Timer / Timed Cook Option |
Yes / Yes |
Auto Oven Shut-Off |
6 Hours |
Lower Drawer Control |
|
Cooktop Features |
|
Right Front Burner (BTU) |
17,000 |
Right Rear Burner (BTU) |
5,000 |
Left Front Burner (BTU) |
9,500 |
Left Rear Burner (BTU) |
15,000 |
Oven Features |
|
Capacity (Cu. Ft.) |
4.5 |
Oven Light |
2 |
Rack Configuration |
1 Heavy Duty, 1 Offset, |
|
1 Effortless™ |
Baking System |
Even Baking Technology |
Broiling System |
Vari-Broil™ |
Bake Burner / Broil Burner (BTU) |
18,000 / 11,500 |
Drawer Rack |
|
Certifications |
|
A.D.A. Compliant1 |
Yes |
Sabbath Mode (Star-K® Certified) |
Yes |
Specifications |
|
Oven Interior ( H x W x D ) |
17-1/2" x 24-1/8" x 18-3/4" |
Power Supply Connection Location |
Left Bottom Rear |
Gas Supply Connection Location |
Right Bottom Rear |
LP Gas Conversion Kit |
Included |
Voltage Rating |
120V / 60 Hz / 15A |
Conn. Load (kW Rating) @ 120 Volts2 |
.84 kW |
Amps @ 120 Volts |
15 |
Minimum Circuit Required (Amps) |
15 |
Shipping Weight (Approx.) |
225 Lbs. |
|
|
Slide-In Ranges
FGGS3065P F / W / B 30" Gas
C
A |
Extreme |
|
protrusion |
B
NOTE: For planning purposes only. Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions |
|
|
Cutout Dimensions |
|
A - Height (Min. / Max.) |
35-7/8" / 36-5/8" |
|
Height (Min. / Max.) |
35-7/8" / 36-5/8" |
B - Width |
30" |
|
Width (Min. / Max.)* |
29-15/16" / 30-1/16" |
C - Depth |
28-5/16" |
|
Depth (Min. / Max.)** |
21-3/4" / 22-1/8" |
Depth with Door Open 90˚ |
47-9/16" |
|
*Cutout and countertop cutout width should match. |
|
|
|
|
**24" with optional backguard installed. |
|
1 When properly installed, this model is A.D.A.-qualified based on the United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
2 For use on adequately wired 120V, dedicated circuit having 2-wire servicewith a separate ground wire. Appliance must be grounded for safe operation.
Accessories information available on the web at frigidaire.com
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com |
Specifications |
|
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca |
||
subject to change. |
FGGS3065P 10/13 |
© 2013 Electrolux Home Products, Inc. |
Slide-In Ranges
FGGS3065P F / W / B 30" Gas
Slide-In Range Specifications
•Product Shipping Weight (approx.) – 225 Lbs.
•Voltage Rating – 120V / 60 Hz / 15 Amps
•Connected Load (kW Rating) @ 120 Volts = .84 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate ground wire. Appliance must be grounded for safe operation.)
•Amps @ 120V = 15 Amps
•Always consult local and national electric and gas codes.
•Make sure wall coverings around range can withstand heat generated by range.
•Linoleum or any other synthetic floor covering located beneath range, must be capable of withstanding minimum heat of 90° F above room temperature without shrinking, warping or discoloring. Insulating pad or 1/4"-thick plywood required between range and a carpeted floor.
•Do not obstruct flow of combustion air at oven vent nor around base or beneath lower front panel of range. Range requires fresh air for proper burner combustion.
•Range ships with 3/4" factory regulator.
•LP Gas Conversion Kit supplied.
•Gas supply piping can be through back wall or floor. Optimum location is between 1" and 8" from floor through back wall within 3" of center line; can also be through floor against back wall within 12" of center line. Supply line must be equipped with approved manual shutoff valve, accessibly located in same room as range.
•Countertop MUST be level in all directions and adjustable range height at least 1/16" greater than tallest cabinet height, to ensure metal rangetop flange will fit properly on countertop edge.
•When installing optional Backguard Kit, cutout depth of 21-3/4" minimum / 22-1/8" maximum needs increased to 24".
•Overhead cabinetry should not exceed a 13" maximum depth.
•Absolute minimum horizontal distance between overhead cabinets installed to either side of appliance must be no less than maximum width of appliance.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
•Allow 24" minimum clearance between rangetop and bottom of cabinet when bottom of wood or metal cabinet is protected by not less than 1/4" flame-retardant millboard covered with not less than No. 28 MSG sheet steel, 0.015" stainless steel, 0.024" aluminum or 0.020" copper. Allow 30" minimum clearance when cabinet is unprotected.
•Allow 5" minimum clearance from edge of rangetop to nearest combustible wall on either side of unit.
•To reduce risk of fire when using overhead cabinetry, install range hood that projects horizontally a recommended minimum of 5" beyond bottom of cabinets.
Countertop Preparation
Rangetop’s side flanges overlap countertop cutout edges – for detailed preparation instructions, refer to product installation guide on the web.
•Flat Square-Finish Countertops – require no preparation since rangetop’s flange lays directly on countertop edge.
•Formed Front-Edged Countertops – require front molded edge to be shaved flat 3/4" from each front corner of opening.
•Tile Countertops – may need trim cut back 3/4" from each front corner of opening and /or rounded edge flattened.
•For existing cutout width greater than 30-1/16" reduce the 3/4" overlap dimension; for cutout width of 29", replace actual side trim panels with smaller side trim panels, available with optional Side Trim Kit (refer to detailed kit installation instructions).
Note: For planning purposes only. Refer to Product Installation Guide on the web at frigidaire.com for detailed instructions.
Optional Accessories
•Rear Filler Kit: Stainless Steel – (PN # 901193-901S); White – (PN # 901193-9011), Black – (PN # 901193-9010).
•Side Panel Kit: Stainless Steel – (PN # 903074-901S), White – (PN # 903074-9011), Black – (PN # 903074-9010).
•Backguard Kit: Stainless Steel – (PN # 903046-901S), White – (PN # 903046-9011), Black – (PN # 903046-9010).
• Side Trim Kit: Stainless Steel – (PN # 903075-901S), White – (PN # 903075-9011), Black – (PN # 903075-9010).
Accessories information available |
Specifications |
on the web at frigidaire.com |
subject to change. |
FGGS3065P 10/13 |
© 2013 Electrolux Home Products, Inc. |
