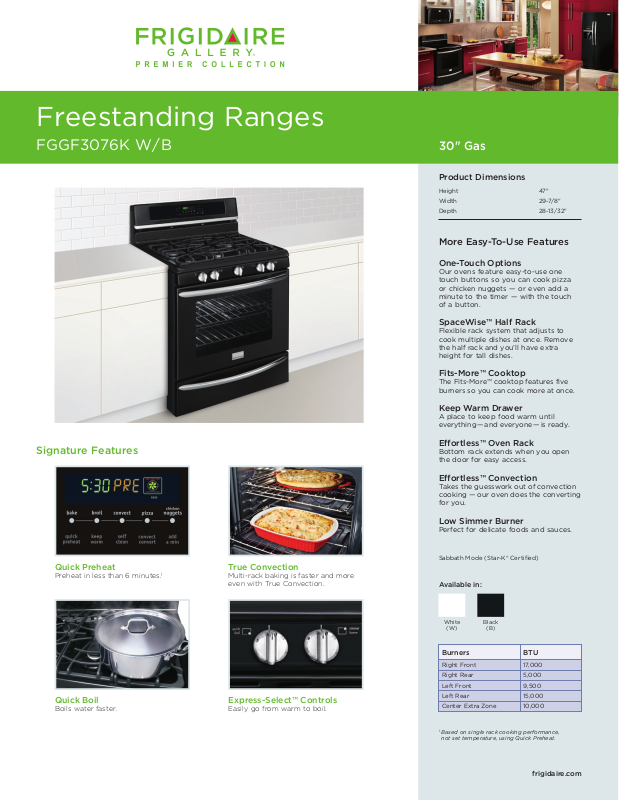

Frigidaire FGGF3076K DATASHEET
Freestanding Ranges
FGGF3076K W/ B
30" Gas
Product Dimensions
Height 47"
Width 29-7/8"
Depth 28-13/32"
More Easy-To-Use Features
One-Touch Options
Our ovens feature easy-to-use one
touch buttons so you can cook pizza
or chicken nuggets — or even add a
minute to the timer — with the touch
of a button.
SpaceWise™ Half Rack
Flexible rack system that adjusts to
cook multiple dishes at once. Remove
the half rack and you’ll have extra
height for tall dishes.
Fits-More™ Cooktop
The Fits-More™ cooktop features five
burners so you can cook more at once.
Keep Warm Drawer
A place to keep food warm until
everything — and everyone — is ready.
Signature Features
Quick Preheat
Preheat in less than 6 minutes.
Quick Boil
Boils water faster.
Eortless™ Oven Rack
Bottom rack extends when you open
the door for easy access.
Eortless™ Convection
Takes the guesswork out of convection
cooking — our oven does the converting
for you.
Low Simmer Burner
Perfect for delicate foods and sauces.
1
True Convection
Multi-rack baking is faster and more
even with True Convection.
Express-Select™ Controls
Easily go from warm to boil.
Sabbath Mode (Star-K® Certified)
Available in:
White
(W)
Burners
Right Front
Right Rear
Left Front
Left Rear
Center Extra Zone
1
Based on single rack cooking performance,
not set temperature, using Quick Preheat.
Black
(B)
BTU
17,000
5,000
9,500
15,000
10,000
frigidaire.com
C
A
B
36"
(Adjustable)
Features
Oven Control / Timing System
Surface Type
Sealed Gas Burners
Grates
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Express-Select™ Controls
Color-C. Porcelain
Yes
Continuous Cast Iron
w/ Black Matte Finish
Extra-Large
Color-Coordinated
Stainless Steel
Color-Coordinated
True Convection
Self Clean
Warmer
Oven Controls
Bake / Broil
Eortless™ Convection Conversion
Convection Bake / Broil / Roast
Quick Bake Convection
Quick Preheat
My Favorite
Chicken Nugget Button
Pizza Button
Keep Warm
Add-a-Minute
Delay Bake
Self Clean
Quick Clean Option
Delay Clean
Kitchen Timer / Timed Cook Option
Auto Oven Shuto
Lower Drawe r Control
Yes / Variable
(400 – 500 °F)
Yes
Yes / No / Yes
Yes
Yes
Yes
Yes
Yes
Yes
2, 3, 4 Hours
Yes
Yes
Yes / Yes
6 Hours
Warmer,
Low-Med-High
Cooktop Features
Right Front Burner (BTU)
Right Rear Burner (BTU)
Left Front Burner (BTU)
Left Rear Burner (BTU)
Center Extra Zone Burner (BTU)
17,000
5,000
9,500
15,000
Oval 10,000
Oven Features
Capacity (Cu. Ft.)
Oven Light
Rack Configuration
Baking System
Broiling System
Bake Burner / Broil Burner (BTU)
Drawer Racks
5.0
1
1 Heavy Duty, 1 SpaceWise™
Half Rack, 1 Eortless™
Even Baking Technology
Even Broil
18,000 / 13,500
1
Optional Accessories
LP Gas Conversion Kit
PN # GRLP3
Certifications
Sabbath Mode (Star-K® Cert.)
Yes
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Gas Supply Connection Location
Voltage Rating
Conn. Load (kW Rating) @ 120 Volts
Amps @ 120 Volts
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.
17-5/8" x 24-3/8" x 19-3/4"
Left Bottom Rear
Right Bottom Rear
120V / 60Hz / 15A
1
1.8
15
220 Lbs.
Freestanding Ranges
NOTE: For planning purposes only. Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
Depth with Door Open 90˚
47"
29-7/8"
28-13/32"
46-5/8"
Cutout Dimensions
Height (stand.)
Width (min.)
Depth (min.)
FGGF3076K W/ B 30" Gas
36"
30"
24"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FGGF3076K 08/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
