Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No. FGET2765KFA
37056776C90S1
Series 27" double
Color stainless
Market North America
Wiring Diagram 318046134
Owner's Guide 318205303
Installation Instructions 318201532
Service Data Sheet 318047450
Publication No.
5995544946
09/07/07
(EN/SERVICE/ECL)
377
27” DOUBLE ELECTRIC
WALL OVEN
Model No.
FGET2765K
Copyright © 2009 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995544946 FGET2765KFA
CONTROL PANEL
97
19
2B
20
2A
77A
77A
77
CFPET2785KFA
07/09 2
FGET2765KFA Publication No: 5995544946
CONTROL PANEL
POS. NO PART NO. DESCRIPTION
2A 318257301 Shield, oven top
2B 318260101 Cover, box
19 # 318575106 Panel Assembly, control, black/stainless
20 # 316443844 Control, electronic, ES610W6, dual oven
* 5303311306 Screw, 8-18 x 0.375, (6)
77 316247 90 0 Spacer, power board
77A 316114100 Spacer
97 # 316443911 Board, relay, dual oven
* # 318370374 Wiring Harness, timer, to relay board
* 5303211311 Screw, 8 x 0.500
* 5304401490 Screw, 6-18 x 1, (2)
* 5304436875 Screw, 8-18 X 1/2, black
* 5304454881 Screw, #8-18 x 3/8
# Functional Parts
3 07/09
* Non-Illustrated Parts
Publication No: 5995544946 FGET2765KFA

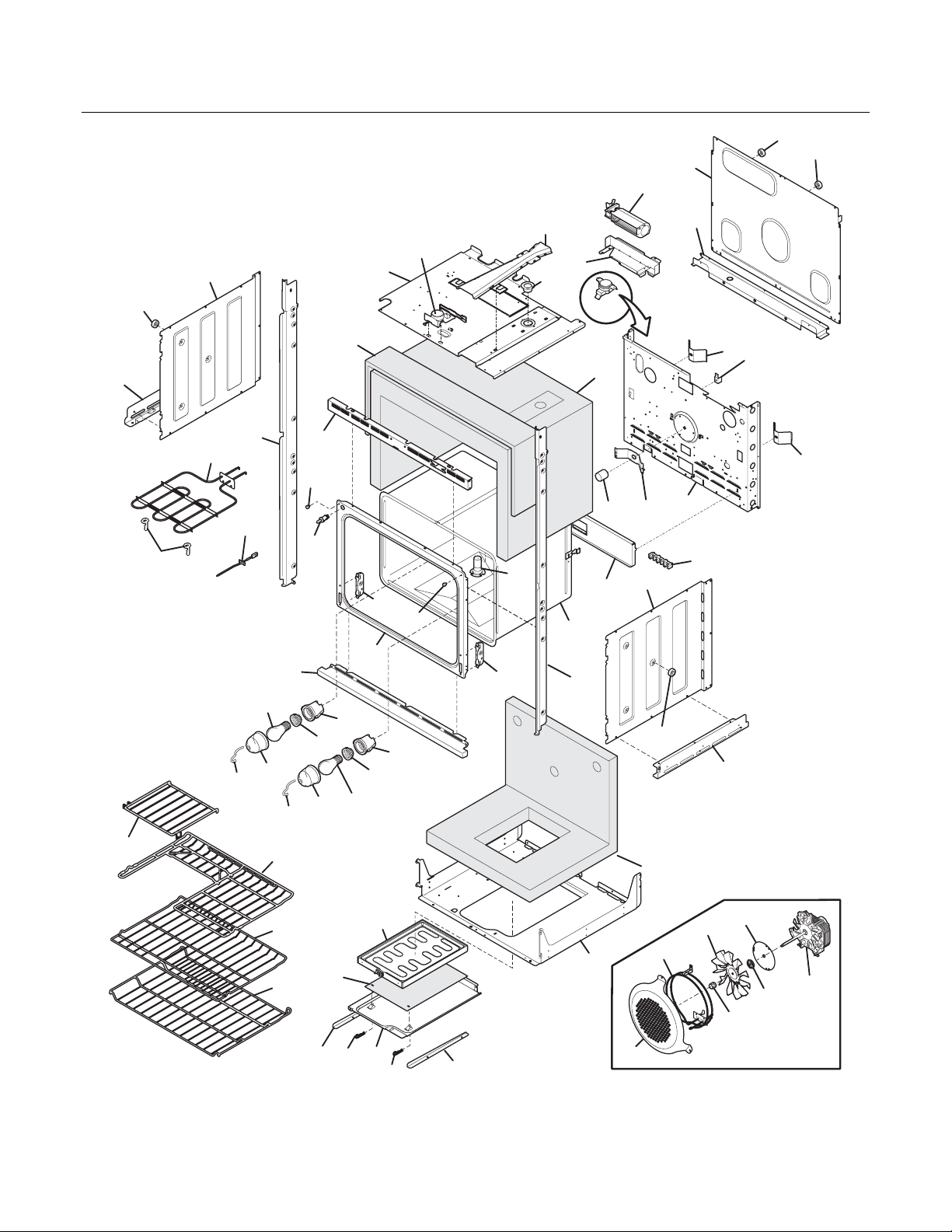

UPPER OVEN
132
71
163
163
185
99
70
58D
2
131
89
133
59
108A
119
58A
108
81
143
264
66
81
29
1
80
272
37
12
68
127
86
10
29
9
76
83
142
70
86
15
18
14
185
18
16
17
16
17
6C
6A
6
6B
8
58
14
15
58B
67
82
57
7
7
8
161
107
99
20
109
125
21
111
BUFPET2785KFA
07/09 4
FGET2765KFA Publication No: 5995544946
UPPER OVEN
POS. NO PART NO. DESCRIPTION
1 318259213 Back, main
2 318258920 Shield, insulation, upper
6 318922300 Rack, oven
6A 318926804 Rack, half, oven
6B 318919800 Rack, oven
6C 318929703 Insert, half rack
7 318368300 Pin, locking, (2)
8 318361801 Bracket, element, (2)
9 5303317977 Pan, broiler, OPTIONAL ACCESS0RY
10 5303317976 Insert, broiler pan, OPTIONAL ACCESS0RY
12 316445501 Switch, oven light, door frame
14 318224000 Receptacle, oven light
15 5303013071 Bulb/Lamp, light
15* 318268099 Insulation, oven light
16 08011086 Lens, oven light, glass
17 5304400195 Retainer, light cover
18 318222400 Housing, oven light
18* 318368501 Seal, housing, flat washer
20 318389400 Plate, retainer
21 318389000 Seal, ring
29 316517600 Spacer, oven door
37 # 316217002 Probe, oven temp
57 318902701 Panel, service
58 318330503 Insulation, service panel
58A 318386110 Insulation, oven wrapper
58B 318330510 Insulation, back & bottom, oven
58D 318372006 Insulation, 1/2" thick, 43 x 9.5
59 318072577 Duct, oven vent
66 # 318255601 Element, broil, 3400W
67 # 318902502 Element, hidden bake, 1450W
* # 318231870 Wiring Harness, bake element
* 5303323130 Screw, 8 x 1/4, (6)
68 5304403015 Support, hanger, (4), broil element
70 318259 10 0 Shield, insulation, sides, (2)
71 318260001 Panel, rear box
76 318056224 Front, oven
80 5303320846 Plate, oven mtg
81 318192400 Spring, oven
* 5303323129 Screw, 8 X 0.750
82 318258 72 0 Shield, insulation, lower
83 318261810 Liner, oven
86 318561100 Receptacle, hinge, (2)
89 # 318261215 Motor, latch assy
* # 318402206 Wiring Harness, main, latch
* # 318199768 Wiring Harness, latch, BAS
* 5303324184 Screw, 8-18 x 5/16, black, (4)
99 318252804 Support, side
107 318 219405 Cover, fan
108# 318073028 Motor, blower
* 08016432 Screw, truss head, 8-18 x 0.375
108A 318251300 Bracket, fan support
# Functional Parts
5 07/09
* Non-Illustrated Parts
Publication No: 5995544946 FGET2765KFA
UPPER OVEN
132
71
163
163
185
99
70
58D
2
131
89
133
59
108A
119
58A
108
81
143
264
66
81
29
1
80
272
37
12
68
127
86
10
29
9
76
83
142
70
86
15
18
14
185
18
16
17
16
17
6C
6A
6
6B
8
58
14
15
58B
67
82
57
7
7
8
161
107
99
20
109
125
21
111
BUFPET2785KFA
07/09 6
FGET2765KFA Publication No: 5995544946
UPPER OVEN
POS. NO PART NO. DESCRIPTION
109 318398300 Fan Blade
111 318 399800 Nut, fan retainer
119# 318004900 Switch, thermal
125# 318398200 Motor, fan
125* 318142100 Washer, motor, convection
127 318357001 Adapter Assembly, w/vent tube, and catalyst
131 318272901 Box, vent
132 318 003000 Plate, shield
* 5304436875 Screw, 8-18 X 1/2, black
133 318347800 Chimney
142 318 123910 Deflector
143 318 172904 Support, wire
161# 318255504 Element, convection, 350 W
163 318 531703 Spacer, (4)
185 318 531800 Spacer, oven shield, (2)
* 5303323139 Screw, 10-24 x 0.906
264 318 257721 Trim, oven, black, front
272 318 249409 Tube, protector
* 318165800 Spacer
* 5303211311 Screw, 8 x 0.500
* 5303300265 Screw, 8-18 X 1/2, silver, (4)
* 5303323277 Screw, 8-18 X 13/32
* 5304415832 Screw, 8-18 x 0.406
* 5304461333 Screw, 10-32 x 17/32
* 5304470882 Screw, anti-tip, 8 - 5/8, black, (2)
# Functional Parts
7 07/09
* Non-Illustrated Parts
Publication No: 5995544946 FGET2765KFA
LOWER OVEN
108
71
163
163
99
185
68
70
66
56A
37
90
264
29
12
58D
76
86
133
89
2
59
108A
87
119
81
143
58A
81
1
80
272
62
29
86
127
83
56
142
70
15
18
14
185
18
16
17
16
17
6C
6A
6
6B
8
58
14
15
58B
67
82
57
7
7
8
161
107
99
20
109
21
111
BLFPET2785KFA
125
07/09 8
FGET2765KFA Publication No: 5995544946
LOWER OVEN
POS. NO PART NO. DESCRIPTION
1 318259213 Back, main
2 318258920 Shield, insulation, upper
6 318922300 Rack, oven
6A 318926804 Rack, half, oven
6B 318919800 Rack, oven
6C 318929703 Insert, half rack
7 318368300 Pin, locking, (2)
8 318361801 Bracket, element, (2)
12 316445501 Switch, oven light, door frame
14 318224000 Receptacle, oven light
15 5303013071 Bulb/Lamp, light
15* 318268099 Insulation, oven light
16 08011086 Lens, oven light, glass
17 5304400195 Retainer, light cover
18 318222400 Housing, oven light
18* 318368501 Seal, housing, flat washer
20 318389400 Plate, retainer
21 318389000 Seal, ring
29 316517600 Spacer, oven door
37 # 316217002 Probe, oven temp
56 318903604 Trim, side filler, black, RH
56A 318903605 Trim, side filler, black, LH
57 318902701 Panel, service
58 318330503 Insulation, service panel
58A 318386110 Insulation, oven wrapper
58B 318330510 Insulation, back & bottom, oven
58D 318372006 Insulation, 1/2" thick, 43 x 9.5
59 318072577 Duct, oven vent
62 316056000 Terminal Block
62* 5303323139 Screw, 10-24 x 0.906
62* 5303323144 Nut, 10-32
66 # 318255601 Element, broil, 3400W
67 # 318902502 Element, hidden bake, 1450W
* # 318231870 Wiring Harness, bake element
* 5303323130 Screw, 8 x 1/4, (6)
68 5304403015 Support, hanger, (4), broil element
70 318259 10 0 Shield, insulation, sides, (2)
71 318260001 Panel, rear box
76 318056224 Front, oven
80 5303320846 Plate, oven mtg
81 318192400 Spring, oven
* 5303323129 Screw, 8 X 0.750
82 318258 72 0 Shield, insulation, lower
83 318261810 Liner, oven
86 318561100 Receptacle, hinge, (2)
* 5304461333 Screw, 10-32 x 17/32
87 318260601 Bracket, cable mtg.
* 5303323136 Screw ground
89 # 318261215 Motor, latch assy
* # 318402206 Wiring Harness, main, latch
* # 318532135 Harness, wiring, latch, NO BAS
# Functional Parts
9 07/09
* Non-Illustrated Parts
Publication No: 5995544946 FGET2765KFA
LOWER OVEN
108
71
163
163
99
185
68
70
66
56A
37
90
264
29
12
58D
76
86
133
89
2
59
108A
87
119
81
143
58A
81
1
80
272
62
29
86
127
83
56
142
70
15
18
14
185
18
16
17
16
17
6C
6A
6
6B
8
58
14
15
58B
67
82
57
7
7
8
161
107
99
20
109
21
111
BLFPET2785KFA
125
07/09 10
FGET2765KFA Publication No: 5995544946
LOWER OVEN
POS. NO PART NO. DESCRIPTION
* 5303324184 Screw, 8-18 x 5/16, black, (4)
90 318259838 Trim, base, stainless
99 318256201 Bracket, side, bottom, (2)
107 318 219405 Cover, fan
108# 318073028 Motor, blower
* 08016432 Screw, truss head, 8-18 x 0.375
108A 318251300 Bracket, fan support
109 318398300 Fan Blade
111 318 399800 Nut, fan retainer
119# 318004900 Switch, thermal
125# 318398200 Motor, fan
125* 318142100 Washer, motor, convection
127 318357001 Adapter Assembly, w/vent tube, and catalyst
133 318347800 Chimney
142 318 123910 Deflector
143 318 172904 Support, wire
161# 318255504 Element, convection, 350 W
163 318 531703 Spacer, (4)
185 318 531800 Spacer, oven shield, (2)
264 318 257823 Trim, oven, black, front
* 5304436875 Screw, 8-18 X 1/2, black
272 318 249409 Tube, protector
* # 318394443 Box & wires assy
* # 318532185 Harness, wiring, main
* 318165800 Spacer
* 5303211311 Screw, 8 x 0.500
* 5303300265 Screw, 8-18 X 1/2, silver, (4)
* 5303323277 Screw, 8-18 X 13/32
* 5304415832 Screw, 8-18 x 0.406
* 5304470882 Screw, anti-tip, 8 - 5/8, black, (2)
# Functional Parts
11 07/09
* Non-Illustrated Parts
Publication No: 5995544946 FGET2765KFA
DOORS
17
8
56
56
23
3
10
3A
9
8
17
56
10
12
56
3A
23
7A
56
29
7
29
64
39
64
13
6
7A
42
7
DFGET2765KFA
07/09 12
FGET2765KFA Publication No: 5995544946
DOORS
POS. NO PART NO. DESCRIPTION
3 318260211 Trim, oven door, black, upper
3A 318260401 Trim, oven door, side, (2)
6 318260510 Baffle, door
* 5303323277 Screw, 8-18 X 13/32
7 318372000 Insulation, door, (2)
7A 318372001 Insulation, door, 20.5 x 2.375, (2)
8 318212200 Glass, oven door, heat barrier
9 318259652 Liner, oven door
10 5303308458 Screw, 10-24, (2)
12 318053126 Gasket, oven door seal
13 318304137 Door Assembly, outer, steel/glass, stainless/black
13 318927810 Door Assembly, outer, steel/glass, stainless/black, w/badge
17 318264700 Spacer, glass, (2)
23 318567105 Hinge, oven door, (2)
* 5304461333 Screw, 10-32 x 17/32
29 318014405 Spacer, door
39 318919602 Handle, door, stainless
42 318382301 Bracket, glass retainer, (4)
56 5304436875 Screw, 8-18 X 1/2, black
64 318165800 Spacer
* 5303300265 Screw, 8-18 X 1/2, silver, (4)
# Functional Parts
13 07/09
* Non-Illustrated Parts
Publication No: 5995544946 FGET2765KFA
WIRING DIAGRAM
