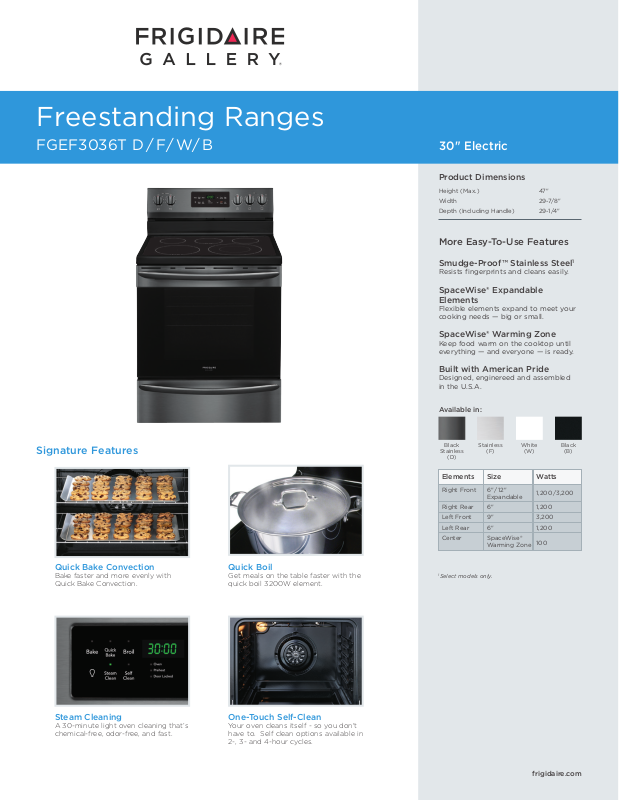

Frigidaire FGEF3036TB, FGEF3036TW, FGEF3036TF Specification Sheet
Freestanding Ranges
FGEF3036T D / F/ W/ B
30" Electric
Product Dimensions
Height (Max.) 47"
Width 29-7/8"
Depth (Including Handle) 29-1/4"
More Easy-To-Use Features
Smudge-Proof™ Stainless Steel1
Resists fingerprints and cleans easily.
SpaceWise® Expandable
Elements
Flexible elements expand to meet your
cooking needs — big or small.
SpaceWise® Warming Zone
Keep food warm on the cooktop until
everything — and everyone — is ready.
Built with American Pride
Designed, enginereed and assembled
in the U.S.A.
Available in:
Signature Features
Quick Bake Convection
Bake faster and more evenly with
Quick Bake Convection.
Steam Cleaning
A 30-minute light oven cleaning that’s
chemical-free, odor-free, and fast.
Quick Boil
Get meals on the table faster with the
quick boil 3200W element.
One-Touch Self-Clean
Your oven cleans itself - so you don't
have to. Self clean options available in
2-, 3- and 4-hour cycles.
Black
Stainless
(D)
Elements
Right Front
Right Rear
Left Front
Left Rear
Center
1
Select models only.
Stainless
(F)
Size
6" / 12"
Expandable
6"
9"
6"
SpaceWise®
Warming Zone
White
(W)
Watts
1,200 /3,200
1,200
3,200
1,200
100
Black
(B)
frigidaire.com
Features
Oven Control / Timing System
Surface Type
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake / Broil
Eortless™ Convection Conversion
Convection Bake / Broil / Roast
Quick Bake Convection
Quick Preheat
Eortless™ Temperature Probe
Keep Warm
Add-a-Minute
Delay Start
Self Clean
Quick Clean Option
Delay Clean
Kitchen Timer / Timed Cook Option
Auto Oven Shut-O
Oven Lock-Out
Lower Drawer Control
Cooktop Features
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Bridge Element (Watts)
Center Element (Watts)
Hot Surface Indicator Light
Oven Features
Capacity (Cu. Ft.)
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake Element / Broil Element (Watts)
Drawer Racks
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 240 / 208 Volts
Shipping Weight (Approx.)
Express-Select® Controls
Black Ceramic Glass
Extra-Large
Smudge-Proof™ Stainless
Steel (D/F), Color-Co. (W/B)
Stainless Steel (D/F),
Color-Coordinated (W/B)
Black (D/F),
Color-Coordinated (W/B)
Quick Bake Convection
Self Clean
Storage
Yes /Variable High/Low
Yes
2, 3, 4 Hours
Yes
2, 3, 4 Hours
Yes / Yes
Yes
Yes
SpaceWise® Expandable
6" / 12" – 1,200 / 3,200
6" – 1,200
9" – 3,200
6" – 1,200
SpaceWise®
Warming Zone – 100
Yes
5.4
1
Yes
2 Standard
Even Baking Technology
Vari-Broil™ Hi / Lo
3,500 / 3,900
19-3/4" x 24-3/8" x 19-1/8"
Middle Bottom Rear
240V / 208V / 60 Hz
13.5/10.5
190 Lbs.
Freestanding Ranges
FGEF3036T D / F/ W/ B 30" Electric
36"
(Adjustable)
C
B
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90˚
47"
29-7/8"
29-1/4"
48-5/8"
Cabinet Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
A
36"
30"
24"
•
USA
10200 David Taylor Drive
•
CANADA
FGEF3036T 12/17 © 2017 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
