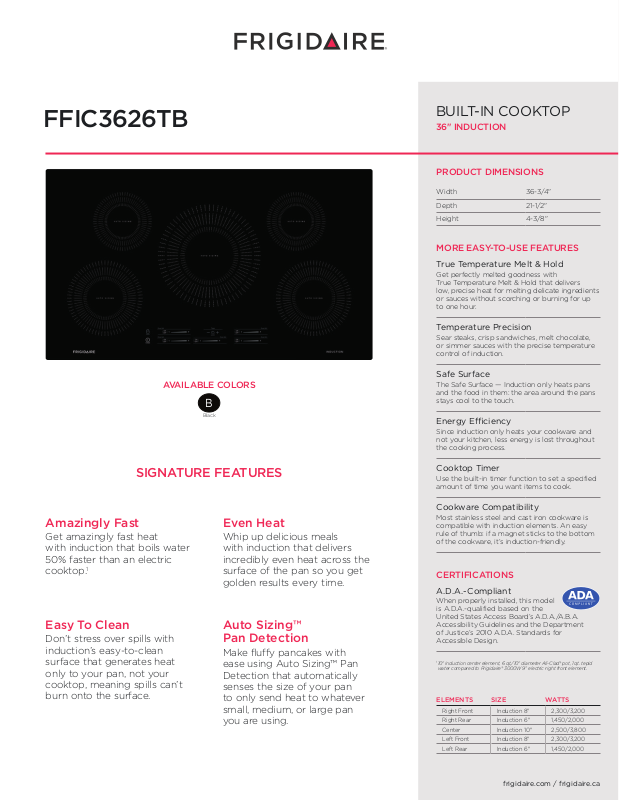

FFIC3626TB
B
AVAILABLE COLORS
Black
BUILT-IN COOKTOP
36" INDUCTION
PRODUCT DIMENSIONS
Width 36-3/4"
Depth 21-1/2"
Height 4-3/8"
MORE EASY-TO-USE FEATURES
True Temperature Melt & Hold
Get perfectly melted goodness with
True Temperature Melt & Hold that delivers
low, precise heat for melting delicate ingredients
or sauces without scorching or burning for up
to one hour.
Temperature Precision
Sear steaks, crisp sandwiches, melt chocolate,
or simmer sauces with the precise temperature
control of induction.
Safe Surface
The Safe Surface — Induction only heats pans
and the food in them: the area around the pans
stays cool to the touch.
Energy Eciency
Since induction only heats your cookware and
not your kitchen, less energy is lost throughout
the cooking process.
SIGNATURE FEATURES
Amazingly Fast
Get amazingly fast heat
with induction that boils water
50% faster than an electric
cooktop.
Easy To Clean
Don’t stress over spills with
induction’s easy-to-clean
surface that generates heat
only to your pan, not your
cooktop, meaning spills can’t
burn onto the surface.
1
Even Heat
Whip up delicious meals
with induction that delivers
incredibly even heat across the
surface of the pan so you get
golden results every time.
Auto Sizing™
Pan Detection
Make fluffy pancakes with
ease using Auto Sizing™ Pan
Detection that automatically
senses the size of your pan
to only send heat to whatever
small, medium, or large pan
you are using.
Cooktop Timer
Use the built-in timer function to set a specified
amount of time you want items to cook.
Cookware Compatibility
Most stainless steel and cast iron cookware is
compatible with induction elements. An easy
rule of thumb: if a magnet sticks to the bottom
of the cookware, it’s induction-friendly.
CERTIFICATIONS
A.D.A.- Compliant
When properly installed, this model
is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A.
Accessibility Guidelines and the Department
of Justice’s 2010 A.D.A. Standards for
Accessible Design.
1
10" induction center element, 6 qt./10" diameter All-Clad® pot, 1 qt. tepid
water compared to Frigidaire® 3000W 9" electric right front element.
ELEMENTS SIZE WATT S
Right Front Induction 8" 2,300/3,200
Right Rear Induction 6" 1,450/2,000
Center Induction 10" 2,500/3,800
Left Front Induction 8" 2,300/3,200
Left Rear Induction 6" 1,450/2,000
frigidaire.com / frigidaire.ca
A
B
C
FFIC3626TB
BUILT-IN COOKTOP
36" INDUCTION
FEATURES
Controls Glass-Touch
Surface Type Black Ceramic Glass
Right Front Element (Watts) 8" - 2,300 / 3,200
Right Rear Element (Watts) 6" - 1,450/2,000
Center Element (Watts) 10" - 2,500 / 3,800
Left Front Element (Watts) 8" - 2,300 / 3,200
Left Rear Element (Watts) 6" - 1,450/2,000
Hot Surface Indicators Yes
Control Location Center Front
Knob Color
Knob Type
CERTIFICATIONS
A.D.A. Compliant
1
Yes
SPECIFICATIONS
Power Supply Connection Location Right Rear
Voltage Rating 240V /208V / 60Hz
Connected Load
(kW Rating) @ 240 / 208 Volts
Amps @ 240 / 208 Volts 45.0 / 45.2
Minimum Circuit Required (Amps) 40
Approved for Electric Single
Wall Oven Combination Installation
Shipping Weight (Approx.) 54 Lbs.
1
When properly installed, this model is A.D.A.-qualified based on the United States
Access Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s
2010 A.D.A. Standards for Accessible Design.
2
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC only electrical
supply with ground required on separate circuit fused on both sides of line.
3
Cooktops are approved for installation above any of our Electric Single Wall Ovens.
2
3
9.6 / 8.3
Yes
PRODUCT DIMENSIONS
A - Width 36-3/4"
B - Depth 21-1/2"
C - Height
2-7/8"
CUTOUT DIMENSIONS
Width (Min. - Max.) 33-5/8"- 36-1/8"
Depth (Min. - Max.) 19-1/8"- 20-1/2"
Height 4-1/2"
•
USA
10200 David Taylor Drive
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com / frigidaire.ca.
•
frigidaire.com
•
frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Specifications subject to change. Accessories information available on the web at frigidaire.com / frigidaire.ca
© 2017 Electrolux Home Products, Inc.
FFIC3626T 01/19
FFIC3626TB
BUILT-IN COOKTOP
36" INDUCTION
13"
max.
cabinet
depth
( G ) min. between rear edge of cutout
and nearest combustible surface
(or backsplash) above countertop
25"
min.
C
24"
K
A
4"x 8" opening to route armored
cable if base is present
Plywood base
E
(optional)
H
min.
( H )
of cooktop to nearest
combustible wall
from left edge
18"
B
min.
F *
D
(
J
) min. from
edge of cutout to front
edge of countertop
30"min.
for
unprotected
cabinet
24" min.
for
protected
cabinet
* Includes clearance needed
beneath cooktop to allow for
armored cable and installation
of junction box on back wall
I
min.
(
I
)
from right
edge of
cooktop to
nearest
combustible
wall
PRODUCT DIMENSIONS
A - Width 36-3/4"
B - Depth 21-1/2"
C - Height
CUTOUT DIMENSIONS
D - Width (Min.)
(Max.)
E - Depth (Min.)
(Max.)
F - Height (Min.)* 4-1/2"
REQUIRED CLEARANCES
G - (Min.) 1-1/2"
H - (Min.) 2"
I - (Min.) 2"
J - (Min.) 2-1/2"
K - Cabinet
Opening
Width (Min.)
UTILITY CONNECTION
LOCATIONS
Power Supply
2-7/8"
33-5/8"
36-1/8"
19-1/8"
20-1/2"
36"
Right
Rear
INSTALLATION SPECIFICATIONS
•
Product Shipping Weight (approx.) – 54 Lbs.
•
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC
only electrical supply with ground required on separate circuit fused on both
sides of line.
•
Connected Load (kW Rating) @ 240 / 208 Volts = 9.6 / 8.3 kW
•
Amps @ 240 / 208 Volts = 45.0 / 45.2 Amps
•
Recommended Circuit Breaker – 40 Amps
•
Always consult local and national electric codes.
•
Cooktop cutout height includes clearance needed beneath cooktop to allow
for armored cable and installation of junction box on back wall. Position center
of junction box 10" inward from right side of cooktop cutout, and 12" down
from underside of countertop.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets installed to
either side of appliance must be no less than 36".
•
Allow 30" minimum clearance between top of cooktop platform and bottom
of unprotected wood or metal overhead cabinet; or 24" minimum clearance
when bottom of wood or metal overhead cabinet is protected by not less than
1/8" flame-retardant millboard covered with not less than No. 28 MGS sheet
steel, 0.015" stainless steel, 0.024" aluminum or 0.020" copper.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com / frigidaire.ca.
•
USA
10200 David Taylor Drive
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
•
Allow 2" minimum clearance between rear edge of cutout and nearest
combustible surface (or backsplash) above countertop.
•
Allow 2" minimum required clearance from left edge of cooktop to nearest
combustible wall and 2" minimum from right edge of cooktop to nearest
combustible wall.
•
Installation of drawer not recommended beneath cooktop.
•
To reduce risk of fire when using overhead cabinetry, install range hood
that projects horizontally a recommended minimum of 5" beyond bottom
of cabinets.
•
Electric Built-In Cooktop model FFIC3626T is approved to be used over any
Frigidaire® Electric Single Wall Oven. (Refer to Electric Cooktop Installation
Over 30" / 27" Electric Single Wall Oven Specifications page on web.)
OPTIONAL ACCESSORIES
•
Granite Countertop Installation Kit – (PN # 903061-9010).
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Specifications subject to change. Accessories information available on the web at frigidaire.com / frigidaire.ca
© 2017 Electrolux Home Products, Inc.
FFIC3626T 01/19
