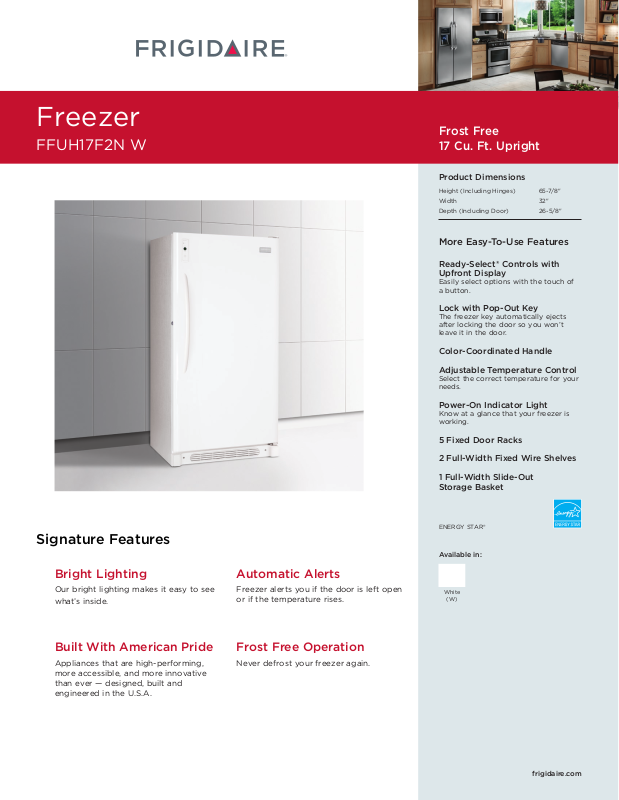

Freezer
FFUH17F2N W
Frost Free
17 Cu. Ft. Upright
Product Dimensions
Height (Including Hinges) 65-7/8"
Width 32"
Depth (Including Door) 26-5/8"
More Easy-To-Use Features
Ready-Select® Controls with
Upfront Display
Easily select options with the touch of
a button.
Lock with Pop-Out Key
The freezer key automatically ejects
after locking the door so you won’t
leave it in the door.
Color-Coordinated Handle
Adjustable Temperature Control
Select the correct temperature for your
needs.
Power-On Indicator Light
Know at a glance that your freezer is
working.
Signature Features
Bright Lighting
Our bright lighting makes it easy to see
what’s inside.
Built With American Pride
Appliances that are high-performing,
more accessible, and more innovative
than ever — designed, built and
engineered in the U.S.A.
Automatic Alerts
Freezer alerts you if the door is left open
or if the temperature rises.
Frost Free Operation
Never defrost your freezer again.
5 Fixed Door Racks
2 Full-Width Fixed Wire Shelves
1 Full-Width Slide-Out
Storage Basket
ENERGY STAR®
Available in:
White
(W)
frigidaire.com
Features
Door Handle Design
Reversible Door
Automatic Door Closer
Leveling Legs
Lock with Pop-Out Key
Defrost
Adjustable Temperature Control
Front Digital Display
Temp Display Mode
High-Temp Duration Readout
High-Temp Alarm
Door Ajar Alarm
Airflow Ports
Interior Lighting
Full-Width Adjustable Shelves
Full-Width Fixed Shelves
Removable Trivet
SpaceWise® Shelf Bookend
Mid-Level Baskets
Lower Storage Basket
Basket Dividers
Retractable Pizza Shelf
Soft Freeze™ Zone
Store-More™ Adjustable Door Bins
Full-Width Door Bins
Store-More™ Tilt-Out Wire Door Bins
Fixed Door Racks
Defrost Drain
Power-On Light
Convertible
Reach-Through
Yes
Yes
Yes
Frost Free
Easy-Set™
Yes
1-7
Yes
Yes
1
Bright
2 Wire
2 Wire
1
5
Yes
Certifications
ENERGY STAR®
CSA Rating
Yes
Household
Specifications
Total Capacity (Cu. Ft.)
Shelf Area (Sq. Ft.)
Annual Energy (kWH)
Annual Energy Cost (.1065 / kWH)
Power Supply Connection Location
Voltage Rating
Connected Load (kW rating) @ 120 Volts
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
An electrical supply with grounded three-prong receptacle is required. The
power supply circuit must be installed in accordance with current edition
of National Electrical Code (NFPA 70) and local codes & ordinances.
16.7
17.76
615
$65
Lower Right Rear
120V
1
.6
5
15
191 Lbs.
Freezer
FFUH17F2N W 17 Cu. Ft. Upright
NOTE: For planning purposes only. Always consult local and
national electric codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Including Hinges)
B - Width
C - Depth (Including Door)
Depth with Door Open 90˚
•
USA
10200 David Taylor Drive
•
CANADA
FFUH17F2N 05/12 © 2012 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
65-7/8"
32"
26-5/8"
57-3/8"
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
FFUH17F2N W 17 Cu. Ft. Upright
17 Cu. Ft. Upright Freezers_with Standard Hinges_
Right Hand Swing_Baseline
Freezer
Upright Freezer Specifications
•
Product Shipping Weight (approx.) – 191 Lbs.
•
An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
•
Voltage Rating – 120V
•
Connected Load (kW Rating) @ 120 Volts = 0.6 kW
•
Amps @ 120 Volts = 5 Amps
•
Always consult local and national electric codes.
•
For adequate air circulation, allow 3" minimum clearance on all
sides and top with 1" at bottom.
•
When installing freezer adjacent to wall, cabinet or other
appliance that extends beyond front edge of unit, 20" minimum
clearance recommended to allow for optimum 140° door swing,
providing complete basket access and removal. (Absolute 3"
minimum clearance will ONLY allow for 90° door swing which
will provide limited basket access with restricted removal.)
•
Locate where surrounding air temperature will not exceed 110° F,
to ensure optimum performance. (Temperatures 32° F and below
will NOT affect operation.)
•
All bottom corners of unit MUST rest firmly on solid level surface
of hard material, same height as flooring. Surface must be strong
and stable enough to support unit when fully loaded.
•
Equipped with adjustable leveling legs to ensure unit is level,
which is required in order to function properly.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
•
USA
10200 David Taylor Drive
•
CANADA
FFUH17F2N 05/12 © 2012 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
