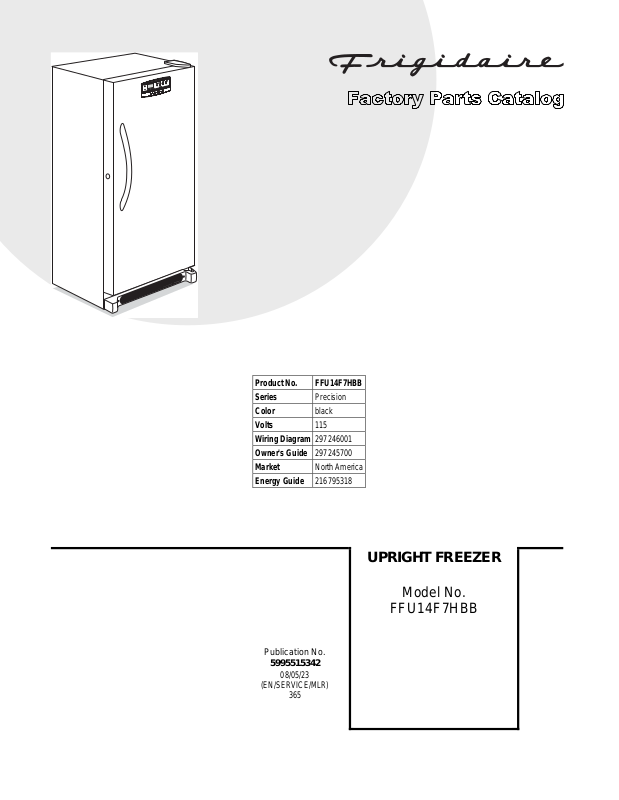

Frigidaire FFU14F7HBB User Manual

Product No. FFU14F7HBB Series Precision Color black Volts 115 Wiring Diagram 297246001 Owner's Guide 297245700 Market North America Energy Guide 216795318

P08F0135.eps P08D0567.eps P08C1116.wmf P08S0482.eps

Electrolux Major Appliances North & Latin America P.O. BOX 212378 AUGUSTA, GA 30917

Publication No.

5995515342

(EN/SERVICE/MLR)

08/05/23

365

UPRIGHT FREEZER

Model No.

FFU14F7HBB

Publication No: 5995515342 FFU14F7HBB

DOOR

22

151

11

1

80

79

9

18

79

80

73

28

27

72

26

27

74

93

2

5

2A

64

32

13

21A

22A

P08D0567

05/08 2

FFU14F7HBB Publication No: 5995515342

DOOR

POS. NO PART NO. DESCRIPTION

1 216522307 Gasket-door, black 2 # 297213400 Lock Assy 2A 297213300 Clip, spring 5 297147700 Key, lock 9 216527615 Panel-inner door, frzr 11 297236008 Panel-outer door, black 13 297257000 Door Stop, chrome, RH/LH 18 297031801 Handle, upright, black, w/set screw * 240537301 Nut-anchor, door hdl screw 21A 297197500 Screw, door stop mtg, FH38-16X.750, P Twin 22 216970800 Bearing, hinge w/o'ring, top 22A 297006800 Bearing-hinge, btm, w/o'ring 26 216524300 Gasket, secondary 27 5303212828 Clip, panel mtg 27* 5304406520 Clip, panel mtg kit, (40) 28 216951601 Rack-door, (4) 32 5309950074 Valve, breather 64 216403700 Plug-button, hole filler, door base 72 297118101 Shelf, tilt out, tall, wire 73 216513900 End Cap, shelf, LH, tilt-out 74 216514000 End Cap, shelf, RH, tilt-out 79 218755404 Screw-set, 10-32 x 1.100 80 218755504 Screw-shoulder, #10 AB, handle mounting 93 5304460605 Screw, ph truss head, 8-18AB x 0.500 151# 297241901 Control-electronic, assy, black, 115V

# Functional Parts

3 05/08

* Non-Illustrated Parts
