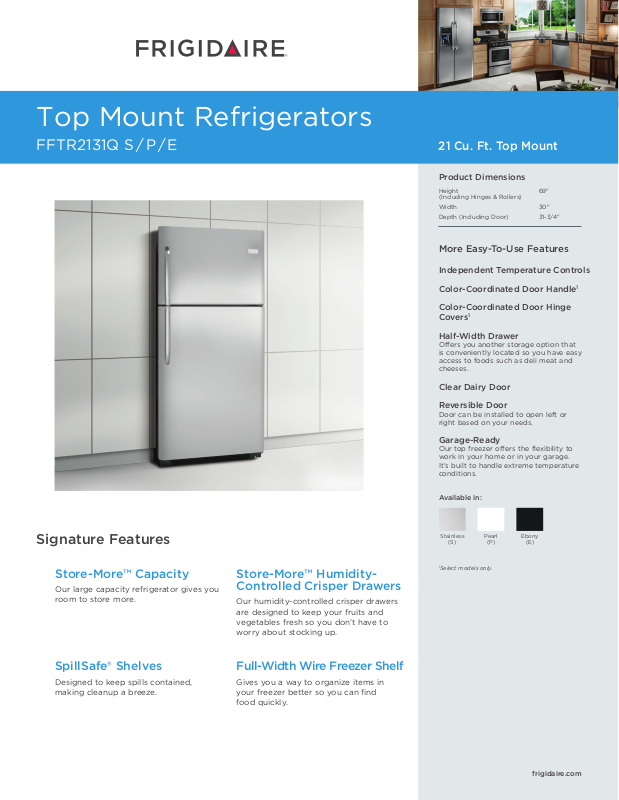

Top Mount Refrigerators
FFTR2131Q S / P / E
Place and center
image here.
21 Cu. Ft. Top Mount
Product Dimensions
Height 69"
(Including Hinges & Rollers)
Width 30"
Depth (Including Door) 31-3/4"
More Easy-To-Use Features
Independent Temperature Controls
Color-Coordinated Door Handle
Color-Coordinated Door Hinge
1
Covers
Half-Width Drawer
Offers you another storage option that
is conveniently located so you have easy
access to foods such as deli meat and
cheeses.
Clear Dairy Door
Reversible Door
Door can be installed to open left or
right based on your needs.
1
Signature Features
Store-More™ Capacity
Our large capacity refrigerator gives you
room to store more.
SpillSafe® Shelves
Designed to keep spills contained,
making cleanup a breeze.
Store-More™ HumidityControlled Crisper Drawers
Our humidity-controlled crisper drawers
are designed to keep your fruits and
vegetables fresh so you don’t have to
worry about stocking up.
Full-Width Wire Freezer Shelf
Gives you a way to organize items in
your freezer better so you can find
food quickly.
Garage-Ready
Our top freezer offers the flexibility to
work in your home or in your garage.
It’s built to handle extreme temperature
conditions.
Available in:
Stainless
(S)
1
Select models only.
Pearl
(P)
Ebony
(E)
frigidaire.com
Page 2
Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
B
A
C
Top View
Allow 1" min. clearance at rear
for proper air circulation and
water / electrical connections
Allow
3
/8" min. clearance at sides
and top for ease of installation
Recessed water line
(ice maker models only)
Recessed
electrical outlet
* When installing refrigerator
adjacent to wall, cabinet or other
appliance that extends beyond
front edge of unit, 20" minimum
clearance recommended to allow
for optimum 140° door swing,
providing complete crisper access
and removal. (Absolute 3"
minimum clearance will ONLY
allow for 90°
door swing which
will provide limited crisper access
with restricted removal.)
When installing directly
adjacent to wall, sufficient
handle clearance required
where handle may make
contact with wall, to allow
for 90° door opening*
Features
Door Design
Door Handle Design
Cabinet Finish (Textured)
Door Stops
Door Hinge Covers
Door Reverse Option
Rollers – Front / Rear
Sound Package
Toe Grille
Garage-Ready
UltraSoft™
Stainless Steel (S ),
Color-Coordinated (P / E)
Black (S ),
Color-Coordinated (P / E)
Yes
Black (S ),
Color-Coordinated (P / E)
Yes
Adjustable / Yes
Black (S ),
Color-Coordinated (P / E)
Yes
Refrigerator Features
Interior Lighting
Refrigerator Shelves
Deli Drawer
Wine / Can Rack
Store-More™ Crisper Drawers
Humidity Controls
Dairy Compartment
Door Bins
Door Racks
Non-Slip Bin Liner
Tall Bottle Retainers
Gallon Door Storage
Bright
2 Full-Width SpillSafe® Glass
1 Half-Width
2 Clear
2
Clear Dairy Door
3 Full-Width White
1
Freezer Features
Door Bins
Door Racks
Freezer Shelves
Factory Ice Maker w/ Large Ice Bin
Lighting
2 Full-Width Clear
1 Full-Width Wire
Optional (PN # IM116)
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe
operation.
1
20.5
15.4
5.1
Right Bottom Rear
Bottom Right
120V / 60Hz / 15A
0.72
6.0
15
220 Lbs.
Top Mount Refrigerators
FFTR2131Q S / P / E 21 Cu. Ft.
FFTR2131Q 08/14 © 2014 Electrolux Home Products, Inc.
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Incl. Hinges & Rollers)
B - Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
69"
30"
31-3/4"
60"
Page 3
Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
Top Mount Refrigerators
Top Mount Refrigerator - 20 Cu. Ft.
Baseline Q 2014

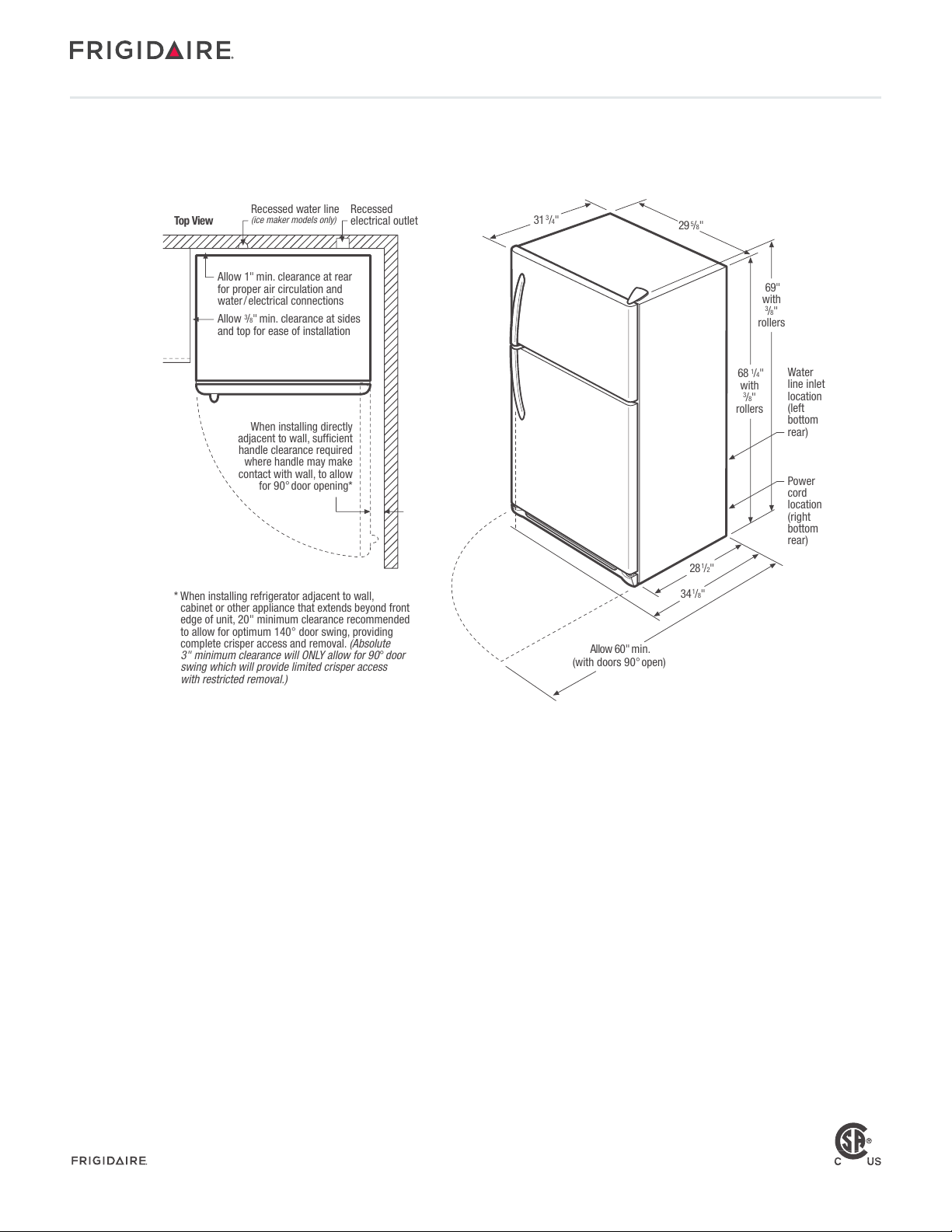

Top View
Allow 1" min. clearance at rear
for proper air circulation and
water / electrical connections
Allow
3
/8" min. clearance at sides
and top for ease of installation
Recessed water line
(ice maker models only)
Recessed
electrical outlet
* When installing refrigerator adjacent to wall,
cabinet or other appliance that extends beyond front
edge of unit, 20" minimum clearance recommended
to allow for optimum 140
° door swing, providing
complete crisper access and removal.
(Absolute
3" minimum clearance will ONLY allow for 90
°
door
swing which will provide limited crisper access
with restricted removal.)
When installing directly
adjacent to wall, sufficient
handle clearance required
where handle may make
contact with wall, to allow
for 90° door opening*
29
5/8"
Power
cord
location
(right
bottom
rear)
Water
line inlet
location
(left
bottom
rear)
Allow 60" min.
(with doors 90°
open)
31 3/4"
28
1/2"
34
1
/8"
69"
with
3
/8"
rollers
68
1
/4"
with
3
/8"
rollers
FFTR2131Q S / P / E 21 Cu. Ft.
Top Mount Refrigerator Specifications
•
•
•
•
•
•
•
•
•
FFTR2131Q 08/14 © 2014 Electrolux Home Products, Inc.
Product Shipping Weight (approx.) – 220 Lbs.
An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
Voltage Rating – 120V / 60 Hz / 15 Amps
Connected Load (kW Rating) @ 120 Volts = 0.72 kW
Amps @ 120 Volts = 6.0 Amps
Always consult local and national electric & plumbing codes.
Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.
Minimum 3/8" clearance required for sides and top of refrigerator
with 1" clearance at rear to allow for ease of installation, proper air
circulation, and plumbing / electrical connections.
When installing refrigerator adjacent to wall, cabinet or other
appliance that extends beyond front edge of unit, 20" minimum
clearanc
providing complete crisper access and removal. (Absolute 3"
minimum clearance will ONLY allow for 90° door swing which
e recommended to allow for optimum 140° door swing,
will provide limited crisper access with restricted removal.)
•
To ensure optimum performance, do not install in areas where
temperature drops below 55° F or rises above 110° F and
avoid installing in direct sunlight or close proximity to range,
dishwasher or other heat source.
•
For proper ventilation, front grille MUST remain unobstructed.
•
Recess electrical outlet when possible.
•
Optional Ice Maker Kit (PN # IM116) available for installation in
ice maker-ready models only.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
•
Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
•
Adjustable front rollers to assist with door alignment.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
Ice Maker Kit – (PN # IM116).
Page 4
Specifications
subject to change.

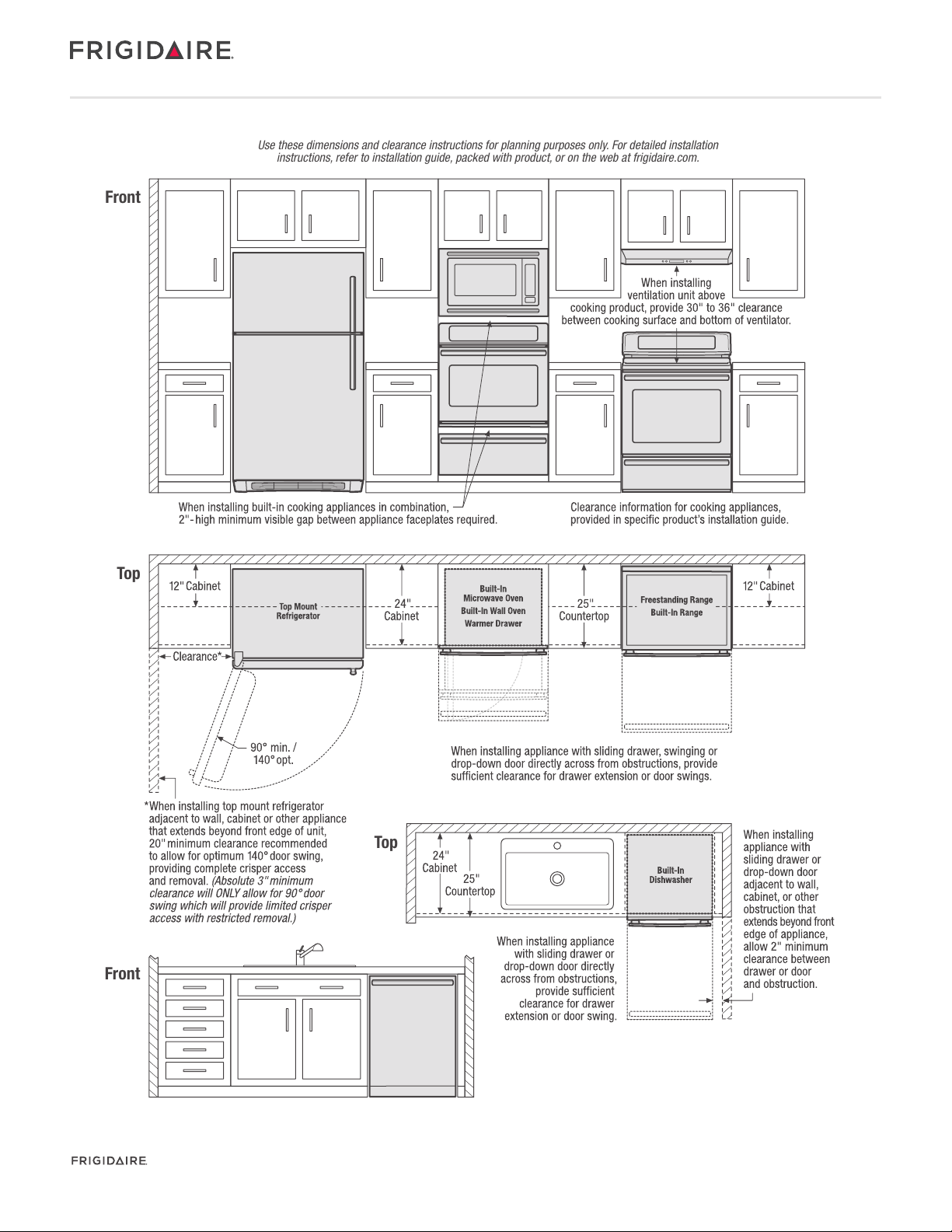

Use these dimensions and clearance instructions for planning purposes only. For detailed installation
