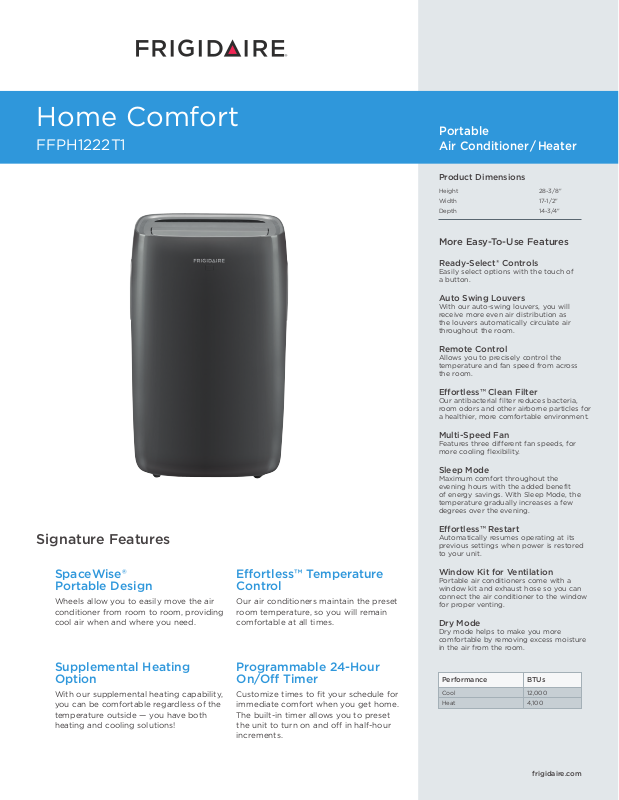

Frigidaire FFPH1222T1 Specification Sheet

Home Comfort

FFPH1222T1

Portable
Air Conditioner / Heater

Product Dimensions

Height 28-3/8"

Width 17-1/2"

Depth 14-3/4"

More Easy-To-Use Features

Ready-Select® Controls

Easily select options with the touch of
a button.

Auto Swing Louvers

With our auto-swing louvers, you will
receive more even air distribution as
the louvers automatically circulate air
throughout the room.

Remote Control

Allows you to precisely control the
temperature and fan speed from across
the room.

Eortless™ Clean Filter

Our antibacterial filter reduces bacteria,
room odors and other airborne particles for
a healthier, more comfortable environment.

Signature Features

SpaceWise®
Portable Design

Wheels allow you to easily move the air
conditioner from room to room, providing
cool air when and where you need.

Supplemental Heating
Option

With our supplemental heating capability,
you can be comfortable regardless of the
temperature outside — you have both
heating and cooling solutions!

Eortless™ Temperature
Control

Our air conditioners maintain the preset
room temperature, so you will remain
comfortable at all times.

Programmable 24-Hour
On/O Timer

Customize times to fit your schedule for
immediate comfort when you get home.
The built-in timer allows you to preset
the unit to turn on and off in half-hour
increments.

Multi-Speed Fan

Features three different fan speeds, for
more cooling flexibility.

Sleep Mode

Maximum comfort throughout the
evening hours with the added benefit
of energy savings. With Sleep Mode, the
temperature gradually increases a few
degrees over the evening.

Eortless™ Restart

Automatically resumes operating at its
previous settings when power is restored
to your unit.

Window Kit for Ventilation

Portable air conditioners come with a
window kit and exhaust hose so you can
connect the air conditioner to the window
for proper venting.

Dry Mode

Dry mode helps to make you more
comfortable by removing excess moisture
in the air from the room.

Performance

Cool

Heat

BTUs

12,000

4,100

frigidaire.com

Performance

Plug Type (NEMA)

5-15P

B

A

C

BTU (Cool)

BTU (Heat)

Dehumidification (Pints / Hour)

Cool Area (Up To Sq. Ft.)

Energy Eciency Ratio

12,000

4,100

3.1

550

9.6

Electrical

Volts

Amps (Cool)

Amps (Heat)

Watts (Cool)

Watts (Heat)

Length of Power Cord (Min./Max.)

Plug Type (NEMA)

115

11.2

11

1,250

1,250

6'/6.5'

LCDI (5-15P)

Features

Electronic Controls

Fan Speeds (Cool / Fan / Heat)

Low Voltage Start-Up

Auto Cool Function

Energy Save

Sleep Mode

Filter Check

24-Hour On / O Timer

Clean Air Ionizer

Remote Control

Air CFM (High / Med / Low)

Air Direction Control

Fresh Air / Exhaust Vent / Closed

Filter Type

Filter Access

1

Warranty

Ready-Select® Controls

3 / 3 / 3

Yes

Yes

Yes

Yes

Yes

Yes

Full-Function

200 / 180 / 160

Swing

No / Yes / No

Antibacterial Mesh

Rear

Yes

Certifications

Performance

ASHRAE

Specifications

Refrigerant

Shipping Weight (Approx.)

1

Warranty 5 year sealed system / 1 year full parts and labor.

R410a

77 Lbs.

Home Comfort

FFPH1222T1 Portable Air Conditioner / Heater

USA
CANADA

FFPH1222T1 02/17 © 2017 Electrolux Home Products, Inc.

•

10200 David Taylor Drive

•

5855 Terry Fox Way

•

Charlotte, NC 28262

•

Mississauga, ON L5V 3E4

•

1-800-FRIGIDAIRE

•

1-800-265-8352

•

frigidaire.com

•

frigidaire.ca

NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.

Product Dimensions

A - Height

B - Width

C - Depth

28-3/8"

17-1/2"

14-3/4"

Accessories information available

on the web at frigidaire.com

Specifications

subject to change.
