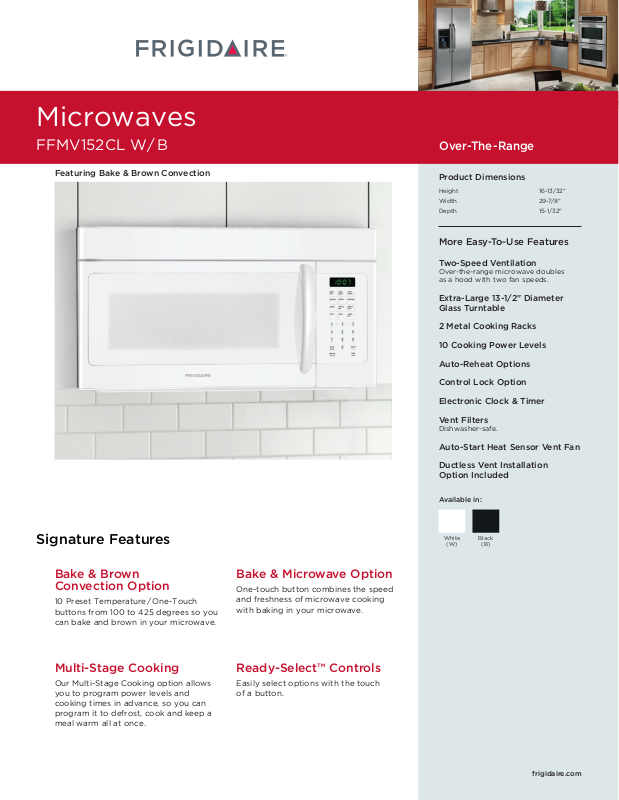

Frigidaire FFMV152CLB User Manual
Drop-In Cooktop
Microwaves
FPEC3085K S
FFMV152CL W/ B
Featuring Bake & Brown Convection
30" Electric
Over-The-Range
Product Dimensions
Height 16-13/32"
Width 29-7/8"
Depth 15-1/32"
More Easy-To-Use Features
Two-Speed Ventilation
Over-the-range microwave doubles
as a hood with two fan speeds.
Extra-Large 13-1/2" Diameter
Glass Turntable
2 Metal Cooking Racks
10 Cooking Power Levels
Auto-Reheat Options
Control Lock Option
Electronic Clock & Timer
Vent Filters
Dishwasher-safe.
Signature Features
Bake & Brown
Convection Option
10 Preset Temperature / One-Touch
buttons from 100 to 425 degrees so you
can bake and brown in your microwave.
Multi-Stage Cooking
Our Multi-Stage Cooking option allows
you to program power levels and
cooking times in advance, so you can
program it to defrost, cook and keep a
meal warm all at once.
Bake & Microwave Option
One-touch button combines the speed
and freshness of microwave cooking
with baking in your microwave.
Ready-Select™ Controls
Easily select options with the touch
of a button.
Auto-Start Heat Sensor Vent Fan
Ductless Vent Installation
Option Included
Available in:
White
(W)
Black
(B)
frigidaire.com
B
A
C
Features
Control / Timing System
Exterior Door Finish
Handle Design
Microwave Capacity (Cu. Ft.)
Convection
Watts (IEC-705 Test Procedure)
Interior Light
Interior Color
Turntable Diameter
Turntable On / O
Control Lock
Clock
Touch Pad Buttons
Power Levels
Accessory Metal Rack
Ready-Select™
Color-Coordinated
Color-Coordinated
1.5
Bake & Brown Convection
900
Yes
Stainless Steel
13-1/2"
Yes
Yes
26
High (1 – 9)
2
Microwave Control Options
Popcorn Button
Chicken Nugget Button
Baked Potato Button
Sensor Reheat Button
Snack Button
Beverage
Auto Melt / Soften Options
Auto Reheat Options
Snack Menu Options
Auto Cook Options
Auto Defrost Options
Multi-Stage Cooking Option
Keep Warm
Add-30-Seconds
Sensor Cooking Options
Vegetable Cook Sensor
Delay Start
User Preferences
Yes
Yes
Yes
3
Weight / Time
Yes
Yes
Ventilation System
Ducted / Ductless
Installation Option
Exhaust Fan (CFM)
Cooktop Light
Auto-Start Heat Sensor
Dishwasher-Safe Vent Filter
(Ductless Installation)
Yes
2-Speed
170 / 300
Yes
Yes
Yes
Power Ratings
Frequency (Mhz)
Watts @ 120 Volts
Amps @ 120 Volts
2,450
1,550
15
Optional Accessories
36" Stainless Steel Trim Kit
36" White Trim Kit
36" Black Trim Kit
PN # 5304463784
PN # 5304463782
PN # 5304463783
Specifications
Oven Interior (HxWxD)
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.
1
8-7/8" x 20-1/4" x 13-15/32"
Right Top Rear
120V / 60Hz / 15A
1.4
15
69
Microwaves
FFMV152CL W/ B Over-The-Range
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
16-13/32"
29-7/8"
15-1/32"
Cutout Dimensions
Height (Min.)
Height (Max.)
Width (Min.)
Depth (Min.)
Depth (Max.)
Accessories information available
on the web at frigidaire.com
16-3/4"
17"
30"
12"
13"
•
USA
10200 David Taylor Drive
•
CANADA
FFMV152CL 07/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
