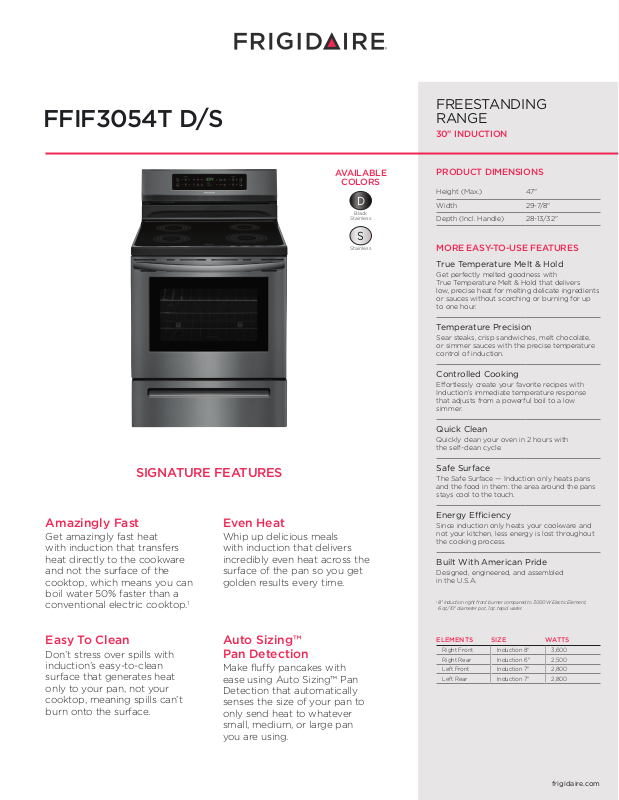

Frigidaire FFIF3054TD Specification Sheet
FFIF3054T D/S
D
S
FREESTANDING
RANGE
30" INDUCTION
AVAILABLE
COLORS
Black
Stainless
Stainless
PRODUCT DIMENSIONS
Height (Max.) 47"
Width 29-7/8"
Depth (Incl. Handle) 28-13/32"
MORE EASY-TO-USE FEATURES
True Temperature Melt & Hold
Get perfectly melted goodness with
True Temperature Melt & Hold that delivers
low, precise heat for melting delicate ingredients
or sauces without scorching or burning for up
to one hour.
Temperature Precision
Sear steaks, crisp sandwiches, melt chocolate,
or simmer sauces with the precise temperature
control of induction.
Controlled Cooking
Effortlessly create your favorite recipes with
Induction’s immediate temperature response
that adjusts from a powerful boil to a low
simmer.
Quick Clean
Quickly clean your oven in 2 hours with
the self-clean cycle.
SIGNATURE FEATURES
Amazingly Fast
Get amazingly fast heat
with induction that transfers
heat directly to the cookware
and not the surface of the
cooktop, which means you can
boil water 50% faster than a
conventional electric cooktop.
Easy To Clean
Don’t stress over spills with
induction’s easy-to-clean
surface that generates heat
only to your pan, not your
cooktop, meaning spills can’t
burn onto the surface.
1
Safe Surface
The Safe Surface — Induction only heats pans
and the food in them: the area around the pans
stays cool to the touch.
Even Heat
Whip up delicious meals
with induction that delivers
incredibly even heat across the
surface of the pan so you get
golden results every time.
Auto Sizing™
Pan Detection
Make fluffy pancakes with
ease using Auto Sizing™ Pan
Energy Eciency
Since induction only heats your cookware and
not your kitchen, less energy is lost throughout
the cooking process.
Built With American Pride
Designed, engineered, and assembled
in the U.S.A.
1
8" induction right front burner compared to 3000W Electic Element,
6 qt./10" diameter pot, 1 qt. tepid water.
ELEMENTS SIZE WATT S
Right Front Induction 8" 3,600
Right Rear Induction 6" 2,500
Left Front Induction 7" 2,800
Left Rear Induction 7" 2,800
Detection that automatically
senses the size of your pan to
only send heat to whatever
small, medium, or large pan
you are using.
frigidaire.com
FFIF3054T D/S
FREESTANDING RANGE
30" INDUCTION
FEATURES
Oven Control / Timing System Ready-Select® Controls
Surface Type Black Ceramic Glass
Window Extra-Large
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels) Black
Convection System
Oven Cleaning System Self Clean
Drawer Functionality Storage
Black Stainless ( D ),
Stainless (S)
Black Stainless ( D ),
Stainless (S)
OVEN CONTROLS
Bake / Broil Yes / Variable (400 - 500 °F)
Eortless™ Convection Conversion
Convection Bake / Broil / Roast
Quick Bake Convection
Quick Preheat
Eortless™ Temperature Probe
Keep Warm
Add-a-Minute
Delay Start
Self Clean 2, 3 Hours
Quick Clean Option Yes
Delay Clean Yes
Kitchen Timer / Timed Cook Option Yes / Yes
Auto Oven Shut-O 12 Hours
Oven Lock-Out Yes
Lower Drawer Control
COOKTOP FEATURES
Right Front Element (Watts) Induction 8" - 3,600
Right Rear Element (Watts) Induction 6" - 2,500
Left Front Element (Watts) Induction 7" - 2,800
Left Rear Element (Watts) Induction 7" - 2,800
Hot Surface Indicator Light Yes
Element "On" Indicator Light Yes
OVEN FEATURES
Capacity (Cu. Ft.) 5.3
Oven Light 1
Hidden Bake Element
Rack Configuration 2 Standard
Baking System Even Baking Technology
Broiling System Vari-Broil™ High / Low
Bake Element / Broil Element (Watts) 2,600 / 3,000
Drawer Racks
SPECIFICATIONS
Oven Interior ( H x W x D ) 19-3/4" x 24-3/8" x 19-1/8"
Power Cord Connection Location Middle Bottom Rear
Voltage Rating 240V / 208V / 60 Hz
Connected Load (kW Rating)
@ 240 / 208 Volts
Amps @ 240 Volts 40 Amps
Minimum Circuit Required (Amps) 40
Shipping Weight (Approx.) 195 Lbs.
12.5 / 9.5
PRODUCT DIMENSIONS
A - Height (Max.) 47"
B - Width 29-7/8"
C - Depth (Incl. Handle) 28-13/32"
Depth with Door Open 90˚ 48-5/8"
CABINET CUTOUT DIMENSIONS
Height (Standard) 36"
Width (Min.) 30-1/8"
Depth (Min.) 24"
36"
(Adjustable)
B
A
C
•
USA
10200 David Taylor Drive
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
© 2017 Electrolux Home Products, Inc.
FFIF3054T 10/17
