Factory Parts Catal
og
Product No.
FFID2426TB0A
FFID2426TW0A
Series
Built-in 24"
Built-in 24"
Color
black
white
Owner's Guide
A10121301
A10121301
Service Data Sheet
A02841501
A02841501
Energy Guide
808612206
808612206
Installation Instructions
154427301
154427301
Market
North America
North America
Frigidaire
P.O. BOX 8020
CHARLOTTE, NC 28262
24-INCH BUILT-IN
MLFID2426TF0A.wmf FFFBD2406NB6A.wmf RFFID2423RS0A.wmf
A02841501.wmf
Publication No.
5995712956
19/03/13
(EN/SERVICE/ECL)
821
DISHWASHER
Model No.
FFID2426T
Publication No: 5995712956 FFID2426T
CONTROL PANEL
03/19 2
FFID2426T Publication No: 5995712956
CONTROL PANEL
POS. NO PART NO. DESCRIPTION
1 # 5304518473 A - Console Assembly, w/overlay, black, & cover gasket
1 # 5304521165 - B Console Assembly, w/overlay, white, & cover gasket
2 # 5304518467 A B Switch Assembly, PCB tactile, w/harnesses
3 # 5304518470 A B Board, control
4 808950401 A B Cover, control
9 154783101 A B Screw, PLT, 8-10
10 154294701 A B Screw, #7 plas .375, (6), disp. assy.
33 154478901 A B Gasket, cover
* # 5304506794 A B Harness, wiring, main
* 808612206 A B Energy Guide
Model Index: A FFID2426T (FFID2426TB0A)
B FFID2426T (FFID2426TW0A)
# Functional Parts
3 03/19
* Non-Illustrated Parts
Publication No: 5995712956 FFID2426T
DOOR
03/19 4
FFID2426T Publication No: 5995712956
DOOR
POS. NO PART NO. DESCRIPTION
1 154579101 A B Spring, friction pulley, (2)
1A 154578801 A B Cable, friction pulley, (2)
2 154093301 A B Screw, arm assy, (4)
3 5304513274 A B Counterbalance Arm, kit, LH & RH, w/screws-nuts
* 154647101 A B Hinge Pin, arm assy
* 154686401 A B Bearing, hinge pin
4 154825401 A B Screw, hex hd, 8-18 x .4, w/washer
5 154079601 A B Nut, arm assy, and handle mtg.
6 154783101 A B Screw, PLT, 8-10
7 5304502918 A B Liner, door assembly, grey
8 154294701 A B Screw, #7 plas .375, (6), disp. assy.
9 # 5304506521 A B Dispenser, det/rinse aid, w/level ind.
9* 154719301 A B Shield, dispenser assy
10 154103702 A B Screw, latch mtg, (2)
11 154579201 A B Pulley, friction, LH
11A 154579202 A B Pulley, friction, RH
12 # 5304516818 A B Latch Assembly, door
20 807278502 A - Door Assembly, w/insullation, black
20 807278501 - B Door Assembly, w/insullation, white
20* 154253201 A B Insulation, door
21 154754701 A B Screw, truss hd, 8-18 type AB
40 5304521172 A - Handle, door, black
40 5304521171 - B Handle, door, white
41 154603401 A B Plate, handle support, (2)
49 5304500204 A B Gasket, door, bottom
51 154320301 A B Clamp, drip loop, wire
53 154425001 A B Nut, Keps, (2), handle mtg.
Model Index: A FFID2426T (FFID2426TB0A)
B FFID2426T (FFID2426TW0A)
# Functional Parts
5 03/19
* Non-Illustrated Parts
Publication No: 5995712956 FFID2426T
TUB
03/19 6
FFID2426T Publication No: 5995712956
TUB
POS. NO PART NO. DESCRIPTION
1 # 5304502974 A B Tub assy, w/frame parts, grey DF
2 5304502435 A B Strike, door
3 # 154827601 A B Gasket, tub
4 808326801 A B Screw, hex head, 8-18 x .400, (2)
5 154767502 A B Roller Assembly, tub, (8), w/screw-washer
6 5303943103 A B Screw, w/washer, (8)
22 154446002 A B Tubing, water inlet
23 5303318539 A B Clamp, tubing, (2)
24 807117001 A B Hose, drain
* 154380601 A B Clamp, hose, 1.5" open, worm gear, (5)
25 5304506520 A B Float
28 # 154773201 A B Switch Assy, float
29 # 154642901 A B Thermostat, hi limit
30 154241101 A B Retainer, thermostat
30* 154297701 A B Screw, retainer-thermo
* 5304500768 A B Insualtion, blanket
* 154406801 A B Bracket Kit, countertop mtg, w/scrws & instr
* 154041001 A B Screw, plask #1, 10-10 x 9/16
* 5300807270 A B Screw, (2), countertop mtg.
Model Index: A FFID2426T (FFID2426TB0A)
B FFID2426T (FFID2426TW0A)
# Functional Parts
7 03/19
* Non-Illustrated Parts
Publication No: 5995712956 FFID2426T

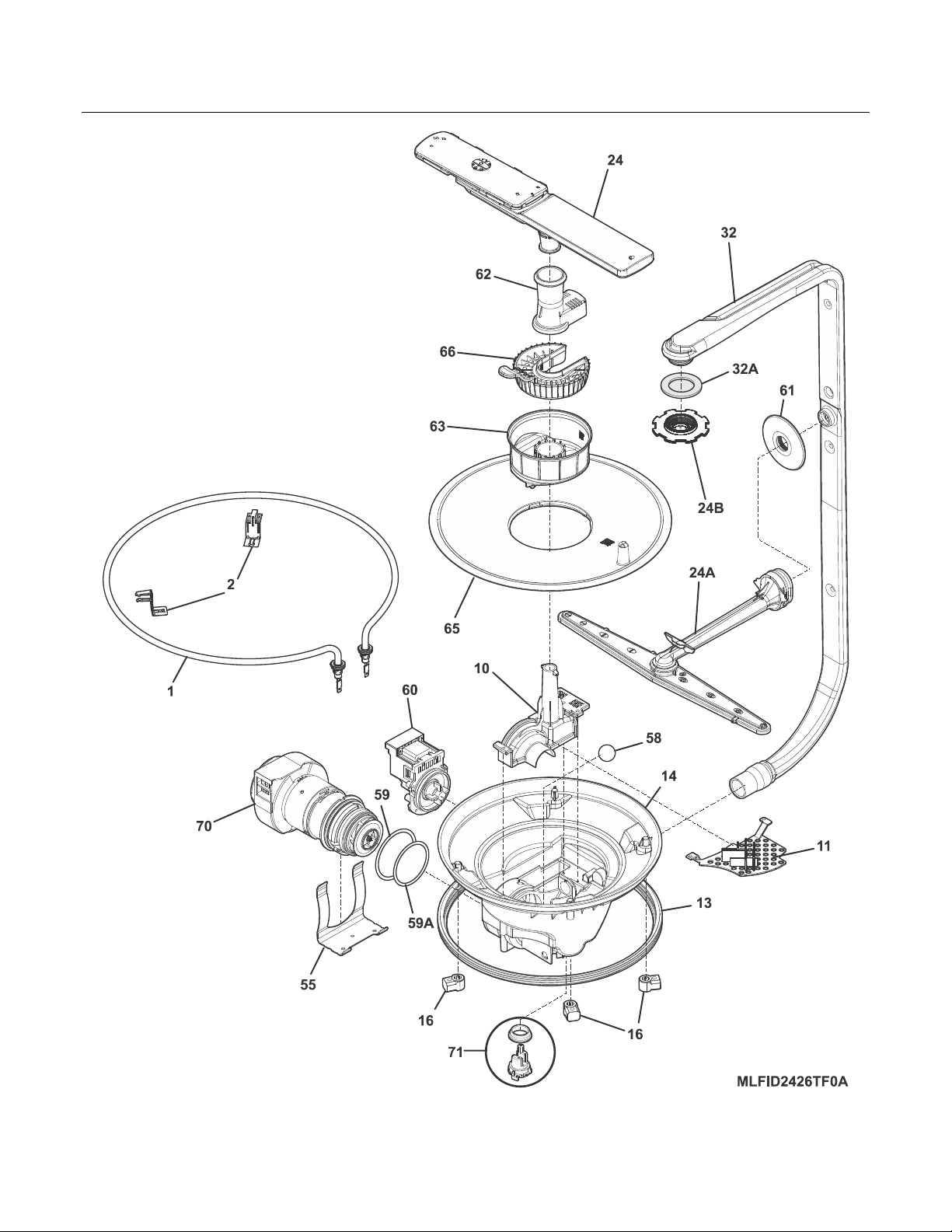

MOTOR & PUMP
03/19 8
FFID2426T Publication No: 5995712956
MOTOR & PUMP
POS. NO PART NO. DESCRIPTION
1 # 154825001 A B Heater, round
1* 154106202 A B Nut, heater, (2)
1* 154289801 A B Shield, heater terminal
2 154465101 A B Bracket, heater, (2)
10 807145201 A B Cover, volute
* 154783101 A B Screw, PLT, 8-10
11 807111601 A B Plate, pump inlet
13 154246801 A B Gasket, sump
14 154723801 A B Sump Assembly
16 154246502 A B Retainer, sump
16* 154754901 A B Screw, sump mtg, 8-16, (4)
24 # 5304506660 A B Spray arm, assembly, ocean blue, lower, Orbit Bar
24A# 5304506740 A B Spray arm, center
24B 154754302 A B Nozzle, shower, assembly
32 5304507087 A B Tube, delivery
32* 154106801 A B Clamp, hose, 1.29" open, worm gear, (2)
32* 154491101 A B Screw, delivery tube
32A 154406401 A B Gasket, delivery tube
55 154595901 A B Bracket, motor
55* 154779601 A B Screw, PH, 8-10, (2)
58 154246402 A B Check ball
59 154246901 A B O-ring, rear
59A 154247001 A B O-ring, front
60 # 5304492415 A B Drain Pump Assy
60* 154741501 A B Screw, drain motor mtg, (3)
60* 807048001 A B Flapper, valve
61 5304506517 A B Grommet, delivery tube
62 5304518968 A B Support, spray arm, lower
63 5304506533 A B Base, soil director
65 5304506525 A B Filter, polypro
66 5304506518 A B Trap, glass
70 # 154844301 A B Motor & Pump Assy, w/o-rings
71 # 154762601 A B Sensor, turbidity, snap-in, w/seal
Model Index: A FFID2426T (FFID2426TB0A)
B FFID2426T (FFID2426TW0A)
# Functional Parts
9 03/19
* Non-Illustrated Parts
Publication No: 5995712956 FFID2426T
FRAME
03/19 10
FFID2426T Publication No: 5995712956
FRAME
POS. NO PART NO. DESCRIPTION
3 # 807047901 A B Valve, water
3* 154106801 A B Clamp, hose, 1.29" open, worm gear, (2)
4 5304508587 A B Brace, front frame
8 154745503 A - Toeplate, adjustable, black
8 154745501 - B Toeplate, adjustable, white
9 5304501484 A - Kickplate Assy, PVC, black, w/label
9 5304501482 - B Kickplate Assy, PVC, white, w/label
9* 5304501485 A B Insulation, kickplate
10 154754801 A - Screw, toeplate mtg, 8-18 AB hex hd, black, (2)
10 154371301 - B Screw, Phillips head, white
11 154200701 A B Screw, #10-32 x 3/8
11A 154825401 A B Screw, hex hd, 8-18 x .4, w/washer
15 5304506540 A B Leg, leveling, 1/4-20
20 154758501 A B Cover, junction box, w/label
* 154041001 A B Screw, plask #1, 10-10 x 9/16
Model Index: A FFID2426T (FFID2426TB0A)
B FFID2426T (FFID2426TW0A)
# Functional Parts
11 03/19
* Non-Illustrated Parts
Publication No: 5995712956 FFID2426T
RACKS
03/19 12
FFID2426T Publication No: 5995712956
RACKS
POS. NO PART NO. DESCRIPTION
1 154875204 A B Rack Assembly, lower, nylon, grey, w/wheels
2 5304506523 A B Basket, silverware
3 5304498212 A B Rack Assembly, upper
* 5304506527 A B Nameplate, rack spacer, grey
4 154522902 A B Wheel & bushing assy, grey, upper rack, (8)
5 5304506510 A B Cap, rack slide
6 154597801 A B Slide, rack, upper, (2)
7 5304521179 A B Wheel & bushing assy, lower rack, (8)
11 5304506507 A B Cup Shelf, stemware
Model Index: A FFID2426T (FFID2426TB0A)
B FFID2426T (FFID2426TW0A)
# Functional Parts
13 03/19
* Non-Illustrated Parts
Publication No: 5995712956 FFID2426T
WIRING DIAGRAM
03/19 14
