Frigidaire FFIC3026TBA, FFIC3626TBA, FGIC3066TBA, FGIC3666TBA Installation Guide
INDUCTION COOKTOP INSTALLATION INSTRUCTIONS
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED
INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE. READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
IMPORTANT INSTALLATION INFORMATION
•All electric cooktops run off a single phase, three-wire or four-wire cable, 240/208 volt, 60 hertz, AC only electrical supply with ground.
•Minimum distance between cooktop and overhead cabinetry is 30" (76.2 cm).
* 30" (76.2 cm) min. for unprotected cabinet and 24" (61 cm) min. for cabinet with protected bottom surface.

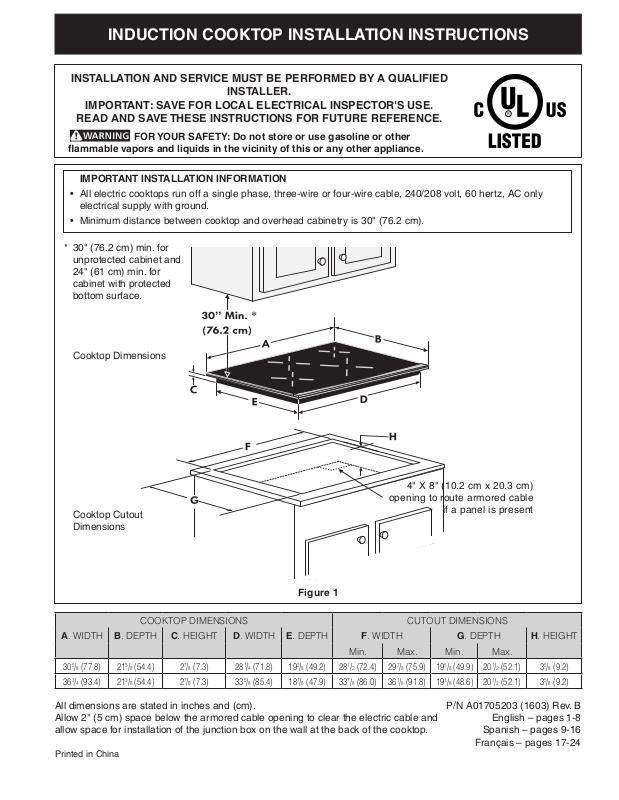

Cooktop Dimensions
|
4" X 8" (10.2 cm x 20.3 cm) |
|
opening to route armored cable |
Cooktop Cutout |
if a panel is present |
|
|
Dimensions |
|
Figure 1
|
|
|
|
COOKTOP DIMENSIONS |
|
|
|
|
|
|
|
|
CUTOUT DIMENSIONS |
|
|
||||||||||
A. WIDTH |
|
B. DEPTH |
|
C. HEIGHT |
|
D. WIDTH |
|
E. DEPTH |
|
F. WIDTH |
|
|
G. DEPTH |
|
H. HEIGHT |
||||||||||
|
|
|
|
|
|
|
|
||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Min. |
|
Max. |
Min. |
|
Max. |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
305/8 |
(77.8) |
|
213/8 |
(54.4) |
|
27/8 |
(7.3) |
|
281/4 |
(71.8) |
|
193/8 |
(49.2) |
281/2 |
(72.4) |
|
297/8 |
(75.9) |
195/8 |
(49.9) |
|
201/2 |
(52.1) |
35/8 |
(9.2) |
363/4 |
(93.4) |
|
213/8 |
(54.4) |
|
27/8 |
(7.3) |
|
335/8 |
(85.4) |
|
187/8 |
(47.9) |
337/8 |
(86.0) |
|
361/8 |
(91.8) |
191/8 |
(48.6) |
|
201/2 |
(52.1) |
35/8 |
(9.2) |
All dimensions are stated in inches and (cm).
Allow 2" (5 cm) space below the armored cable opening to clear the electric cable and allow space for installation of the junction box on the wall at the back of the cooktop.
Printed in China
P/N A01705203 (1603) Rev. B English – pages 1-8 Spanish – pages 9-16 Français – pages 17-24
1
INDUCTION COOKTOP INSTALLATION INSTRUCTIONS
Overhead Cabinet Should Not Exceed a
Maximum Depth of 13" (33 cm)
30" (76.2 cm) Min. Clearance Between the Top of the Cooking Platform and the Bottom of an Unprotected Wood or Metal Cabinet
24" (61 cm) Min. when Bottom of Wood or Metal Cabinet
is Protected by Not Less Than 1/8" (0.3 cm) Flame Retardant Millboard Covered With Not Less Than No. 28 MGS Sheet Steel, 0.015" (0.4 mm) Stainless Steel, 0.024" (0.6 mm) Aluminum or 0.020" (0.5 mm) Copper.
|
L Min. |
|
|
|
K Min. Recommended |
|
|
|
Distance Between Rear |
|
|
|
Edge of Cutout and |
|
|
|
Nearest Combustible |
|
10" |
|
Surface Above |
|
|
|
( 25.4 cm) |
||
|
Countertop |
||
|
|
|
|
18" |
F |
|
|
(45.7 cm) |
|
H |
|
|
|
|
|
G
24" |
12" |
(61 cm) |
(30.5 cm) |
|
Approximate Location of |
|
Junction Box |
* Letters on this figure refer to chart |
2½" (6.4 cm) Min. From |
Edge of Cutout to Front |
|
on front page except for J and K. |
Edge of Countertop |
J Min. From Edge of Cooktop to Nearest Combustible Wall (Either Side of Unit).
It is not recommended to use drawer underneath cooktop. Empty space is needed for installation purpose.
Figure 2 – COUNTERTOP CUTOUT OPENING
CAUTION To eliminate the risk of burns or fire by reaching over heated surfaces, cabinet storage space located above the cooktop should be avoided. If cabinet storage is provided, risk can be reduced by installing a range hood that projects horizontally a minimum of 5" (12.7 cm) beyond the bottom of the cabinets.
MODEL |
J |
K |
L |
|
|
|
|
30" |
2" (5.1cm) |
1 1/2" (3.8cm) |
30 5/8" (77.8cm) |
|
|
|
|
36" |
2" (5.1cm) |
2" (5.1cm) |
36 3/4" (93.4cm) |
|
|
|
|
Model and Serial Number Location
The serial plate is located under the cooktop.
When ordering parts for or making inquires about your cooktop, always be sure to include the model
and serial numbers and a lot number or letter from the serial plate on your cooktop.
Serial plate is located under the burner box of cooktop.
2
INDUCTION COOKTOP INSTALLATION INSTRUCTIONS
Important Notes to the Installer
1.Read all instructions contained in these installation instructions before installing the cooktop.
2.Remove all packing material before connecting the electrical supply to the cooktop.
3.Observe all governing codes and ordinances.
4.Be sure to leave these instructions with the consumer.
5.Only certain cooktop models may be installed over certain built-in electric oven models. Approved cooktops and built-in ovens are listed by the MFG ID number and product code.
Important Note to the Consumer
Keep these instructions with your Use and Care Guide for future reference.
IMPORTANT SAFETY INSTRUCTIONS
•Be sure your cooktop is installed and grounded properly by a qualified installer or service technician.
•This cooktop must be electrically grounded in accordance with local codes or, in their absence, with the National Electrical Code ANSI/NFPA No. 70—latest edition in the United States.
WARNING The electrical power to the cooktop must be shut off while line connections are being made. Failure to do so could result in serious injury or death.
Provide Electrical Connection
Install the junction box under the cabinet and run 120/240 or 120/208 Volt, AC wire from the main circuit panel. NOTE: DO NOT connect the wire to the circuit panel at this time.
Electrical Requirements
Observe all governing codes and local ordinances.
1.A 3-wire or 4-wire single phase 120/240 or 120/208 Volt, 60 Hz AC only electrical supply is required on a separate circuit fused on both sides of the line (time-delay fuse or circuit breaker is recommended). DO NOT fuse neutral.
2.A circuit breaker or fuse rated at 40 Amp is required for 36" models and 30 Amp for the 30" model.
NOTE: Wire sizes and connections must conform with the fuse size and rating of the appliance in accordance with the National Electrical Code ANSI/NFPA No.
70–latest edition and local codes and ordinances.
WARNING An extension cord must not be used with this appliance. Such use may result in a fire, electrical shock, or other personal injury.
3.The appliance should be connected to the fused disconnect (or circuit breaker) box through flexible armored or nonmetallic sheathed cable. The flexible armored cable extending from this appliance should be connected directly to the grounded junction box. The junction box should be located as shown in Figure 2 with as much slack
as possible remaining in the cable between the box and the appliance, so it can be moved if servicing is ever necessary.
4.A suitable strain relief must be provided to attach the flexible armored cable to the junction box.
Unpacking Instructions
1.Unpack and visually inspect the cooktop.
2.Be sure the bottle of cleaner conditioner packed in the literature bag is left where the user can find it easily. It is important that the ceramic-glass cooktop be pretreated before use. See Cooktop Cleaning and Maintenance section in the Use and Care Guide.
Electrical Connection
Connect the flexible armored cable that extends from the surface unit to the junction box using a suitable strain relief at the point the armored cable enters the junction box. Then make the electrical connection as follows.
Electrical ground is required on this appliance.
This appliance is equipped with a copper conductor flexible cable. If connection is made to aluminum house wiring, use only
special connectors which are approved for joining copper and aluminum wires in accordance with the National Electrical Code and local codes and ordinances. Improper connection of aluminum house wiring to copper leads can result in a short circuit or fire. Follow the connector manufacturer recommended procedure closely.
This appliance is manufactured with a supply wire and a frame connected green or bare copper grounding wire.
DO NOT ground to a gas supply pipe. DO NOT connect to electrical power supply until appliance is permanently grounded. Connect the ground wire before turning on the power.
