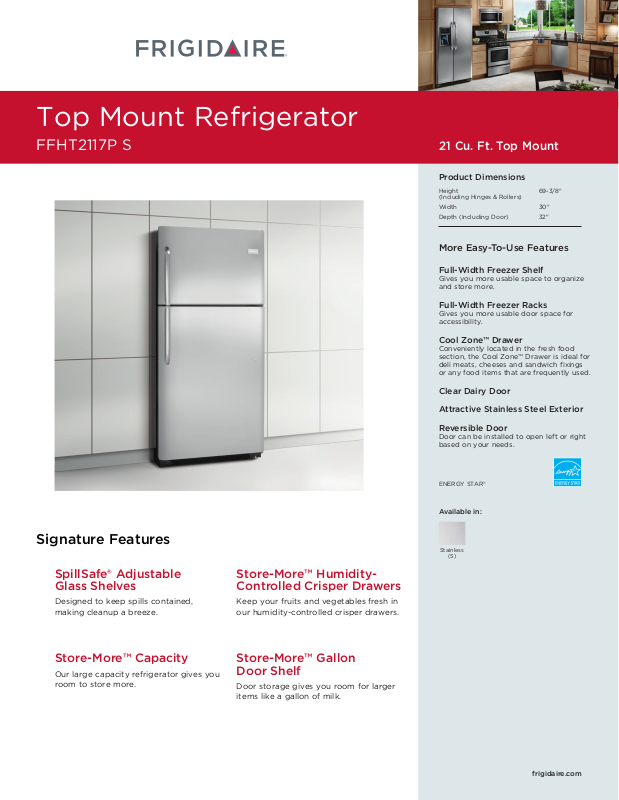

Top Mount Refrigerator
FFHT2117P S
21 Cu. Ft. Top Mount
Product Dimensions
Height 69-3/8"
(Including Hinges & Rollers)
Width 30"
Depth (Including Door) 32"
More Easy-To-Use Features
Full-Width Freezer Shelf
Gives you more usable space to organize
and store more.
Full-Width Freezer Racks
Gives you more usable door space for
accessibility.
Cool Zone™ Drawer
Conveniently located in the fresh food
section, the Cool Zone™ Drawer is ideal for
deli meats, cheeses and sandwich fixings
or any food items that are frequently used.
Clear Dairy Door
Attractive Stainless Steel Exterior
Reversible Door
Door can be installed to open left or right
based on your needs.
Signature Features
SpillSafe® Adjustable
Glass Shelves
Designed to keep spills contained,
making cleanup a breeze.
Store-More™ Capacity
Our large capacity refrigerator gives you
room to store more.
Store-More™ HumidityControlled Crisper Drawers
Keep your fruits and vegetables fresh in
our humidity-controlled crisper drawers.
Store-More™ Gallon
Door Shelf
Door storage gives you room for larger
items like a gallon of milk.
ENERGY STAR®
Available in:
Stainless
(S)
frigidaire.com
Features
Door Design
Door Handle Design
Cabinet Finish (Textured)
Door Stops
Door Hinge Covers
Door Reverse Option
Rollers – Front/Rear
Sound Package
Toe Grille
UltraSoft™
Stainless Steel
Black
Yes
Black
Yes
Adjustable/Yes
Black
Refrigerator Features
Interior Lighting
Refrigerator Shelves
Cool Zone™ Drawer
Wine/Can Rack
Store-More™ Crisper Drawers
Humidity Controls
Dairy Compartment
Door Bins
Door Racks
Non-Slip Bin Liner
Tall Bottle Retainers
Gallon Door Storage
Standard
2 Sliding SpaceWise®
Adjustable Glass
Clear
2 Clear
2
Clear Dairy Door
3 Full-Width White
1
Freezer Features
Door Bins
Door Racks
Freezer Shelves
Factory Ice Maker w/ Large Ice Bin
2 Full-Width White
1 Full-Width Wire
Optional (PN# IM115)
Lighting
Certifications
ENERGY STAR®
Yes
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts
1
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe
operation.
20.6
15.3
5.3
Right Bottom Rear
Bottom Right
120V/60Hz/15or20A
.72
6.0
15
220 Lbs.
Top Mount Refrigerator
FFHT2117P S 21 Cu. Ft.
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A-Height (Incl. Hinges & Rollers)
B-Width
C-Depth (Incl. Door)
Depth with Door Open 90˚
•
USA
10200 David Taylor Drive
•
CANADA
FFHT2117P 10/12 © 2012 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
69-3/8"
30"
32"
60"
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Top Mount Refrigerator - 21 Cu. Ft.
Baseline
Top Mount Refrigerator
FFHT2117P S 21 Cu. Ft.
Top Mount Refrigerator Specifications
•
Product Shipping Weight (approx.) – 220 Lbs.
•
An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
•
Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
•
Connected Load (kW Rating) @ 120 Volts = .72 kW
•
Amps @ 120 Volts = 6.0 Amps
•
Always consult local and national electric & plumbing codes.
•
Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.
•
Minimum 3/8" clearance required for sides and top of refrigerator
with 1" clearance at rear to allow for ease of installation, proper air
circulation, and plumbing / electrical connections.
•
When installing refrigerator adjacent to wall, cabinet or other
appliance that extends beyond front edge of unit, 20" minimum
clearance recommended to allow for optimum 140° door swing,
providing complete crisper access and removal. (Absolute 3"
minimum clearance will ONLY allow for 90° door swing which
will provide limited crisper access with restricted removal.)
•
USA
10200 David Taylor Drive
•
CANADA
FFHT2117P 10/12 © 2012 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
•
To ensure optimum performance, do not install in areas where
temperature drops below 55° F or rises above 110° F and
avoid installing in direct sunlight or close proximity to range,
dishwasher or other heat source.
•
For proper ventilation, front grille MUST remain unobstructed.
•
Recess electrical outlet when possible.
•
Optional Ice Maker Kit (PN # IM115) available for installation in
ice maker-ready models only.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
•
Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
•
Adjustable front rollers to assist with door alignment.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
Ice Maker Kit – (PN # IM115)
Specifications
subject to change.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top
General Installation Guidelines
with Top Mount Refrigerator
•
USA
10200 David Taylor Drive
•
CANADA
INSTGDLNS_TMR FR 02/12 © 2012 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
