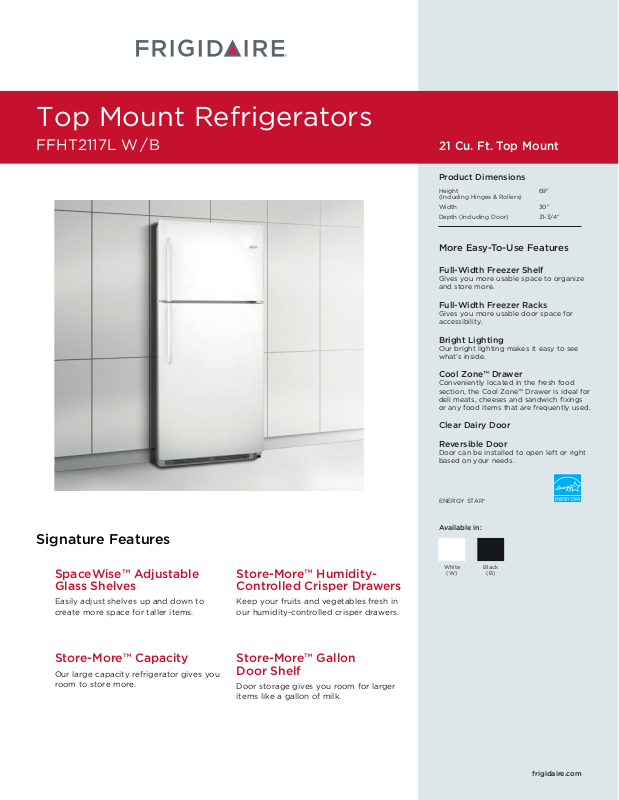

Frigidaire FFHT2117L W, FFHT2117L B DATASHEET
Top Mount Refrigerators
FFHT2117L W/B
21 Cu. Ft. Top Mount
Product Dimensions
Height 69"
(Including Hinges & Rollers)
Width 30"
Depth (Including Door) 31-3/4"
More Easy-To-Use Features
Full-Width Freezer Shelf
Gives you more usable space to organize
and store more.
Full-Width Freezer Racks
Gives you more usable door space for
accessibility.
Bright Lighting
Our bright lighting makes it easy to see
what’s inside.
Cool Zone™ Drawer
Conveniently located in the fresh food
section, the Cool Zone™ Drawer is ideal for
deli meats, cheeses and sandwich fixings
or any food items that are frequently used.
Clear Dairy Door
Signature Features
SpaceWise™ Adjustable
Glass Shelves
Easily adjust shelves up and down to
create more space for taller items.
Store-More™ Capacity
Our large capacity refrigerator gives you
room to store more.
Store-More™ HumidityControlled Crisper Drawers
Keep your fruits and vegetables fresh in
our humidity-controlled crisper drawers.
Store-More™ Gallon
Door Shelf
Door storage gives you room for larger
items like a gallon of milk.
Reversible Door
Door can be installed to open left or right
based on your needs.
ENERGY STAR®
Available in:
White
(W)
Black
(B)
frigidaire.com
Features
Door Design
Door Handle Design
Cabinet Finish (Textured)
Door Stops
Door Hinge Covers
Door Reverse Option
Left-Swing Door
Rollers – Front/Rear
Sound Package
Toe Grille
UltraSoft™
Color-Coordinated
Color-Coordinated
Yes
Color-Coordinated
Yes
Adjustable/Yes
Color-Coordinated
Refrigerator Features
Interior Lighting
Refrigerator Shelves
Cool Zone™ Drawer
Wine/Can Rack
Store-More™ Crisper Drawers
Humidity Controls
Dairy Compartment
Door Bins
Door Racks
Non-Slip Bin Liner
Tall Bottle Retainers
Gallon Door Storage
Bright
2 SpaceWise™
Adjustable Glass
Clear
2 Clear
2
Clear Dairy Door
3 Full-Width White
1
Freezer Features
Door Bins
Door Racks
Freezer Shelves
Factory Ice Maker w/ Large Ice Bin
2 Full-Width White
1 Full-Width
Optional
Lighting
Certifications
ENERGY STAR®
Yes
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts
1
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe
operation.
20.5
15.27
5.26
Right Bottom Rear
Bottom Right
120V/60Hz/15or20A
.54
4.5 Amps
15
220 Lbs.
Top Mount Refrigerators
FFHT2117L W/B 21 Cu. Ft.
NOTE: Always consult local and national electric and plumbing
codes. Refer to Product Installation Guide for detailed installation
instructions on the web at frigidaire.com.
Product Dimensions
A-Height (Incl. Hinges and Rollers)
B-Width
C-Depth (Incl. Door)
Depth with Door Open 90˚
•
USA
250 Bobby Jones Expressway
•
CANADA
FFHT2117L 03/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Martinez, GA 30907
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
69"
30"
31-3/4"
60"
Specifications
subject to change.
