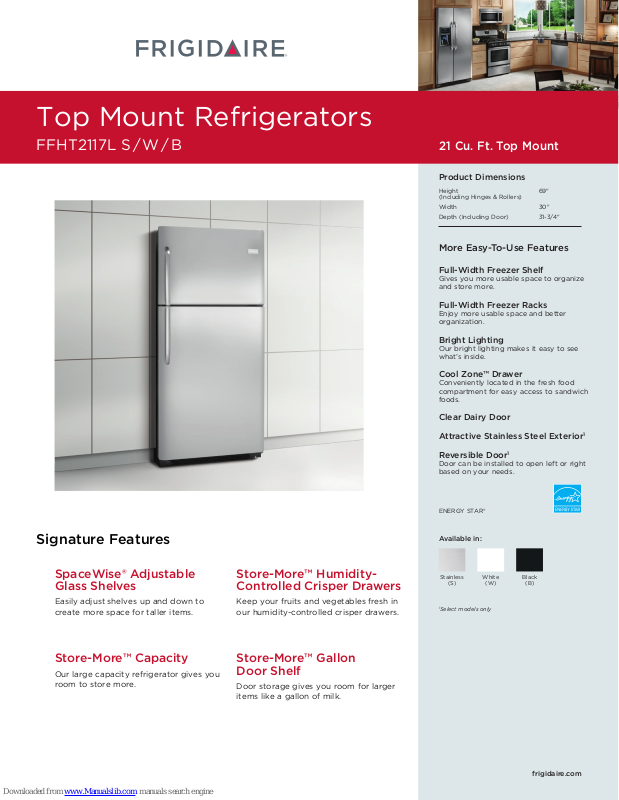

Frigidaire FFHT2117L S, FFHT2117L B Specification & Installation Instructions

Top Mount Refrigerators

FFHT2117L S / W / B

21 Cu. Ft. Top Mount

Product Dimensions

Height 69"
(Including Hinges & Rollers)

Width 30"

Depth (Including Door) 31-3/4"

More Easy-To-Use Features

Full-Width Freezer Shelf

Gives you more usable space to organize
and store more.

Full-Width Freezer Racks

Enjoy more usable space and better
organization.

Bright Lighting

Our bright lighting makes it easy to see
what’s inside.

Cool Zone™ Drawer

Conveniently located in the fresh food
compartment for easy access to sandwich
foods.

Clear Dairy Door

Attractive Stainless Steel Exterior

Reversible Door

Door can be installed to open left or right
based on your needs.

1

1

Signature Features

SpaceWise® Adjustable
Glass Shelves

Easily adjust shelves up and down to
create more space for taller items.

Store-More™ Capacity

Our large capacity refrigerator gives you
room to store more.

Store-More™ Humidity­Controlled Crisper Drawers

Keep your fruits and vegetables fresh in
our humidity-controlled crisper drawers.

Store-More™ Gallon
Door Shelf

Door storage gives you room for larger
items like a gallon of milk.

ENERGY STAR®

Available in:

Stainless

(S)

1

Select models only

White

(W)

Black

(B)

frigidaire.com

Features

Door Design

Door Handle Design

Cabinet Finish (Textured)

Door Stops

Door Hinge Covers

Door Reverse Option

Left-Swing Door

Rollers – Front / Rear

Sound Package

Toe Grille

UltraSoft™

Stainless Steel (S),
Color-Coordinated (W /B)

Black (S),
Color-Coordinated (W /B)

Yes

Black (S),
Color-Coordinated (W /B)

No (S),
Yes (W /B)

Adjustable / Yes

Black (S),
Color-Coordinated (W /B)

Refrigerator Features

Interior Lighting

Refrigerator Shelves

Cool Zone™ Drawer

Wine / Can Rack

Store-More™ Crisper Drawers

Humidity Controls

Dairy Compartment

Door Bins

Door Racks

Non-Slip Bin Liner

Tall Bottle Retainers

Gallon Door Storage

Bright

2 Sliding SpaceWise®
Adjustable Glass

Clear

2 Clear

2

Clear Dairy Door

3 Full-Width White

1

Freezer Features

Door Bins

Door Racks

Freezer Shelves

Factory Ice Maker w/ Large Ice Bin

2 Full-Width White

1 Full-Width

Optional (PN # IM115)

Lighting

Certifications

ENERGY STAR®

Yes

Specifications

Total Capacity (Cu. Ft.)

Refrigerator Capacity (Cu. Ft.)

Freezer Capacity (Cu. Ft.)

Power Supply Connection Location

Water Inlet Connection Location

Voltage Rating

Connected Load (kW Rating)
@ 120 Volts

1

Amps @ 120 Volts

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

1

For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe
operation.

20.5

15.27

5.26

Right Bottom Rear

Bottom Right

120V / 60Hz / 15 or 20A

.54

4.5

15

220 Lbs.

op Mount Refrigerators

FFHT2117L S / W / B 21 Cu. Ft.

NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.

•

USA

10200 David Taylor Drive

•

CANADA

FFHT2117L 03/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.

5855 Terry Fox Way

•

Charlotte, NC 28262

•

Mississauga, ON L5V 3E4

•

1-800-FRIGIDAIRE

•

1-800-265-8352

•

frigidaire.com

•

frigidaire.ca

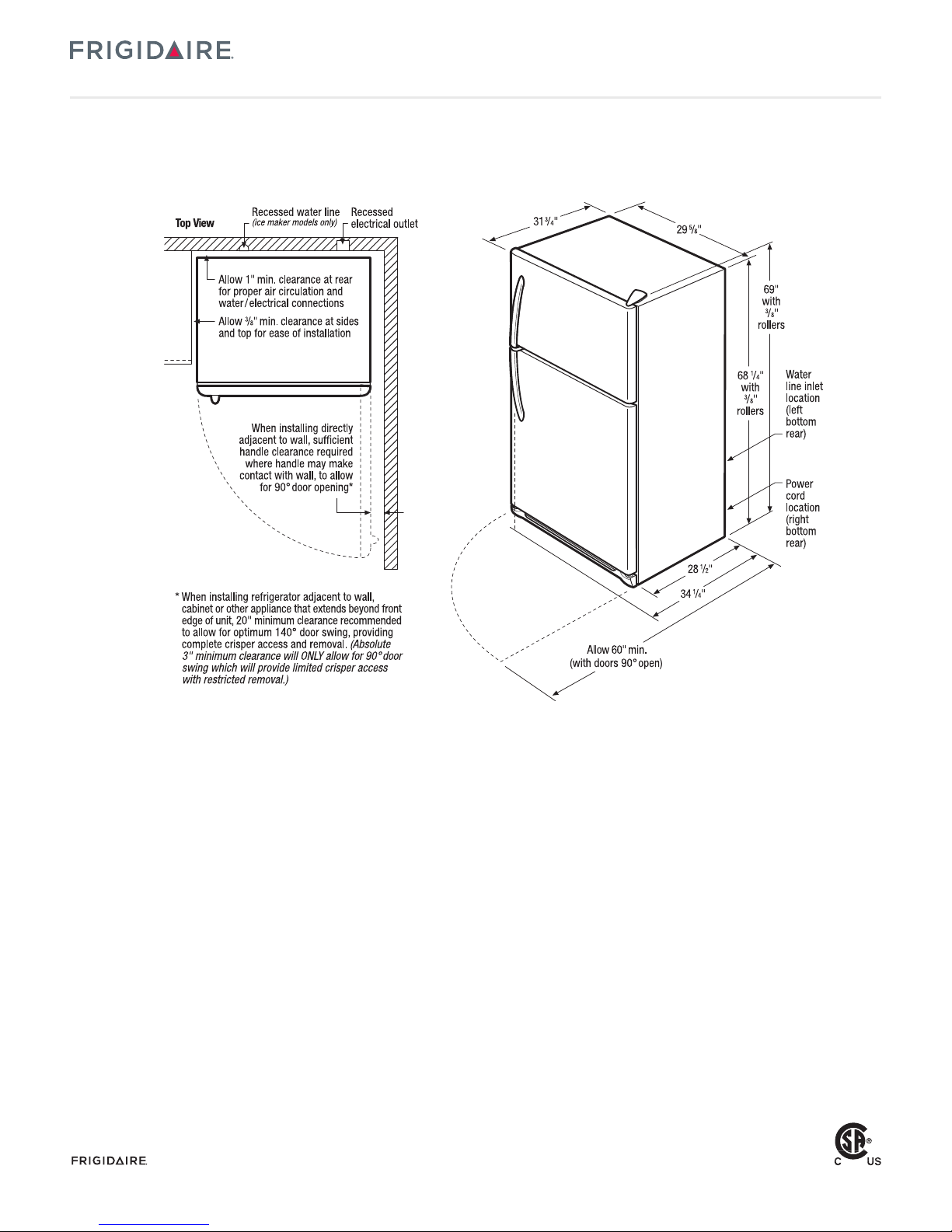

Product Dimensions

A - Height (Incl. Hinges and Rollers)

B - Width

C - Depth (Incl. Door)

Depth with Door Open 90˚

69"

30"

31-3/4"

60"

Accessories information available

on the web at frigidaire.com

Specifications

subject to change.
