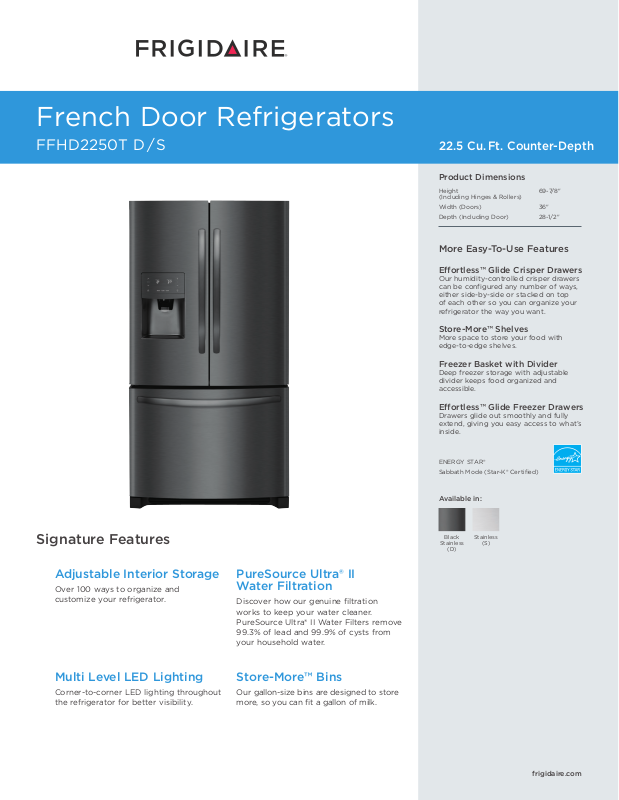

Page 1
French Door Refrigerators
FFHD2250T D / S
22.5 Cu. Ft. Counter-Depth
Product Dimensions
Height 69-7/8"
(Including Hinges & Rollers)
Width (Doors) 36"
Depth (Including Door) 28-1/2"
More Easy-To-Use Features
Eortless™ Glide Crisper Drawers
Our humidity-controlled crisper drawers
can be configured any number of ways,
either side-by-side or stacked on top
of each other so you can organize your
refrigerator the way you want.
Store-More™ Shelves
More space to store your food with
edge-to-edge shelves.
Freezer Basket with Divider
Deep freezer storage with adjustable
divider keeps food organized and
accessible.
Eortless™ Glide Freezer Drawers
Drawers glide out smoothly and fully
extend, giving you easy access to what’s
inside.
Signature Features
Adjustable Interior Storage
Over 100 ways to organize and
customize your refrigerator.
Multi Level LED Lighting
Corner-to-corner LED lighting throughout
the refrigerator for better visibility.
PureSource Ultra® II
Water Filtration
Discover how our genuine filtration
works to keep your water cleaner.
PureSource Ultra® II Water Filters remove
99.3% of lead and 99.9% of cysts from
your household water.
Store-More™ Bins
Our gallon-size bins are designed to store
more, so you can fit a gallon of milk.
ENERGY STAR®
Sabbath Mode (Star-K® Certified)
Available in:
Stainless
Black
Stainless
(D)
(S)
frigidaire.com
Page 2
Features
A
B
C
Door Design
Door Handle Design
Cabinet Finish
Door Stops / Door Closers
Door Hinge Covers
Rollers – Front / Rear
Energy Saver Plus Technology
Water Filter Location
Sound Package
Tall Curved
Black Stainless (D),
Stainless Steel (S)
Black (D), Grey (S)
Yes / Yes
Hidden
2 Adjustable / Front
Yes
Top-Right Fresh
Food Section
Control Features
Controls
Control Panel Location
Number of Control Buttons
Ice Option / Freeze Option
Display On / O Option
Lock
Temp / Door Ajar / Power Failure Alerts
Water Filter Change Indicator Light
Air Filter Change Indicator Light
Ready-Select®
Left Door, Inside Edge
5
Quick Ice / No
Yes
Yes
Yes
Yes
Refrigerator Features
Lighting
Water Filter Type
Air Filter Type
Quarter-Width Fixed Shelves
Half-Width Fixed Shelves
Quarter-Width Sliding Shelves
Half-Width Sliding Shelves
Cantilever Shelves
Store-More™ Full-Width Drawer
Hanging Wine Rack
Hanging Can Dispenser
Crisper Drawer / Humidity Controls
Dairy Compartment
Store-More™ Fixed Door Bins
2-Liter Fixed Door Bins
Gallon Adjustable Door Bins
2-Liter Adjustable Door Bins
Dispenser Bin
Non-Slip Bin Liner / Bottle Retainers
Dual-Level LED
PureSource Ultra® II
PureAir Ultra®
1
3 Edge to Edge
3 SpillSafe®
Yes
1 Cool Zone™
1
2 Clear / 2
1 Clear
2 White (1 per door)
2 Clear (1 per door)
2 Clear (1 per door)
1
No / Yes
Freezer Features
Self-Closing Pull-Out Drawer
Sliding Full-Width Freezer Baskets
Basket Dividers
Lighting
Automatic Ice Maker (2nd Ice Maker)
Yes
2 Eortless™ Glide
1 (Bottom Basket)
LED
Yes
Certifications
Sabbath Mode (Star-K® Certified)
ENERGY STAR®
Yes
Yes
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW rating) @ 115 Volts
Amps @ 115 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.
22.5
15.7
6.8
Right Bottom Rear
Left Bottom Rear
115V / 60Hz
1
1.02
8.5
15
365 Lbs.
French Door Refrigerators
FFHD2250T D / S 22.5 Cu. Ft. Counter-Depth
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Incl. Hinges & Rollers)
B - Cabinet Width / Door Width
C - Depth (Incl. Door)
Depth with Door Open 90°
Depth with Drawer Fully
Extended (Incl. Handle)
69-7/8"
35-7/8" / 36"
28-1/2"
42-1/2"
45-1/2"
"Built-In Look" Cutout Dimensions
Height (Incl. Hinges and Rollers)
Width
Depth
Accessories information available
on the web at frigidaire.com
70-1/4"
36"
25"
•
USA
10200 David Taylor Drive
•
CANADA
FFHD2250T 06/17 © 2017 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.

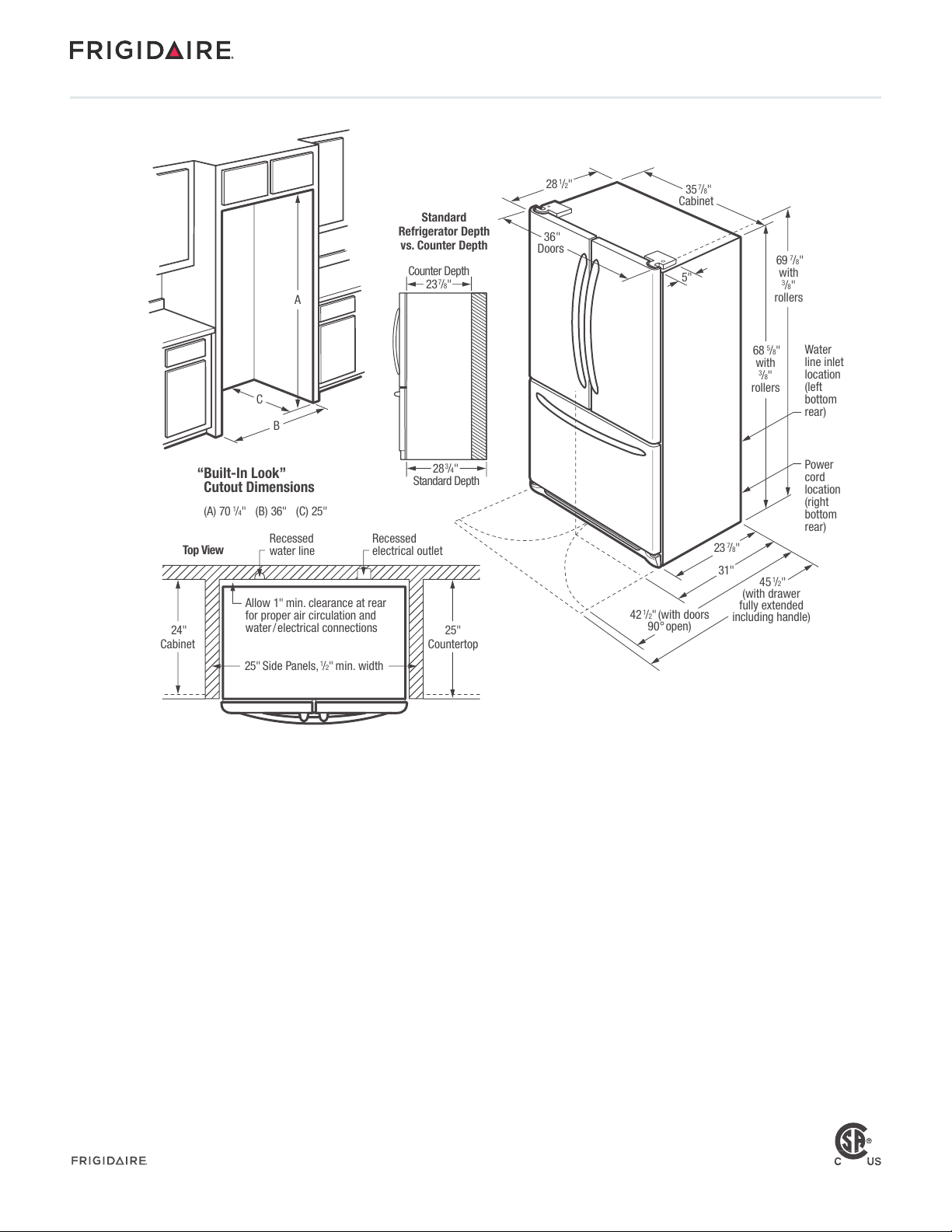

Page 3
Top View
24"
Cabinet
25" Side Panels,
1
/2" min. width
25"
Countertop
Allow 1" min. clearance at rear
for proper air circulation and
water
/
electrical connections
Recessed
water line
Recessed
electrical outlet
“Built-In Look”
Cutout Dimensions
(A) 701/4" (B) 36" (C) 25"
5"
31"
68 5/8"
with
3
/8"
rollers
28 1/2"
23
7
/8"
69
7
/8"
with
3
/8"
rollers
Power
cord
location
(right
bottom
rear)
Water
line inlet
location
(left
bottom
rear)
35
7
/8"
Cabinet
36"
Doors
45
1
/2"
(with drawer
fully extended
including handle)
42
1/2" (with doors
90°
open)
Standard
Refrigerator Depth
vs. Counter Depth
23
7/8"
Counter Depth
28
3/4"
Standard Depth
B
C
A
French Door Refrigerators
FFHD2250T D / S 22.5 Cu. Ft. Counter-Depth
French Door Refrigerator Specifications
•
Product Shipping Weight (approx.) – 365 Lbs.
•
An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
•
Voltage Rating – 115V / 60 Hz
•
Connected Load (kW Rating) @ 115 Volts = 1.02 kW
•
Amps @ 115 Volts = 8.5 Amps
•
Always consult local and national electric & plumbing codes.
•
Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.
•
When installing refrigerator adjacent to wall, cabinet or other appliance
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 120° to 180° door swing, providing
complete drawer / crisper access and removal. (Absolute 4-1/2"
minimum clearance will ONLY allow for 90° door swing which will
provide drawer / crisper access with restricted removal.)
•
To ensure optimum performance, avoid installing in direct sunlight or
close proximity to range, dishwasher or other heat source.
•
For proper ventilation, front grille MUST remain unobstructed.
•
Recess electrical outlet when possible.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
•
Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
•
Adjustable front rollers to assist with door alignment. Adjustable
rollers are not removable.
“Built-In Look” Specifications
•
Minimum opening of 70-1/4" H x 36" W x 25" D required to allow for
ease of installation, proper air circulation, and plumbing / electrical
connections.
•
Remove all wall / floor molding prior to installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
•
USA
10200 David Taylor Drive
•
CANADA
FFHD2250T 06/17 © 2017 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
