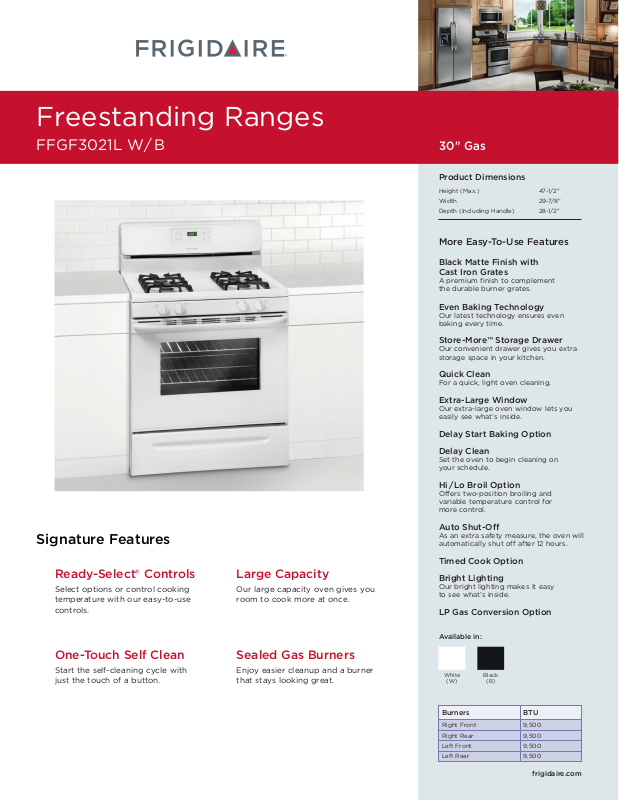

Frigidaire FFGF3021LW Specification Sheet
Drop-In Cooktop
Freestanding Ranges
FPEC3085K S
FFGF3021L W/ B
30" Electric30" Gas
Product Dimensions
Height (Max.) 47-1/2"
Width 29-7/8"
Depth (Including Handle) 28-1/2"
More Easy-To-Use Features
Black Matte Finish with
Cast Iron Grates
A premium finish to complement
the durable burner grates.
Even Baking Technology
Our latest technology ensures even
baking every time.
Store-More™ Storage Drawer
Our convenient drawer gives you extra
storage space in your kitchen.
Quick Clean
For a quick, light oven cleaning.
Extra-Large Window
Our extra-large oven window lets you
easily see what’s inside.
Delay Start Baking Option
Signature Features
Ready-Select® Controls
Select options or control cooking
temperature with our easy-to-use
controls.
One-Touch Self Clean
Start the self-cleaning cycle with
just the touch of a button.
Large Capacity
Our large capacity oven gives you
room to cook more at once.
Sealed Gas Burners
Enjoy easier cleanup and a burner
that stays looking great.
Delay Clean
Set the oven to begin cleaning on
your schedule.
Hi /Lo Broil Option
Offers two-position broiling and
variable temperature control for
more control.
Auto Shut-O
As an extra safety measure, the oven will
automatically shut off after 12 hours.
Timed Cook Option
Bright Lighting
Our bright lighting makes it easy
to see what’s inside.
LP Gas Conversion Option
Available in:
White
(W)
Burners
Right Front
Right Rear
Left Front
Left Rear
Black
(B)
BTU
9,500
9,500
9,500
9,500
frigidaire.com
Features
C
A
36"
(Adjustable)
B
Oven Control / Timing System
Surface Type
Sealed Gas Burners
Grates
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Ready-Select® Controls
Color-Coordinated Porcelain
Yes
Cast Iron with
Black Matte Finish
Extra-Large
Color-Coordinated
Color-Coordinated
Color-Coordinated
Self Clean
Storage
Oven Controls
Bake
Broil
Add-a-Minute
Delay Bake
Self-Clean
Quick Clean Option
Delay Clean
Kitchen Timer
Timed Cook Option
Auto Oven Shut-O
Yes
Low and High
Yes
Yes
Yes
Yes
Yes
Yes
12 Hours
Cooktop Features
Right Front Burner (BTU)
Right Rear Burner (BTU)
Left Front Burner (BTU)
Left Rear Burner (BTU)
Center Extra Zone Burner (BTU)
9,500
9,500
9,500
9,500
Oven Features
Capacity (Cu. Ft.)
Oven Light
Rack Configuration
Even Baking System
Broiling System
Bake Burner / Broil Burner (BTU)
5.0
1
2 Standard
Yes
Vari-Broil™ Hi / Lo
18,000 / 18,000
Optional Accessories
LP Gas Conversion Kit
PN # GRLP3
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Gas Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 120 Volts
Amps @ 120 Volts
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having
2-wire service with a separate ground wire. Appliance must be
grounded for safe operation.
1
17-5/8" x 24-3/8" x 19-3/4"
Left Bottom Rear
Right Bottom Rear
120V / 60 Hz / 15A
1.8
15
150 Lbs.
Freestanding Ranges
FFGF3021L W/ B 30" Gas
NOTE: For planning purposes only. Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.

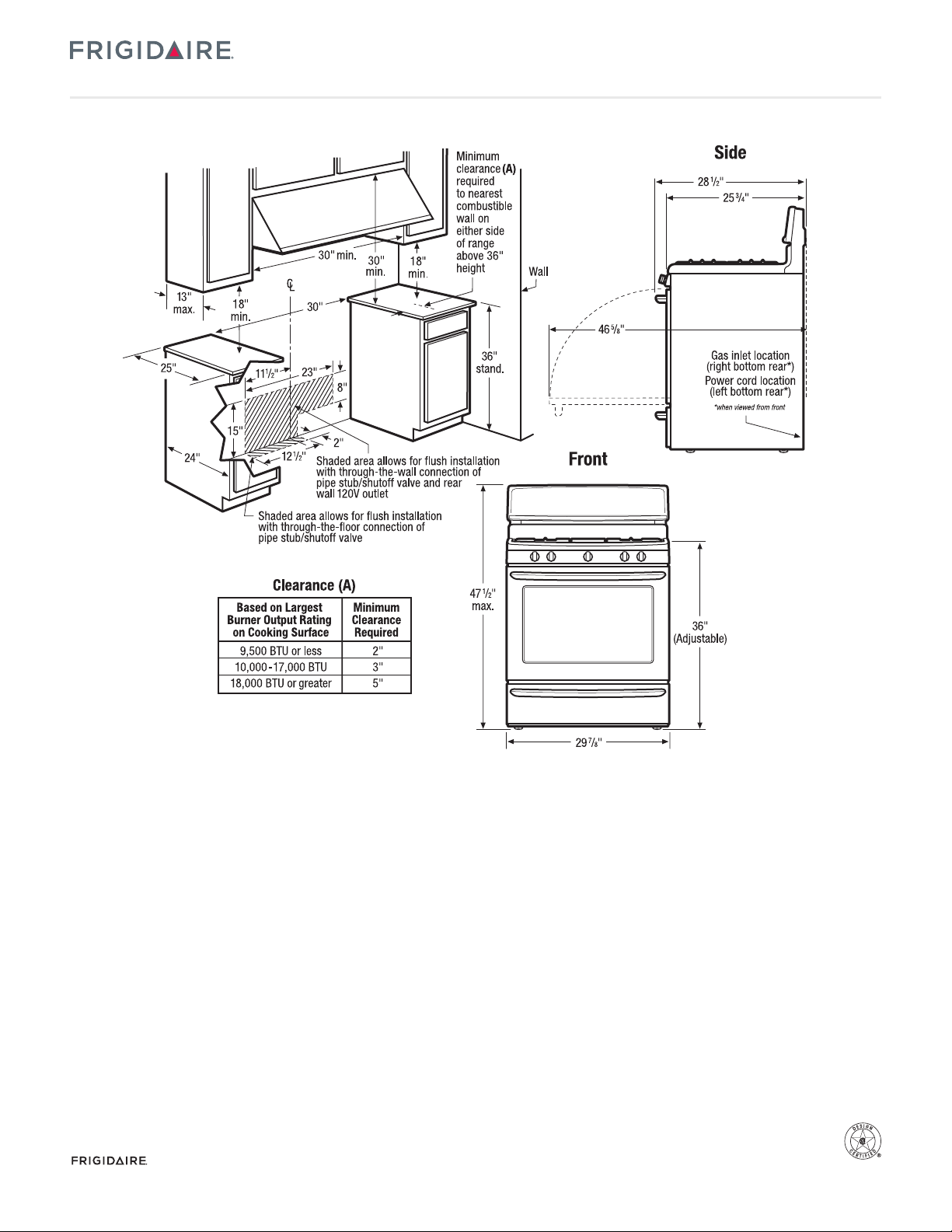

Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90˚
47-1/2"
29-7/8"
28-1/2"
46-5/8"
Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
com.
36"
30"
24"
•
USA
10200 David Taylor Drive
•
CANADA
FFGF3021L 10/11 © 2011 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
