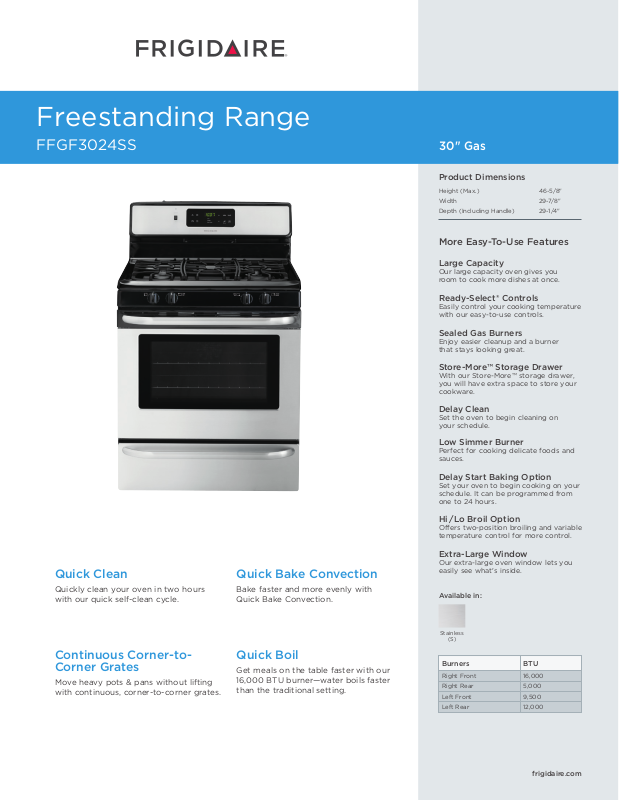

Page 1
Drop-In Cooktop
Freestanding Range
FPEC3085K S
FFGF3024SS
30" Electric30" Gas
Product Dimensions
Height (Max.) 46-5/8"
Width 29-7/8"
Depth (Including Handle) 29-1/4"
More Easy-To-Use Features
Large Capacity
Our large capacity oven gives you
room to cook more dishes at once.
Ready-Select® Controls
Easily control your cooking temperature
with our easy-to-use controls.
Sealed Gas Burners
Enjoy easier cleanup and a burner
that stays looking great.
Store-More™ Storage Drawer
With our Store-More™ storage drawer,
you will have extra space to store your
cookware.
Delay Clean
Set the oven to begin cleaning on
your schedule.
Quick Clean
Quickly clean your oven in two hours
with our quick self-clean cycle.
Continuous Corner-toCorner Grates
Move heavy pots & pans without lifting
with continuous, corner-to-corner grates.
Quick Bake Convection
Bake faster and more evenly with
Quick Bake Convection.
Quick Boil
Get meals on the table faster with our
16,000 BTU burner—water boils faster
than the traditional setting.
Low Simmer Burner
Perfect for cooking delicate foods and
sauces.
Delay Start Baking Option
Set your oven to begin cooking on your
schedule. It can be programmed from
one to 24 hours.
Hi /Lo Broil Option
Offers two-position broiling and variable
temperature control for more control.
Extra-Large Window
Our extra-large oven window lets you
easily see what's inside.
Available in:
Stainless
(S)
Burners
Right Front
Right Rear
Left Front
Left Rear
BTU
16,000
5,000
9,500
12,000
frigidaire.com
Page 2
C
A
36"
(Adjustable)
B
Features
Oven Control / Timing System
Surface Type
Sealed Gas Burners
Grates
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake
Broil
Quick Bake Convection
Add-a-Minute
Delay Start
Self-Clean
Quick Clean Option
Delay Clean
Kitchen Timer
Timed Cook Option
Auto Oven Shut-O
Oven Lock-Out
Cooktop Features
Right Front Burner (BTU)
Right Rear Burner (BTU)
Left Front Burner (BTU)
Left Rear Burner (BTU)
Center Extra Zone Burner (BTU)
Oven Features
Capacity (Cu. Ft.)
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake Burner / Broil Burner (BTU)
Optional Accessories
LP Gas Conversion Kit
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Gas Supply Connection Location
Voltage Rating
Amps @ 120 Volts
Shipping Weight (Approx.)
Ready-Select® Controls
Black Porcelain
Yes
Continuous Cast Iron
w/ Black Matte Finish
Extra-Large
Stainless Steel
Stainless Steel
Black
Quick Bake Convection
Self Clean
Storage
Yes
Hi/Low
Yes
Yes
Yes
Yes
2, 3 Hours
Yes
Yes
12 Hours
Yes
16,000
5,000
9,500
12,000
5.0
1
Yes
2 Standard
Vari-Broil™ Hi / Lo
18,000 / 13,500
PN # GRLP4
18-5/8" x 24-3/8" x 19-1/8"
Left Bottom Rear
Right Bottom Rear
120V / 60 Hz / 12A
12
195 Lbs.
Freestanding Range
FFGF3024SS 30" Gas
NOTE: For planning purposes only. Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.
Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90˚
46-5/8"
29-7/8"
29-1/4"
46-9/16"
Cabinet Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
com.
36"
30"
24"
•
USA
10200 David Taylor Drive
•
CANADA
FFGF3024S 04/16 © 2016 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.

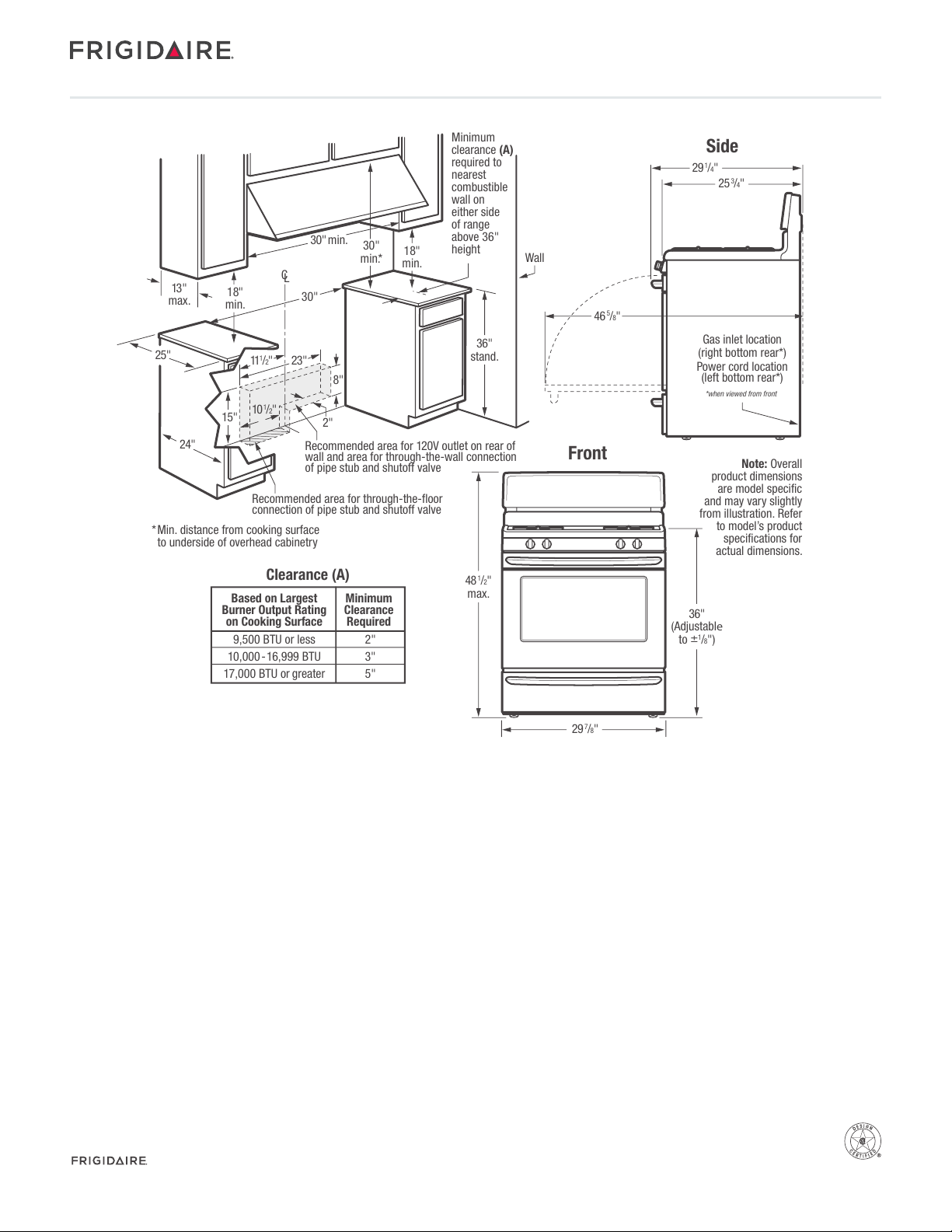

Page 3
30" min.
13"
max.
25"
Minimum
clearance (A)
required to
nearest
combustible
wall on
either side
of range
above 36"
height
30"
C
L
36"
stand.
Wall
15"
11
1/2"
Recommended area for through-the-floor
connection of pipe stub and shutoff valve
8"
Recommended area for 120V outlet on rear of
wall and area for through-the-wall connection
of pipe stub and shutoff valve
23"
18"
min.
24"
10 1/2"
2"
18"
min.
Front
29
7/8"
48
1/2"
max.
46
5/8"
Gas inlet location
(right bottom rear*)
Power cord location
(left bottom rear*)
*when viewed from front
Side
25
3/4"
29
1/4"
30"
min.*
Clearance (A)
Based on Largest Minimum
Burner Output Rating Clearance
on Cooking Surface Required
9,500 BTU or less 2"
10,000
-
16,999 BTU 3"
17,000 BTU or greater 5"
* Min. distance from cooking surface
to underside of overhead cabinetry
36"
(Adjustable
to
±
1
/8")
Note: Overall
product dimensions
are model specific
and may vary slightly
from illustration. Refer
to model’s product
specifications for
actual dimensions.
Freestanding Range
FFGF3024SS 30" Gas
Freestanding Range Specifications
•
Product Shipping Weight (approx.) – 195 Lbs.
•
Voltage Rating – 120V / 60 Hz / 12 Amps
•
Amps @ 120 Volts = 12 Amps
•
Always consult local and national electric and gas codes.
•
Make sure wall coverings around range can withstand heat generated
by range.
•
Linoleum or any other synthetic floor covering located beneath range,
must be capable of withstanding minimum heat of 90° F above room
temperature without shrinking, warping or discoloring. Insulating pad
or 1/4"-thick plywood required between range and a carpeted floor.
•
Do not obstruct flow of combustion air at oven vent nor around base
or beneath lower front panel of range. Range requires fresh air for
proper burner combustion.
•
Do not install range beneath any downward-blowing, overhead vent
hood or air curtain.
•
Range ships with 3/4" factory regulator.
•
Range is LP Gas convertible. (Optional LP Gas Conversion
Kit available.)
•
Floor beneath range MUST be solid and level.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•
Range can be installed flush to wall with 0" minimum rear clearance.
•
Minimum clearance required (from edge of rangetop to nearest
combustible wall on either side of range above 36" height) is based
on largest burner output rating on cooking surface.
•
To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
•
Follow all dimension requirements provided to prevent property
damage, potential fire hazard, and incorrect countertop and
cabinet cuts.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
LP Gas Conversion Kit – (PN # GRLP4).
•
USA
10200 David Taylor Drive
•
CANADA
FFGF3024S 04/16 © 2016 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
