Page 1

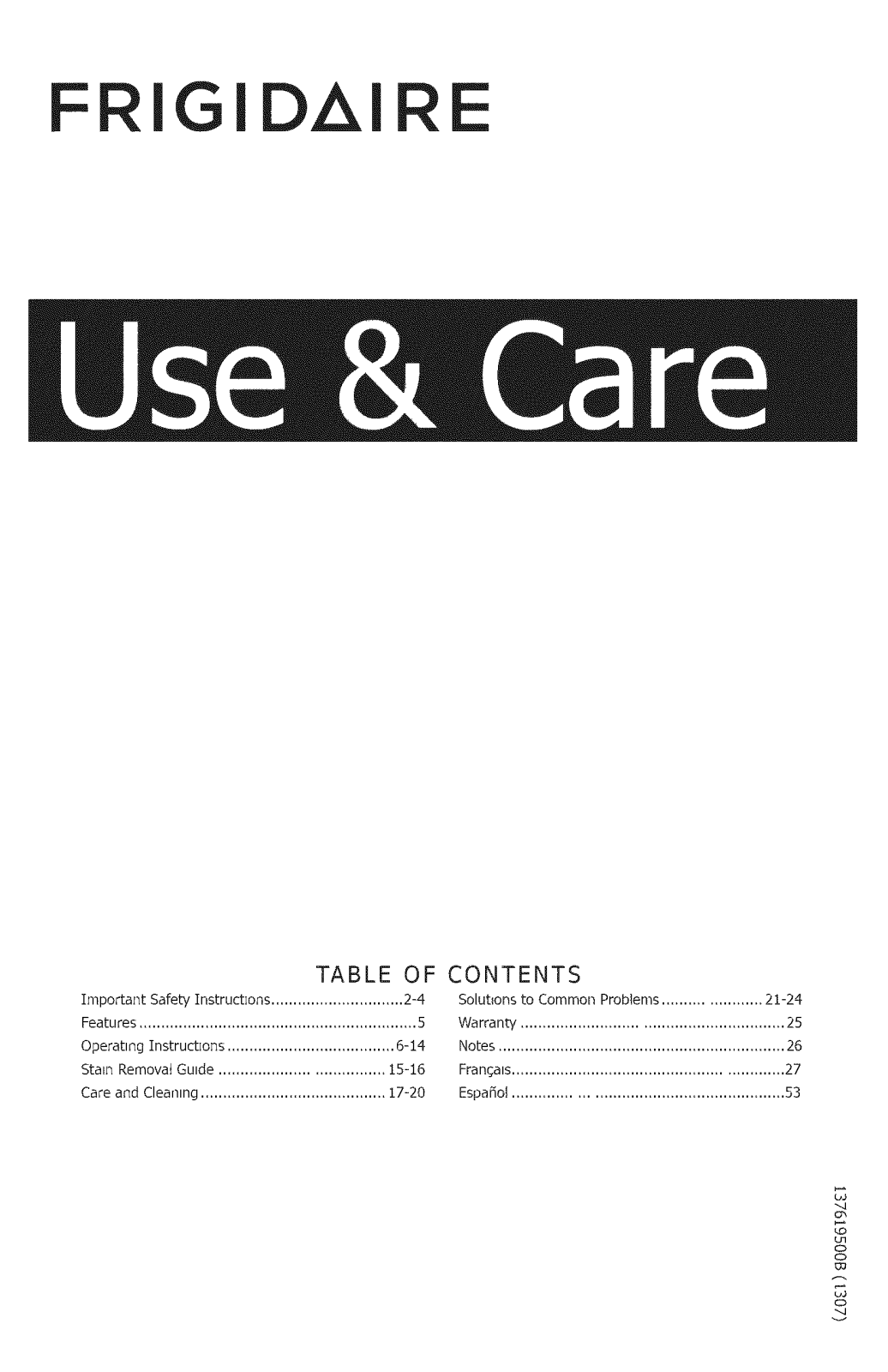

F IGIDAI E
TABLE OF
Important Safety Instructlons .............................. 2-4
Features ............................................................... 5
Operating Instructlons ...................................... 6-14
Staln Removal Guide ..................................... 15-16
Care and Cleaning .......................................... 17-20
CONTENTS
Solubons to Common Problems ...................... 2_1-24
Warranty ........................................................... 25
Notes ................................................................. 26
Fran_als ............................................................. 27
EspaMoI ............................................................ 53
oo
_o

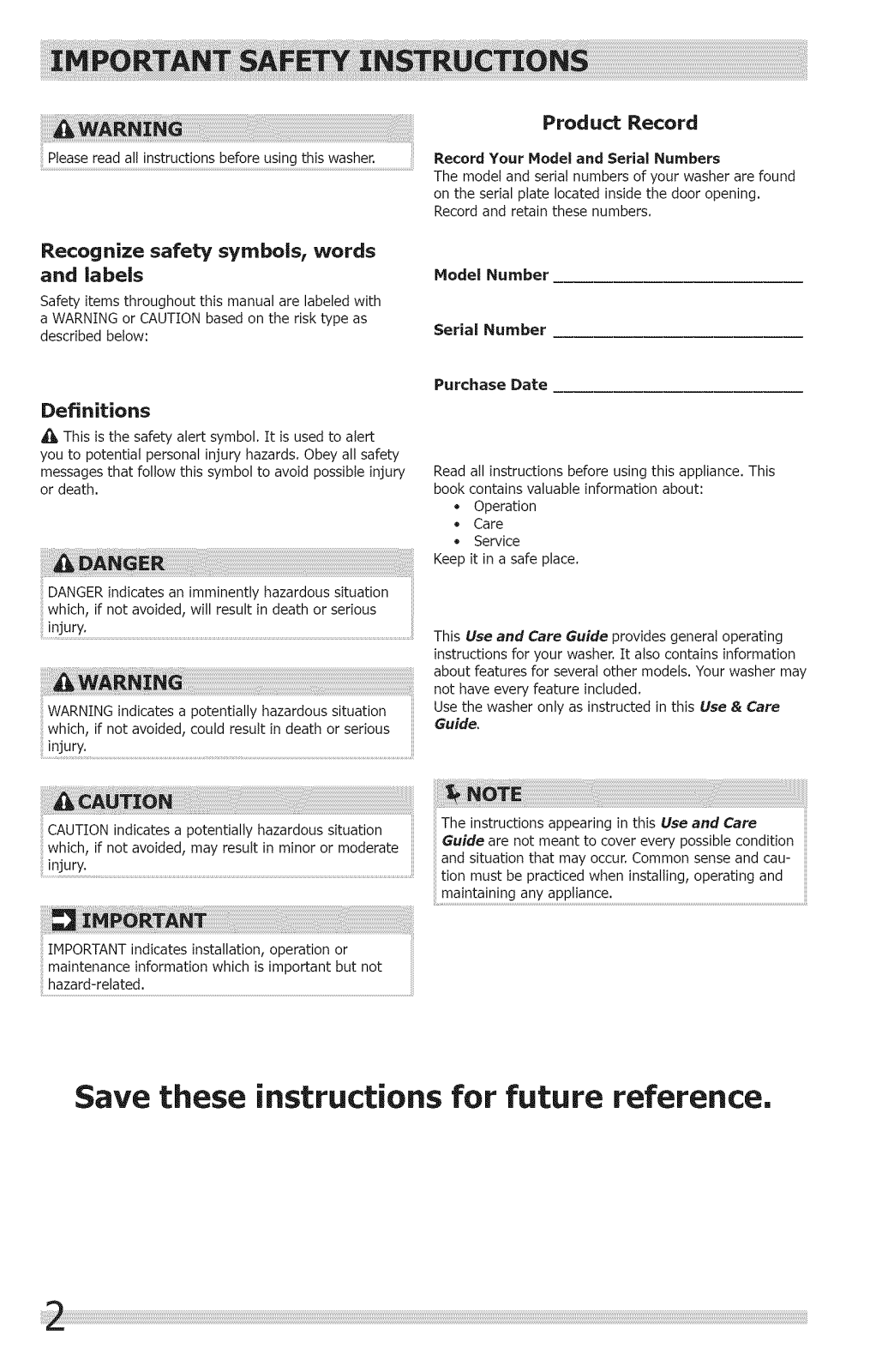

Page 2

Product Record
Record Your Model and Serial Numbers
The model and serial numbers of your washer are found
on the serial plate located inside the door opening.
Record and retain these numbers,
Recognize safety symboisr words
and labels
Safety items throughout this manual are labeled with
a WARNING or CAUTION based on the risk type as
described below:
Model Number
Serial Number
Purchase Date
Definitions
_lb This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury
or death.
DANGER indicates an imminently hazardous situation
which if not avoided will result in death or serious
_njury.
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury, .........................................................................................................................................................
Read all instructions before using this appliance. This
book contains valuable information about:
• Operation
• Care
• Service
Keep it in a safe place,
This Use and Care Guide provides general operating
instructions for your washer. It also contains information
about features for several other models. Your washer may
not have every feature included.
Use the washer only as instructed in this Use 8, Care
Guide,
tion must be practiced when installing, operating and
IMPORTANT indicates installation, operation or
maintenance information which is important but not
hazard-related.
Save these instructions for future reference.

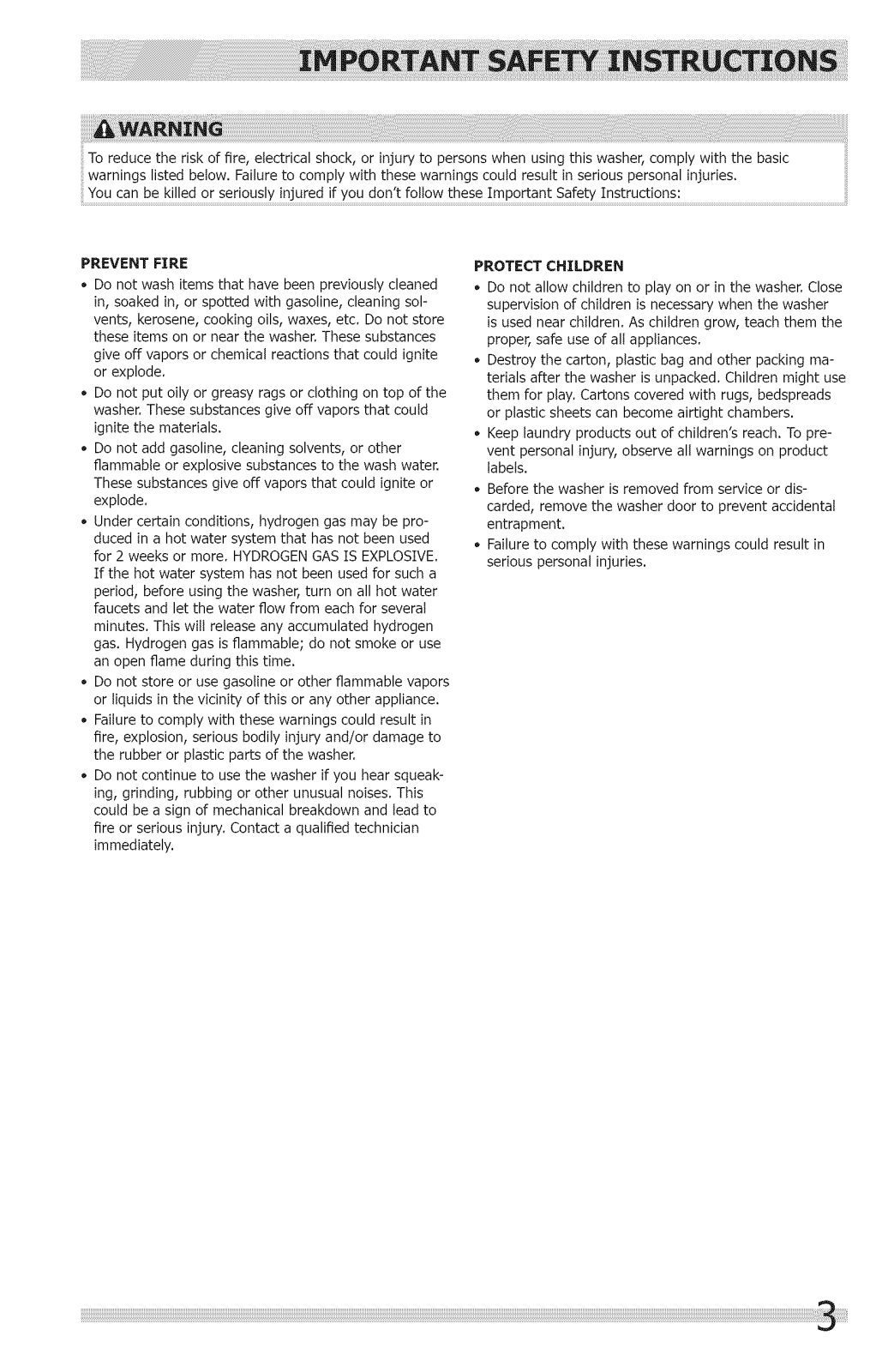

Page 3

To reduce the risk of fire, electrical shock, or injury to persons when using this washer, comply with the basic
warnings listed below. Failure to comply with these warnings could result in serious personal injuries.
You can be killed or seriously injured if you don't follow these Important Safety Instructions:
PREVENT FIRE
• Do not wash items that have been previously cleaned
in, soaked in, or spotted with gasoline, cleaning sol-
vents, kerosene, cooking oils, waxes, etc. Do not store
these items on or near the washer. These substances
give off vapors or chemical reactions that could ignite
or explode.
• Do not put oily or greasy rags or clothing on top of the
washer. These substances give off vapors that could
ignite the materials.
• Do not add gasoline, cleaning solvents, or other
flammable or explosive substances to the wash water.
These substances give off vapors that could ignite or
explode.
• Under certain conditions, hydrogen gas may be pro-
duced in a hot water system that has not been used
for 2 weeks or more. HYDROGENGAS IS EXPLOSIVE.
If the hot water system has not been used for such a
period, before using the washer, turn on all hot water
faucets and let the water flow from each for several
minutes. This wilt release any accumulated hydrogen
gas. Hydrogen gas is flammable; do not smoke or use
an open flame during this time.
• Do not store or use gasoline or other flammable vapors
or liquids in the vicinity of this or any other appliance.
• Failure to comply with these warnings could result in
fire, explosion, serious bodily injury and/or damage to
the rubber or plastic parts of the washer.
• Do not continue to use the washer if you hear squeak-
ing, grinding, rubbing or other unusual noises. This
could be a sign of mechanical breakdown and lead to
fire or serious injury. Contact a qualified technician
immediately.
PROTECT CHILDREN
• Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer
is used near children. As children grow, teach them the
proper, safe use of all appliances.
• Destroy the carton, plastic bag and other packing ma-
terials after the washer is unpacked. Children might use
them for play. Cartons covered with rugs, bedspreads
or plastic sheets can become airtight chambers.
• Keep laundry products out of children's reach. To pre-
vent personal injury, observe all warnings on product
labels.
• Before the washer is removed from service or dis-
carded, remove the washer door to prevent accidental
entrapment.
• Failure to comply with these warnings could result in
serious personal injuries.

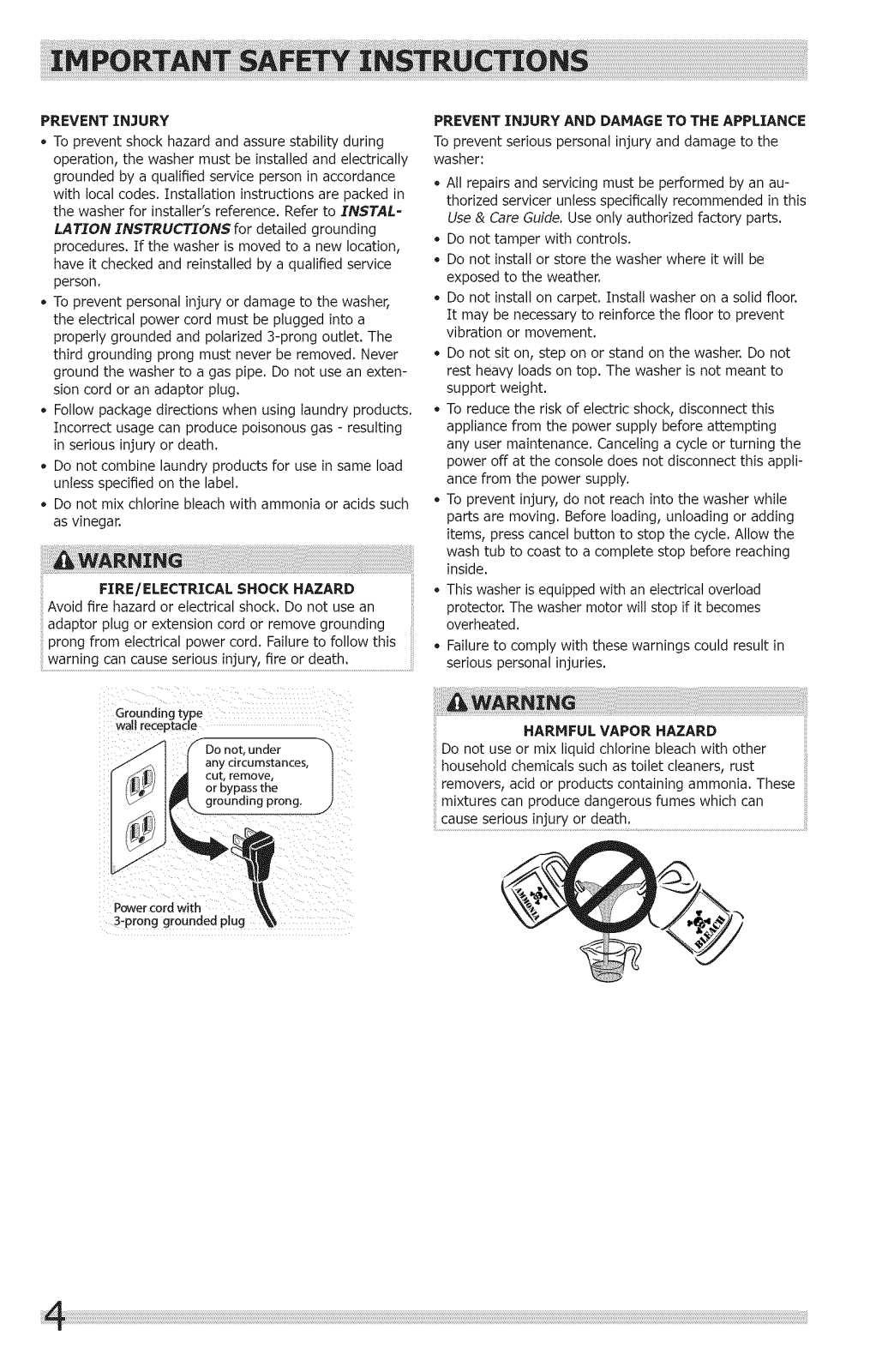

Page 4

PREVENT INJURY
Toprevent shock hazard and assure stability during
operation, the washer must be installed and electrically
grounded by a qualified service person in accordance
with local codes. Installation instructions are packed in
the washer for installer's reference. Refer to INSTAL-
LATION INSTRUCTIONS for detailed grounding
procedures. If the washer is moved to a new location,
have it checked and reinstalled by a qualified service
person,
Toprevent personal injury or damage to the washer,
the electrical power cord must be plugged into a
properly grounded and polarized 3-prong outlet. The
third grounding prong must never be removed. Never
ground the washer to a gas pipe, Do not use an exten-
sion cord or an adaptor plug.
Follow package directions when using laundry products.
Incorrect usage can produce poisonous gas - resulting
in serious injury or death,
Do not combine laundry products for use in same load
unless specified on the label.
Do not mix chlorine bleach with ammonia or acids such
as vinegar.
Avoid fire hazard or electrical shock. Do not use an
adaptor plug or extension cord or remove grounding
prong from electrical power cord. Failure to follow this
warning can cause serious injury, fire or death.
Groundingtype
wa!} receptacle
PREVENT IN.JURY AND DAMAGE TO THE APPLIANCE
To prevent serious personal injury and damage to the
washer:
* All repairs and servicing must be performed by an au-
thorized servicer unless specifically recommended in this
Use & Care Guide. Use only authorized factory parts.
* Do not tamper with controls.
* Do not install or store the washer where it will be
exposed to the weather,
* Do not install on carpet. Install washer on a solid floor.
It may be necessary to reinforce the floor to prevent
vibration or movement.
* Do not sit on, step on or stand on the washer. Do not
rest heavy loads on top. The washer is not meant to
support weight.
* To reduce the risk of electric shock, disconnect this
appliance from the power supply before attempting
any user maintenance, Canceling a cycle or turning the
power off at the console does not disconnect this appli-
ance from the power supply.
o To prevent injury, do not reach into the washer while
parts are moving. Before loading, unloading or adding
items, press cancel button to stop the cycle, Allow the
wash tub to coast to a complete stop before reaching
inside.
. This washer is equipped with an e}ectrical overload
protector. The washer motor will stop if it becomes
overheated.
* Failure to comply with these warnings could result in
serious personal injuries.
Do not use or mix liquid chlorine bleach with other
household chemicals such as toilet cleaners, rust
removers, acid or products containing ammonia, These
mixtures can produce dangerous fumes which can
cause serious injury or death,
Page 5

Cycle SeNector
Laundry Product
Dispenser Drawer
Door Striker
\
Inner glass with small
article redistribution ramp
Control Lock
Door Latch with
Safety Lock
Vent Latch
Stainless Steel
Wash Drum
Adjustable
LeveJing Legs
Cascading
Wash Vanes

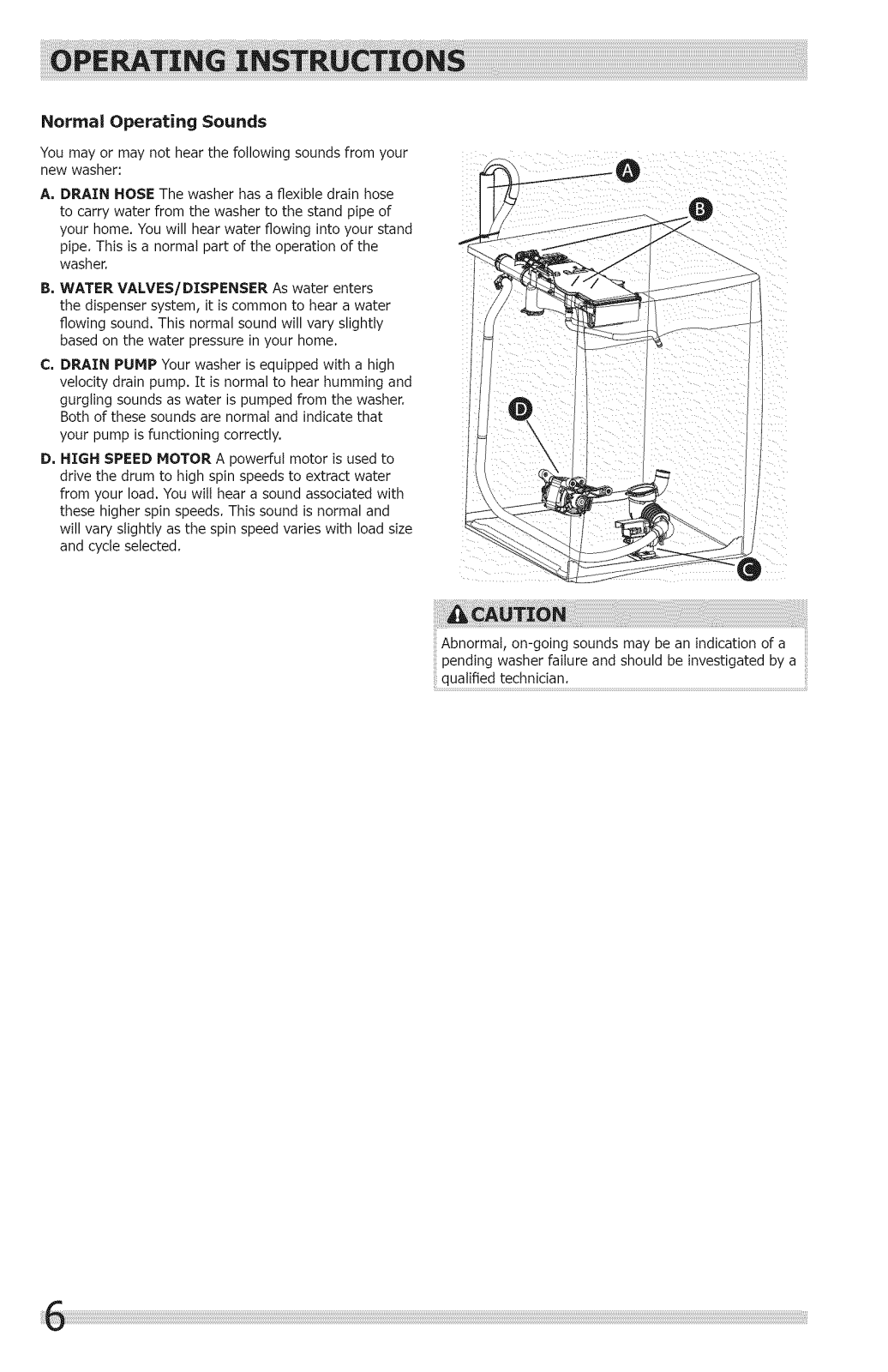

Page 6

Normal Operating Sounds
You may or may not hear the following sounds from your
new washer:
A. DRAIN HOSE The washer has a flexible drain hose
to carry water from the washer to the stand pipe of
your home. You will hear water flowing into your stand
pipe. This is a normal part of the operation of the
washer.
B. WATER VALVES/DISPENSER As water enters
the dispenser system, it is common to hear a water
flowing sound. This normal sound will vary slightly
based on the water pressure in your home.
C. DRAIN PUMP Your washer is equipped with a high
velocity drain pump. It is normal to hear humming and
gurgling sounds as water is pumped from the washer.
Both of these sounds are normal and indicate that
your pump is functioning correctly.
D. HIGH SPEED MOTOR A powerful motor is used to
drive the drum to high spin speeds to extract water
from your load. You witt hear a sound associated with
these higher spin speeds. This sound is normal and
will vary slightly as the spin speed varies with load size
and cycle selected.
Abnormal, on-going sounds may be an indication of a
pending washer failure and should be investigated by a
qua!!fled technic!anT.....................................................................................................................................................

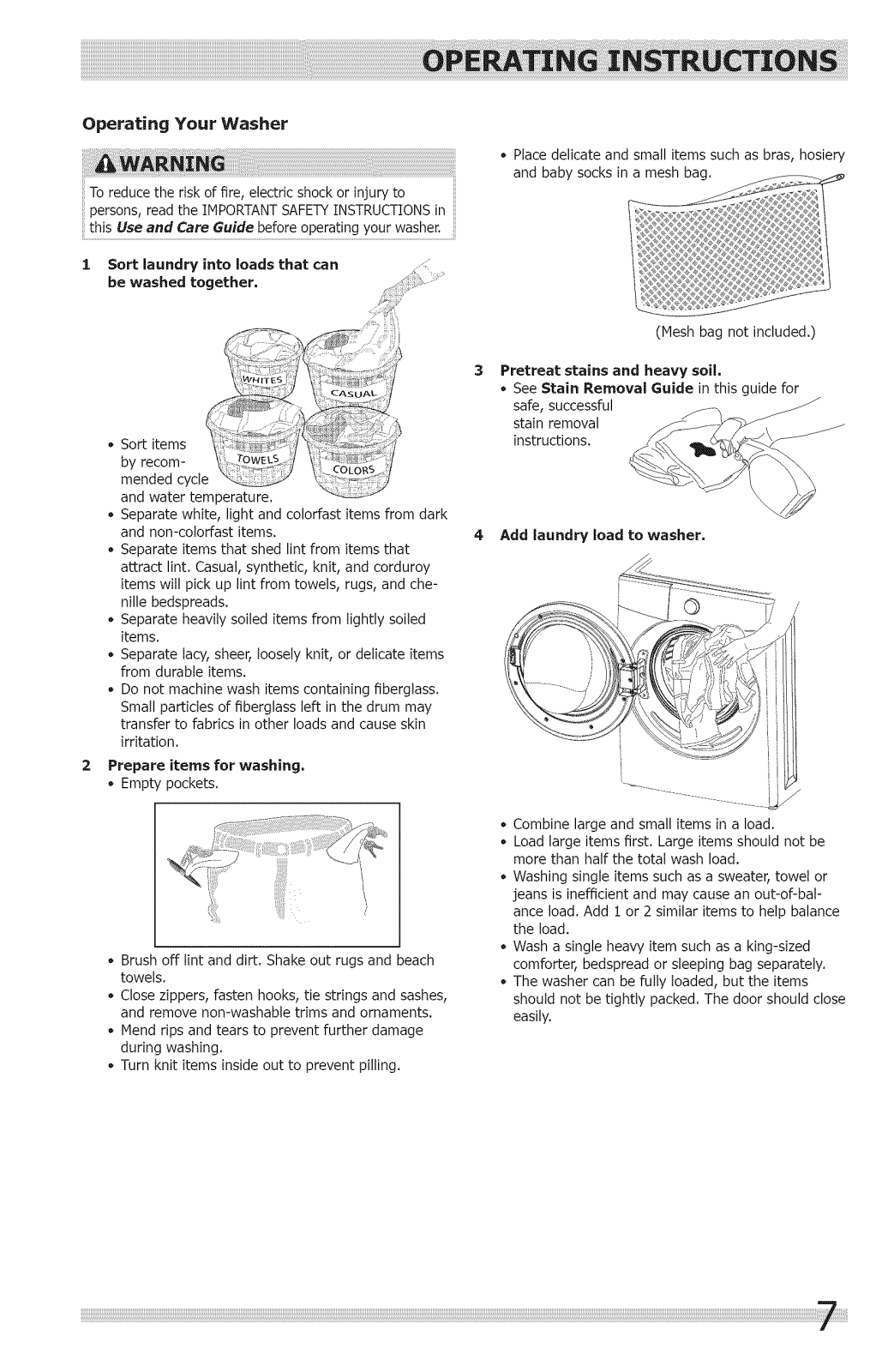

Page 7

Operating Your Washer
persons, read the IMPORTANTSAFETYINSTRUCTIONSin
this Use and Care Guide before operating your washer,
1 Sort laundry into loads that can
be washed together.
Sort items
by recom-
mended cycl
and water temperature.
Separate white, light and colorfast items from dark
and non-colorfast items.
Separate items that shed lint from items that
attract lint. Casual, synthetic, knit, and corduroy
items will pick up lint from towels, rugs, and che-
nille bedspreads.
Separate heavily soiled items from lightly soiled
items.
Separate lacy, sheer, loosely knit, or delicate items
from durable items.
Do not machine wash items containing fiberglass.
Small particles of fiberglass left in the drum may
transfer to fabrics in other loads and cause skin
irritation.
Prepare items for washing.
Empty pockets,
Place delicate and small items such as bras, hosiery
and baby socks in a mesh bag.
(Mesh bag not included.)
Pretreat stains and heavy soil,
* See Stai_ Removal Guide in this guide for
safe, successful _
stain removal
instructions.
4 Add laundry load to washer,
[i/
¸
Brush off lint and dirt. Shake out rugs and beach
towels.
Close zippers, fasten hooks, tie strings and sashes,
and remove non-washable trims and ornaments.
Mend rips and tears to prevent further damage
during washing.
Turn knit items inside out to prevent pilling.
Combine large and small items in a load.
Load large items first. Large items should not be
more than half the total wash load.
Washing single items such as a sweater, towel or
jeans is inefficient and may cause an out-of-bal-
ance load. Add I or 2 similar items to help balance
the toad.
Wash a single heavy item such as a king-sized
comforter, bedspread or sleeping bag separately.
The washer can be fully loaded, but the items
should not be tightly packed. The door should close
easily.

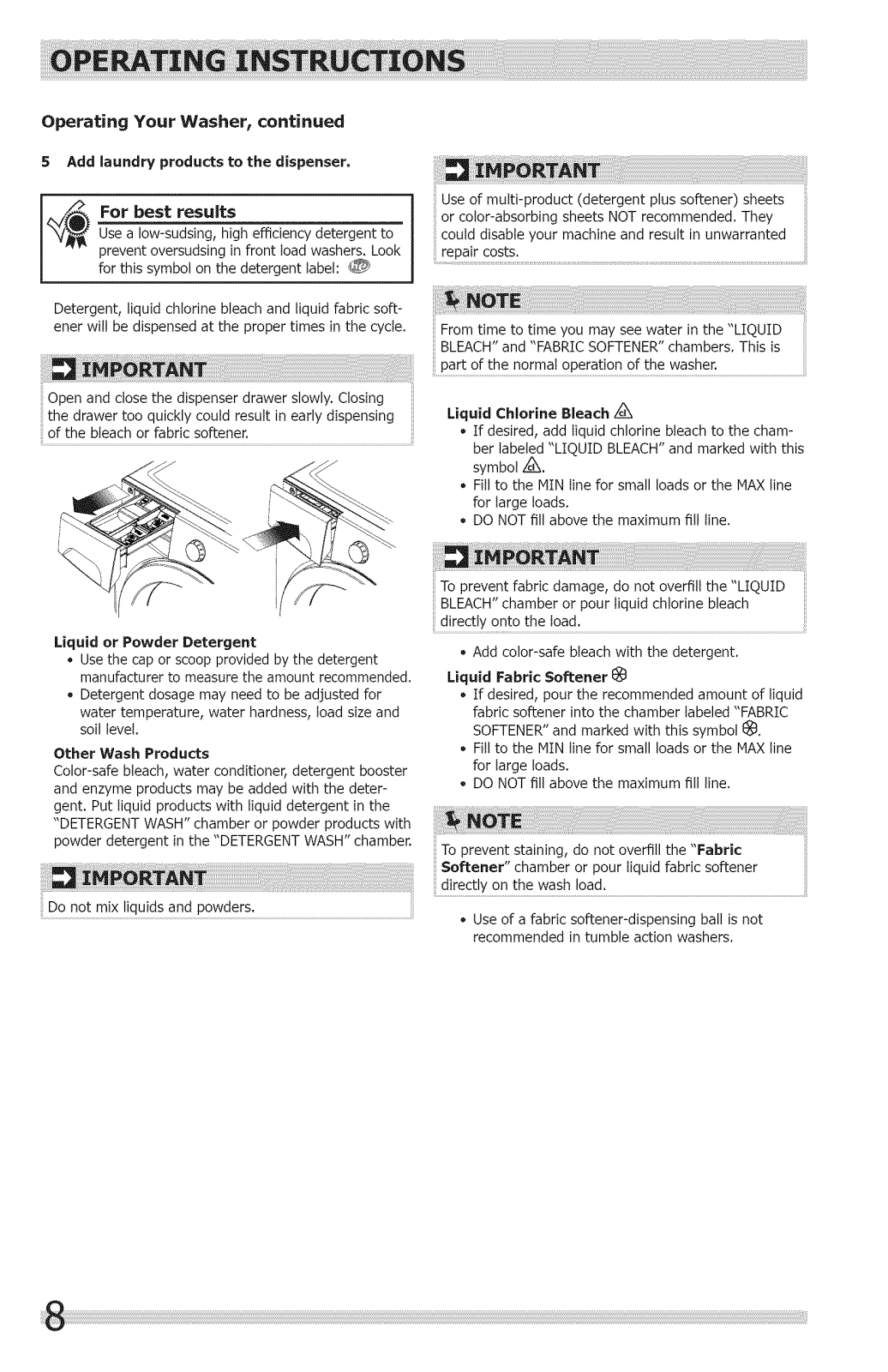

Page 8

Operating Your Washer, continued
5 Add laundry products to the dispenser.
Use a low-sudsing, high efficiency detergent to
prevent oversudsing in front load washers. Look
for this symbol on the detergent label: @
Detergent, liquid chlorine bleach and liquid fabric soft-
ener wi!l be dispensed at the proper times in the cycle.
Use of multi-product (detergent plus softener) sheets
or color-absorbing sheets NOT recommended, They
could disable your machine and result in unwarranted
repair costs,
Open and close the dispenser drawer slowly. Closing
the drawer too quickly could result in early dispensing
of the bleach or fabric softener.
Liquid or Powder Detergent
Use the cap or scoop provided by the detergent
manufacturer to measure the amount recommended,
® Detergent dosage may need to be adjusted for
water temperature, water hardness, load size and
soil level.
Other Wash Products
Color-safe bleach, water conditioner, detergent booster
and enzyme products may be added with the deter-
gent. Put tiquid products with tiquid detergent in the
"DETERGENT WASH" chamber or powder products with
powder detergent in the "DETERGENT WASH" chamber.
Do not mix liquids and powders.
Liquid Chlorine Bleach _:_
If desired, add liquid chlorine bleach to the cham-
ber labeled "LIQUID BLEACH" and marked with this
symbol z_.
• Fill to the IqIN line for small loads or the HAX line
for large loads.
- DO NOT fill above the maximum fill line.
To prevent fabric damage, do not overfill the "LIQUID
BLEACH"chamber or pour liquid chlorine bleach
directly onto the toad,
• Add color-safe bleach with the detergent,
Liquid Fabric Softener I_
If desired, pour the recommended amount of liquid
fabric softener into the chamber labeled "FABRIC
SOFTENER"and marked with this symbol I_.
• Fill to the MIN line for small loads or the MAX line
for large loads.
- DO NOT fill above the maximum fill line.
Softener" chamber or pour liquid fabric softener
directly on the wash load,
Use of a fabric softener-dispensing ball is not
recommended in tumble action washers,
Page 9

Operating Your Washer, continued
Select the appropriate cycle and settings for
the load.
Turn the cycle selector knob in either direction to
select the cycle desired.
The estimated cycle time, suitable wash and rinse
water temperatures, final spin speed, soil level,
and options for each cycle will be indicated for the
cycle selected. See the "Washer Settings Chart" for
more details.
• To change the settings, press the temp, spin
speed and soil level buttons to scroll to the
desired settings.
• To select or delete an option, press options; then,
while the indicator is blinking, press select, The
indicator will light when the option has been se-
lected. It witt no longer be lighted when the option
has been deleted.
To provide the best care for your laundry, not every
setting or option is available with every cycle. If a
setting or option is not available for the cycle selected,
the indicator will not light.
* Adjustments to a cycle will be remembered and re-
called each time that cycle is selected in the future.
'.i _ To return to factory
_ settings, press these
_ two buttons at the
o same time and
_/} (} hold until the signal
'_':. "': 1, sounds.
Start the washer.
* Close the door and press START. The washer will
not operate with the door open. "PRU" wilt be
displayed as a reminder to close the door.
Select delay start to delay the beginning of the
cycle, if desired.
As a safety measure, the door will automatically
lock during the entire wash cycle and the Door
Lock indicator wilt be lighted.
"Touch Pause to Add a Garment"
To add a forgotten item to the wash drum, press
Pause and open the door. "PFIU" will be displayed
alternately with the estimated remaining cycle time.
Add the item, close the door and press START to
resume the cycle.
* If changes to the settings or options are attempted
after the cycle starts, you wilt hear several beeps
when the buttons are pressed. To change the
settings or options, press pause, make the new
selections and press START again.
To change the cycle once the cycle has begun,
press cancel, select a new cycle, and press Start
again. Just turning the cycle selector knob will not
change the cycle.
, To stop the cycle, press cancel.
A signal witt sound at the end of the cycle if the
chime option has been selected.
Remove items from the washer when the cycle
ends and place in dryer, tine dry or dry fiat as
directed on the fabric care label.
/_For best resultsFollow the fabric care label instructions
on items to be dried.
Excess wrinkling, color transfer or odors may
develop in items left in the washer after the cycle
has ended, if not removed promptly.
Do not leave the door open if there are small children
or pets present. An open door could entice children to
hang on the door or crawl inside the washer. If there
are no small children present, you may leave the door
ajar to prevent odor bu!!d up:...........................................................................................................
Page 10

_asual
r_ormal
xslky
/eavy
This manual covers many models and not all cycles, options, or features listed are available on every model. Consoles shown above for
reference on_ Your model may diffe_
Cyde Selection
Turn the cycle selector in either direction to the cycle
desired. The indicator for that cycle will be illuminated.
Follow the fabric care label instructions
For best results
on items to be washed.
Tochange the cycle once it has begun, press the cancel
button before selecting a new cycle, ]ust turning the
cycle selector knob to another selection will not change
the cycle,
heavy
Use this cycle for heavily soiled, durabte garments - ex,
towels, sports gear, or fabric tote bags, For best soil
and stain removal, use the hottest water safe for the
fabrics being washed,
bulky
This cycle is designed for bulky items such as
comforters, blankets, mattress pads, sleeping bags and
similar items.
normal
Use this load for cotton, linen, towels, shirts, sheets,
denims and mixed loads.
casual
Use this cycle for cottons and blends with a permanent
press or no-iron finish.
delicates
Use this cycle for lightly soiled knits and delicates which
require gentle washing.
spin only
Use the spin only cycle anytime you want to drain
water from the washer and spin out the load or as a
follow-up to a no spin selection. Select the spin speed
appropriate to the load.
rinse & spin
Select rinse & spin for loads that need a cold water
rinse or to add fabric softener that may have been
omitted in a regular cycle. Add the fabric softener
to the dispenser chamber. Select the spin speed
appropriate for the load.
i!!i!i!l!_!0 ;ii
Page 11

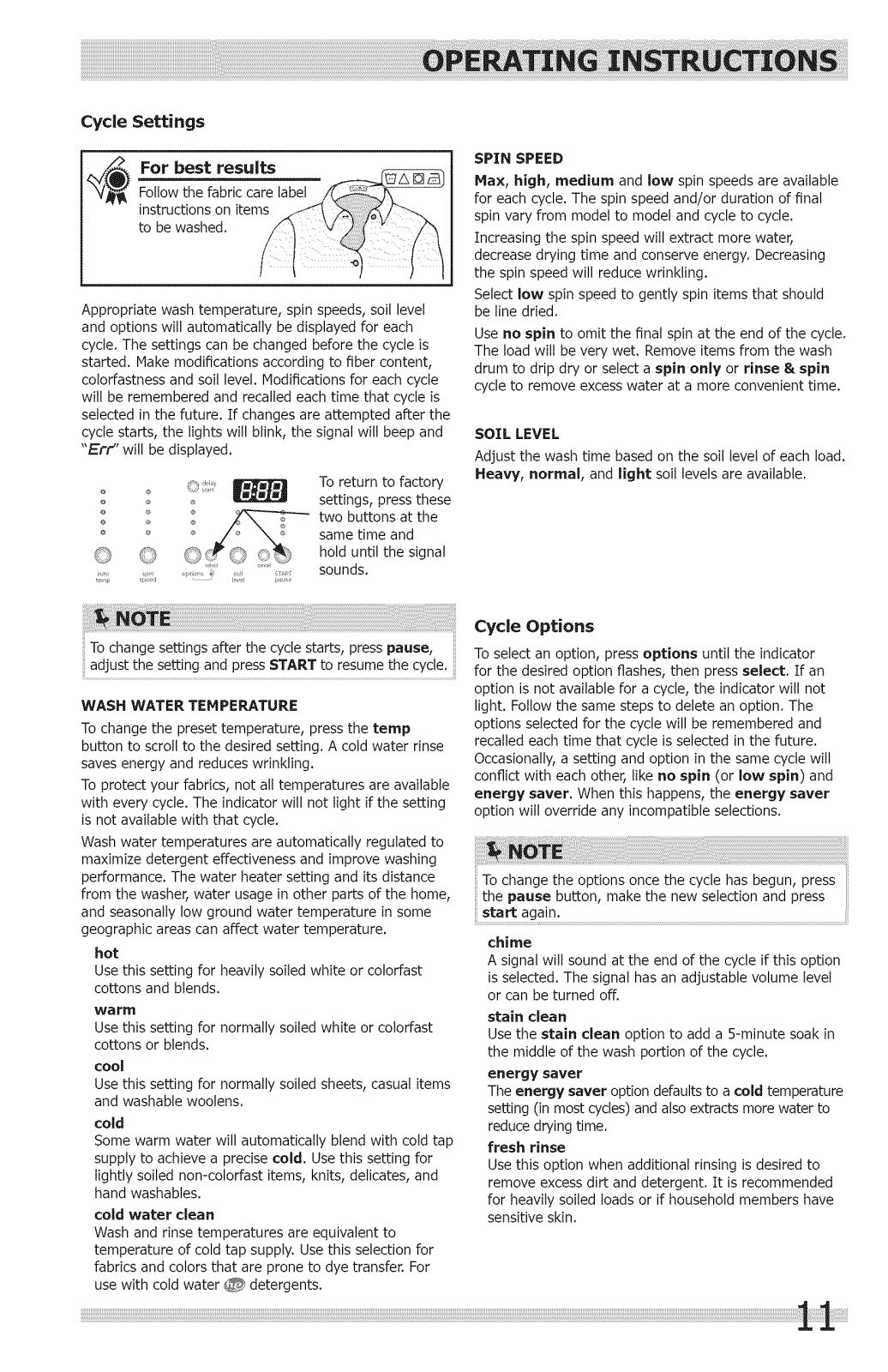

Cycle Settings
Follow the fabric care label
instructions on items
to be washed,
i_ For best results
Appropriate wash temperature, spin speeds, soil level
and options will automatically be displayed for each
cycle. The settings can be changed before the cycle is
started. Hake modifications according to fiber content,
colorfastness and soil level. Modifications for each cycle
will be remembered and recalled each time that cycle is
selected in the future. [f changes are attempted after the
cycle starts, the lights will blink, the signal will beep and
"Err' will be displayed.
o
(_"_) (_) hold until the signal
Tochange settings after the cycle starts, press pause,
adjust the setting and press START to resume the cycle.
WASH WATER TEMPERATURE
To change the preset temperature, press the temp
button to scroll to the desired setting. A cold water rinse
saves energy and reduces wrinkling.
To protect your fabrics, not alt temperatures are available
with every cycle. The indicator will not light if the setting
is not available with that cycle.
Wash water temperatures are automatically regulated to
maximize detergent effectiveness and improve washing
performance. The water heater setting and its distance
from the washer, water usage in other parts of the home,
and seasonally low ground water temperature in some
geographic areas can affect water temperature.
hot
Use this setting for heavily soiled white or colorfast
cottons and blends.
Wa rm
Use this setting for normally soiled white or colorfast
cottons or blends.
cool
Use this setting for normally soiled sheets, casual items
and washable woolens.
cold
Some warm water will automatically blend with cold tap
supply to achieve a precise cold. Use this setting for
lightly soiled non-colorfast items, knits, delicates, and
hand washables.
cold water clean
Wash and rinse temperatures are equivalent to
temperature of cold tap supply. Use this selection for
fabrics and colors that are prone to dye transfer. For
use with cold water _ detergents.
_ _ To return to factory
: two buttons at the
settings, press these
same time and
sounds.
SPIN SPEED
Max, high, medium and low spin speeds are available
for each cycle. The spin speed and/or duration of final
spin vary from model to model and cycle to cycle.
Increasing the spin speed will extract more water,
decrease drying time and conserve energy. Decreasing
the spin speed will reduce wrinkling.
Select low spin speed to gently spin items that should
be line dried.
Use no spin to omit the final spin at the end of the cycle.
The toad wilt be very wet. Remove items from the wash
drum to drip dry or select a spin only or rinse & spin
cycle to remove excess water at a more convenient time.
SOlrL LEVEL
Adjust the wash time based on the soil level of each load.
Heavy, normal, and light soil levels are available.
Cycle Options
To select an option, press options until the indicator
for the desired option flashes, then press select, If an
option is not available for a cycle, the indicator will not
light. Follow the same steps to delete an option. The
options selected for the cycle will be remembered and
recalled each time that cycle is selected in the future.
Occasionally, a setting and option in the same cycle will
conflict with each other, tike no spin (or low spin) and
energy saver. When this happens, the energy saver
option will override any incompatible selections.
To change the options once the cycle has begun, press
the pause button, make the new selection and press
start again.
chime
A signal wilt sound at the end of the cycle if this option
is selected. The signal has an adjustable volume level
or can be turned off.
stain clean
Use the stain clean option to add a 5-minute soak in
the middle of the wash portion of the cycle.
energy saver
The energy saver option defaults to a cold temperature
setting (in most cycles) and also extracts more water to
reduce drying time.
fresh rinse
Use this option when additional rinsing is desired to
remove excess dirt and detergent. It is recommended
for heavily soiled loads or if household members have
sensitive skin.
Page 12

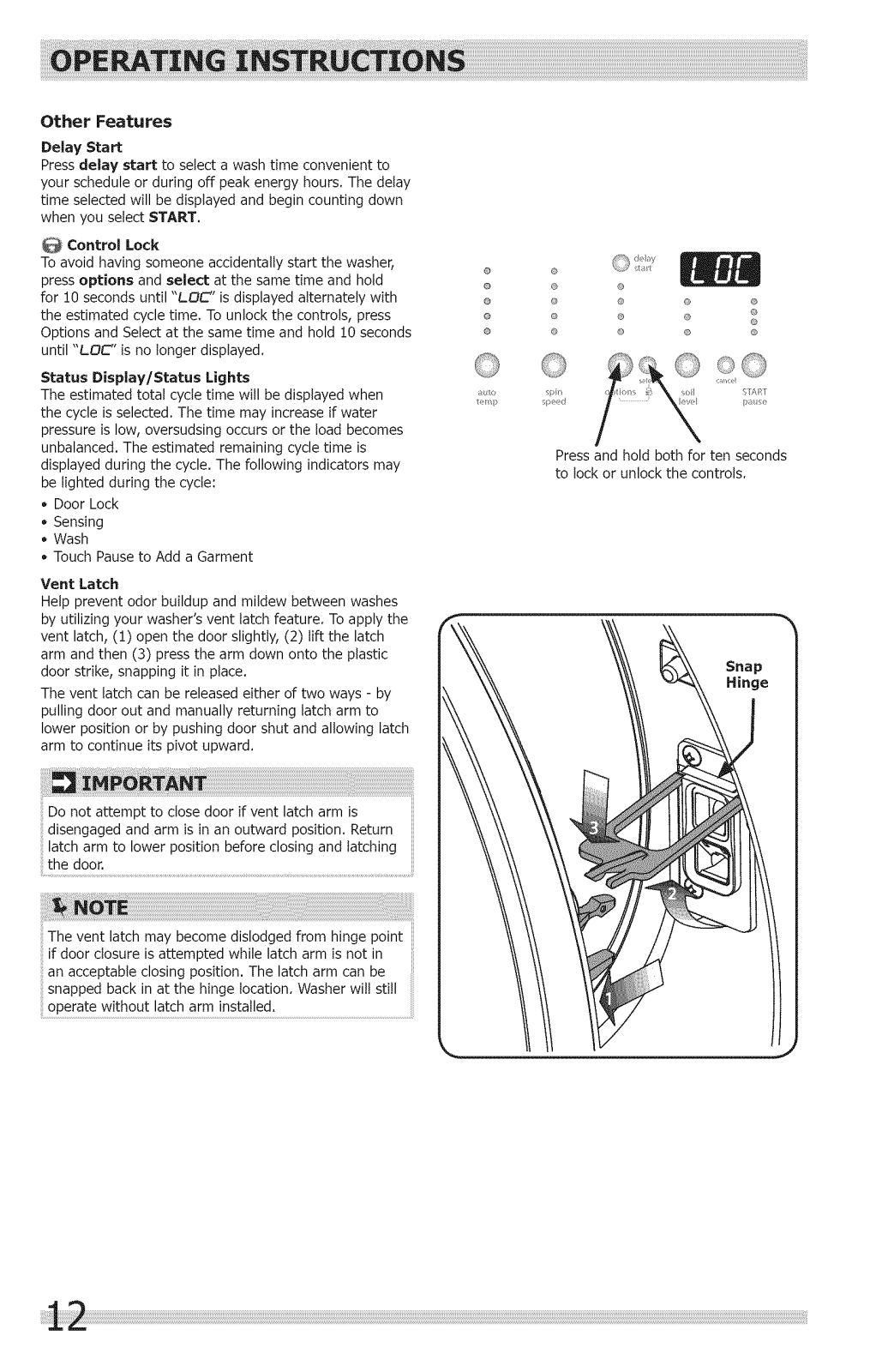

Other Features
Delay Start
Press delay start to select a wash time convenient to
your schedule or during off peak energy hours, The detay
time selected will be displayed and begin counting down
when you select START.
0 Control Lock
To avoid having someone accidentally start the washer,
press options and select at the same time and hold
for 10 seconds until "LOC" is displayed alternately with
the estimated cycle time. To unlock the controls, press
Options and Select at the same time and hold 10 seconds
until "LO_' isno longer displayed.
Status Display/Status Lights
The estimated total cycle time will be displayed when
the cycle is selected. The time may increase if water
pressure is low, oversudsing occurs or the toad becomes
unbalanced. The estimated remaining cycle time is
displayed during the cycle. The following indicators may
be lighted during the cycle:
* Door Lock
* Sensing
* Wash
* Touch Pause to Add a Garment
Vent Latch
Help prevent odor buildup and mildew between washes
by utilizing your washer's vent latch feature. To apply the
vent latch, (1) open the door slightly, (2) lift the latch
arm and then (3) press the arm down onto the plastic
door strike, snapping it in place.
The vent latch can be released either of two ways - by
pulling door out and manually returning latch arm to
lower position or by pushing door shut and allowing latch
arm to continue its pivot upward.
®
® , <_
®
® ®
@
® ® ® ®
@
® @ @
®
® @ @ @
®
@
...... 0
K,d
Press and hold both for ten seconds
to lock or unlock the controls.
Snap
Do not attempt to close door if vent latch arm is
disengaged and arm is in an outward iosition. Return
latch arm to lower position before closing and latching
the door.
The vent latch may become dislodged from hinge point
if door closure is attempted while latch arm is not in
an acceptable closing position. The latch arm can be
snapped back in at the hinge location. Washer will still
operate without latch arm installed.
Page 13

0,,...... _,,,_J,_ o,h_....
G
IiI ii,ii "! 171 iii111
These Temperature, Spin Speeds, Soil Levels and Options are available with the following cycles:
>_ >. m _ _ °5 o
auto temp
hot _ _
warm */ */ */
; L <,
cool ,/ ,/
cold _/ _/ _/ _/ _/
cold water clean _/ _/ _/ _/ _/
spin speed
max
high _ _ _ _ _
medium _/ _/ _/ _/ _/
low ,/ ,/ ,/ ,/ ,/ ,/
no spin _/" _/" _/" _/" _/"
soil level
heavy _/ _/ _/
normal _/
light _
options
chime
stain clean _/ _/ _/ _/ _/
energy saver
fresh rinse _/ _/ _/ _/ _/
= Available selections. _ = Cycle defaults.
Page 14

Safe Stain Removal Procedures
To reduce the risk of fire or serious injury to persons or
property, comply with the basic warnings listed below:
Read and comply with all instructionson stain
removal products.
Keep stain removal products in their original labeled
containers and out of children's reach.
* Thoroughly wash any utensils used.
* Do not combine stain removal products, especially
ammonia and chlorine bleach. Dangerous fumes can
result.
* Never wash items which have been previously
cleaned in, washed in, soaked in or spotted with
gasoline, dry cleaning solvents or other flammable
or explosive substances because they give off vapors
that could ignite or explode.
* Never use highly flammable solvents, such as gaso-
line, inside the home. Vapors can explode on contact
with flames or sparks.
For Successful Stain Removal:
* Remove stains promptly.
Determine the kind of stain, then follow the recom-
mended treatment in the stain removal chart on the
next page.
To pretreat stains, use a prewash product, liquid
detergent, or a paste made from powder detergent
and water.
Use cold water on unknown stains as hot water can
set stains.
Consult care label instructions for treatments to avoid
on specific fabrics.
Checkfor colorfastness by testing stain remover
products on an inside seam.
Rinse and wash items after stain removal.
....._i!iiiiii
iremovers,acidorproductscontainingammoniaTheseiii
mixtures can produce dangerous fumes which can
cause serious injury or death:
For best resultsFollow the fabric care label instructions
on items to be washed.
Page 15

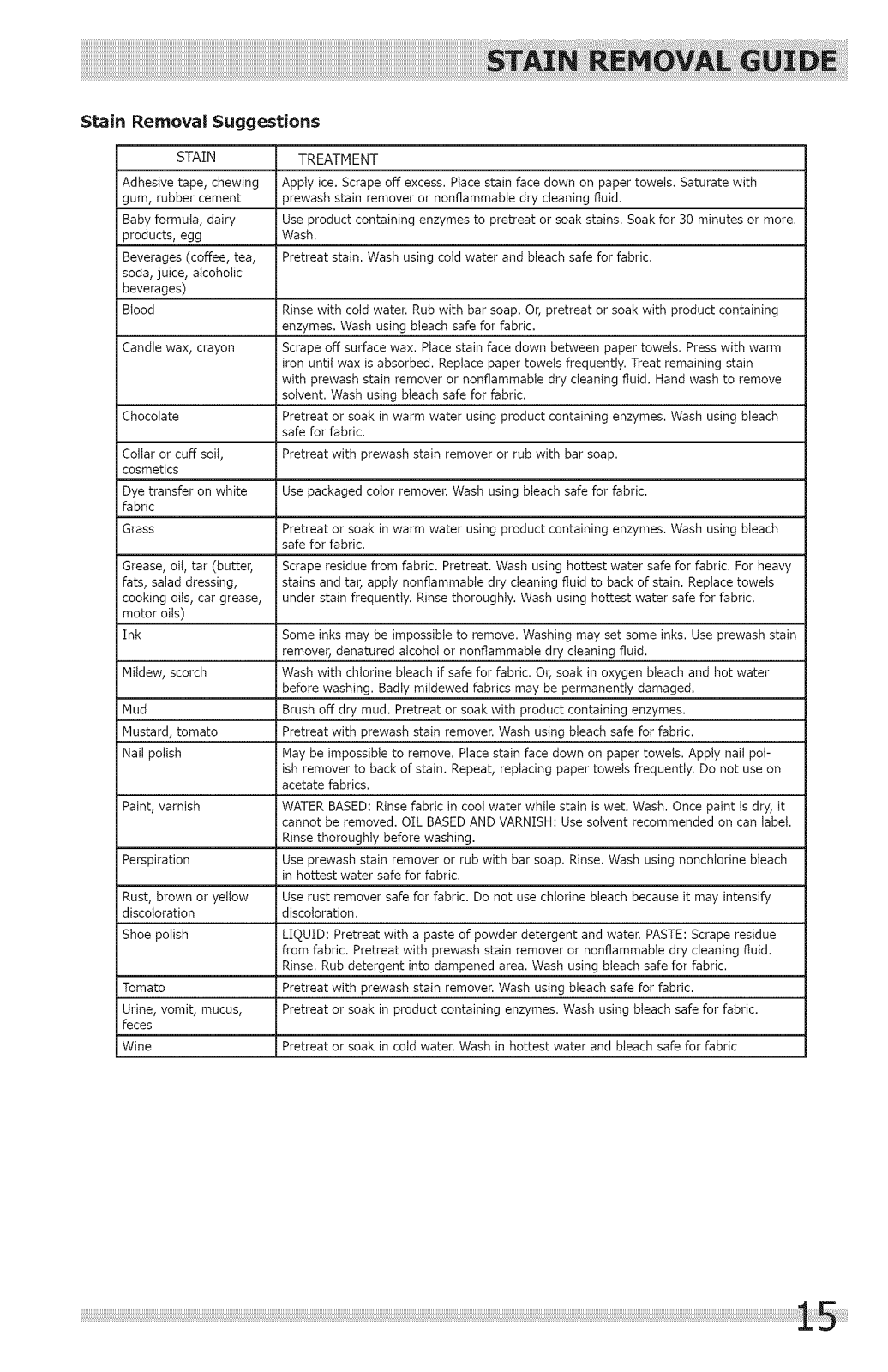

S_in Removal Suggestions
STAIN TREATMENT
Adhesive tape, chewing Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with
gum, rubber cement _rewash stain remover or nonflammable dry cleaning fluid.
Baby formula, dairy Use product containing enzymes to pretreat or soak stains. Soak for 30 minutes or more.
products, egg Wash.
Beverages (coffee, tea, Pretreat stain. Wash using cold water and bleach safe for fabric.
soda, juice, alcoholic
beverages)
Blood Rinse with cold water. Rub with bar soap. Or, pretreat or soak with product containing
Candle wax, crayon Scrape off surface wax. Place stain face down between paper towels. Press with warm
Chocolate Pretreat or soak in warm water using product containing enzymes. Wash using bleach
Collar or cuff soil, Pretreat with prewash stain remover or rub with bar soap.
cosmetics
Dye transfer on white Use packaged color remover. Wash using bleach safe for fabric.
fabric
Grass Pretreat or soak in warm water using product containing enzymes. Wash using bleach
Grease, oil, tar (butter, Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy
fats, salad dressing, stains and tar, apply nonflammable dry cleaning fluid to back of stain. Replace towels
cooking oils, car grease, under stain frequently. Rinse thoroughly. Wash using hottest water safe for fabric.
motor oils)
Ink Some inks may be impossible to remove. Washing may set some inks. Use prewash stain
Mildew, scorch Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and hot water
Mud Brush off dry mud. Pretreat or soak with product containing enzymes.
Mustard, tomato Pretreat with prewash stain remover. Wash using bleach safe for fabric.
Nail polish Nay be impossible to remove. Place stain face down on paper towels. Apply nail pol-
Paint, varnish WATER BASED: Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it
Perspiration Use prewash stain remover or rub with bar soap. Rinse. Wash using nonchlorine bleach
Rust, brown or yellow Use rust remover safe for fabric. Do not use chlorine bleach because it may intensify
discoloration discoloration.
Shoe polish LIQUID: Pretreat with a paste of powder detergent and water. PASTE: Scrape residue
Tomato Pretreat with prewash stain remover. Wash using bleach safe for fabric.
Urine, vomit, mucus, Pretreat or soak in product containing enzymes. Wash using bleach safe for fabric.
feces
Wine Pretreat or soak in cold water. Wash in hottest water and bleach safe for fabric
enzymes. Wash using bleach safe for fabric.
iron until wax is absorbed. Replace paper towels frequently. Treat remaining stain
with prewash stain remover or nonflammable dry cleaning fluid. Hand wash to remove
solvent. Wash using bleach safe for fabric.
safe for fabric.
safe for fabric.
remover, denatured alcohol or nonflammable dry cleaning fluid.
before washing. Badly mildewed fabrics may be permanently damaged.
ish remover to back of stain. Repeat, replacing paper towels frequently. Do not use on
acetate fabrics.
cannot be removed. OIL BASED AND VARNISH: Use solvent recommended on can label.
Rinse thoroughly before washing.
in hottest water safe for fabric.
from fabric. Pretreat with prewash stain remover or nonflammable dry cleaning fluid.
Rinse. Rub detergent into dampened area. Wash using bleach safe for fabric.
Page 16

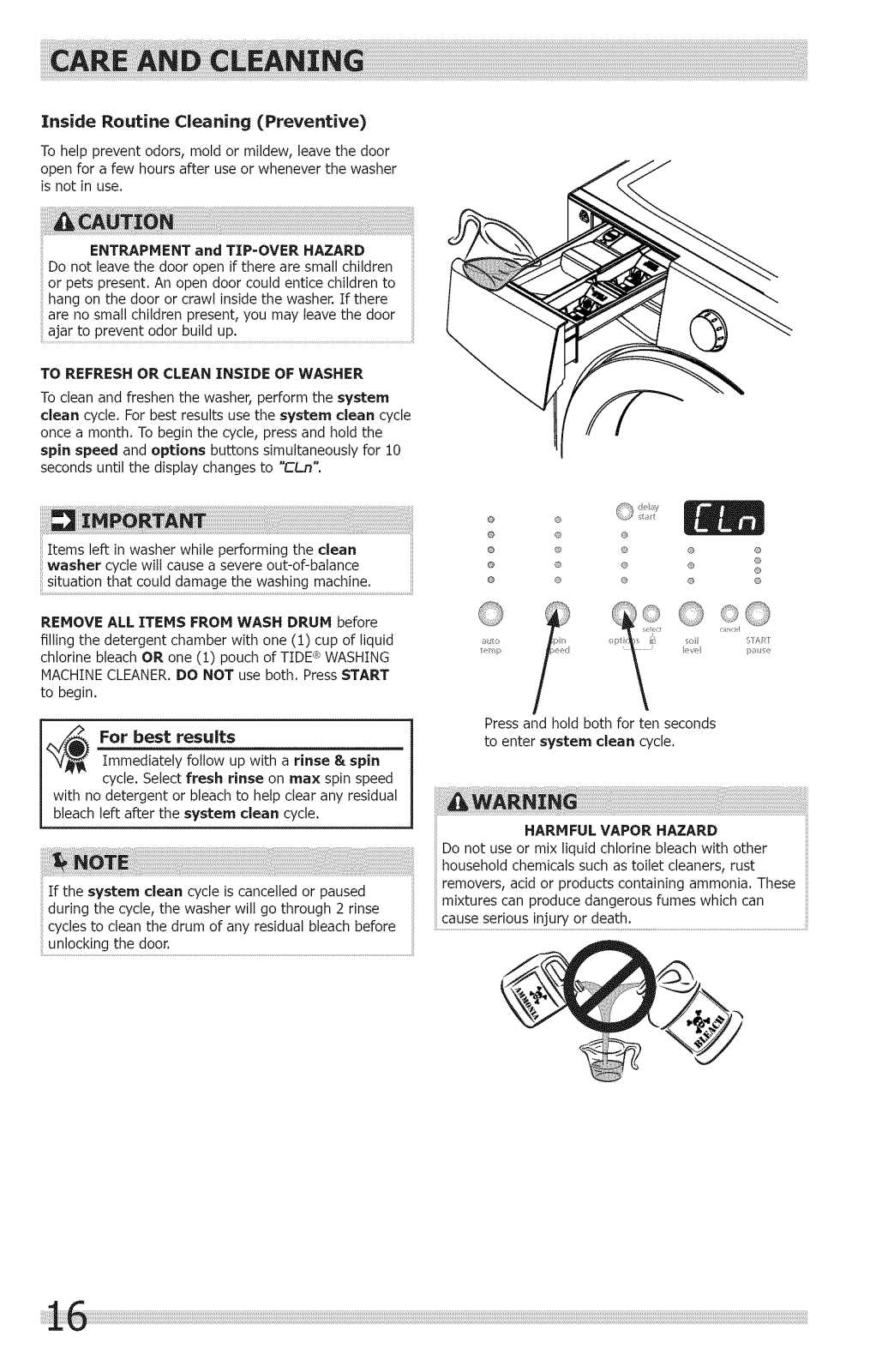

Inside Routine Cleaning (Preventive)
To help prevent odors, mold or mildew, leave the door
open for a few hours after use or whenever the washer
is not in use,
Do not leave the door open if there are small children
or pets present. An open door could entice children to
hang on the door or crawl inside the washer. If there
are no small children present, you may leave the door
ajar to prevent odor build up.
TO REFRESH OR CLEAN INSIDE OF WASHER
To clean and freshen the washer, perform the system
clean cycle. For best results use the system clean cycle
once a month. To begin the cycle, press and hold the
spin speed and options buttons simultaneously for 10
seconds until the display changes to %'L_".
Items left in washer while performing the clean
washer cycle wilt cause a severe out-of-balance
!!uat!° !ha cou! damag th washin mach!ne; ...........................
REMOVE ALL ITEMS FROM WASH DRUM before
filling the detergent chamber with one (1) cup of liquid
chlorine bleach OR one (i) pouch of TIDE® WASHING
MACHINE CLEANER.DO NOT use both. Press START
to begin.
._} For best results
"V_ Immediately follow up with a rinse & spin
" cycle. Select fresh rinse on max spin speed
with no detergent or bleach to help clear any residual
If the system clean cycle is cancelled or paused
during the cycle, the washer wilt go through 2 rinse
cycles to clean the drum of any residual bleach before
unlocking the door.
@
®
o
@
o
®
o
®
@
®
st_
®
o ® @
@ o
® ® o
Press and hold both for ten seconds
to enter system dean cycle.
®
@
Page 17

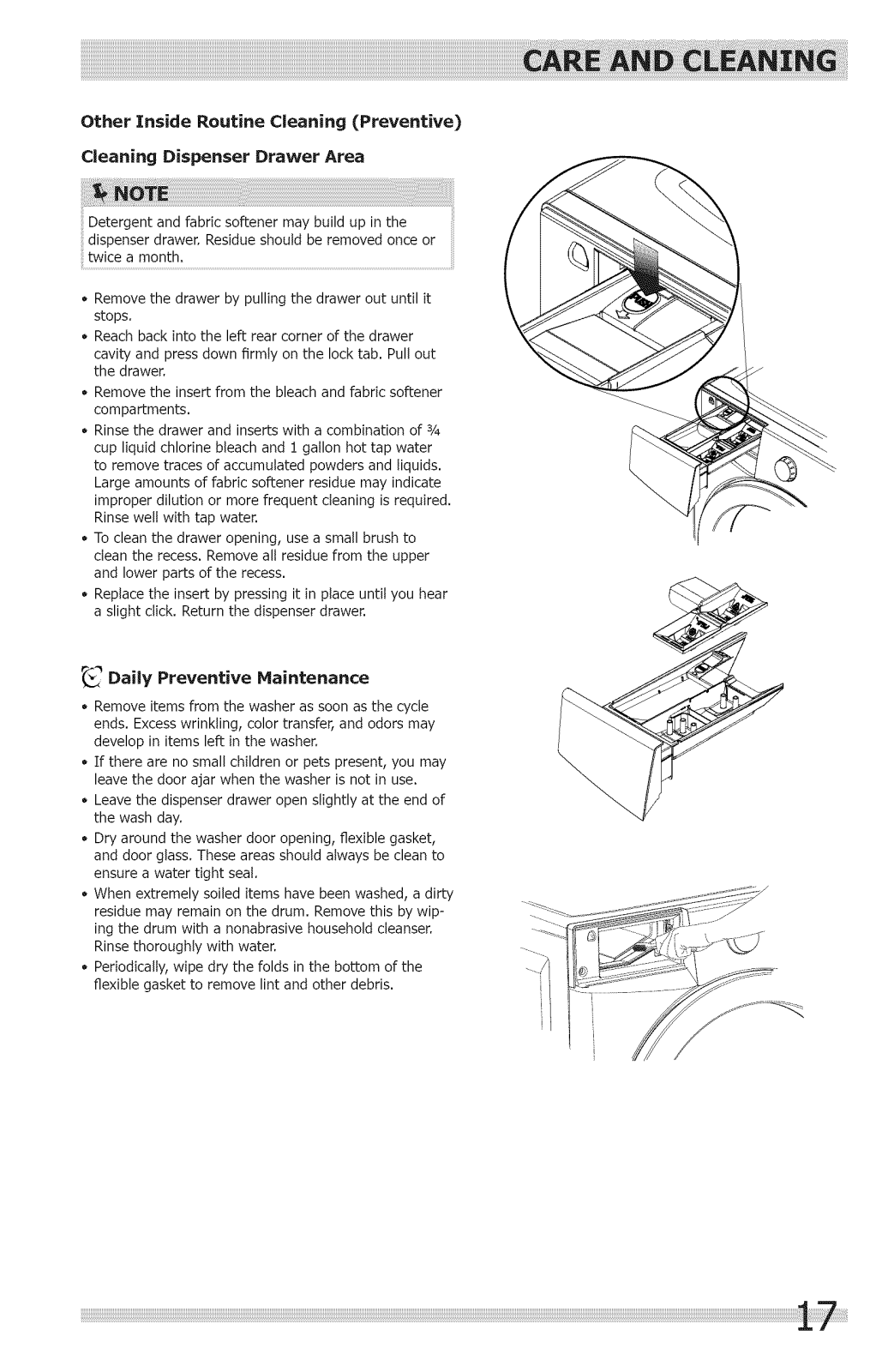

Other Inside Routine Cleaning (Preventive)
Cleaning Dispenser Drawer Area
Detergent and fabric softener may build up in the
dispenser drawer. Residue should be removed once or
twice a month.
• Remove the drawer by pulling the drawer out until it
stops.
• Reach back into the left rear corner of the drawer
cavity and press down firmly on the lock tab. Pull out
the drawer.
• Remove the insert from the bleach and fabric softener
compartments.
• Rinse the drawer and inserts with a combination of %
cup liquid chlorine bleach and ! gallon hot tap water
to remove traces of accumulated powders and liquids.
Large amounts of fabric softener residue may indicate
improper dilution or more frequent cleaning is required.
Rinse welt with tap water.
• To clean the drawer opening, use a small brush to
clean the recess. Remove alt residue from the upper
and lower parts of the recess.
• Replace the insert by pressing it in place until you hear
a slight click. Return the dispenser drawer.
Daily Preventive Maintenance
Remove items from the washer as soon as the cycle
ends. Excesswrinkling, color transfer, and odors may
develop in items left in the washer.
If there are no small children or pets present, you may
leave the door ajar when the washer is not in use.
Leave the dispenser drawer open slightly at the end of
the wash day.
Dry around the washer door opening, flexible gasket,
and door glass. These areas should always beclean to
ensure a water tight seal.
When extremely soiled items have been washed, a dirty
residue may remain on the drum. Remove this by wip-
ing the drum with a nonabrasive household cleanser.
Rinse thoroughly with water.
Periodically, wipe dry the folds in the bottom of the
flexible gasket to remove lint and other debris.
Page 18

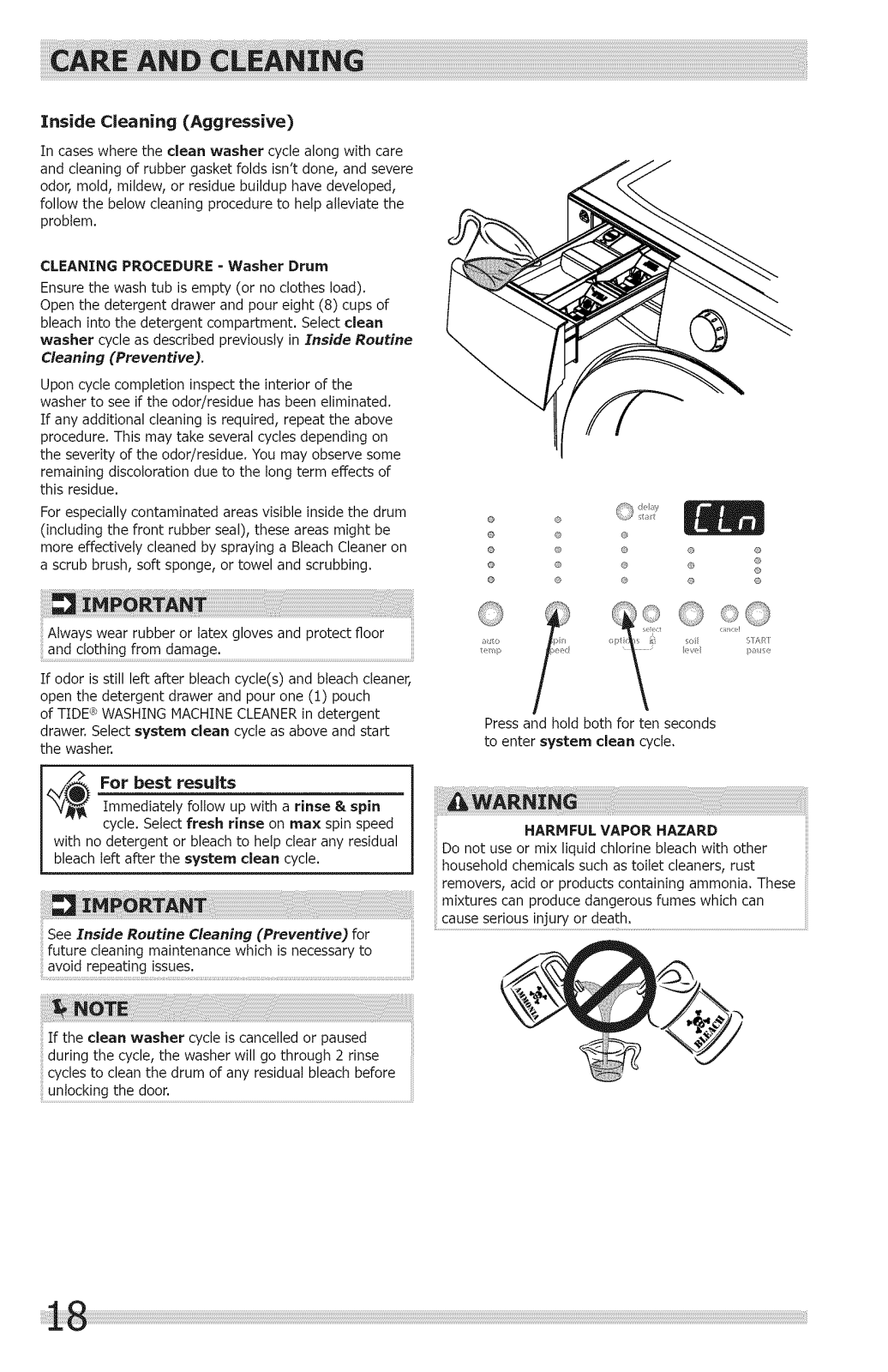

InsideCleaning (Aggressive)
In cases where the clean washer cycle along with care
and cleaning of rubber gasket folds isn't done, and severe
odor, mold, mildew, or residue buildup have developed,
follow the below cleaning procedure to help alleviate the
problem.
CLEANING PROCEDURE - Washer Drum
Ensure the wash tub is empty (or no clothes toad),
Open the detergent drawer and pour eight (8) cups of
bleach into the detergent compartment. Select dean
washer cycle as described previously in Inside Routine
Cleaning (Preventive).
Upon cycle completion inspect the interior of the
washer to see if the odor/residue has been eliminated.
If any additional cleaning is required, repeat the above
procedure. This may take several cycles depending on
the severity of the odor/residue. You may observe some
remaining discoloration due to the long term effects of
this residue.
For especially contaminated areas visible inside the drum
(including the front rubber seal), these areas might be
more effectively cleaned by spraying a Bleach Cleaner on
a scrub brush, soft sponge, or towel and scrubbing.
Always wear rubber or latex gloves and protect floor
If odor is still left after bleach cycle(s) and bleach cleaner,
open the detergent drawer and pour one (1) pouch
of TIDE ®WASHING HACHINE CLEANERin detergent
drawer. Select system clean cycle as above and start
the washer.
@
®
o
@
o
®
o
®
@
®
st_
®
o ® @
@ o
® ® o
Press and hold both for ten seconds
to enter system clean cycle.
®
@
See Inside Routine Cleaning (Preventive) for
future cleaning maintenance which is necessary to
avoid repeating issues.
If the clean washer cycle is cancelled or paused
during the cycle, the washer will go through 2 rinse
cycles to clean the drum of any residual bleach before
unlocking the door.
Page 19

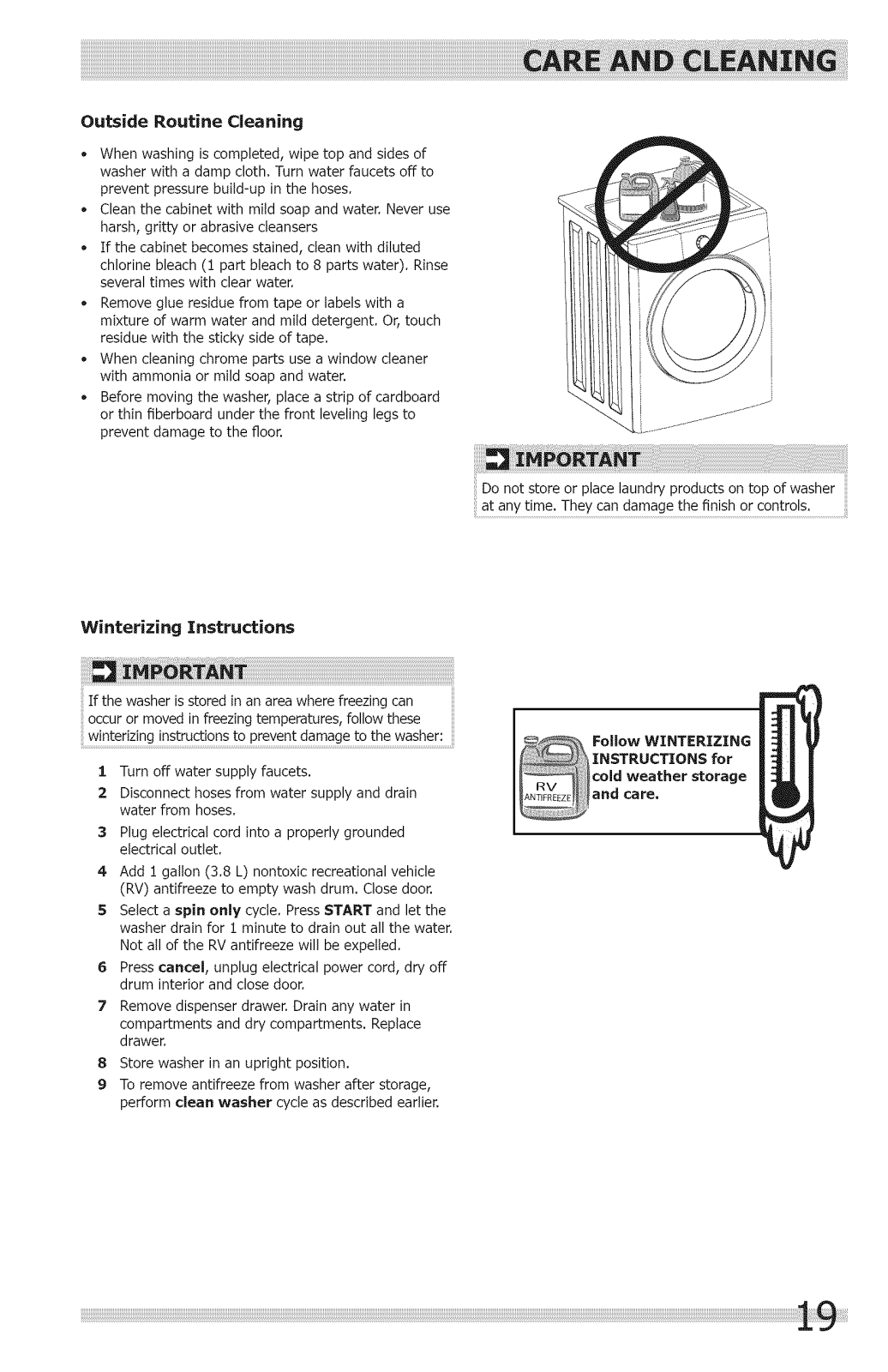

Outside Routine Cleaning
• When washing is completed, wipe top and sides of
washer with a damp cloth. Turn water faucets off to
prevent pressure build-up in the hoses.
Clean the cabinet with mild soap and water. Never use
harsh, gritty or abrasive cleansers
If the cabinet becomes stained, clean with diluted
chlorine bleach (! part bleach to 8 parts water). Rinse
several times with clear water.
Remove glue residue from tape or labels with a
mixture of warm water and mild detergent. Or, touch
residue with the sticky side of tape.
When cleaning chrome parts use a window cleaner
with ammonia or mild soap and water.
Before moving the washer, place a strip of cardboard
or thin fiberboard under the front leveling legs to
prevent damage to the floor.
Winterizing :Instructions
If the washer is stored in an area where freezing can
occur or moved in freezing temperatures, follow these
w!nte!!z!n instruc_!onS Preve damag th washer!........
1 Turn off water supply faucets.
2 Disconnect hoses from water supply and drain
water from hoses.
3 Plug electrical cord into a properly grounded
electrical outlet.
4 Add ! gallon (3.8 L) nontoxic recreational vehicle
(RV) antifreeze to empty wash drum. Close door.
5 Select a spin only cycle. PressSTART and let the
washer drain for 1 minute to drain out all the water.
Not all of the RV antifreeze will be expelled.
6 Presscancel, unplug electrical power cord, dry off
drum interior and close door.
7 Remove dispenser drawer. Drain any water in
compartments and dry compartments. Replace
drawer.
8 Store washer in an upright position.
9 To remove antifreeze from washer after storage,
perform clean washer cycle as described earlier.
Do not store or place laundry products on top of washer
at any time. They can damage the finish or controls.
I Follow WINTERIZING
INSTRUCTIONS for
cold weather storage
and care,
Page 20

!!!!!!!!!i!i! _i!i_!ii!_i!ii!_i!_i!i_!_!i!ii!ii!ii!!!!iill!_i!i_!!!_iii!Lil_i!!_i!iii_!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!i
Common Washing Problems
Many washing problems involve poor soil and stain removal, residues of lint and scum, and fabric damage. For satis-
factory washing results, follow these suggestions provided by The Soap and Detergent Association.
PROBLEM
Blue stains
Discoloration,
graying
Greasy, oily
stains
Holes, tears, or
snags
Lint
Pilling
(Fibers ball up
and cling to
fabric.)
Residue or
_owder on dark
items;
Stiff, harsh
fabrics.
POSSIBLE CAUSES
. Undiluted liquid detergent
or fabric softener dispensed
directly onto fabric.
* Not enough detergent.
* Wash water temperature
too low.
* Incorrect sorting.
* Not enough detergent.
* Undiluted liquid fabric
softener poured directly
on fabric.
* Incorrect use of chlorine
bleach.
* Unfastened zippers, hooks,
buckles.
* Rips, tears and broken
threads.
* Overloading the washer.
* Degradation of fabric.
* Incorrect sorting.
* Tissues left in pocket.
* Overloading the washer.
* Not enough detergent.
* Undissolved detergent has
left a residue resembling
lint.
* Static cling is attracting lint.
* Load washed too long.
* Pilling is normal with syn-
thetic and permanent press
fabrics. This is due to abra-
sion from normal weak
* Undissolved detergent.
* Some granular detergents
can combine with hard
water minerals to form a
residue.
* Overloading the washer.
SOLUTIONS
* If caused by detergent, mix 1
cup (240 ml) white vinegar with
1 quart (.95 L) water in a plastic
container. Soak item 1 hour.
Rinse.
* If caused by fabric softener, rub
stains with bar soap. Wash.
* Rewash with correct amount of
detergent and hottest water safe
for fabric.
* Add bleach safe for fabric.
* Treat with prewash stain remover
or liquid detergent.
* Increase detergent and water
temperature. Rewash.
* Rub fabric softener stains with
bar soap.
* May be irreversible if rips, tears
and seams cannot be mended.
* Reduce load size. Rewash using
correct water temperature, water
level, and amount of detergent.
* Add nonprecipitating water con-
ditioner to wash water to remove
detergent residue.
* Add liquid fabric softener to
final rinse.
* Dry load in dryer.
* Remove lint with lint brush or
roller.
* Use a lint brush or shaver to
remove pills.
* Rewash load.
PREVENTIVE MEASURES
* Avoid overfilling detergent and fabric
softener compartments of dispenser.
* Sort items by soil level and color.
* Use correct amount of detergent, hot-
test water and bleach safe for fabric.
* Use correct amount of detergent and
hottest water safe for fabric.
* Do not pour liquid fabric softener
directly on fabric. See Operating Your,
step 5.
* Never pour chlorine bleach directly
on fabric.
* Check condition of items before
washing. See Operating Your, steps
2 and 5.
* See Operating Your, steps iand 2.
* Do not overload washer.
* Use correct temperature and amount
of detergent, water and wash time.
* Use fabric softener in the washer to
lubricate fibers.
* When ironing, use spray starch or
fabric finish on collars and cuffs.
* Turn items inside out to reduce
abrasion.
* Increase water temperature using
hottest water safe for fabric.
* Do not overload washer.
* Use liquid detergent or use non-
precipitating water conditioner with
powder detergent.
Page 21

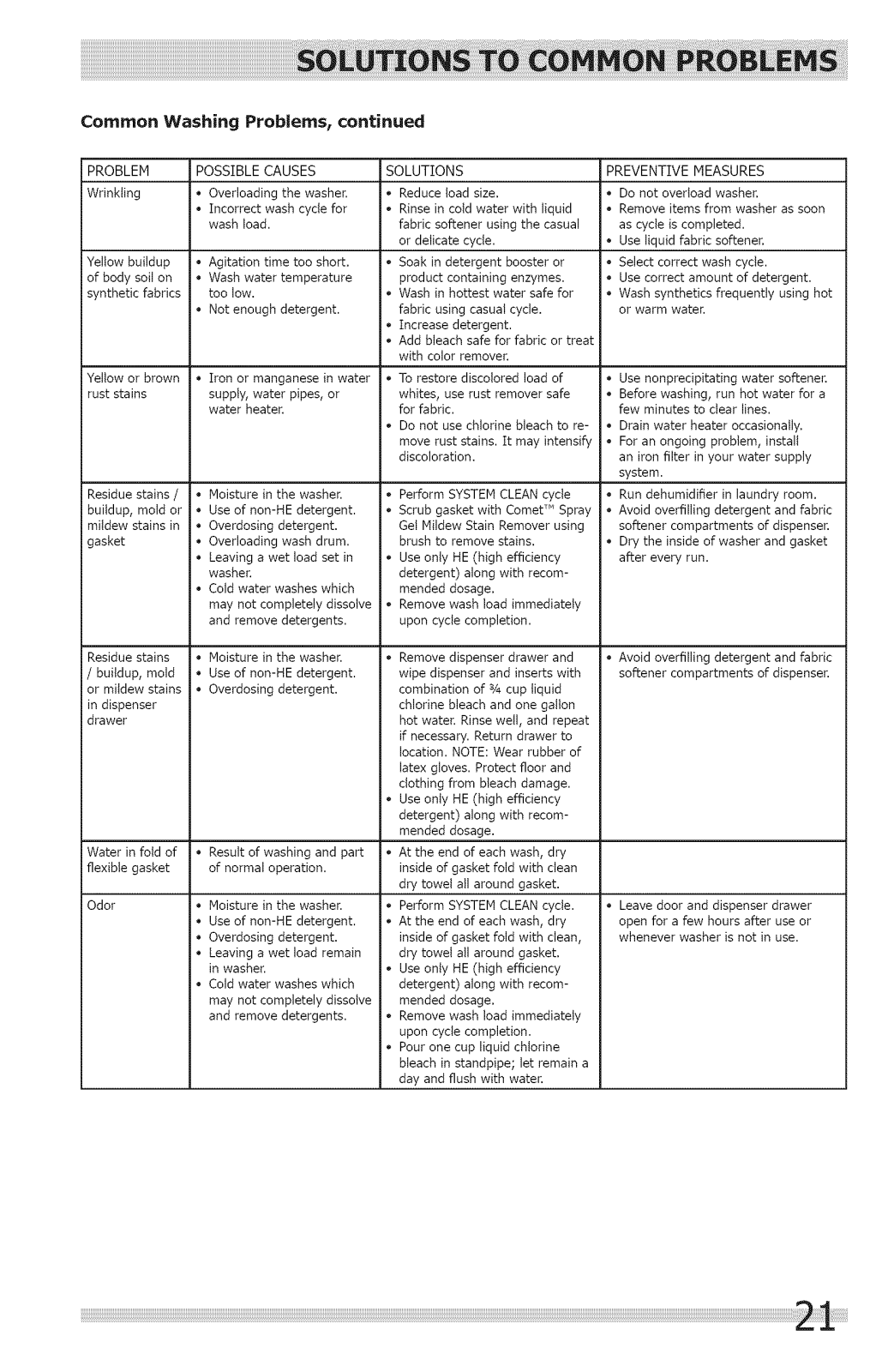

Common Washing Problems, continued
PROBLEM POSSIBLE CAUSES SOLUTIONS PREVENTIVE MEASURES
Wrinkling , Overloading the washer. • Reduce load size, , Do not overload washer,
Yellow buildup , Agitation time too short. • Soak in detergent booster or , Select correct wash cycle.
of body soil on , Wash water temperature product containing enzymes. , Use correct amount of detergent.
synthetic fabrics too low. • Wash in hottest water safe for , Wash synthetics frequently using hot
Yellow or brown , Iron or manganese in water • To restore discolored load of
rust stains supply, water pipes, or whites, use rust remover safe
i Residue stains /
buildup, mold or
mildew stainsin
i gasket
Residue stains
i/ buildup mold
I or mildew stains
in dispenser
drawer
Water in fold of , Result of washing and part
iflexible gasket of normal operation.
Odor , Moisture in the washer.
, Incorrect wash cycle for • Rinse in cold water with liquid , Remove items from washer as soon
wash load. fabric softener using the casual as cycle is completed.
, Not enough detergent, fabric using casual cycle, or warm water.
water heater, for fabric.
, Moisture in the washen
, Use of non-HE detergent.
, Overdosing detergent.
, Overloading wash drum.
, Leaving a wet load set in
washer.
, Cold water washes which
may not completely dissolve
and remove detergents.
, Moisture in the washen
, Use of non-HE detergent.
Overdosing detergent.
, Use of non-HE detergent.
, Overdosing detergent.
, Leaving a wet load remain
in washer.
, Cold water washes which
may not completely dissolve
and remove detergents.
or delicate cycle. * Use liquid fabric softener,
• Increase detergent.
• Add bleach safe for fabric or treat
with color remover.
, Use nonprecipitating water softener.
, Before washing, run hot water for a
• Do not use chlorine bleach to re-
move rust stains. It may intensify
discoloration.
• Perform SYSTEM CLEAN cycle
• Scrub gasket with Comet TM Spray
Gel Mildew Stain Remover using
brush to remove stains.
• Use only HE (high efficiency
detergent) along with recom-
mended dosage.
• Remove wash load immediately
upon cycle completion.
• Remove dispenser drawer and
wipe dispenser and inserts with
combination of _/4 cup liquid
chlorine bleach and one gallon
hot water. Rinse well, and repeat
if necessary. Return drawer to
location. NOTE: Wear rubber of
latex gloves. Protect floor and
clothing from bleach damage.
• Use only HE (high efficiency
detergent) along with recom-
mended dosage.
• At the end of each wash, dry
inside of gasket fold with clean
dry towel all around gasket.
• Perform SYSTEM CLEAN cycle.
• At the end of each wash, dry
inside of gasket fold with clean,
dry towel all around gasket.
• Use only HE (high efficiency
detergent) along with recom-
mended dosage.
• Remove wash load immediately
upon cycle completion.
• Pour one cup liquid chlorine
bleach in standpipe; let remain a
day and flush with water.
few minutes to clear lines.
, Drain water heater occasionally.
, For an ongoing problem, install
an iron filter in your water supply
system.
, Run dehumidifier in laundry room.
, Avoid overfilling detergent and fabric
softener compartments of dispenser.
, Dry the inside of washer and gasket
after every run.
, Avoid overfilling detergent and fabric
softener compartments of dispenser.
, Leave door and dispenser drawer
open for a few hours after use or
whenever washer is not in use.
Page 22

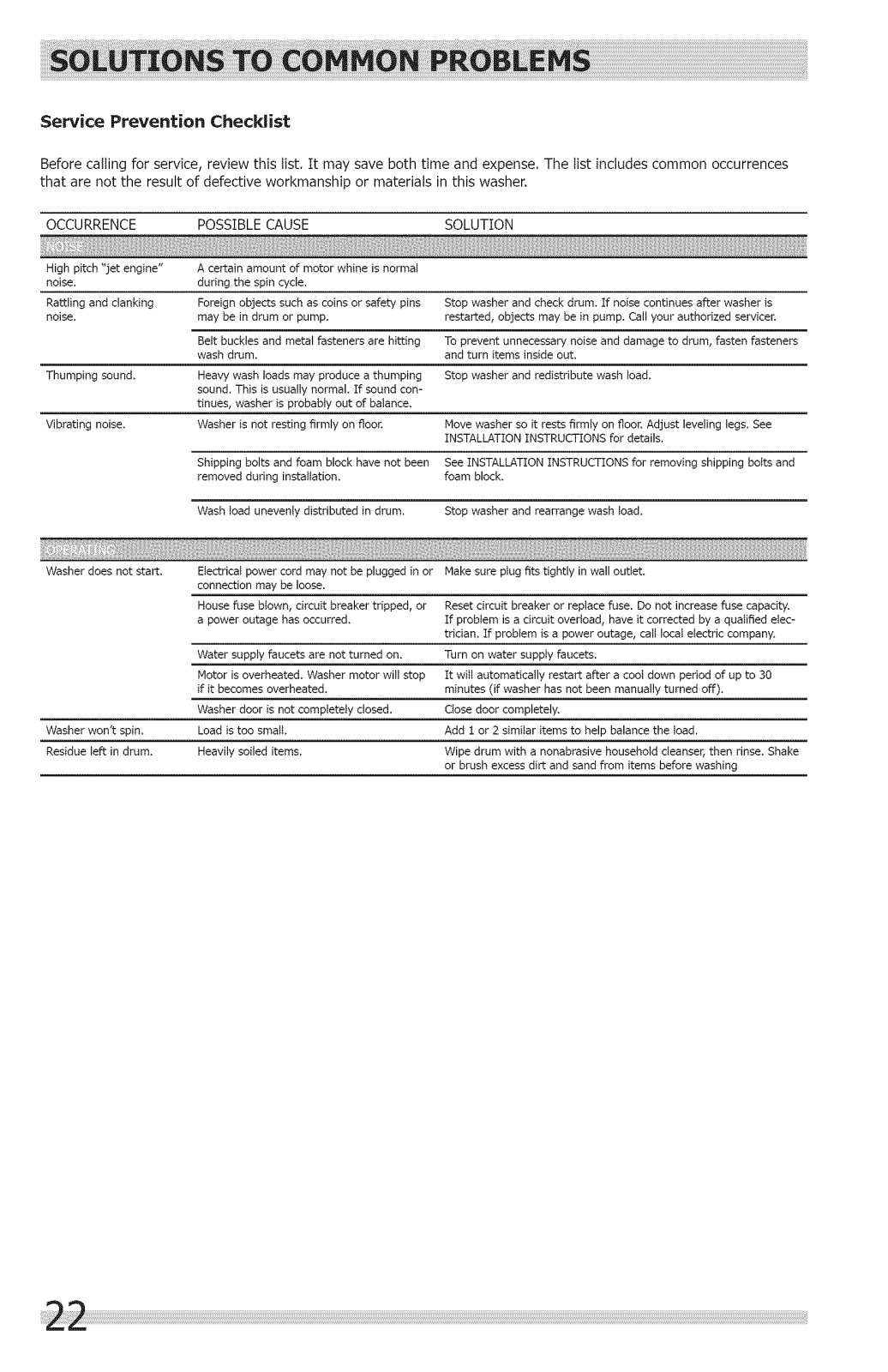

Service Prevention Checklist
Before calling for service, review this list, It may save both time and expense, The list includes common occurrences
that are not the result of defective workmanship or materials in this washer.
OCCURRENCE POSSIBLECAUSE SOLUTION
High pitch "jet engine" A certain amount of motor whine is normal
noise, during the spin cycle.
Rattling and clanking Foreign objects such as coins or safety pins Stop washer and check drum. If noise continues after washer is
noise, may be in drum or pump. restarted, objects may be in pump. Call your authorized servicer.
Belt buckles and metal fasteners are hitting To prevent unnecessary noise and damage to drum, fasten fasteners
Thumping sound. Heavy wash loads may produce a thumping Stop washer and redistribute wash load.
Vibrating noise. Washer is not resting firmly on fioo_ Move washer so it rests firmly on floor. Adjust leveling legs. See
wash drum. and turn items inside out.
sound. This is usually normal. If sound con-
tinues, washer is probably out of balance.
INSTALLATION INSTRUCTIONS for details.
Shipping bolts and foam block have not been See INSTALLATION INSTRUCTIONS for removing shipping bolts and
removed during installation, foam block.
Wash load unevenly distributed in drum. Stop washer and rearrange wash load.
Washer does not start. Electrical power cord may not be plugged in or Make sure plug fits tightly in wall outlet.
Washer won't spin. Load is too small. Add 1 or 2 similar items to help balance the load.
Residue left in drum. Heavily soiled items. Wipe drum with a nonabrasive household cleanser, then rinse. Shake
connection may be loose.
House fuse blown, circuit breaker tripped, or Reset circuit breaker or replace fuse. Do not increase fuse capacity.
a power outage has occurred. If problem is a circuit overload, have it corrected by a qualified elec-
Water supply faucets are not turned on. Turn on water supp}y faucets.
Motor is overheated. Washer motor will stop It will automatically restart after a coot down period of up to 30
if it becomes overheated, minutes (if washer has not been manually turned off).
Washer door is not completely closed. Close door completely.
trician. If problem is a power outage, call local electric company.
or brush excess dirt and sand from items before washing
i i: iit
Page 23

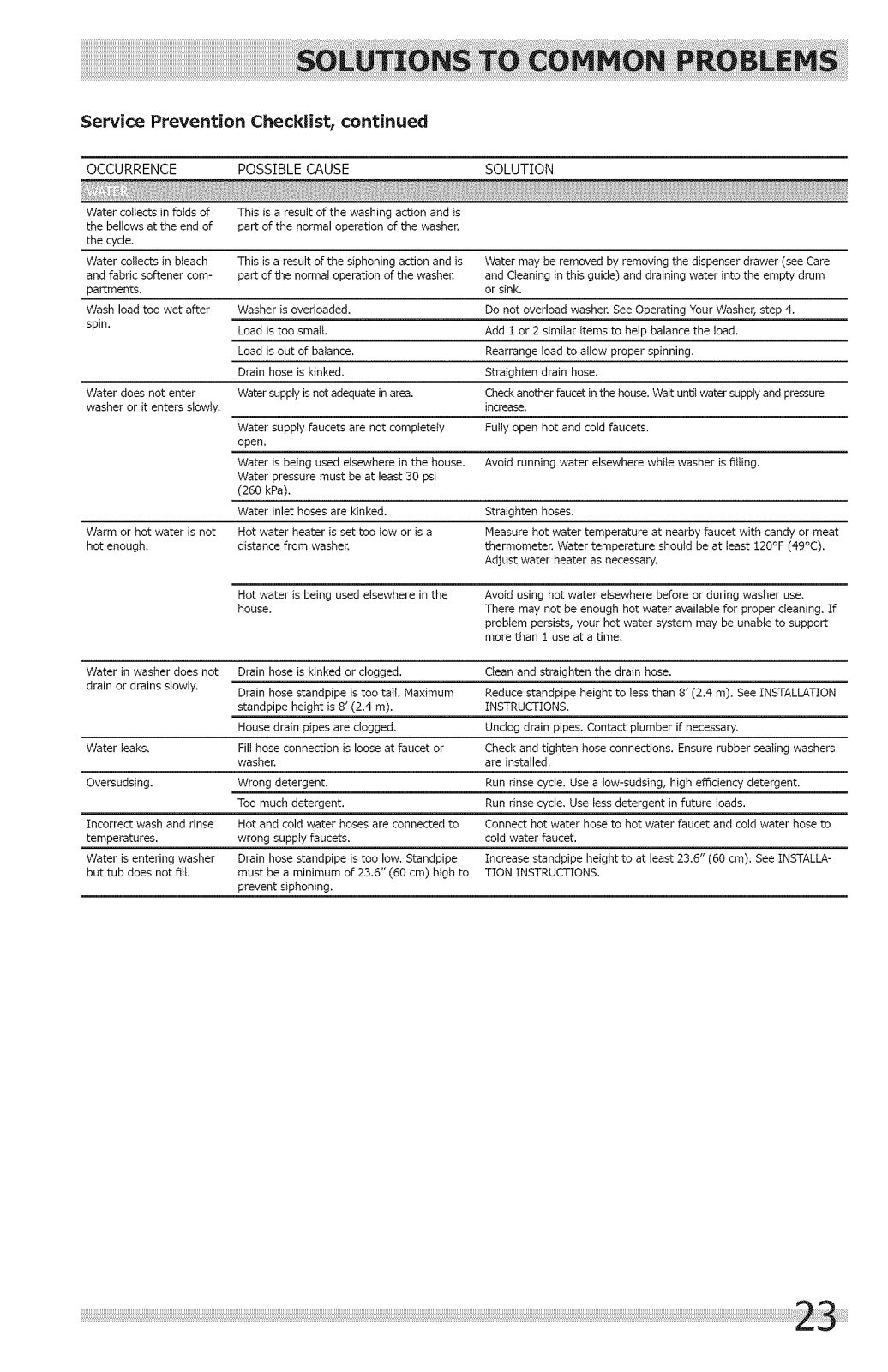

Service Prevention Checklist, continued
OCCURRENCE POSSIBLECAUSE SOLUTION
#
Water collects in folds of
the bellows at the end of
the cycle.
Water collects in bleach This is a result of the siphoning action and is Water may be removed by removing the dispenser drawer (see Care
and fabric softener corn- part of the normal operation of the washer, and Cleaning in this guide) and draining water into the empty drum
partments, or sink.
Wash load too wet after Washer is overloaded. Do not overload washe_ See Operating Your Washer, step 4.
spin. Load is too small. Add 1 or 2 similar items to help balance the load,
Water does not enter Water supply is not adequate in area. Check another faucet in the house, Wait un61 water supply and pressure
washer or it enters slowly, increase.
Warm or hot water is not Hot water heater is set too low or is a Measure hot water temperature at nearby faucet with candy or meat
hot enough, distance from washer, thermometen Water temperature should be at least 120°F (49°C).
Water in washer does not Drain hose is kinked or clogged. Clean and straighten the drain hose.
drain or drains slowly. Drain hose standpipe is too tall. Maximum Reduce standpipe height to less than 8' (2,4 m). See INSTALLATION
Water leaks. Fill hose connection is loose at faucet or Check and tighten hose connections. Ensure rubber sealing washers
Oversudsing. Wrong detergent. Run rinse cycle. Use a low-sudsing, high efficiency detergent,
Incorrect wash and rinse Hot and cold water hoses are connected to Connect hot water hose to hot water faucet and cold water hose to
temperatures, wrong supply faucets, cold water faucet.
Water is entering washer Drain hose standpipe is too low, Standpipe Increase standpipe height to at least 23.6" (60 cm), See INSTALLA-
but tub does not fill. must be a minimum of 23.6" (60 cm) high to TION INSTRUCTIONS.
This is a result of the washing action and is
part of the normal operation of the washer.
Load is out of balance, Rearrange load to allow proper spinning.
Drain hose is kinked. Straighten drain hose.
Water supply faucets are not completely Fully open hot and cold faucets,
open.
Water is being used elsewhere in the house. Avoid running water elsewhere while washer is filling.
Water pressure must be at least 30 psi
(260 kPa).
Water inlet hoses are kinked. Straighten hoses.
Adjust water heater as necessary.
Hot water is being used elsewhere in the Avoid using hot water elsewhere before or during washer use.
house. There may not be enough hot water available for proper cleaning. If
standpipe height is 8' (2,4 m). INSTRUCTIONS.
House drain pipes are clogged. Unclog drain pipes. Contact plumber if necessary.
washen are installed,
Too much detergent. Run rinse cycle. Use less detergent in future loads.
prevent siphoning.
problem persists, your hot water system may be unable to support
more than 1 use at a time.
Page 24

For the applicable warranty period as set forth below, as measured from your original date of purchase, Electrolux wil! repair or
replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used
and maintained in accordance with the provided instructions.
Warranty Periods:
• All parts -- One year including labor
• Wash tub -- Functional life of the product (excluding labor)
• Wash tub drive motor, non-cosmetic defects -- Ten years (excluding labor)
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
S. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary
household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a
part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other
cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage
expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux
parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse,
inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT
AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT
NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR
ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITFEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE
OTHER RIGHTS THAT VARY FROM STATE TO STATE.
IF YOU NEED SERVICE
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be
required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be
obtained by contacting Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrotux Major Appliances North
America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux
authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty
must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are
subject to change without notice.
USA Canada
Electrolux Major Appliances Electrolux Electrolux Canada Corp.
1.800.944,9044 _ 1.800,265.8352
10200 David Taylor Drive 58S5 Terry Fox Way
Charlotte, NC 28262 Mississauga, Ontario, Canada
LSV 3E4
