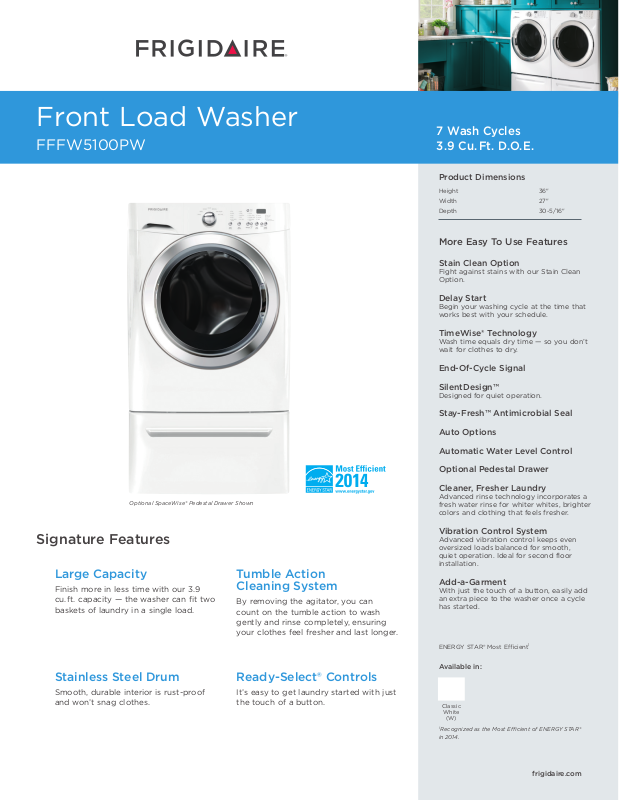

FRIGIDAIRE FFFW5100PW User Manual
Front Load Washer
FFFW5100PW
7 Wash Cycles
3.9 Cu. Ft. D.O.E.
Product Dimensions
Height 36"
Width 27"
Depth 30-5/16"
More Easy To Use Features
Stain Clean Option
Fight against stains with our Stain Clean
Option.
Delay Start
Begin your washing cycle at the time that
works best with your schedule.
TimeWise® Technology
Wash time equals dry time — so you don’t
wait for clothes to dry.
End-Of-Cycle Signal
SilentDesign™
Designed for quiet operation.
Stay-Fresh™ Antimicrobial Seal
Optional SpaceWise® Pedestal Drawer Shown
Signature Features
Large Capacity
Finish more in less time with our 3.9
cu. ft. capacity — the washer can fit two
baskets of laundry in a single load.
Stainless Steel Drum
Smooth, durable interior is rust-proof
and won’t snag clothes.
Tumble Action
Cleaning System
By removing the agitator, you can
count on the tumble action to wash
gently and rinse completely, ensuring
your clothes feel fresher and last longer.
Ready-Select® Controls
It’s easy to get laundry started with just
the touch of a button.
Auto Options
Automatic Water Level Control
Optional Pedestal Drawer
Cleaner, Fresher Laundry
Advanced rinse technology incorporates a
fresh water rinse for whiter whites, brighter
colors and clothing that feels fresher.
Vibration Control System
Advanced vibration control keeps even
oversized loads balanced for smooth,
quiet operation. Ideal for second floor
installation.
Add-a-Garment
With just the touch of a button, easily add
an extra piece to the washer once a cycle
has started.
ENERGY STAR® Most Ecient
Available in:
Classic
White
(W)
1
Recognized as the Most Ecient of ENERGY STAR®
in 2014.
1
frigidaire.com
B
C
A
B
A
C
Features
Total Capacity D.O.E. (Cu. Ft.)
Controls
Washer Drum Interior
Lifetime Warranty Tub
Interior Light / Door Trim
Vibration Control System
Advanced Rinse Technology
TimeWise® Technology
Ready Clean™ / Ready Steam™
Fresh Water Rinse Option
Stay-Fresh™ Door Seal
Automatic Temperature Control
Automatic Water Level Adjustments
Auto Prewash Detergent Dispenser
Auto Bleach Dispenser
Auto Detergent Dispenser
Auto Fabric Softener Dispenser
Time Remaining Indicator
Cycle Status Lights
Cycle Signal / Cycle Signal “On/O ”
Cycle Signal Volume Control
Door Lock Indicator Light
Control Lock / Stay Put Door
Start / Pause / Cancel Buttons
Energy Saver Option
Delay Start
Integral Water Heater
Tumble Speed (RPM)
Spin Speed (Maximum RPM)
Sound Package
Adjustable Leveling Legs
3.9
Ready-Select®
Stainless Steel
Yes
No / Chrome
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Chime / Yes
Yes
Yes / No
Yes
Yes
Up to 10 Hours
Variable
1200
SilentDesign™
Yes
Cycles
Wash Cycles / Specialty Cycles
7 / 0
Options
Water Temperature Selections
Water Levels
Spin Speed / Soil Level Selections
Allergen
5
Automatic / Max Fill
5 / 3
Optional Accessories
Dryer Stacking Kit
15" Frigidaire® Pedestal Drawers
Classic White (W)
Mobile Home Installation Kit
Drain Hose Extension Kit
6' Stainless Steel Washer Fill Hose (2 pack)
4' Rubber Washer Fill Hose (2 pack)
PN # STACKIT4X
PN # CFPWD15W
PN # 137067200
PN # 137098000
PN # 5305516562
PN # 5308815006
Certifications
ENERGY STAR® Most Ecient
NSF® Certified Sanitize / Allergen
1
Yes
Specifications
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts
Watts @ 120 Volts / Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
Recognized as the Most Ecient of ENERGY STAR® in 2014.
2
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.
Right Top Rear
Left Top Rear
120V / 60Hz / 15A
2
1.1
1,100 / 10
15
222 Lbs.
Front Load Washer
FFFW5100PW 3.9 Cu. Ft. D.O.E.
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Single)
Height (Stacked)
B - Width
C - Depth
Depth with Door Open 90°
Pedestal Dimensions
A - Height
B - Width
C - Depth
Depth with Drawer Fully Extended
36"
71-1/2"
27"
30-5/16"
51-7/16"
15-1/4"
27"
26-1/2"
42-1/2"
•
USA
10200 David Taylor Drive
•
CANADA
FFFW5100P 03/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
