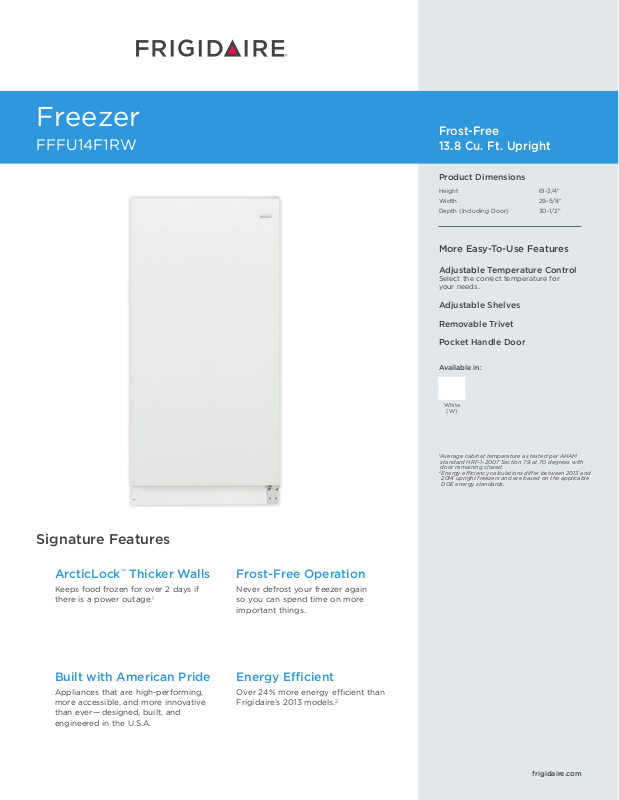

Frigidaire FFFU14F1RW Specification Sheet
Freezer
FFFU14F1RW
Place and center
image here.
Frost-Free
13.8 Cu. Ft. Upright
Product Dimensions
Height 61-3/4"
Width 29-5/8"
Depth (Including Door) 30-1/2"
More Easy-To-Use Features
Adjustable Temperature Control
Select the correct temperature for
your needs.
Adjustable Shelves
Removable Trivet
Pocket Handle Door
Available in:
White
(W)
Signature Features
ArcticLock™ Thicker Walls
Keeps food frozen for over 2 days if
there is a power outage.
Built with American Pride
Appliances that are high-performing,
more accessible, and more innovative
than ever — designed, built, and
engineered in the U.S.A.
1
Frost-Free Operation
Never defrost your freezer again
so you can spend time on more
important things.
Energy Ecient
Over 24% more energy efficient than
Frigidaire’s 2013 models.
2
1
Average cabinet temperature as tested per AHAM
standard HRF-1-2007 Section 7.9 at 70 degrees with
door remaining closed.
2
Energy eciency calculations dier between 2013 and
2014 upright freezers and are based on the applicable
DOE energy standards.
frigidaire.com
Features
For adequate air circulation,
allow 3" minimum
clearance on all sides and top
with 1" at bottom
Recessed
electrical outlet
Top View
A
B
C
Door Handle Design
Reversible Door
Automatic Door Closer
Leveling Legs
Lock with Pop-Out Key
Defrost
Adjustable Temperature Control
Front Digital Display
Temp Display Mode
High-Temp Duration Readout
High-Temp Alarm
Door Ajar Alarm
Airflow Ports
Interior Lighting
Full-Width Adjustable Shelves
Full-Width Fixed Shelves
Removable Trivet
Mid-Level Baskets
Lower Storage Basket
Basket Dividers
Retractable Pizza Shelf
Full-Width Door Bins
Fixed Door Racks
Defrost Drain
Power-On Light
Pocket
Yes
Frost-Free
Mechanical Dial
1-7
1
3 Wire
1
5
Certifications
CSA Rating
Specifications
Total Capacity (Cu. Ft.)
Shelf Area (Sq. Ft.)
Annual Energy (kWH)
Annual Energy Cost (.12 / kWH)
Power Supply Connection Location
Voltage Rating
Connected Load (kW rating) @ 115 Volts
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
An electrical supply with grounded three-prong receptacle is required. The
power supply circuit must be installed in accordance with current edition
of National Electrical Code (NFPA 70) and local codes & ordinances.
Household
13.83
7.9
436
$52
Lower Right Rear
115V, 60Hz
1
.60
5
15
162 Lbs.
Freezer
FFFU14F1RW 13.8 Cu. Ft. Upright
NOTE: For planning purposes only. Always consult local and
national electric codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth (Including Door)
Depth with Door Open 90˚
•
USA
10200 David Taylor Drive
•
CANADA
FFFU14F1R 03/15 © 2015 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
61-3/4"
29-5/8"
30-1/2"
58"
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
