Read and Save These Instructions
This Owner's Guide provides specific operating
instructions for your model. Use your appliance
only as instructed in this guide. These instructions
are not meant to cover every possible condition
and situation that may occur. Common sense
and caution must be practiced when installing,
operating, and maintaining any appliance.
Record Your Model and
Serial Numbers
Record the model and serial numbers in the
space provided below.
Hodel Number:
Serial Number:
Purchase Date:
Register Your Product
The self-addressed PRODUCT REGISTRATION
CARD (shown above) should be filled in completely,
signed and returned to the address provided.
Pleasereadallinstructionsbeforeusing
thisunit,
Definitions
_This isthe safetyalertsymbol.Itisusedto
alertyou to potentialpersonalinjuryhazards.
Obey allsafetymessages thatfollowthissymbol
to avoidpossibleinjuryor death.
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
IMPORTANT indicates installation, operation or
maintenance information which is important
but n°t hazard-relate& ................................................................................................
For your safety
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
unit or any other appliance. Read product
labels for flammability and other warnings.
• Do not operate the unit in the presence of
explosive fumes.
• Remove and discard any spacers
used to secure the shelves during
shipping. Small objects are a choke
hazard to children.
• Remove all staples from the carton. Staples
can cause severe cuts, and also destroy
finishes if they come in contact with other
appliances or furniture.
Child Safety
Destroy carton, plastic bags, and any exte-
rior wrapping material immediately after the
unit isunpacked. Children should never use
these items for play. Cartons covered with
rugs, bedspreads, plastic sheets or stretch
wrap may become airtight chambers and
can quickly cause suffocation.
* An empty, discarded appliance is a very
dangerous attraction to children.
Remove the door(s) of any appliance that is
not in use, even if it is being discarded.
Proper Disposal of your Appliance
Risk of child entrapment
Child entrapment and suffocation are not
problems of the past. Junked or abandoned
appliances are still dangerous - even if they
will sit for"just a few days': If you are getting
rid of your old appliance, please follow the
instructionsbelow to help prevent accidents.
We strongly encourage responsible
appliance recycling/disposal methods. Check
with your utility company or visit www.
recydemyoldfridge.com for more information
on recycling your old appliance.
Before you throw away
your old appliance:
* Remove door/lid.
* Leave shelves in place _4:
so children
not easily
climb inside.
Have the
refrigerant
removed by a
qualified technician.
Avoid fire hazard or electric shock. Do not use
an extension cord or an adapter plug. Do not
remove any prong from power cord.
Grounding type wall receptacle
Do not, under
any circumstances, _
cut, remove, |
or bypass the |
grounding pr_
Power cord with
3.prong grounded plug
Electrical Information
These guidelines must be followed to ensure
that safety mechanisms in the design of this
appliance will operate properly.
Refer to the serial plate for correct electrical
rating. The power cord of the appliance is
equipped with a three-prong grounding plug
for your protection against electrical shock
hazards. ]:t must be plugged directly into a
.... properly grounded three-prong receptacle,
protected with a 15-amp time delay fuse
or circuit breaker. The receptacle must be
installed in accordance with the local codes
and ordinances. Consult a qualified electri-
cian. Receptacles protected by Ground Fault
Circuit Interrupters (GFC]:) are NOT RECOM-
MENDED. Do NOT use an extension cord or
adapter plug.
If the power cord is damaged, it should be
replaced by an authorized service technician
to prevent any risk.
Never unplug the appliance by pulling on
the power cord. Always grip the plug firmly,
and pull straight out from the receptacle to
prevent damaging the power cord.
Unplug the appliance before cleaning and
before replacing a light bulb to avoid electri-
cal shock.
• If voltage varies by 10% or more, appliance
performance may be affected. Operating the
unit with insufficient power can damage the
motor. Such damage is not covered under
the warranty. If you suspect your household
voltage is high or low, consult your power
company for testing.
• To prevent the appliance from being turned
off accidentally, do not plug unit into an outlet
controlled by a wall switch or pull cord.
• Do not pinch, knot, or bend power cord in
..........................any manner. ......................................................................................................................................................................................................................................................
Other Precautions
• To defrost appliance, always unplug unit first.
• Never unplug the unit by pulling on the power
cord. Always grip the plug firmly and pull
straight out from the receptacle.
• Turning the control to OFF turns off the
compressor, but does not disconnect power to
other electrical components.
This Use & Care Guide provides general operating
instructionsfor your model. Use the unit only as
instructed in this Use & Care Guide. Before starting
the unit, follow these important first steps.
Location
Choose a place that is near a grounded
electrical outlet.
For the most efficient operation, the appliance
should be located where surrounding
temperatures will not exceed 110°F (43°C).
Temperatures of 32°F (0°C) and below will
NOT affect operation. Additional compressor
heaters are not
recommended.
Allow space
around the
unit for good
air circulation.
Leave a 3 inch
(75 mm) space
on all sides
of the unit
for adequate
circulation.
"(75 mm)Air Space
Leveling
The appliance must have all bottom corners
resting firmly on a solid floor. The floor must be
strong enough to support a fully loaded unit.
It is VERY IMPORTANT for your appliance to
be level in order to function properly. If the unit
is not leveled during installation, the door/lid may
be misaligned and not close or seal properly,
usingcooling,frostormoistureproblems
To level Upright Units:
After discarding crating screws, use a carpenter's
level to level the appliance from front to back.
Adjust the plastic leveling feet in front, 1/2bubble
higher, so that the door closes easily when left
halfway open.
To level Chest Units:
If needed, add metal or wood shims between
feet pads and floor.
Toallowdoortocloseandsealproperly,DO
NOTletfoodpackagesextendpastthefront
ofshelves.
3.
Slide the shelf grommet into the grommet
alread in the unit wall until it is flush.
To install the shelf grommet to the shelf:
1.
With the wire shelf installed, press the
shelf grommet down onto the wire that
is anchored into the appliance wall. Be
sure to keep the larger end of the shelf
rommet away from the wall.
2.
Push the shelf grommet onto the wire until
it snaps in place.
_!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!_i_¸5!i_i_i_i_i_!
To install the handle clips to the basket:
1. Place the basket on a firm, fiat surface.
2. With the narrow side of the handle clip on
the inside of the basket, snap the handle
clip to the recessed area in the basket.
3. Base
Oncetheinsidesurfacesnapsinplace,
continuetheprocessbyrollingthehandle
Panel
clipslightlyoutwardandpressingdown
firmlytosnapontotheoutsidesurface.If
installedincorrectly,thehandleclipwillnot
layfiat.
_nel
Screws
HingeScrews
Door Removal (upright models)
If door must be removed, unplug the unit,
1. Gently lay the unit on its back, on a rug
or blanket.
2. Remove 2 base screws and base panel.
3. Remove wire from clips on bottom of
cabinet if required.
4. Unplug connector, if required, by holding
the cabinet connector in place, and pulling
door connector out.
5. Remove bottom hinge screws.
6. Remove plastic top hinge cover.
7. Remove screws from top hinge.
8. Remove top hinge from cabinet.
9. Remove door and bottom hinge
from cabinet.
10. To replace door, reverse the above order
and securely tighten all screws to prevent
hinge slippage.
r Connector
Connector
Lid Removal (chest models)
See Instructions on hinge label. Unplug the unit.
Cool Down Period
• For safe food storage, allow 4 hours for the
appliance to cool down completely. The unit
will run continuously for the first several
hours. Foods that are already frozen may be
placed in the unit after the first few hours of
operation. Unfrozen foods should NOT be
loaded into freezer until freezer has operated
for 4 hours.
• When loading freezer, freeze only 3 pounds
of fresh food per cubic foot of freezer space
at one time. Distribute packages to be frozen
evenly throughout the freezer. It is not
necessary to turn control knob to a colder
setting while freezing food.
Electromechanical Temperature
Control (chest and some upright models)
The temperature control is located inside the
freezer on upright models, and on the left exterior
wall on chest models. The temperature is factory
preset to provide satisfactory food storage
temperatures. However, the temperature control is
adjustable to provide a range of temperatures for
your personal satisfaction. If a colder temperature
is desired, turn the temperature control knob
toward COLDEST and allow several hours for
temperatures to stabalize between adjustments.
/ \
J z \)
/
\ °
i
Your freezer may have some, or all of the
featu reslisted below. Become famfl Jarwith
these features, and their use and care,
the alarm, press the set button next to the "alarm
off" indicator on the display or any key on the
control panel.
-- iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii+
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i
_ioo_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiL_t
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiL
Quick Freeze
Quick freeze can be enabled by entering into
the options menu on the control panel and by
pressing the "set" button once the indicator is
highlighted next to "quick freeze" The unit will
be in quick freeze mode for 72 hours and will
show a snowflake indicator on the control panel
to indicate that it is in quick freeze mode. To exit
quick freeze mode, enter into the options menu
on the control panel and press the "set" button
once the indicator is highlighted next to "quick
freeze", after which the snowflake indicator will
be removed from the control panel. Or quick
freeze will end automatically after 72 hours.
Control Lock
Control lock can be enabled by entering into the
options menu on the control panel and by pressing
the "set" button once the indicator is highlighted next
to "control lock': A control lock icon will be displayed
on the control panel to indicate that the control panel
has been locked. To unlock, press and hold the set
button for 3 seconds, after which the lock indicator
will be removed from the control panel and the
control panel has been unlocked.
Electronic Temp Alarm
If a malfunction causes an unsafe temperature
inside the freezer, the high temp will display on the
control panel and the alarm will sound. To silence
Power On Light
The Power On Light indicates that the appliance is properly connected to electrical power. The light glows
even when the temperature control is turned to OFF. If the light goes out, refer to "Appliance does not
run" in the Before You Call section.
Power Off
To shut cooling off to the unit and to turn off the interior lights of the unit, enter into the options menu
on the control panel and press and hold the "set" button for 3 seconds once the indicator is highlighted
next to "power off': "Power off" will be displayed on the control panel to indicate that the unit is in
the powered off mode. To turn power back on to the unit, press and hold the"set" key for 3 seconds.
Then the power off indicator will be removed from the control panel and the set point of the unit will be
displayed again.
Power Fail
If your unit has lost power, the control panel will display "power fail" and the number of hours
that your unit has been without power up to a maximum of 48 hrs. The alarm will sound until the
condition is acknowledged by pressing the set button or any other button on the control panel.
Door Ajar
If your door has been left open for more 5 minutes, the control panel will display "door ajar" and
will sound an alarm until the door has been closed or any button is pressed on the control panel. If
a button on the control panel has been pressed but the door has not been closed, "door ajar" will
continue to be displayed on the control panel until the door has been closed.
Sabbath Hode
The Sabbath mode is a feature that disables portions of the appliance and its controls in accordance
with observance of the weekly Sabbath and religious holidays within the Orthodox Jewish community.
To turn Sabbath mode on, press and hold the "Options" button and "+" button for 5 seconds, after
which "Sb" will be displayed on the control panel indicating that the unit is in Sabbath mode. To exit
Sabbath mode, press and hold the "Options" button and "+" button for 5 seconds, after which the
display will return to displaying the set point of the unit.
In the Sabbath mode, the High Temp alarm is active for health reasons. If a high temperature alarm
is activated during this time, for example, due to a door left ajar, the alarm will sound for about 10
minutes. The alarm will then silence on its own and a "high temp" icon will be displayed on the
control panel. The high temp icon will continue to display even if the door is closed until Sabbath
mode is exited and the icon reset.
,_For further assistance, guidelines of proper usage and a complete list of models with the
Sabbath feature, please visit the web at http:\\www.star-k.org.
While in Sabbath mode, neither the lights nor the control panel will work until Sabbath mode has
been deactivated.
The unit stays in Sabbath mode after a power failure recovery. It must be deactivated with the
buttons on the control panel.
Adjustable Shelf
(some upright models)
This shelf can be moved to 1 or 2 positions. Lift the shelf up and out to move to the desired location.
Slide-Aside
Basket (some
chest models)
Thisbaskethelps
organizeodd-shaped
items.To reach
other packages in
the freezer, slide
the basket asideor
lift out.
"___ / tostoreupto
/ _-_:_<'.:_ fourextra-large
_,_,_ _:_ boxesoffrozen
/ / -_, (someupr_ght
L 2) models)
_:_A .ere_stheplace
Fast Freezing Shelves (manualdefrost
upright models)
These shelves contain cooling coils to freeze
foods quickly and allow cold air to constantly
circulate throughout the freezer. Do not use sharp
metal objects such as ice picks or scrapers to
clean the shelves. This could damage the shelves
and reduce their cooling ability. These shelves are
not adjustable.
Tilt-Out Shelf
(some upright
models)
This shelf is located
inside on the freezer
door and provides
additional storage
item, tilt top of "basket" shelf down.
space. To access an
Adjustable
Door Bins
(some upright
models)
Adjustable door
bins are located
inside on the
freezer door and ............... I
provide flexible
storage space.
The number of bins provided varies by model.
............... I
Soft Freeze
Zone (some
upright models)
Soft Freeze Zone
is specifically
designed to
temperature than the rest of the freezer to store
products such as ice cream.
maintain a higher
Pizza Shelf
pizza without ever
having to dig them
out from beneath a pile of other stored goods.
The pizza shelf can be retracted to provide space
for larger items on the shelf below and still store
up to 2 pizzas.
-- Basket
..................... keeps things
Basket
Mid-Level
This basket
organized and
slides out for
easy access.
Divider
(some
upright
models)
Use these
handy dividers
to keep the
various items
stored in your
baskets more organized. To change the location
of the divider simply slide your basket out,
grab the divider from the center and rotate in a
counterclockwise direction until it is desengaged.
To assemble, simply align as shown in the figure
below and rotate in a clockwise direction until it
spans into place.
Compressor-Hounted Drain Pan
(most upright frost-free models)
Most upright frost-free freezers are equipped with
a compressor-mounted drain pan that collects
condensate during each defrost cycle. This
compressor-mounted drain pan takes advantage
of the heat generated by the compressor to
evaporate condensate water, so there is no need
to empty the pan during each defrost cycle.
Compressor
_,, The appliance should
-'14.
__ i_--_ be located in the
__ I_,/ producing appliances or
to room temperature before placing in the
unit. Overloading the appliance forces the
compressor to run longer. Foods that freeze
too slowly may lose quality or spoil.
Be sure to wrap foods properly and wipe
containers dry before placing them in the
unit. This cuts down on frost build-up inside
the unit.
Shelves and baskets should not be lined with
aluminum foil, wax paper, or paper toweling.
Liners interfere with cold air circulation, making
the freezer less efficient.
Organize and label food to reduce door
openings and extended searches. Remove as
many items as needed at one time, and close
door as soon as possible.
coolest area of the
room, away from heat
heating ducts, and out
of direct sunlight.
, Let hot foods cool
Damp objects stick to cold metal surfaces. Do
not touch interior metal surfaces with wet or
damp hands.
Some upright freezers are frost-free and defrost
automatically, but should be cleaned occasionally.
Between Defrosting
To avoid frequent defrosting, occasionally use
a plastic scraper to remove frost. Scrape with a
pulling motion. Never use a metal instrument to
remove frost.
Freezer must be unplugged (to avoid electrical
hazard) from power source when defrosting unit.
Defrosting
It is important to defrost and clean freezer when
1/4to 1/2inch of frost has accumulated. Frost may
tend to accumulate faster on upper part of the
freezer due to warm, moist air entering the freezer
when the door is opened. Remove food and leave
the door open when defrosting the freezer.
• On upright models with a defrost drain
(Figure 1), remove drain plug on the inside
floor of the freezer by pulling straight out.
To access external drain tube on models
with a base panel, first remove the 2 screws
from the base panel. Locate the drain tube
near the left center under the freezer. Place
a shallow pan under the drain tube. Defrost
water will drain out. Check pan occasionally
so water does not overflow. A 1/2inch garden
hose adapter can be used to drain the freezer
directly into a floor drain. If your model is
not equipped with an adapter, one can be
purchased at most hardware stores. Replace
the drain plug when defrosting and cleaning
are completed. If the drain is left open, warm
air may enter freezer.
_!!!!i_!!i_!!Oi!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!i!i!i!i!i!i!i!i!i!i!i!i!i!i:_
Drain Pan
Figure 1
• On chest models with a defrost drain,
place a shallow pan beneath the drain outlet
(Figure 2). A 1/2inch garden hose adapter can
be used to drain the freezer directly into a floor
drain (Figure 3). If your model is not equipped
with an adapter, one can be purchased at most
hardware stores. Pull out the drain plug inside
the freezer, and pull off the outside defrost
drain plug (Figure 4).
Drain
Pan
Figure 2
Figure 3
Defrost water will drain out. Check pan
Figure 4
occasionally so water does not overflow. Replace
the drain plugs when defrosting iscompleted.
• On models without a defrost drain, place
towels or newspapers on the freezer bottom
to catch the frost. The frost will loosen and
fall. Remove towels and/or newspapers.
• If the frost is soft, remove it by using a plastic
scraper. [f the frost is glazed and hard, fill
deep pans with hot water and place them on
the freezer bottom. Close the freezer door.
Frost should soften in about 15 minutes.
Repeat this procedure if necessary.
Cleaning the Inside
After defrosting, wash inside surfaces of the
unit with a solution of 2 tbsp. (25 g) of baking
soda in 1 qt. (1 I) warm water. Rinse and dry.
Wring excess water out of the sponge or cloth
when cleaning in the area of the controls, or any
electrical parts.
Wash the removable parts with the baking soda
solution mentioned above, or mild detergent and
warm water. Rinse and dry. Never use metallic
scouring pads, brushes, abrasive cleaners, or
alkaline solutions on any surface. Do not wash
removable parts in a dishwasher.
Cleaning the Outside
Wash the cabinet with warm water and mild
liquid detergent. Rinse well and wipe dry with a
clean soft cloth. Replace parts and food.
Do not use razor blades or other sharp
instruments, which can scratch the appliance
surface when removing adhesive labels. Any glue
left from the tape can be removed with a mixture
of warm water and mild detergent, or touch the
residue with the sticky side of the tape already
removed. DO NOT REMOVE THE SER:[ALPLATE.
]ifleavingdooropenwhileonvacation,make
certainthatchildrencannotgetintothe
applianceandbecomeentrapped.
Donotopendoorunnecessarilyifunitisofffor
severalhours.
Vacation and Hoving Tips
Short Vacations: Leave the appliance operating
during vacations of less than 3 weeks.
Long Vacations: [f the unit will not be used
for several months, remove all food and unplug
the power cord. Clean and dry the interior
thoroughly. Leave the freezer door open slightly,
blocking it open if necessary, to prevent odor and
mold growth.
Moving: Disconnect the power cord plug from the
wall outlet. Remove food, defrost, and then clean
the appliance. Secure all loose items such as base
panel, baskets, and shelves by taping them securely
in place to prevent damage, in the moving vehicle,
secure the unit in an upright position, and secure to
prevent movement. Also protect outside of unit with
a blanket, or similar item.
If a power failure occurs, frozen foods will stay
frozen for at least 24 hours if the appliance is kept
closed, if the power failure continues, pack seven
or eight pounds of dry ice into the unit every 24
hours. Look in the Yellow Pages under "Dry Ice,"
"Dairies," or "ice Cream Manufacturers" for local
dry ice suppliers. Always wear gloves and use
caution when handling dry ice.
If the appliance has stopped operating,
see "Appliance does not run" in the BEFORE
YOU CALL section of this manual. ]:f you cannot
solve the problem, call an authorized servicer
immediately.
[f the appliance remains off for several
hours, follow the directions above for the use of
dry ice during a power failure, if necessary, take
the food to a local locker plant until the unit is
ready to operate. Look in the Yellow Pages under
"Frozen Food Locker Plants."
1-800-944-9044 (United States) Visit our web site at
1-800-265-8352 (Canada) www.frigidaire.com.
Before calling for service, review this list. It may save you time and expense. This list includes com-
mon occurrences that are not the result of defective workmanship or materials in this appliance.
PROBLEH [ CAUSE [ CORRECTION
APPLIANCE OPERATION
Appliance • Appliance is plugged into a
does not run. circuit that has a ground
Appliance - Room or outside weather
runs too much is hot.
or too long, - Appliance has recently been
Pressing the"-" • Verify the control panel is not
or"+"but:tons locked or in Sabbath Node.
on the control
_anel does not
change the set
_oints
APPLIANCE TEMPERATURES
fault interrupt.
• Temperature Control is in the
OFF position or POWER OFF
position.
Appliance may not be
plugged in or plug is loose.
• Hose fuse blown or tripped
circuit breaker.
• Power outage
disconnected for a period
of time.
Large amounts of warm
or hot food have been
stored recently.
, Door is opened too frequently
or too long.
- Door may beslightiyopen.
, Temperature control is set
too low.
- Gasket is dirty, worn, cracked,
or poorly fitted.
Use another circuit. [f you are unsure
about the outlet, have it checked by a
certified technician.
See Setting the Temperature
Control section.
Ensure plug is tightly pushed into outlet.
Check/replace fuse with a 15-amp time-delay
fuse. Reset circuit breaker.
Check house lights. Call local electric company.
- It's normal for the appliance to work longer
under these conditions.
It takes 4 hours for the appliance to cool
down completely.
Warm food will cause appliance to run more
until the desired temperature is reached.
, Warm air entering the appliance causes it to
run more. Open door less often.
Ensure door is tightly closed.
- Turn control knob to a warmer setting. Allow
several hours for the temperature to stabilize.
- Clean or change gasket. Leaks in door seal
will cause appliance to run longer in order to
maintain desired temperatures.
• To unlock, press and hold "Set" button for
3 seconds; to exit Sabbath Mode press and
hold "Set" and "Options" for 5 seconds.
_erature is hours for temperature to stabilize.
too cold. • The appliance is in Quick Exit Quick Freeze mode by entering into
Freeze mode. the options menu on the control panel and
pressing the "set" button once the indicator is
highlighted next to "Quick Freeze':
PROBLFH CAUSE CORRECTION
Temperature ' Control iSset too warml o Set fresh food controlto a coldersetting. Allow
inside, appli-several hours for temperature to stabilize:
t%_o¢_laSrm , Door is opened tOOfrequently , Warm air entering the appliance causes it
Ex_ernaltem- • The external walls can be as • This is normal while the compressor works to
perat_re is much as 30OFwarmer than transfer heat from inside the cabinet.
toe warm. room temperature.
SOUND AND NOISE
Louder sound • Modern appliances have • This is normal. When the surrounding noise is
levels when increased storage capacity low, you might hear the compressor running
applianoe is on. and more stable while it cools the interior.
Longer sound ® Appliance operates at higher .,This is normal. Sound will level off or
levels when pressures during the start of disappear as appliance continues to run.
compressor the ON cyc!e.
Comes On. "
Popping or
cracking sound
when compres-
sor ¢Om_ On.
Bubbling
or gurgling
sound, like
water boiling,
Vibrating or
rattling noise.
Thealarm • Look 0n _he control panel to
is sounding determine which indicator
from the con- light is on (High Temp, Power indicator is shown.
trol panel Fail, 0r Door Ajar) _ .................
WATER/HOISTURE/FROST INSIDE APPLIANCE
Moisture forms ® Weather is hot and humid. ' The rate Of frost buildup and internal
on inside I sweating increases. This is normal:
walls, * Door may not be * see "DOOR PROBLEMS"
' I or too ong run more Open door ess often
D_r may not be _ating properly. - See"DOOR PROBLEMS, section
, Large amounts of warm , Warm food will cause appliance to run more
or hot food has been until the desired temperature is reached.
stored recently,
, Appliance has recently been , Appliance requires 4 hours to coo!
disconnected for a Ped0d. down completely,
of Lime.
temperatures. They require a
high efficiency compressor.
• Metal parts undergo * This is normal. Sound will level off or
expansion and contraction, as disappear as the appliance continues to run.
in hot water pipes.
, Refrigerant (used to cool ,, This is norma L
the appliance)is circulating
throughout the system,
* Appliance is not level. It rocks
on the floor when it is
moved slightly.
. Floor is uneven or weak.
Appliance rocks on floor when
it is moved slightly.
. Appliance is touching the wall.
seating properly.
, Door is opened too often or , Open door less often.
too long.
* Level the unit. Refer to "Leveling" in the
INSTALLATION Section.
* Ensure floor can adequately support the
appliance. Level the appliance by putting wood
or metal shims under part of the appliance.
. Re-level or move the appliance slightly. Refer
to "Leveling" in the INSTALLATION Section.
, Press the "set" button to acknowledge the
alarm or close the door if the door ajar
to
PROBLEH I CAUSE _ CORRECTION
WATER/HOISTURE/FROST OUTSIDE APPLIANCE
Hoisture forms I ' Door may not be seating I _ See '_DOOR PROBLEMS"
on outside, properly, caus ng cold air
ODOR IN APPLIANCE
Odor in I, Interior needs to be cleaned. I' Clean interio r with sponge, warm water, and
appliance, baking soda:
DOOR PROBLEHS
Door will _, Appliance is not level: It ], This condition can force the cabinet out
not close, rocks on the floor when it is of square and misalign the door. Refer to
LIGHT BULB IS NOT ON
Power Ava!l: l' LED maybe burned out. I, C0nta_ a qualified service dea!er.
able L=ght Is
_ I ' No electric current isreaching I, See"Appliance does not run" in "APPLIANCE
nO_on the appl!ance: OpER,_Y!ON,!
from inside to meet warm air
from outside,
, Foods With strong Odors aid I' Cover the food tight!Y.
I in the appliance. I
moved slight!y. ,'Leveling,! in the INSTALLATION Section:
' FI0orisuneven0rweakl *i LeVel the floor by using W00d or metal shims
I Appliance rocks on floor when I under the appliance or brace fl00 r supporting
it is moved sight y. 1 the app lance.
The door has been left open Close the door.
[ for morethan 5 minutes. 1
.........................................

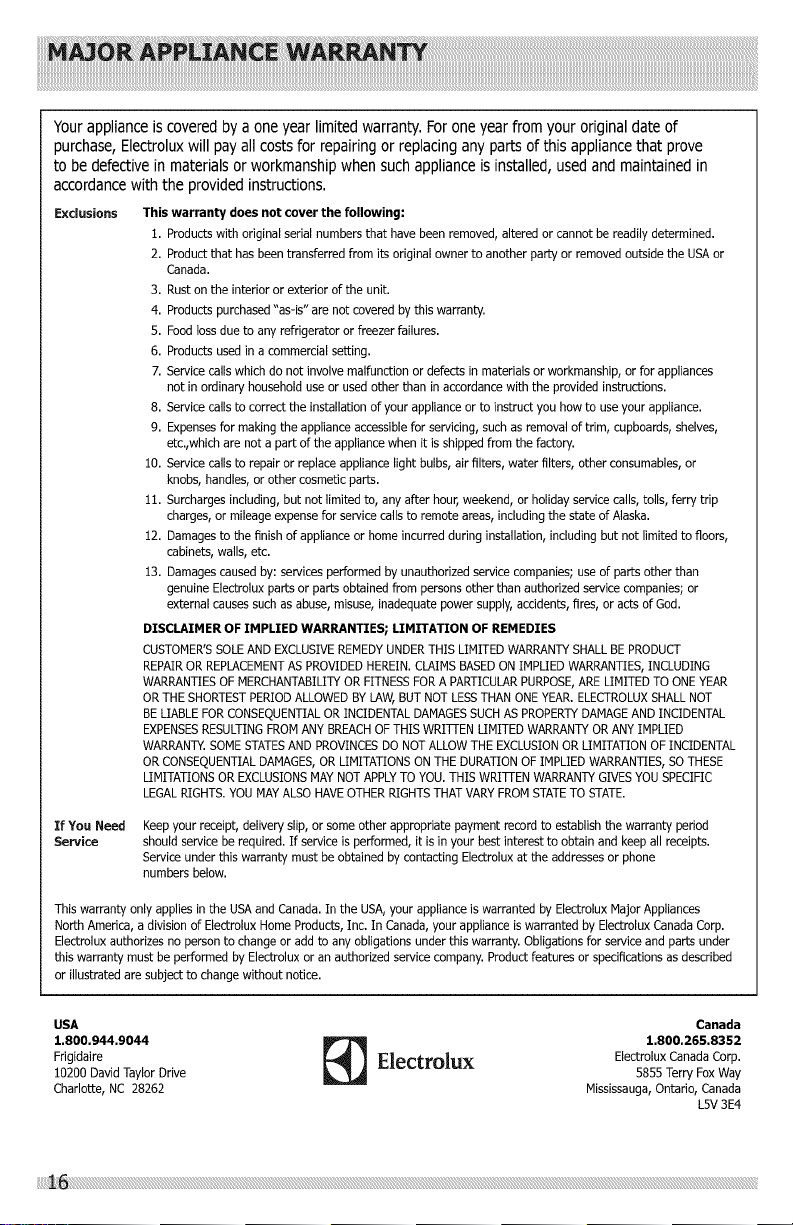

Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase,Electrolux will pay all costs for repairingor replacinganypartsof this appliancethat prove
to be defective in materials or workmanshipwhen such applianceisinstalled,used and maintained in
accordance with the provided instructions.
Exclusions This warranty does not cover the following:
1. Products with original serialnumbers that havebeen removed,altered or cannotbe readily determined.
2. Productthat hasbeen transferred from its original owner to another party orremoved outside the USAor
Canada.
3. Ruston the interior or exterior of the unit.
4. Productspurchased"as-is" are not coveredby this warranty.
5. Foodlossdue to anyrefrigerator or freezer failures.
6. Productsusedin a commercialsetting.
7. Service callswhich do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary householduse or usedother than in accordancewith the provided instructions.
8. Servicecalls to correct the installation of your appliance or to instruct you how to useyour appliance.
9. Expensesfor makingthe applianceaccessiblefor servicing,such asremoval of trim, cupboards, shelves,
etc.,which are not a part of the appliancewhen it is shipped from the factory.
10. Service calls to repair or replaceappliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmeticparts.
11. Surchargesincluding, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges,or mileage expensefor servicecalls to remoteareas, including the state of Alaska.
12. Damagesto the finish of applianceor homeincurred during installation, including but not limited to floors,
cabinets,walls, etc.
13. Damagescaused by: servicesperformed by unauthorizedservice companies; use of parts other than
genuine Electroluxparts or parts obtainedfrom personsother than authorized servicecompanies; or
external causessuch asabuse, misuse, inadequate power supply,accidents, fires, or actsof God.
DISCLAIMER OFIMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'SSOLEANDEXCLUSIVEREMEDYUNDERTHIS LIMITEDWARRANTYSHALLBEPRODUCT
REPAIRORREPLACEMENTASPROVIDEDHEREIN.CLAIMSBASEDONIMPLIEDWARRANTIES,INCLUDING
WARRANTIESOF MERCHANTABILITYOR FITNESSFORAPARTICULARPURPOSE,ARELIMITED TOONE YEAR
ORTHE SHORTESTPERIODALLOWEDBY LAW,BUT NOTLESSTHANONEYEAR.ELECTROLUXSHALLNOT
BELIABLEFORCONSEQUENTIALORINCIDENTALDAMAGESSUCHAS PROPERTYDAMAGEAND INCIDENTAL
EXPENSESRESULTINGFROMANYBREACHOFTHIS WRITFENLIMITEDWARRANTYORANYIMPLIED
WARRANTY.SOMESTATESAND PROVINCESDONOTALLOWTHE EXCLUSIONORLIMITATIONOF INCIDENTAL
ORCONSEQUENTIALDAMAGES,ORLIMITATIONSONTHE DURATIONOFIMPLIED WARRANTIES,SOTHESE
LIMITATIONSOR EXCLUSIONSMAYNOTAPPLYTO YOU.THIS WRITI-ENWARRANTYGIVESYOUSPECIFIC
LEGALRIGHTS.YOUMAYALSOHAVEOTHERRIGHTSTHATVARYFROMSTATETO STATE.
If You Need
Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
This warranty onlyapplies in the USAand Canada.In the USA,your applianceis warranted by Electrolux MajorAppliances
North America, a division of ElectroluxHome Products,Inc. In Canada, your appliance is warranted by ElectroluxCanada Corp.
Electroluxauthorizes no personto changeor addto any obligationsunder this warranty. Obligations for serviceand parts under
this warranty must be performed by Electroluxor an authorizedservice company. Product features or specificationsas described
or illustrated are subject to change without notice.
USA
1.800.944.9044
Frigidaire
10200 David Taylor Drive
Charlotte, NC 28262
Electrolux
Ele_rolux CanadaCorp.
Mississauga,On, no, Canada
Canada
1.800.265.8352
5855Terry FoxWay
LSV3E4
Loading...
